Fractal Design Ion 3 Gold, 1000W, 80PLUS Gold, ATX 3.1, PCIe 5.1

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1289696 Product code: FD-P-IA3G-100-EU
Can be ordered 8 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
159.81 €
Ready for dispatch
16.02.2026
starting from 6.99 €
Delivery options
  • Posti parcel machine
    Within 1-2 working days
    6.99 €
  • Delivery with Posti courier mail
    Within 1-2 working days
    10.99 €
Main product parameters All parameters
  • Producer: Fractal Design
  • Power output: 1000W
  • 80 PLUS certification: 80 PLUS Gold
  • Fan size: 140 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 3 x 6+2pin
Description

This Fractal Design brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 1000W.

This 1000W power supply unit will be able to run the best gaming computer. It has enough power to run multiple high-end graphics cards, a large water cooling system, an overclocked high-end processor, and several hard drives.

This power supply unit is equipped with a 140 mm fan. Thanks to its massive size, it will provide excellent airflow, better cooling even at lower speeds, and will be noticeably quieter than a standard 120 mm fan.

The power supply has been awarded the 80 PLUS Gold energy efficiency certificate, which provides at least 90% efficiency at 50% load. This indicates that at least 90 W out of 100 W of power drawn from the electrical grid by the power supply is delivered to the computer components, with the remaining 10 W lost as heat.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

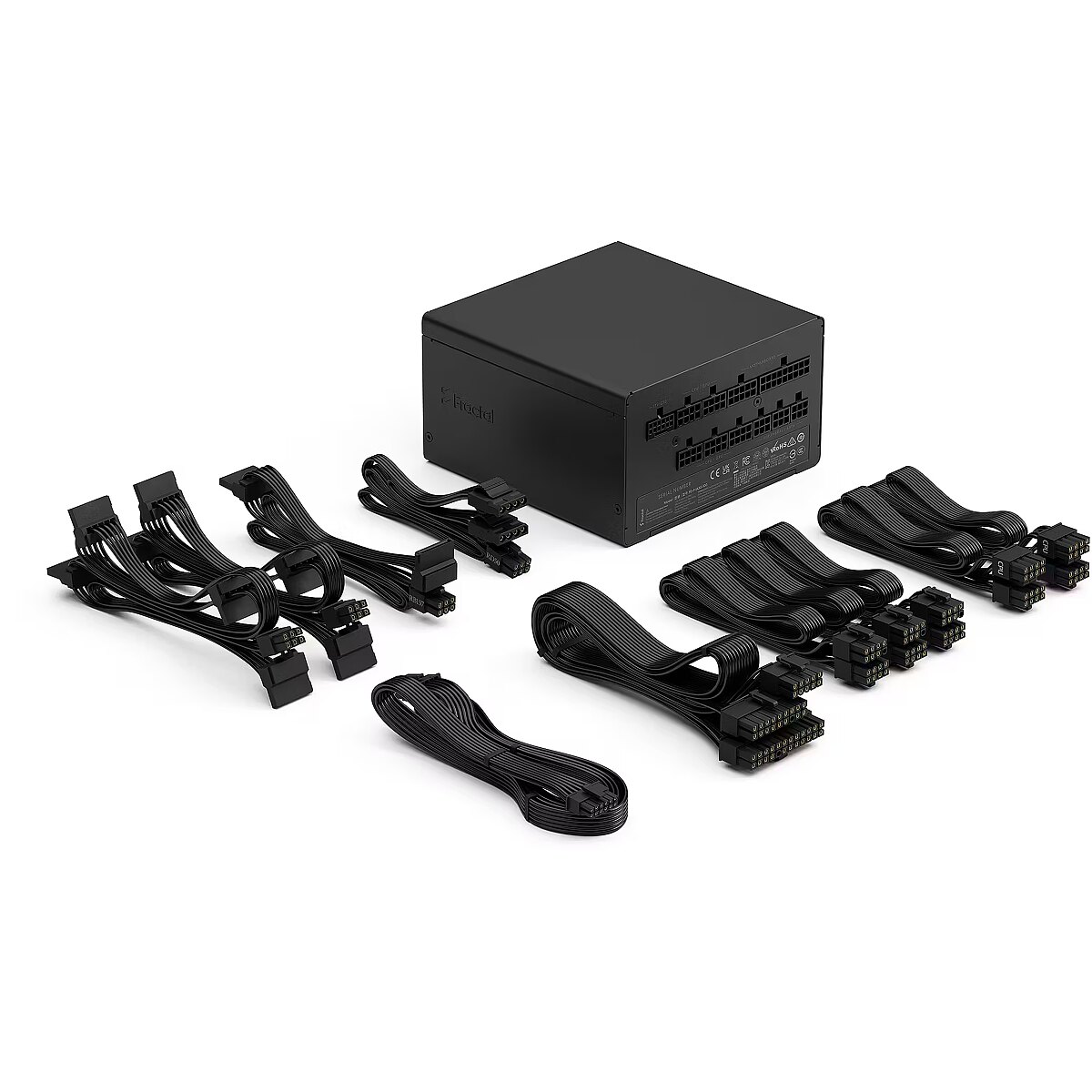

This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 1000W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Gold
Total amperage (+12V) : 83A
Fan size : 140 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0/5.1 : 1 x 600W 12V-2X6 (5.1)
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 3 x 6+2pin
SATA cconnectors : 10
4pin Molex : 2
Case
More detailed specification
8-pin 12V power connectors - 0
Accessories included - Zasilacz Ion 3 Gold Kable modułowe Zestaw akcesoriów (śrubki, opaski zaciskowe, naklejki z logo) Instrukcja obsługi Przewód zasilający
ATX version - 3.1
Certificates 80+ - 80 PLUS Gold
Description - The Ion 3 Gold delivers efficient and stable power in a compact, fully modular design built for modern gaming PCs. ATX12V 3.1 compatibility meets the latest standards and supports next-generation components with native PCIe Gen 5 (12V2×6) connectivity for reliable GPU operation. The quiet-optimized design utilizes a 140mm Momentum fan with a fluid dynamic bearing (FDB) and optional ZeroRPM mode, which turns the fan off under low load. With 80 PLUS Gold certification and high-quality Japanese 105°C capacitors, the Ion 3 Gold ensures long-lasting performance and peace of mind. ATX12V 3.1 compatibility and GPU power surge support for improved stability with future graphics cards. 16-pin PCIe Gen 5 (12V2×6) native GPU power with shortened sense pins for a secure and reliable connection. 80 PLUS Gold certification for high efficiency and reduced waste heat. Fully modular design simplifies installation and reduces cable clutter. Powerful 140mm Momentum fan with fluid dynamic bearing (FDB) for quieter and cooler operation. ZeroRPM mode (optional) disables the fan under low load, ensuring near-silent operation. Flex flexible cables for easy routing and a clean case interior. High-quality Japanese 105°C electrolytic capacitors for reliability and long life.
Designation - CE+WEEE
dimension depth - 190 mm
dimension height - 125 mm
Dimensions - 150 × 150 × 86 mm
dimension weight - 3500 g
dimension width - 355 mm
ean - 7340172710271
Fan - 14 cm
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
Form Factor - ATX
guarantee - 84
guarantee_type - normal
MB power connector - 20 + 4 pin
Modular power supply - Yes
MOLEX power connectors - 2
name - FDE Ion 3 GOLD 1000W 80+ GOLD Black
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 1
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 3
Number of USB 10p connectors - 0
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PFC - Active
Power supply - 1000 W
producer - Fractal Design
SATA power connectors - 10
vendpn - FD-P-IA3G-100-EU
159.81 €
Fractal Design Ion 3 Gold, 1000W, 80PLUS Gold, ATX 3.1, PCIe 5.1
