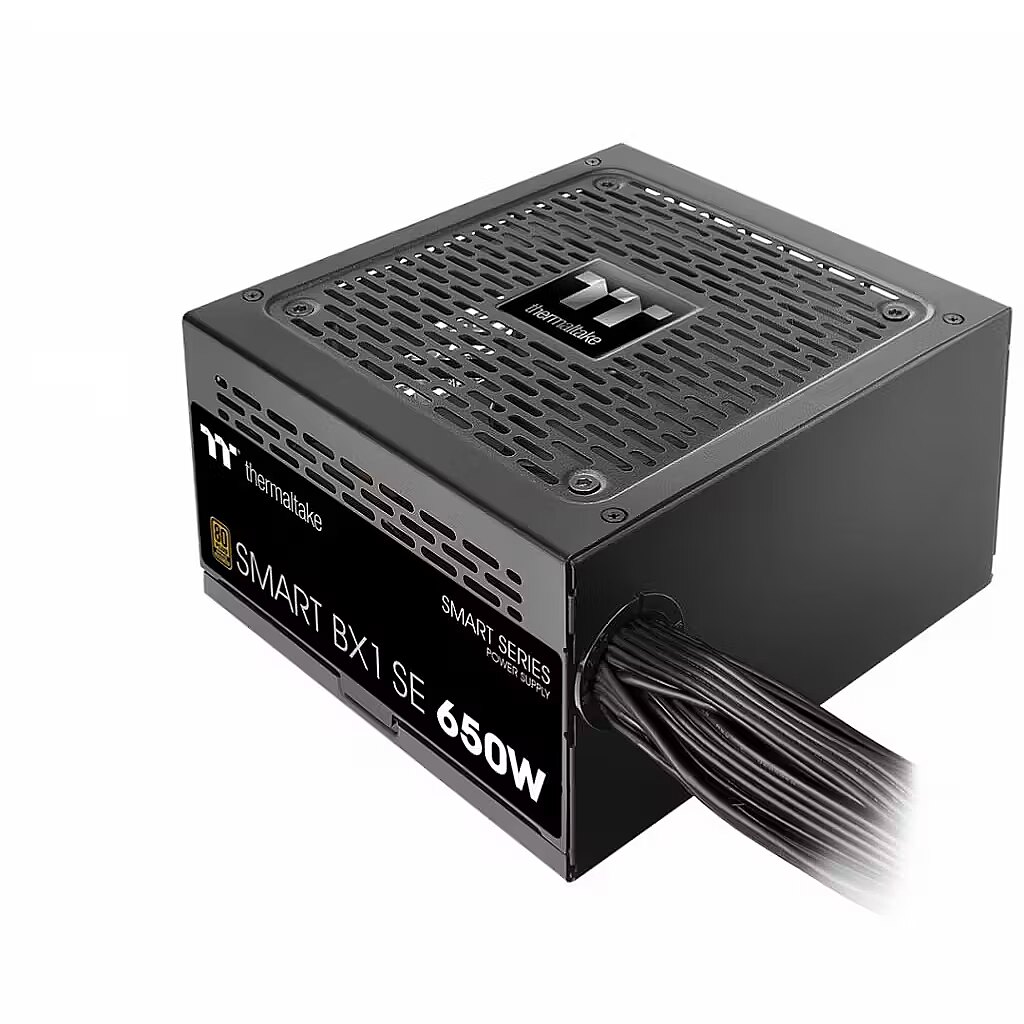

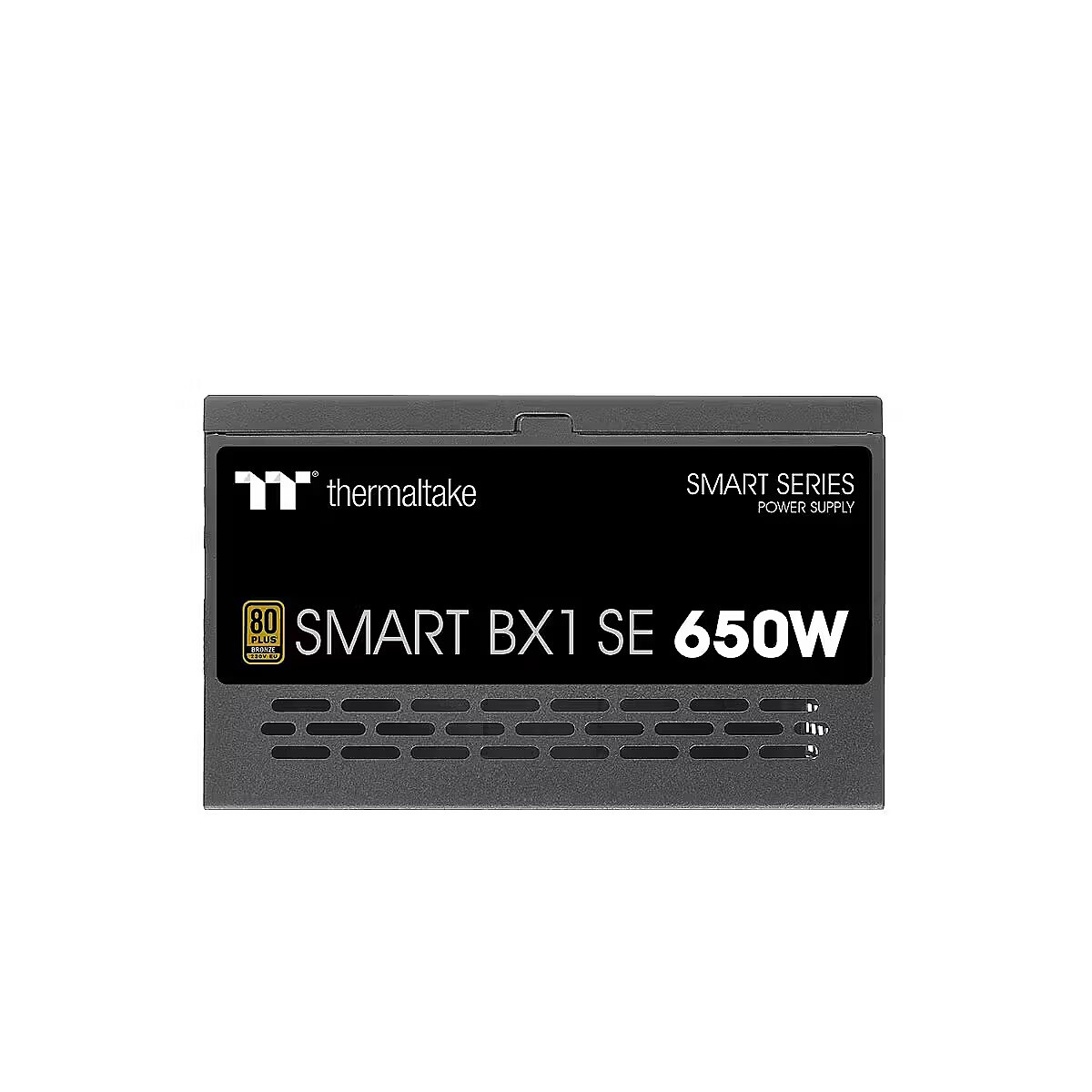

Thermaltake Smart BX1 SE, 650W, 80PLUS Bronze, BULK

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1287613 Product code: PS-TTP-0650NNSABE-1
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.fi website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)
Main product parameters All parameters
  • Producer: Thermaltake
  • Power output: 650W
  • 80 PLUS certification: 80 PLUS Bronze
  • Fan size: 120 mm
  • Modular cables: Nav
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 2 X 6+2pin
Similar Products
This product Thermaltake Smart BX1 SE, 650W, 80PLUS Bronze, BULK
Thermaltake Smart BX1 SE, 650W, 80PLUS Bronze
Thermaltake Smart BX1 SE, 750W, 80PLUS Bronze
Thermaltake Smart BX1 SE, 550W, 80PLUS Bronze, BULK
Thermaltake Smart SE2, 700W, 80PLUS Bronze
Show similar specs. Hide similar specs.
44.86 €
53.97 €
56.92 €
48.90 €
65.79 €
Basic information
Cybenetics Efficiency certification Nav Nav Nav Nav Nav
Cybenetics Noise level certification Nav Nav Nav Nav Nav
Power supply type ATX ATX ATX ATX ATX
Power output 650W 650W 750W 550W 700W
80 PLUS certification 80 PLUS Bronze 80 PLUS Bronze 80 PLUS Bronze 80 PLUS Bronze 80 PLUS Bronze

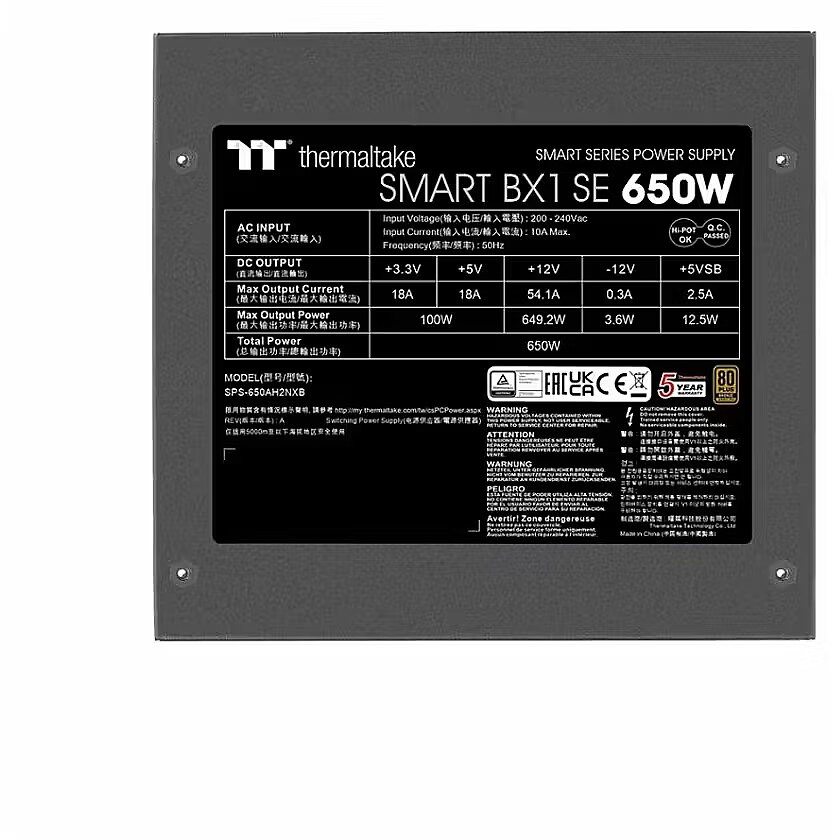

Total amperage (+12V) 54.1A 54.1A 62.5A 54A
Fan size 120 mm 120 mm 120 mm 120 mm 120 mm
Functionality
Cable colour Melna Melna Melna Melna Melna
Lighting Nav Nav Nav Nav Nav
Color Melna Melna Melna Melna Melna
Modular cables Nav Nav Nav Nav Semi-Modular
Ports and equipment
PCI-E 5.0/5.1 Nav Nav Nav Nav Nav
Processor plug-in 1 x 8-pin(4+4) EPS 1 x 8-pin(4+4) EPS 1 x 8-pin(4+4) EPS 1 x 8-pin(4+4) EPS 1 x 8-pin(4+4) EPS
Motherboard power 20+4pin 20+4pin 20+4pin 20+4pin 20+4pin
PCI-E 2 X 6+2pin 2 X 6+2pin 2 X 6+2pin 2 X 6+2pin 2 X 6+2pin
SATA cconnectors 6 6 6 6 6
4pin Molex 2 2 2 2 5
Description

We offer to purchase a Thermaltake power supply unit with a power capacity of 650W, which has received the 80 PLUS Bronze energy efficiency certification.

The 650W power will be enough for running Microsoft Office programs, browsing the internet, and budget-level computer games. The power supply unit will be able to run a computer with a mid-range processor, mid-range graphics card (for example, GTX 1650), and 1-2 hard drives. For serious gaming, a more powerful power supply unit is needed.

120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.

The power supply has received the 80 PLUS Bronze energy efficiency certificate, which guarantees at least 85% efficiency at 50% load. This means that for every 100W of power the power supply draws from the electrical grid, at least 85W is delivered to your computer components, while the remaining 15W is lost as heat.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.

The power supply unit does not have modular cables; all cables are attached to the power supply unit and are not removable. Despite this, it will work just as well as a power supply unit with modular cables.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 650W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Bronze
Total amperage (+12V) : 54.1A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Nav
Ports and equipment
PCI-E 5.0/5.1 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 2 X 6+2pin
SATA cconnectors : 6
4pin Molex : 2
More detailed specification
Certificates 80+ - 80 PLUS Bronze
Designation - CE+WEEE
dimension depth - 90 mm
dimension height - 280 mm
dimension weight - 1360 g
dimension width - 160 mm
ean - 4711475649415
Fan - 12 cm
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Form Factor - ATX
guarantee - 60
guarantee_type - statutory
MB power connector - 20 + 4 pin
Modular power supply - No
name - Smart BX1 S E 650W Bulk
PFC - Active
Power supply - 650 W
producer - Thermaltake
vendpn - PS-TTP-0650NNSABE-1
