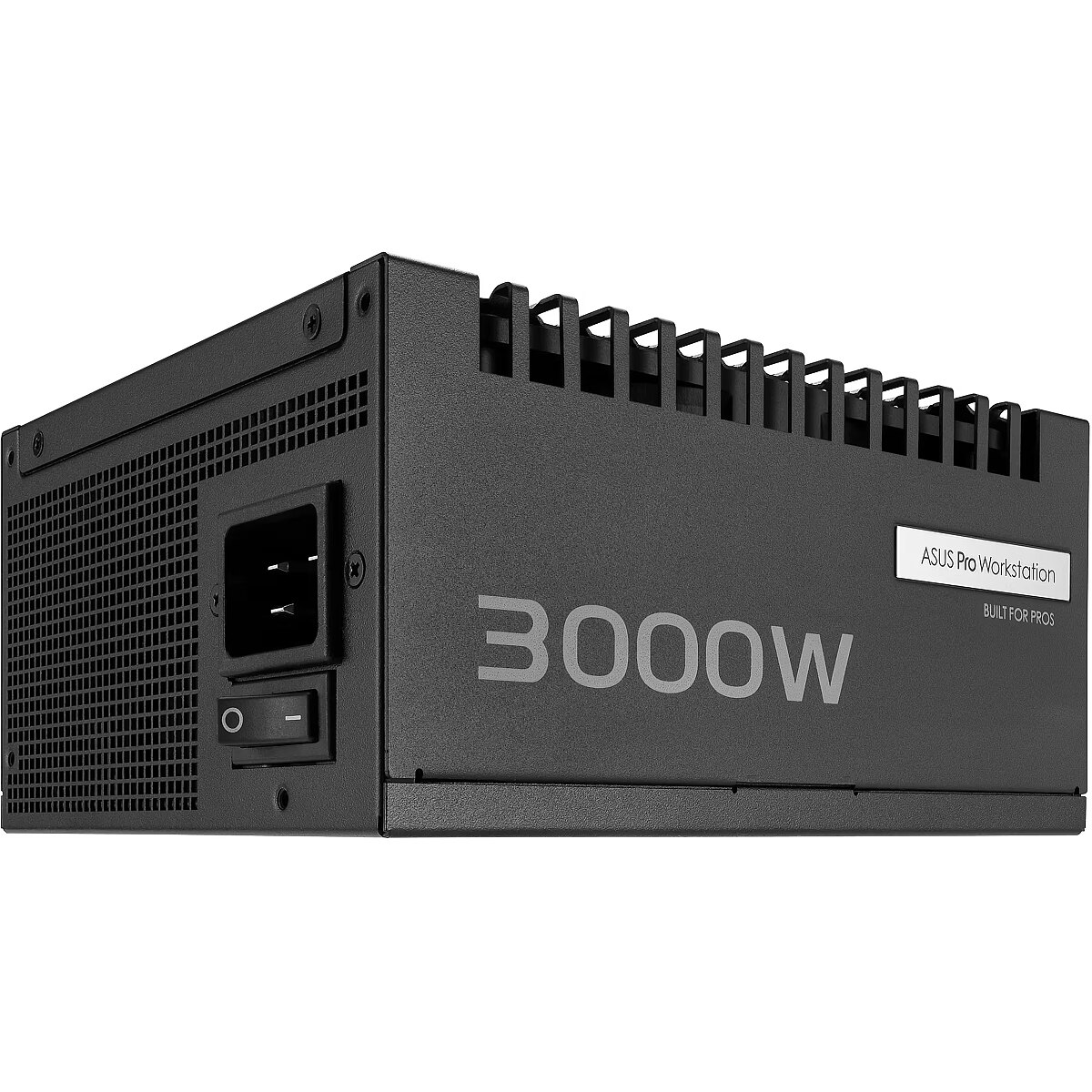

Asus Pro WS, 3000W, 80PLUS Platinum, ATX 3.1, PCIe 5.1

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
News
ID: 1272354 Product code: 90YE00Z0-B0EA00
Can be ordered 12 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
1,173.21 €
Ready for dispatch
23.10.2025
starting from 6.99 €
Delivery options
  • Posti parcel machine
    Within 1-2 working days
    6.99 €
  • Delivery with Posti courier mail
    Within 1-2 working days
    10.99 €
Main product parameters All parameters
  • Producer: Asus
  • Power output: 3000W
  • 80 PLUS certification: 80 PLUS Platinum
  • Fan size: 135 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Description

Available for purchase is a power supply produced by Asus with a power output of 3000W. The product has been awarded an 80 PLUS Platinum energy efficiency certificate.

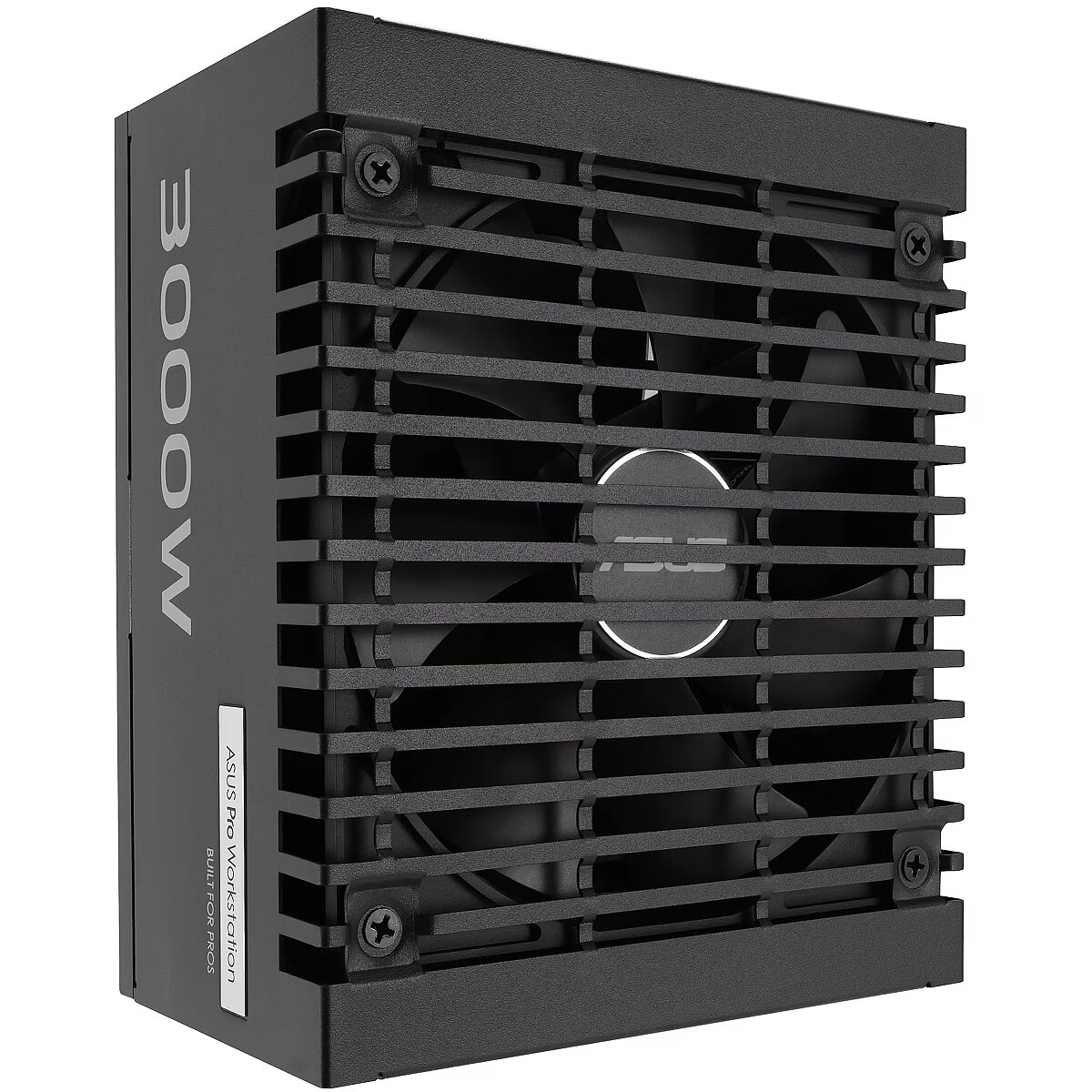

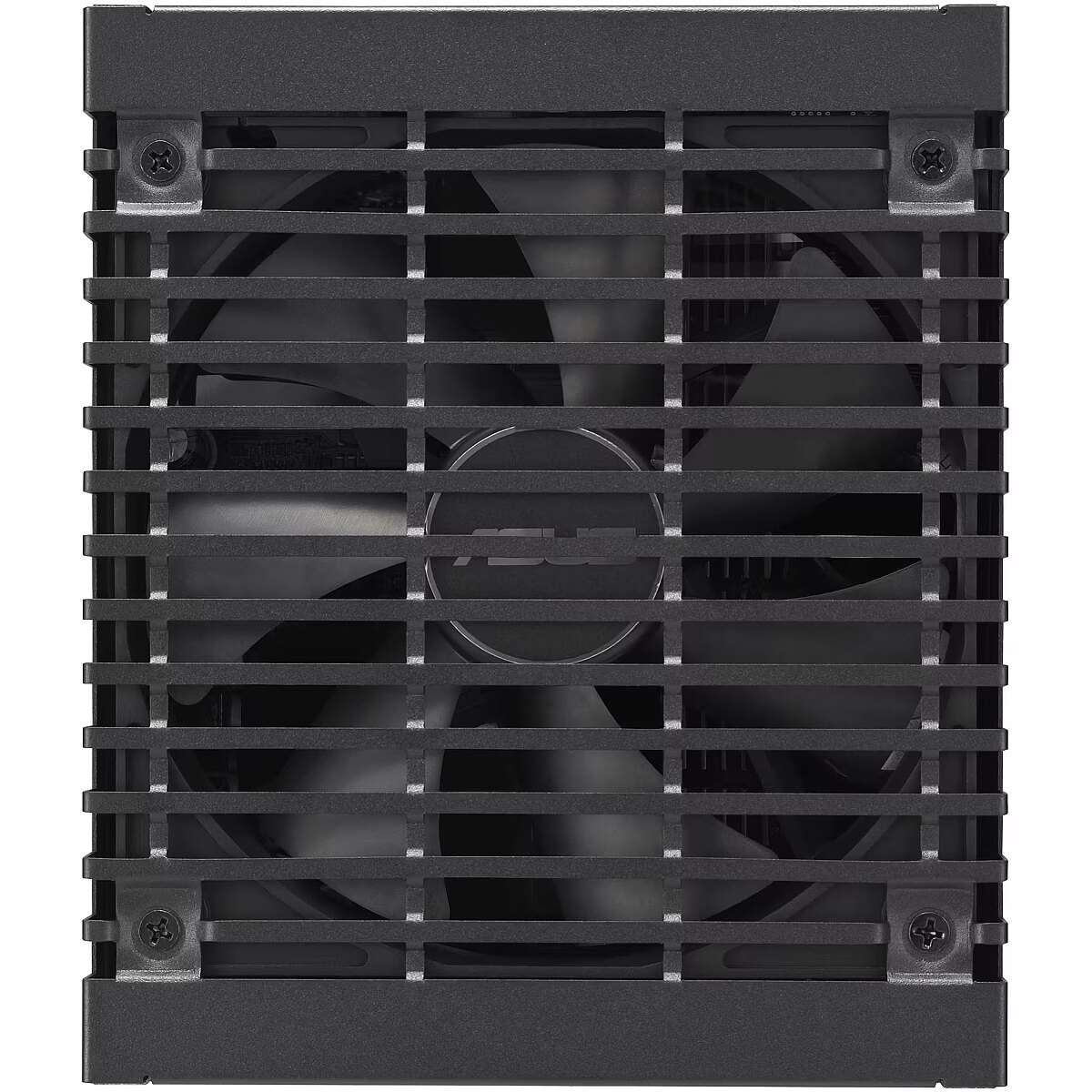

The large 135 mm cooling fan diameter makes this power supply significantly quieter than average. Since the fan blade area is larger, the fan provides the necessary airflow at lower fan speeds, overall reducing the noise and vibration levels.

The power supply has been awarded the 80 PLUS Platinum energy efficiency certificate, which ensures at least 92% efficiency at 50% load. This indicates that at least 92 W out of 100 W of power that the power supply receives from the power grid is delivered to the computer components, while the remaining 8 W is lost as heat.

The color of this power supply is Melna. The cable color is Melna and they are flat.

This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).

The manufacturer of this power supply unit is Asus. Check out all Asus power supply units here.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 3000W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Platinum
Total amperage (+12V) : 250A
Fan size : 135 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular

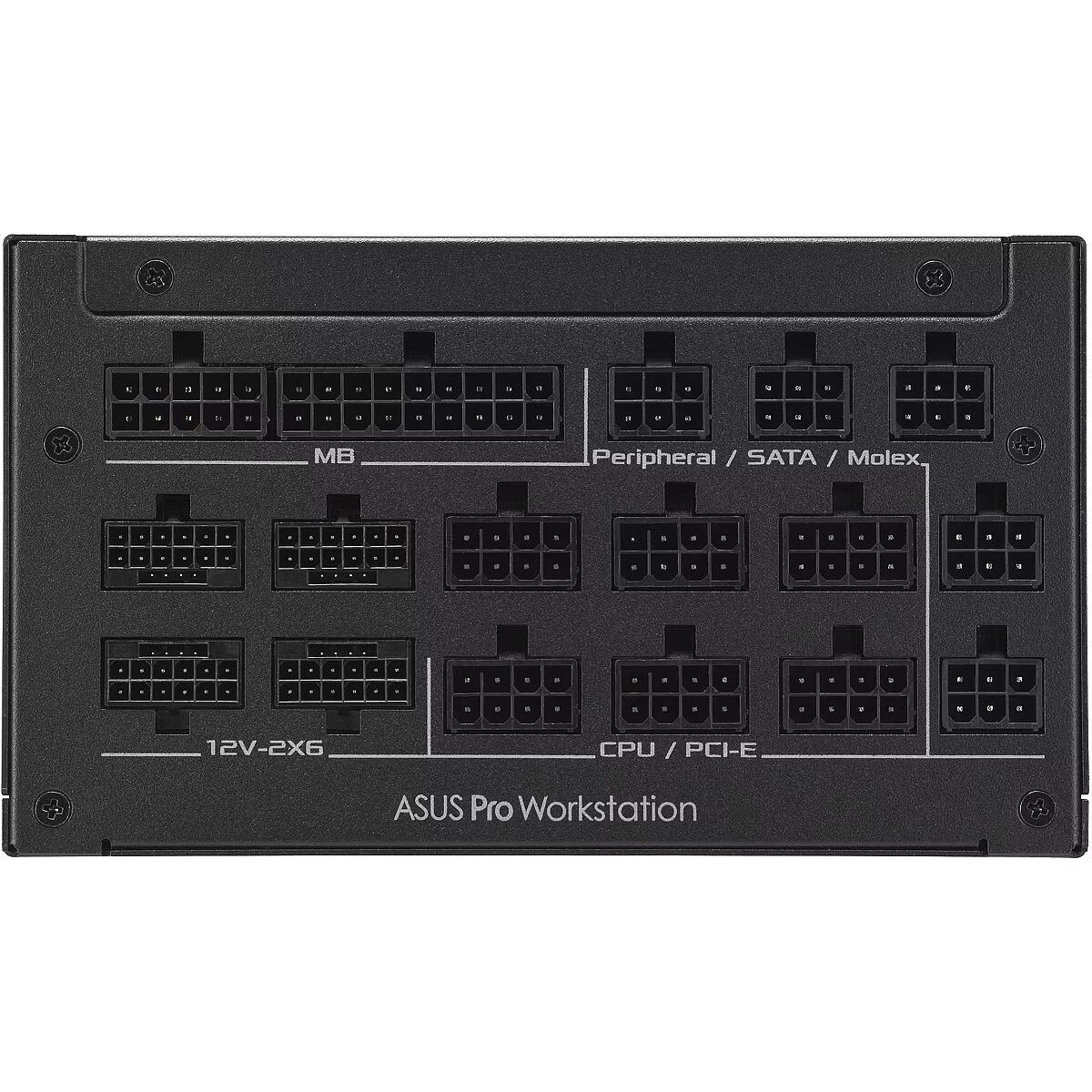

Ports and equipment
PCI-E 5.0/5.1 : 4 x 600W 12V-2X6 (5.1)
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 4 X 6+2pin
SATA cconnectors : 12
4pin Molex : 3
Case
More detailed specification
Brand - ASUS
BrandPartCode - 90YE00Z0-B0EA00
Category - Power Supply Units
Design - Cooling type - Active
Design - Product colour - Black
dimensionalWeight - 2201
GTIN - 4711387972793
LongDesc - ASUS Pro WS 3000W PlatinumThe ASUS Pro WS 3000W Platinum PSU is engineered to support up to four GeForce RTX™ 5090 graphics cards. It also features 80 PLUS Platinum certification, high-performance copper pins, dual-ball fan bearings, etched cables, rock-solid voltage stability and advanced power delivery, making it an ideal choice for AI solutions, deep learning and IT management.
LongProductName - Pro WS 3000W Platinum PSU
LongSummaryDescription - ASUS -PRO-WS-3000P. Total power: 3000 W, AC input voltage: 220 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 120,400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active. Width: 175 mm, Depth: 150 mm, Height: 86 mm
Packaging data - Package depth - 208 mm
Packaging data - Package height - 144 mm
Packaging data - Package type - Box
Packaging data - Package weight - 5.09 kg
Packaging data - Package width - 346 mm
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.1
Performance - Bearing technology - DBB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 100 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 12
Ports & interfaces - PCI Express power cable length - 75 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (16-pin) - 4
Ports & interfaces - Peripheral (Molex) power cable length - 150 mm
Ports & interfaces - Peripheral (Molex) power cable length - 150,400 mm
Ports & interfaces - Peripheral (Molex) power cable length - 400
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 120 mm
Ports & interfaces - SATA power cable length - 120,400 mm
Ports & interfaces - SATA power cable length - 400 mm

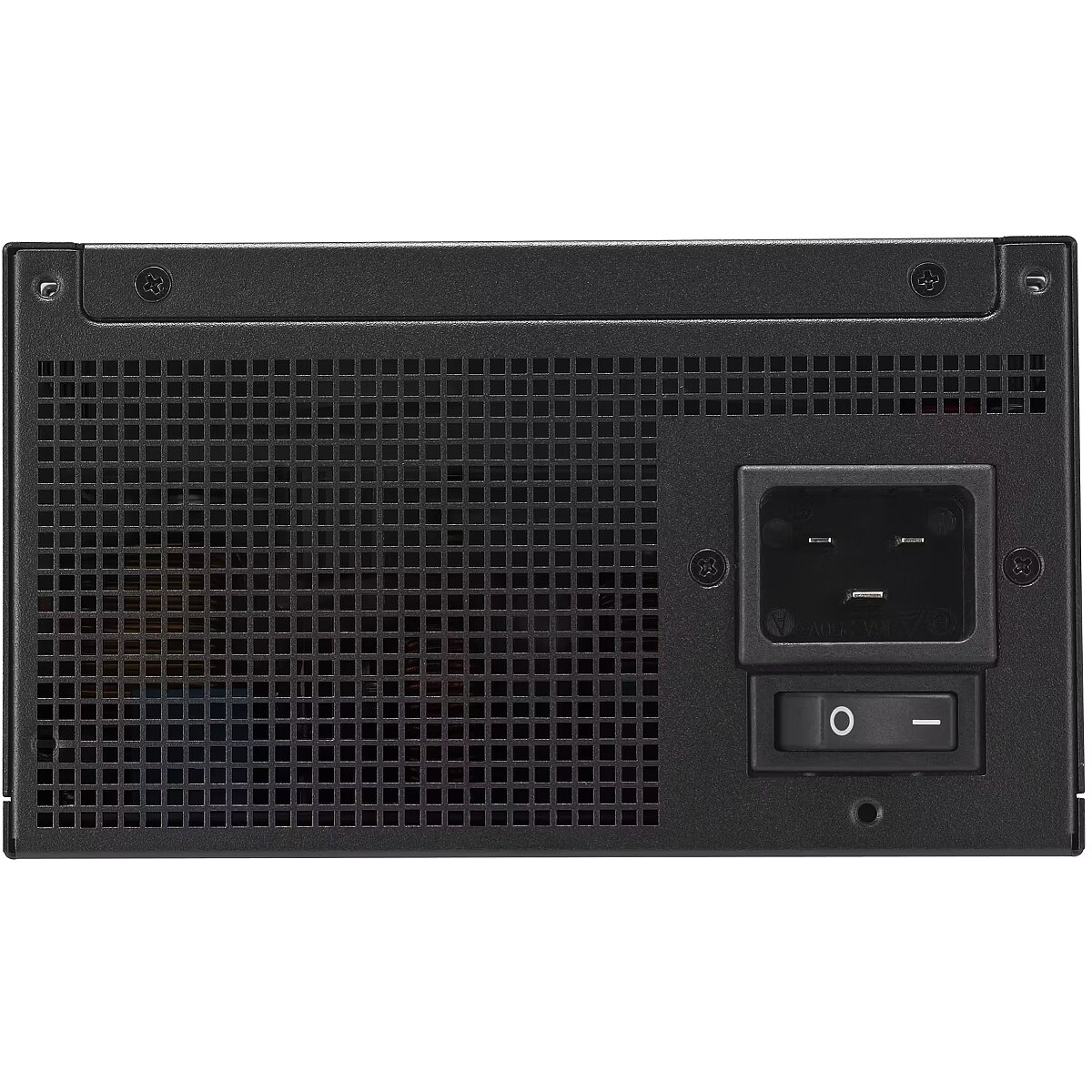

Power - AC input voltage - 220 - 240 V
Power - Combined power (+3.3V) - 130 W
Power - Combined power (+5V) - 130 W
Power - Combined power (+5Vsb) - 3 W
Power - Combined power (+12V) - 3000 W
Power - Combined power (-12V) - 0.8 W
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 15 A
Power - Max output current (+12V) - 250 A
Power - Max output current (-12V) - 9.6 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 3000 W
producerCode - 90YE00Z0-B0EA00
ProductName - ASUS-PRO-WS-3000P
productName - ASUS ASUS-PRO-WS-3000P power supply unit 3000 W 20+4 pin ATX ATX Black
productSize - Normal
ShortSummaryDescription - ASUS -PRO-WS-3000P, 3000 W, 220 - 240 V, Active, 130 W, 3000 W, 130 W
sizeX - 345
sizeY - 220
sizeZ - 145
Title - ASUS ASUS-PRO-WS-3000P power supply unit 3000 W 20+4 pin ATX ATX Black
URL - https://www.asus.com/motherboards-components/power-supply-units/workstation/asus-pro-ws-3000p/
WarrantyInfo - 10-year warranty: Provides confidence in long-term reliability
warrantyLength - 120
warrantyType - G
weight - 4695
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.16 kg
Weight & dimensions - Width - 175 mm
