Deepcool PF600X, 600W, 80PLUS Bronze

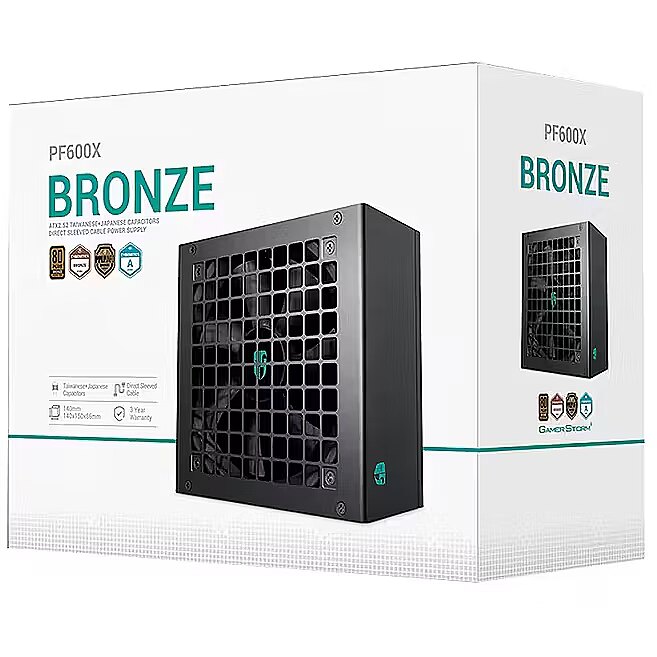

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1246720 Product code: R-PF600XHD0B-JGEU
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.fi website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 3 years
Main product parameters All parameters
  • Producer: Deepcool
  • Power output: 600W
  • 80 PLUS certification: 80 PLUS Bronze
  • Fan size: 120 mm
  • Modular cables: Nav
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 2 X 6+2pin
Similar Products
This product Deepcool PF600X, 600W, 80PLUS Bronze
Recommended XPG PROBE, 600W, 80PLUS Bronze
Recommended XPG PROBE, 700W, 80PLUS Bronze
Recommended ADATA XPG PYLON II, 650W, 80PLUS Bronze, ATX 3.1, PCIe 5.1
Seasonic Prime Fanless PX, 500W, 80PLUS Platinum
Show similar specs. Hide similar specs.
48.85 €
45.59 €
56.75 €
52.59 €
176.31 €
Basic information
Cybenetics Efficiency certification Cybenetics Bronze Nav Nav Nav Nav
Cybenetics Noise level certification Cybenetics A Nav Nav Nav Nav
Power supply type ATX ATX ATX ATX ATX
Power output 600W 600W 700W 650W 500W
80 PLUS certification 80 PLUS Bronze 80 PLUS Bronze 80 PLUS Bronze 80 PLUS Bronze 80 PLUS Platinum
Total amperage (+12V) 50A 46A 54A 54A 41A
Fan size 120 mm 120 mm 120 mm 120 mm Fanless
Functionality
Cable colour Melna Melna Melna Melna Melna
Lighting Nav Nav Nav Nav Nav
Color Melna Melna Melna Melna Melna
Modular cables Nav Nav Nav Nav Fully-Modular
Ports and equipment
PCI-E 5.0/5.1 Nav Nav Nav 1 x 450W 12V-2X6 (5.1) Nav
Processor plug-in 1 x 8-pin(4+4) EPS 1 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS
Motherboard power 20+4pin 20+4pin 20+4pin 24-pin 20+4pin
PCI-E 2 X 6+2pin 2 X 6+2pin 2 X 6+2pin 2 X 6+2pin 2 X 6+2pin
SATA cconnectors 6 5 5 6 Eight Core
4pin Molex 2 2 2 2 3
Description

This Deepcool brand power supply unit has an 80 PLUS Bronze energy efficiency certificate and a power output of 600W.

The 600W power will be enough for running Microsoft Office programs, browsing the internet, and budget-level computer games. The power supply unit will be able to run a computer with a mid-range processor, mid-range graphics card (for example, GTX 1650), and 1-2 hard drives. For serious gaming, a more powerful power supply unit is needed.

This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.

The power supply has received the 80 PLUS Bronze energy efficiency certificate, which guarantees at least 85% efficiency at 50% load. This means that for every 100W of power the power supply draws from the electrical grid, at least 85W is delivered to your computer components, while the remaining 15W is lost as heat.

The color of the block is Melna. The block has flat cables, whose color is Melna.

This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.

The noise level of this power supply is 20-25 dB and it has a Cybenetics A noise level certificate.

This power supply has no removable cables and all cables are attached to the power supply. It has a simple design, but it works just as well as a power supply with modular cables.

The power supply manufacturer is Deepcool. All power supplies produced by Deepcool can be viewed here.

Basic information
Cybenetics Efficiency certification : Cybenetics Bronze
Cybenetics Noise level certification : Cybenetics A
Power supply type : ATX
Power output 600W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Bronze
Total amperage (+12V) : 50A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Nav
Ports and equipment
PCI-E 5.0/5.1 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 2 X 6+2pin
SATA cconnectors : 6
4pin Molex : 2
More detailed specification
Certificates - Compliance certificates - CCC
Certificates - Compliance certificates - CE
Certificates - Compliance certificates - KC
Certificates - Compliance certificates - RCM
Code - R-PF600XHD0B-JGEU
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 1352
EAN - 6933412743941
Name - Deepcool 80 PLUS Standard PSU | PF600X | 600 W
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 262.00 mm
Package features > Gross height (mm) - 114.00 mm
Package features > Gross width (mm) - 180.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 161 pc(s)
Package features > Paper/Pasteboard - 69.00 g
Package features > Plastic (No PET) - 300.00 g
Package features > Tare weight (kg) - 0.37 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Cables included - AC
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.52
Performance - Bearing technology - HYB
Performance - Mean time between failures (MTBF) - 40000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - SATA power cable length - 450
Ports & interfaces - SATA power cable length - 600 mm
Ports & interfaces - SATA power cable length - 750
Ports & interfaces - SATA power cable length - 900 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 600 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 88%
Power - Hold time - 16 ms
Power - Input current - 5 A
Power - Max output current (+3.3V) - 16 A
Power - Max output current (+5V) - 16 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 50 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - NLO
Power - Power protection features - OCP
Power - Power protection features - OPP
Power - Power protection features - OTP
Power - Power protection features - OVP
Power - Power protection features - SCP
Power - Power protection features - SIP
Power - Power protection features - UVP
Power - Total power - 600 W
Power > Nominal power - 600 W
producerCode - R-PF600X-HD0B-JGEU
productName - DeepCool PF600X power supply unit
productSize - Normal
sizeX - 260
sizeY - 200
sizeZ - 130
Technical details - Sustainability certificates - China RoHS
Technical details - Sustainability certificates - Triman
Technical details - Sustainability certificates - WEEE
Technical details - Sustainability compliance - Yes
Technical details > Gross weight - 1.85 kg
Technical details > Net weight - 1.48 kg
Technical details > Producer - Deepcool
Technical details > Producer product family - 80 PLUS Standard PSU
Technical details > Producer product name - PF600X
Warranty - 36
Warranty - 36 month(s)
warrantyLength - 36
warrantyType - G
weight - 1850
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
