ID: 1241894
Product code: GP-P750BS
Can be ordered 44 units Availability: 14 days after order approval
Warranty: 3 years

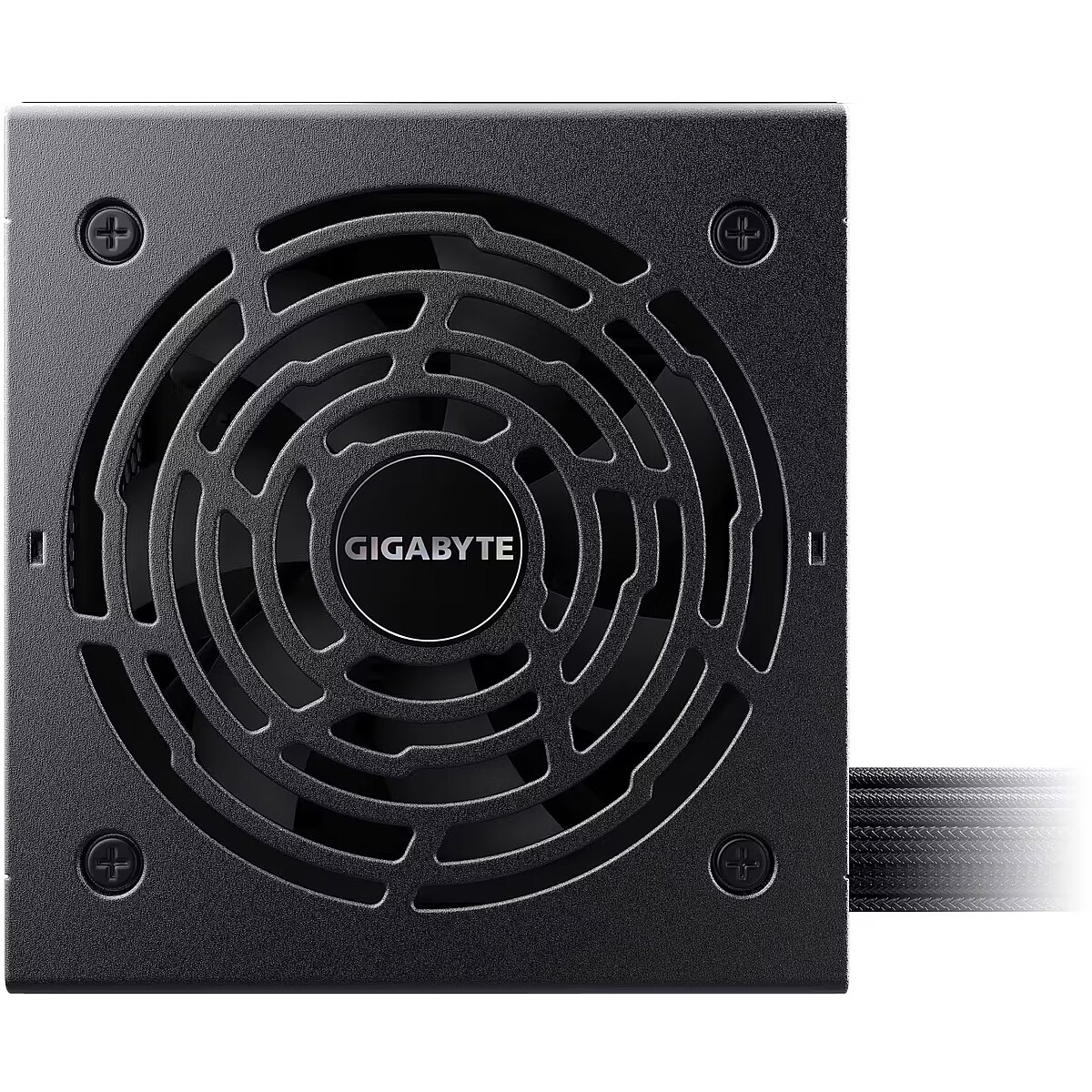

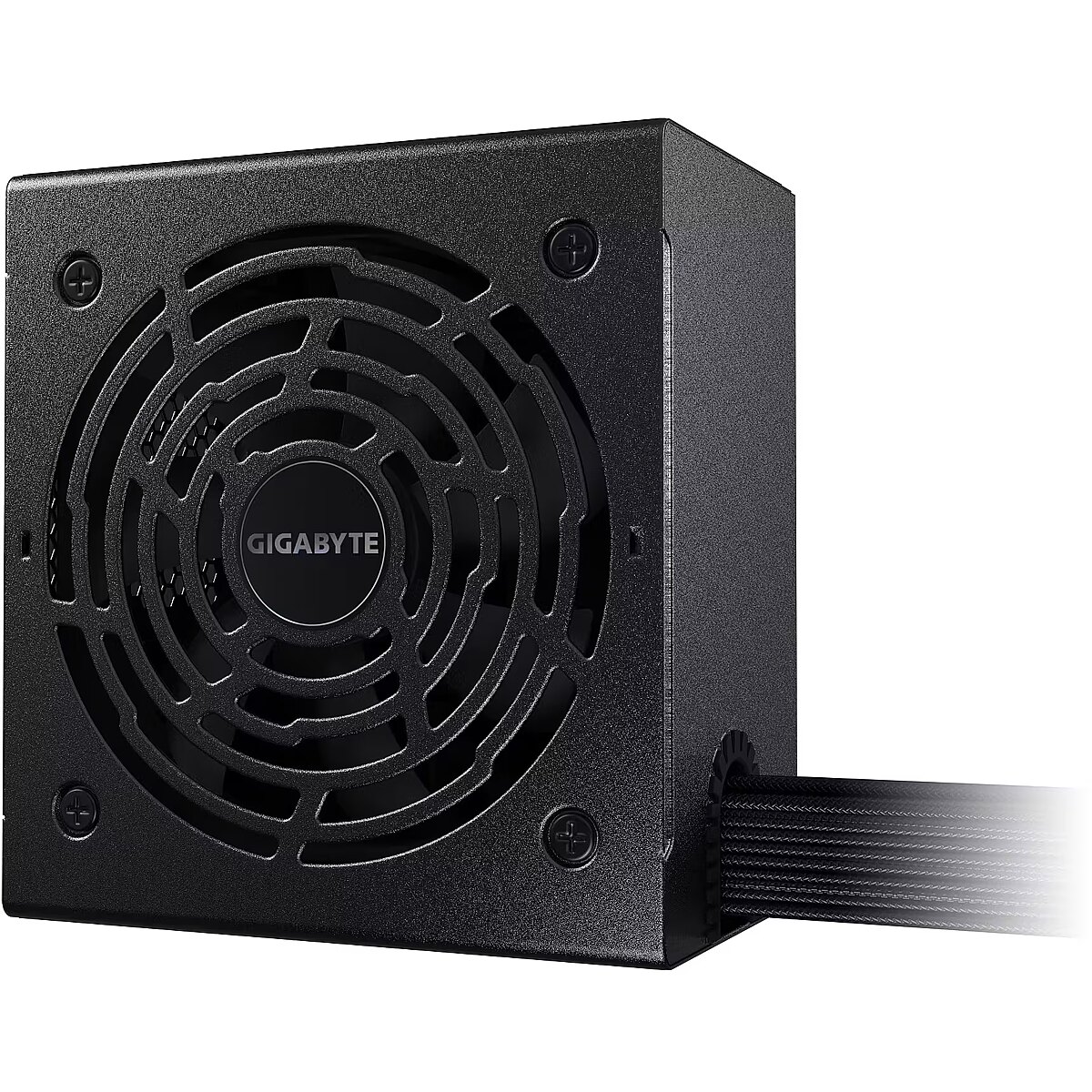

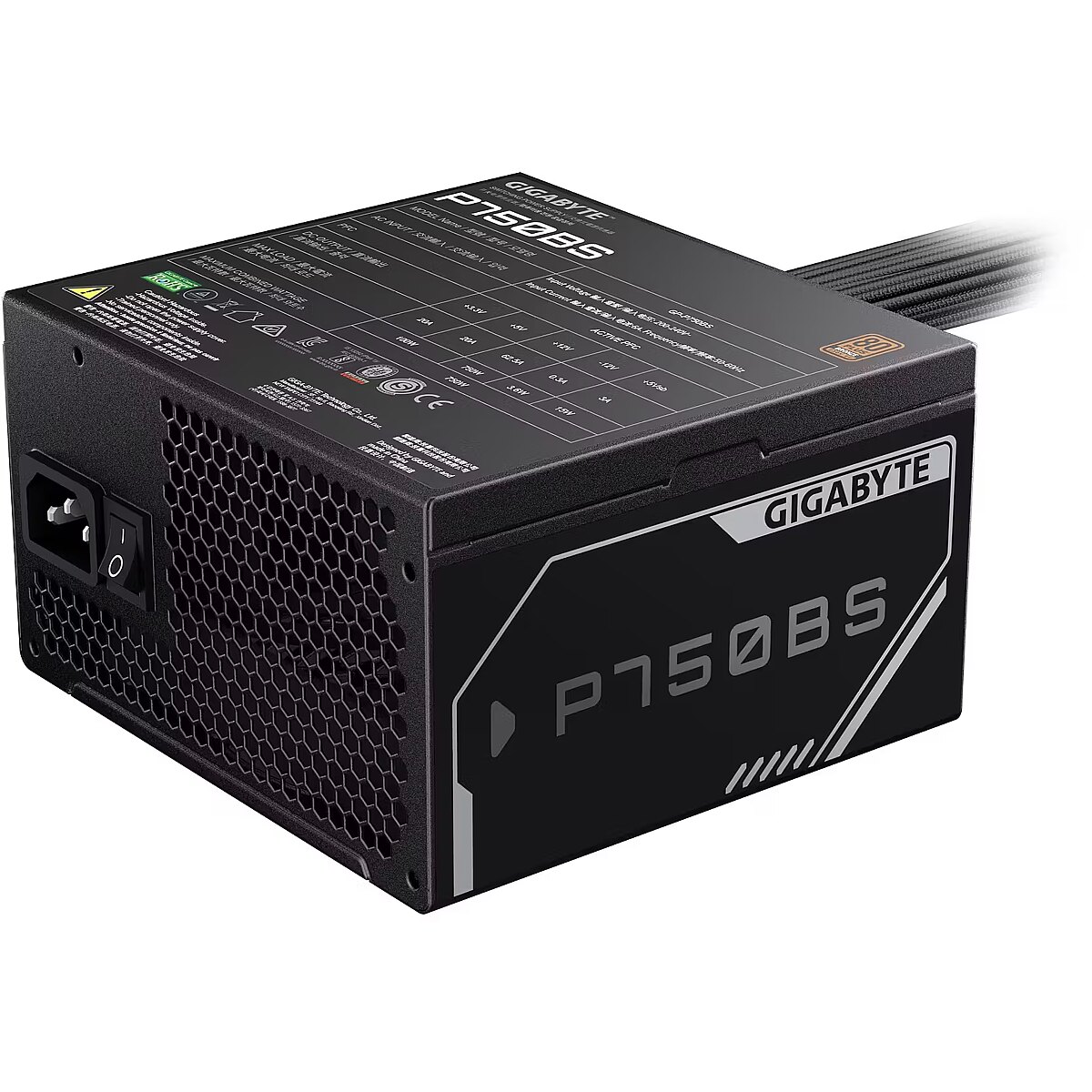

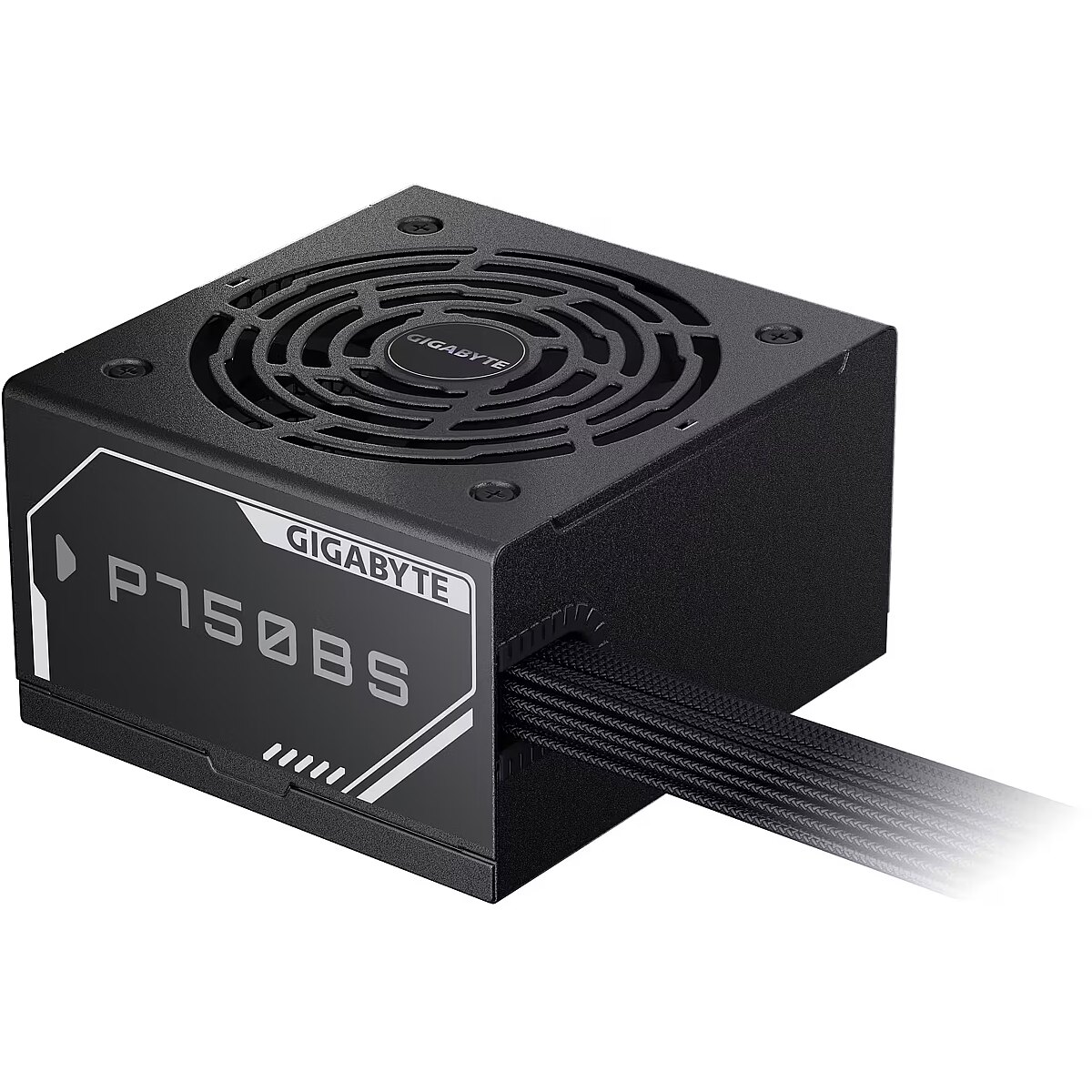

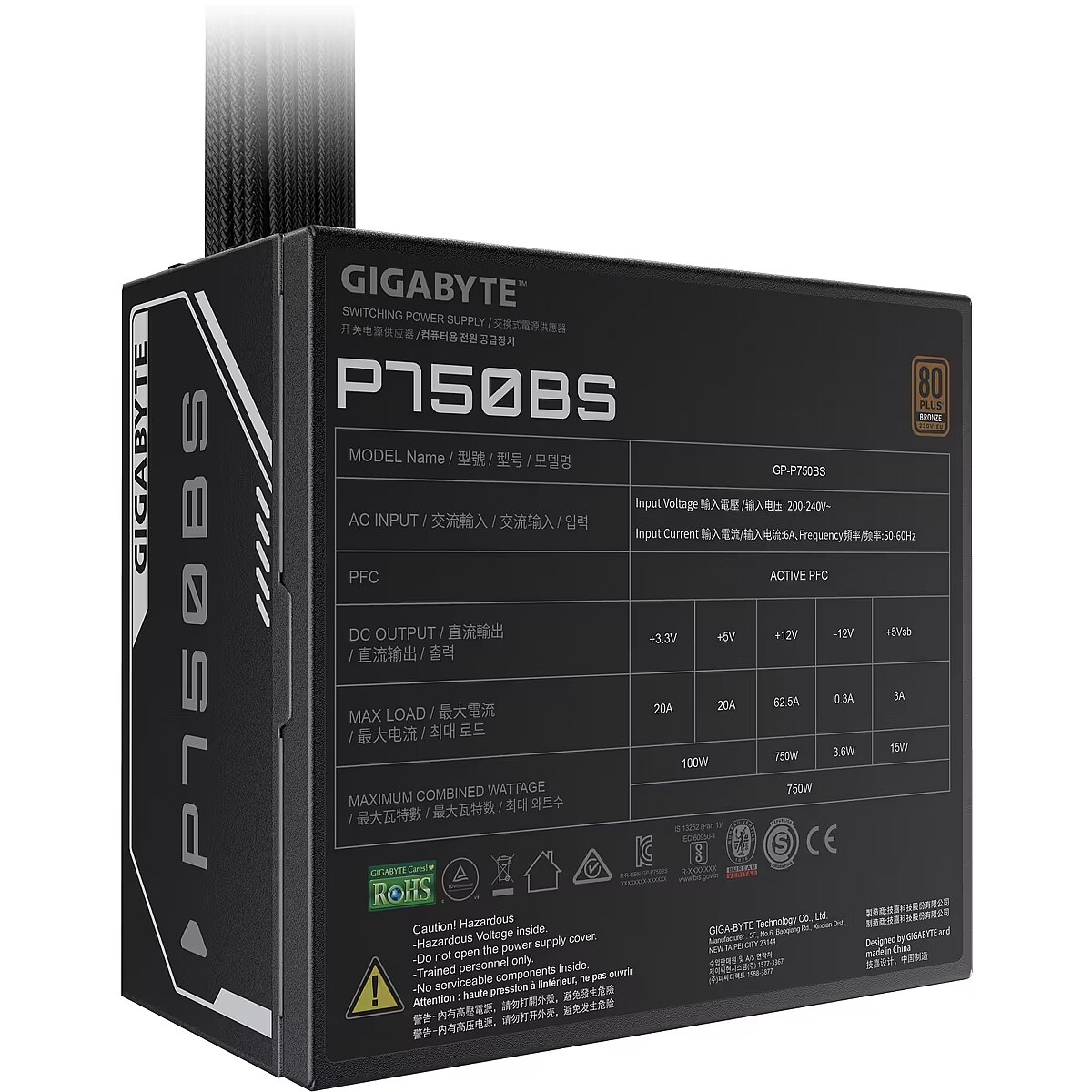

Gigabyte P750BS, 750W, 80PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Producer: Gigabyte
- Power output: 750W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
This Gigabyte brand power supply unit has an 80 PLUS Bronze energy efficiency certificate and a power output of 750W.
For polite mid-range computer game playing, a power supply with a 750W capacity will be suitable. This unit can power a computer with a powerful mid-range graphics card (for example, RTX 4070), multiple SSDs and hard drives, and a high-end processor.
The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.
The power supply has received the 80 PLUS Bronze energy efficiency certificate, which guarantees at least 85% efficiency at 50% load. This means that for every 100W of power the power supply draws from the electrical grid, at least 85W is delivered to your computer components, while the remaining 15W is lost as heat.
The color of this power supply is Melna. The cable color is Melna and they are flat.
This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.
The power supply unit does not have modular cables; all cables are attached to the power supply unit and are not removable. Despite this, it will work just as well as a power supply unit with modular cables.
The manufacturer of this power supply is Gigabyte. View all Gigabyte power supplies here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 62.5A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0/5.1
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: 4
4pin Molex
: 1
Case
More detailed specification
Brand - GIGABYTE
BrandPartCode - GP-P750BS EU
Category - Power Supply Units
Category_1 - Power
Category_2 - Computer Power Supplies
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
EAN_code - 4719331555238
GTIN - 4719331555238
Logistics data - Warranty period - 3 year(s)
LongDesc - Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
LongProductName - P750BS Power Supply - PCI-E 6+2 Pin x 4, 80 PLUS Bronze, 120mm Fan, ATX compatible, EU Plug
LongSummaryDescription - GIGABYTE P750BS Power Supply - PCI-E 6+2 Pin x 4, 80 PLUS Bronze, 120mm Fan, ATX compatible, EU Plug. Total power: 750 W, AC input voltage: 200 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Manufacturer - GigaByte
Manufacturer_code - GP-P750BS
Name - GIGABYTE GP-P750BS (black, 4x PCIe, cable management, 750 watts)
Packaging data - Package depth - 206 mm
Packaging data - Package height - 117 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.68 kg
Packaging data - Package width - 254 mm
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - Bearing technology - FDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 2
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 7
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power cable length - 150,600 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 150,500 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 88%
Power - Hold time - 16 ms
Power - Input current - 6 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 750 W
ProductName - P750BS Power Supply - PCI-E 6+2 Pin x 4, 80 PLUS Bronze, 120mm Fan, ATX compatible, EU Plug
ShortSummaryDescription - GIGABYTE P750BS Power Supply - PCI-E 6+2 Pin x 4, 80 PLUS Bronze, 120mm Fan, ATX compatible, EU Plug, 750 W, 200 - 240 V, 50/60 Hz, 6 A, Active, 100 W
Title - GIGABYTE P750BS Power Supply - PCI-E 6+2 Pin x 4, 80 PLUS Bronze, 120mm Fan, ATX compatible, EU Plug
URL - https://www.gigabyte.com/
WarrantyInfo - 3 years
Weight - 1,92
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.22 kg
Weight & dimensions - Width - 150 mm
