Brand - be quiet!
BrandPartCode - BP026EU
Category - Power Supply Units
Certificates - Compliance certificates - BSMI, CB, CCC, CE, Federal Communications Commission (FCC), IRAM, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan speed - 0 - 1800 RPM
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
GTIN - 4260052192184
Logistics data - Products per shipping (inner) case - 6 pc(s)
Logistics data - Shipping (inner) case gross weight - 21.5 kg
Logistics data - Shipping (inner) case height - 23.3 cm
Logistics data - Shipping (inner) case length - 58 cm
Logistics data - Shipping (inner) case width - 32.5 cm
LongDesc - Exceptional quiet, superior featuresPure Power 13 M 750W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 750W offers the best combination of features with outstanding compatibility.
LongProductName - 750W, 80 PLUS Gold, ATX 3.1, EPS 12V 2.92, 160 x 150 x 86 mm
LongSummaryDescription - be quiet! Pure Power 13 M | 750W. Total power: 750 W, AC input voltage: 100 - 240 V, Peak power: 820 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500,650,800,950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - Cable ties included - Yes
Other features - Screws included - Yes

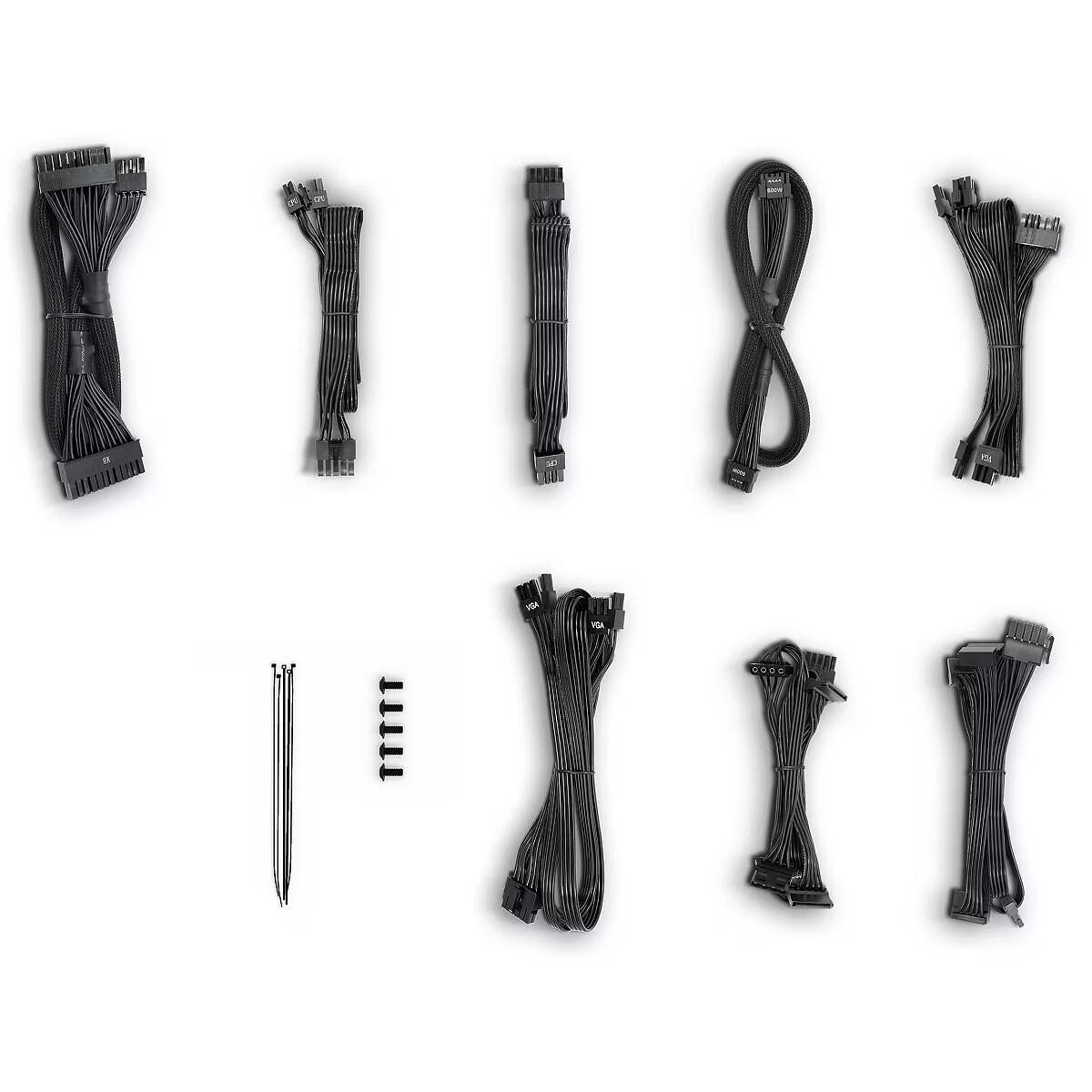

Packaging content - Cables included - AC, CPU, PCIe, Peripheral (Molex), SATA
Packaging data - Package depth - 320 mm
Packaging data - Package height - 133 mm
Packaging data - Package weight - 3.2 kg
Packaging data - Package width - 210 mm
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Bearing technology - Rifle
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 20.8 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU P4 connector (4-pin) - 2
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (12-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 800,950 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2

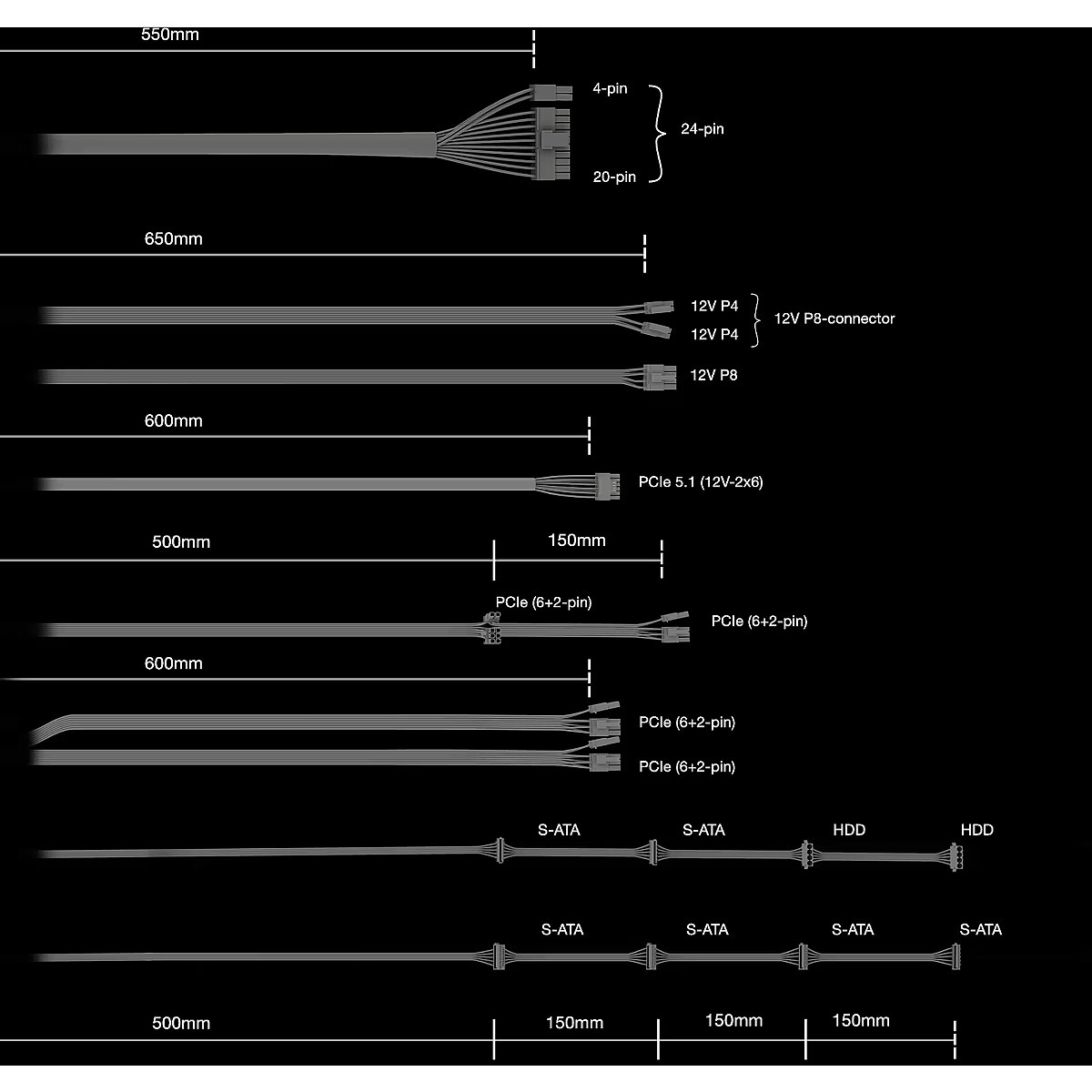

Ports & interfaces - SATA power cable length - 500,650,800,950 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 92.6%
Power - Hold time - 28.62 ms
Power - Maximum input current (@110V) - 10 A
Power - Maximum input current (@220V) - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V1) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Number of +12V rail(s) - 1
Power - Peak power - 820 W
Power - Power factor - 0.98
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Power - Total power - 750 W
ProductName - Pure Power 13 M | 750W
ShortSummaryDescription - be quiet! Pure Power 13 M | 750W, 750 W, 100 - 240 V, 820 W, 50/60 Hz, 10 A, 5 A
Technical details - Sustainability certificates - ENERGY STAR, ErP
Title - be quiet! Pure Power 13 M | 750W power supply unit 20+4 pin ATX ATX Black
URL - https://www.bequiet.com/en/download/powersupply/5931?utm_source=newsletter
WarrantyInfo - 10-year manufacturer’s warranty
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.46 kg
Weight & dimensions - Width - 150 mm
