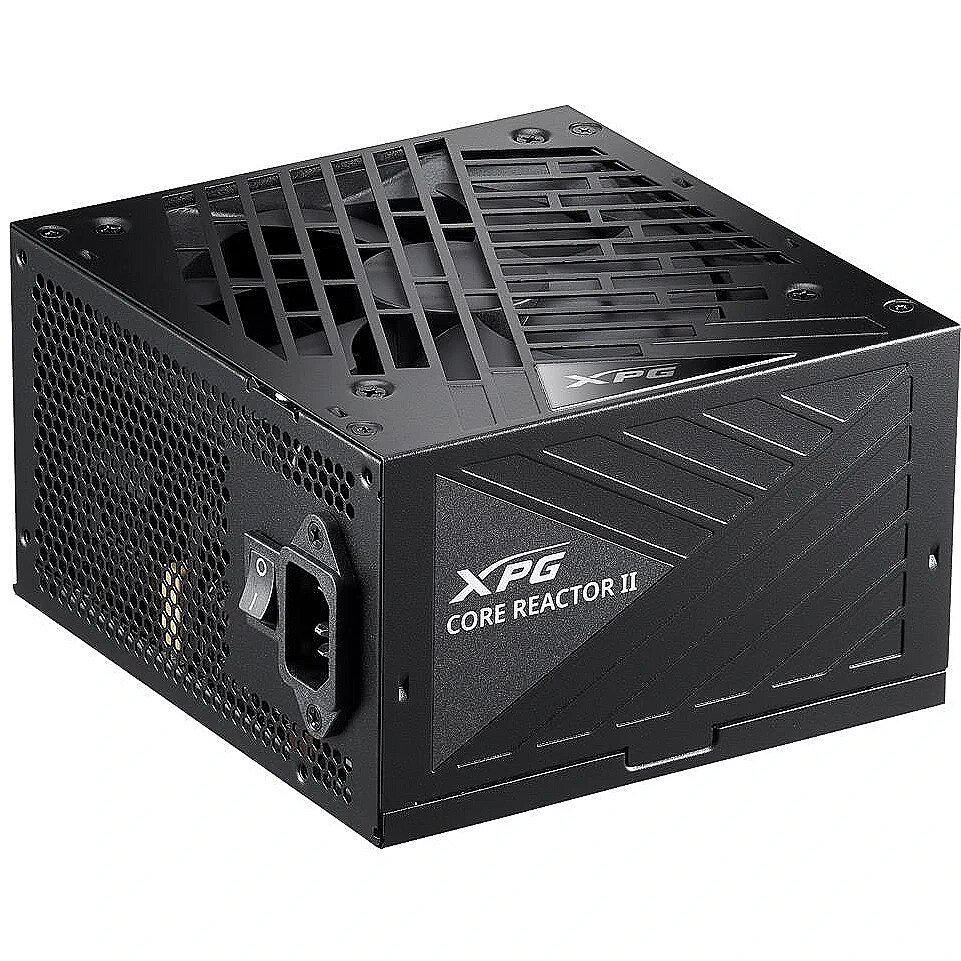

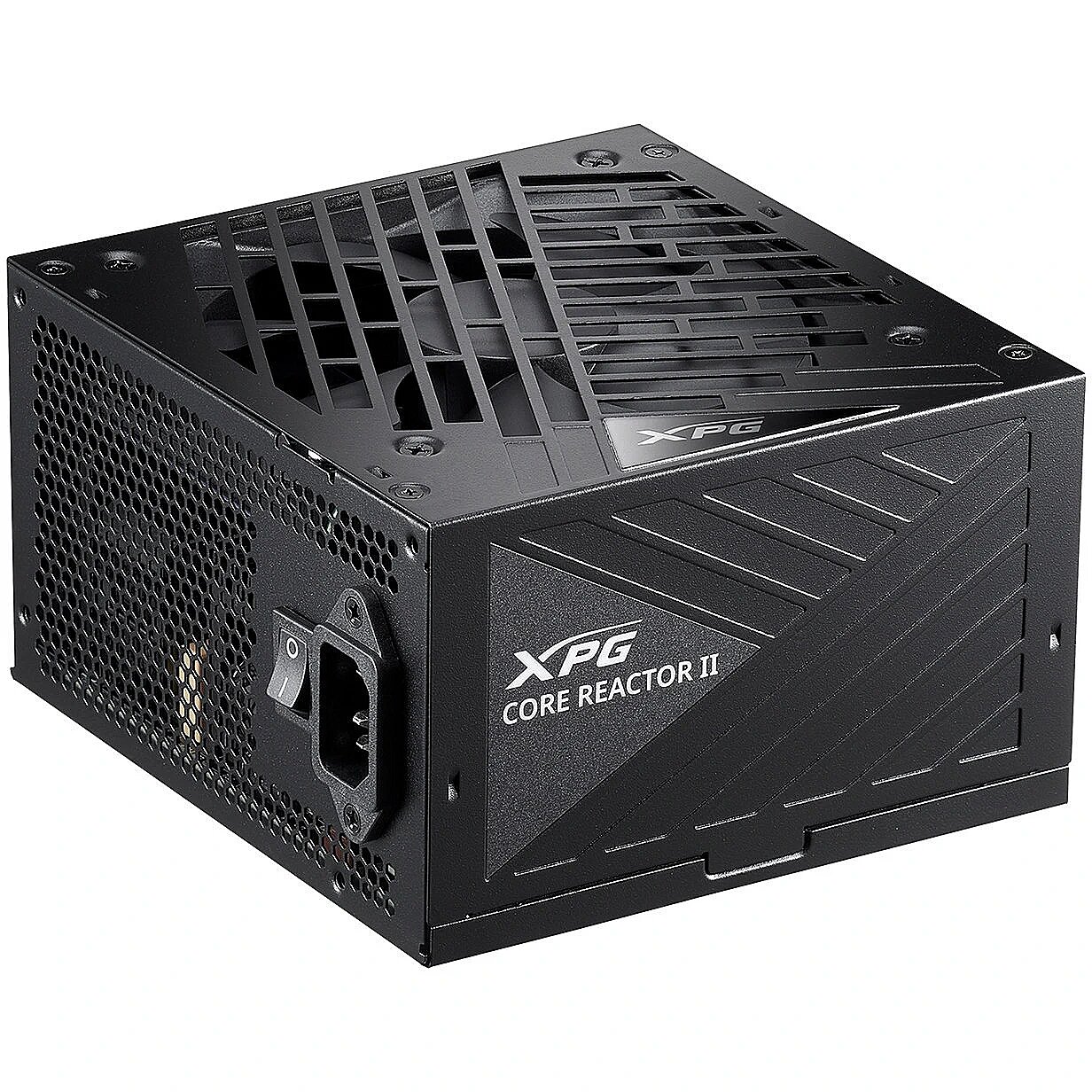

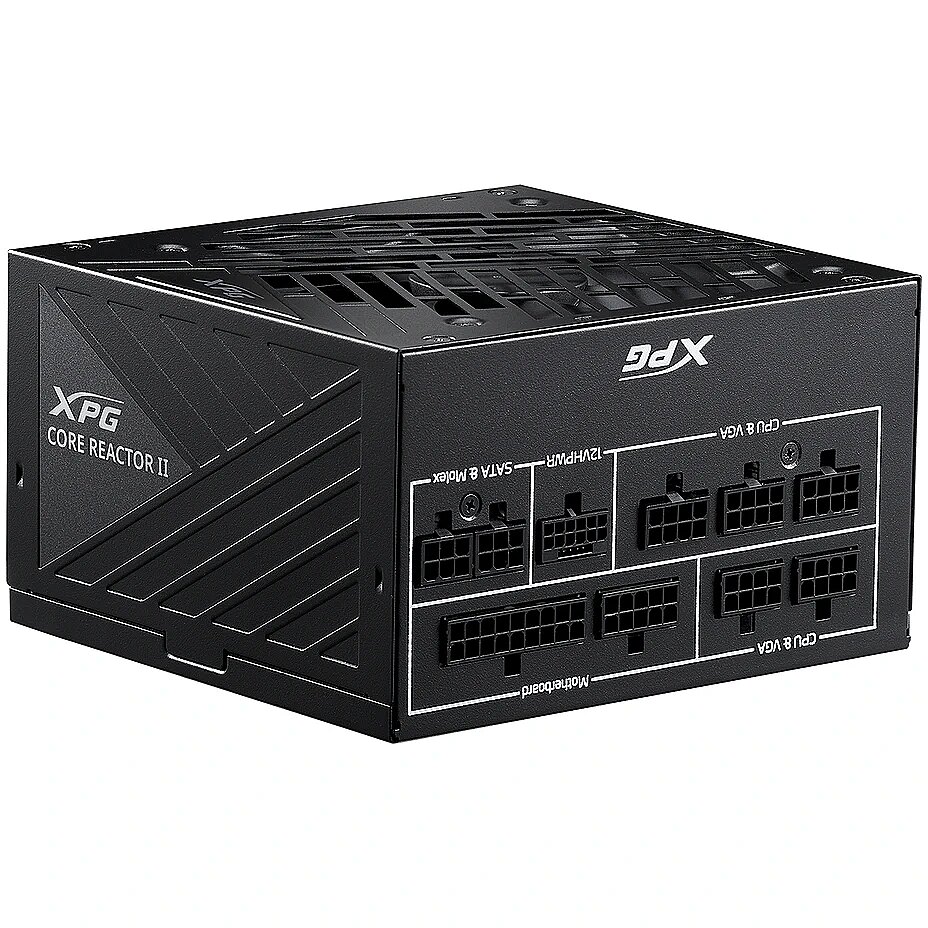

ADATA CORE REACTOR II, 850W, 80PLUS Gold, PCIe 5.0
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Producer: Adata
- Power output: 850W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 120 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 6 x 6+2pin
Description
This ADATA brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 850W.
This 850W power supply unit is intended for a workstation or high-performance gaming computer. It will be able to power multiple hard drives (SSD/HDD), water cooling, a high-end graphics card (for example, RTX 4070 Ti SUPER), and a top-tier processor (possibly overclocked).

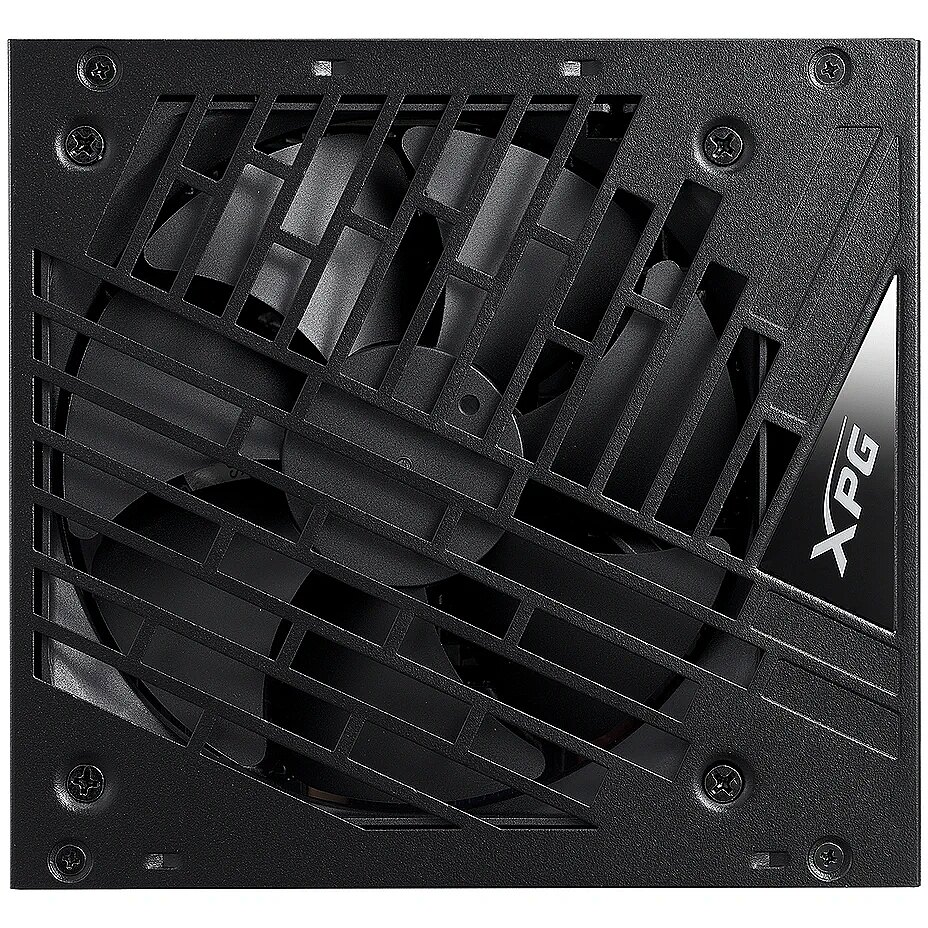

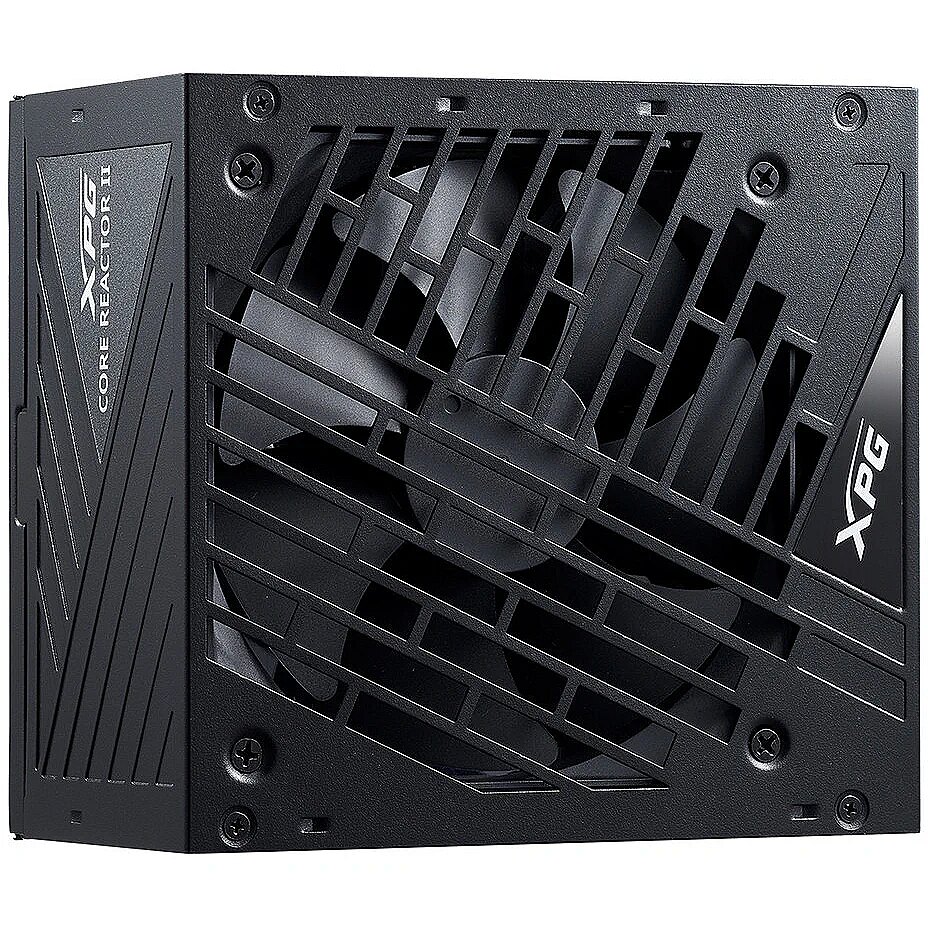

This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.
The power supply has received the 80 PLUS Gold energy efficiency certificate, which guarantees at least 90% efficiency at 50% load. This means that for every 100W of power received from the electrical grid, at least 90W is delivered to your computer components, and the remaining 10W is lost as heat.
1 x 600W 12VHPWR connector, with which this power supply unit is equipped, is intended for use with modern graphics cards such as Nvidia GeForce RTX 4070 and above (RTX 4060 and below use the standard 8-pin connector).
The color of this power supply is Melna. The cable color is Melna and they are flat.
This power supply is assigned the ATX 3.0 standard. This means that the unit has a 16-pin (12VHPWR) connector, providing up to 600W of power for the newest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards. Additionally, the ATX 3.0 standard supports a 200% power increase for 1 millisecond to ensure more stable power for the components.

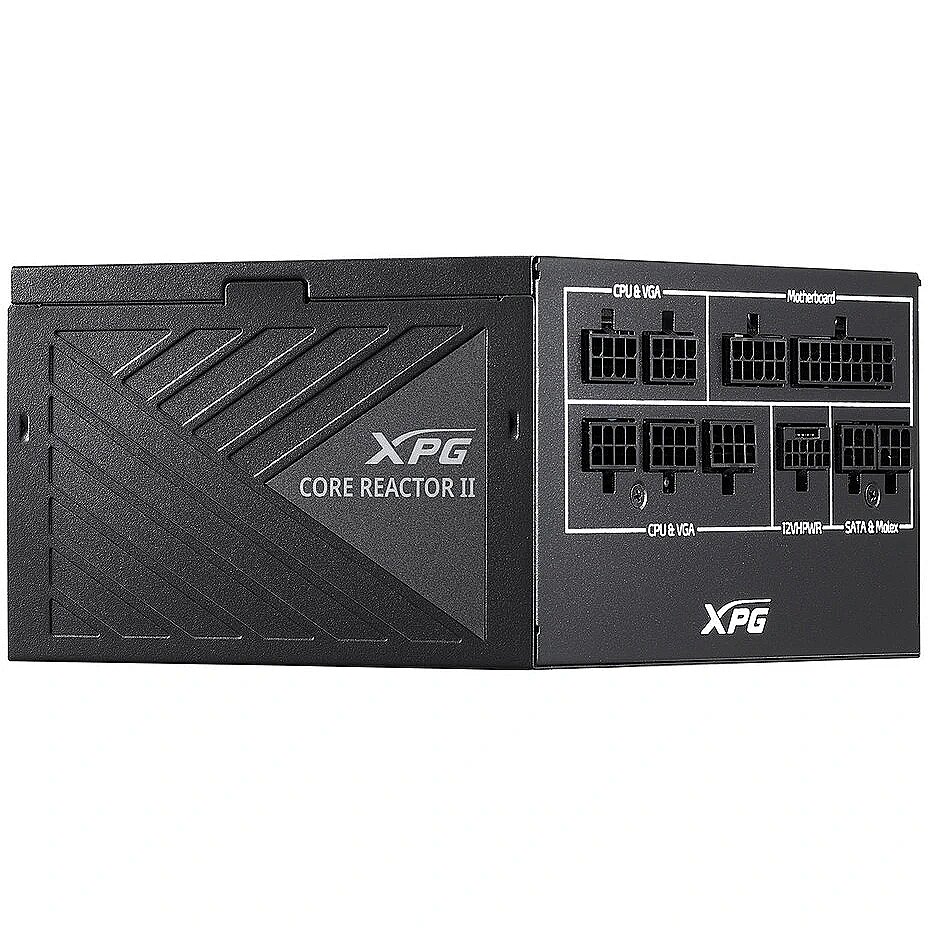

Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).
Basic information
Cybenetics Efficiency certification
: Cybenetics Platinum
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
850W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 70.8A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular

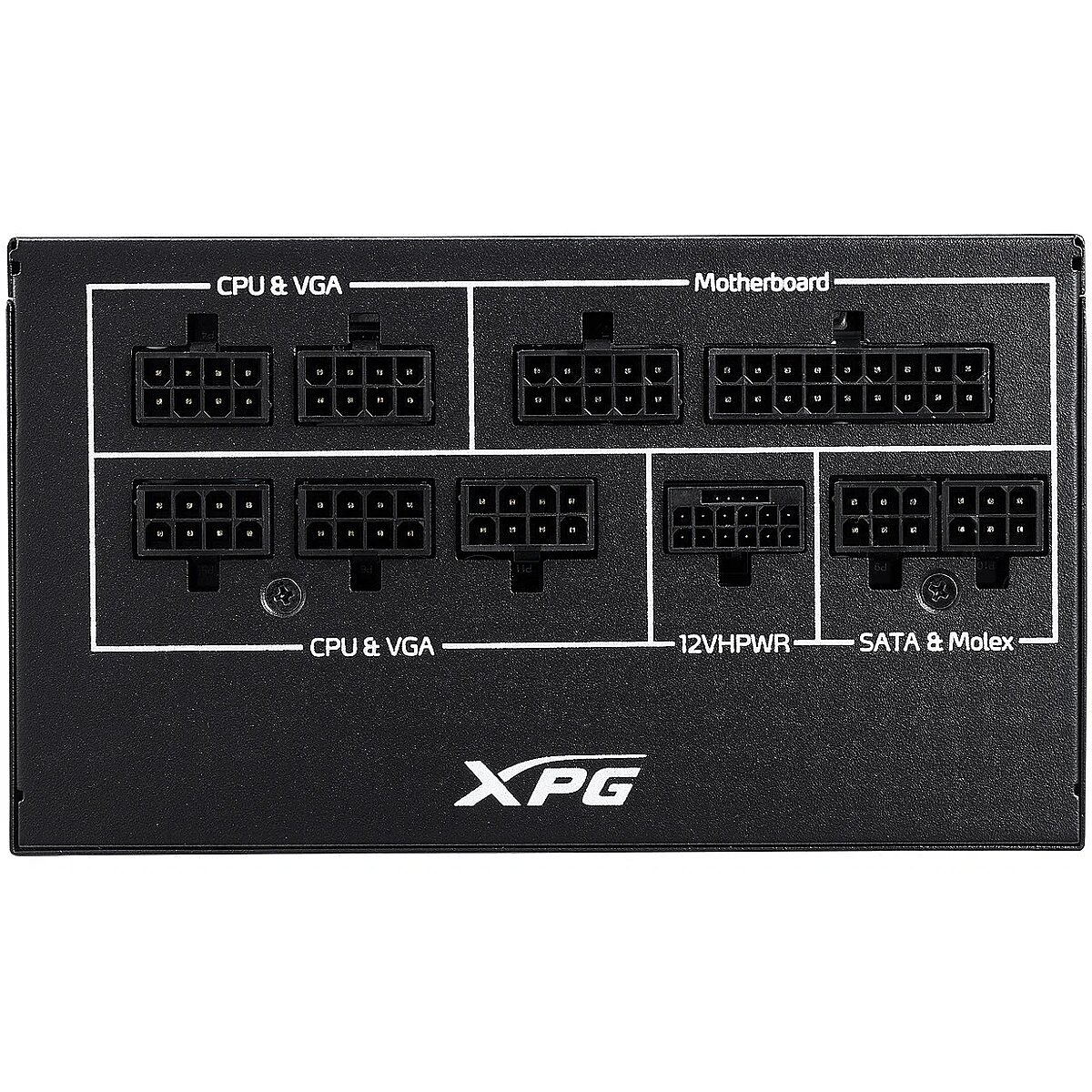

Ports and equipment
PCI-E 5.0/5.1
: 1 x 600W 12VHPWR (5.0)
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 6 x 6+2pin
SATA cconnectors
: Eight Core
4pin Molex
: 4
Case
More detailed specification
80 PLUS certification Performance - 80 PLUS Gold
AC input frequency Power - 47 - 63 Hz
AC input voltage Power - 100 - 240 V
ATX power connector (12+4 pin) Ports & interfaces - Y
ATX Power connector (24-pin) Ports & interfaces - Y
ATX version Performance - 3.0
Bearing technology Performance - FDB
Brand - XPG
BrandPartCode - 75261197
Cabling type Ports & interfaces - Fully-Modular
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Certificates - Certification - CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Zeichen | NOM | BSMI | UKCA | EAC | CCC | RCM
Certification Certificates - CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Zeichen | NOM | BSMI | UKCA | EAC | CCC | RCM
Cooling type Design - Active
Dane techniczne: Certyfikat sprawności - 80 Plus Gold
Dane techniczne: Gwarancja - 10 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 140 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Moc - 850 W
Dane techniczne: Model - XPG CORE REACTOR II
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: Monitoring obrotów wentylatorów - tak
Dane techniczne: MTBF - 100000 godz.
Dane techniczne: Natężenie przy napięciu +3.3V - 22 A
Dane techniczne: Natężenie przy napięciu +5V - 22 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3 A
Dane techniczne: Natężenie przy napięciu +12V1 - 70.8 A
Dane techniczne: Natężenie przy napięciu -12V - 0.3 A
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - XPG
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Waga - 3 kg
Dane techniczne: Wersja standardu ATX - ATX 3.0
Dane techniczne: Wtyczka zasilania [pin] - 1 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 3 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 6 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 8 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - SIP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 120 mm
Depth Weight & dimensions - 150 mm
Description - CORE REACTOR II
IMPROVE YOUR CORE, ENHANCE YOUR PERFORMANCE
CORE REACTOR II is a top-performing power supply unit designed for ATX 3.0 & ATX 3.1 compliance with a modular cable design and an 80 PLUS GOLD certification. These power supplies thrive in high-performance scenarios like servers or workstation setups, where a lot of power is needed. Next-Gen Ready - ATX 3.0 & ATX 3.1 COMPLIANT
CORE REACTOR II series power supply units meet Intel ATX 3.0 & ATX 3.1 design guide specifications and feature a 12VHPWR connector. By upgrading to an ATX 3.0 & ATX 3.1-compliant power supply, you'll be fully equipped for the upcoming wave of high-performance components. A must for the modern gamer, creator, or AI developer. Stay ahead of the curve by upgrading to an ATX 3.0 & ATX 3.1 PSU, the new standard in PC hardware. Certified GOLD Efficiency
CORE REACTOR II units recieved 80 PLUS GOLD certifications for efficiency, achieving up to 91.40% (115V) efficiency at 50% load. It comes in 1200W, 1000W, 850W, 750W, and 650W models for varying user needs and scenarios. It's the perfect PSU for mid-to-high level components, including the latest CPUs and GPUs. Intelligent Fan-Curve Design
The intelligent fan curve ensures quiet operation, even under full power load. By starting the fan at a low RPM, fan performance is both enhanced and extended, thereby increasing the power supply unit's lifespan. Premium all 105°C Japanese Capacitors
CORE REACTOR II features top-tier 105°C Japanese capacitors, ensuring exceptional stability and reliability of the PSU for many years of dependable performance. PEAK PERFORMANCE AND RELIABILITY
All XPG ATX 3.0 and ATX 3.1 power supplies are designed to support up to 235% power excursion, enabling the system to handle sudden power spikes, ensuring stability, and preventing crashes during intense workloads like gaming, rendering, and data processing.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 2284
Eans - 4711085942388
EPS power connector (8-pin) Ports & interfaces - Y
EPS version Performance - 2.92
Fan diameter Design - 120 mm
GTIN - 0842243029413
GTIN - 842243029413
GTIN - 4711085942388
Height Weight & dimensions - 86 mm
Input current Power - 12 A
LongDesc - CORE REACTOR IIIMPROVE YOUR CORE, ENHANCE YOUR PERFORMANCECORE REACTOR II is a top-performing power supply unit designed for ATX 3.0 & ATX 3.1 compliance with a modular cable design and an 80 PLUS GOLD certification. These power supplies thrive in high-performance scenarios like servers or workstation setups, where a lot of power is needed.Next-Gen Ready - ATX 3.0 & ATX 3.1 COMPLIANTCORE REACTOR II series power supply units meet Intel ATX 3.0 & ATX 3.1 design guide specifications and feature a 12VHPWR connector. By upgrading to an ATX 3.0 & ATX 3.1-compliant power supply, you'll be fully equipped for the upcoming wave of high-performance components. A must for the modern gamer, creator, or AI developer. Stay ahead of the curve by upgrading to an ATX 3.0 & ATX 3.1 PSU, the new standard in PC hardware.Certified GOLD EfficiencyCORE REACTOR II units recieved 80 PLUS GOLD certifications for efficiency, achieving up to 91.40% (115V) efficiency at 50% load. It comes in 1200W, 1000W, 850W, 750W, and 650W models for varying user needs and scenarios. It's the perfect PSU for mid-to-high level components, including the latest CPUs and GPUs.Intelligent Fan-Curve DesignThe intelligent fan curve ensures quiet operation, even under full power load. By starting the fan at a low RPM, fan performance is both enhanced and extended, thereby increasing the power supply unit's lifespan.Premium all 105°C Japanese CapacitorsCORE REACTOR II features top-tier 105°C Japanese capacitors, ensuring exceptional stability and reliability of the PSU for many years of dependable performance.PEAK PERFORMANCE AND RELIABILITYAll XPG ATX 3.0 and ATX 3.1 power supplies are designed to support up to 235% power excursion, enabling the system to handle sudden power spikes, ensuring stability, and preventing crashes during intense workloads like gaming, rendering, and data processing.
LongProductName - 850 W, PLATINUM, GOLD, ATX 12V v3.0 EPS v2.92, 0.99 PFC, 2400 RPM
LongSummaryDescription - XPG COREREACTOR II 850W Power Supply. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Zeichen | NOM | BSMI | UKCA | EAC | CCC | RCM
Max output current (+3.3V) Power - 22 A
Max output current (+5V) Power - 22 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 62.5 A
Max output current (-12V) Power - 0.3 A
Mean time between failures (MTBF) Performance - 100000 h
Model name - XPG CORE REACTOR II
Motherboard power connector Ports & interfaces - 20+4 pin ATX
Name - XPG CORE REACTOR II 850W
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 8
Package weight Packaging data - 3100 g
Packaging data - Package weight - 3.1 kg
PCI Express power connectors (6+2 pin) Ports & interfaces - 6
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.0
Performance - Bearing technology - FDB
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 4
Ports & interfaces - ATX power connector (12+4 pin) - Yes
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 6
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Input current - 12 A
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.99
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under voltage
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Surge & inrush protection (SIP)
Power - Power protection features - Under voltage
Power - Total power - 850 W
Power factor Power - 0.99
Power protection features Power - Over current/Over power/Over voltage/Short circuit/Surge & inrush protection (SIP)/Under voltage
Power supply unit (PSU) form factor Performance - ATX
Producer - XPG
producerCode - 75261197
ProducerCode - 75261197
Product colour Design - Black
ProductName - COREREACTOR II 850W Power Supply
productName - XPG COREREACTOR II 850W Power Supply
productSize - Normal
Purpose Performance - PC
Safety warning - Warnings - Avoid contact of the product with water or other liquids.
Safety warning - Warnings - Do not open the case - risk of electric shock.
Safety warning - Warnings - The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
ShortDescription - 850 | ATX | 120 mm | 20 + 4 pin |140 x 150 x 86 mm| 80 Plus Gold |
ShortSummaryDescription - XPG COREREACTOR II 850W Power Supply, 850 W, 100 - 240 V, 47 - 63 Hz, 12 A, 22 A, 62.5 A
sizeX - 340
sizeY - 160
sizeZ - 210
Summary - XPG COREREACTOR II 850W Power Supply. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Zeichen | NOM | BSMI | UKCA | EAC | CCC | RCM
Title - XPG COREREACTOR II 850W Power Supply
Total power Power - 850 W
Unit Box Height - 0.21
Unit Box Length - 0.34
Unit Box Width - 0.16
Unit Calculated Volume - 0.01338 cubm
Unit Calculated Weight - 3.67 kg
Units per Shipping Box - 6
URL - https://www.xpg.com/en/xpg/pc-components-core-reactor-ii
Vendor Homepage - https://www.xpg.com/en/xpg/pc-components-core-reactor-ii
Warranty - 36 months
WarrantyInfo - 10 years
warrantyLength - 120
warrantyType - G
weight - 3391
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.6 kg
Weight & dimensions - Width - 140 mm
Weight Weight & dimensions - 1596 g
Width Weight & dimensions - 140 mm
AC input frequency Power - 47 - 63 Hz
AC input voltage Power - 100 - 240 V
ATX power connector (12+4 pin) Ports & interfaces - Y
ATX Power connector (24-pin) Ports & interfaces - Y
ATX version Performance - 3.0
Bearing technology Performance - FDB
Brand - XPG
BrandPartCode - 75261197
Cabling type Ports & interfaces - Fully-Modular
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Certificates - Certification - CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Zeichen | NOM | BSMI | UKCA | EAC | CCC | RCM
Certification Certificates - CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Zeichen | NOM | BSMI | UKCA | EAC | CCC | RCM
Cooling type Design - Active
Dane techniczne: Certyfikat sprawności - 80 Plus Gold
Dane techniczne: Gwarancja - 10 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 140 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Moc - 850 W
Dane techniczne: Model - XPG CORE REACTOR II
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: Monitoring obrotów wentylatorów - tak
Dane techniczne: MTBF - 100000 godz.
Dane techniczne: Natężenie przy napięciu +3.3V - 22 A
Dane techniczne: Natężenie przy napięciu +5V - 22 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3 A
Dane techniczne: Natężenie przy napięciu +12V1 - 70.8 A
Dane techniczne: Natężenie przy napięciu -12V - 0.3 A
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - XPG
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Waga - 3 kg
Dane techniczne: Wersja standardu ATX - ATX 3.0
Dane techniczne: Wtyczka zasilania [pin] - 1 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 3 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 6 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 8 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - SIP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 120 mm
Depth Weight & dimensions - 150 mm

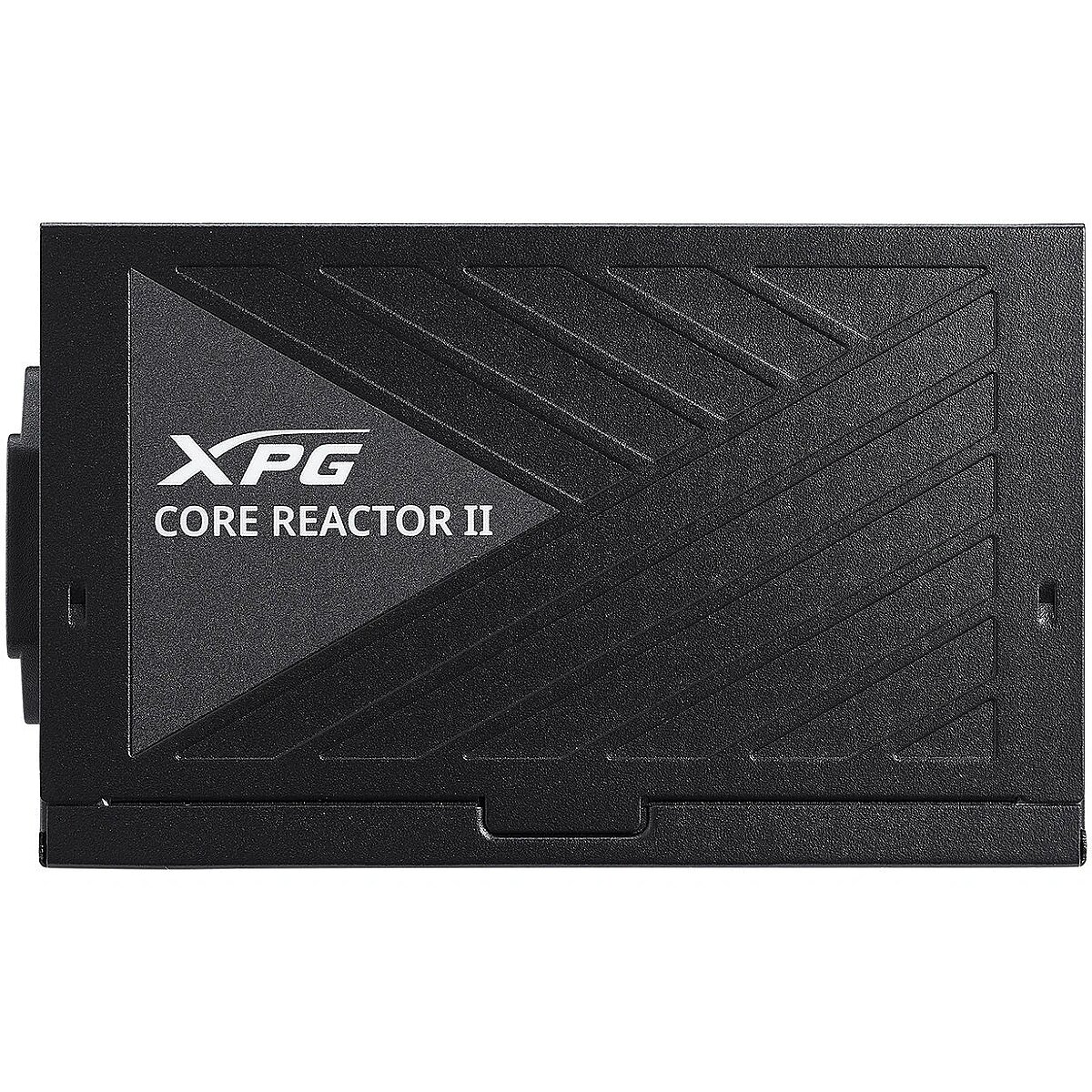

Description - CORE REACTOR II
IMPROVE YOUR CORE, ENHANCE YOUR PERFORMANCE
CORE REACTOR II is a top-performing power supply unit designed for ATX 3.0 & ATX 3.1 compliance with a modular cable design and an 80 PLUS GOLD certification. These power supplies thrive in high-performance scenarios like servers or workstation setups, where a lot of power is needed. Next-Gen Ready - ATX 3.0 & ATX 3.1 COMPLIANT
CORE REACTOR II series power supply units meet Intel ATX 3.0 & ATX 3.1 design guide specifications and feature a 12VHPWR connector. By upgrading to an ATX 3.0 & ATX 3.1-compliant power supply, you'll be fully equipped for the upcoming wave of high-performance components. A must for the modern gamer, creator, or AI developer. Stay ahead of the curve by upgrading to an ATX 3.0 & ATX 3.1 PSU, the new standard in PC hardware. Certified GOLD Efficiency
CORE REACTOR II units recieved 80 PLUS GOLD certifications for efficiency, achieving up to 91.40% (115V) efficiency at 50% load. It comes in 1200W, 1000W, 850W, 750W, and 650W models for varying user needs and scenarios. It's the perfect PSU for mid-to-high level components, including the latest CPUs and GPUs. Intelligent Fan-Curve Design
The intelligent fan curve ensures quiet operation, even under full power load. By starting the fan at a low RPM, fan performance is both enhanced and extended, thereby increasing the power supply unit's lifespan. Premium all 105°C Japanese Capacitors
CORE REACTOR II features top-tier 105°C Japanese capacitors, ensuring exceptional stability and reliability of the PSU for many years of dependable performance. PEAK PERFORMANCE AND RELIABILITY
All XPG ATX 3.0 and ATX 3.1 power supplies are designed to support up to 235% power excursion, enabling the system to handle sudden power spikes, ensuring stability, and preventing crashes during intense workloads like gaming, rendering, and data processing.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 2284
Eans - 4711085942388
EPS power connector (8-pin) Ports & interfaces - Y
EPS version Performance - 2.92
Fan diameter Design - 120 mm
GTIN - 0842243029413
GTIN - 842243029413
GTIN - 4711085942388
Height Weight & dimensions - 86 mm
Input current Power - 12 A
LongDesc - CORE REACTOR IIIMPROVE YOUR CORE, ENHANCE YOUR PERFORMANCECORE REACTOR II is a top-performing power supply unit designed for ATX 3.0 & ATX 3.1 compliance with a modular cable design and an 80 PLUS GOLD certification. These power supplies thrive in high-performance scenarios like servers or workstation setups, where a lot of power is needed.Next-Gen Ready - ATX 3.0 & ATX 3.1 COMPLIANTCORE REACTOR II series power supply units meet Intel ATX 3.0 & ATX 3.1 design guide specifications and feature a 12VHPWR connector. By upgrading to an ATX 3.0 & ATX 3.1-compliant power supply, you'll be fully equipped for the upcoming wave of high-performance components. A must for the modern gamer, creator, or AI developer. Stay ahead of the curve by upgrading to an ATX 3.0 & ATX 3.1 PSU, the new standard in PC hardware.Certified GOLD EfficiencyCORE REACTOR II units recieved 80 PLUS GOLD certifications for efficiency, achieving up to 91.40% (115V) efficiency at 50% load. It comes in 1200W, 1000W, 850W, 750W, and 650W models for varying user needs and scenarios. It's the perfect PSU for mid-to-high level components, including the latest CPUs and GPUs.Intelligent Fan-Curve DesignThe intelligent fan curve ensures quiet operation, even under full power load. By starting the fan at a low RPM, fan performance is both enhanced and extended, thereby increasing the power supply unit's lifespan.Premium all 105°C Japanese CapacitorsCORE REACTOR II features top-tier 105°C Japanese capacitors, ensuring exceptional stability and reliability of the PSU for many years of dependable performance.PEAK PERFORMANCE AND RELIABILITYAll XPG ATX 3.0 and ATX 3.1 power supplies are designed to support up to 235% power excursion, enabling the system to handle sudden power spikes, ensuring stability, and preventing crashes during intense workloads like gaming, rendering, and data processing.
LongProductName - 850 W, PLATINUM, GOLD, ATX 12V v3.0 EPS v2.92, 0.99 PFC, 2400 RPM
LongSummaryDescription - XPG COREREACTOR II 850W Power Supply. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Zeichen | NOM | BSMI | UKCA | EAC | CCC | RCM
Max output current (+3.3V) Power - 22 A
Max output current (+5V) Power - 22 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 62.5 A
Max output current (-12V) Power - 0.3 A
Mean time between failures (MTBF) Performance - 100000 h
Model name - XPG CORE REACTOR II
Motherboard power connector Ports & interfaces - 20+4 pin ATX
Name - XPG CORE REACTOR II 850W
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 8
Package weight Packaging data - 3100 g
Packaging data - Package weight - 3.1 kg
PCI Express power connectors (6+2 pin) Ports & interfaces - 6
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.0
Performance - Bearing technology - FDB
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 4
Ports & interfaces - ATX power connector (12+4 pin) - Yes
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 6
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Input current - 12 A
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.99
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under voltage
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Surge & inrush protection (SIP)
Power - Power protection features - Under voltage
Power - Total power - 850 W
Power factor Power - 0.99
Power protection features Power - Over current/Over power/Over voltage/Short circuit/Surge & inrush protection (SIP)/Under voltage
Power supply unit (PSU) form factor Performance - ATX
Producer - XPG
producerCode - 75261197
ProducerCode - 75261197
Product colour Design - Black
ProductName - COREREACTOR II 850W Power Supply
productName - XPG COREREACTOR II 850W Power Supply
productSize - Normal
Purpose Performance - PC
Safety warning - Warnings - Avoid contact of the product with water or other liquids.
Safety warning - Warnings - Do not open the case - risk of electric shock.
Safety warning - Warnings - The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
ShortDescription - 850 | ATX | 120 mm | 20 + 4 pin |140 x 150 x 86 mm| 80 Plus Gold |
ShortSummaryDescription - XPG COREREACTOR II 850W Power Supply, 850 W, 100 - 240 V, 47 - 63 Hz, 12 A, 22 A, 62.5 A
sizeX - 340
sizeY - 160
sizeZ - 210
Summary - XPG COREREACTOR II 850W Power Supply. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Zeichen | NOM | BSMI | UKCA | EAC | CCC | RCM
Title - XPG COREREACTOR II 850W Power Supply
Total power Power - 850 W
Unit Box Height - 0.21
Unit Box Length - 0.34
Unit Box Width - 0.16
Unit Calculated Volume - 0.01338 cubm
Unit Calculated Weight - 3.67 kg
Units per Shipping Box - 6
URL - https://www.xpg.com/en/xpg/pc-components-core-reactor-ii
Vendor Homepage - https://www.xpg.com/en/xpg/pc-components-core-reactor-ii
Warranty - 36 months
WarrantyInfo - 10 years
warrantyLength - 120
warrantyType - G
weight - 3391
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.6 kg
Weight & dimensions - Width - 140 mm
Weight Weight & dimensions - 1596 g
Width Weight & dimensions - 140 mm
