ID: 1073817
Product code: GP-UD850GM PG5W
Can be ordered 1 units Availability: 14 days after order approval
Warranty: 3 years

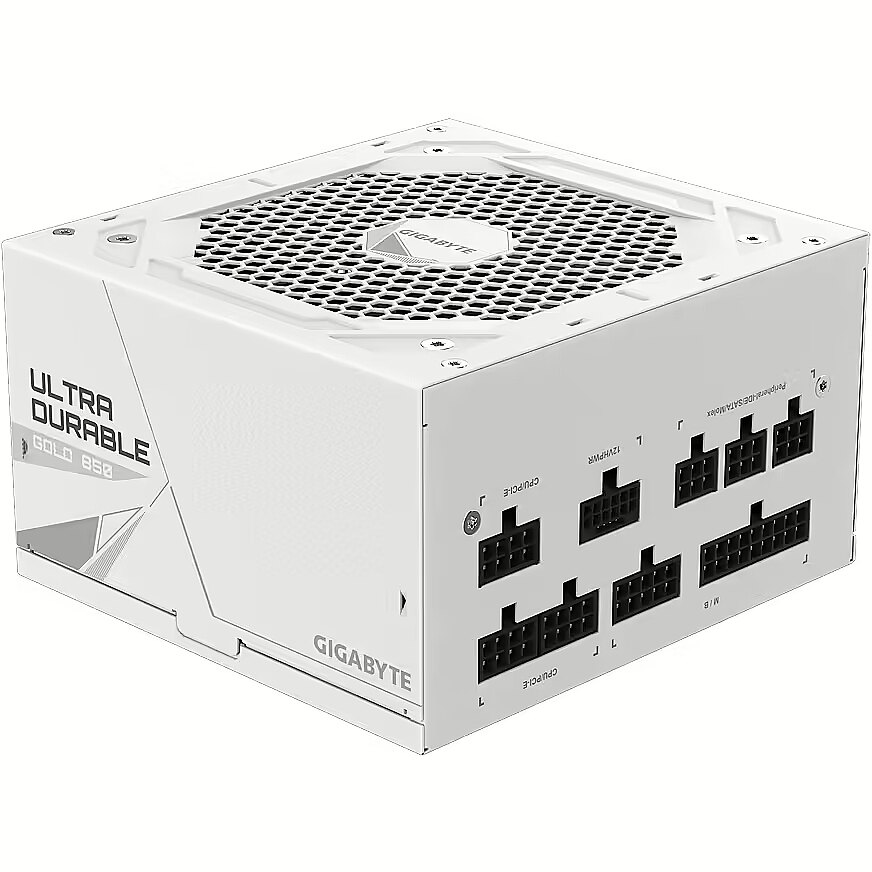

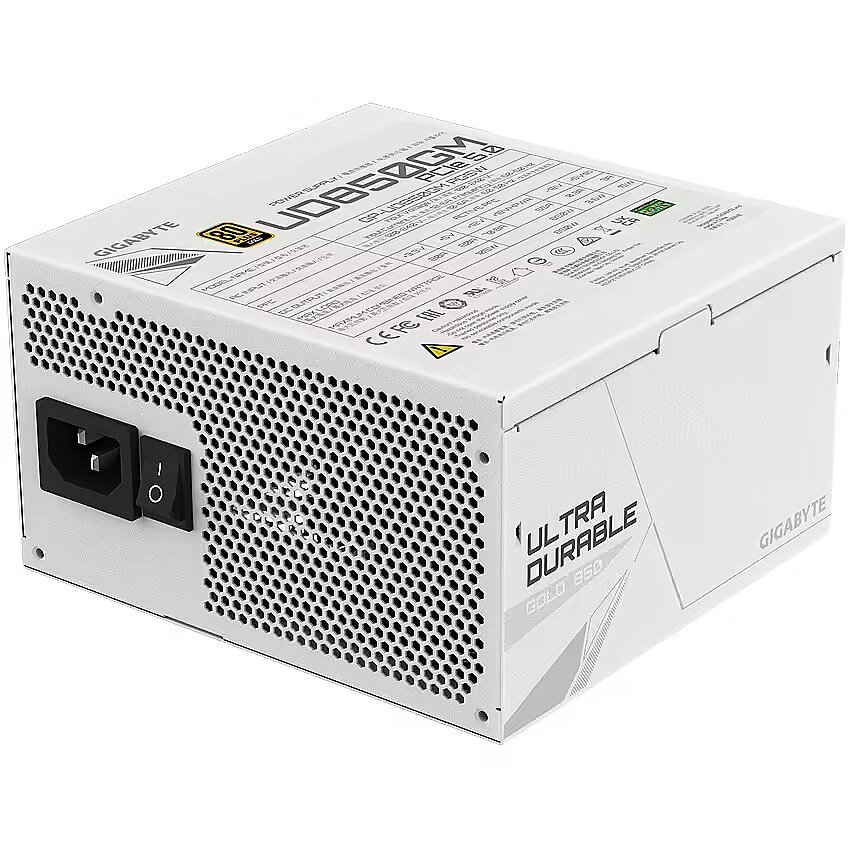

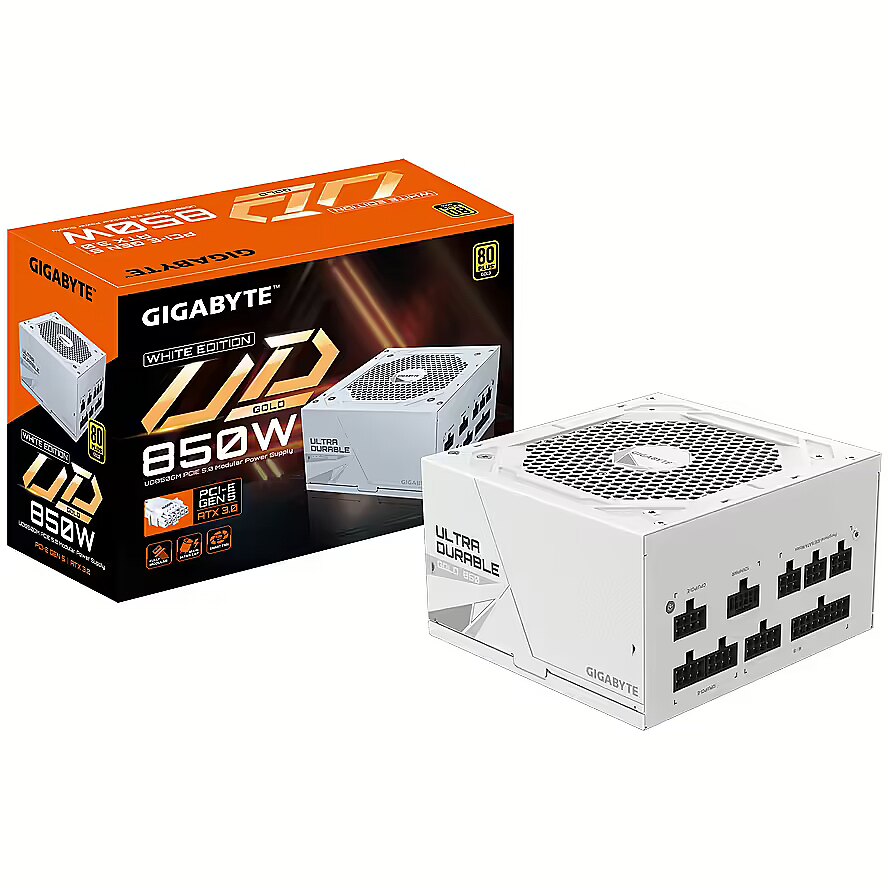

Gigabyte UD850GM PG5 White, 850W, 80PLUS Gold, PCIe 5.0
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Producer: Gigabyte
- Power output: 850W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 120 mm

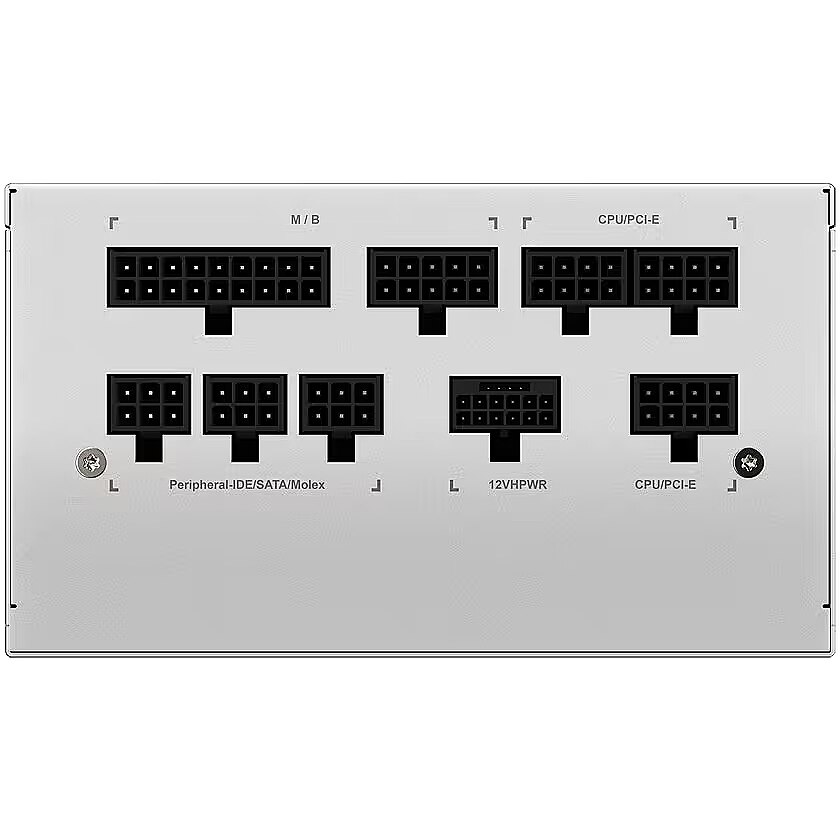

- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
This Gigabyte brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 850W.
850W power supply will be suitable for a powerful workstation or gaming computer. It will provide power for a high-end video card (for example, RTX 4070 Ti SUPER), multiple hard drives (SSD/HDD), water cooling, and a top-tier processor (possibly overclocked).

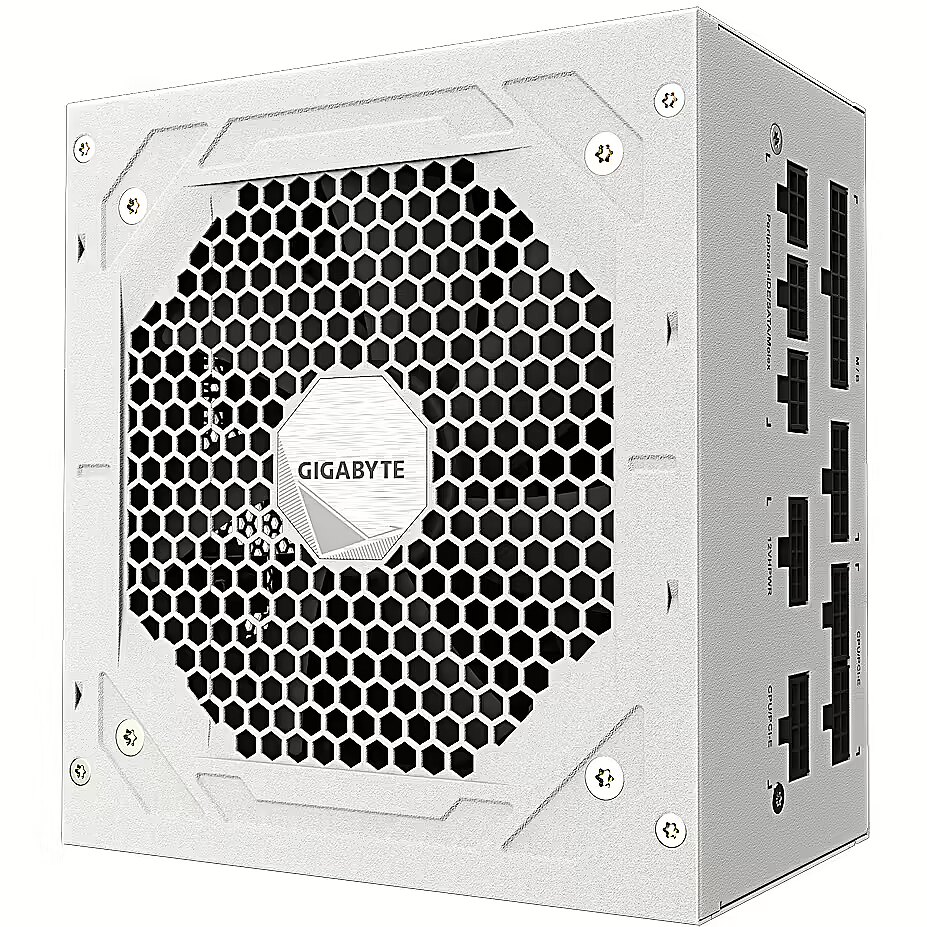

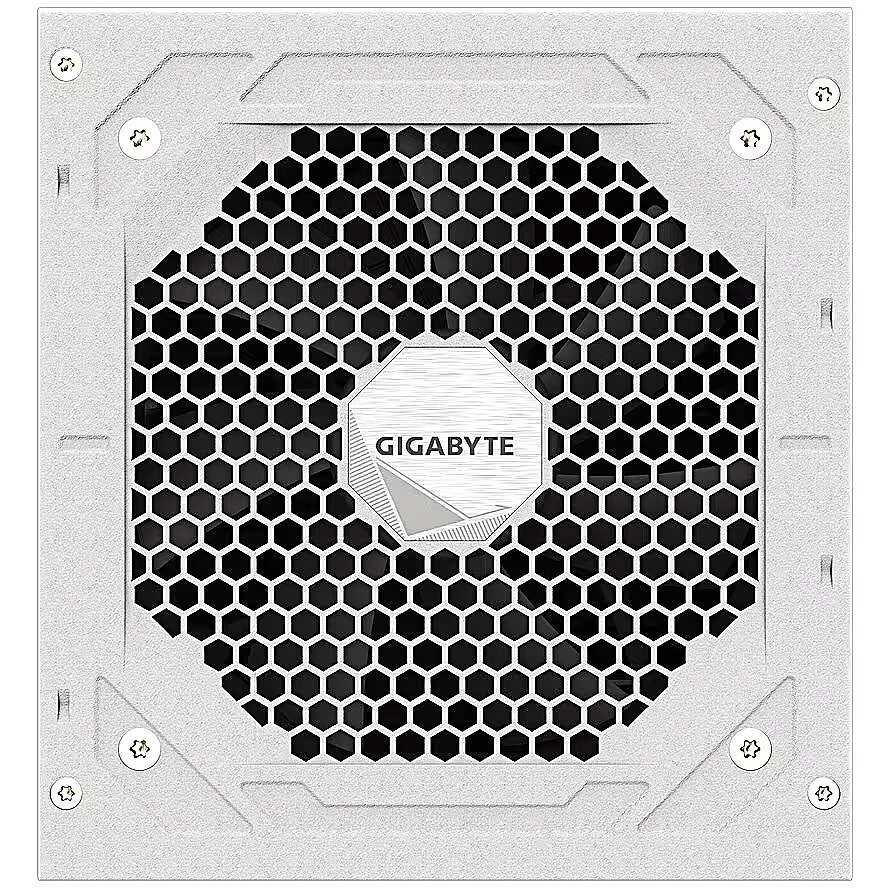

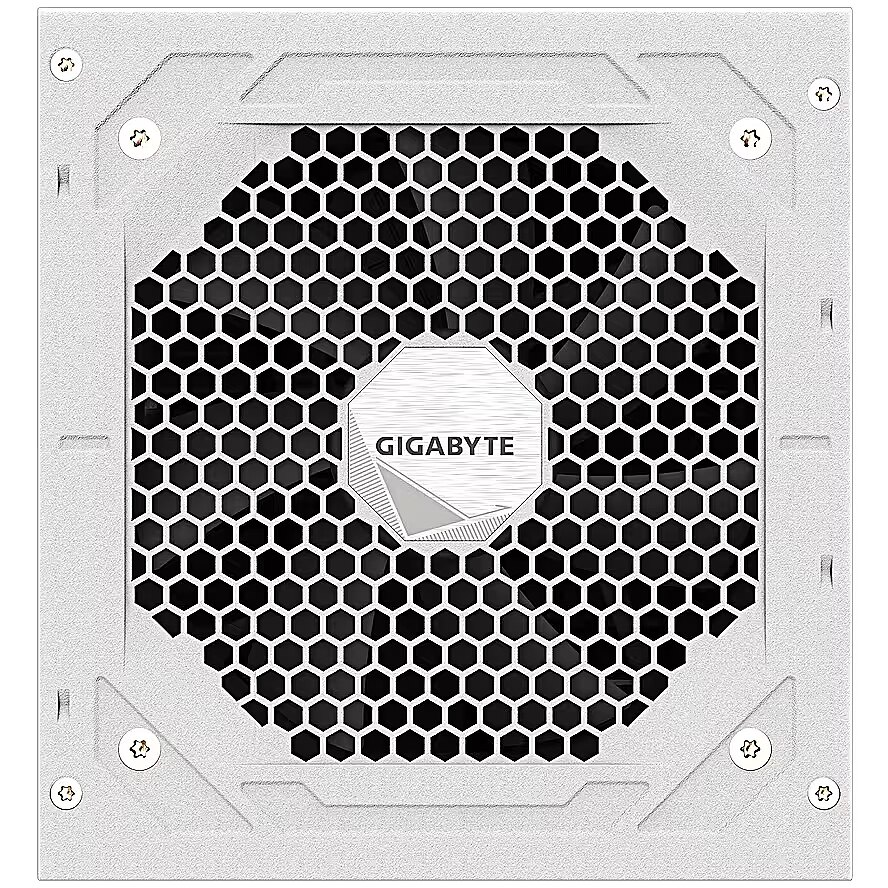

This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.
80 PLUS Gold energy efficiency certificate received by this power supply guarantees at least 90% efficiency at 50% load. In other words, for every 100 W of energy the power supply receives from the power grid, at least 90 W goes to your computer components, and the remaining 10 W is lost as heat.
1 x 600W 12VHPWR connector, with which this power supply unit is equipped, is intended for use with modern graphics cards such as Nvidia GeForce RTX 4070 and above (RTX 4060 and below use the standard 8-pin connector).
The color of the block is Balta. The block has flat cables, whose color is Balta.
This power supply is assigned the ATX 3.0 standard. This means that the unit has a 16-pin (12VHPWR) connector, providing up to 600W of power for the newest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards. Additionally, the ATX 3.0 standard supports a 200% power increase for 1 millisecond to ensure more stable power for the components.
This power supply unit's noise level is 30-35 dB, and it has a Cybenetics Standard ++ noise level certification.
This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).
The manufacturer of this power supply is Gigabyte. View all Gigabyte power supplies here.
Basic information
Cybenetics Efficiency certification
: Cybenetics Platinum
Cybenetics Noise level certification
: Cybenetics Standard ++
Power supply type
: ATX
Power output
850W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 70.8A
Fan size
: 120 mm
Functionality
Cable colour
: White
Lighting
: Nav
Color
: White
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0/5.1
: 1 x 600W 12VHPWR (5.0)
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: Eight Core
4pin Molex
: 3
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Brand - GIGABYTE
BrandPartCode - GP-UD850GM PG5W EU
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Gold
Code - GP-UD850GMPG5W
Dane techniczne: Certyfikat sprawności - 80 Plus Gold
Dane techniczne: Funkcja PFC - tak
Dane techniczne: Gwarancja - 5 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 140 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Moc - 850 W
Dane techniczne: Model - Gigabyte GP-UD
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: MTBF - 100000 godz.
Dane techniczne: Natężenie przy napięciu +3.3V - 20 A
Dane techniczne: Natężenie przy napięciu +5V - 20 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3 A
Dane techniczne: Natężenie przy napięciu +12V1 - 70.8 A
Dane techniczne: Natężenie przy napięciu -12V - 0.3 A
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - Gigabyte
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Układ PFC - aktywny
Dane techniczne: Wersja standardu ATX - ATX 3.0
Dane techniczne: Wtyczka zasilania [pin] - 1 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 1 x Floppy
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 2 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 3 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 8 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 120 mm
Desc - Jauda: 850W, Energoefektivitāte: 80 Plus Gold, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 8, MOLEX PATA pieslēgumi: 1, PCI-E: 4 x 6 + 2 PIN, Garantija: 2 gadi
Description -
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 120 mm
dimension height - 255 mm
Dimensions - 86 x 150 x 140 mm
dimension weight - 2665 g
dimension width - 205 mm
EAN - 810075657838
ean - 4719331553470
EAN - 4719331553470
Eans - 4719331553470
EAN_code - 4719331553470
Fan - 12 cm
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 1
Form Factor - ATX
GTIN - 4719331553470
guarantee - 60
guarantee_type - normal
LargeDescHTML -
Logistics data - Warranty period - 5 year(s)
LongDesc - Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
LongProductName - UD850GM PG5W Power Supply - PCIe 5.0, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.0 compatible, EU Plug
LongSummaryDescription - GIGABYTE UD850GM PG5W Power Supply - PCIe 5.0, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.0 compatible, EU Plug. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer_code - GP-UD850GM PG5W
MB power connector - 20 + 4 pin
Modular power supply - Yes
MOLEX power connectors - 3
MPN - GP-UD850GM PG5W
Name - 850W GIGABYTE GP-UD850GM PG5W 80+ Gold White
Name - Barošanas bloks Gigabyte GP-UD850GM PG5 White 850W
Name - Gigabyte GP-UD850GM PG5W
Name - GIGABYTE GP-UD850GM PG5W 850W, PC power supply (white, 1x 12VHPWR, 3x PCIe, cable management, 850 watts)
name - Power supply UD850GM PG5 850W 80PLUS GOLD PFC ATX white
Number of connectors PATA - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Number of USB 10p connectors - 0
Other features -
Packaging content - Cables included - CPU, PCIe, Peripheral (Molex), SATA
Packaging data - Package depth - 206 mm
Packaging data - Package height - 117 mm
Packaging data - Package type - Box
Packaging data - Package weight - 4.5 kg
Packaging data - Package width - 254 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.0
Performance - Bearing technology - HYB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 60 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 150,600 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 105 W
Power - Combined power (+5V) - 105 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 80 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Hold time - 16 ms
Power - Input current - 12 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 0.3 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 850 W
Power supply - 850 W
Producent: Nazwa producenta / importera - Gigabyte
Giga-Byte Technology BV
Steenoven 24
5626 Eindhoven
producer - Gigabyte
Producer - Gigabyte
ProducerCode - GP-UD850GM PG5W
ProductName - UD850GM PG5W Power Supply - PCIe 5.0, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.0 compatible, EU Plug
SATA power connectors - 8
ShortDescription - 850 | ATX | 120 mm | 20 + 4 pin | 150mm x 86mm x 140mm | modularny |80 PLUS Gold |
ShortSummaryDescription - GIGABYTE UD850GM PG5W Power Supply - PCIe 5.0, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.0 compatible, EU Plug, 850 W, 100 - 240 V, 50/60 Hz, 12 A, Active, 105 W
Title - GIGABYTE UD850GM PG5W Power Supply - PCIe 5.0, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.0 compatible, EU Plug
URL - https://www.gigabyte.com/
vendpn - GP-UD850GM PG5W
WarrantyInfo - 5 years
Weight - 2,69
Weight - 2.698
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 4.17 kg
Weight & dimensions - Width - 150 mm
Accessories included -
Brand - GIGABYTE
BrandPartCode - GP-UD850GM PG5W EU
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Gold
Code - GP-UD850GMPG5W
Dane techniczne: Certyfikat sprawności - 80 Plus Gold
Dane techniczne: Funkcja PFC - tak
Dane techniczne: Gwarancja - 5 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 140 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Moc - 850 W
Dane techniczne: Model - Gigabyte GP-UD
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: MTBF - 100000 godz.
Dane techniczne: Natężenie przy napięciu +3.3V - 20 A
Dane techniczne: Natężenie przy napięciu +5V - 20 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3 A
Dane techniczne: Natężenie przy napięciu +12V1 - 70.8 A
Dane techniczne: Natężenie przy napięciu -12V - 0.3 A
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - Gigabyte
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Układ PFC - aktywny
Dane techniczne: Wersja standardu ATX - ATX 3.0
Dane techniczne: Wtyczka zasilania [pin] - 1 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 1 x Floppy
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 2 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 3 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 8 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 120 mm
Desc - Jauda: 850W, Energoefektivitāte: 80 Plus Gold, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 8, MOLEX PATA pieslēgumi: 1, PCI-E: 4 x 6 + 2 PIN, Garantija: 2 gadi
Description -
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 120 mm
dimension height - 255 mm
Dimensions - 86 x 150 x 140 mm
dimension weight - 2665 g
dimension width - 205 mm
EAN - 810075657838
ean - 4719331553470
EAN - 4719331553470
Eans - 4719331553470
EAN_code - 4719331553470
Fan - 12 cm
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 1
Form Factor - ATX
GTIN - 4719331553470
guarantee - 60
guarantee_type - normal
LargeDescHTML -
Logistics data - Warranty period - 5 year(s)
LongDesc - Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
LongProductName - UD850GM PG5W Power Supply - PCIe 5.0, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.0 compatible, EU Plug
LongSummaryDescription - GIGABYTE UD850GM PG5W Power Supply - PCIe 5.0, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.0 compatible, EU Plug. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer_code - GP-UD850GM PG5W
MB power connector - 20 + 4 pin
Modular power supply - Yes
MOLEX power connectors - 3
MPN - GP-UD850GM PG5W
Name - 850W GIGABYTE GP-UD850GM PG5W 80+ Gold White
Name - Barošanas bloks Gigabyte GP-UD850GM PG5 White 850W
Name - Gigabyte GP-UD850GM PG5W
Name - GIGABYTE GP-UD850GM PG5W 850W, PC power supply (white, 1x 12VHPWR, 3x PCIe, cable management, 850 watts)
name - Power supply UD850GM PG5 850W 80PLUS GOLD PFC ATX white
Number of connectors PATA - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Number of USB 10p connectors - 0
Other features -
Packaging content - Cables included - CPU, PCIe, Peripheral (Molex), SATA
Packaging data - Package depth - 206 mm
Packaging data - Package height - 117 mm
Packaging data - Package type - Box
Packaging data - Package weight - 4.5 kg
Packaging data - Package width - 254 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.0
Performance - Bearing technology - HYB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 60 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 150,600 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 105 W
Power - Combined power (+5V) - 105 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 80 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Hold time - 16 ms
Power - Input current - 12 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 0.3 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 850 W
Power supply - 850 W
Producent: Nazwa producenta / importera - Gigabyte
Giga-Byte Technology BV
Steenoven 24
5626 Eindhoven
producer - Gigabyte
Producer - Gigabyte
ProducerCode - GP-UD850GM PG5W
ProductName - UD850GM PG5W Power Supply - PCIe 5.0, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.0 compatible, EU Plug
SATA power connectors - 8
ShortDescription - 850 | ATX | 120 mm | 20 + 4 pin | 150mm x 86mm x 140mm | modularny |80 PLUS Gold |
ShortSummaryDescription - GIGABYTE UD850GM PG5W Power Supply - PCIe 5.0, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.0 compatible, EU Plug, 850 W, 100 - 240 V, 50/60 Hz, 12 A, Active, 105 W
Title - GIGABYTE UD850GM PG5W Power Supply - PCIe 5.0, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.0 compatible, EU Plug
URL - https://www.gigabyte.com/
vendpn - GP-UD850GM PG5W
WarrantyInfo - 5 years
Weight - 2,69
Weight - 2.698
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 4.17 kg
Weight & dimensions - Width - 150 mm
