ID: 1041762
Product code: XN173
Can be ordered 6 units Availability: 14 days after order approval
Warranty: 2 years
Xilence Performance X, 750W, 80PLUS Gold, ATX 3.0
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Producer: Xilence
- Power output: 750W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 140 mm
- Modular cables: Semi-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 3 x 6+2pin
Description
This Xilence brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 750W.
With 750W power, it will be sufficient for a good mid-level gaming experience. The power supply unit will be able to run a computer with a high-class processor, a powerful mid-range graphics card (for example, RTX 4070), and several drives (SSD/HDD).

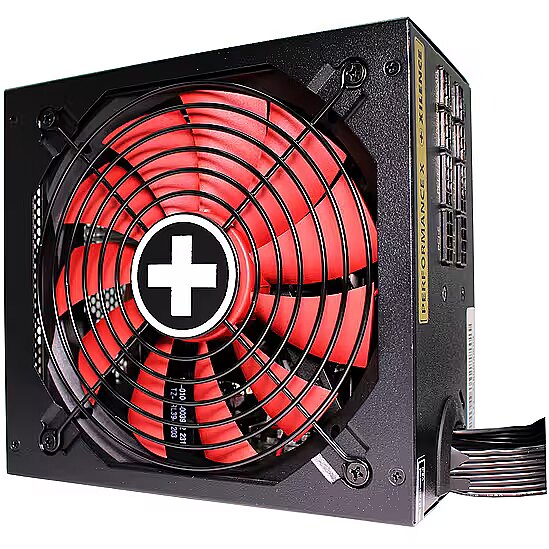

This power supply unit is equipped with a 140 mm fan. It will be significantly quieter than a regular 120 mm fan and will provide adequate cooling at lower speeds, thanks to the massive blade size.
The power supply has received the 80 PLUS Gold energy efficiency certificate, which guarantees at least 90% efficiency at 50% load. This means that for every 100W of power received from the electrical grid, at least 90W is delivered to your computer components, and the remaining 10W is lost as heat.
1 x 12VHPWR connector, with which this power supply unit is equipped, is intended for use with modern graphics cards such as Nvidia GeForce RTX 4070 and above (RTX 4060 and below use the standard 8-pin connector).
The color of this power supply is Melna. The cable color is Melna and they are flat.
This power supply is assigned the ATX 3.0 standard. This means that the unit has a 16-pin (12VHPWR) connector, providing up to 600W of power for the newest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards. Additionally, the ATX 3.0 standard supports a 200% power increase for 1 millisecond to ensure more stable power for the components.
The power supply unit's cables are partially modular. Some cables can be attached or removed as needed, while others are fixed. This unit is intended for those who want a certain level of flexibility but do not want a fully modular system.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 62.5A
Fan size
: 140 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Semi-Modular
Ports and equipment
PCI-E 5.0/5.1
: 1 x 12VHPWR (5.0)
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin

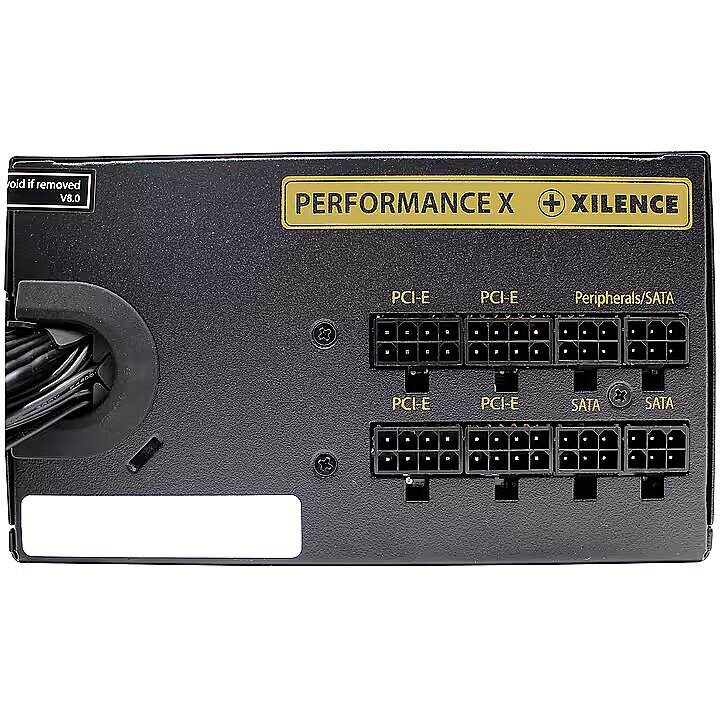

PCI-E
: 3 x 6+2pin
SATA cconnectors
: 6
4pin Molex
: 0
Case
More detailed specification
80 PLUS certification Performance - 80 PLUS Gold
AC input voltage Power - 100 - 240 V
ATX version Performance - 3.0
Bearing technology Performance - FDB
Cabling type Ports & interfaces - Semi-Modular
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Compliance certificates Certificates - RoHS/WEEE
Cooling type Design - Active
CPU P4 connector (4-pin) Ports & interfaces - 1
CPU power connector (4+4 pin) Ports & interfaces - Yes
Depth Weight & dimensions - 160 mm
Description - The semi-modular power supplies of the X+ series are capable of absorbing high load peaks above the normal rated power in the shortest possible time and comply with Intel's Design Guide 3.0. Thus, the power supplies are ideally
suited for driving the latest and most powerful gaming graphics cards with PCI Express 5 specifications. An 80+ Gold certification confirms a high efficiency and energy efficiency of this power supply series. Six different protection circuits (OCP, OVP, UVP, SCP, OPP, OTP) ensure safe operation even in heated gaming sessions. The fans of the ATX 3.0 power supplies run with Fluid Dynamic Bearing technology and are very quiet. In addition, they convince with an extremely long durability and their excellent cooling performance. All of these specifications make the affordable Performance X+ series ideal for use with the latest gaming PC systems.
EAN_code - 4044953503740
Efficiency Power - 92 %
Fan diameter Design - 140 mm
Height Weight & dimensions - 86 mm
Manufacturer - Xilence
Manufacturer_code - XN173

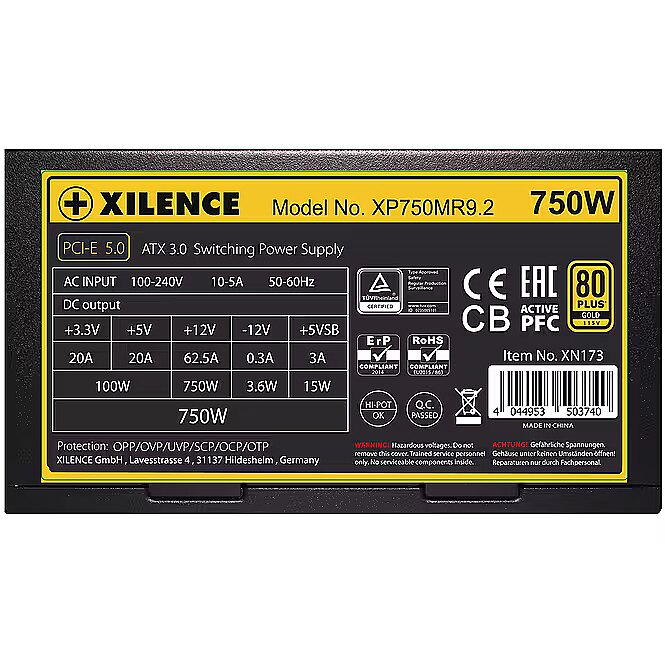

Max output current (+3.3V) Power - 20 A
Max output current (+5V) Power - 20 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 62.5 A
Max output current (-12V) Power - 0.3 A
Model name - XN173 | XP750MR9.2
Motherboard power connector Ports & interfaces - 20+4 pin ATX
Name - Xilence Performance X ATX 3.0 80+ GOLD 750W, PC power supply (black, 1x 12VHPWR, 3x PCIe, cable management, 750 Watt)
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 6
Package type Packaging data - Box
PCI Express power connectors (6+2 pin) Ports & interfaces - 3
PCI Express power connectors (8-pin) Ports & interfaces - 1
Power Factor Correction (PFC) type Power - Active
Power protection features Power - Over current/Over power/Over voltage/Short circuit/Under voltage
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - Black/Red
Purpose Performance - PC
Summary - Xilence Performance X Series XP750MR9.2. Total power: 750 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Cabling type: Semi-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Red, Cooling type: Active, Fan diameter: 14 cm. Compliance certificates: RoHS, WEEE
Sustainability certificates Technical details - ErP
Sustainability compliance Technical details - Yes
Total power Power - 750 W
Unit Box Height - 0.195
Unit Box Length - 0.29
Unit Box Width - 0.095
Unit Calculated Volume - 0.005372 cubm
Unit Calculated Weight - 2.72 kg
Units per Shipping Box - 1
Vendor Homepage - https://www.xilence.net/en/power-supplies/248
Warranty - 24 months
Weight - 2,73
Width Weight & dimensions - 150 mm
AC input voltage Power - 100 - 240 V
ATX version Performance - 3.0
Bearing technology Performance - FDB
Cabling type Ports & interfaces - Semi-Modular
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Compliance certificates Certificates - RoHS/WEEE
Cooling type Design - Active
CPU P4 connector (4-pin) Ports & interfaces - 1
CPU power connector (4+4 pin) Ports & interfaces - Yes
Depth Weight & dimensions - 160 mm
Description - The semi-modular power supplies of the X+ series are capable of absorbing high load peaks above the normal rated power in the shortest possible time and comply with Intel's Design Guide 3.0. Thus, the power supplies are ideally
suited for driving the latest and most powerful gaming graphics cards with PCI Express 5 specifications. An 80+ Gold certification confirms a high efficiency and energy efficiency of this power supply series. Six different protection circuits (OCP, OVP, UVP, SCP, OPP, OTP) ensure safe operation even in heated gaming sessions. The fans of the ATX 3.0 power supplies run with Fluid Dynamic Bearing technology and are very quiet. In addition, they convince with an extremely long durability and their excellent cooling performance. All of these specifications make the affordable Performance X+ series ideal for use with the latest gaming PC systems.
EAN_code - 4044953503740
Efficiency Power - 92 %
Fan diameter Design - 140 mm
Height Weight & dimensions - 86 mm
Manufacturer - Xilence
Manufacturer_code - XN173
Max output current (+3.3V) Power - 20 A
Max output current (+5V) Power - 20 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 62.5 A
Max output current (-12V) Power - 0.3 A
Model name - XN173 | XP750MR9.2
Motherboard power connector Ports & interfaces - 20+4 pin ATX
Name - Xilence Performance X ATX 3.0 80+ GOLD 750W, PC power supply (black, 1x 12VHPWR, 3x PCIe, cable management, 750 Watt)
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 6
Package type Packaging data - Box
PCI Express power connectors (6+2 pin) Ports & interfaces - 3
PCI Express power connectors (8-pin) Ports & interfaces - 1
Power Factor Correction (PFC) type Power - Active
Power protection features Power - Over current/Over power/Over voltage/Short circuit/Under voltage
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - Black/Red
Purpose Performance - PC
Summary - Xilence Performance X Series XP750MR9.2. Total power: 750 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Cabling type: Semi-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Red, Cooling type: Active, Fan diameter: 14 cm. Compliance certificates: RoHS, WEEE
Sustainability certificates Technical details - ErP
Sustainability compliance Technical details - Yes
Total power Power - 750 W
Unit Box Height - 0.195
Unit Box Length - 0.29
Unit Box Width - 0.095
Unit Calculated Volume - 0.005372 cubm
Unit Calculated Weight - 2.72 kg
Units per Shipping Box - 1
Vendor Homepage - https://www.xilence.net/en/power-supplies/248
Warranty - 24 months
Weight - 2,73
Width Weight & dimensions - 150 mm
