3G/4G USB modem compatibility WAN connection - No
AC adapter included Packaging content - Yes
Accessories included -
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
brand - Ubiquiti
Built-in display Design - Yes
Built-in processor Features - Yes
category - Ubiquiti > Vadu ierīces > UISP Routing
Category Code - ROU
Certificates - CE FCC IC
Color - White
Compliance certificates Certificates - CE, Federal Communications Commission (FCC), Industry Canada (IC)
Depth Weight & dimensions - 200 mm
Description - 10 GbE router designed for ISP applications.(9) GbE RJ45 ports(4) 10G SFP+ portsIntegrated Layer 2 switchUp to 9,500 Mbps NAT throughputTraffic shaping functionality and automated customer suspensionFirewall and OSPF routingAdditional Power TransPort input for DC redundancy
Description - Professional UISP router Multi-WAN 10GbE router designed for ISP applications. (9) GbE RJ45 ports (4) 10G SFP+ ports Integrated Layer 2 switch* NAT throughput up to 9500 Mbps** Traffic shaping functionality and automatic customer suspension Firewall and OSPF routing Additional Power TransPort input for DC redundancy *Ports 1-8, 10-13 can be configured for line-rate Layer 2 switching. **Up to 2250 Mbps with QoS enabled; up to 7500 Mbps with IP Accounting enabled.
Designation - CE+WEEE
dimension depth - 120 mm
dimension height - 520 mm

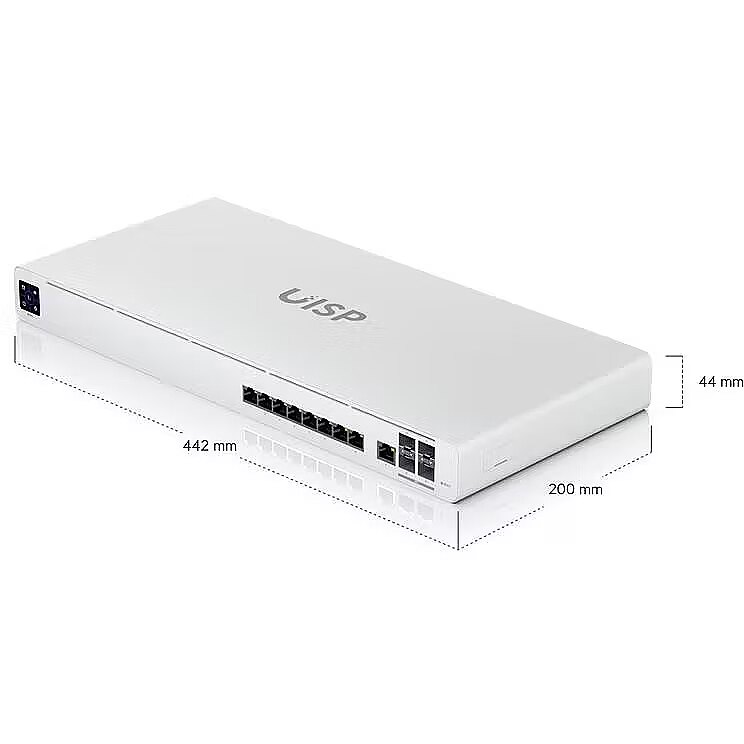

Dimensions - 442.4 x 200 x 43.7 mm
dimension weight - 4000 g
dimension width - 310 mm
Display diagonal Design - 3.3 cm (1.3")
Display type Design - LCM
DSL WAN WAN connection - No
ean - 810010076311
EAN - 0810010076311
Environment requirements - Operating temperature -10 to 50° C Operating humidity 5 to 95%, non-condensing
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Ports & interfaces - 8
Ethernet LAN data rates Network - 10,100,1000 Mbit/s
Ethernet WAN WAN connection - Yes
Firewall Security - Yes
guarantee - 12
guarantee_type - normal
height - 0.145 m
Height Weight & dimensions - 43.7 mm
Housing material Design - Polycarbonate (PC), Steel, ABS
I/O ports - 1 x WAN (RJ-45)
I/O ports - 4 x 10Gbit SFP/SFP+
I/O ports - 8 x 10/100/1000 Mbit/s
Input current Power - 1.5 A
Internal memory Features - 4096 MB
Internal memory type Features - DDR4
Internal storage capacity Features - 16 GB
LED indicators Design - Activity, Link, Speed
length - 0.52 m
Management, monitoring, configuration -
Model - UISP Router Pro
mpn - UISP-R-Pro
name - UISP RouterPro UISP-R-Pro
Network address translation (NAT) Security - Yes
Network architecture - GigabitEthernet
Operating relative humidity (H-H) Operational conditions - 5 - 95%
Operating temperature (T-T) Operational conditions - -10 - 50 °C
Other features - Housing materials SGCC steel, polycarbonate/ABS Quad-core ARM Cortex-A57 processor with a frequency of 1.7 GHz 4 GB DDR4 memory On board 16 GB eMMC Management interface: Ethernet, Bluetooth
Power consumption (max) Power - 50 W
Power source type Power - AC, DC
Power supply - Universal AC input, 100240 VAC, max. 1.5 A, 50/60 Hz TransPort power supply DC input 27 V DC, 2.2 A AC/DC power supply, internal, 60W Supported voltage range 100240 V AC Max power consumption 50W
Power supply Power - 60 W
Processor frequency Features - 1700 MHz
Processor manufacturer Features - ARM
Processor model Features - ARM Cortex-A57
producer - UBIQUITI
Product colour Design - Stainless steel
Product model code - UISP-R-PRO
Reset button Management features - Yes
Security -
SFP+ module slots quantity Ports & interfaces - 4
SFP WAN WAN connection - No
SIM card slot WAN connection - No
Software -
Special functions -
Storage media Features - eMMC
Summary - Ubiquiti UISP -R-Pro. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Throughput: 9.5 Gbit/s. Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC). Processor manufacturer: ARM, Processor model: ARM Cortex-A57, Processor frequency: 1700 MHz. Product colour: Stainless steel, Housing material: Polycarbonate (PC), Steel, ABS, LED indicators: Activity, Link, Speed. Power supply: 60 W, Power consumption (max): 50 W, Power source type: AC, DC
System Requirements -
Throughput Network - 9.5 Gbit/s
title - Ubiquiti UISP Router Pro
Traffic shaping Management features - Yes
Unit Box Height - 0.308
Unit Box Length - 0.514
Unit Box Width - 0.117
Unit Calculated Volume - 0.02238 cubm
Unit Calculated Weight - 4.58 kg
Units per Shipping Box - 2
Vendor Homepage - https://store.ui.com/us/en/collections/uisp-wired-routing-hi-capacity-ethernet/products/uisp-r-pro
vendpn - UISP-R-Pro
WAN ports quantity Ports & interfaces - 1
Warranty - 12 months
Web-based management Management features - Yes
Weight - 3.3 kg
weight - 4.65 kg
Weight Weight & dimensions - 3.3 kg
width - 0.31 m
Width Weight & dimensions - 442.4 mm
