Accessories included - RUT300 router 9W power supply Ethernet cable (1.5 m) QSG (Quick Start Guide) RMS leaflet
Certificates -
Color - Aluminium
Description - RUTX08 router RUTX08 is a rugged and efficient industrial Ethernet-to-Ethernet VPN router. A VPN router that runs on RutOS - an advanced operating system based on OpenWRT. It has four Gigabit Ethernet ports with speeds up to 1000 Mbps. The durable aluminum housing and support for industrial networking protocols make the RUTX08 an excellent choice for professional applications. Multiple supported VPN services, an advanced firewall and a remote management system (RMS) make the RUTX08 a great device that does not require cellular or Wi-Fi connectivity.
Designation - CE+WEEE
dimension depth - 70 mm
dimension height - 175 mm
Dimensions - 100 x 30 x 85 mm
dimension weight - 433 g
dimension width - 150 mm
ean - 4779027312903
Environment requirements - Operating temperature: -40 C to 75 C Humidity during operation: 10% to 90% non-condensing
guarantee - 24
guarantee_type - normal

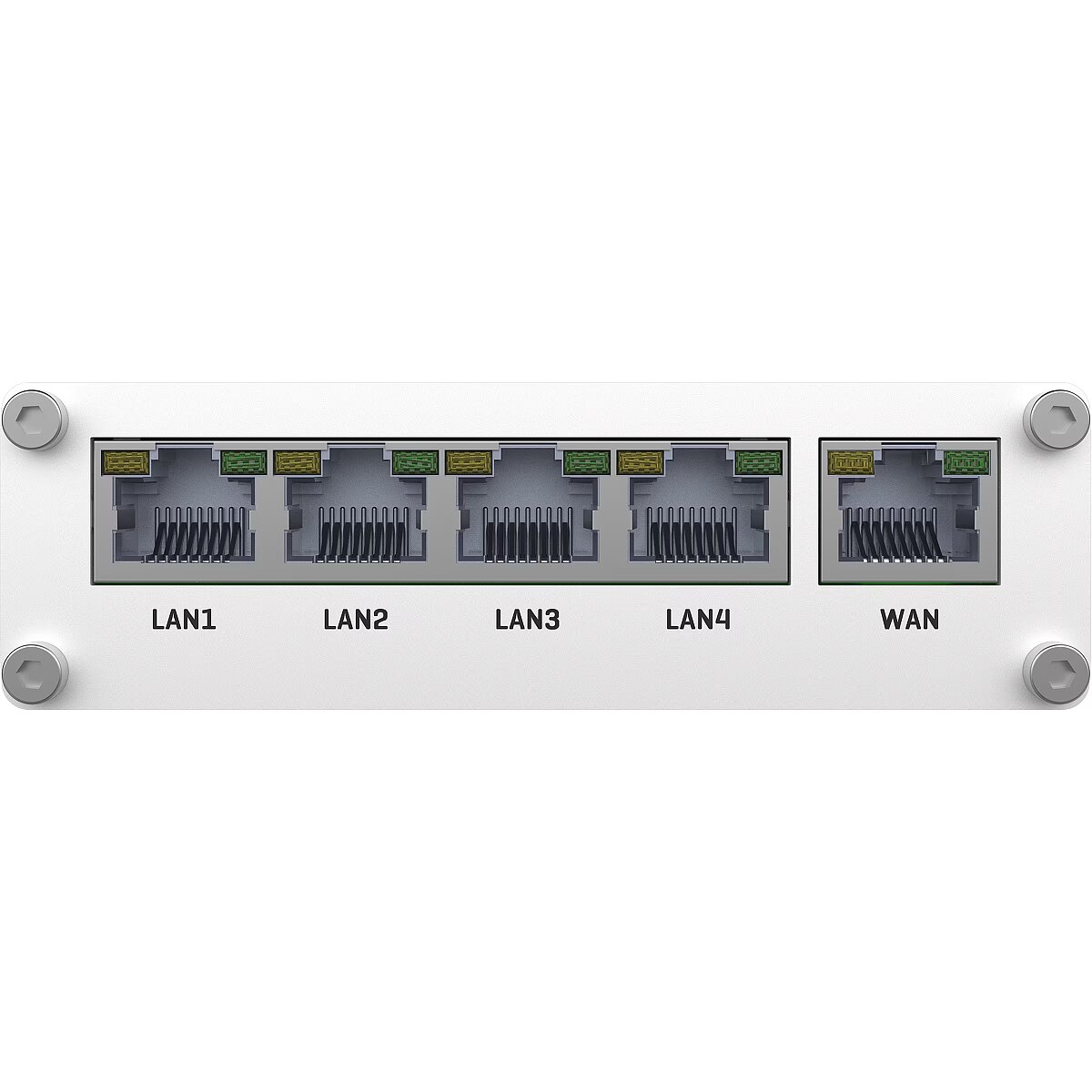

I/O ports - 1 x 10/100 Mbit/s WAN
I/O ports - 1 x USB 2.0
I/O ports - 4 x 10/100 Mbit/s
Management, monitoring, configuration - Routing: Static routes, Routing rules, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard Monitoring and management: WEB UI, CLI, SSH, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS Cloud: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx Services: DDNS, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba), Traffic Logging Administration: Multi user, Configuration profiles, Diagnostics, logs, Configuration backup
Model - RUT300

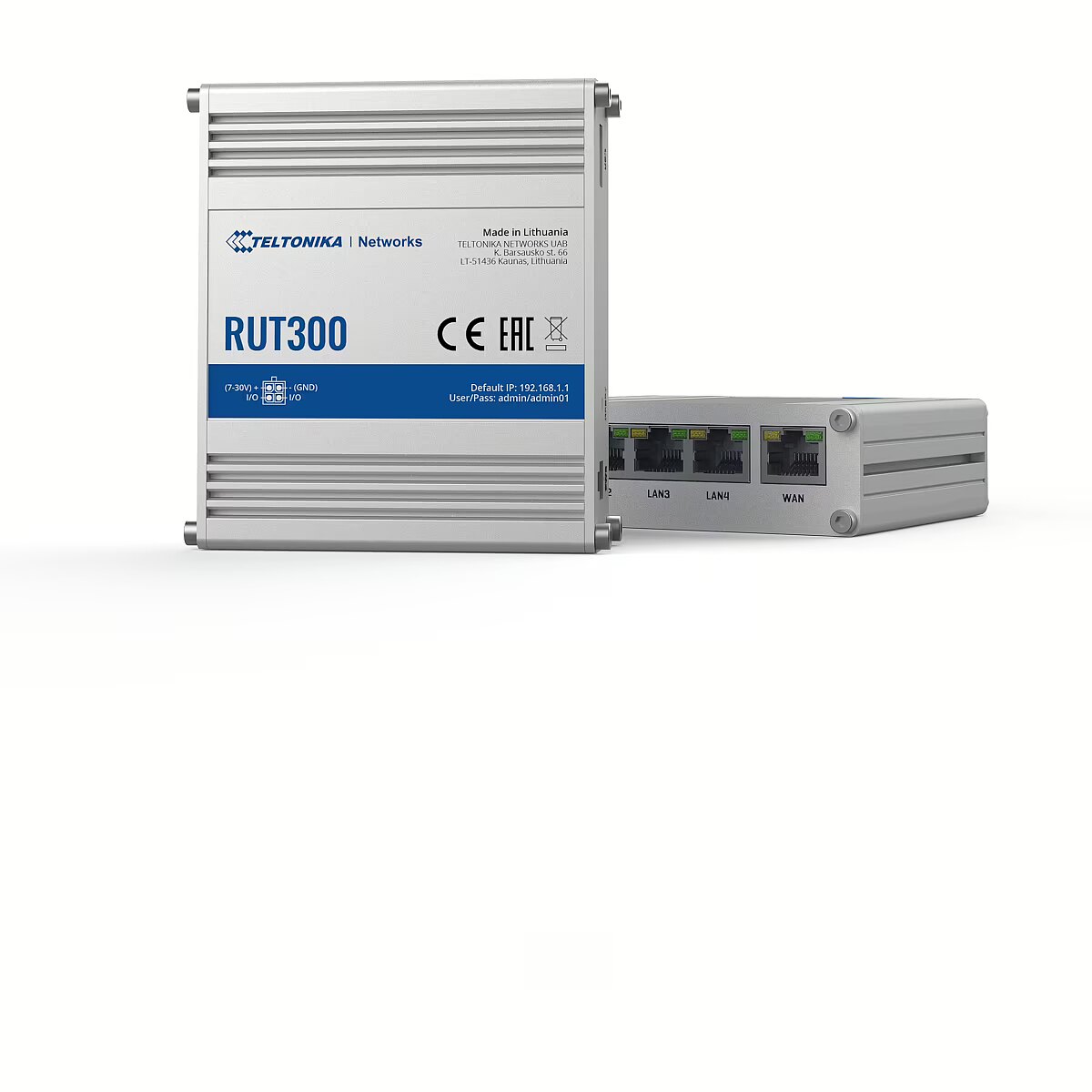

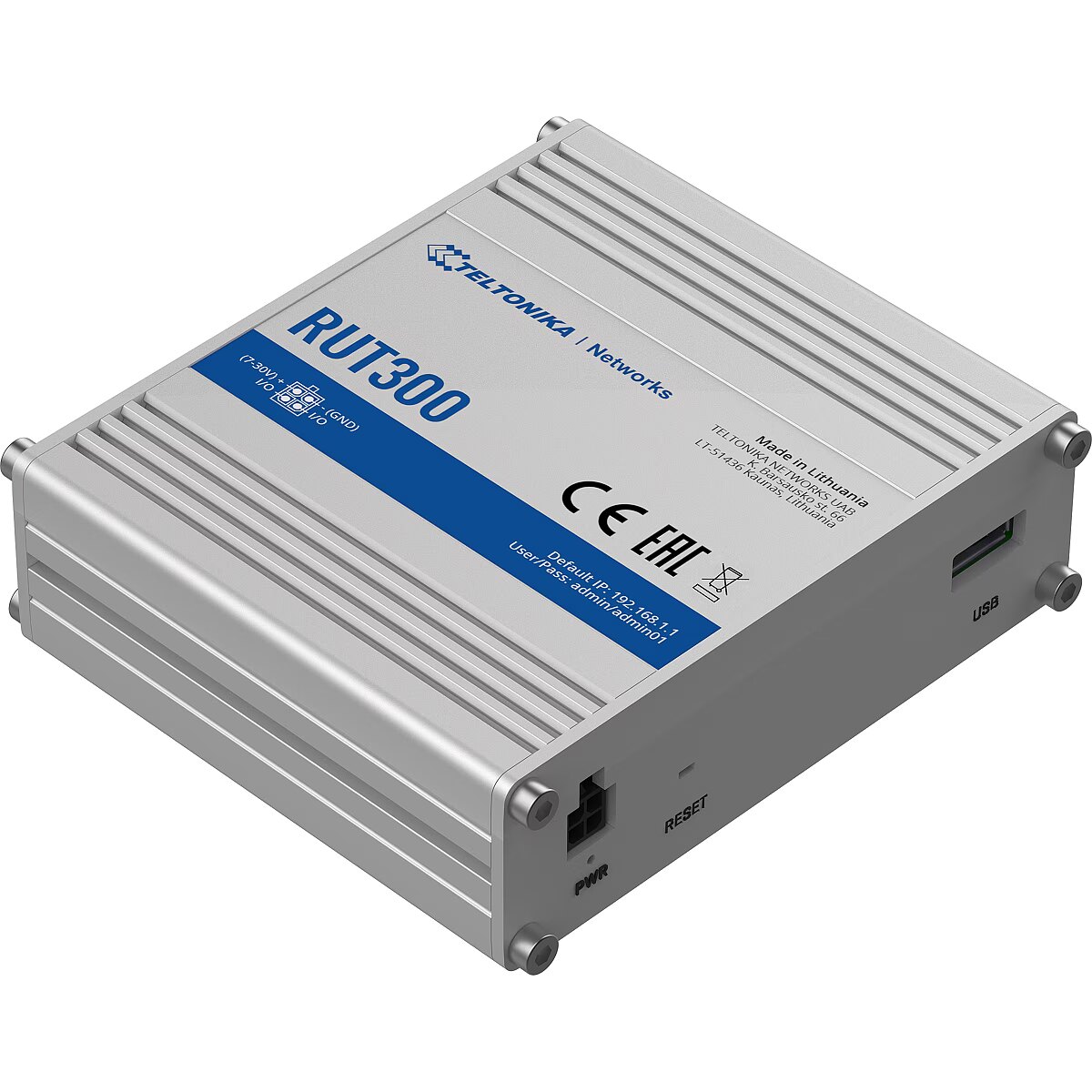

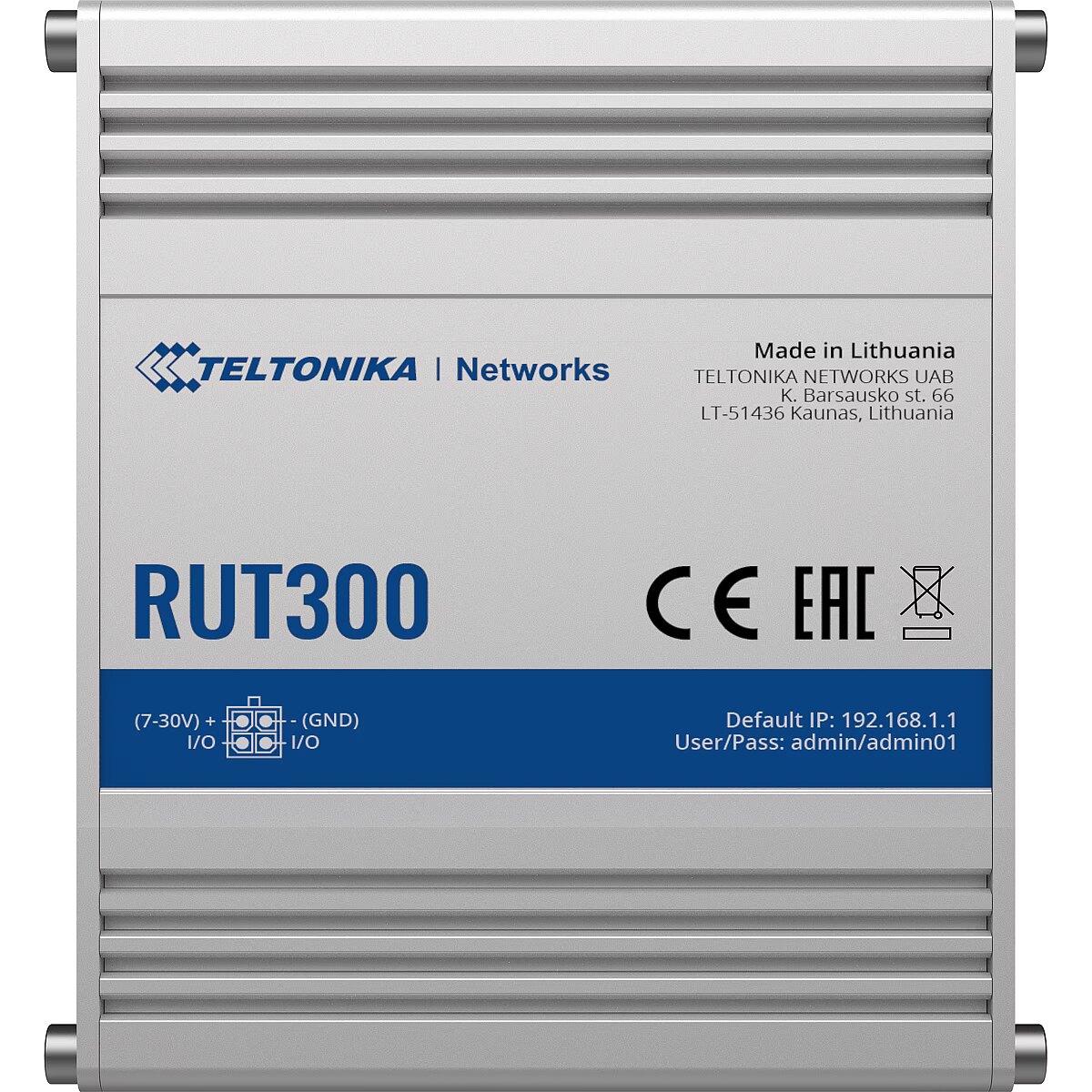

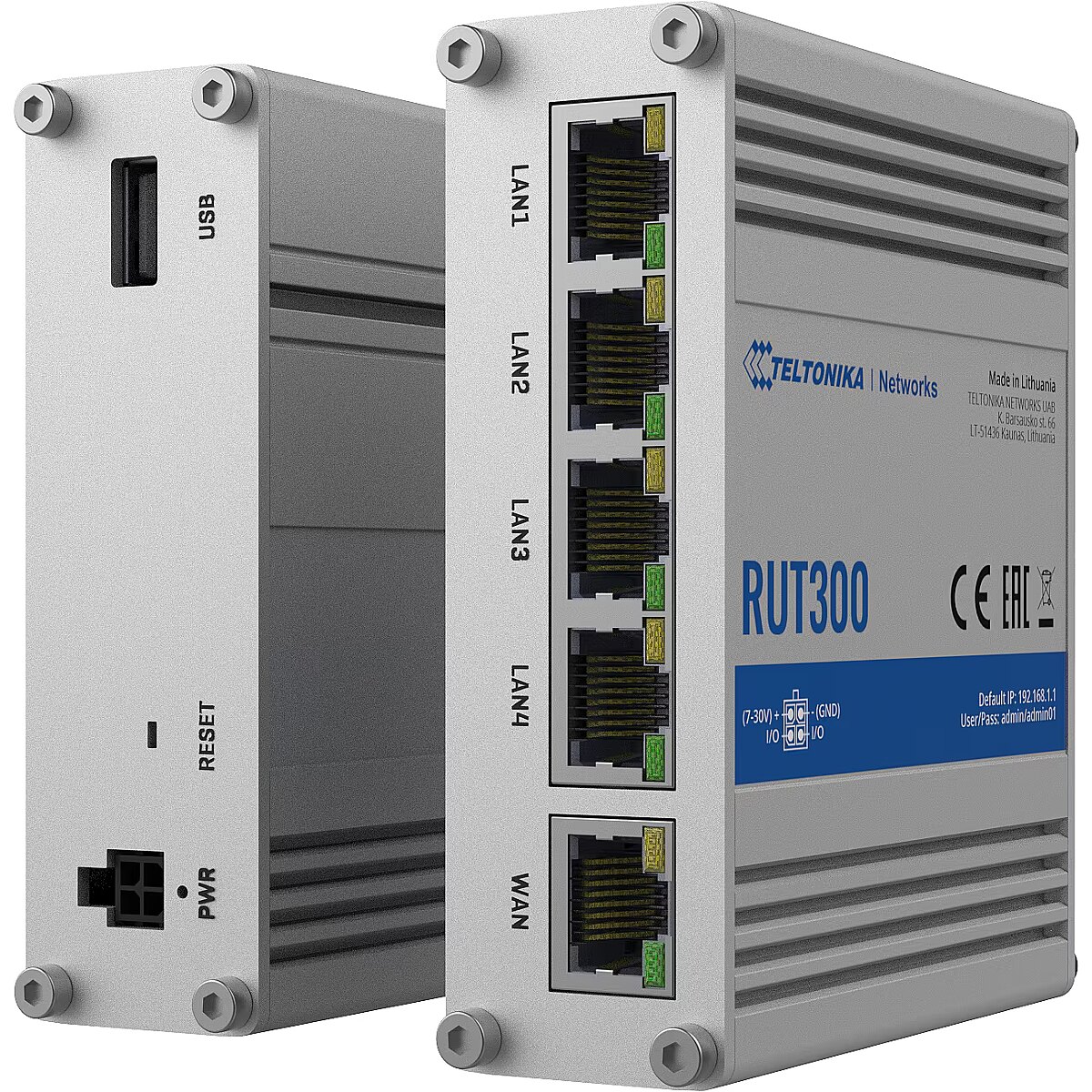

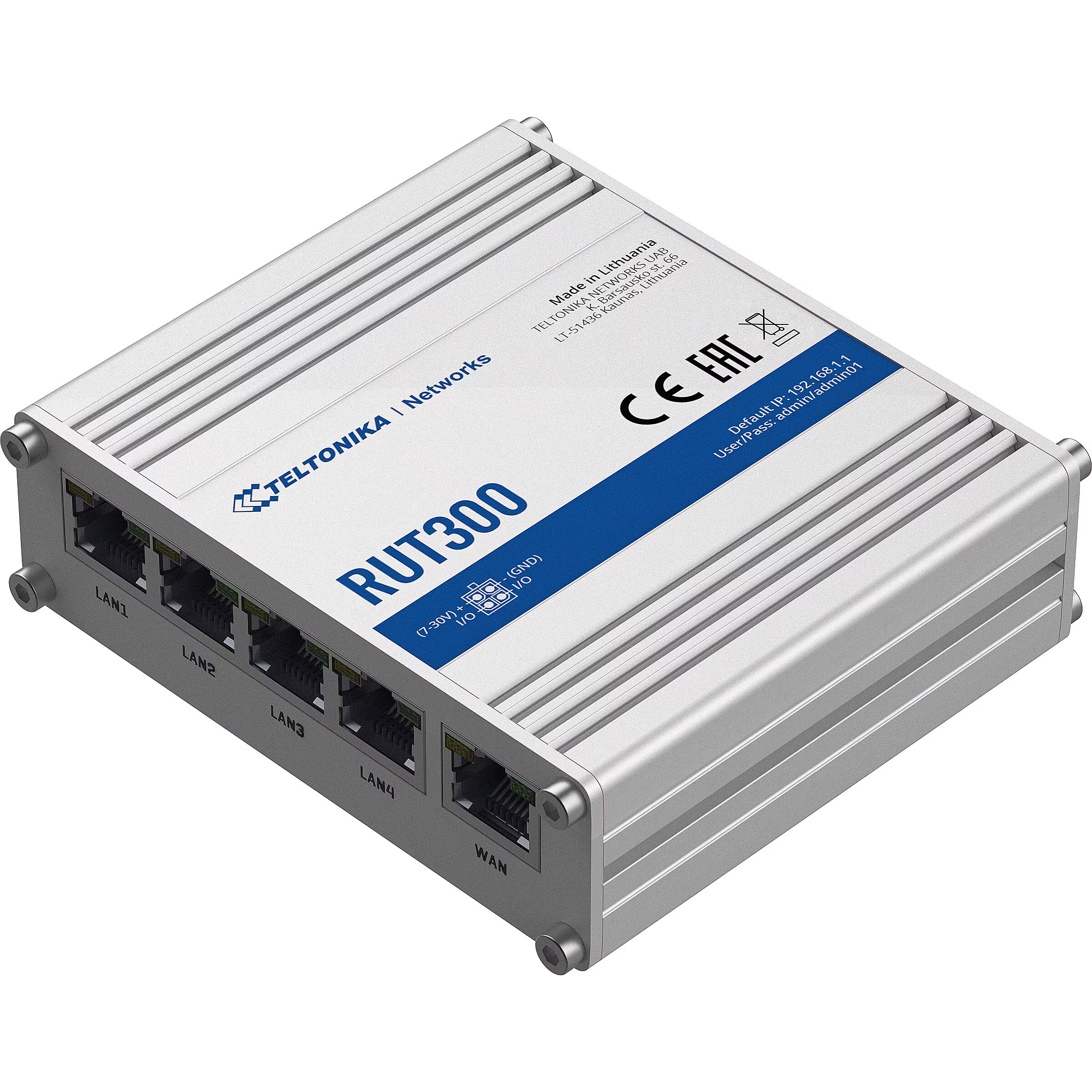

name - Router RUT300 4xLAN, 1xWAN, USB
Network architecture - FastEthernet
Number of antennas - None
Other features - Processor: QCA9531, MIPS 24kc, 650 MHz RAM: 64 MB, DDR2 Memory: 16 MB, SPI Flash

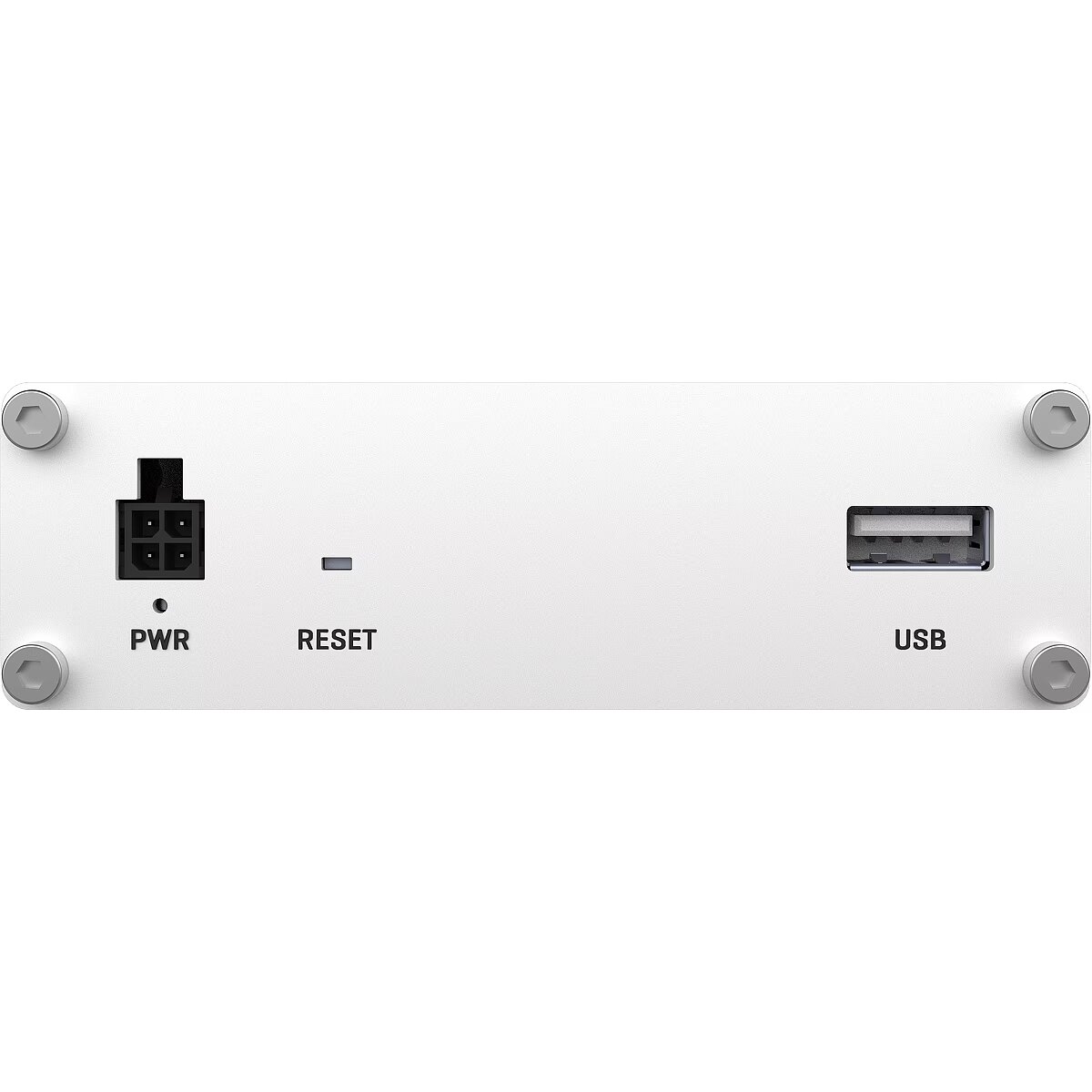

Power supply - 4-pin socket, 7-30 VDC
producer - TELTONIKA
Security - Authentication: Pre-shared key, digital certificates, X.509 certificates Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN: Port and tag based VLAN separation WEB filter (planned): Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter
Software - RutOS (OpenWrt based Linux OS)
Special functions -
Standards - 802.3
Standards - 802.3u
Standards - 802.11e
System Requirements -
Type - xDSL
vendpn - RUT300 000000
Weight - 229 g
