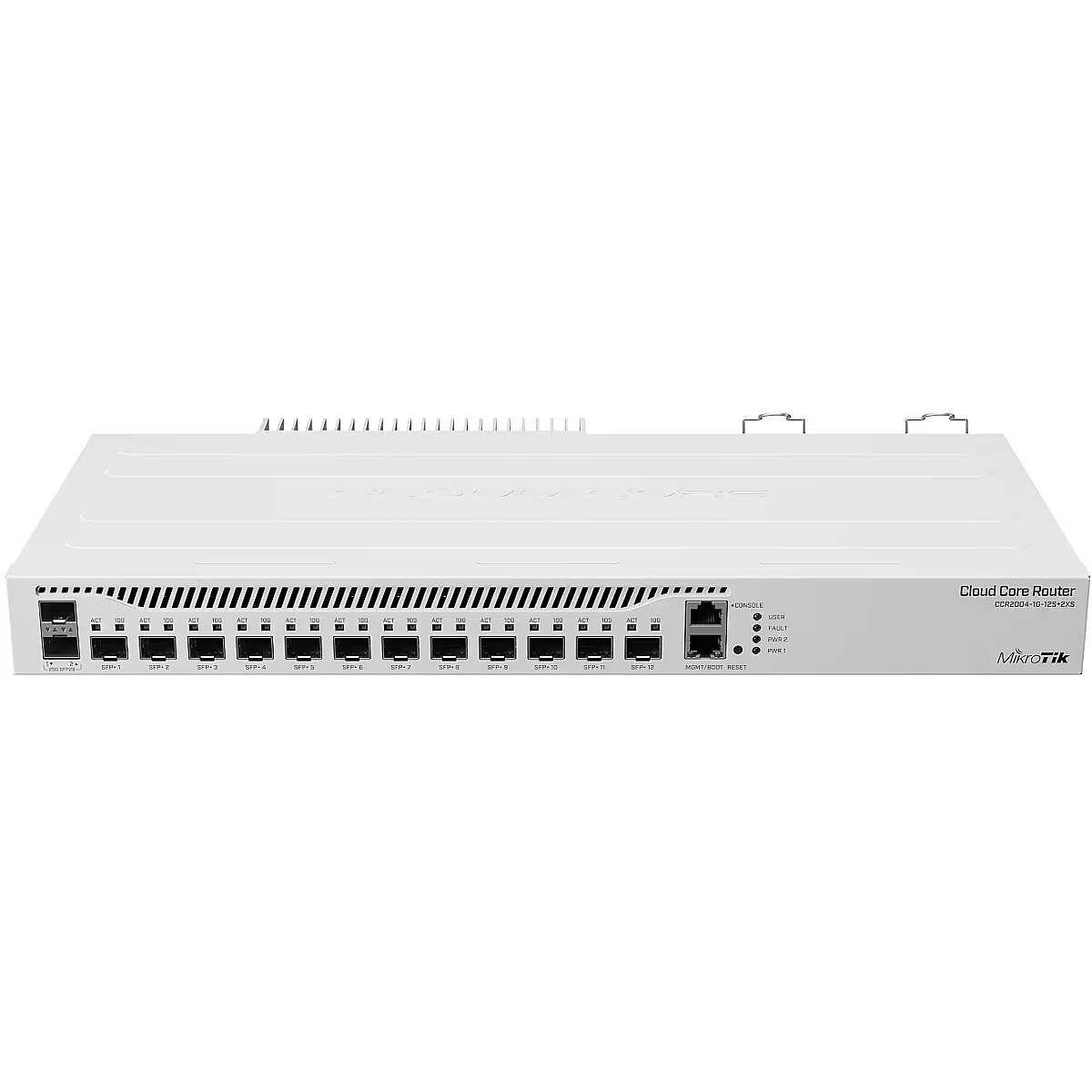

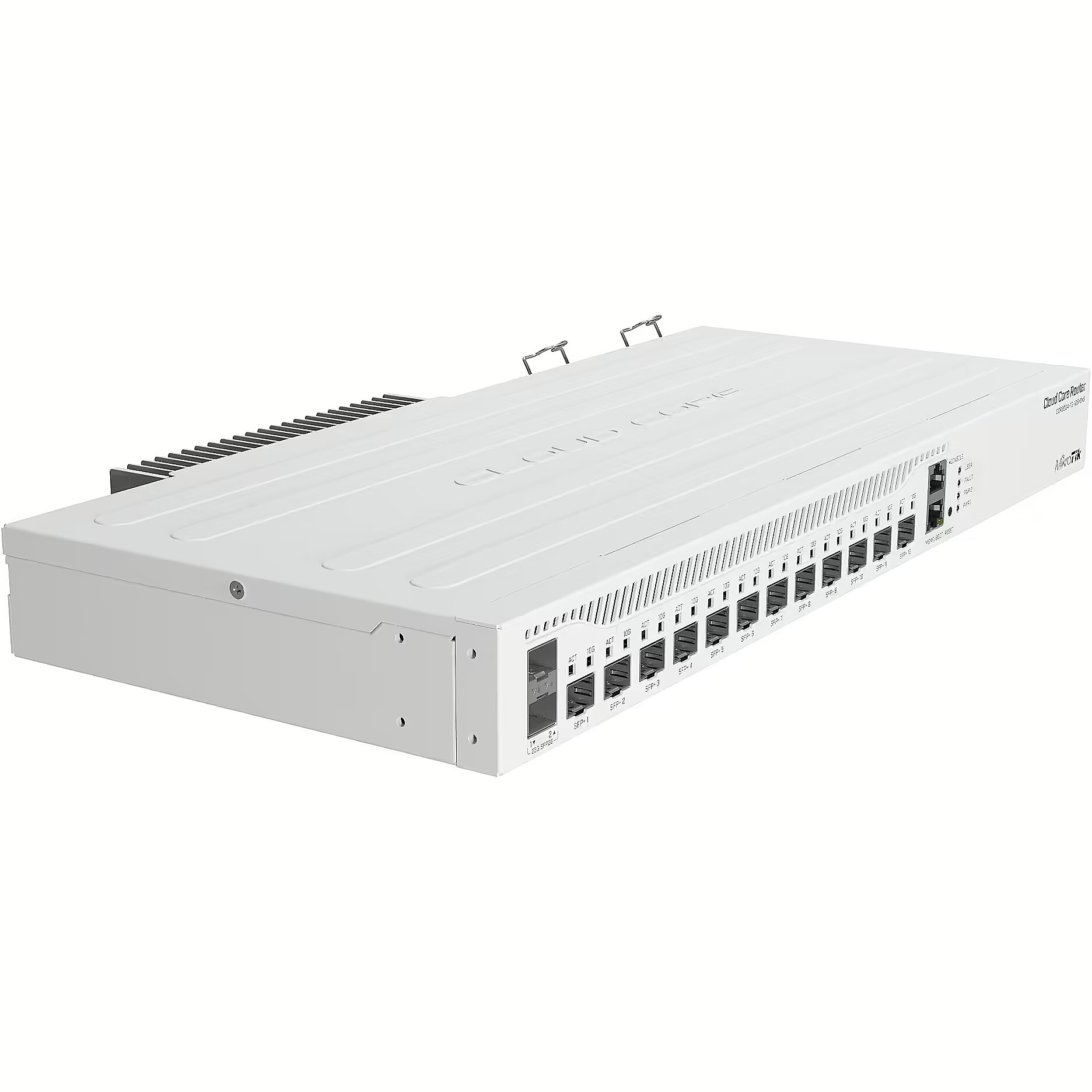

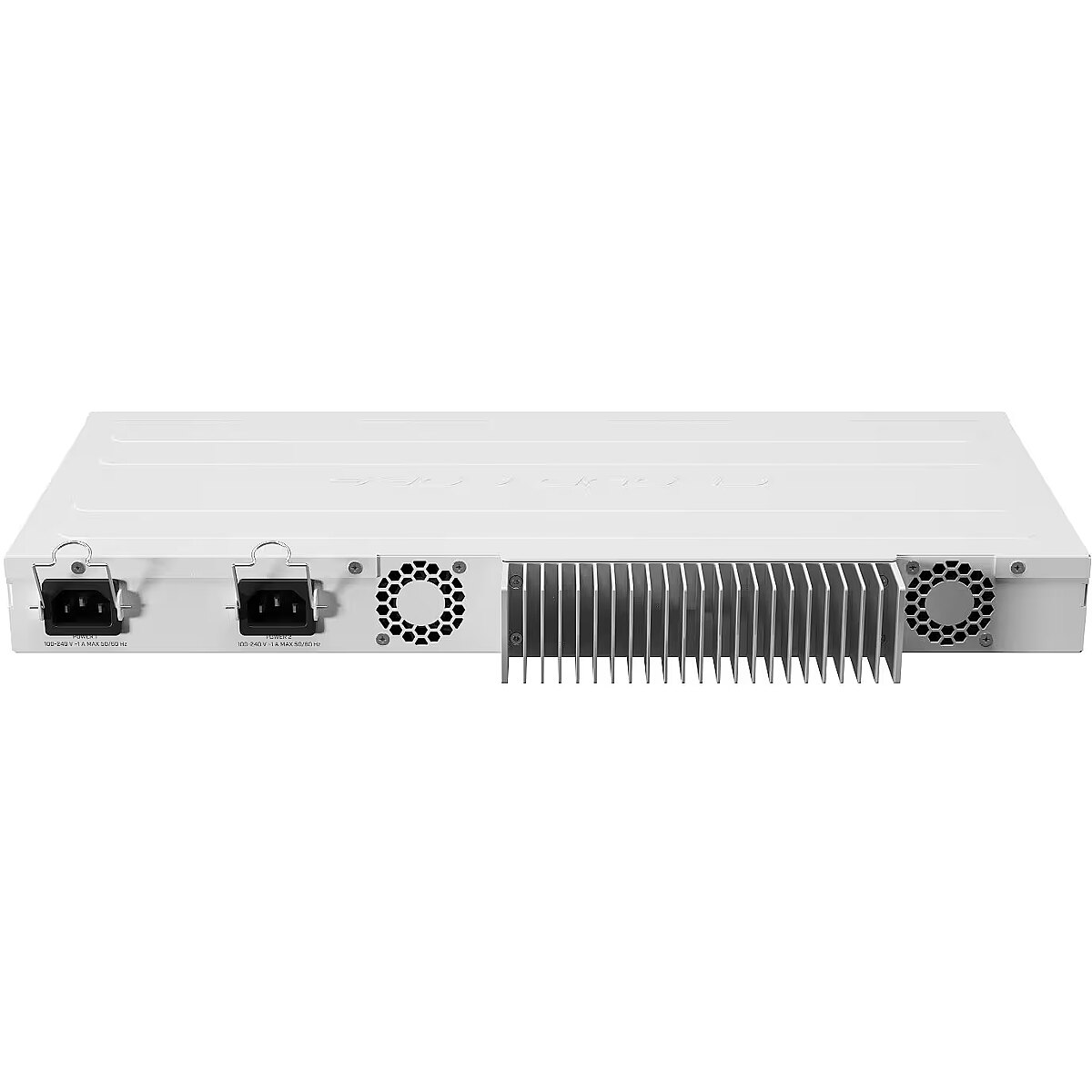

MikroTik CCR2004-1G-12S+2XS

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 535607 Product code: CCR2004-1G-12S+2XS
In stock 19 units
Warranty: 2 years (Warranty for business entities 1 year)
509.25 €
Ready for dispatch
tomorrow, 19.03.2026
starting from 6.99 €
Delivery options
  • Post Office
    Within 1-2 working days
    6.99 €
  • Delivery with Posti courier mail
    Within 1-2 working days
    10.99 €
Main product parameters All parameters
  • Speed index: 1000
  • Type of device: Ethernet Bridge
  • Wi-Fi standard: N/A
Basic information
Speed index : 1000
Type of device Ethernet Bridge

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : N/A
Functionality
3G/4G support None

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode N/A

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 100/1000

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 2
More detailed specification
Additional information in manufacturers website MikroTik CCR2004-1G-12S+2XS
Accessories included -
AC input voltage Power - 100 - 240 V
brand - MikroTik
Built-in processor Features - Yes
Cables included Packaging content - AC
Cabling technology Network - 10/100/1000Base-T(X)
category - MikroTik > Ethernet rūteri > Cloud Core Router
Category - Root/Electronics/Networks and communication/Switchers
Category 1 - Netzwerk
Category 2 - Router
Category Code - ROU
Certificates - Compliance certificates - RoHS
Certification Features - CE/RED, EAC
Code - CCR2004-1G-12S+2XS
Color - White
Compliance certificates Certificates - RoHS
Dane techniczne: Gwarancja - 2 lata w serwisie sprzedawcy
Dane techniczne: Głębokość - 224 mm
Dane techniczne: Ilość rdzeni - 4 szt.
Dane techniczne: Liczba portów LAN 10/100/1000 - 1 szt.
Dane techniczne: Możliwość instalacji w szafach 19' - tak
Dane techniczne: Pamięć Flash - 128 MB
Dane techniczne: Pamięć RAM - 4096 MB
Dane techniczne: Port konsolowy - 1 szt.
Dane techniczne: Procesor - 1.7 GHz
Dane techniczne: Producent - MikroTik
Dane techniczne: Przeznaczenie - do szaf RACK 19"
Dane techniczne: Sloty SFP+ 10G - 12 szt.
Dane techniczne: Sloty SFP28 25G - 2 szt.
Dane techniczne: Szerokość - 443 mm
Dane techniczne: Typ - zarządzalny
Dane techniczne: Wysokość - 44 mm
Dane techniczne: Zarządzalność - tak
Depth Weight & dimensions - 224 mm
Description - Improwizacja. Przystosowanie. Przezwyciężenie trudności." sposób myślenia może być bardzo pomocny, ale czasami potrzebujesz po prostu urządzenia, które działa i rozwiązuje problem bez dodatkowego majsterkowania. CCR2004-1G-12S+2XS właśnie to robi zapomnij o wszystkich problemach z łącznością i rozszerz swoją konfigurację w dowolny sposób. Ten poręczny router wyposażony jest w 12 portów 10G SFP+ i 2 porty 25G SFP28.
CCR2004-1G-12S+2XS to nasz router o największej jak dotąd wydajności jednordzeniowej. Zapewnia niesamowite wyniki w pojedynczym tunelu (do 3,4 Gb/s) i przetwarzaniu kanałów BGP.
Przygotuj się na wszystko: 10G, 40G, a teraz 25G! W połączeniu z takimi wieloportowymi produktami MikroTik, jak CRS317-1G-16S+RM, CRS312-4C+8XG-RM i CRS326-24S+2Q+RM, Twoja konfiguracja sieci nie będzie miała granic. Pod względem wydajności CCR2004-1G-12S+2XS dorównuje renomowanym routerom CCR1009/CCR1016. A dzięki podwójnemu nadmiarowemu zasilaczowi możesz zapomnieć o nieoczekiwanych przestojach! Dzięki rozbudowanej konfiguracji portów, nowy CCR2004-1G-12S+2XS jest idealnym dodatkiem do każdego profesjonalnego arsenału sieciowego zaoszczędzi mnóstwo czasu w niektórych trudnych sytuacjach! Rozmiar pamięci RAM w RouterOS v6 1792MB ECC / RouterOS v7 4GB ECC
Description - The “Improvise. Adapt. Overcome.” mindset can be very helpful, but sometimes you simply need a device that works and solves the problem without additional tinkering. The CCR2004-1G-12S+2XS does just that – forget about all connectivity troubles and expand your setup in any way you please. This handy router features 12 x 10G SFP+ and 2 x 25G SFP28 ports. CCR2004-1G-12S+2XS is our router with the most powerful single-core performance so far. It provides incredible results in single tunnel (up to 3.4 Gbps) and BGP feed processing. Be prepared for anything: 10G, 40G and now 25G! Paired with such MikroTik multiport products as CRS317-1G-16S+RM, CRS312-4C+8XG-RM and CRS326-24S+2Q+RM, your networking setup will know no bounds. Performance-wise, CCR2004-1G-12S+2XS is on par with the renowned CCR1009/CCR1016 routers. And with dual redundant power supply you can forget about unexpected downtime! With its elaborate port configuration, the new CCR2004-1G-12S+2XS is the perfect addition to any professional networking arsenal – it will save you tons of time in some tricky situations! Size of RAM in RouterOS v6 1792MB ECC / RouterOS v7 4GB ECC
Design - Product colour - White
Design - Rack mounting - Yes
Designation - CE+WEEE
dimensionalWeight - 1699
dimension depth - 65 mm
dimension height - 490 mm
Dimensions - 443 x 224 x 44 mm
dimension weight - 2700 g
dimension width - 300 mm
EAN - 4752224000019
ean - 4752224000019
Eans - 4752224000019
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN data rates Network - 10,100,1000 Mbit/s
Ethernet WAN WAN connection - Yes
Features - Built-in processor - Yes
Features - Certification - CE/RED, EAC
Features - Internal memory - 128 MB
Features - Operating system installed - RouterOS
Features - Temperature monitoring - Yes
Features - Voltage monitoring - Yes
Gigabit Ethernet (copper) ports quantity Ports & interfaces - 1
guarantee - 12
guarantee_type - normal
height - 0.1 m
Height Weight & dimensions - 44 mm
I/O ports - 1 x 10/100/1000 Mbit/s PoE
I/O ports - 1 x Console port (RJ-45)
I/O ports - 12 x 10Gbit SFP/SFP+
Installed SFP+ modules quantity Ports & interfaces - 12
Internal memory Features - 128 MB
length - 0.48 m
Management, monitoring, configuration -
Manufacturer - MikroTik
Mobile network - Mobile network generation - Not supported
Mobile network generation Mobile network - Not supported
Model - CCR2004-1G-12S+2XS
mpn - CCR2004-1G-12S+2XS
MPN - CCR2004-1G-12S+2XS
Name - MikroTik CCR2004-1G-12S+2XS
Name - Mikrotik CCR2004-1G-12S+2XS
Name - MikroTik Cloud Core Router 2004-1G-12S+2XS
name - MikroTik Router 12SFP+ SFP28 CCR2004-1G-12S+2X
Network - Cabling technology - 10/100/1000Base-T(X)
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000
Network - Throughput - 3.4 Gbit/s
Network architecture - GigabitEthernet
Operating system installed Features - RouterOS
Operating temperature (T-T) Operational conditions - -20 - 60 °C
Operational conditions - Operating temperature (T-T) - -20 - 60 °C
Other features - Architektura: 64-bitowe ARM Procesor: AL32400 Liczba rdzeni procesora: 4 Częstotliwość nominalna procesora: 1700 MHz Licencja RouterOS: 6 System operacyjny: RouterOS Rozmiar pamięci RAM: 4 GB Rozmiar pamięci: 128 MB Typ pamięci: NAND MTBF: około 200 000 godzin w 25C Testowana temperatura otoczenia: -20°C do 60°C Przyspieszenie sprzętowe IPsec: Tak Porty SFP+: 12 Liczba portów 25G SFP28: 2 Port konsoli szeregowej: RJ45
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 70.00 mm
Package features > Gross height (mm) - 380.00 mm
Package features > Gross weight - 5.10 kg
Package features > Gross width (mm) - 620.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 52 pc(s)
Package features > Paper/Pasteboard - 1000.00 g
Package features > Tare weight (kg) - 1.00 kg
Package features > Volume (m3) - 0.02 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - AC
PDF - http://www.blobs.lt/products/7/3/7/3/9/2/26abd673f30fa978ee69382ec8838516/original.pdf
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Installed SFP+ modules quantity - 12
Ports & interfaces - SFP28 ports quantity - 2
Power - AC input voltage - 100 - 240 V
Power - Power source type - AC
Power source type Power - AC
Power supply - Liczba wejść AC: 2 Zakres wejścia AC: 100-240 Maksymalny pobór mocy: 49 W Maksymalny pobór mocy bez załączników: 32 W Liczba wentylatorów: 2
producer - Mikrotik
Producer - MikroTik
producerCode - CCR2004-1G-12S+2XS
ProducerCode - CCR2004-1G-12S+2XS
Product colour Design - White
Product model code - CCR2004-1G-12S+2XS
productName - Mikrotik CCR2004-1G-12S+2XS wired router Gigabit Ethernet White
productSize - Normal
Rack mounting Design - Yes
Safety warning - Warnings - Do not open the appliance - risk of electric shock.
Safety warning - Warnings - Do not use in damp conditions.
Security -
Serial ports quantity Ports & interfaces - 1
ShortDescription -
sizeX - 480
sizeY - 295
sizeZ - 60
Software -
Special functions -
Summary - Mikrotik CCR2004-1G-12S+2XS. Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X), Ethernet LAN data rates: 10,100,1000 Mbit/s. Compliance certificates: RoHS. Cables included: AC. Internal memory: 128 MB, Operating system installed: RouterOS, Certification: CE/RED, EAC. Product colour: White
System Requirements -
Technical details > Net weight - 4.10 kg
Technical details > Producer - MikroTik
Temperature monitoring Features - Yes
Throughput Network - 3.4 Gbit/s
title - MikroTik CCR2004-1G-12S+2XS
Type - xDSL
Unit Box Height - 0.3
Unit Box Length - 0.49
Unit Box Width - 0.07
Unit Calculated Volume - 0.01029 cubm
Unit Calculated Weight - 2.4 kg
Units per Shipping Box - 1
Vendor Homepage - https://mikrotik.com/product/ccr2004_1g_12s_2xs#fndtn-specifications
vendpn - CCR2004-1G-12S+2XS
Voltage monitoring Features - Yes
WAN connection - Ethernet WAN - Yes
Warranty - 12
Warranty - 12 month(s)
Warranty - 12 months
warrantyLength - 12
warrantyType - G
weight - 2.7 kg
Weight - 2.421
weight - 2400
Weight & dimensions - Depth - 224 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Width - 443 mm
width - 0.3 m
Width Weight & dimensions - 443 mm
509.25 €
MikroTik CCR2004-1G-12S+2XS
