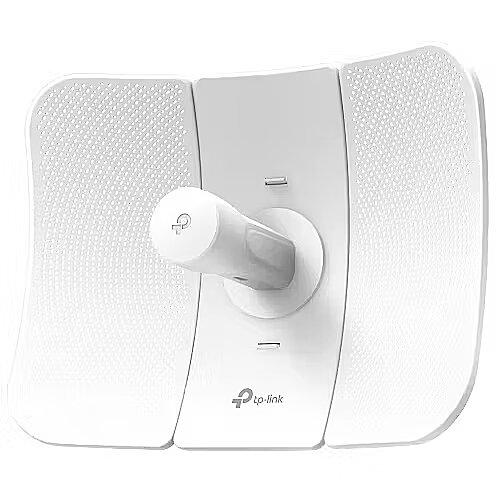

TP-LINK 5GHz 150Mbps 23dBi Outdoor CPE

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 343537 Product code: CPE605
Can be ordered 21 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
52.71 €
Ready for dispatch
07.11.2025
starting from 6.99 €
Delivery options
  • Posti parcel machine
    Within 1-2 working days
    6.99 €
  • Delivery with Posti courier mail
    Within 1-2 working days
    10.99 €
Main product parameters All parameters
  • Speed index: 150
  • Type of device: Outdoor Access Point
  • Wi-Fi standard: Wi-Fi 4 (802.11n)
Basic information
Speed index : 150
Type of device Outdoor Access Point

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 4 (802.11n)
Functionality
3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Single Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 10/100

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 1
More detailed specification
Additional information in manufacturers website TP-LINK 5GHz 150Mbps 23dBi Outdoor CPE
Brand - TP-Link
BrandPartCode - CPE605 V1
Category - Network Antennas
Category - Root/Electronics/Networks and communication/Access points
Certificates - Certification - CE, FCC
Certificates - Compliance certificates - RoHS
Dane techniczne: Częstotliwość - 5 GHz
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Głębokość - 255 mm
Dane techniczne: LAN 10/100 Mb/s - tak
Dane techniczne: Producent - TP-Link
Dane techniczne: Prędkość transmisji - 150 Mbps
Dane techniczne: Rodzaj - zewnętrzny
Dane techniczne: Szerokość - 350 mm
Dane techniczne: Szyfrowanie - WPA
Dane techniczne: Szyfrowanie - WPA-PSK
Dane techniczne: Szyfrowanie - WPA2
Dane techniczne: Szyfrowanie - WPA2-PSK
Dane techniczne: Temperatura pracy - -40 do 70 °C
Dane techniczne: Wysokość - 207 mm
Dane techniczne: Zasilanie - PoE przez LAN (+4,5pinowe; -7,8pinowe) | napięcie: 16-27VDC
Eans - 6935364089887
Features - Antenna type - Directional antenna
Features - Housing material - Plastic
Features - International Protection (IP) code - IP65
Features - Mounting - Pole
Features - Product colour - White
Features - Protection features - Dust resistant, Water resistant
Features - Waterproof - Yes
GTIN - 6935364089870
GTIN - 6935364089887
Logistics data - Harmonized System (HS) code - 85177100
LongDesc - 23dBi directional antenna and professional structural stability for long-distance outdoor Wi-Fi transmissionProfessional-standard 23dBi DirectionalAntenna for Long-range Wireless TransmissionWith 23dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE605 provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 150Mbps 23dBi Outdoor CPE605 an ideal choice and cost-effective solution for outdoor wireless networking applications.Compact and Lightweight PackagingSmall and lightweight boxes benefit shipping, logistics and retail.Pharos Control – Centralized Management SystemCPE605 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface-PharOS-provides an alternative management method, and allows professionals to access more detailed configurations.
LongProductName - CPE605, 150Mbps, 5GHz, 23dBi, 64MB DDR2, 350x255x207 mm
LongSummaryDescription - TP-Link 5GHz 150Mbps 23dBi Outdoor CPE. Antenna gain level (max): 23 dBi, Frequency band: 5 GHz, Networking standards: IEEE 802.11a, IEEE 802.11n. Antenna type: Directional antenna, Product colour: White, Housing material: Plastic. Power source type: PoE, Input voltage: 16 - 27 V. Compliance certificates: RoHS, Certification: CE, FCC. Width: 233.4 mm, Depth: 170 mm, Height: 156 mm
Name - TP-Link CPE605
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -40 - 70 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Packaging content - Cables included - AC
Packaging content - Manual - Yes
Packaging content - Mounting kit - Yes
Packaging content - Quantity per pack - 1 pc(s)
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 155 mm
Packaging data - Package height - 135 mm
Packaging data - Package weight - 1.42 kg
Packaging data - Package width - 328 mm
Performance - Antenna gain level (max) - 23 dBi
Performance - Built-in processor - Yes
Performance - Cabling technology - 10/100Base-T(X)
Performance - Flash memory - 8 MB
Performance - Frequency band - 5 GHz
Performance - Gain - 23 dBi
Performance - Horizontal beam width - 7°
Performance - Internal memory - 64 MB
Performance - Internal memory type - DDR2
Performance - Networking standards - IEEE 802.11a, IEEE 802.11n
Performance - Processor frequency - 560 MHz
Performance - Processor model - Atheros MIPS 74Kc
Performance - Vertical beam width - 10°
Power - Input voltage - 16 - 27 V
Power - Power source type - PoE
Producent: Nazwa producenta / importera - TP-LinkTP-Link Polska sp. z o.o.Ożarowska 40/4205-850 DuchnicePolskaEmail: support.pl@tp-link.com
Producer - TP-Link
ProducerCode - CPE605
ProductName - 5GHz 150Mbps 23dBi Outdoor CPE
ShortDescription -
ShortSummaryDescription - TP-Link 5GHz 150Mbps 23dBi Outdoor CPE, 23 dBi, 5 GHz, IEEE 802.11a, IEEE 802.11n, 10/100Base-T(X), 23 dBi, 7°
Title - TP-Link 5GHz 150Mbps 23dBi Outdoor CPE
URL - https://www.tp-link.com/au/business-networking/outdoor-radio/cpe605/
WarrantyInfo -
Weight & dimensions - Depth - 170 mm
Weight & dimensions - Height - 156 mm
Weight & dimensions - Width - 233.4 mm
52.71 €
TP-LINK 5GHz 150Mbps 23dBi Outdoor CPE
