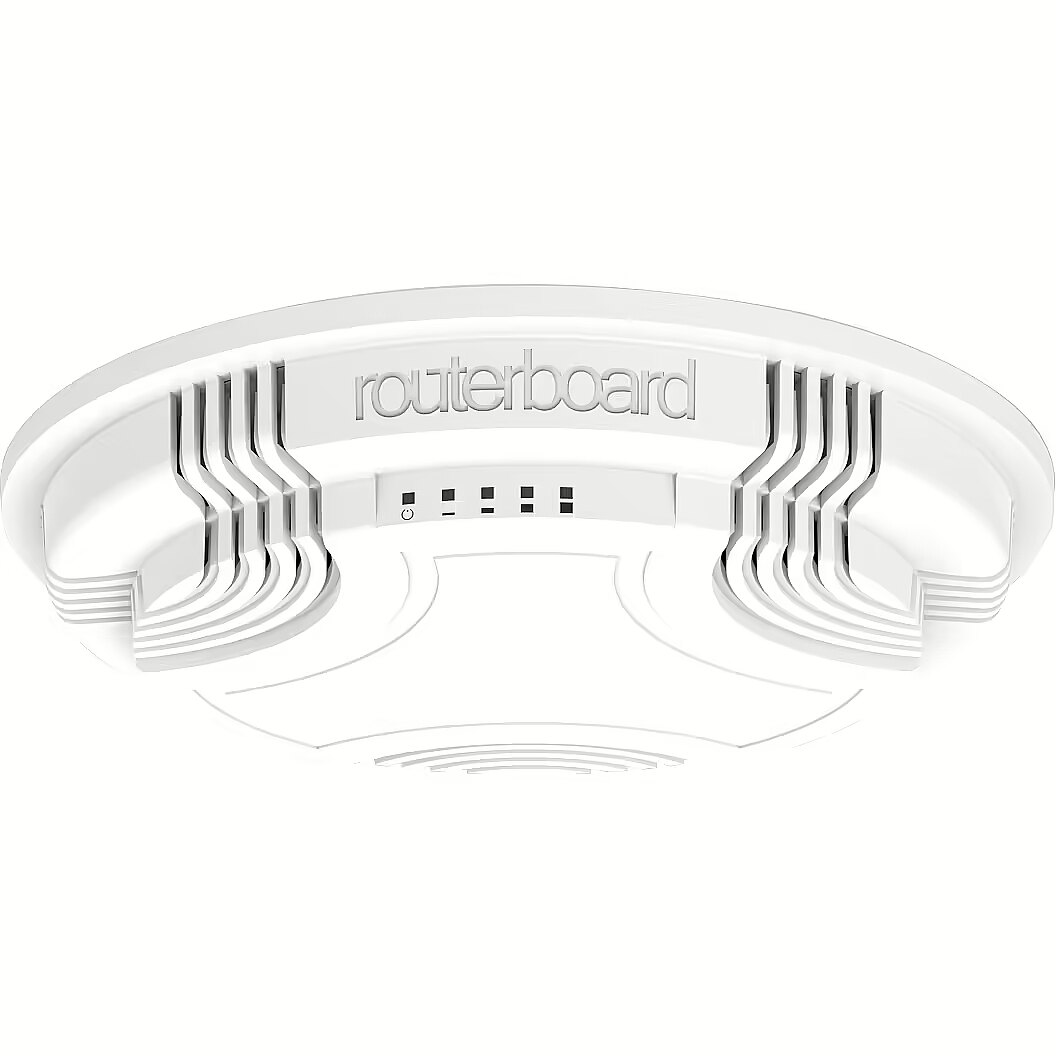

MikroTik RBcAP2nD Access Point

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 144748 Product code: MT RBcAP2nD
In stock 8 units
Warranty: 2 years (Warranty for business entities 1 year)
46.48 €
Ready for dispatch
on Thuesday, 07.04.2026
starting from 6.99 €
Delivery options
  • Posti parcel machine
    Within 1-2 working days
    6.99 €
  • Post Office
    Within 1-2 working days
    6.99 €
  • Delivery with Posti courier mail
    Within 1-2 working days
    10.99 €
Main product parameters All parameters
  • Speed index: N/A
  • Type of device: Access Point
  • Wi-Fi standard: Wi-Fi 4 (802.11n)
Basic information
Speed index : N/A
Type of device Access Point

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 4 (802.11n)
Functionality
3G/4G support None

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode N/A

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 10/100

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 1
Wireless
  • Alternatives
  • Alternatives
More detailed specification
Additional information in manufacturers website MikroTik RBcAP2nD Access Point
2.4 GHz Features - Yes
5 GHz Features - No
AC adapter included Packaging content - Yes
AC input voltage Power - 11 - 57 V
Antenna - Antenna gain level (max) - 2 dBi
Antenna gain level (max) Antenna - 2 dBi
Auto MDI/MDI-X Features - Yes
Built-in processor Performance - Yes
Category - Root/Electronics/Networks and communication/Access points
Category Code - WAP
Category_1 - Network and Servers
Category_2 - Network - WiFi Access Points
Dane techniczne: Częstotliwość - 2.4 GHz
Dane techniczne: Gwarancja - 1 rok w serwisie sprzedawcy
Dane techniczne: Inne - obudowa okrągła 136 mm x 30 mm | obudowa kwadratowa 145 mm x 145 mm x 30 mm
Dane techniczne: LAN 10/100 Mb/s - tak
Dane techniczne: Producent - MikroTik
Dane techniczne: Przeznaczenie - biznesowe
Dane techniczne: Prędkość transmisji - 300 Mbps
Dane techniczne: Rodzaj - sufitowy
Dane techniczne: Standard - Wi-Fi 4 (802.11b/g/n)
Dane techniczne: Szerokość - 185 mm
Dane techniczne: Wysokość - 31 mm
Dane techniczne: Zasilanie - PoE | zasilacz
Depth Weight & dimensions - 138 mm
Description - RouterBOARD cAP-2nD (ceiling Access Point) is our first 2.4GHz Dual-Chain ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality business like hotels, airports, shopping malls etc. cAP-2nD supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location. Unlike traditional controller software, which requires a separate PC/Mac to run, our CAPsMAN runs on any existing RouterBOARD device in your network. No need for a separate controller machine. Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter and even the screws and screw anchors.
Design - Internal - No
Design - LED indicators - Yes
Design - Placement - Ceiling
Design - Product colour - White
dimensionalWeight - 294
Eans - 4752224001191
EAN_code - 4752224001191
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN data rates Features - 10,100 Mbit/s
Features - 2.4 GHz - Yes
Features - 5 GHz - No
Features - Auto MDI/MDI-X - Yes
Features - Ethernet LAN data rates - 10
Features - Ethernet LAN data rates - 100
Features - Frequency band - 2.4 GHz
Features - Networking standards - IEEE 802.3af
Features - Networking standards - IEEE 802.3at
Features - Networking standards - IEEE 802.11b
Features - Networking standards - IEEE 802.11g
Features - Networking standards - IEEE 802.11n
Features - Receiver sensitivity - 1MBit/s: -96 @ 22dBm Tx
11MBit/s: -89 @ 22dBm Tx
6MBit/s: -93 @ 20dBm Tx
54MBit/s: -74 @ 18dBm Tx
MCS0: -93 @ 20dBm Tx
MCS7: -71 @ 26dBm Tx
Features - Transmitting power - 22 dBmW
Features - Wi-Fi data rate (max) - 54 Mbit/s
Flash memory Performance - 16 MB
Frequency band Features - 2.4 GHz
Height Weight & dimensions - 31 mm
Internal Design - No
Internal memory Performance - 64 MB
LED indicators Design - Yes
Manufacturer - MikroTik
Manufacturer_code - RBcAP2nD
Model name - cAP // RBcAP2nD
Mounting kit Packaging content - Yes
Name - MikroTik RBcAP2nD
Name - MikroTik RBcAP2nD, access point (white, 2.4GHz access point for ceiling mounting)
Networking standards Features - IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Operating system installed Performance - RouterOS
Operating temperature (T-T) Operational conditions - -40 - 70 °C
Operational conditions - Operating temperature (T-T) - -40 - 70 °C
Packaging content - AC adapter included - Yes
Packaging content - Mounting kit - Yes
Packaging content - PoE adapter included - Yes
Performance - Built-in processor - Yes
Performance - Flash memory - 16 MB
Performance - Internal memory - 64 MB
Performance - Operating system installed - RouterOS
Placement Design - Ceiling
PoE adapter included Packaging content - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - AC input voltage - 11 - 57 V
Power - Power consumption (max) - 4 W
Power - Power over Ethernet (PoE) - Yes
Power consumption (max) Power - 4 W
Power over Ethernet (PoE) Power - Yes
Producer - MikroTik
producerCode - RBcAP2nD
ProducerCode - RBcAP2nD
Product colour Design - White
productName - Mikrotik cAP-2nD White Power over Ethernet (PoE)
productSize - Normal
Receiver sensitivity Features - 1MBit/s: -96 @ 22dBm Tx
11MBit/s: -89 @ 22dBm Tx
6MBit/s: -93 @ 20dBm Tx
54MBit/s: -74 @ 18dBm Tx
MCS0: -93 @ 20dBm Tx
MCS7: -71 @ 26dBm Tx
Safety warning - Warnings - Do not open the appliance - risk of electric shock.
Safety warning - Warnings - Do not use in damp conditions.
Safety warning - Warnings - Make sure the unit is stably mounted and ventilated.
ShortDescription -
sizeX - 240
sizeY - 175
sizeZ - 35
Summary - Mikrotik cAP-2nD. 2.4 GHz, Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 4 W
Transmitting power Features - 22 dBmW
Unit Box Height - 0.035
Unit Box Length - 0.235
Unit Box Width - 0.175
Unit Calculated Volume - 0.001757 cubm
Unit Calculated Weight - 0.505 kg
Units per Pallet - 590
Units per Shipping Box - 20
Vendor Homepage - https://mikrotik.com/product/RBcAP2nD
Warranty - 12 months
warrantyLength - 12
warrantyType - G
Weight - 0,48
weight - 480
Weight & dimensions - Depth - 138 mm
Weight & dimensions - Height - 31 mm
Weight & dimensions - Width - 138 mm
Wi-Fi data rate (max) Features - 54 Mbit/s
Width Weight & dimensions - 138 mm
46.48 €
MikroTik RBcAP2nD Access Point
