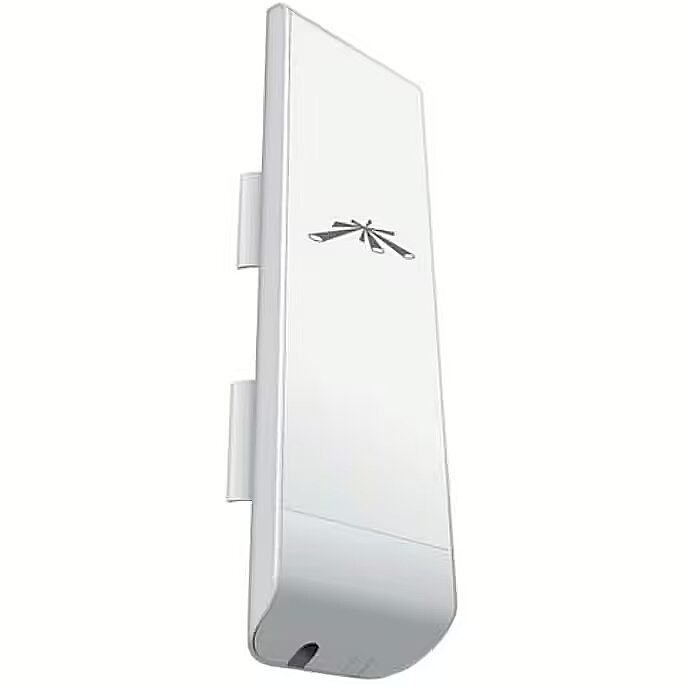

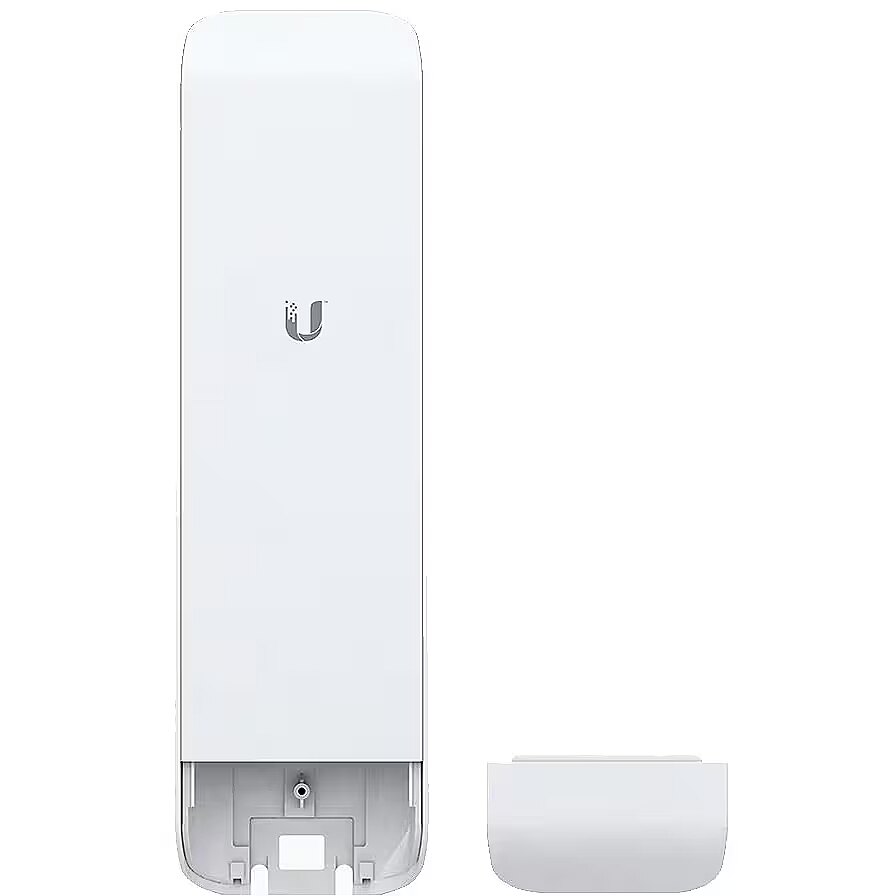

Ubiquiti NanoStation M2

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 141714 Product code: NSM2
In stock 28 units
Warranty: 2 years (Warranty for business entities 1 year)
83.79 €
Ready for dispatch
26.03.2026
starting from 6.99 €
Delivery options
  • Posti parcel machine
    Within 1-2 working days
    6.99 €
  • Post Office
    Within 1-2 working days
    6.99 €
  • Delivery with Posti courier mail
    Within 1-2 working days
    10.99 €
Main product parameters All parameters
  • Speed index: N/A
  • Type of device: Access Point
  • Wi-Fi standard: N/A
Basic information
Speed index : N/A
Type of device Access Point

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : N/A
Functionality
3G/4G support None

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode N/A

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 10/100

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 1
Wireless
  • Alternatives
  • Alternatives
More detailed specification
Additional information in manufacturers website Ubiquiti NanoStation M2
Antenna - Internal
Antenna - Antenna gain level (max) - 11.2 dBi
Antenna gain level (max) Antenna - 11.2 dBi
Augstums (mm) - 80 milimetrs
brand - Ubiquiti
Cabling technology Network - 10/100Base-T(X)
Category - Root/Electronics/Networks and communication/Access points
category - Ubiquiti > Āra Wi-Fi > airMAX 2.4 GHz
Category 1 - Netzwerk
Category 2 - Netzwerkartikel
Category Code - BRE
Category_1 - Network and Servers
Category_2 - Network - Network Accessories
Certificates - Certification - FCC 15.247, IC RS210, CE, RoHS
Certification Certificates - FCC 15.247, IC RS210, CE, RoHS
Connectivity technology Ports & interfaces - Wired & Wireless
CPU - Atheros MIPS 24KC
Dane techniczne: Częstotliwość - 2.4 GHz
Dane techniczne: Gwarancja - 1 rok w serwisie sprzedawcy
Dane techniczne: Głębokość - 31 mm
Dane techniczne: LAN 10/100 Mb/s - tak
Dane techniczne: Maksymalny zasięg na zewnątrz budynku - 13000 m
Dane techniczne: Obsługa VPN - tak
Dane techniczne: Obsługiwane protokoły - IEEE 802.1Q
Dane techniczne: Obsługiwane protokoły - IEEE 802.3
Dane techniczne: Obsługiwane protokoły - IEEE 802.11e
Dane techniczne: Producent - Ubiquiti
Dane techniczne: Prędkość transmisji - 150 Mbps
Dane techniczne: Standard - Wi-Fi 4 (802.11b/g/n)
Dane techniczne: Szerokość - 80 mm
Dane techniczne: Szyfrowanie - 64/128-bit WEP
Dane techniczne: Szyfrowanie - WPA
Dane techniczne: Szyfrowanie - WPA-EAP
Dane techniczne: Szyfrowanie - WPA-PSK
Dane techniczne: Szyfrowanie - WPA2
Dane techniczne: Szyfrowanie - WPA2-EAP
Dane techniczne: Szyfrowanie - WPA2-PSK
Dane techniczne: Tryby pracy - Access Point
Dane techniczne: Tryby pracy - Access Point + Bridge
Dane techniczne: Tryby pracy - Access Point + Bridge Punkt-Punkt
Dane techniczne: Tryby pracy - Access Point + Bridge Punkt-Wielopunkt
Dane techniczne: Tryby pracy - Access Point WDS
Dane techniczne: Tryby pracy - Bridge
Dane techniczne: Tryby pracy - Bridge - Point to Multi-Point
Dane techniczne: Tryby pracy - Bridge - Point to Point
Dane techniczne: Tryby pracy - WDS
Dane techniczne: Waga - 400 g
Dane techniczne: Wysokość - 294 mm
Data Bit Rate - 150 megabits sekundē
Depth Weight & dimensions - 31 mm
Description - Indoor/Outdoor airMAX® CPE Featuring a panel antenna and dual-polarity performance, the NanoStation®M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.
dimensionalWeight - 489
Dziļums (mm) - 294 milimetrs
EAN - 0810354022517
EAN kods - 810354022517
Eans - 810354022517
EAN_code - 0810354022517
Ethernet LAN (RJ-45) ports Ports & interfaces - 2
Ethernet LAN data rates Network - 10/100 Mbit/s
Ethernet LAN interface type Network - Fast Ethernet
Ethernet LAN Network - Yes
Features - Internal memory - 32 MB
Features - Material - Plastic
Features - Mounting type - Pole
Features - Processor family - Atheros
Features - Processor frequency - 400 MHz
Features - Processor model - MIPS 24Kc
Features - Product colour - White
Features - Product type - Network bridge
Features - RAM type - SDRAM
Flash Memory - 8 megabaits
Flash memory Memory - 8 MB
Frequency band Wireless LAN features - 2.412 - 2.462 GHz
Gabali iepakojumā - 1
Garantija Produkti atgriežami - Jā
Garantijas apstiprināšanas kritēriji - Sērijas numurs
Garantijas termiņš (mēnesis) - 24
Harmonized System (HS) code Logistics data - 85176990
height - 0.097 m
Height Weight & dimensions - 294 mm
Iepakojuma augstums (mm) - 83 milimetrs
Iepakojuma garums (mm) - 296 milimetrs
Iepakojuma platums (mm) - 94 milimetrs
Iepakojuma svars Brutto (kg) - 0.6518 kilograms
Iepakojuma tips - Kaste
Iepakojums kastē - 20
Ierīces atrašanās vieta - Ārējais
Interfeiss - Ethernet/Wi-Fi
Internal Clock Rate - 400 megahercs
Internal memory Features - 32 MB
Kastes augstums (mm) - 334 milimetrs
Kastes garums (mm) - 488 milimetrs
Kastes platums (mm) - 356 milimetrs
Kastes svars Brutto (kg) - 14.21 kilograms
LAN - 2 (RJ-45)
length - 0.3 m
Local Area Network Architecture - 10Base-T/100Base-TX
Logistics data - Harmonized System (HS) code - 85176990
Maks. Diapazons Atvērtā telpa - 13 kilometrs
Maksimālais darba mitrums - 95 procenti
Maksimālā darba vides temperatūra - 75 Celsija grāds
Manufacturer - Ubiquiti
Manufacturer_code - NSM2
Material Features - Plastic
Memory - Flash memory - 8 MB
Minimālais darba gaisa mitrums - 5 procenti
Minimālā darba vides temperatūra - -30 Celsija grāds
Mounting type Features - Pole
mpn - NSM2
MPN - NSM2
Name - Ubiquiti NanoStation M2 - 11 dBi
Name - Ubiquiti NSM2
Name - Z Ubiquiti NSM2
Network - Cabling technology - 10/100Base-T(X)
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN interface type - Fast Ethernet
Network/Transport Protocol - TCP/IP QoS
Networking Features - Power over Ethernet (PoE)
Nominālais svars - 0.4 kilograms
Number of Ports - 2
Operating relative humidity (H-H) Operational conditions - 5 - 95%
Operating temperature (T-T) Operational conditions - -30 - 75 °C
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 75 °C
Platums (mm) - 31 milimetrs
Ports & interfaces - Connectivity technology - Wired & Wireless
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Power - Power consumption (max) - 8 W
Power - Power over Ethernet (PoE) - Yes
Power - Power over Ethernet (PoE) voltage - 24 V
Power consumption (max) Power - 8 W
Power Consumption Operational - 8 Vats
Power over Ethernet (PoE) Power - Yes
Power over Ethernet (PoE) voltage Power - 24 V
Processor family Features - Atheros
Processor frequency Features - 400 MHz
Processor model Features - MIPS 24Kc
Producent: Nazwa producenta / importera - Ubiquiti
BATNA SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
Olgi Boznańskiej 3e
42-202 Producer - Ubiquiti
producerCode - NSM2
ProducerCode - NSM2
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=181227114939987225&THEME=asbis&LANG=lv
ProductCategory - Tīkla produkti
ProductCode - NSM2(EU)
Product colour Features - White
ProductDescription - UBIQUITI airMAX NanoStation M2; 2.4 GHz frequency band; Plug-and-play integration with airMAX antennas.
productName - Ubiquiti NanoStation M2 Network bridge White
productSize - Normal
ProductType - Networking - Wireless Outdoor Access Point
Product type Features - Network bridge
RAM - 32 megabaits
RAM type Features - SDRAM
Sertifikācija - FCC Part 15.247, IC RS210, CE
ShortDescription - 150 Mbps - 802.11n, 802.3u 10/100 Mbps Fast Ethernet
sizeX - 295
sizeY - 83
sizeZ - 100
Summary - Ubiquiti NanoStation M2. Antenna gain level (max): 11.2 dBi. Wi-Fi band: Single-band (2.4 GHz), Frequency band: 2.412 - 2.462 GHz. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Connectivity technology: Wired & Wireless. Product type: Network bridge, Material: Plastic, Mounting type: Pole
title - Ubiquiti airMAX NanoStation M2
Tīkla formāts - External
Unit Box Height - 0.095
Unit Box Length - 0.3
Unit Box Width - 0.085
Unit Calculated Volume - 0.002772 cubm
Unit Calculated Weight - 0.67 kg
Units per Pallet - 0
Units per Shipping Box - 20
Vendor - UBIQUITI
Vendor Homepage - https://store.ui.com/collections/wireless/products/nanostation2?_pos=1&_sid=c62cbf116&_ss=r
Warranty - 12 months
warrantyLength - 24
Warranty Term Notes - 24 months - for EU
warrantyType - G
Weight - 0,69
Weight - 0.68
weight - 0.75 kg
weight - 70
Weight & dimensions - Depth - 31 mm
Weight & dimensions - Height - 294 mm
Weight & dimensions - Weight - 400 g
Weight & dimensions - Width - 80 mm
Weight Weight & dimensions - 400 g
Wi-Fi Band Frequency - 2.4 Gigahercs
Wi-Fi band Wireless LAN features - Single-band (2.4 GHz)
Wi-Fi Wireless LAN features - Yes
width - 0.1 m
Width Weight & dimensions - 80 mm
Wireless LAN features - Frequency band - 2.412 - 2.462 GHz
Wireless LAN features - Wi-Fi - Yes
Wireless LAN features - Wi-Fi band - Single-band (2.4 GHz)
Ārējā krāsa - Balts
