ARTIKEL1 - W-LAN MODUL WLN-M12/BLUETOOTH
ARTIKEL2 - WIFI6 802.11AX M.2-2230 SLIM-PC
Brand - Shuttle
BrandPartCode - WLN-M12
Breite - 0
Category - Network Cards
Design - Antenna - Yes
Design - Antenna design - External
Design - Antenna direction type - Omni-directional
Design - Antenna type - 2x2
Design - Component for - PC
Design - Internal - Yes
EAN - 4046047104451
EANCode - 4046047104451
Gewicht - 0
Gross Weight Kg - 0,09
GRUPPE1 - Network
GRUPPE2 - Wireless Adapters
GTIN - 4046047104451
HERSTELLER - SHUTTLE
Hoehe - 0
HSTNUMMER - WLN-M12
Laenge - 0
Logistics data - Harmonized System (HS) code - 85177900

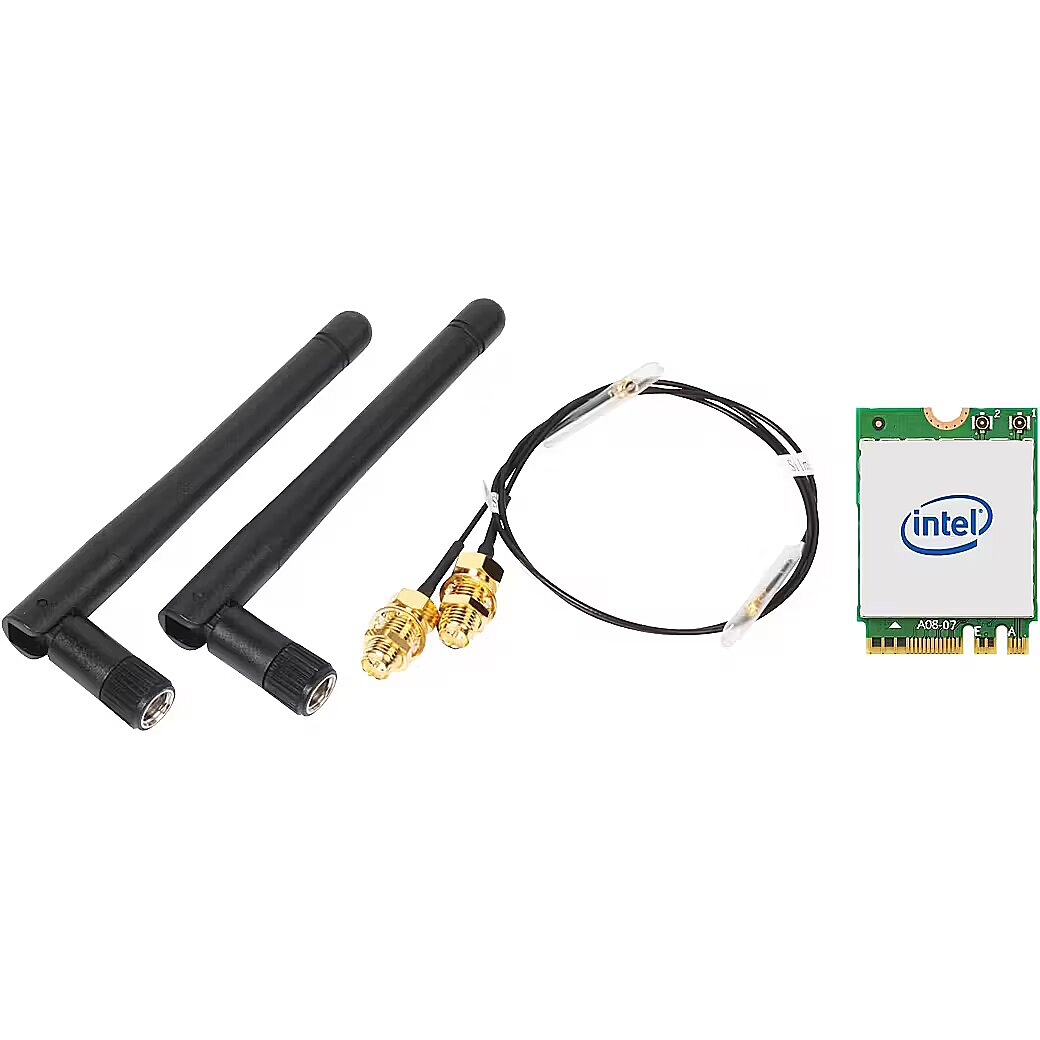

LongDesc - The Shuttle Accessory WLN-M12 is a Wireless LAN kit consisting of an Intel AX210 M.2-2230 card, two antennas and appropriate antenna cables. The WLN-M12 is intended for certain Shuttle XPC barebones to equip them with the wireless LAN standard according to IEEE 802.11n/ac/ax at 2.4 / 5 / 6 GHz. At the same time, his combo device also supports Bluetooth 5.2.
LongProductName - WiFi 6E (802.11b/g/n/ac/ax), 2.4 / 5 / 6 GHz, 2x2, M.2-2230
LongSummaryDescription - Shuttle WLN-M12 - Intel WLAN-AX210/Bluetooth Combo Kit with M.2 card, cables and external antennas for Slim PCs. Internal. Connectivity technology: Wireless, Host interface: M.2, Interface: WLAN / Bluetooth. Maximum data transfer rate: 2400 Mbit/s, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz). Antenna type: 2x2
Manufacturer Code - WLN-M12
Manufacturer Name - Shuttle
Network - Bluetooth - Yes
Network - Bluetooth version - 5.2
Network - Maximum data transfer rate - 2400 Mbit/s
Network - Networking standards - IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax, IEEE 802.11ac
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi band - Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Network - Wi-Fi standards - 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Operational conditions - Operating temperature (T-T) - 0 - 80 °C
Packaging content - Quick installation guide - Yes
Ports & interfaces - Connectivity technology - Wireless
Ports & interfaces - Host interface - M.2
Ports & interfaces - Interface - WLAN / Bluetooth
ProductName - WLN-M12 - Intel WLAN-AX210/Bluetooth Combo Kit with M.2 card, cables and external antennas for Shuttle Slim PCs
Short description - WLAN-Kit M2 INTEL IEEE 802.11ax+BT WLAN Combo Kit mit Karte und Antennen
ShortSummaryDescription - Shuttle WLN-M12 - Intel WLAN-AX210/Bluetooth Combo Kit with M.2 card, cables and external antennas for Slim PCs, Internal, Wireless, M.2, WLAN / Bluetooth, Wi-Fi 6E (802.11ax), 2400 Mbit/s
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
System requirements - Linux operating systems supported - Yes
System requirements - Windows operating systems supported - Windows 10, Windows 11
Title - Shuttle WLN-M12 - Intel WLAN-AX210/Bluetooth Combo Kit with M.2 card, cables and external antennas for Slim PCs
URL - https://www.shuttle.eu/en/products/accessories/wlnm12
WarrantyInfo -
Weight & dimensions - Depth - 22 mm
Weight & dimensions - Height - 2.4 mm
Weight & dimensions - Width - 30 mm
