3G/4G USB modem compatibility WAN connection - Yes
3G bands supported Mobile network - 1800/2100/850/900 MHz
4G bands supported Mobile network - 1800/2100/2300/2500/2600/700/800/850/900 MHz
4G standard Mobile network - LTE-TDD & LTE-FDD
Antenna design Antenna - Internal
brand - MikroTik
Built-in processor Features - Yes
category - MikroTik > Mobilā tīkla produkti > 4G Rūteri
Category Code - WRO
Certification Certificates - CE, EAC, ROHS
Depth Weight & dimensions - 44 mm
Description - Mikrotik Chateau LTE7 (5HACD2HNDTC&R11E-LTE7) Our most versatile home router, featuring the new CAT7 modem and a speedy quad-core CPU for all your household network security and management tasks. Dual-band, dual-chain Wi-Fi, 5x Gigabit ports, and full RouterOS v7 features – all at a significantly lower price than the previous LTE6 version.Perfect for secure VPN work, home offices, or small business networks that care about both function and aesthetics. ARM LTE Cat7 Dual-band Quad-core CPU ROS v7
EAN - 4752224010100
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN interface type Network - Gigabit Ethernet
Ethernet LAN Network - Yes
Ethernet WAN WAN connection - Yes
Flash memory Features - 16 MB
height - 0.07 m
Height Weight & dimensions - 156 mm
Internal memory Features - 256 MB
length - 0.33 m
Mean time between failures (MTBF) Features - 200000 h
Mobile network generation Mobile network - 4G
Model - D53G-5HacD2HnD-TC&R11e-LTE7
Model name - Mikrotik Chateau LTE7 (5HACD2HNDTC&R11E-LTE7)
mpn - D53G-5HacD2HnD-TC&R11e-LTE7
Operating temperature (T-T) Operational conditions - -40 - 70 °C
Output voltage Power - 18 - 28 V
Power consumption (typical) Power - 20 W
Power source type Power - DC
Processor cores Features - 4
Processor frequency Features - 896 MHz
Product colour Design - Black/White
SIM card slot WAN connection - Yes
Summary - Mikrotik Chateau LTE7. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 1167 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet. Mobile network generation: 4G, 4G standard: LTE-TDD & LTE-FDD, 4G bands supported: 700,800,850,900,1800,2100,2300,2500,2600 MHz. Product colour: Black, White. Certification: CE, EAC, ROHS

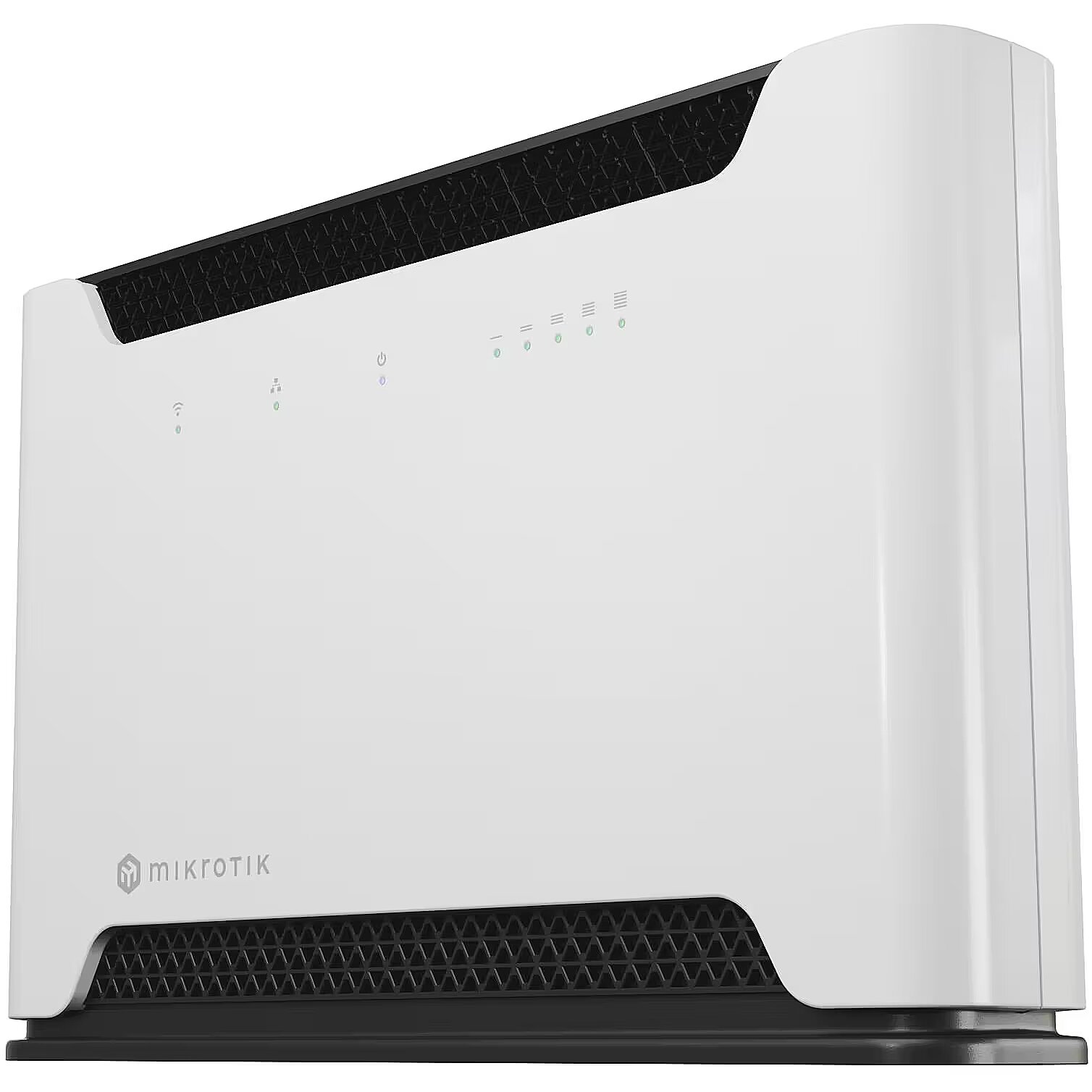

title - MikroTik Chateau LTE7
Top Wi-Fi standard Wireless LAN features - Wi-Fi 5 (802.11ac)
Unit Box Height - 0.056
Unit Box Length - 0.33
Unit Box Width - 0.16
Unit Calculated Volume - 0.003672 cubm
Unit Calculated Weight - 0.945 kg
Units per Pallet - 0
Units per Shipping Box - 20
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Ports & interfaces - 1
USB charging port Ports & interfaces - Yes
USB port Ports & interfaces - Yes
Vendor Homepage - https://mikrotik.com/product/chateau_lte7
Warranty - 12 months
weight - 1 kg
Wi-Fi band Wireless LAN features - Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards Wireless LAN features - 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)
width - 0.16 m
Width Weight & dimensions - 240 mm
WLAN data transfer rate (first band) Wireless LAN features - 300 Mbit/s
WLAN data transfer rate (max) Wireless LAN features - 1167 Mbit/s
WLAN data transfer rate (second band) Wireless LAN features - 867 Mbit/s
