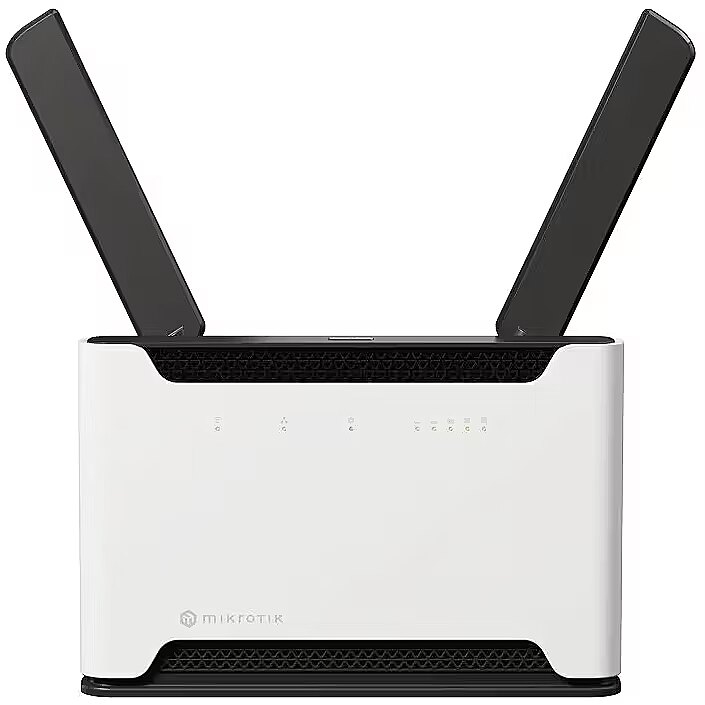

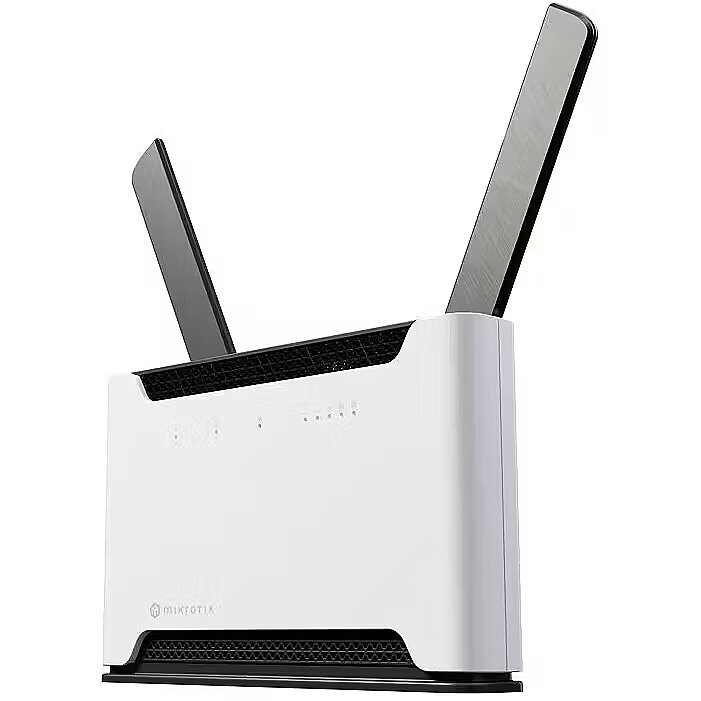

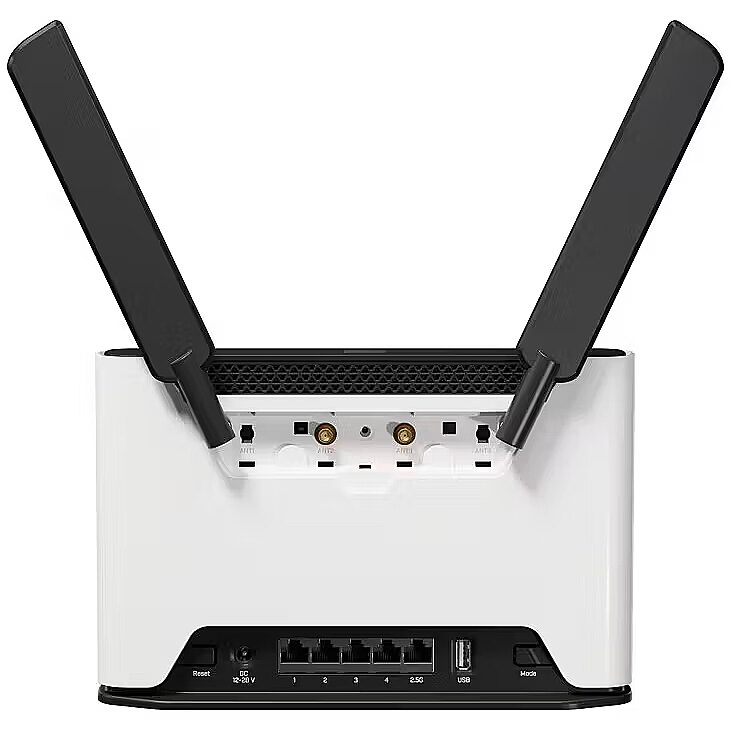

MikroTik Chateau 5G (S53UG+5HaxD2HaxD-TC&RG650E-EU)

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1245803 Product code: S53UG+5HaxD2HaxD-TC&RG650E-EU
In stock 39 units
Warranty: 2 years (Warranty for business entities 1 year)
300.63 €
Ready for dispatch
on Thursday, 11.09.2025
starting from 6.99 €
Delivery options
  • Posti parcel machine
    Within 1-2 working days
    6.99 €
  • Delivery with Posti courier mail
    Within 1-2 working days
    10.99 €
Main product parameters All parameters
  • Speed index: 1200
  • Type of device: 5G Router
  • Wi-Fi standard: Wi-Fi 5 (802.11ac)
Basic information
Speed index : 1200
Type of device 5G Router

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 5 (802.11ac)
Functionality
3G/4G support SIM slot

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Dual-Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 10/100/1000

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 5
More detailed specification
2.5GbE Ports - 1
3G - Yes
4G - Yes
10Base-T / 100Base-TX / 1000Base-T Ports - 4
brand - MikroTik
category - MikroTik > Mobilā tīkla produkti > 5G Rūteri
Category Code - WAP
Code - S53UG+5HaxD2HaxD-TC&RG650E-EU
Colour - White
Description - Chateau 5G ax R17 may look familiar – the sleek design, the mighty dual-band Wi-Fi 6 coverage, and all the impressive RouterOS v7 features. But under the hood, everything’s been pushed further. Now powered by 5G Release 17 cutting-edge modem, Chateau takes full advantage of the latest mobile technologies, including advanced carrier aggregation combinations. That means faster downlink speeds, increased signal stability and responsiveness, even in regions where the mobile tower is far away. Wherever you are, Chateau finds the signal sweet spot. Your network, your rules: eSIM or microSIM Chateau has a true embedded SIM (eSIM) built right in, fully compatible with: • MikroTik Connectivity
(pre-activated data plans) • Third-party eSIMs
(Mobile operator eSIM profiles) • Multiple eSIM profiles
(easily added, switched, or stored) With four powerful built-in LTE/5G antennas and two external dual-chain Wi-Fi 6 antennas, Chateau gives you great performance for download and upload even in a busy, crowded environment: • Smart aggregation with wide regional FDD + TDD band support; • Extra strong signal pickup thanks to 4x4 MIMO; • Wi-Fi coverage designed for homes of all sizes, including multi-floor setups. Chateau runs RouterOS v7, MikroTik’s industrial-grade operating system used by ISPs and sysadmins around the world – but with a simple user-friendly interface that anyone can learn to use. And if you’re not sure about diving deep into the world of networking – no worries, we also have iOS/Android app for even easier installation! Set up a secure VPN. Optimize streaming. Limit bandwidth. Create VLANs. Block sites. Send SMS alerts when usage peaks. All without subscriptions or paywalls.
Mobile Details 3G Category R8 (42.2Mbps Downlink, 5.76Mbps Uplink) 3G bands 1 (2100MHz) / 5 (850MHz) / 8 (900MHz) LTE Category 20 (2.0 Gbps Downlink, 211 Mbps Uplink) MIMO DL 4x4 MIMO UL 1x1 (5G SA MIMO UL 2x2) LTE FDD bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 32 (1500 MHz) LTE TDD bands 38 (2600MHz) / 41 (2500MHz) / 42 (3500MHz) / 40 (2300MHz) / 43 (3700MHz) 5G NSA FDD bands 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 26 (850 MHz) / 28 (700 MHz) / 67 (700 MHz) / 75 (1500 MHz) / 76 (1500 MHz) 5G NSA TDD bands 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) 5G SA FDD bands 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 26 (850 MHz) / 28 (700 MHz) / 67 (700 MHz) / 75 (1500 MHz) / 76 (1500 MHz) 5G SA TDD bands 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) TAC 86896506
EAN - 4752224009852
Features > Mesh Support - No
Features > MU-MiMO - Yes
height - 0.0915 m

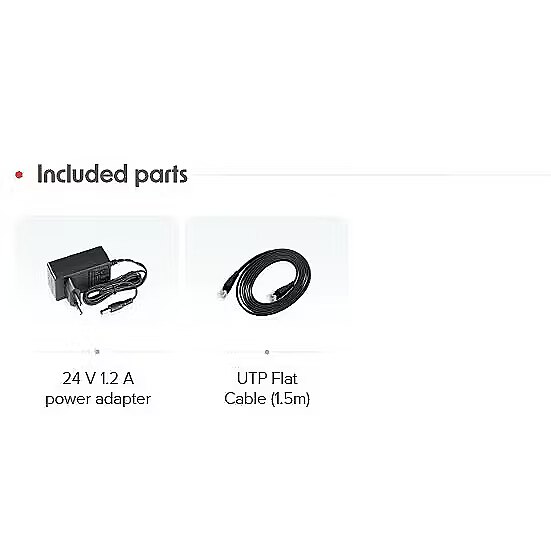

Included Accessories - 24V 1.2A power adapter
UTP Flat Cable (1.5m)
length - 0.35 m
Link - https://www.mikrotik-store.eu/en/mikrotik-s53ug5haxd2haxd-tcr650e-eu-chateau-5g-r17-ax
Micro-SIM card tray - 1
mpn - S53UG+5HaxD2HaxD-TC&RG650E-EU
Name - MikroTik Chateau 5G R17 ax S53UG+5HaxD2HaxD-TC&RG650E-EU | 802.11ax | 1200 Mbit/s | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 4 | Mesh Support No | MU-MiMO Yes | 1
Other features > Ethernet LAN (RJ-45) ports - 4
Other features > USB ports quantity - 1
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 330.00 mm
Package features > Gross height (mm) - 160.00 mm
Package features > Gross width (mm) - 57.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 287 pc(s)
Package features > Paper/Pasteboard - 200.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Performance > Wi-Fi data rate (max) - 1200 Mbit/s
Product Net Weight - 0.7 kg
Technical details > Gross weight - 0.90 kg
Technical details > Net weight - 0.70 kg
Technical details > Producer - MikroTik
Technical details > Producer product name - Chateau 5G R17 ax S53UG+5HaxD2HaxD-TC&RG650E-EU
title - MikroTik Chateau 5G R17 ax
Unit Calculated Volume - 0.007 cubm
Unit Calculated Weight - 1.19 kg
USB 2.0 Ports - 1
Vendor Homepage - https://mikrotik.com/product/chateau_5g_r17_ax#fndtn-specifications
Warranty - 12
Warranty - 12 month(s)
Warranty - 12 months
weight - 1.25 kg
Wi-Fi 6 Network standard - Yes
width - 0.25 m
Wireless LAN features > Wi-Fi band - 802.11ax
Wireless LAN features > Wi-Fi standards - 802.11a/n/ac/ax
