brand - Ubiquiti
Category - Root/Electronics/Networks and communication/Routers
category - Ubiquiti > UniFi Cloud Gateways > Kompakts
Category 1 - Netzwerk
Category 2 - Router
Category_1 - Sieci i serwery
Category_2 - Sieci - Routery
Certificates - CE, FCC, IC
Certificates - Compliance certificates - CE
Certificates - Compliance certificates - Federal Communications Commission (FCC)
Certificates - Compliance certificates - Industry Canada (IC)
Code - UCG-Fiber
Color - White

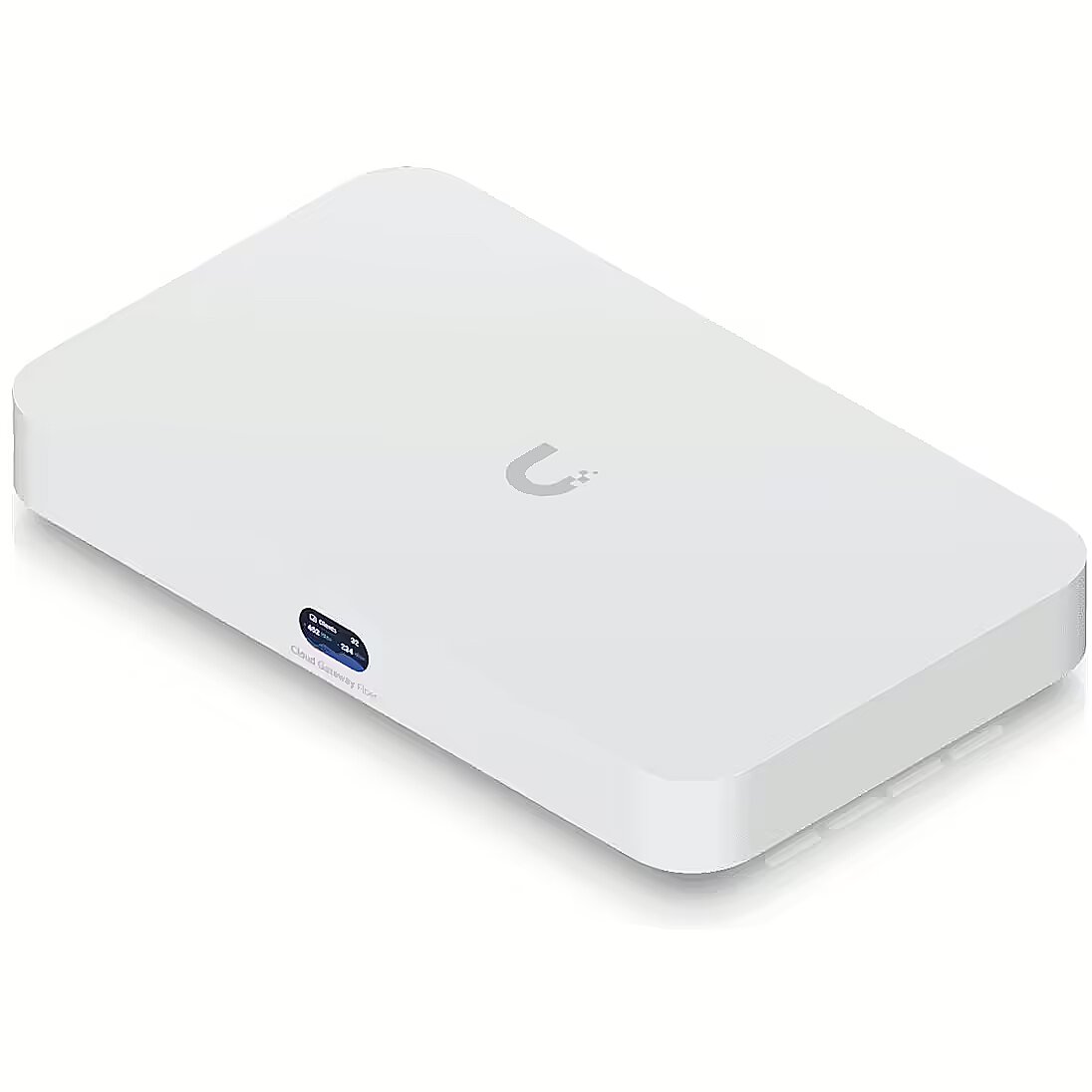

Description - Cloud Gateway Fiber 10G with built-in 4-port 2.5 GbE switch, configurable NVR storage, and full UniFi application support.
Design - Enclosure material - Polycarbonate (PC)
Design - LED indicators - Status
Design - Product colour - White
Designation - CE+WEEE
dimensionalWeight - 844
dimension depth - 80 mm
dimension height - 240 mm
Dimensions - 212.8 x 127.6 x 30 mm
dimension weight - 1200 g
dimension width - 220 mm
Display - Display diagonal - 2.44 cm (0.96")
EAN - 810177161288
ean - 810177161288
EAN - 0810177161288
Eans - 810177161288
EAN_code - 0810177161288
Environment requirements - Operating temperature: 0 to 40°C Operating humidity: 5 to 95% non-condensing
Features > Mesh Support - No
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - No
Gross Weight Kg - 0,84
guarantee - 12
guarantee_type - normal
height - 0.13 m
I/O ports - 1 x 10 Gbit/s WAN
I/O ports - 2 x 10Gbit SFP/SFP+
I/O ports - 4 x 10/100/1000/2500 RJ-45 port
length - 0.25 m
Logistics data - Export Control Classification Number (ECCN) - EAR99
Management features - Multicast support - Yes
Management features - Quality of Service (QoS) support - Yes
Management features - Reset button - Yes
Manufacturer - Ubiquiti
Manufacturer Code - UCG-FIBER
Manufacturer Name - Ubiquiti Networks
Manufacturer_code - UCG-Fiber
Model - Cloud Gateway Fiber
mpn - UCG-Fiber
MPN - UCG-Fiber
name - Cloud Gateway kontroler 10, 100, 1000, 2500, 10000 Mbit/s UCG-Fiber
Name - Ubiquiti UCG-Fiber
Name - UBIQUITI Unifi Cloud Gateway Fiber 4x2.5G 1x10G 2xSFP+ PoE+30W 500+User
Name - Ubiquiti Unifi Cloud Gateway Fiber white
Name - Ubiquiti | Cloud Gateway Fiber | Ethernet LAN (RJ-45) ports 5 | Mesh Support No | MU-MiMO No | No mobile broadband
Network - Bluetooth - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000 Mbit/s
Network - Ethernet LAN data rates - 2500 Mbit/s
Network - Ethernet LAN data rates - 10000 Mbit/s
Network - Load balancing - Yes
Network architecture - GigabitEthernet
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - Advanced QoS Multicast DNS (mDNS) Advanced NAT (SNAT / DNAT / Masquerading / NAT Grouping / 1-to-1 NAT) Integrated RADIUS server RADIUS over TLS (RadSec) Additional internet failover with UniFi LTE backup Internet quality and outage reporting MAC address table size: 4000
Other features > Ethernet LAN (RJ-45) ports - 5
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 212.80 mm
Package features > Gross height (mm) - 30.00 mm
Package features > Gross width (mm) - 127.60 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 746 pc(s)
Package features > Paper/Pasteboard - 200.00 g
Package features > Plastic (No PET) - 41.00 g
Package features > Tare weight (kg) - 0.24 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging content - AC adapter included - Yes
Packaging content - Cables included - LAN (RJ-45)
Packaging content - Cables included - Power
Performance - Built-in processor - Yes
Performance - Control display unit - Yes
Performance - Display type - LCM
Performance - Internal memory - 3000 MB
Performance - Number of processors installed - 1
Performance - Processor family - ARM Cortex
Performance - Processor frequency - 2200 MHz
Performance - Processor manufacturer - ARM
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 4
Ports & interfaces - SFP+ ports quantity - 2
Ports & interfaces - WAN connection - Ethernet (RJ-45), SFP, SFP+
Power - DC input voltage - 54 V
Power - Electromagnetic (EMP) protection - Yes
Power - Electromagnetic (EMP) protection (air) - 8 kV
Power - Electromagnetic (EMP) protection (contact) - 4 kV
Power - Input current - 1.1 A
Power - Input voltage - 100 - 240 V
Power - Power consumption (max) - 29.4 W
Power - Power over Ethernet (PoE) - Yes
Power - Power over Ethernet (PoE) type supported - PoE+
Power supply - Sposób zasilania: Gniazdo DC (54 V DC/1,1 A) Zasilanie: 54 V DC/1,1 A (zasilacz w zestawie) Obsługiwany zakres napięcia: 100240 V AC
producer - UBIQUITI
Producer - Ubiquiti
producerCode - UCG-Fiber
ProducerCode - UCG-Fiber
productName - Ubiquiti UCG-Fiber (30W) gateway/controller 10, 100, 1000, 2500, 10000 Mbit/s
productSize - Normal
Protocols - Routing protocols - OSPF
Security - Stateful Firewall Layer 7 Application-Aware Firewall DPI and Traffic Identification Zone-Based Firewall with Advanced Filtering (Regions, Domains, Applications) Content Filtering Intrusion Prevention (IPS/IDS) Ad Blocking
Security - Firewall security - Yes
Security - Security algorithms - 802.1x RADIUS
Security - Security algorithms - IPSec
Security - Security algorithms - TLS
Security - VLAN support - Yes
ShortDescription -
Short description - Ubiquiti UniFi Cloud Gateway Fiber (2xWAN/5xLAN) UCG-FIBER Powerful and compact multi-WAN UniFi Cloud Gateway
sizeX - 240
sizeY - 220
sizeZ - 80
Technical details > Gross weight - 1.34 kg
Technical details > Net weight - 1.10 kg
Technical details > Producer - Ubiquiti
Technical details > Producer product name - Cloud Gateway Fiber
title - Ubiquiti UniFi Cloud Gateway Fiber
Type - xDSL
vendpn - UCG-Fiber
Warranty - 12
Warranty - 12 month(s)
warrantyLength - 24
warrantyType - G
Weight - 1,36
weight - 1.5 kg
Weight - 1.36
weight - 1370
Weight & dimensions - Depth - 127.6 mm
Weight & dimensions - Height - 30 mm
Weight & dimensions - Weight - 675 g
Weight & dimensions - Width - 212.8 mm
width - 0.23 m
