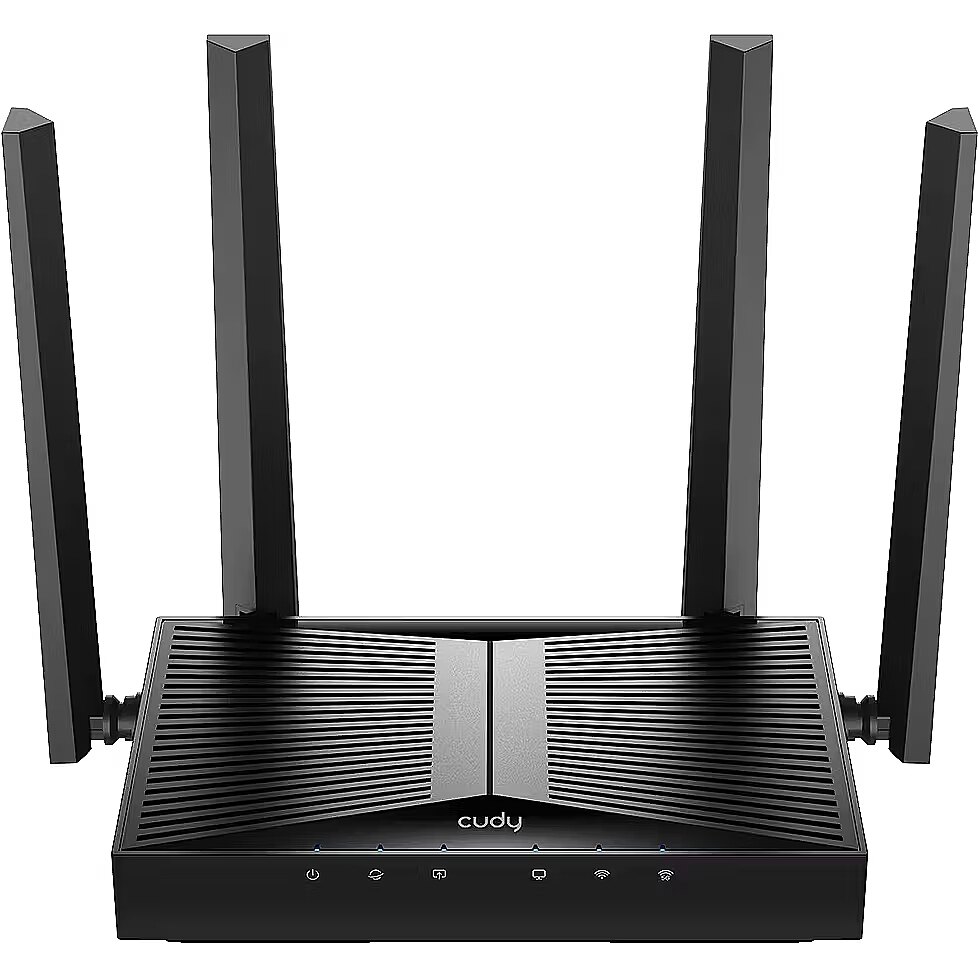

Cudy BE3600 2.5G Wi-Fi 7 Mesh Router

Name: Cudy BE3600 2.5G Wi-Fi 7 Mesh Router
Brand: Cudy
SKU: 1188642
Price: 57.95 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1188642 Product code: WR3600H

Can be ordered 23 units Availability: 14 days after order approval

Warranty: 2 years

Compare

Ready for dispatch

17.11.2025

starting from 6.99 €

Delivery options

Posti parcel machine

Within 1-2 working days

6.99 €
Delivery with Posti courier mail

Within 1-2 working days

10.99 €

Main product parameters All parameters

Speed index: 3600
Type of device: Mesh Router
Wi-Fi standard: Wi-Fi 7 (802.11 be)

Basic information

Speed index : 3600

Type of device Mesh Router

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 7 (802.11 be)

Functionality

3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Dual-Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 2.5 Gbps

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.

Ports and equipment

LAN ports : 4

More detailed specification

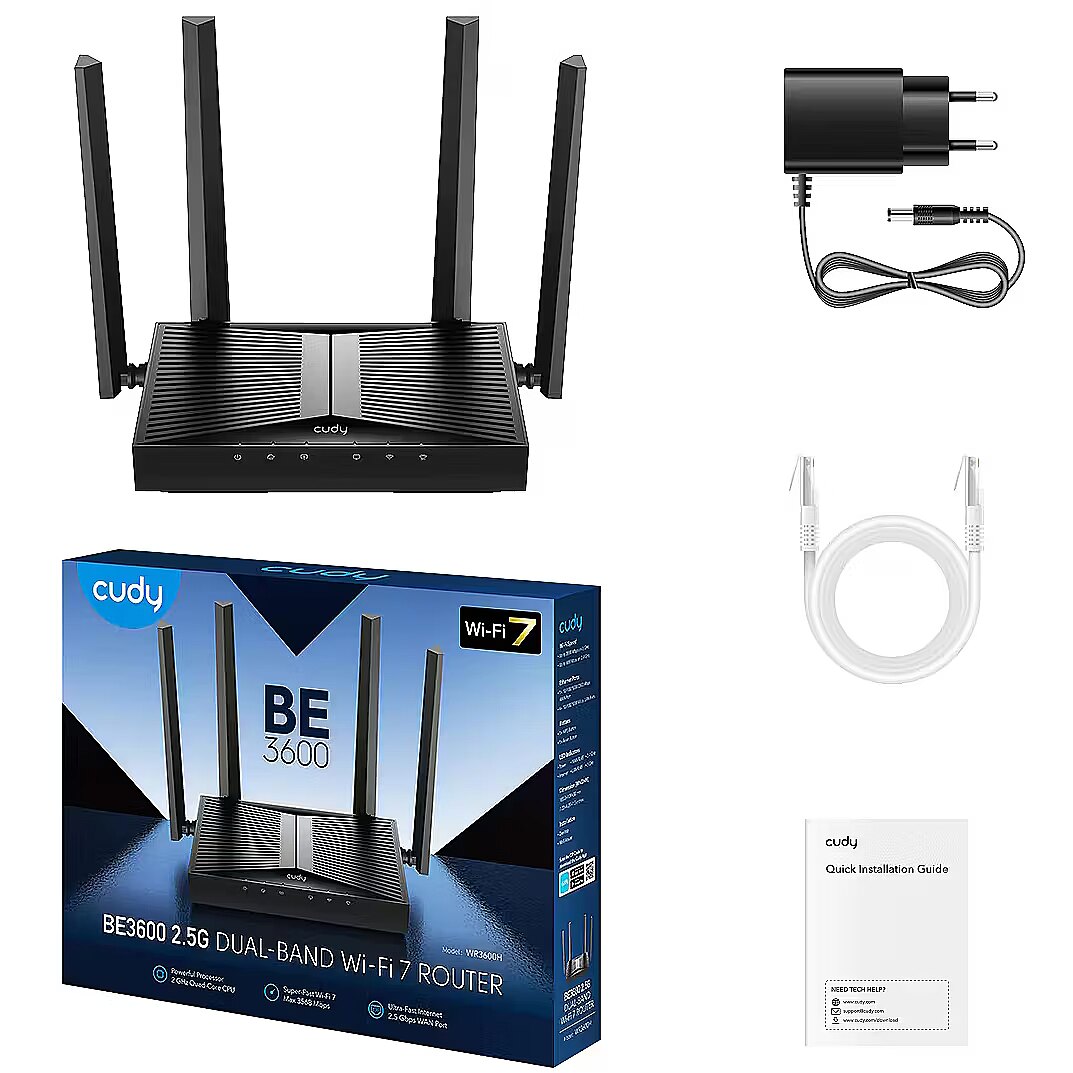

Accessories included - WR3600H Power Adapter Ethernet Cable Installation Guide
Antenna - Fixed external
Antenna gain - 5.5 dBi
Category 1 - Netzwerk
Category 2 - Router
Certificates - FCC CE
Color - Black
Description - Router BE3600 2,5G Mesh Wi-Fi 7 Dwuzakresowy router WiFi 7 o łącznej prędkości 3,6 Gb/s, jednym 2,5G WAN i czterema gigabitowymi sieciami LAN, przeznaczony do wielogigabitowego dostępu do Internetu, gier i rozrywki. Broadcom 2 GHz Quad-Core CPU 4-strumieniowe dwuzakresowe Wi-Fi 7 2882 Mbps + 688 Mbps Wi-Fi 1 x 2,5 GbE i 4 x GbE Obejmuje 130 m2 (1,400 ft2) z ePA VPN Server and Client Cudy App, Cloud Control
Design - LED indicators - LAN, Power, Status, WAN
Design - Product colour - Black
Design - Product type - Tabletop router
Designation - CE+WEEE
dimensionalWeight - 1096
dimension depth - mm
dimension height - mm
Dimensions - Router: 183.3 x 109 x 38 mm Antena: 175 mm
dimension weight - g
dimension width - mm
ean -
EAN - 6971690793500
Environment requirements - Temperatura pracy: 0°C ~ 40°C (32°F ~ 104°F) Temperatura przechowywania: -40°C ~ 70°C (-40°F ~ 158°F) Wilgotność: 10% ~ 90% bez kondensacji Wilgotność przechowywania: 5% ~ 95% bez kondensacji
guarantee - 24
guarantee_type - normal

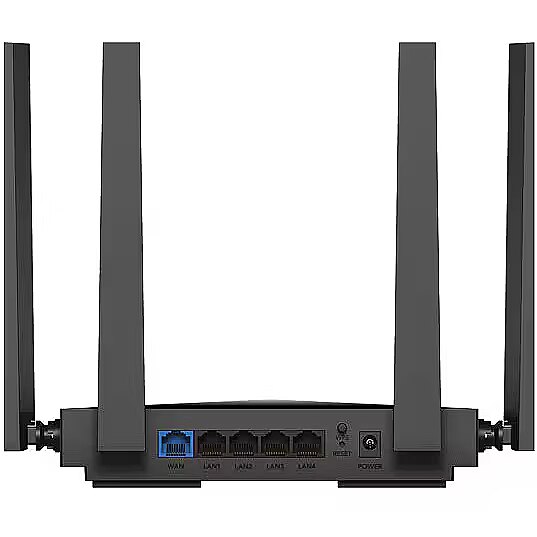

I/O ports - 1 x 10/100/1000/2500 RJ-45 port (WAN)
I/O ports - 4 x 10/100/1000 Mbit/s
Management, monitoring, configuration - All Devices Management: Wi-Fi Time Schedule MAC Filter IP/MAC Binding Per-Devices Management: Internet On/Off VPN On/Off Online Time Schedule Device Rename Content Management: Domain Filter IP Filter QoS: Per-User Rate Limiting DHCP: Address Reservation DHCP Client List Server IPv6 Protocols: Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite IPTV/VLAN: Bridge Tag VLAN VoIP VLAN IPTV VLAN TTL Customization: Extend Spoof Custom IGMP: IGMP Proxy IGMP Snooping Forwarding: Port Forwarding Port Triggering UPnP DMZ
Management features - MU-MIMO technology - Yes
Management features - OFDMA - Y
Management features - Reset button - Yes
Management features - Wireless statistics - Yes
Management features - WPS push button - Yes
Manufacturer - Cudy
Model - WR3600H
MPN - WR3600H
Name - Cudy BE3600 2.5G Wi-Fi 7 Mesh Router
name - Router WR3600H Mesh 2.5G WiFi 7 BE3600 802.11be/ax/ac/a/b/g/n, 2882Mbps at 5GHz+ 688Mb
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000
Network - Ethernet LAN interface type - Gigabit Ethernet
Network - Number of guest networks (2.4 GHz) - 1
Network - Number of guest networks (5 GHz) - 1
Network - Port forwarding - Yes
Network - Port triggering - Yes
Network architecture - GigabitEthernet
Number of antennas - 4
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Other features - CPU: 2.0 GHz Quad-Core, ARM Cortex-A7 Flash/ROM: 128 MB (1 Gbit) NAND DDR/RAM: 512 MB (4 Gbit) DDR3L 5 GHz Wi-Fi Speed: 2882 Mbps 2.4 GHz Wi-Fi Speed: 688 Mbps
Packaging content - AC adapter included - Yes
Packaging content - Cables included - LAN (RJ-45)
Packaging data - Number of products included - 1 pc(s)
Packaging data - Package type - Box
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 4
Ports & interfaces - Number of Ethernet WAN ports - 1
Power - Output current - 1 A
Power - Output voltage - 12 V
Power - Power consumption (max) - 10 W
Power - Power source type - DC
Power supply - Wejście: 100 ~ 240 V, 50/60 Hz AC Wyjście: 12 V 1 A DC
producer - Cudy
producerCode - WR3600H
productName - Router CUDY WR3600H BE3600 2.5G Wi-Fi 7 Mesh Router
productSize - Normal
Protocols - DHCP client - Yes
Protocols - DHCP server - Yes
Protocols - Supported network protocols - IPv4 / IPv6
Protocols - Universal Plug and Play (UPnP) - Yes
Safety warning - Warnings - Do not dismantle the unit yourself, there is a risk of electric shock.
Safety warning - Warnings - Do not expose the device to extreme temperatures.
Safety warning - Warnings - Do not expose the device to water or moisture.
Security - Wi-Fi Security: WPA/WPA2/WPA3 Parental Controls: Profiles Settings Offline Time Online Time Pause the Internet Web Filter Firewall: SPI Firewall DoS Protection Block PING
Security - DMZ support - Yes
Security - Firewall security - SPI, DoS
Security - Guest access - Yes
Security - Parental control - Yes
Security - Security algorithms - WPA
Security - Security algorithms - WPA2
Security - Security algorithms - WPA3
sizeX - 258
sizeY - 64
sizeZ - 332
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11ax
Standards - 802.11b
Standards - 802.11be
Standards - 802.11g
Standards - 802.11n
Standards - IPv4
Standards - IPv6
Type - xDSL
vendpn - WR3600H
WAN connection - 3G/4G USB modem compatibility - No
WAN connection - DSL WAN - No
WAN connection - Ethernet WAN - Yes
WAN connection - SIM card slot - No
WAN connection - WAN connection type - RJ-45
warrantyLength - 24
warrantyType - G
Weight - 0.74
Weight - 332 g
weight - 744
Weight & dimensions - Depth - 109 mm
Weight & dimensions - Height - 38 mm
Weight & dimensions - Width - 183 mm
Wireless LAN features - Point-to-point protocol over Ethernet (PPPoE) - Yes
Wireless LAN features - Static IP - Yes
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Wireless LAN features - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Wireless LAN features - Wi-Fi standards - Wi-Fi 7 (802.11be)
Wireless LAN features - WLAN data transfer rate (first band) - 688 Mbit/s
Wireless LAN features - WLAN data transfer rate (max) - 2882 Mbit/s
Wireless LAN features - WLAN data transfer rate (second band) - 2882 Mbit/s
