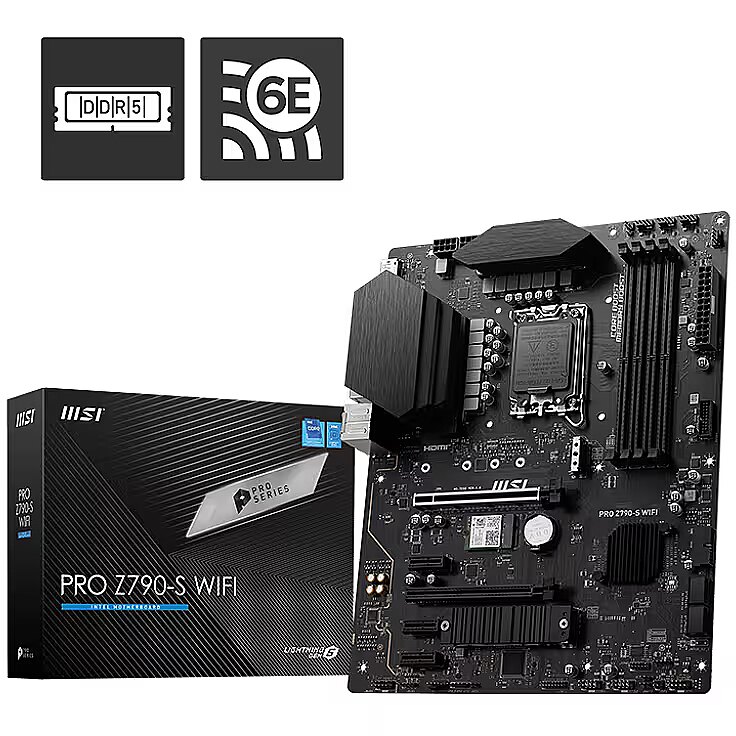

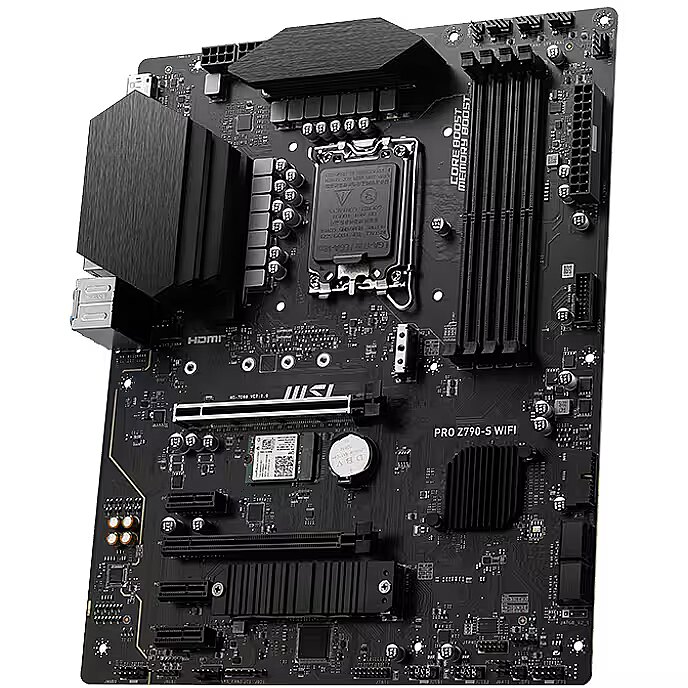

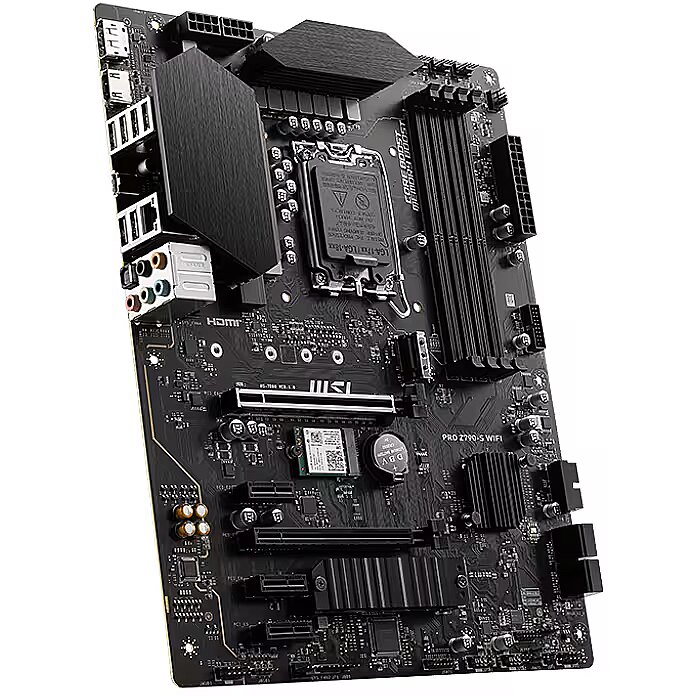

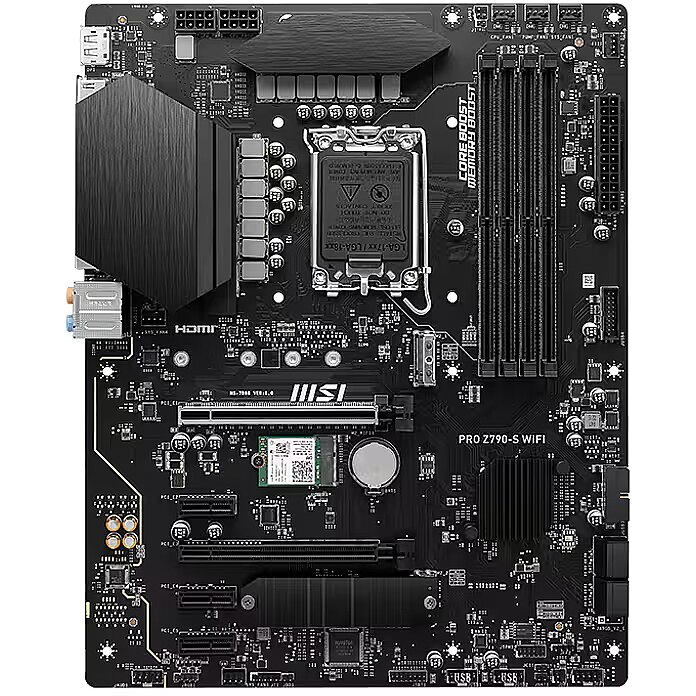

MSI PRO Z790-S WIFI

Name: MSI PRO Z790-S WIFI
Brand: MSI
SKU: 997408
Price: 204.18 EUR
Availability: OutOfStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 997408 Product code: PRO Z790-S WIFI

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.fi website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 3 years

Compare

Main product parameters All parameters

Series: MSI PRO
CPU Socket: LGA 1700
Chipset: Intel Z790
Form factor: ATX
Type: DDR5
RAM Slots: 4
Built-in Wi-Fi: Ir

Similar Products

Basic information
	This product MSI PRO Z790-S WIFI	MSI PRO Z890-P WIFI	MSI B760 GAMING PLUS WIFI	MSI MAG Z890 TOMAHAWK WIFI	Asus PRIME Z790-P WIFI
Show similar specs. Hide similar specs.	204.18 €	178.89 €	150.29 €	230.65 €	199.36 €
Series	MSI PRO	MSI PRO	MSI Gaming	MSI MAG	ASUS Prime
CPU Socket	LGA 1700	LGA 1851	LGA 1700	LGA 1851	LGA 1700
Chipset	Intel Z790	Intel Z890	Intel B760	Intel Z890	Intel Z790
Form factor	ATX	ATX	ATX	ATX	ATX
Random-access memory (RAM)
Type	DDR5	DDR5	DDR5	DDR5	DDR5
RAM Slots	4	4	4	4	4
Memory support	DDR5 5600 (OC 6600)	DDR5 6400 (OC 9200)	DDR5 5600 (OC 6800)	DDR5 6400 (OC 9200)	DDR5 5600 (OC 7200)
Graphics card
Video card port	PCI-EXPRESS	PCI-EXPRESS	PCI-EXPRESS	PCI-EXPRESS	PCI-EXPRESS
Integrated graphics	Only with iGPU-ready CPU	Only with iGPU-ready CPU	Only with iGPU-ready CPU	Only with iGPU-ready CPU	Only with iGPU-ready CPU
Ports and equipment
PCI ports	0	0	0	0	0
D-Sub	0	0	0	0	0
DVI	0	0	0	0	0
HDMI	1	1	1	1	1
DisplayPort	1	1	1	0	1
Integrated sound card	Realtek ALC897	Realtek ALC897	Realtek ALC897	Realtek ALC1220P	Realtek Audio CODEC
Wireless connections
Built-in Bluetooth	Ir	Ir	Ir	Ir	Ir
Built-in Wi-Fi	Ir	Ir	Ir	Ir	Ir
External ports
External USB Type-C	1	2	1	3	1
External USB 2.0	2	4	4	0	2
External USB 3.0 (USB 3.2 Gen1)	4	2	3	4	2
External USB 3.1 (USB 3.2 Gen2)	1	1	2	3	1
Internal ports
Internal A-RGB 5V (3-pin)	0	3	2	3	3
Internal RGB 12V (4-pin)	1	1	1	1	2
Internal USB 2.0	2	2	2	2	2
Internal USB 3.0	2	2	1	1	2
Internal USB Type-C	0	1	1	1	1
M.2 Port	4	4	2	4	3
SATA3 ports	6	4	4	4	4

Basic information

Series : MSI PRO

CPU Socket LGA 1700

The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.

Chipset Intel Z790

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.

Form factor ATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Random-access memory (RAM)

Type : DDR5

RAM Slots 4

The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.

Memory support DDR5 5600 (OC 6600)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card

Video card port PCI-EXPRESS

VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.

Integrated graphics Only with iGPU-ready CPU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment

PCI ports 0

PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.

D-Sub : 0

DVI : 0

HDMI : 1

DisplayPort : 1

Integrated sound card : Realtek ALC897

Wireless connections

Built-in Bluetooth : Ir

Built-in Wi-Fi : Ir

External ports

External USB Type-C : 1

External USB 2.0 : 2

External USB 3.0 (USB 3.2 Gen1) : 4

External USB 3.1 (USB 3.2 Gen2) : 1

Internal ports

Internal A-RGB 5V (3-pin) : 0

Internal RGB 12V (4-pin) : 1

Internal USB 2.0 : 2

Internal USB 3.0 : 2

Internal USB Type-C : 0

M.2 Port : 4

SATA3 ports : 6

More detailed specification

Additional information in manufacturers website MSI PRO Z790-S WIFI

Brand - MSI
BrandPartCode - PRO Z790-S WIFI
Category - Motherboards
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Code - PRO Z790-S WIFI
EAN - 4711377119603
EAN_code - 4711377119603
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x1 slots - 3
Expansion slots - PCI Express x16 slots - 2
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Graphics - On-board graphics card - No
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.64 kg
GTIN - 0824142331743
GTIN - 824142331743
GTIN - 4711377119603
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 6
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 4
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.msi.com/Motherboard/PRO-Z790-S-WIFI
LongDesc - PRO Z790-S WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.BUSINESS ELEGANCEThe PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.M.2 Shield FrozrStrengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.7W/mK Thermal Pad & Additional Choke PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.Chipset HeatsinkThe chipset heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.LIGHTNING GEN 5 PCI-EDoubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.SMT PCIE 5.0 SLOTThe advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.REINFORCED,HEAVY SOLDERED CONNECTIONSSecure to the motherboard with extra solder points and support the weight of heavy graphics cards.
LongProductName - Intel Z790, LGA 1700, 4x DDR5, 1x HDMI, 2x PCI-E x16, 2x M.2, Intel Wi-Fi 6E, Bluetooth 5.3, ATX
LongSummaryDescription - MSI PRO Z790-S WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, ECC сompatibility: Non-ECC. Supported storage drive interfaces: M.2, PCI Express, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Manufacturer - MSI
Manufacturer_code - 7D88-001R
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 192 GB
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 6600 MHz
Memory - Supported memory clock speeds - 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory > Supported memory types - DDR5
Name - MSI PRO Z790-S WIFI - Socket 1700 - motherboard
Name - MSI | PRO Z790-S WIFI | Processor family Intel | Processor socket LGA1700 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6 (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 319.00 mm
Package features > Gross height (mm) - 352.00 mm
Package features > Gross width (mm) - 86.00 mm
Package features > Inner carton packing Qty - 1.00 pc(s)
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 179 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 75.00 g
Package features > Tare weight (kg) - 0.68 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Cables included - SATA
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
ProductName - PRO Z790-S WIFI

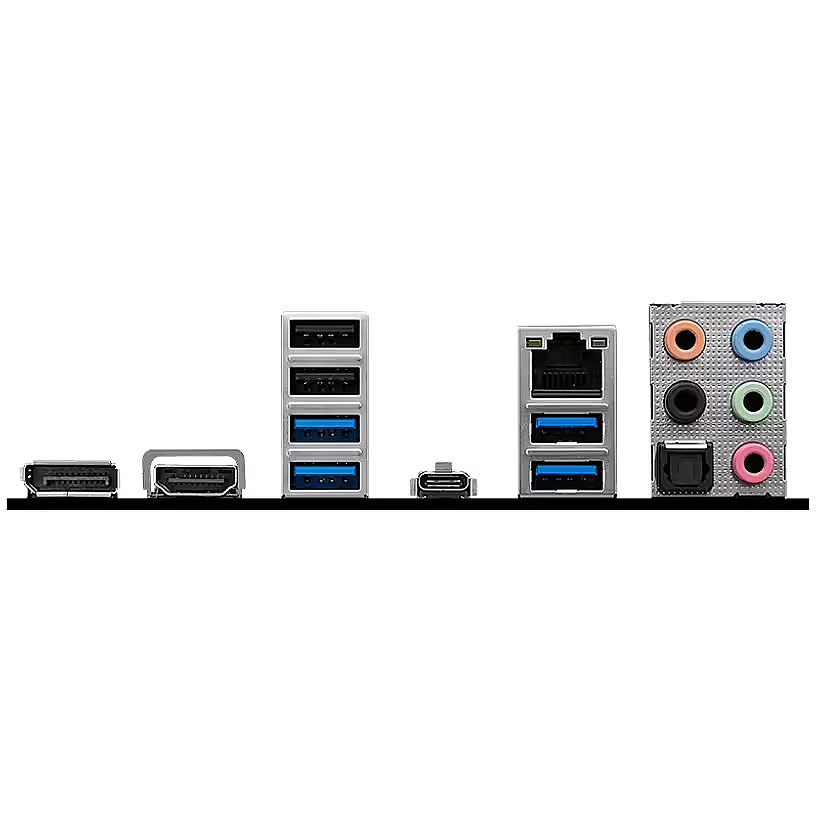

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 1.4
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
ShortSummaryDescription - MSI PRO Z790-S WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, DDR5-SDRAM, 192 GB
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, PCI Express
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Net weight - 0.97 kg
Technical details > Producer - MSI
Technical details > Producer product name - PRO Z790-S WIFI
Title - MSI PRO Z790-S WIFI motherboard Intel Z790 LGA 1700 ATX
URL - https://www.msi.com/Motherboard/PRO-Z790-S-WIFI
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
Weight - 1,47
Weight & dimensions - Depth - 304.8 mm
Weight & dimensions - Width - 243.8 mm
