ID: 1152188
Product code: Z890 LiveMixer WiFi
In stock 5 units
Warranty: 3 years

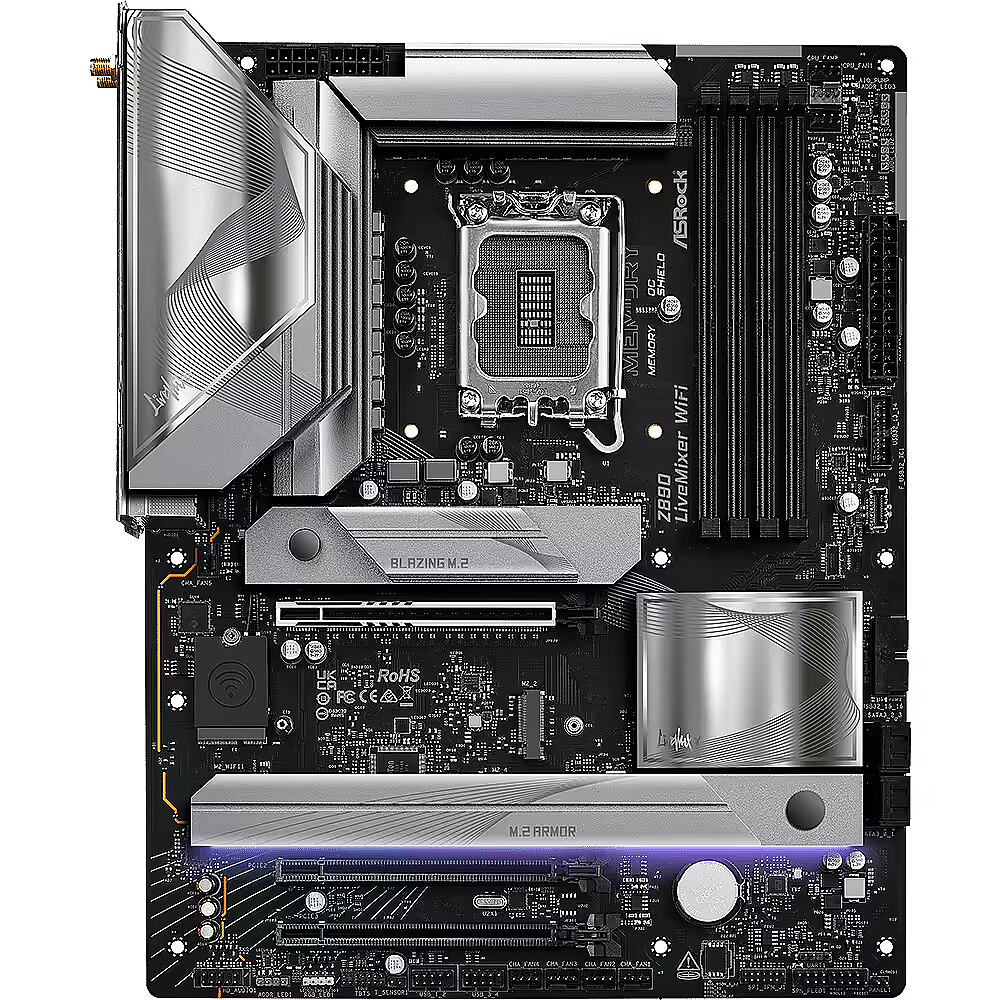

ASRock Z890 LiveMixer WiFi
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Series: ASRock LiveMixer
- CPU Socket: LGA 1851
- Chipset: Intel Z890
- Form factor: ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Ir
Basic information
Series
: ASRock LiveMixer
CPU Socket
LGA 1851
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel Z890
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
ATX
The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 5600 (OC 9466)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 0
Integrated sound card
: Realtek ALC1220
Wireless connections
Built-in Bluetooth
: Ir
Built-in Wi-Fi
: Ir
External ports
External USB Type-C
: 2
External USB 2.0
: 0
External USB 3.0 (USB 3.2 Gen1)
: 10
External USB 3.1 (USB 3.2 Gen2)
: 2
Internal ports
Internal A-RGB 5V (3-pin)
: 3
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 2
Internal USB 3.0
: 2
Internal USB Type-C
: 1
M.2 Port
: 4
SATA3 ports
: 4
More detailed specification
Accessories included - 2 x SATA data cables 2 x ASRock WiFi 2.4/5/6 GHz antennas Thermistor cable
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC1220
Audio output channels Features - 7.1 channels
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
BIOS memory size BIOS - 256 Mbit
BIOS type BIOS - UEFI AMI
Bluetooth Network - Yes
Bluetooth version Network - 5.4
category - PC Components|Mainboards|Intel Mainboards
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - other
Chipset manufacturer - Intel
Chipset type - Intel Z890
code - 90-MXBPE0-A0UAYZ
COM connector / port - No
Compatible processor series Processor - Intel Core Ultra (Series 2)
Component for Features - PC
CPU fan connector Internal I/O - Yes
CPU socket - LGA1851
Dane techniczne: Chipset płyty głównej - Intel Z890
Dane techniczne: Grupa produktowa - Płyty główne ASRock
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - ASRock
Dane techniczne: Przeznaczenie - Intel
Dane techniczne: Standard płyty - ATX
Depth Weight & dimensions - 244 mm
Description - Z890 LiveMixer WiFi LiveMixer series is crafted with the needs of modern content creators in mind, offering excellent connectivity for streaming and multiple auxiliary devices. Its reliable performance ensures seamless content creation and efficient time management. LIVE MIX. LIFE MAX LiveMixer is designed through current-gen content creators, who need motherboards with great connectivity for streaming and other auxiliary devices. Also, its reliable performance allows us to provide wonderful contents and budget our time. Optimized VRM Design 20K Capacitor Exclusive 20K Cap with 1000uF Capacitance The upgraded 20K Black capacitor not only extends the lifespan to 20,000 hours but also increases the capacitance value from 560uF to 1000uF, bringing several benefits: ●Higher Capacitance: Greater charge storage for better support under high loads. ●Lower Ripple: Reduced power output fluctuations, improving quality. ●More Stable Output Current: Stable power supply, minimizing voltage impacts. ●Better Performance & System Stability: Increased reliability and consistent performance. VRM Design 18+1+1+1+1 Power Phase Design Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. SPS (Smart Power Stage) Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability. Power Connector Hi-Density Power Connector CPU overclocking requires higher current, ASRock Hi-Density Power connectors is able to withstand current higher traditional CPU 8-pin and ATX 24-pin connector, giving a more stable system as well as lowering the risk of fire under heavy overclocking. 2oz Copper PCB 2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking. High Speed M.2 Solution PCIe Gen5 Blazing M.2 The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs. Extreme Memory Overclocking DDR5 XMP & EXPO Support Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all. Memory OC Shield ASRock's exclusive Memory OC Shield is a patented feature engineered to reduce electromagnetic interference (EMI) that could affect memory overclocking. By shielding memory modules from EMI noise and optimizing the layout, the Memory OC Shield enhances stability and reliability during high-frequency operations, enabling users to push their systems to the maximum potential. DIY Friendly Design M.2 Heatsink Toolless Design Besides the M.2 SSD toolless design on the motherboard, ASRock up a notch by introducing this industry first M.2 heatsink quick release mechanism on the motherboard. The user friendly toolless design helps installing M.2 SSD super easy & simple. M.2 Bottom Heatsink The M.2 bottom heatsink is able to dissipate heat of the M.2 SSD efficiently through the motherboard PCB, maximize performance while maintaining system stability. Enlarged M.2 Heatsink XXL M.2 Heatsink with Toolless Design The extra-large aluminum alloy M.2 heatsink with toolless design is a user friendly quick release mechanism that helps installing M.2 SSD super easy & simple. Intelligent Cooling Design Aluminum Heatsink The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly. PWM/DC Fan Support ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation. Thermistor Header The thermistor cable and thermistor header provide an additional source for temperature monitoring, offering customized thermal management solutions based on workload. Thermal management settings can be easily configured via Fan-Tastic Tuning or UEFI. Fan-Tastic Tuning ASRock A-Tuning Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system's cooling performance and noise reduction requirements. Ultimate Connectivity and Versatile Expansion 23 USB Ports Featuring 23 USB ports, this design maximizes connectivity and provides more reliable and stable support for multiple auxiliary devices compared to external USB hubs. Dual PCIe x4 Slots Featuring two PCIe x4 slots that support compatibility with a wide range of PCIe expansion cards, this design enhances functionality and boosts connectivity, making it an ideal companion for both work and entertainment.
Wi-Fi 7
Enhanced VR Experience
Wi-Fi 7 offers higher data throughput, lower latency, and Multi-link Operation. These features ensure a smooth and real-time interactive experience, making the VR/AR experience more immersive and connected.
Wi-Fi 7 802.11be
Latest WiFi 7 technology delivers extreme wireless internet speeds and low latency, with higher throughput and Multi-RU as well as puncturing technology. The new WiFi 7(802.11be) technology is able to accelerate cloud-based gaming, 8K video streaming, and video conferencing.
Multi-link Operation(MLO)
Multi-link Operation (MLO) enables the simultaneous use of multiple bands and channels, boosting speed and throughput while reducing latency for a smoother, faster internet experience.
Thunderbolt™ 4 Type-C
Thunderbolt™ 4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
More than USB Transfer Speed
Lightning Gaming Ports
Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!
Ultra USB Power
Provides stable power and better sound experience! Ultra USB Power provides 5V power transformed from +12V power rail, whose voltage drop will be much lower than the +5V from the PSU under heavy loading, and prevents noise from other devices or RGB LED.
Front Panel USB 3.2 Gen2x2 Type-C Header
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
Nahimic Audio
Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
●Static Noise Suppression
●Echo Cancellation
●Lateral Sound Cancellation
●Voice Stabilizer
Ultimate Gaming Experience
●Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
●Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.
POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
Customized Thermal Management
The thermistor cable and thermistor header provide an additional source for temperature monitoring, offering customized thermal management solutions.
EZ Setting
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
Flexible Integrated I/O Shield
Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.
Description - Z890 LiveMixer WiFi
The LiveMixer series is designed to meet the needs of today's content creators, offering excellent connectivity for streaming and a range of supporting devices. Its reliable performance ensures hassle-free content creation and efficient time management.
Supports Intel Core Ultra (Series 2) Processors (LGA1851) 18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA 4 x DDR5 DIMM Supports Dual Channel, up to 9066+ (OC) 1 PCIe 5.0 x16, 2 PCIe 4.0 x16 Graphics Output Options: 1 HDMI, 2 Thunderbolt 4 Type-C Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3 1 Blazing M.2 (PCIe Gen5 x4) 2 Hyper M.2 (PCIe Gen4 x4) 1 Hyper M.2 (PCIe Gen4 x4 and SATA3) 2 Thunderbolt 4 Type-C (back) 1 USB 3.2 Gen2x2 Type-C (front) 2 USB 3.2 Gen2 Type-A (Back) 14 USB 3.2 Gen1 (10 Back, 4 Front) 4 USB 2.0 (Front) Realtek 2.5G LAN 802.11be Wi-Fi 7 + Bluetooth Supports BIOS Flashback, Memory OC Shield, 20K Caps with 1000uF Capacity
Designation - CE+WEEE
Detailed data on disk/drive interfaces - CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connector
dimensionalWeight - 1458
dimension depth - 80 mm
dimension height - 280 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 2075 g
dimension width - 350 mm
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC1220 7.1)
ean - 4710483949715
Eans - 4710483949715
EAN_code - 4710483949715
ECC сompatibility Memory - Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - 2.5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x PCIe 4.0 x 16
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 2 x SMA
External connectors - 2 x Thunderbolt 4
External connectors - 2 x USB 3.2 Gen 2 Type-A
External connectors - 10 x USB 3.0
Features - Audio chip - Realtek ALC1220
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel Z890
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Operating system architecture - 64-bit
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - ATX
Front panel audio connector Internal I/O - Yes
Graphics - Intel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 2 x Intel Thunderbolt 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
guarantee - 36
guarantee_type - normal
HDMI ports quantity Rear panel I/O ports - 1
HDMI version Rear panel I/O ports - 2.1
Integrated CPU - No
Internal I/O - 8-pin power connector 12 V - 2
Internal I/O - AIO pump fan connector - 1
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - 2
Internal I/O - Front panel audio connector - Yes
Internal I/O - LED and speaker power socket - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - SPI TPM socket - 1
Internal I/O - Thunderbolt 4 ports quantity - 2
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Komunikacja: Karta bezprzewodowa - Intel Wi-Fi 7 | Bluetooth 5.4
Komunikacja: Transmisja danych - Wi-Fi
Komunikacja: Zintegrowana karta sieciowa - tak (2.5 Gigabit LAN)
LPT connector / port - No
Manufacturer - Asrock
Manufacturer_code - 90-MXBPE0-A0UAYZ
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Maximum internal memory Memory - 256 GB
Max memory size - 256 GB
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 9066 MHz
Memory - Supported memory types - DDR5 non-ECC
Memory - Unbuffered memory - Yes
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 9066 MHz
Memory slots type Memory - DIMM
Memory type - DDR5
Microphone in Rear panel I/O ports - Yes
Model - Z890 LIVEMIXER WIFI
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel Z890
Motherboard form factor Features - ATX
Name - ASRock Z890 LiveMixer WiFi
name - ASRock Z890 LiveMixer WiFi, Intel Z890 Mainboard, Sockel LGA 1851, Intel Z890, ATX, DDR5
Name - ASRock Z890 LiveMixer WiFi - Socekt 1851 - motherboard (black)
name - Motherboard Z890 LIVEMIXER WIFI ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - MU-MIMO - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11 axe
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Wireless LAN 802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz* frequency band Supports 320MHz channel bandwidth with 6GHz* frequency band 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of chassis fan connectors Internal I/O - 5
Number of CPU fan connectors Internal I/O - 2
Number of DDR5 slots - 4
Number of EPS power connectors (8-pin) Internal I/O - 2
Number of memory slots Memory - 4
Number of SATA III connectors Internal I/O - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 14
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 5
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power LED and Speaker Header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Thermistor Cable Header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 4pin wentylator CPU
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.2 Gen 1 Type-A
Onboard connectors - 3 x Addressable LED
Onboard connectors - 5 x 4pin Chassis fan
Other information - Certifications FCC, CE ErP/EuP ready (ErP/EuP ready power supply required)
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 256 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci - DDR5-5800 (PC5-46400)
Pamięć: Typ obsługiwanej pamięci - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci - DDR5-6400 (PC5-51200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7400 (PC5-59200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7600 (PC5-60800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7800 (PC5-62400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7900 (PC5-63200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7950 (PC5-63600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8000 (PC5-64000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8200 (PC5-65600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8266 (PC5-66128)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8400 (PC5-67200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8600 (PC5-68800)
PCI Express x16 (Gen 4.x) slots Expansion slots - 2
PCI Express x16 (Gen 5.x) slots Expansion slots - 1
Procesor: Gniazdo procesora - Socket 1851
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 5 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 7 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 9 seria 2
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor family - Intel Core Ultra
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1851 (Socket V1)
Producent: Nazwa producenta / importera - ASRockASRock Europe B.V.Bijsterhuizen 11-116546 AR NijmegenHolandiaEmail: sales@asrock.nl
producer - ASRock
Producer - ASRock
producerCode - Z890 LiveMixer WiFi
ProducerCode - Z890 LiveMixer WiFi
productName - ASRock Z890 LiveMixer WiFi - Motherboard
productSize - Normal
RAID - Yes
RAID levels Storage controllers - 0/1/10/5
RAID support Storage controllers - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - External antenna connector - Yes, x 2
Rear panel I/O ports - Flashback BIOS button - Yes
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Line-out - Yes
Rear panel I/O ports - MIC input - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - Number of USB 3.2 Gen 1 ports - 4
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - Thunderbolt 4 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
RGB LED pin header Internal I/O - Yes
S/PDIF out port Rear panel I/O ports - Yes
ShortDescription - Socket 1851 | Chipset Intel Z890 | DDR5 |
sizeX - 346
sizeY - 281
sizeZ - 75
Software - Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash
Sound card - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Nahimic Audio
Special functions -
Storage controllers - Supported storage drive interfaces - Blazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4)
Summary - Asrock Z890 LiveMixer WiFi. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Supported memory clock speed (max) Memory - 9466 MHz
Supported memory types Memory - DDR5-SDRAM
Supported operating systems - Windows 11
Supported storage drive interfaces Storage controllers - M.2,SATA III
Thunderbolt ports quantity Rear panel I/O ports - 2
Top Wi-Fi standard Network - Wi-Fi 7 (802.11be)
TPM connector Internal I/O - Yes
Unit Box Height - 0.075
Unit Box Length - 0.35
Unit Box Width - 0.28
Unit Calculated Volume - 0.00735 cubm
Unit Calculated Weight - 2 kg
Units per Pallet - 0
Units per Shipping Box - 1
USB 2.0 connectors Internal I/O - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 10
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity Rear panel I/O ports - 2
USB 3.2 Gen 2x2 connectors Internal I/O - 1
USB ports at back panel - 14
USB ports on motherboard - 9
Vendor Homepage - https://www.asrock.com/mb/Intel/Z890%20LiveMixer%20WiFi/index.asp
vendpn - Z890 LIVEMIXER WIFI
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 2,07
weight - 1800
Wi-Fi Network - Yes
Wi-Fi standards Network - 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Width Weight & dimensions - 305 mm
WiFi-AP antenna jack Rear panel I/O ports - 2
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 305 mm
Złącza: Obsługa Raid - tak (0, 1, 5, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen2 x2) typ C
Złącza: Złącza na płycie głównej - 2 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 2 x USB 3.2 (Gen1)
Złącza: Złącza na płycie głównej - 3 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 2 x Thunderbolt 4
Złącza: Złącza na tylnym panelu - 2 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 10 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza na tylnym panelu - gniazdo anteny Wi-Fi
Złącza: Złącza na tylnym panelu - SPDIF out
Złącza: Złącza PCI-E (liczba slotów) - 3 x PCI-Express x16
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC1220
Audio output channels Features - 7.1 channels
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
BIOS memory size BIOS - 256 Mbit
BIOS type BIOS - UEFI AMI
Bluetooth Network - Yes
Bluetooth version Network - 5.4
category - PC Components|Mainboards|Intel Mainboards
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - other
Chipset manufacturer - Intel
Chipset type - Intel Z890
code - 90-MXBPE0-A0UAYZ
COM connector / port - No
Compatible processor series Processor - Intel Core Ultra (Series 2)
Component for Features - PC
CPU fan connector Internal I/O - Yes
CPU socket - LGA1851
Dane techniczne: Chipset płyty głównej - Intel Z890
Dane techniczne: Grupa produktowa - Płyty główne ASRock
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - ASRock
Dane techniczne: Przeznaczenie - Intel
Dane techniczne: Standard płyty - ATX
Depth Weight & dimensions - 244 mm
Description - Z890 LiveMixer WiFi LiveMixer series is crafted with the needs of modern content creators in mind, offering excellent connectivity for streaming and multiple auxiliary devices. Its reliable performance ensures seamless content creation and efficient time management. LIVE MIX. LIFE MAX LiveMixer is designed through current-gen content creators, who need motherboards with great connectivity for streaming and other auxiliary devices. Also, its reliable performance allows us to provide wonderful contents and budget our time. Optimized VRM Design 20K Capacitor Exclusive 20K Cap with 1000uF Capacitance The upgraded 20K Black capacitor not only extends the lifespan to 20,000 hours but also increases the capacitance value from 560uF to 1000uF, bringing several benefits: ●Higher Capacitance: Greater charge storage for better support under high loads. ●Lower Ripple: Reduced power output fluctuations, improving quality. ●More Stable Output Current: Stable power supply, minimizing voltage impacts. ●Better Performance & System Stability: Increased reliability and consistent performance. VRM Design 18+1+1+1+1 Power Phase Design Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. SPS (Smart Power Stage) Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability. Power Connector Hi-Density Power Connector CPU overclocking requires higher current, ASRock Hi-Density Power connectors is able to withstand current higher traditional CPU 8-pin and ATX 24-pin connector, giving a more stable system as well as lowering the risk of fire under heavy overclocking. 2oz Copper PCB 2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking. High Speed M.2 Solution PCIe Gen5 Blazing M.2 The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs. Extreme Memory Overclocking DDR5 XMP & EXPO Support Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all. Memory OC Shield ASRock's exclusive Memory OC Shield is a patented feature engineered to reduce electromagnetic interference (EMI) that could affect memory overclocking. By shielding memory modules from EMI noise and optimizing the layout, the Memory OC Shield enhances stability and reliability during high-frequency operations, enabling users to push their systems to the maximum potential. DIY Friendly Design M.2 Heatsink Toolless Design Besides the M.2 SSD toolless design on the motherboard, ASRock up a notch by introducing this industry first M.2 heatsink quick release mechanism on the motherboard. The user friendly toolless design helps installing M.2 SSD super easy & simple. M.2 Bottom Heatsink The M.2 bottom heatsink is able to dissipate heat of the M.2 SSD efficiently through the motherboard PCB, maximize performance while maintaining system stability. Enlarged M.2 Heatsink XXL M.2 Heatsink with Toolless Design The extra-large aluminum alloy M.2 heatsink with toolless design is a user friendly quick release mechanism that helps installing M.2 SSD super easy & simple. Intelligent Cooling Design Aluminum Heatsink The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly. PWM/DC Fan Support ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation. Thermistor Header The thermistor cable and thermistor header provide an additional source for temperature monitoring, offering customized thermal management solutions based on workload. Thermal management settings can be easily configured via Fan-Tastic Tuning or UEFI. Fan-Tastic Tuning ASRock A-Tuning Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system's cooling performance and noise reduction requirements. Ultimate Connectivity and Versatile Expansion 23 USB Ports Featuring 23 USB ports, this design maximizes connectivity and provides more reliable and stable support for multiple auxiliary devices compared to external USB hubs. Dual PCIe x4 Slots Featuring two PCIe x4 slots that support compatibility with a wide range of PCIe expansion cards, this design enhances functionality and boosts connectivity, making it an ideal companion for both work and entertainment.
Wi-Fi 7
Enhanced VR Experience
Wi-Fi 7 offers higher data throughput, lower latency, and Multi-link Operation. These features ensure a smooth and real-time interactive experience, making the VR/AR experience more immersive and connected.
Wi-Fi 7 802.11be
Latest WiFi 7 technology delivers extreme wireless internet speeds and low latency, with higher throughput and Multi-RU as well as puncturing technology. The new WiFi 7(802.11be) technology is able to accelerate cloud-based gaming, 8K video streaming, and video conferencing.
Multi-link Operation(MLO)
Multi-link Operation (MLO) enables the simultaneous use of multiple bands and channels, boosting speed and throughput while reducing latency for a smoother, faster internet experience.
Thunderbolt™ 4 Type-C
Thunderbolt™ 4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
More than USB Transfer Speed
Lightning Gaming Ports
Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!
Ultra USB Power
Provides stable power and better sound experience! Ultra USB Power provides 5V power transformed from +12V power rail, whose voltage drop will be much lower than the +5V from the PSU under heavy loading, and prevents noise from other devices or RGB LED.
Front Panel USB 3.2 Gen2x2 Type-C Header
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
Nahimic Audio
Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
●Static Noise Suppression
●Echo Cancellation
●Lateral Sound Cancellation
●Voice Stabilizer
Ultimate Gaming Experience
●Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
●Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.
POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
Customized Thermal Management
The thermistor cable and thermistor header provide an additional source for temperature monitoring, offering customized thermal management solutions.
EZ Setting
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
Flexible Integrated I/O Shield
Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.
Description - Z890 LiveMixer WiFi
The LiveMixer series is designed to meet the needs of today's content creators, offering excellent connectivity for streaming and a range of supporting devices. Its reliable performance ensures hassle-free content creation and efficient time management.
Supports Intel Core Ultra (Series 2) Processors (LGA1851) 18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA 4 x DDR5 DIMM Supports Dual Channel, up to 9066+ (OC) 1 PCIe 5.0 x16, 2 PCIe 4.0 x16 Graphics Output Options: 1 HDMI, 2 Thunderbolt 4 Type-C Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3 1 Blazing M.2 (PCIe Gen5 x4) 2 Hyper M.2 (PCIe Gen4 x4) 1 Hyper M.2 (PCIe Gen4 x4 and SATA3) 2 Thunderbolt 4 Type-C (back) 1 USB 3.2 Gen2x2 Type-C (front) 2 USB 3.2 Gen2 Type-A (Back) 14 USB 3.2 Gen1 (10 Back, 4 Front) 4 USB 2.0 (Front) Realtek 2.5G LAN 802.11be Wi-Fi 7 + Bluetooth Supports BIOS Flashback, Memory OC Shield, 20K Caps with 1000uF Capacity
Designation - CE+WEEE
Detailed data on disk/drive interfaces - CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connector
dimensionalWeight - 1458
dimension depth - 80 mm
dimension height - 280 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 2075 g
dimension width - 350 mm
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC1220 7.1)
ean - 4710483949715
Eans - 4710483949715
EAN_code - 4710483949715
ECC сompatibility Memory - Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - 2.5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x PCIe 4.0 x 16
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 2 x SMA
External connectors - 2 x Thunderbolt 4
External connectors - 2 x USB 3.2 Gen 2 Type-A
External connectors - 10 x USB 3.0
Features - Audio chip - Realtek ALC1220
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - Intel Z890
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Operating system architecture - 64-bit
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - ATX
Front panel audio connector Internal I/O - Yes
Graphics - Intel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 2 x Intel Thunderbolt 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
guarantee - 36
guarantee_type - normal
HDMI ports quantity Rear panel I/O ports - 1
HDMI version Rear panel I/O ports - 2.1
Integrated CPU - No
Internal I/O - 8-pin power connector 12 V - 2
Internal I/O - AIO pump fan connector - 1
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - 2
Internal I/O - Front panel audio connector - Yes
Internal I/O - LED and speaker power socket - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - SPI TPM socket - 1
Internal I/O - Thunderbolt 4 ports quantity - 2
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Komunikacja: Karta bezprzewodowa - Intel Wi-Fi 7 | Bluetooth 5.4
Komunikacja: Transmisja danych - Wi-Fi
Komunikacja: Zintegrowana karta sieciowa - tak (2.5 Gigabit LAN)
LPT connector / port - No
Manufacturer - Asrock
Manufacturer_code - 90-MXBPE0-A0UAYZ
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Maximum internal memory Memory - 256 GB
Max memory size - 256 GB
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 9066 MHz
Memory - Supported memory types - DDR5 non-ECC
Memory - Unbuffered memory - Yes
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 9066 MHz
Memory slots type Memory - DIMM
Memory type - DDR5
Microphone in Rear panel I/O ports - Yes
Model - Z890 LIVEMIXER WIFI
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel Z890
Motherboard form factor Features - ATX
Name - ASRock Z890 LiveMixer WiFi
name - ASRock Z890 LiveMixer WiFi, Intel Z890 Mainboard, Sockel LGA 1851, Intel Z890, ATX, DDR5
Name - ASRock Z890 LiveMixer WiFi - Socekt 1851 - motherboard (black)
name - Motherboard Z890 LIVEMIXER WIFI ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - MU-MIMO - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11 axe
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Wireless LAN 802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz* frequency band Supports 320MHz channel bandwidth with 6GHz* frequency band 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of chassis fan connectors Internal I/O - 5
Number of CPU fan connectors Internal I/O - 2
Number of DDR5 slots - 4
Number of EPS power connectors (8-pin) Internal I/O - 2
Number of memory slots Memory - 4
Number of SATA III connectors Internal I/O - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 14
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 5
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power LED and Speaker Header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Thermistor Cable Header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 4pin wentylator CPU
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.2 Gen 1 Type-A
Onboard connectors - 3 x Addressable LED
Onboard connectors - 5 x 4pin Chassis fan
Other information - Certifications FCC, CE ErP/EuP ready (ErP/EuP ready power supply required)
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 256 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci - DDR5-5800 (PC5-46400)
Pamięć: Typ obsługiwanej pamięci - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci - DDR5-6400 (PC5-51200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7400 (PC5-59200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7600 (PC5-60800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7800 (PC5-62400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7900 (PC5-63200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7950 (PC5-63600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8000 (PC5-64000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8200 (PC5-65600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8266 (PC5-66128)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8400 (PC5-67200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8600 (PC5-68800)
PCI Express x16 (Gen 4.x) slots Expansion slots - 2
PCI Express x16 (Gen 5.x) slots Expansion slots - 1
Procesor: Gniazdo procesora - Socket 1851
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 5 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 7 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 9 seria 2
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor family - Intel Core Ultra
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1851 (Socket V1)
Producent: Nazwa producenta / importera - ASRockASRock Europe B.V.Bijsterhuizen 11-116546 AR NijmegenHolandiaEmail: sales@asrock.nl
producer - ASRock
Producer - ASRock
producerCode - Z890 LiveMixer WiFi
ProducerCode - Z890 LiveMixer WiFi
productName - ASRock Z890 LiveMixer WiFi - Motherboard
productSize - Normal
RAID - Yes
RAID levels Storage controllers - 0/1/10/5
RAID support Storage controllers - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - External antenna connector - Yes, x 2
Rear panel I/O ports - Flashback BIOS button - Yes
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Line-out - Yes
Rear panel I/O ports - MIC input - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - Number of USB 3.2 Gen 1 ports - 4
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - Thunderbolt 4 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
RGB LED pin header Internal I/O - Yes
S/PDIF out port Rear panel I/O ports - Yes
ShortDescription - Socket 1851 | Chipset Intel Z890 | DDR5 |
sizeX - 346
sizeY - 281
sizeZ - 75
Software - Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash
Sound card - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Nahimic Audio
Special functions -
Storage controllers - Supported storage drive interfaces - Blazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4)
Summary - Asrock Z890 LiveMixer WiFi. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Supported memory clock speed (max) Memory - 9466 MHz
Supported memory types Memory - DDR5-SDRAM
Supported operating systems - Windows 11
Supported storage drive interfaces Storage controllers - M.2,SATA III
Thunderbolt ports quantity Rear panel I/O ports - 2
Top Wi-Fi standard Network - Wi-Fi 7 (802.11be)
TPM connector Internal I/O - Yes
Unit Box Height - 0.075
Unit Box Length - 0.35
Unit Box Width - 0.28
Unit Calculated Volume - 0.00735 cubm
Unit Calculated Weight - 2 kg
Units per Pallet - 0
Units per Shipping Box - 1
USB 2.0 connectors Internal I/O - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 10
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity Rear panel I/O ports - 2
USB 3.2 Gen 2x2 connectors Internal I/O - 1
USB ports at back panel - 14
USB ports on motherboard - 9
Vendor Homepage - https://www.asrock.com/mb/Intel/Z890%20LiveMixer%20WiFi/index.asp
vendpn - Z890 LIVEMIXER WIFI
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 2,07
weight - 1800
Wi-Fi Network - Yes
Wi-Fi standards Network - 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Width Weight & dimensions - 305 mm
WiFi-AP antenna jack Rear panel I/O ports - 2
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 305 mm
Złącza: Obsługa Raid - tak (0, 1, 5, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen2 x2) typ C
Złącza: Złącza na płycie głównej - 2 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 2 x USB 3.2 (Gen1)
Złącza: Złącza na płycie głównej - 3 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 2 x Thunderbolt 4
Złącza: Złącza na tylnym panelu - 2 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 10 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza na tylnym panelu - gniazdo anteny Wi-Fi
Złącza: Złącza na tylnym panelu - SPDIF out
Złącza: Złącza PCI-E (liczba slotów) - 3 x PCI-Express x16
