ID: 1076079
Product code: H610M H V2
In stock 10 units
Warranty: 3 years

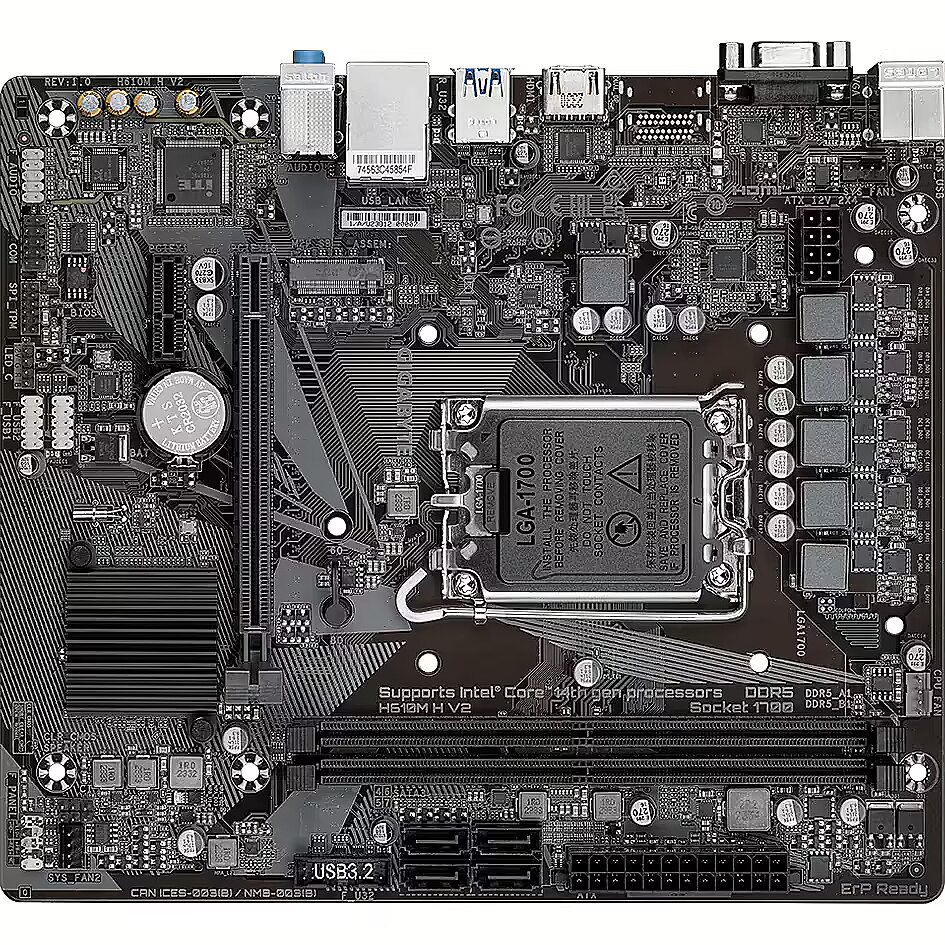

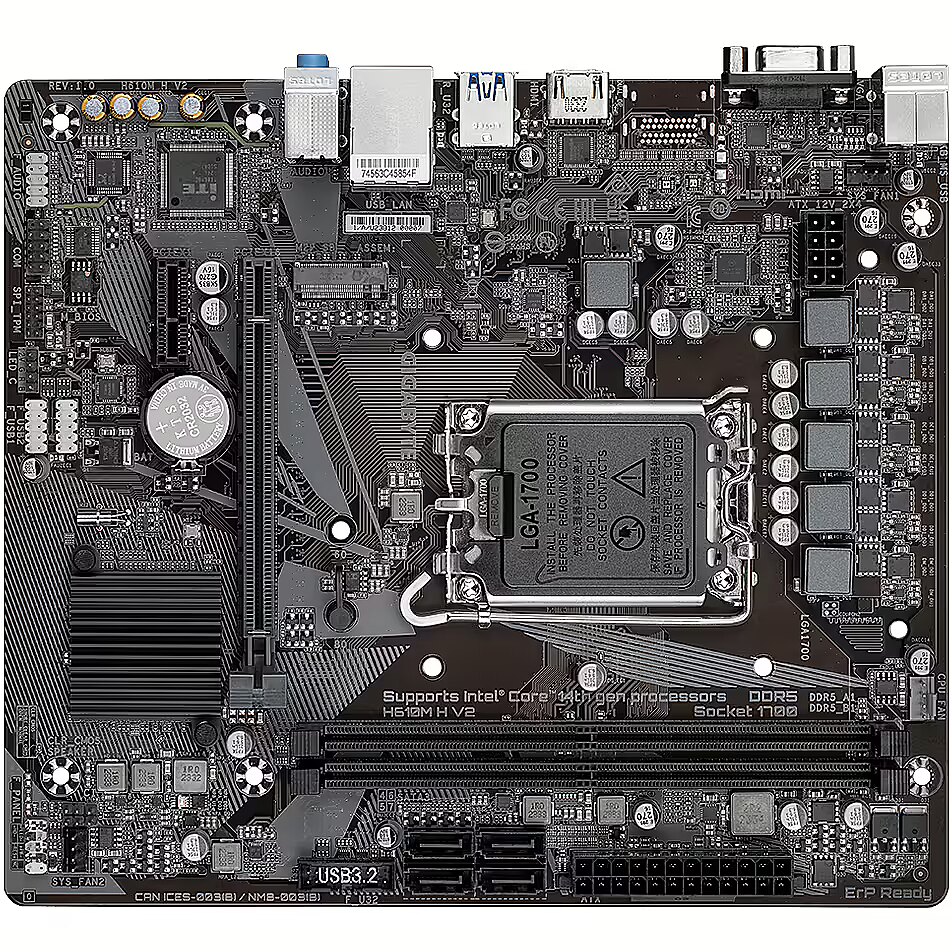

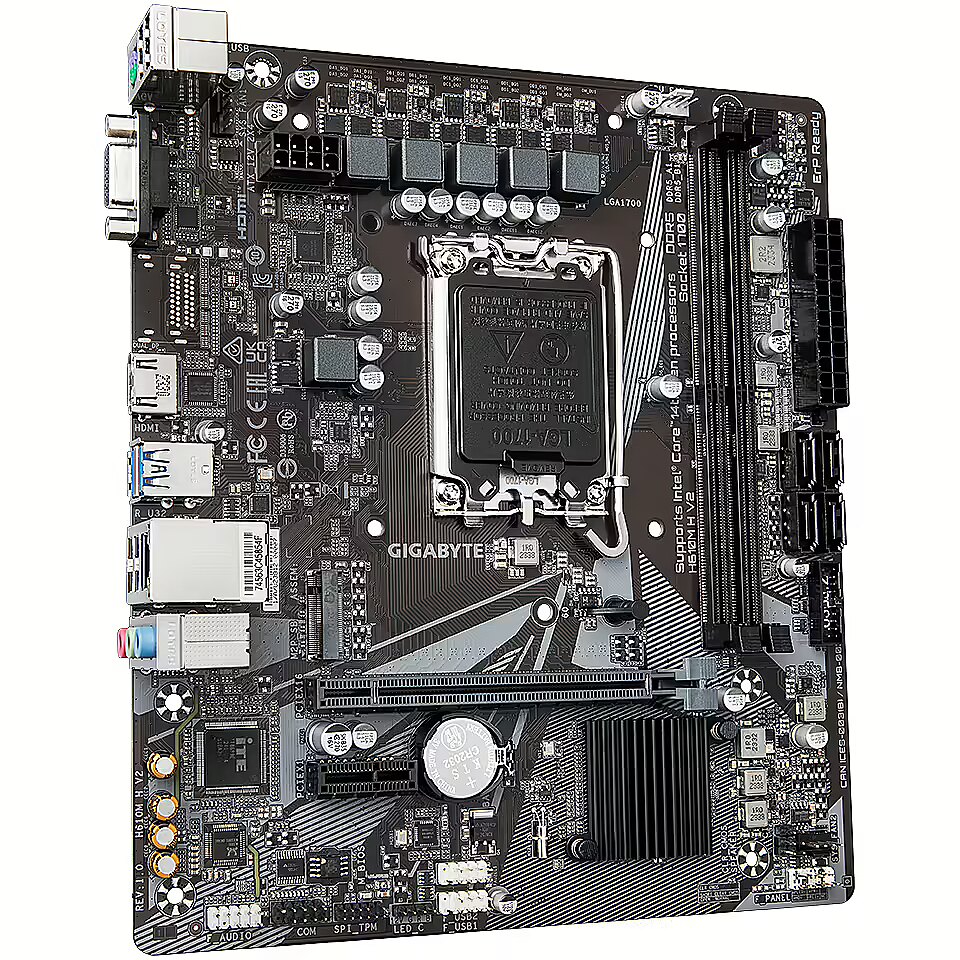

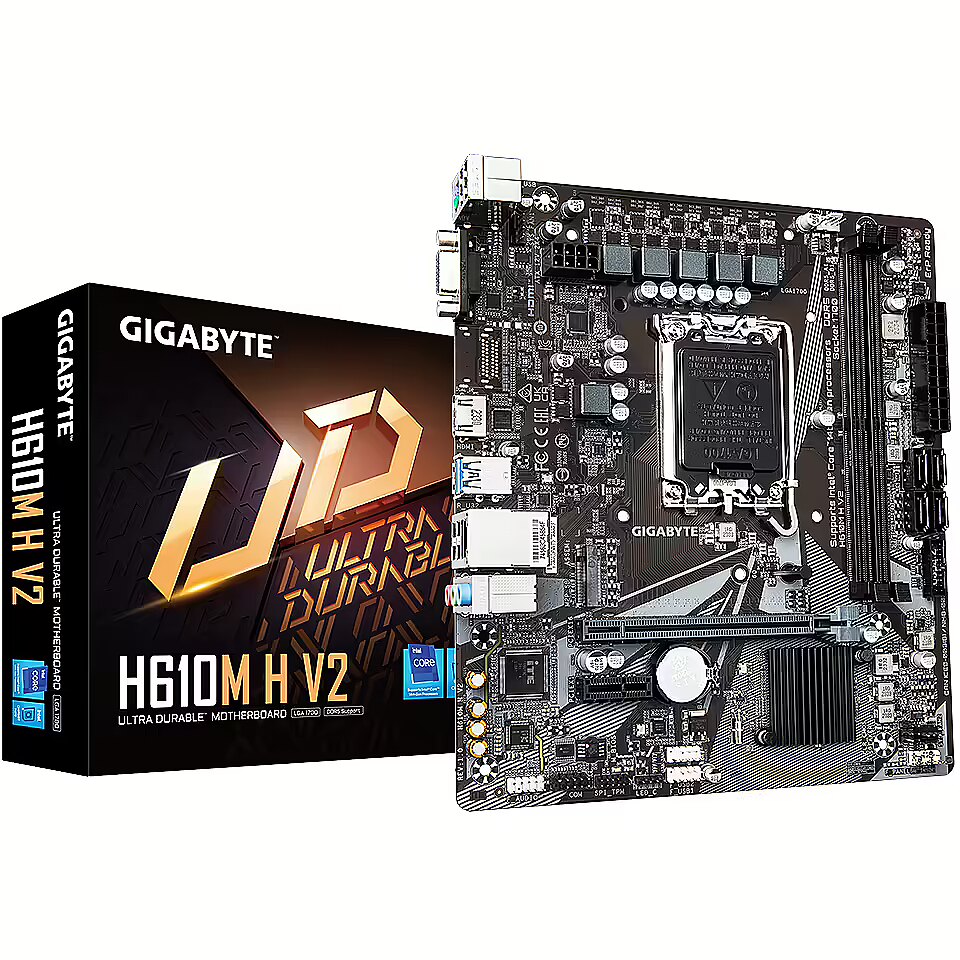

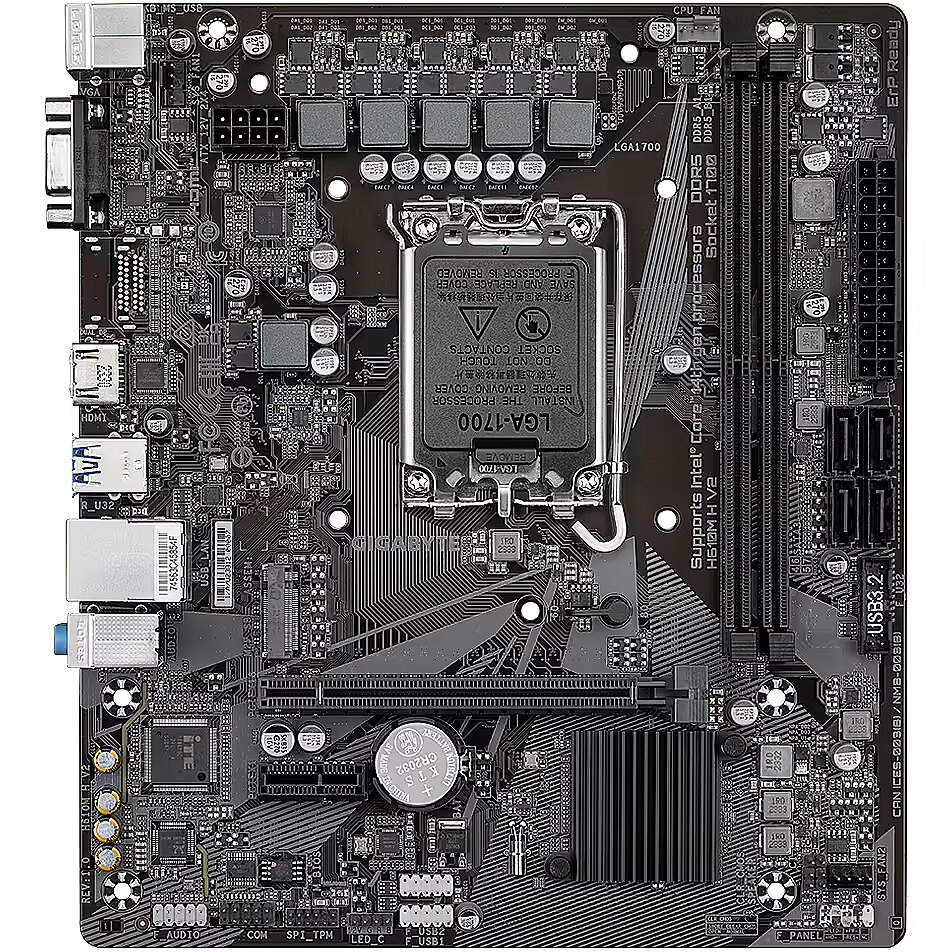

Gigabyte H610M H V2
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Post OfficeWithin 1-2 working days6.99 €
-
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Series: Gigabyte Ultra Durable
- CPU Socket: LGA 1700
- Chipset: Intel H610
- Form factor: Micro ATX
- Type: DDR5
- RAM Slots: 2
- Built-in Wi-Fi: Nav
Basic information
Series
: Gigabyte Ultra Durable
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel H610
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Micro ATX
The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
2
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 4800
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 1
DVI
: 0
HDMI
: 1
DisplayPort
: 0
Integrated sound card
: Realtek Audio CODEC
Wireless connections
Built-in Bluetooth
: Nav
Built-in Wi-Fi
: Nav
External ports
External USB Type-C
: 0
External USB 2.0
: 4
External USB 3.0 (USB 3.2 Gen1)
: 2
External USB 3.1 (USB 3.2 Gen2)
: 0
Internal ports
Internal A-RGB 5V (3-pin)
: 0
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 0
M.2 Port
: 1
SATA3 ports
: 4
More detailed specification
12V power connector Internal I/O - Yes
ACPI version BIOS - 5.0
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio output channels Features - 7.1 channels
Batteries included Packaging content - Yes
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
Battery technology Battery - Lithium-Manganese Dioxide (LiMnO2)
Battery type Battery - CR2032
Battery weight Battery - 3 g
BIOS - 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
BIOS memory size BIOS - 128 Mbit
BIOS type BIOS - UEFI AMI
Brand - GIGABYTE
BrandPartCode - H610M H V2
Bundled software Packaging content - Norton Internet Security (OEM version)
LAN bandwidth management software
Cables included Packaging content - SATA
Category - Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset manufacturer - Intel
Chipset type - Intel H610 Express Chipset
Clear CMOS button BIOS - Yes
Clear CMOS jumper BIOS - Yes
Code - H610M H V2 G1.0
COM connector / port - Yes
Compatible processor series Processor - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Component for Features - PC
Cooling type Features - Active
Country of origin Logistics data - China
CPU fan connector Internal I/O - Yes
CPU socket - LGA1700
Depth Weight & dimensions - 196 mm
Description - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edgeSupports Intel® Core™ 14th/ 13th /12th processorsDual Channel Non-ECC Unbuffered DDR5, 2 DIMMs4+1+1 Hybrid Digital VRM DesignGbE LAN with Bandwidth ManagementNVMe PCIe 3.0 x4 M.2High Quality Audio Capacitors and Audio Noise GuardSmart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOPGIGABYTE APP Center, Simple and Easy UseAnti-Sulfur Resistors Design
Description - Płyta główna Intel H610 z hybrydową konstrukcją VRM 4+1+1, PCIe 4.0*, Gen3 x4 M.2, rezystorem antysiarkowym, Smart Fan 6 Obsługuje procesory Intel Core 14., 13. i 12. generacji Dwukanałowa, niebuforowana pamięć DDR5 bez ECC, 2 moduły DIMM Hybrydowa, cyfrowa konstrukcja VRM 4+1+1 GbE LAN z zarządzaniem przepustowością NVMe PCIe 3.0 x4 M.2 Wysokiej jakości kondensatory audio i ochrona przed zakłóceniami audio Smart Fan 6 z wieloma czujnikami temperatury, hybrydowymi złączami wentylatorów z funkcją FAN STOP Centrum aplikacji GIGABYTE, prosta i łatwa obsługa Konstrukcja z rezystorami antysiarkowymi
Designation - CE+WEEE
Desktop Management Interface (DMI) version BIOS - 2.7
Detailed data on disk/drive interfaces - Złącza rozszerzeń CPU 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 Złącza SATA Chipset 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
dimensionalWeight - 697
dimension depth - 50 mm
dimension height - 245 mm
Dimensions - 22.3 x 19.6 cm
dimension weight - 695 g
dimension width - 265 mm
DisplayPorts quantity Rear panel I/O ports - 2
DVI-D ports quantity Rear panel I/O ports - 1
EAN - 4719331859985
ean - 4719331859985
EAN_code - 4719331859985
ECC сompatibility Memory - ECC & Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 slots - 1

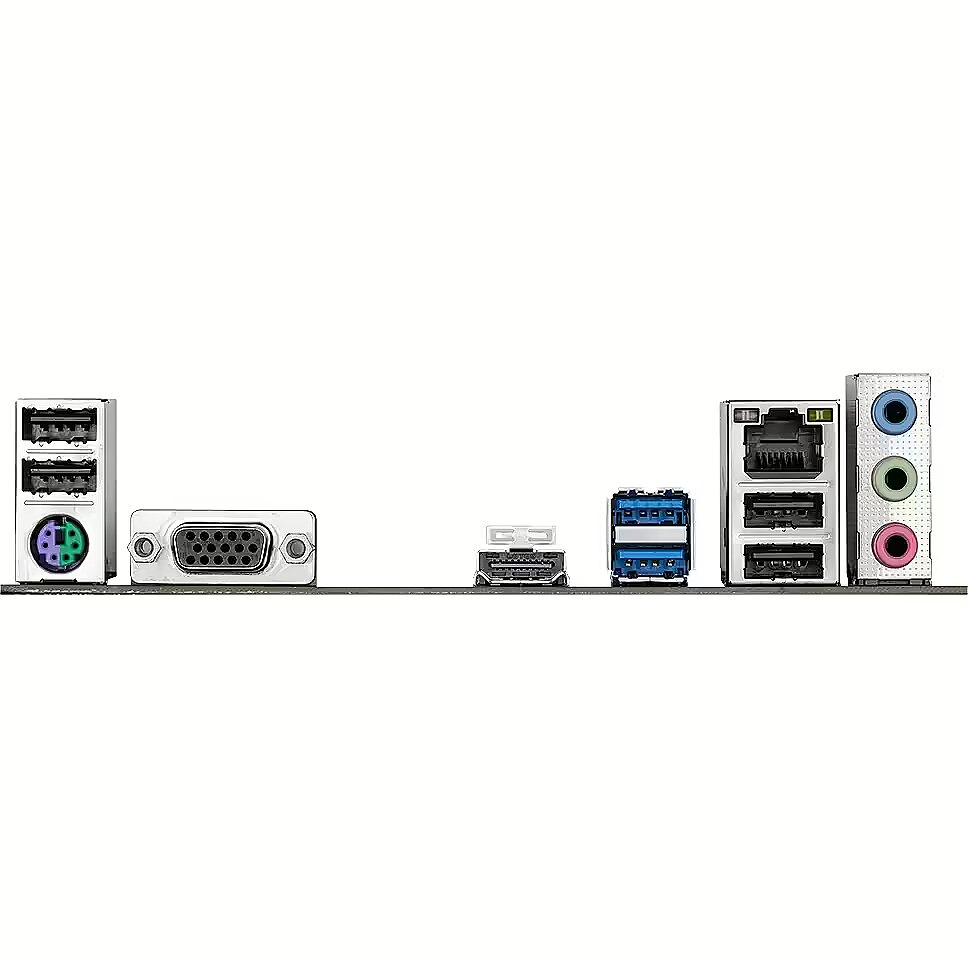

External connectors - 1 x D-Sub
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x USB 3.2 Gen 1 Type-A
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Active
Features - Motherboard chipset - Intel H610 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - PC health monitoring - Water cooling
Features - Power source type - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - micro ATX
Front panel audio connector Internal I/O - Yes
Front panel connector Internal I/O - Yes
Generation - Fourteenth
Generation - Thirteenth
Generation - Twelve
Graphics - Zintegrowany procesor graficzny - obsługa Intel HD Graphics 1 x port D-Sub, obsługujący maksymalną rozdzielczość 1920x1200@60 Hz 1 x port HDMI, obsługujący maksymalną rozdzielczość 4096x2160@60 Hz * Obsługa wersji HDMI 2.1 i HDCP 2.3.
** Obsługa natywnych portów zgodnych z HDMI 2.1 TMDS.
Graphics - Graphics card - HD Graphics
Graphics - Graphics card family - Intel
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - Parallel processing technology support - Not supported
Graphics card family Graphics - Intel
Graphics card Graphics - HD Graphics
GTIN - 4719331859985
guarantee - 36
guarantee_type - normal
HDCP Graphics - Yes
HDMI ports quantity Rear panel I/O ports - 1
Headphone outputs Rear panel I/O ports - 3
Height Weight & dimensions - 35 mm
Integrated CPU - No
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Serial port headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - M.2, SATA
Link - https://www.gigabyte.com/Motherboard/H610M-H-V2-rev-10#kf
Lithium weight per battery Battery - 0.07 g
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
LongProductName - H610M H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
LongSummaryDescription - GIGABYTE H610M H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Graphics card family: Intel, Graphics card: HD Graphics, Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A
LPT connector / port - No
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer_code - H610M H V2
Max. number of SATA devices - 4
Maximum internal memory Memory - 96 GB
Maximum internal memory supported by processor Processor - 96 GB
Maximum resolution Graphics - 4096 x 2304 pixels
Max memory size - 128 GB
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 96 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 5600 MHz
Memory - Supported memory clock speeds - 4400
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5600 MHz
Memory - Supported memory clock speeds - 5600, 5200, 4800, 4400 MHz
Memory - Supported memory module capacities - 1GB
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 32GB, 48GB
Memory - Supported memory module capacities - 2GB
Memory - Supported memory module capacities - 4GB
Memory - Supported memory module capacities - 8GB
Memory - Supported memory module capacities - 12GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory module capacities - 48GB
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5600 MHz
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Memory type - DDR5
Microphone in Rear panel I/O ports - Yes
Model - H610M H V2
Model - H610M H V2 (rev. 1.0)
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel H610 Express
Motherboard form factor Features - micro ATX
MPN - H610M H V2
Name - GA-H610M H V2 (1700) (D)
Name - GIGABYTE H610M H V2 - Socket 1700 - motherboard
Name - Gigabyte | H610M H V2 G1.0 | Processor family Intel | Processor socket LGA1700 | DDR5 | Supported hard disk drive interfaces M.2, SATA | Number of SATA connectors 4
name - Motherboard H610M H V2 s1700 2DDR5 HDMI/DSUB M.2 mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Number of battery cells Battery - 1
Number of DDR5 slots - 2
Number of HDDs supported Storage controllers - 1
Number of M.2 (M) slots Expansion slots - 1
Number of memory slots Memory - 2
Number of SATA III connectors Internal I/O - 4
Number of storage drives supported Storage controllers - 5
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x M.2
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x Speaker header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-A
Onboard connectors - 2 x 4pin Chassis fan
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 4 x SATA III 6Gb/s
Package depth Packaging data - 265 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 265 mm
Package features > Gross height (mm) - 54 mm
Package features > Gross width (mm) - 265 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 228 pc(s)
Package features > Paper/Pasteboard - 200 g
Package features > Plastic (No PET) - 80 g
Package features > Tare weight (kg) - 0.28 kg
Package features > Volume (m3) - 0.00379215 m³
Package features > WEEE tax - No
Package height Packaging data - 54 mm
Package weight Packaging data - 694 g
Package width Packaging data - 265 mm
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Cables included - SATA
Packaging data - Package depth - 265 mm
Packaging data - Package height - 54 mm
Packaging data - Package weight - 694 g
Packaging data - Package width - 265 mm
Parallel processing technology support Graphics - Not supported
PC health monitoring Features - Fan, Temperature, Voltage, Water cooling
PCI Express x1 slots Expansion slots - 1
PCI Express x16 slots Expansion slots - 1
Power source type Features - ATX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Maximum internal memory supported by processor - 96 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium
Processor family - Intel Pentium Gold
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1700
producer - Gigabyte
producerCode - H610M H V2
Product colour Features - Black
productName - GIGABYTE H610M H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
ProductName - H610M H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
productSize - Normal
Products per shipping (inner) case Logistics data - 1 pc(s)
PS/2 ports quantity Rear panel I/O ports - 1
RAID - No
Rear panel I/O ports - DisplayPorts quantity - 2
Rear panel I/O ports - DVI-D ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 3
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RGB LED pin header Internal I/O - Yes
Serial port headers Internal I/O - 1
ShortSummaryDescription - GIGABYTE H610M H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 96 GB, DDR5-SDRAM
sizeX - 270
sizeY - 235
sizeZ - 55
Software - Norton Internet Security (wersja OEM) Oprogramowanie do zarządzania przepustowością sieci LAN * Usługa została przerwana w wyniku rozwiązania umowy przez dostawcę oprogramowania.
Sound card - Kodek audio Realtek Obsługa High Definition Audio Ilość kanałów audio 2/4/5.1/7.1 * Funkcjonalność gniazda audio można zmienić za pomocą oprogramowania audio. Aby skonfigurować dźwięk 7.1-kanałowy, należy przejść do ustawień audio w oprogramowaniu audio.
Special functions - Wsparcie dla APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Obsługa @ BIOS EasyTune Smart Backup System Information Viewer Obsługa Q-Flash
Storage controllers - Number of HDDs supported - 1
Storage controllers - Number of storage drives supported - 5
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - GIGABYTE H610M H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Graphics card family: Intel, Graphics card: HD Graphics, Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A
Supported memory clock speed (max) Memory - 5600 MHz
Supported memory clock speeds Memory - 5600, 5200, 4800, 4400 MHz
Supported memory module capacities Memory - 1GB, 2GB, 4GB, 8GB, 12GB, 32GB, 48GB
Supported memory types Memory - DDR5-SDRAM
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Supported processor sockets Processor - LGA 1700
Supported storage drive interfaces Storage controllers - M.2, SATA III
Supported storage drive types Storage controllers - HDD & SSD
System Management BIOS (SMBIOS) version BIOS - 2.7
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 1.23 kg
Technical details > Net weight - 0.95 kg
Technical details > Producer - Gigabyte
Technical details > Producer product name - H610M H V2 G1.0
Technical_details - The GIGABYTE H610M H V2 motherboard is based on the Intel® H610 chipset and supports Intel® processors for Socket 1700. It has two DDR5 DIMM slots in dual-channel operation for up to 96 GB of RAM. The GIGABYTE H610M H V2's additional features include a PCIe 4.0 x16 slot and a PCIe 3.0 x1 slot. The GIGABYTE H610M H V2 also has 8-channel sound, a Gigabit LAN interface, four SATA3 ports and a number of USB interfaces. Item no.: 100038234 Mainboard type EAN 4719331859985 Manufacturer no. H610M H V2 Base 1700 Max. supported CPUs 1 Operating system support Windows 10 ready, Windows 11 ready Processor Supported models Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i3 13xxx (Raptor Lake), Core i3 13xxxF (Raptor Lake), Core i3 13xxxT (Raptor Lake) , Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i5 13xxx (Raptor Lake), Core i5 13xxxF (Raptor Lake), Core i5 13xxxT (Raptor Lake), Core i5 13xxxK (Raptor Lake), Core i5 13xxxKF (Raptor Lake), Core i5 14xxx (Raptor Lake-S), Core i5 14xxxF (Raptor Lake-S) , Core i5 14xxxK (Raptor Lake-S), Core i5 14xxxKF (Raptor Lake-S), Core i5 14xxxT (Raptor Lake-S), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i7 13xxx (Raptor Lake), Core i7 13xxxF (Raptor Lake), Core i7 13xxxT (Raptor Lake), Core i7 13xxxK (Raptor Lake), Core i7 13xxxKF (Raptor Lake), Core i7 14xxx (Raptor Lake-S), Core i7 14xxxF (Raptor Lake-S), Core i7 14xxxK (Raptor Lake-S), Core i7 14xxxKF (Raptor Lake-S) , Core i7 14xxxT (Raptor Lake-S), Core i9 12xxx (Alder Lake), Core i9 12xxxK (Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake) , Core i9 12xxxKS (Alder Lake), Core i9 13xxx (Raptor Lake), Core i9 13xxxF (Raptor Lake), Core i9 13xxxT (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxKF (Raptor Lake), Core i9 13xxxKS (Raptor Lake), Core i9 14xxx (Raptor Lake-S), Core i9 14xxxF (Raptor Lake-S), Core i9 14xxxK (Raptor Lake-S), Core i9 14xxxKF (Raptor Lake-S), Core i9 14xxxT (Raptor Lake-S), Pentium Gold Gxxxx (Alder Lake), Celeron Gxxxx (Alder Lake) Chipset Intel® H610 Slots PCIe x16 1x (of which: 1x PCIe x16) TPM Yes BIOS 256 Mbit UEFI AMI BIOS Form factor µATX Use PC Power supply ATX12V (24-pin + 8-pin) Memory maximum 96 GB Connections (external) Keyboard (PS/2) 1 Connectors (internal) SATA 4 Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 RGB Standard AURA Sync SATA controller Intel® H610 USB controller Intel® H610 Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. Sound Realtek Audio CODEC LAN Intel® GbE LAN Further information In order to support the latest processor cores, a BIOS update may be required. Dimensions Width: 197mm x Height: 188mm
Title - GIGABYTE H610M H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.24
Unit Box Length - 0.27
Unit Box Width - 0.05
Unit Calculated Volume - 0.00324 cubm
Unit Calculated Weight - 0.5 kg
Units per Shipping Box - 1
URL - https://www.gigabyte.com/
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 2
USB connector type Rear panel I/O ports - USB Type-A
USB ports at back panel - 6
USB ports on motherboard - 6
Vendor Homepage - https://www.gigabyte.com/
vendpn - H610M H V2
VGA (D-Sub) ports quantity Rear panel I/O ports - 1
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
Warranty period Technical details - 3 year(s)
warrantyType - G
Weight - 0,70
Weight - 0.7
weight - 690
Weight & dimensions - Depth - 196 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 230 mm
Wi-Fi Network - No
Width Weight & dimensions - 230 mm
Windows operating systems supported Features - Windows 10 x64, Windows 11 x64
ACPI version BIOS - 5.0
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio output channels Features - 7.1 channels
Batteries included Packaging content - Yes
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
Battery technology Battery - Lithium-Manganese Dioxide (LiMnO2)
Battery type Battery - CR2032
Battery weight Battery - 3 g
BIOS - 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
BIOS memory size BIOS - 128 Mbit
BIOS type BIOS - UEFI AMI
Brand - GIGABYTE
BrandPartCode - H610M H V2
Bundled software Packaging content - Norton Internet Security (OEM version)
LAN bandwidth management software
Cables included Packaging content - SATA
Category - Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset manufacturer - Intel
Chipset type - Intel H610 Express Chipset
Clear CMOS button BIOS - Yes
Clear CMOS jumper BIOS - Yes
Code - H610M H V2 G1.0
COM connector / port - Yes
Compatible processor series Processor - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Component for Features - PC
Cooling type Features - Active
Country of origin Logistics data - China
CPU fan connector Internal I/O - Yes
CPU socket - LGA1700
Depth Weight & dimensions - 196 mm
Description - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edgeSupports Intel® Core™ 14th/ 13th /12th processorsDual Channel Non-ECC Unbuffered DDR5, 2 DIMMs4+1+1 Hybrid Digital VRM DesignGbE LAN with Bandwidth ManagementNVMe PCIe 3.0 x4 M.2High Quality Audio Capacitors and Audio Noise GuardSmart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOPGIGABYTE APP Center, Simple and Easy UseAnti-Sulfur Resistors Design
Description - Płyta główna Intel H610 z hybrydową konstrukcją VRM 4+1+1, PCIe 4.0*, Gen3 x4 M.2, rezystorem antysiarkowym, Smart Fan 6 Obsługuje procesory Intel Core 14., 13. i 12. generacji Dwukanałowa, niebuforowana pamięć DDR5 bez ECC, 2 moduły DIMM Hybrydowa, cyfrowa konstrukcja VRM 4+1+1 GbE LAN z zarządzaniem przepustowością NVMe PCIe 3.0 x4 M.2 Wysokiej jakości kondensatory audio i ochrona przed zakłóceniami audio Smart Fan 6 z wieloma czujnikami temperatury, hybrydowymi złączami wentylatorów z funkcją FAN STOP Centrum aplikacji GIGABYTE, prosta i łatwa obsługa Konstrukcja z rezystorami antysiarkowymi
Designation - CE+WEEE
Desktop Management Interface (DMI) version BIOS - 2.7
Detailed data on disk/drive interfaces - Złącza rozszerzeń CPU 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 Złącza SATA Chipset 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
dimensionalWeight - 697
dimension depth - 50 mm
dimension height - 245 mm
Dimensions - 22.3 x 19.6 cm
dimension weight - 695 g
dimension width - 265 mm
DisplayPorts quantity Rear panel I/O ports - 2
DVI-D ports quantity Rear panel I/O ports - 1
EAN - 4719331859985
ean - 4719331859985
EAN_code - 4719331859985
ECC сompatibility Memory - ECC & Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 slots - 1
External connectors - 1 x D-Sub
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x USB 3.2 Gen 1 Type-A
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Active
Features - Motherboard chipset - Intel H610 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - PC health monitoring - Water cooling
Features - Power source type - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - micro ATX
Front panel audio connector Internal I/O - Yes
Front panel connector Internal I/O - Yes
Generation - Fourteenth
Generation - Thirteenth
Generation - Twelve
Graphics - Zintegrowany procesor graficzny - obsługa Intel HD Graphics 1 x port D-Sub, obsługujący maksymalną rozdzielczość 1920x1200@60 Hz 1 x port HDMI, obsługujący maksymalną rozdzielczość 4096x2160@60 Hz * Obsługa wersji HDMI 2.1 i HDCP 2.3.
** Obsługa natywnych portów zgodnych z HDMI 2.1 TMDS.
Graphics - Graphics card - HD Graphics
Graphics - Graphics card family - Intel
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - Parallel processing technology support - Not supported
Graphics card family Graphics - Intel
Graphics card Graphics - HD Graphics
GTIN - 4719331859985
guarantee - 36
guarantee_type - normal
HDCP Graphics - Yes
HDMI ports quantity Rear panel I/O ports - 1
Headphone outputs Rear panel I/O ports - 3
Height Weight & dimensions - 35 mm
Integrated CPU - No
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Serial port headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - M.2, SATA
Link - https://www.gigabyte.com/Motherboard/H610M-H-V2-rev-10#kf
Lithium weight per battery Battery - 0.07 g
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
LongProductName - H610M H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
LongSummaryDescription - GIGABYTE H610M H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Graphics card family: Intel, Graphics card: HD Graphics, Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A
LPT connector / port - No
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer_code - H610M H V2
Max. number of SATA devices - 4
Maximum internal memory Memory - 96 GB
Maximum internal memory supported by processor Processor - 96 GB
Maximum resolution Graphics - 4096 x 2304 pixels
Max memory size - 128 GB
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 96 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 5600 MHz
Memory - Supported memory clock speeds - 4400
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5600 MHz
Memory - Supported memory clock speeds - 5600, 5200, 4800, 4400 MHz
Memory - Supported memory module capacities - 1GB
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 32GB, 48GB
Memory - Supported memory module capacities - 2GB
Memory - Supported memory module capacities - 4GB
Memory - Supported memory module capacities - 8GB
Memory - Supported memory module capacities - 12GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory module capacities - 48GB
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5600 MHz
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Memory type - DDR5
Microphone in Rear panel I/O ports - Yes
Model - H610M H V2
Model - H610M H V2 (rev. 1.0)
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel H610 Express
Motherboard form factor Features - micro ATX
MPN - H610M H V2
Name - GA-H610M H V2 (1700) (D)
Name - GIGABYTE H610M H V2 - Socket 1700 - motherboard
Name - Gigabyte | H610M H V2 G1.0 | Processor family Intel | Processor socket LGA1700 | DDR5 | Supported hard disk drive interfaces M.2, SATA | Number of SATA connectors 4
name - Motherboard H610M H V2 s1700 2DDR5 HDMI/DSUB M.2 mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Number of battery cells Battery - 1
Number of DDR5 slots - 2
Number of HDDs supported Storage controllers - 1
Number of M.2 (M) slots Expansion slots - 1
Number of memory slots Memory - 2
Number of SATA III connectors Internal I/O - 4
Number of storage drives supported Storage controllers - 5
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x M.2
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x Speaker header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-A
Onboard connectors - 2 x 4pin Chassis fan
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 4 x SATA III 6Gb/s
Package depth Packaging data - 265 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 265 mm
Package features > Gross height (mm) - 54 mm
Package features > Gross width (mm) - 265 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 228 pc(s)
Package features > Paper/Pasteboard - 200 g
Package features > Plastic (No PET) - 80 g
Package features > Tare weight (kg) - 0.28 kg
Package features > Volume (m3) - 0.00379215 m³
Package features > WEEE tax - No
Package height Packaging data - 54 mm
Package weight Packaging data - 694 g
Package width Packaging data - 265 mm
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Cables included - SATA
Packaging data - Package depth - 265 mm
Packaging data - Package height - 54 mm
Packaging data - Package weight - 694 g
Packaging data - Package width - 265 mm
Parallel processing technology support Graphics - Not supported
PC health monitoring Features - Fan, Temperature, Voltage, Water cooling
PCI Express x1 slots Expansion slots - 1
PCI Express x16 slots Expansion slots - 1
Power source type Features - ATX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Maximum internal memory supported by processor - 96 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium
Processor family - Intel Pentium Gold
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1700
producer - Gigabyte
producerCode - H610M H V2
Product colour Features - Black
productName - GIGABYTE H610M H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
ProductName - H610M H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
productSize - Normal
Products per shipping (inner) case Logistics data - 1 pc(s)
PS/2 ports quantity Rear panel I/O ports - 1
RAID - No
Rear panel I/O ports - DisplayPorts quantity - 2
Rear panel I/O ports - DVI-D ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 3
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RGB LED pin header Internal I/O - Yes
Serial port headers Internal I/O - 1
ShortSummaryDescription - GIGABYTE H610M H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 96 GB, DDR5-SDRAM
sizeX - 270
sizeY - 235
sizeZ - 55
Software - Norton Internet Security (wersja OEM) Oprogramowanie do zarządzania przepustowością sieci LAN * Usługa została przerwana w wyniku rozwiązania umowy przez dostawcę oprogramowania.
Sound card - Kodek audio Realtek Obsługa High Definition Audio Ilość kanałów audio 2/4/5.1/7.1 * Funkcjonalność gniazda audio można zmienić za pomocą oprogramowania audio. Aby skonfigurować dźwięk 7.1-kanałowy, należy przejść do ustawień audio w oprogramowaniu audio.
Special functions - Wsparcie dla APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Obsługa @ BIOS EasyTune Smart Backup System Information Viewer Obsługa Q-Flash
Storage controllers - Number of HDDs supported - 1
Storage controllers - Number of storage drives supported - 5
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - GIGABYTE H610M H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Graphics card family: Intel, Graphics card: HD Graphics, Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A
Supported memory clock speed (max) Memory - 5600 MHz
Supported memory clock speeds Memory - 5600, 5200, 4800, 4400 MHz
Supported memory module capacities Memory - 1GB, 2GB, 4GB, 8GB, 12GB, 32GB, 48GB
Supported memory types Memory - DDR5-SDRAM
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Supported processor sockets Processor - LGA 1700
Supported storage drive interfaces Storage controllers - M.2, SATA III
Supported storage drive types Storage controllers - HDD & SSD
System Management BIOS (SMBIOS) version BIOS - 2.7
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 1.23 kg
Technical details > Net weight - 0.95 kg
Technical details > Producer - Gigabyte
Technical details > Producer product name - H610M H V2 G1.0
Technical_details - The GIGABYTE H610M H V2 motherboard is based on the Intel® H610 chipset and supports Intel® processors for Socket 1700. It has two DDR5 DIMM slots in dual-channel operation for up to 96 GB of RAM. The GIGABYTE H610M H V2's additional features include a PCIe 4.0 x16 slot and a PCIe 3.0 x1 slot. The GIGABYTE H610M H V2 also has 8-channel sound, a Gigabit LAN interface, four SATA3 ports and a number of USB interfaces. Item no.: 100038234 Mainboard type EAN 4719331859985 Manufacturer no. H610M H V2 Base 1700 Max. supported CPUs 1 Operating system support Windows 10 ready, Windows 11 ready Processor Supported models Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i3 13xxx (Raptor Lake), Core i3 13xxxF (Raptor Lake), Core i3 13xxxT (Raptor Lake) , Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i5 13xxx (Raptor Lake), Core i5 13xxxF (Raptor Lake), Core i5 13xxxT (Raptor Lake), Core i5 13xxxK (Raptor Lake), Core i5 13xxxKF (Raptor Lake), Core i5 14xxx (Raptor Lake-S), Core i5 14xxxF (Raptor Lake-S) , Core i5 14xxxK (Raptor Lake-S), Core i5 14xxxKF (Raptor Lake-S), Core i5 14xxxT (Raptor Lake-S), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF (Alder Lake), Core i7 13xxx (Raptor Lake), Core i7 13xxxF (Raptor Lake), Core i7 13xxxT (Raptor Lake), Core i7 13xxxK (Raptor Lake), Core i7 13xxxKF (Raptor Lake), Core i7 14xxx (Raptor Lake-S), Core i7 14xxxF (Raptor Lake-S), Core i7 14xxxK (Raptor Lake-S), Core i7 14xxxKF (Raptor Lake-S) , Core i7 14xxxT (Raptor Lake-S), Core i9 12xxx (Alder Lake), Core i9 12xxxK (Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake) , Core i9 12xxxKS (Alder Lake), Core i9 13xxx (Raptor Lake), Core i9 13xxxF (Raptor Lake), Core i9 13xxxT (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxK (Raptor Lake), Core i9 13xxxKF (Raptor Lake), Core i9 13xxxKS (Raptor Lake), Core i9 14xxx (Raptor Lake-S), Core i9 14xxxF (Raptor Lake-S), Core i9 14xxxK (Raptor Lake-S), Core i9 14xxxKF (Raptor Lake-S), Core i9 14xxxT (Raptor Lake-S), Pentium Gold Gxxxx (Alder Lake), Celeron Gxxxx (Alder Lake) Chipset Intel® H610 Slots PCIe x16 1x (of which: 1x PCIe x16) TPM Yes BIOS 256 Mbit UEFI AMI BIOS Form factor µATX Use PC Power supply ATX12V (24-pin + 8-pin) Memory maximum 96 GB Connections (external) Keyboard (PS/2) 1 Connectors (internal) SATA 4 Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 RGB Standard AURA Sync SATA controller Intel® H610 USB controller Intel® H610 Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. Sound Realtek Audio CODEC LAN Intel® GbE LAN Further information In order to support the latest processor cores, a BIOS update may be required. Dimensions Width: 197mm x Height: 188mm
Title - GIGABYTE H610M H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.24
Unit Box Length - 0.27
Unit Box Width - 0.05
Unit Calculated Volume - 0.00324 cubm
Unit Calculated Weight - 0.5 kg
Units per Shipping Box - 1
URL - https://www.gigabyte.com/
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 2
USB connector type Rear panel I/O ports - USB Type-A
USB ports at back panel - 6
USB ports on motherboard - 6
Vendor Homepage - https://www.gigabyte.com/
vendpn - H610M H V2
VGA (D-Sub) ports quantity Rear panel I/O ports - 1
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
Warranty period Technical details - 3 year(s)
warrantyType - G
Weight - 0,70
Weight - 0.7
weight - 690
Weight & dimensions - Depth - 196 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 230 mm
Wi-Fi Network - No
Width Weight & dimensions - 230 mm
Windows operating systems supported Features - Windows 10 x64, Windows 11 x64
