ID: 1049703
Product code: H610M H V3 DDR4
In stock 31 units
Warranty: 3 years

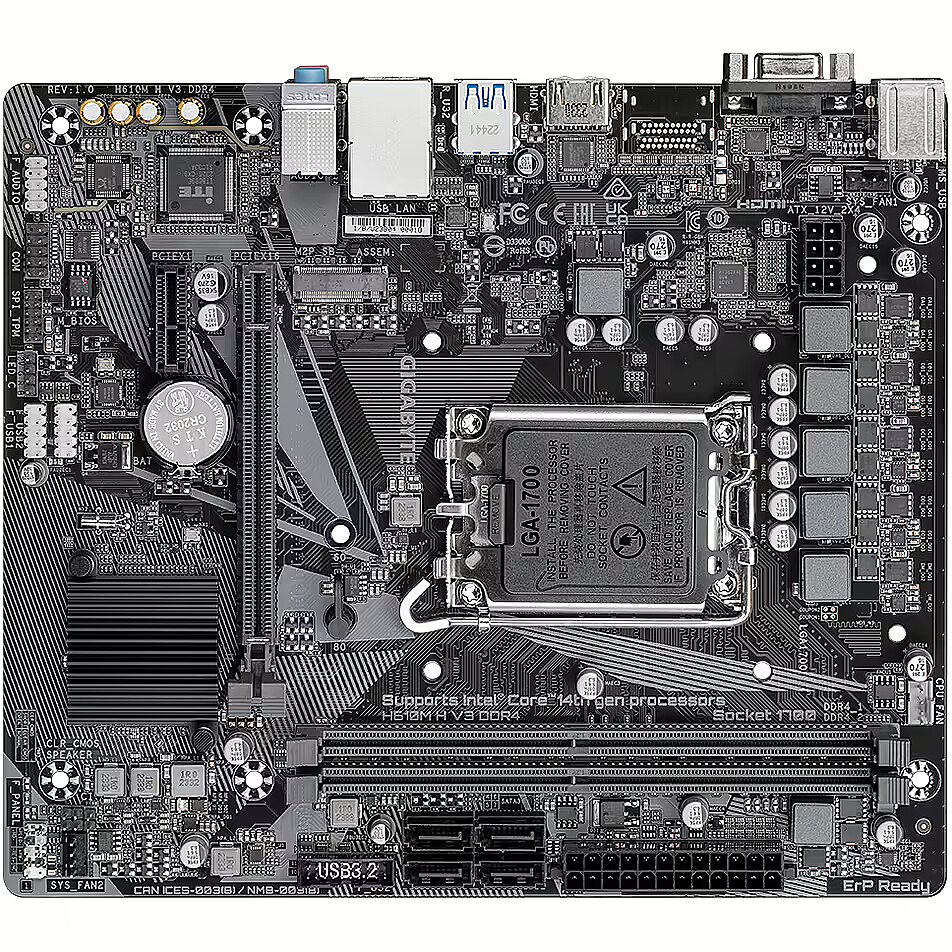

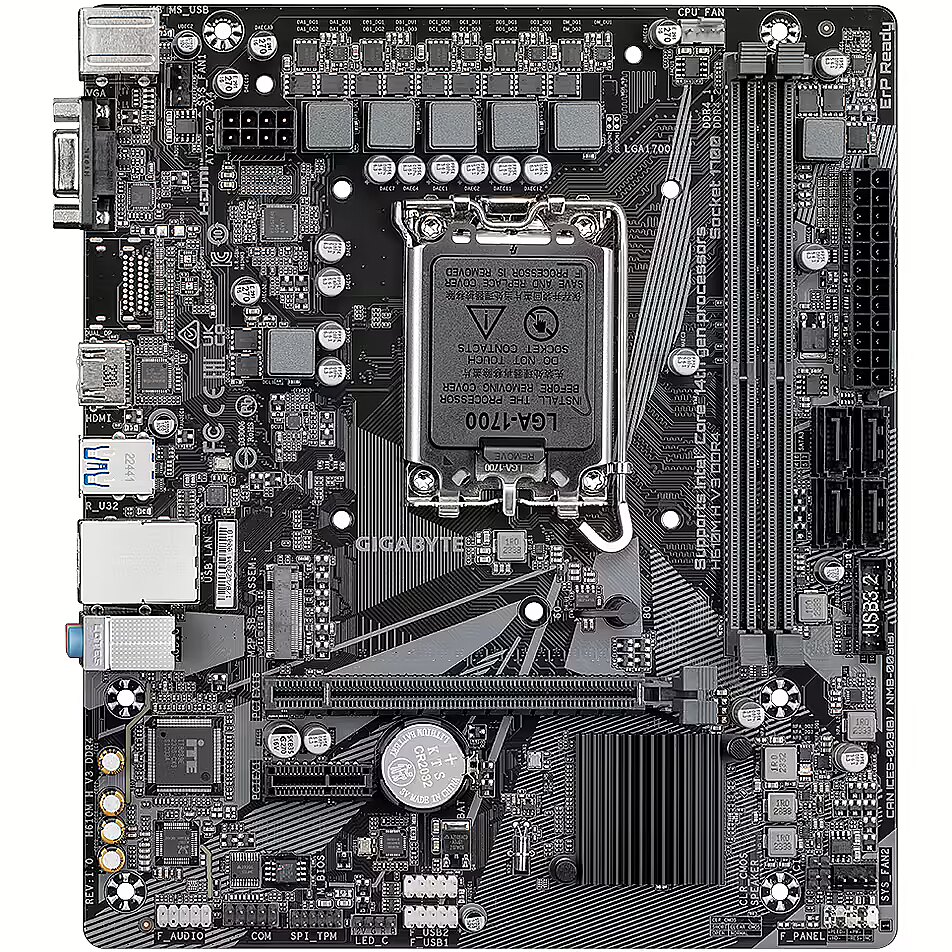

Gigabyte H610M H V3 DDR4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Series: Nav
- CPU Socket: LGA 1700
- Chipset: Intel H610
- Form factor: Micro ATX
- Type: DDR4
- RAM Slots: 2
- Built-in Wi-Fi: Nav
Basic information
Series
: Nav
CPU Socket
LGA 1700
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel H610
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Micro ATX
The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR4
RAM Slots
2
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR4 2400 (OC 3200)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 1
DVI
: 1
HDMI
: 1
DisplayPort
: 2
Integrated sound card
: Realtek ALC897
Wireless connections
Built-in Bluetooth
: Nav
Built-in Wi-Fi
: Nav
External ports
External USB Type-C
: 0
External USB 2.0
: 2
External USB 3.0 (USB 3.2 Gen1)
: 2
External USB 3.1 (USB 3.2 Gen2)
: 2
Internal ports
Internal A-RGB 5V (3-pin)
: 0
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 0
M.2 Port
: 1
SATA3 ports
: 4
More detailed specification
12V power connector Internal I/O - Yes
Accessories included -
ACPI version BIOS - 5.0
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio output channels Features - 7.1 channels
Batteries included Packaging content - Yes
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
Battery technology Battery - Lithium-Manganese Dioxide (LiMnO2)
Battery type Battery - CR2032
Battery weight Battery - 3 g
BIOS - 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
BIOS memory size BIOS - 128 Mbit
BIOS type BIOS - UEFI AMI
Brand - GIGABYTE
BrandPartCode - H610M H V3 DDR4
Bundled software Packaging content - Norton Internet Security (OEM version)
LAN bandwidth management software
Cables included Packaging content - SATA
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset manufacturer - Intel
Chipset type - Intel H610 Express Chipset
Clear CMOS button BIOS - Yes
Clear CMOS jumper BIOS - Yes
Code - H610M H V3 DDR4
COM connector / port - Yes
Compatible processor series Processor - Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold
Component for Features - PC
Cooling type Features - Active
Country of origin Logistics data - China
CPU fan connector Internal I/O - Yes
CPU socket - LGA1700
Dane techniczne: Chipset płyty głównej - Intel H610
Dane techniczne: Grupa produktowa - Płyty główne Gigabyte
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - Gigabyte
Dane techniczne: Przeznaczenie - Intel
Dane techniczne: Standard płyty - micro-ATX
Depth Weight & dimensions - 215 mm
Description - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edgeSupports Intel Core 14th/ 13th /12th processorsDual Channel Non-ECC Unbuffered DDR4, 2 DIMMs4+1+1 Hybrid Digital VRM DesignGbE LAN with Bandwidth ManagementNVMe PCIe 3.0 x4 M.2High Quality Audio Capacitors and Audio Noise GuardSmart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOPGIGABYTE APP Center, Simple and Easy UseAnti-Sulfur Resistors Design
Description - Płyta główna Intel H610 z 4+1+1 hybrydowymi fazami, cyfrowym układem VRM, konstrukcją PCIe 4.0, gniazdem M.2 Gen3 x4, rezystorem przeciwsiarkowym, Smart Fan 6 Obsługuje procesory Intel Core 14/13/12 Dwukanałowa niebuforowana pamięć DDR4 bez funkcji ECC, 2 moduły DIMM Hybrydowa konstrukcja cyfrowego VRM 4+1+1 GbE LAN z zarządzaniem przepustowością NVMe PCIe 3.0 x4 M.2 Wysokiej jakości kondensatory audio i osłona przeciwzakłóceniowa Smart Fan 6 posiada wiele czujników temperatury, hybrydowe złącza wentylatorów z funkcją FAN STOP Centrum aplikacji GIGABYTE, proste i łatwe w użyciu Projekt rezystorów przeciwsiarkowych
Designation - CE+WEEE
Desktop Management Interface (DMI) version BIOS - 2.7
Detailed data on disk/drive interfaces - CPU 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
dimensionalWeight - 777
dimension depth - 50 mm
dimension height - 240 mm
Dimensions - 22.3 x 19.3 cm
dimension weight - 688 g
dimension width - 270 mm
DisplayPorts quantity Rear panel I/O ports - 2
DVI-D ports quantity Rear panel I/O ports - 1
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek 7.1)
EAN - 4719331859718
ean - 4719331859718
Eans - 4719331859718
EAN_code - 4719331859718
ECC сompatibility Memory - ECC & Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 slots - 1

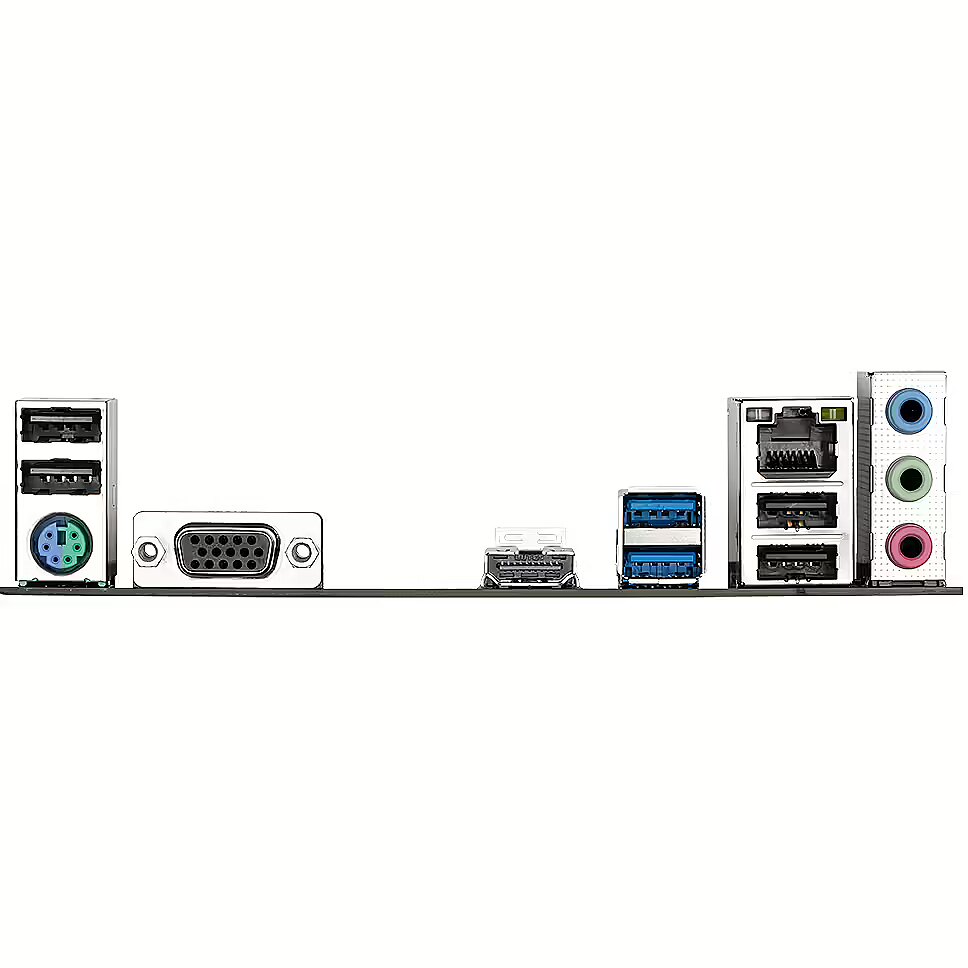

External connectors - 1 x D-Sub
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Active
Features - Motherboard chipset - Intel H610 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - PC health monitoring - Water cooling
Features - Power source type - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - micro ATX
Front panel audio connector Internal I/O - Yes
Front panel connector Internal I/O - Yes
Graphics - Zintegrowany procesor graficzny obsługa grafiki Intel HD 1 x port D-Sub obsługujący maksymalną rozdzielczość 1920x1200 przy 60 Hz 1 x port HDMI obsługujący maksymalną rozdzielczość 4096x2160 przy 60 Hz * Obsługa wersji HDMI 2.1 i HDCP 2.3.
** Obsługa natywnych portów zgodnych z HDMI 2.1 TMDS.
Graphics - Graphics card - HD Graphics
Graphics - Graphics card family - Intel
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - Parallel processing technology support - Not supported
Graphics card family Graphics - Intel
Graphics card Graphics - HD Graphics
Gross Weight Kg - 0,7
GTIN - 4719331859718
guarantee - 36
guarantee_type - normal
HDCP Graphics - Yes
HDMI ports quantity Rear panel I/O ports - 1
Headphone outputs Rear panel I/O ports - 3
Height Weight & dimensions - 35 mm
Integrated CPU - No
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Serial port headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - M.2, SATA
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek GbE LAN)
Link - https://www.gigabyte.com/Motherboard/H610M-H-V3-DDR4-rev-10#kf
Lithium weight per battery Battery - 0.07 g
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
LongProductName - H610M H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
LongSummaryDescription - GIGABYTE H610M H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Graphics card family: Intel, Graphics card: HD Graphics, Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A
LPT connector / port - No
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer Code - H610M H V3 DDR4
Manufacturer Name - Gigabyte
Manufacturer_code - H610M H V3 DDR4
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Maximum internal memory Memory - 64 GB
Maximum resolution Graphics - 4096 x 2304 pixels
Max memory size - 64 GB
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 3200 MHz
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3000
Memory - Supported memory clock speeds - 3200
Memory - Supported memory clock speeds - 3200, 3000, 2933, 2666, 2400, 2133 MHz
Memory - Supported memory module capacities - 1GB
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Memory - Supported memory module capacities - 2GB
Memory - Supported memory module capacities - 4GB
Memory - Supported memory module capacities - 8GB
Memory - Supported memory module capacities - 12GB
Memory - Supported memory module capacities - 16GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2666 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3000 MHz
Memory bus frequency - 3200 MHz
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Memory type - DDR4
Microphone in Rear panel I/O ports - Yes
Model - H610M H V3 DDR4
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel H610 Express
Motherboard form factor Features - micro ATX
MPN - H610M H V3 DDR4
Name - 1700 Gigabyte H610M H DDR4 V3
Name - Gigabyte H610M H V3 DDR4
Name - GIGABYTE H610M H V3 DDR4 - Socket 1700 - motherboard
Name - Gigabyte | H610M H V3 DDR4 | Processor family Intel | Processor socket LGA1700 | DDR4 DIMM | Supported hard disk drive interfaces M.2, SATA | Number of SATA connectors 4
name - H610M H V3 DDR4 s1700 2DDR4 HDMI USB mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface -
Network interface - 1 x 10/100/1000 Mbit/s
Number of battery cells Battery - 1
Number of DDR4 slots - 2
Number of HDDs supported Storage controllers - 1
Number of M.2 (M) slots Expansion slots - 1
Number of memory slots Memory - 2
Number of SATA III connectors Internal I/O - 4
Number of storage drives supported Storage controllers - 5
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x M.2
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 4 x SATA III 6Gb/s
Other information -
Package depth Packaging data - 235 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 225 mm
Package features > Gross height (mm) - 65 mm
Package features > Gross width (mm) - 180 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 328 pc(s)
Package features > Paper/Pasteboard - 180 g
Package features > Plastic (No PET) - 20 g
Package features > Tare weight (kg) - 0.2 kg
Package features > Volume (m3) - 0.0026325 m³
Package features > WEEE tax - No
Package height Packaging data - 52 mm
Package weight Packaging data - 684 g
Package width Packaging data - 265 mm
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Cables included - SATA
Packaging data - Package depth - 235 mm
Packaging data - Package height - 52 mm
Packaging data - Package weight - 684 g
Packaging data - Package width - 265 mm
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 2 szt.
Pamięć: Maks. pojemność pamięci - 64 GB
Pamięć: Obsługiwana pamięć - DDR4
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR4-2133 (PC4-17000)
Pamięć: Typ obsługiwanej pamięci - DDR4-2400 (PC4-19200)
Pamięć: Typ obsługiwanej pamięci - DDR4-2666 (PC4-21300)
Pamięć: Typ obsługiwanej pamięci - DDR4-2800 (PC4-22400)
Pamięć: Typ obsługiwanej pamięci - DDR4-2933 (PC4-23400)
Pamięć: Typ obsługiwanej pamięci - DDR4-3200 (PC4-25600)
Parallel processing technology support Graphics - Not supported
PC health monitoring Features - Fan/Temperature/Voltage/Water cooling
PCI Express x1 slots Expansion slots - 1
PCI Express x16 slots Expansion slots - 1
Power source type Features - ATX
Procesor: Gniazdo procesora - Socket 1700
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - Intel Celeron G6XXX
Procesor: Obsługiwane typy procesorów - Intel Core i3-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i3-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i3-14XXX
Procesor: Obsługiwane typy procesorów - Intel Core i5-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i5-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i5-14XXX
Procesor: Obsługiwane typy procesorów - Intel Core i7-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i7-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i7-14XXX
Procesor: Obsługiwane typy procesorów - Intel Core i9-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i9-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i9-14XXX
Procesor: Obsługiwane typy procesorów - Intel Pentium G7XXX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1700
Producent: Nazwa producenta / importera - Gigabyte
Giga-Byte Technology BV
Steenoven 24
5626 Eindhoven
producer - Gigabyte
Producer - Gigabyte
producerCode - H610M H V3 DDR4
ProducerCode - H610M H V3 DDR4
Product colour Features - Black
productName - GIGABYTE H610M H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
ProductName - H610M H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
productSize - Normal
Products per shipping (inner) case Logistics data - 1 pc(s)
PS/2 ports quantity Rear panel I/O ports - 1
RAID - No
Rear panel I/O ports - DisplayPorts quantity - 2
Rear panel I/O ports - DVI-D ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 3
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RGB LED pin header Internal I/O - Yes
Safety warning - Warnings - Avoid direct contact with electronics to prevent electrostatic damage.
Safety warning - Warnings - Before starting any maintenance or installation, disconnect the product from the power supply.
Safety warning - Warnings - Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
Serial port headers Internal I/O - 1
Short description - GIGA H610M H V3 DDR4 S1700/DDR4/µATX
ShortDescription - Socket 1700| Chipset Intel H610 | DDR4 |
ShortSummaryDescription - GIGABYTE H610M H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR4-SDRAM, 64 GB
sizeX - 270
sizeY - 240
sizeZ - 60
Software -
Sound card - Realtek audio codec Obsługa High Definition Audio Ilość kanałów audio 2/4/5.1/7.1
Special functions - Wsparcie dla APP Center Obsługa @ BIOS EasyTune Smart Backup System Information Viewer Obsługa Q-Flash
Storage controllers - Number of HDDs supported - 1
Storage controllers - Number of storage drives supported - 5
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - GIGABYTE H610M H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Graphics card family: Intel, Graphics card: HD Graphics, Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A
Supported memory clock speed (max) Memory - 3200 MHz
Supported memory clock speeds Memory - 2133/2400/2666/2933/3000/3200 MHz
Supported memory module capacities Memory - 12GB/16GB/1GB/2GB/32GB/4GB/8GB
Supported memory types Memory - DDR4-SDRAM
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Supported processor sockets Processor - LGA 1700
Supported storage drive interfaces Storage controllers - M.2,SATA III
Supported storage drive types Storage controllers - HDD & SSD
System Management BIOS (SMBIOS) version BIOS - 2.7
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 0.635 kg
Technical details > Net weight - 0.435 kg
Technical details > Producer - Gigabyte
Technical details > Producer product name - H610M H V3 DDR4
Title - GIGABYTE H610M H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.055
Unit Box Length - 0.265
Unit Box Width - 0.235
Unit Calculated Volume - 0.004113 cubm
Unit Calculated Weight - 0.753 kg
Units per Shipping Box - 10
URL - https://www.gigabyte.com/
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 2
USB connector type Rear panel I/O ports - USB Type-A
USB ports at back panel - 6
USB ports on motherboard - 6
Vendor Homepage - https://www.gigabyte.com/
vendpn - H610M H V3 DDR4
VGA (D-Sub) ports quantity Rear panel I/O ports - 1
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
Warranty period Technical details - 3 year(s)
warrantyType - G
Weight - 0,70
Weight - 0.666
weight - 700
Weight & dimensions - Depth - 215 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 230 mm
Wi-Fi Network - No
Width Weight & dimensions - 230 mm
Windows operating systems supported Features - Windows 10 x64/Windows 11 x64
Wymiary: Szerokość - 193 mm
Wymiary: Wysokość - 223 mm
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x VGA
Złącza: Złącza na tylnym panelu - 2 x PS/2
Złącza: Złącza na tylnym panelu - 2 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 4 x USB
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x1
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x16
Accessories included -
ACPI version BIOS - 5.0
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio output channels Features - 7.1 channels
Batteries included Packaging content - Yes
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
Battery technology Battery - Lithium-Manganese Dioxide (LiMnO2)
Battery type Battery - CR2032
Battery weight Battery - 3 g
BIOS - 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
BIOS memory size BIOS - 128 Mbit
BIOS type BIOS - UEFI AMI
Brand - GIGABYTE
BrandPartCode - H610M H V3 DDR4
Bundled software Packaging content - Norton Internet Security (OEM version)
LAN bandwidth management software
Cables included Packaging content - SATA
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset manufacturer - Intel
Chipset type - Intel H610 Express Chipset
Clear CMOS button BIOS - Yes
Clear CMOS jumper BIOS - Yes
Code - H610M H V3 DDR4
COM connector / port - Yes
Compatible processor series Processor - Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold
Component for Features - PC
Cooling type Features - Active
Country of origin Logistics data - China
CPU fan connector Internal I/O - Yes
CPU socket - LGA1700
Dane techniczne: Chipset płyty głównej - Intel H610
Dane techniczne: Grupa produktowa - Płyty główne Gigabyte
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - Gigabyte
Dane techniczne: Przeznaczenie - Intel
Dane techniczne: Standard płyty - micro-ATX
Depth Weight & dimensions - 215 mm
Description - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edgeSupports Intel Core 14th/ 13th /12th processorsDual Channel Non-ECC Unbuffered DDR4, 2 DIMMs4+1+1 Hybrid Digital VRM DesignGbE LAN with Bandwidth ManagementNVMe PCIe 3.0 x4 M.2High Quality Audio Capacitors and Audio Noise GuardSmart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOPGIGABYTE APP Center, Simple and Easy UseAnti-Sulfur Resistors Design
Description - Płyta główna Intel H610 z 4+1+1 hybrydowymi fazami, cyfrowym układem VRM, konstrukcją PCIe 4.0, gniazdem M.2 Gen3 x4, rezystorem przeciwsiarkowym, Smart Fan 6 Obsługuje procesory Intel Core 14/13/12 Dwukanałowa niebuforowana pamięć DDR4 bez funkcji ECC, 2 moduły DIMM Hybrydowa konstrukcja cyfrowego VRM 4+1+1 GbE LAN z zarządzaniem przepustowością NVMe PCIe 3.0 x4 M.2 Wysokiej jakości kondensatory audio i osłona przeciwzakłóceniowa Smart Fan 6 posiada wiele czujników temperatury, hybrydowe złącza wentylatorów z funkcją FAN STOP Centrum aplikacji GIGABYTE, proste i łatwe w użyciu Projekt rezystorów przeciwsiarkowych
Designation - CE+WEEE
Desktop Management Interface (DMI) version BIOS - 2.7
Detailed data on disk/drive interfaces - CPU 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
dimensionalWeight - 777
dimension depth - 50 mm
dimension height - 240 mm
Dimensions - 22.3 x 19.3 cm
dimension weight - 688 g
dimension width - 270 mm
DisplayPorts quantity Rear panel I/O ports - 2
DVI-D ports quantity Rear panel I/O ports - 1
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek 7.1)
EAN - 4719331859718
ean - 4719331859718
Eans - 4719331859718
EAN_code - 4719331859718
ECC сompatibility Memory - ECC & Non-ECC
EPS power connector (8-pin) Internal I/O - Yes
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 slots - 1
External connectors - 1 x D-Sub
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Active
Features - Motherboard chipset - Intel H610 Express
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - PC health monitoring - Water cooling
Features - Power source type - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - micro ATX
Front panel audio connector Internal I/O - Yes
Front panel connector Internal I/O - Yes
Graphics - Zintegrowany procesor graficzny obsługa grafiki Intel HD 1 x port D-Sub obsługujący maksymalną rozdzielczość 1920x1200 przy 60 Hz 1 x port HDMI obsługujący maksymalną rozdzielczość 4096x2160 przy 60 Hz * Obsługa wersji HDMI 2.1 i HDCP 2.3.
** Obsługa natywnych portów zgodnych z HDMI 2.1 TMDS.
Graphics - Graphics card - HD Graphics
Graphics - Graphics card family - Intel
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2304 pixels
Graphics - Parallel processing technology support - Not supported
Graphics card family Graphics - Intel
Graphics card Graphics - HD Graphics
Gross Weight Kg - 0,7
GTIN - 4719331859718
guarantee - 36
guarantee_type - normal
HDCP Graphics - Yes
HDMI ports quantity Rear panel I/O ports - 1
Headphone outputs Rear panel I/O ports - 3
Height Weight & dimensions - 35 mm
Integrated CPU - No
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Serial port headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - M.2, SATA
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek GbE LAN)
Link - https://www.gigabyte.com/Motherboard/H610M-H-V3-DDR4-rev-10#kf
Lithium weight per battery Battery - 0.07 g
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
LongProductName - H610M H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
LongSummaryDescription - GIGABYTE H610M H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Graphics card family: Intel, Graphics card: HD Graphics, Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A
LPT connector / port - No
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer Code - H610M H V3 DDR4
Manufacturer Name - Gigabyte
Manufacturer_code - H610M H V3 DDR4
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Maximum internal memory Memory - 64 GB
Maximum resolution Graphics - 4096 x 2304 pixels
Max memory size - 64 GB
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 3200 MHz
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3000
Memory - Supported memory clock speeds - 3200
Memory - Supported memory clock speeds - 3200, 3000, 2933, 2666, 2400, 2133 MHz
Memory - Supported memory module capacities - 1GB
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Memory - Supported memory module capacities - 2GB
Memory - Supported memory module capacities - 4GB
Memory - Supported memory module capacities - 8GB
Memory - Supported memory module capacities - 12GB
Memory - Supported memory module capacities - 16GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR4 DIMM
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2666 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3000 MHz
Memory bus frequency - 3200 MHz
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Memory type - DDR4
Microphone in Rear panel I/O ports - Yes
Model - H610M H V3 DDR4
Motherboard chipset family Features - Intel
Motherboard chipset Features - Intel H610 Express
Motherboard form factor Features - micro ATX
MPN - H610M H V3 DDR4
Name - 1700 Gigabyte H610M H DDR4 V3
Name - Gigabyte H610M H V3 DDR4
Name - GIGABYTE H610M H V3 DDR4 - Socket 1700 - motherboard
Name - Gigabyte | H610M H V3 DDR4 | Processor family Intel | Processor socket LGA1700 | DDR4 DIMM | Supported hard disk drive interfaces M.2, SATA | Number of SATA connectors 4
name - H610M H V3 DDR4 s1700 2DDR4 HDMI USB mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Network interface -
Network interface - 1 x 10/100/1000 Mbit/s
Number of battery cells Battery - 1
Number of DDR4 slots - 2
Number of HDDs supported Storage controllers - 1
Number of M.2 (M) slots Expansion slots - 1
Number of memory slots Memory - 2
Number of SATA III connectors Internal I/O - 4
Number of storage drives supported Storage controllers - 5
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x M.2
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 4 x SATA III 6Gb/s
Other information -
Package depth Packaging data - 235 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 225 mm
Package features > Gross height (mm) - 65 mm
Package features > Gross width (mm) - 180 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 328 pc(s)
Package features > Paper/Pasteboard - 180 g
Package features > Plastic (No PET) - 20 g
Package features > Tare weight (kg) - 0.2 kg
Package features > Volume (m3) - 0.0026325 m³
Package features > WEEE tax - No
Package height Packaging data - 52 mm
Package weight Packaging data - 684 g
Package width Packaging data - 265 mm
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Cables included - SATA
Packaging data - Package depth - 235 mm
Packaging data - Package height - 52 mm
Packaging data - Package weight - 684 g
Packaging data - Package width - 265 mm
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 2 szt.
Pamięć: Maks. pojemność pamięci - 64 GB
Pamięć: Obsługiwana pamięć - DDR4
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR4-2133 (PC4-17000)
Pamięć: Typ obsługiwanej pamięci - DDR4-2400 (PC4-19200)
Pamięć: Typ obsługiwanej pamięci - DDR4-2666 (PC4-21300)
Pamięć: Typ obsługiwanej pamięci - DDR4-2800 (PC4-22400)
Pamięć: Typ obsługiwanej pamięci - DDR4-2933 (PC4-23400)
Pamięć: Typ obsługiwanej pamięci - DDR4-3200 (PC4-25600)
Parallel processing technology support Graphics - Not supported
PC health monitoring Features - Fan/Temperature/Voltage/Water cooling
PCI Express x1 slots Expansion slots - 1
PCI Express x16 slots Expansion slots - 1
Power source type Features - ATX
Procesor: Gniazdo procesora - Socket 1700
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - Intel Celeron G6XXX
Procesor: Obsługiwane typy procesorów - Intel Core i3-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i3-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i3-14XXX
Procesor: Obsługiwane typy procesorów - Intel Core i5-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i5-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i5-14XXX
Procesor: Obsługiwane typy procesorów - Intel Core i7-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i7-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i7-14XXX
Procesor: Obsługiwane typy procesorów - Intel Core i9-12XXX
Procesor: Obsługiwane typy procesorów - Intel Core i9-13XXX
Procesor: Obsługiwane typy procesorów - Intel Core i9-14XXX
Procesor: Obsługiwane typy procesorów - Intel Pentium G7XXX
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium
Processor manufacturer Processor - Intel
Processor socket Processor - LGA 1700
Producent: Nazwa producenta / importera - Gigabyte
Giga-Byte Technology BV
Steenoven 24
5626 Eindhoven
producer - Gigabyte
Producer - Gigabyte
producerCode - H610M H V3 DDR4
ProducerCode - H610M H V3 DDR4
Product colour Features - Black
productName - GIGABYTE H610M H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
ProductName - H610M H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
productSize - Normal
Products per shipping (inner) case Logistics data - 1 pc(s)
PS/2 ports quantity Rear panel I/O ports - 1
RAID - No
Rear panel I/O ports - DisplayPorts quantity - 2
Rear panel I/O ports - DVI-D ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 3
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RGB LED pin header Internal I/O - Yes
Safety warning - Warnings - Avoid direct contact with electronics to prevent electrostatic damage.
Safety warning - Warnings - Before starting any maintenance or installation, disconnect the product from the power supply.
Safety warning - Warnings - Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
Serial port headers Internal I/O - 1
Short description - GIGA H610M H V3 DDR4 S1700/DDR4/µATX
ShortDescription - Socket 1700| Chipset Intel H610 | DDR4 |
ShortSummaryDescription - GIGABYTE H610M H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR4-SDRAM, 64 GB
sizeX - 270
sizeY - 240
sizeZ - 60
Software -
Sound card - Realtek audio codec Obsługa High Definition Audio Ilość kanałów audio 2/4/5.1/7.1
Special functions - Wsparcie dla APP Center Obsługa @ BIOS EasyTune Smart Backup System Information Viewer Obsługa Q-Flash
Storage controllers - Number of HDDs supported - 1
Storage controllers - Number of storage drives supported - 5
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - GIGABYTE H610M H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Graphics card family: Intel, Graphics card: HD Graphics, Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A
Supported memory clock speed (max) Memory - 3200 MHz
Supported memory clock speeds Memory - 2133/2400/2666/2933/3000/3200 MHz
Supported memory module capacities Memory - 12GB/16GB/1GB/2GB/32GB/4GB/8GB
Supported memory types Memory - DDR4-SDRAM
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Supported processor sockets Processor - LGA 1700
Supported storage drive interfaces Storage controllers - M.2,SATA III
Supported storage drive types Storage controllers - HDD & SSD
System Management BIOS (SMBIOS) version BIOS - 2.7
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 0.635 kg
Technical details > Net weight - 0.435 kg
Technical details > Producer - Gigabyte
Technical details > Producer product name - H610M H V3 DDR4
Title - GIGABYTE H610M H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.055
Unit Box Length - 0.265
Unit Box Width - 0.235
Unit Calculated Volume - 0.004113 cubm
Unit Calculated Weight - 0.753 kg
Units per Shipping Box - 10
URL - https://www.gigabyte.com/
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 2
USB connector type Rear panel I/O ports - USB Type-A
USB ports at back panel - 6
USB ports on motherboard - 6
Vendor Homepage - https://www.gigabyte.com/
vendpn - H610M H V3 DDR4
VGA (D-Sub) ports quantity Rear panel I/O ports - 1
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
Warranty period Technical details - 3 year(s)
warrantyType - G
Weight - 0,70
Weight - 0.666
weight - 700
Weight & dimensions - Depth - 215 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 230 mm
Wi-Fi Network - No
Width Weight & dimensions - 230 mm
Windows operating systems supported Features - Windows 10 x64/Windows 11 x64
Wymiary: Szerokość - 193 mm
Wymiary: Wysokość - 223 mm
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x VGA
Złącza: Złącza na tylnym panelu - 2 x PS/2
Złącza: Złącza na tylnym panelu - 2 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 4 x USB
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x1
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x16
