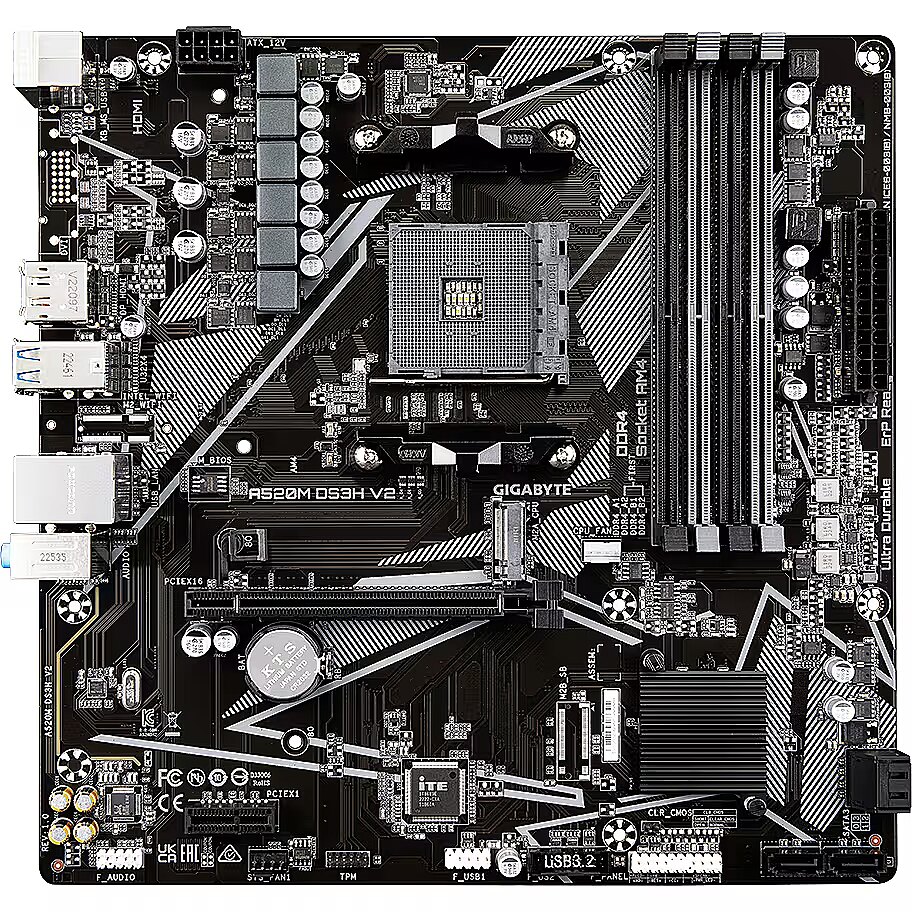

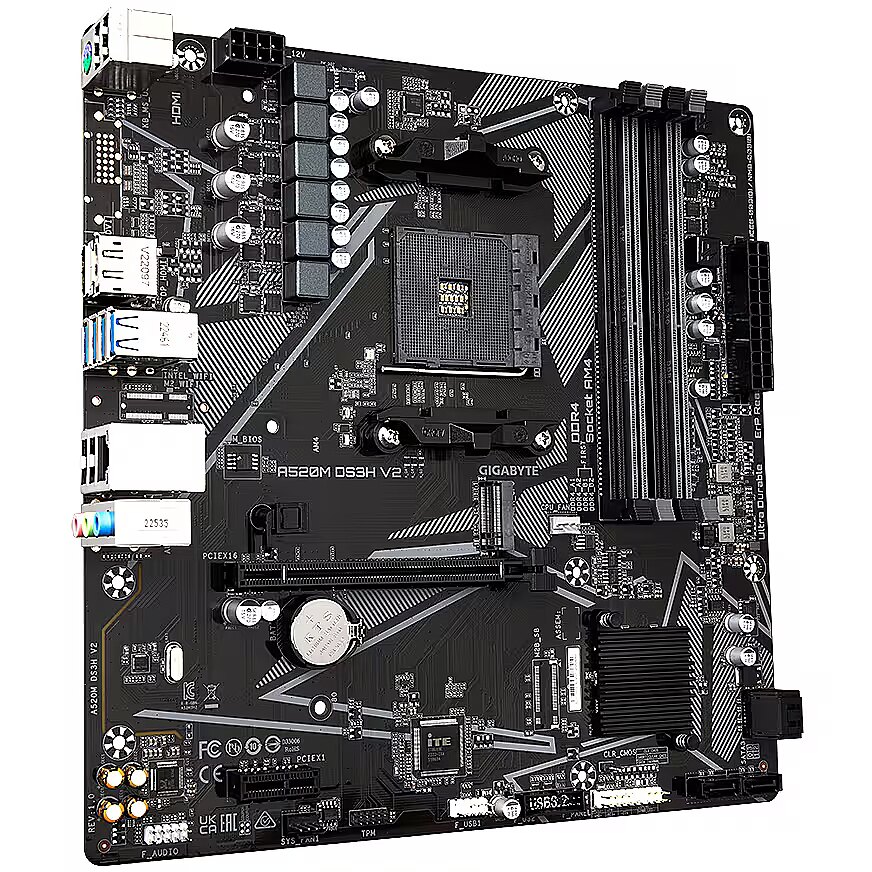

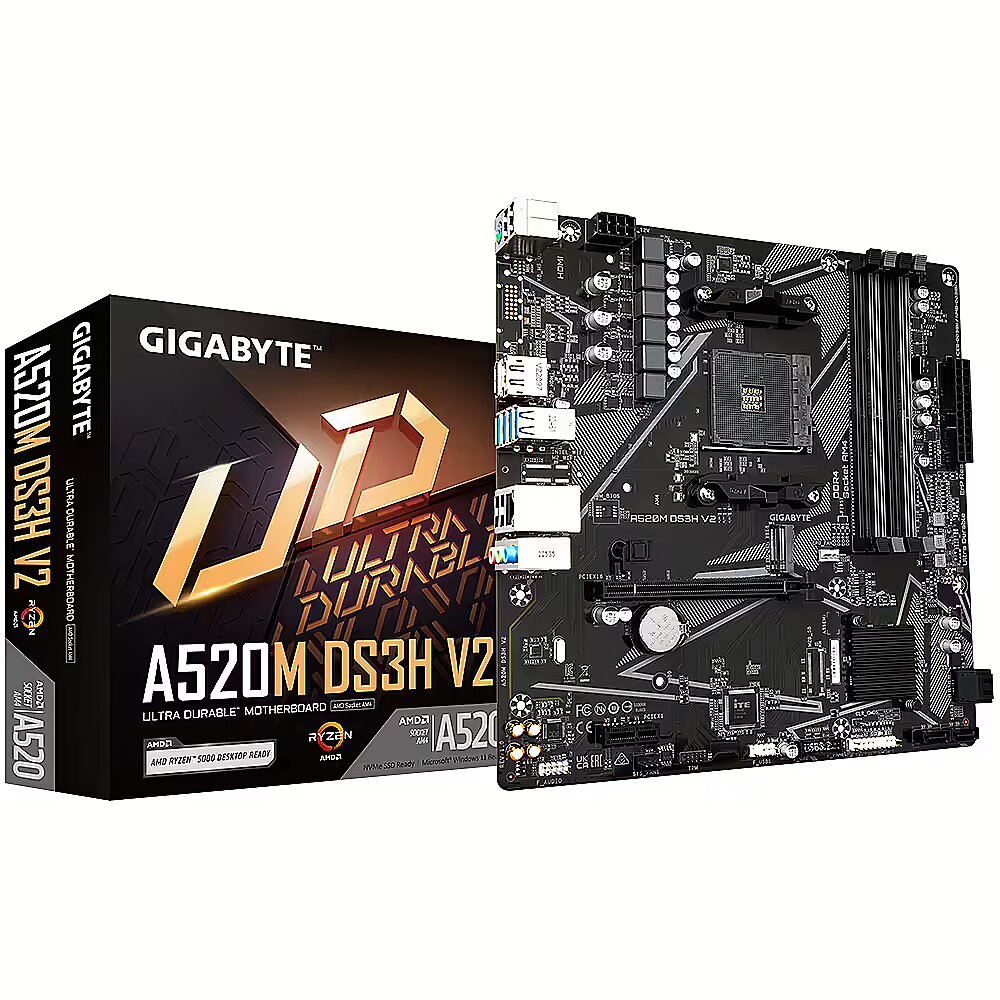

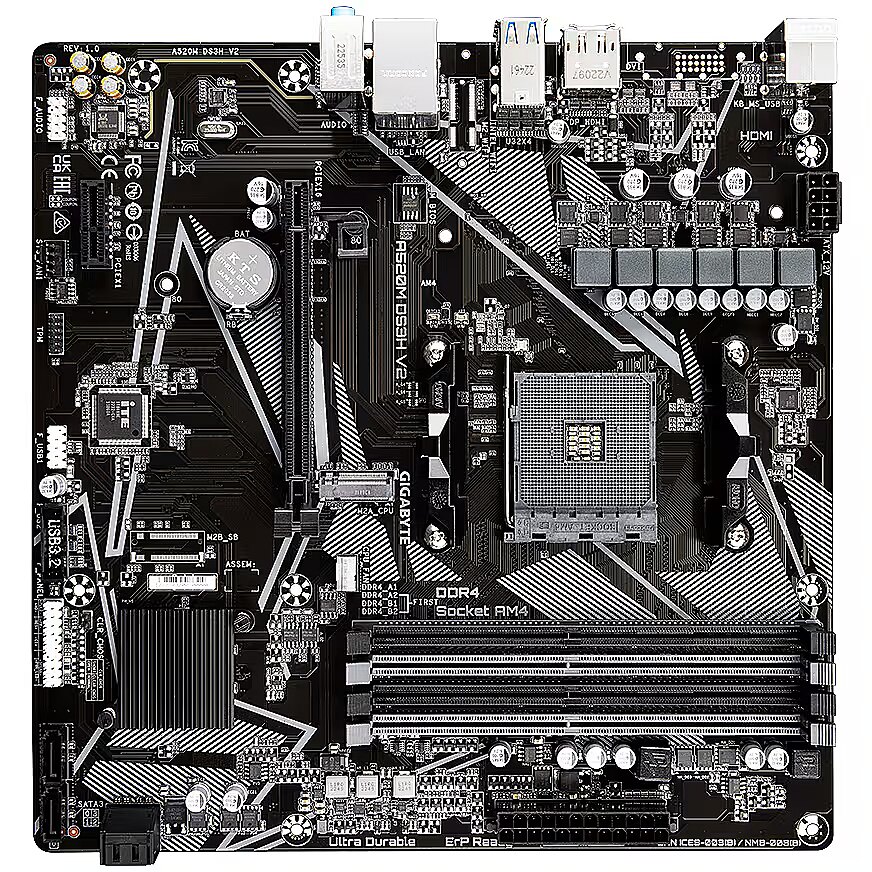

Gigabyte A520M DS3H V2

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 998478 Product code: A520M DS3H V2
In stock >50 units
Warranty: 3 years
64.09 €
Ready for dispatch
tomorrow, 16.09.2025
starting from 6.99 €
Delivery options
  • Posti parcel machine
    Within 1-2 working days
    6.99 €
  • Delivery with Posti courier mail
    Within 1-2 working days
    10.99 €
Main product parameters All parameters
  • Series: Gigabyte Ultra Durable
  • Plate size: mATX
  • Chipset: AMD A520
  • Socket: AM4
  • Type: DDR4
  • RAM Slots: 4
  • Built-in Wi-Fi: Nav
  • M.2 ports: 1
Basic information
Series : Gigabyte Ultra Durable
Plate size mATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD A520

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM4
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR4
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR4 3200MHz (4733MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 1
DVI : 0
HDMI : 1
Integrated sound card : Nav norādīts
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Nav
Built-in Wi-Fi : Nav

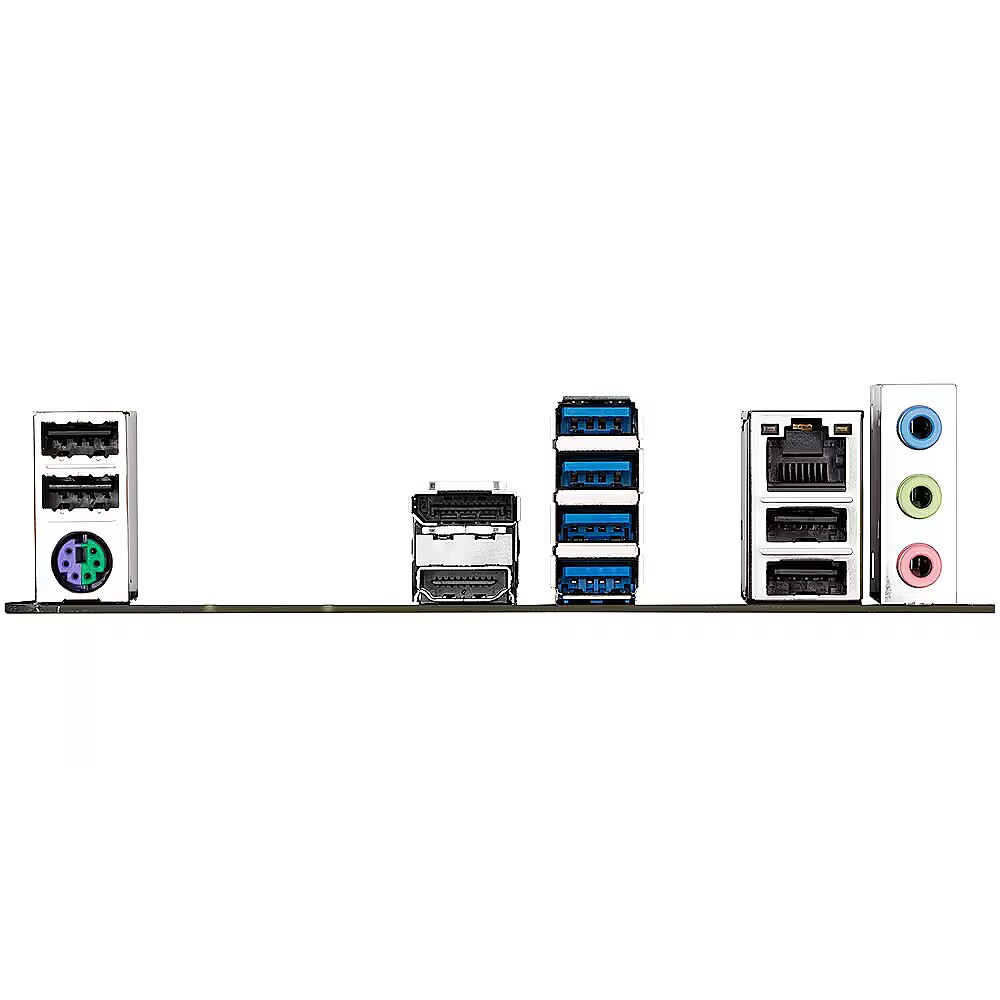

External ports
External USB 2.0 : 2
External USB Type-C (USB 3.2 Gen2) : 0
External USB Type-C (USB 4.0) : 0
External USB 3.0 (USB 3.2 Gen1) : 4
External USB 3.1 (USB 3.2 Gen2) : 0
Internal ports
Internal A-RGB 5V (3-pin) : 0
Internal RGB 12V (4-pin) : 0
Internal USB 2.0 : 1
Internal USB 3.0 : 1
Internal USB Type-C : 0
M.2 ports : 1
SATA3 ports : 4
More detailed specification
Additional information in manufacturers website Gigabyte A520M DS3H V2
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - A520M DS3H V2
Category - Datortehnika :: Datoru komponentes :: Pamatplates
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM4
Category - Root/Electronics/PC parts/Motherboards
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM4
Code - A520M DS3H V2
code - A520M DS3H V2
Dane techniczne: Chipset płyty głównej - AMD A520
Dane techniczne: Grupa produktowa - Płyty główne Gigabyte
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - Gigabyte
Dane techniczne: Przeznaczenie - AMD
Dane techniczne: Standard płyty - micro-ATX
Desc - Mikroshēmu tips | chipset: AMD A520, Plates formfaktors: Micro ATX, Procesora ražotājs: AMD, Ligzda: AM4, DDR tips: DDR4, Atmiņas sloti: 4, Max atmiņas apjoms: 128 GB, WiFi: Nav, M.2 Pieslēgumi: 1, Garantija: 2 gadi
dimensionalWeight - 772
EAN - 4719331854690
ean - 4719331854690
Eans - 4719331854690
EAN_code - 4719331854690
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Features - Audio chip - Realtek ALC887
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Active
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - CPU
Features - PC health monitoring - CPU, LED, Power supply, Temperature, Voltage
Features - PC health monitoring - LED
Features - PC health monitoring - Power supply
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - Power source type - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64
Graphics - Discrete graphics support - Yes
Graphics - HDCP - Yes
Graphics - Maximum resolution - 5120 x 2880 pixels
Graphics - Number of displays supported - 3
Gross weight - 1.00 kg
Gross Weight Kg - 0,7
GTIN - 4719331854690
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of EATX power connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Power fan connector - Yes
Internal I/O - Serial port headers - 1
Internal I/O - Total number of SATA connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek GbE LAN )
LargeDescHTML -
Link - https://www.gigabyte.com/br/Motherboard/A520M-DS3H-V2-rev-11#kf
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - A520M DS3H V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), PCIe 3.0 x16, GbE LAN, USB 3.2 Gen 1
LongSummaryDescription - GIGABYTE A520M DS3H V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), PCIe 3.0 x16, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. USB connector type: USB Type-A
Manufacturer - GigaByte
Manufacturer Code - A520M DS3H V2
Manufacturer Name - Gigabyte
Manufacturer_code - A520M DS3H V2
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2667,2933,3200,3333,3600,4000,4400,4733 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2667
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3200 MHz
Memory - Supported memory clock speeds - 3333
Memory - Supported memory clock speeds - 3600
Memory - Supported memory clock speeds - 4000 MHz
Memory - Supported memory clock speeds - 4400
Memory - Supported memory clock speeds - 4733
Memory - Supported memory module capacities - 1GB
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 16GB, 32GB
Memory - Supported memory module capacities - 2GB
Memory - Supported memory module capacities - 4GB
Memory - Supported memory module capacities - 8GB
Memory - Supported memory module capacities - 16GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Name - Gigabyte A520M DS3H V2
Name - GigaByte A520M DS3H V2 - Socket AM4
name - GIGABYTE A520M DS3H V2, AMD A520 Mainboard - Sockel AM4
Name - Gigabyte | A520M DS3H V2 | Processor family AMD | Processor socket AM4 | DDR4 DIMM | Memory slots 2 | Number of SATA connectors 4 | Chipset AMD A520 | Micro ATX
Name - Pamatplate Gigabyte A520M DS3H V2
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 265.00 mm
Package features > Gross height (mm) - 54.00 mm
Package features > Gross width (mm) - 265.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 228 pc(s)
Package features > Paper/Pasteboard - 190.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security (OEM version)
Realtek 8118 Gaming LAN Bandwidth Control Utility
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Packaging data - Package depth - 265 mm
Packaging data - Package height - 54 mm
Packaging data - Package weight - 810 g
Packaging data - Package width - 265 mm
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 128 GB
Pamięć: Obsługiwana pamięć - DDR4
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR4-2133 (PC4-17000)
Pamięć: Typ obsługiwanej pamięci - DDR4-2400 (PC4-19200)
Pamięć: Typ obsługiwanej pamięci - DDR4-2666 (PC4-21300)
Pamięć: Typ obsługiwanej pamięci - DDR4-2800 (PC4-22400)
Pamięć: Typ obsługiwanej pamięci - DDR4-3200 (PC4-25600)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-3466 (PC4-27700)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-3600 (PC4-28800)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-3866 (PC4-30900)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-4000 (PC4-32000)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-4133 (PC4-33000)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-4400 (PC4-35200)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-4600 (PC4-36800)
Performance > Chipset - AMD A520
Performance > Motherboard form factor - Micro ATX
Procesor: Gniazdo procesora - Socket AM4
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 3000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 4000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 5000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 3000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 4000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 5000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 3000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 5000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 3000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 5000
Processor - Compatible processor series - AMD Ryzen 3000 Series
Processor - Compatible processor series - AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
Processor - Compatible processor series - AMD Ryzen Threadripper 3000 Series
Processor - Compatible processor series - AMD Ryzen Threadripper PRO 3000 WX-Series
Processor - Maximum internal memory supported by processor - 128 GB
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor - Supported processor sockets - Socket AM4
Processor > Compatible processor series - Support for: AMD Ryzen 5000 Series/Ryzen 5000 G-Series/Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
Processor > Processor family - AMD
Processor > Processor socket - AM4
Producent: Nazwa producenta / importera - GigabyteGiga-Byte Technology BVSteenoven 245626 EindhovenHolandiaEmail: EU.grp@gigabyte.com
Producer - Gigabyte
producerCode - A520M DS3H V2
ProducerCode - A520M DS3H V2
ProductName - A520M DS3H V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), PCIe 3.0 x16, GbE LAN, USB 3.2 Gen 1
productName - GIGABYTE A520M DS3H V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), PCIe 3.0 x16, GbE LAN, USB 3.2 Gen 1
productSize - Normal
Rear panel I/O ports - Digital audio optical out - 1
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 2.0
Rear panel I/O ports - DVI-D ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB connector type - USB Type-A
Safety warning - Warnings - Avoid direct contact with sensitive electronic components.
Safety warning - Warnings - Dispose of according to local electro-waste regulations.
Safety warning - Warnings - Store away from water and sources of moisture.
Short description - GIGA A520M DS3H V2 AM4/DDR4/HDMI-DP/µATX
ShortDescription - Socket AM4 | Chipset AMD A520
ShortSummaryDescription - GIGABYTE A520M DS3H V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), PCIe 3.0 x16, GbE LAN, USB 3.2 Gen 1, AMD, Socket AM4, AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series, Socket AM4, 128 GB, DDR4-SDRAM
sizeX - 265
sizeY - 55
sizeZ - 265
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 5
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details - Warranty period - 3 year(s)
Technical details > Net weight - 0.80 kg
Technical details > Producer - Gigabyte
Technical details > Producer product name - A520M DS3H V2
Title - GIGABYTE A520M DS3H V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 4733MHz DDR4 (OC), PCIe 3.0 x16, GbE LAN, USB 3.2 Gen 1
Unit Box Height - 0.6
Unit Box Length - 0.2
Unit Box Width - 0.2
URL - https://www.gigabyte.com/Motherboard/A520M-DS3H-V2-rev-10#kf
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
Weight - 0,84
weight - 800
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 244 mm
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 244 mm
Złącza: Obsługa Raid - tak (0,1,10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 1 x Display Port
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x PS/2
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 2 x USB
Złącza: Złącza na tylnym panelu - 4 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x1
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x16
64.09 €
Gigabyte A520M DS3H V2
Intel technology provider Platinum 2020
All categories
