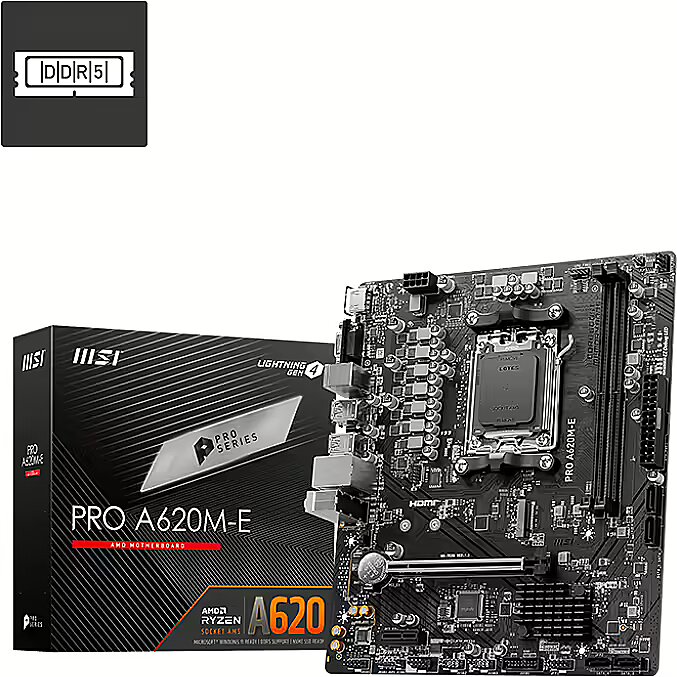

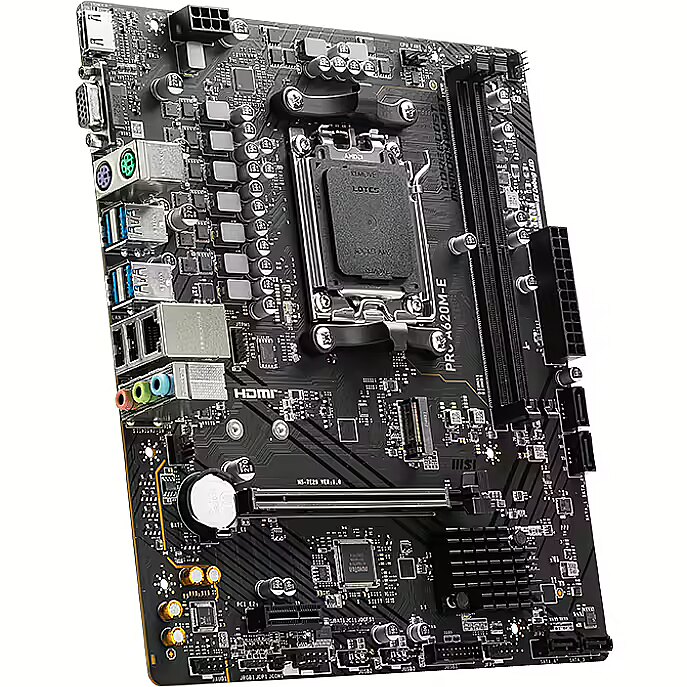

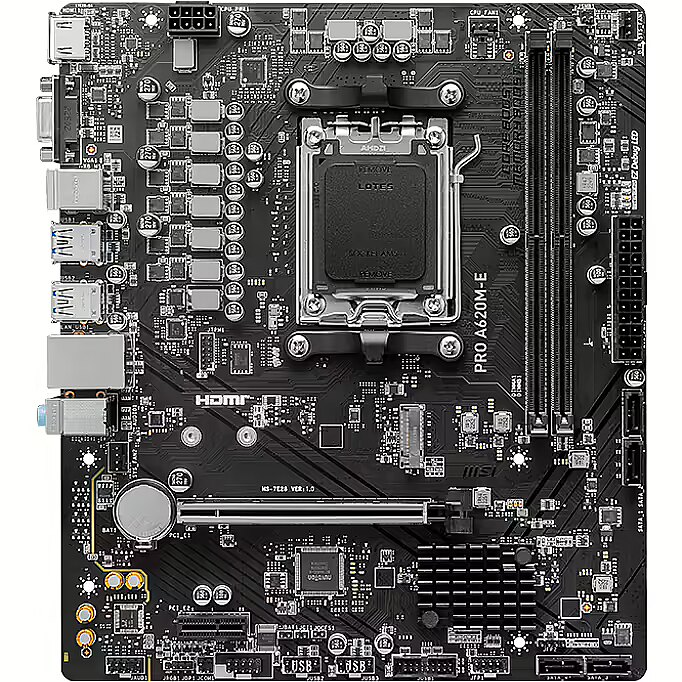

MSI PRO A620M-E

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 975804 Product code: PRO A620M-E
In stock 29 units
Warranty: 3 years
80.80 €
Ready for dispatch
on Thuesday, 21.10.2025
starting from 6.99 €
Delivery options
  • Posti parcel machine
    Within 1-2 working days
    6.99 €
  • Delivery with Posti courier mail
    Within 1-2 working days
    10.99 €
Main product parameters All parameters
  • Series: MSI PRO
  • Plate size: mATX
  • Chipset: AMD A620
  • Socket: AM5
  • Type: DDR5
  • RAM Slots: 2
  • Built-in Wi-Fi: Nav
  • M.2 ports: 1
Basic information
Series : MSI PRO
Plate size mATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD A620

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 2
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5200MHz (6000MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 1
DisplayPort : 0
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC897
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Nav
Built-in Wi-Fi : Nav

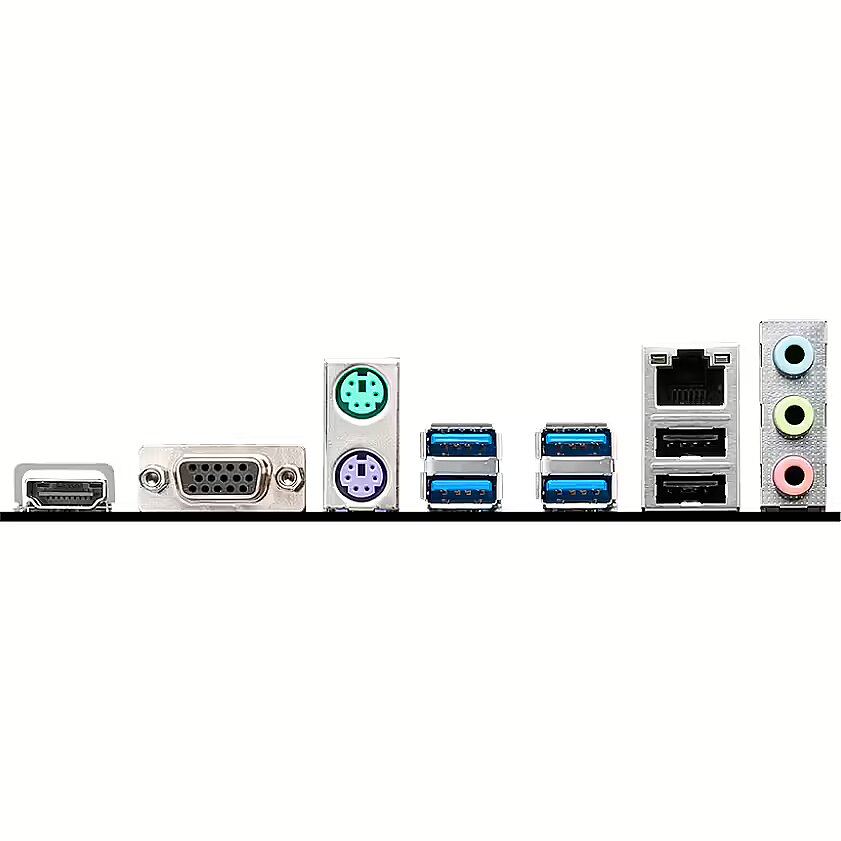

External ports
External USB 2.0 : 2
External USB Type-C (USB 3.2 Gen2) : 0
External USB Type-C (USB 4.0) : 0
External USB 3.0 (USB 3.2 Gen1) : 4
External USB 3.1 (USB 3.2 Gen2) : 0
Internal ports
Internal A-RGB 5V (3-pin) : 0
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 0
M.2 ports : 1
SATA3 ports : 4
More detailed specification
Additional information in manufacturers website MSI PRO A620M-E
- 1
- 0824142322406
- 824142322406
- 4711377093804
- MSI PRO A620M-E motherboard AMD A620 Socket AM5 micro ATX
- No
- PRO A620M-E
- Socket AM5
- Socket AM5
- Yes
- Yes
15pin D-sub Input/Output connectors - 1
-
Audio port Input/Output connectors - 3
BIOS -
Brand - MSI
Category -
- PC Components|Mainboards|AMD Mainboards|Socket AM5
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
-
-
- Motherboards - AMD AM5
Chipset - AMD A620
Chipset manufacturer - AMD
Chipset type - AMD A620
code - 7E28-001R
- PRO A620M-E
COM connector / port - Yes
Description - PRO A620M-E Supports AMD Ryzen 7000 series desktop processors Supports DDR5 memory, dual-channel DDR5 6800+MHz (OC) Core Boost: With superior layout and digital power design to support more cores and deliver better performance Memory Boost: Advanced technology to ensure clean data signals for the best performance, stability and compatibility Lightning-fast gaming: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 connector AUDIO ENHANCEMENT: Reward your ears with studio-quality audio for the most immersive gaming experience Steel Armor: Protects VGA cards against bending and electromagnetic interference for better performance, stability and durability
Description -
-
Detailed data on disk/drive interfaces - 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
dimensionalWeight -
dimension depth - 60 mm
dimension height - 260 mm
Dimensions - 211 x 243.84 mm
dimension weight -
dimension width - 260 mm
- 4711377093804
ean - 4711377093804
- 4711377093804
Expansion slots -
Expansion slots -
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe x 1
Expansion slots - 1 x PCIe x 16
- 1
- 1
- 1
- 1
-
-
- 1 x HDMI
- 1 x Line Out
- 1 x MIC
- 1 x PS/2 Keyboard
- 1 x PS/2 Mouse
- 1 x RJ-45
- 2 x USB 2.0
- 4 x USB 3.0
-
-
- PC
- Active
- AMD A620
- AMD
-
- ATX
- Black
FireWire (IEEE 1394) - No
Form factor -
Form Factor -
- 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800 MHz
Graphics - 1x HDMI HDMITM 2.1 support, maximum resolution 4K 60 Hz* 1x VGA VGA support, maximum resolution 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Only available on processors with integrated graphics. Graphics specifications may vary depending on the installed processor.
- Yes
-
- No
Gross weight - 1.64 kg
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio -
Integrated CPU - No
Integrated LAN - Realtek RTL8111H (Gigabit)
Integrated video - Depending on CPU
- Yes
- Yes
- Yes
- 1
- 1
- 4
- Yes
- Yes
- 4
- Yes
- 6
- 6
- 4
-
Link - https://www.msi.com/Motherboard/PRO-A620M-E
LongDesc - BUSINESS ELEGANCEThe PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.Chipset HeatsinkThe chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.CORE BOOSTCore Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.MSI DRIVER UTILITY INSTALLEROnce connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks.Windows 11 certifiedWith MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 11. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.XL ClipThe enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.EZ debug LEDOnboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.Keep Out ZoneMSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.Doube ESD ProtectionDouble ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.LIGHTNING GEN 4 PCI-EMSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.LATEST DDR5 MEMORY WITH SMT SLOTA huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance.The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.MSI CENTERMSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.Mystic LightCreate your own colorful masterpiece with ease. Splash any color you want with just a few clicks!True ColorOptimized monitor's brightness and color in several modes for different situation, you can also customize by yourself.User ScenarioOne click for setting your computer, even customize own profile as your preference.Hardware MonitoringGet immediate access to your critical hardware information in real-time.Profile SettingsTune select motherboard settings in the OC Setting menu, where options to boost core performance and optimize system cooling are presented in an intuitive interface.Fan CenterAssume complete control of your fans with Fan Center. Set up to four CPU temperature targets and the motherboard will adjust fan speeds automatically.System DiagnosisRestore and backup your MSI storage devices in one click to provide stable system usage, you can even monitor the storage status to prevent system crash or data missing.EXCLUSIVE UI OF AIDA64 EXTREMEMSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.CLICK BIOS 5Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!EXPO(EXTENDED PROFILES FOR OVERCLOCKING)Choose from a preset EXPO profile and automatically overclock compatible DDR memory.M-FLASHConveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.HARDWARE MONITORGet immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.MEMORY TRY ITGet extreme speed out of your system memory and get more performance.SEARCH & FAVORITESA permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.SYSTEM SAFETYAll MSI PRO series motherboards have SECURITY function in BIOS to protect every private files for no matter business or daily use.SECURE BOOTSecure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, and the operating system. The PC boots while the signatures are valid.RESIZABLE BARResizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.EXTEND YOUR RGB EXPERIENCE WITH EASEAdd more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.RGBSupports 12V RGB DevicesAmbient LinkSynchronize lighting theme with compatible ligthting devicesPRO A620M-ESupports AMD Ryzen™ 7000 Series Desktop ProcessorsSupports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)Core Boost : With premium layout and digital power design to support more cores and provide better performanceMemory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibilityLightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experienceSteel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
- Supports AMD Ryzen 7000 , AM5, 2x DDR5 96GB Max, 1DPC 1R 6800MHz Max, 1DPC 2R 6000MHz Max, Dual-Channel, non-ECC, un-buffered, AMD EXPO, 1x HDMI 2.1, 4k 60Hz, 1x VGA, 2048x1536 50Hz, 1x PCI-E x16 4.0, 1x PCI-E x1 3.0, 1x M.2, 4x SATA 6G, 6x USB 2.0, 6x USB 3.2 Gen.1 Type-A, Realtek ALC897, 7.1-Channel, High Definition Audio, 1x ATX_PWR, 1xCPU_PWR, 1x CPU Fan, 2x System Fan, 2x JFP, 1x JCI, 1x JAUD, 1x JCOM, 1x RGB LED, 1x TPM 2.0, 4x USB 2.0, 2x USB 3.2 Gen1 Type A,4x EZ Debug LED, mATX 211mmx243.84mm
- MSI PRO A620M-E. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 3840 x 2160 pixels. USB connector type: USB Type-A
LPT connector / port - No
- 1
Manufacturer - MSI
- 7E28-001R
Max. number of SATA devices - 4
Max memory size - 96 GB
Memory - ECC сompatibility - Non-ECC
-
-
-
- 2
- 6000
- 6000 MHz
-
- DDR5
Memory bus frequency -
Memory bus frequency -
Memory bus frequency -
Memory bus frequency -
Memory bus frequency -
Memory bus frequency -
Memory bus frequency -
Memory bus frequency -
Memory bus frequency - 5600 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6800 MHz
Memory slots - 2
Memory type - DDR5
Memory type - DDR5
- PRO A620M-E
- 7E28-001R
Name - AM5 MSI A620M-E Pro mATX
name - Motherboard PRO A620M-E AM5 2DDR5 HDMI/M2 mATX
name - MSI Pro A620M-E, AMD A620 Mainboard - Sockel AM5, DDR5
Name - MSI PRO A620M-E - Socket AM5 - motherboard
Name - MSI | PRO A620M-E | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
- Gigabit Ethernet
-
Network interface - 1 x 10/100/1000 Mbit/s
Network interface -  Realtek RTL8111H Gigabit LAN
- 2
- 6
- 0
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors -
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 2 x 4pin Chassis fan
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 4 x USB 2.0/1.1
Other information -
-
-
- Yes
- 257 mm
- 352 mm
- 55 mm
-
-
- 179 pc(s)
-
-
- 0.68 kg
- 0.05 kg
-
-
- No
- SATA
PCI-Express 3.0 1x Expansion slots - 1
- 1
Processor - AMD Opteron series - 7000
-
- 1
- AMD
- Socket AM5
- AMD
- AM5
-
-
-
producer - MSI
producerCode - 7E28-001R
- MSI PRO A620M-E motherboard AMD A620 Socket AM5 micro ATX
- PRO A620M-E
- 0.6 kg
productSize - Normal
PS/2 Input/Output connectors - 2
RAID -
RAID - Yes
- 1
- 1
- 1
- 2.1
- 1
Rear panel I/O ports - Line-in - Yes
- Yes
- 2
- 6
- 6
-
- 1
RJ45 Input/Output connectors - 1
-
-
-
SATA Interface - Yes
- MSI PRO A620M-E, AMD, Socket AM5, AMD Ryzen™ 7, Socket AM5, DDR5-SDRAM, 96 GB
sizeX - 260
sizeY -
sizeZ - 55
Socket - SAM5
Software -
Sound card -
Special functions -
- 5
- 0
- 0, 1, 10
- 1
- 10
- M.2, PCI Express, SATA
-
Supported operating systems -
Supported operating systems - Windows 10
-
Technical details > Producer - MSI
- PRO A620M-E
TPM - Header
Unit Box Height - 0.055
Unit Box Length - 0.26
Unit Box Width - 0.26
-
- 0.893 kg
- 20
URL - https://us.msi.com/Motherboard/PRO-A620M-E
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
- 4
- Yes
USB ports at back panel - 6
USB ports on motherboard - 6
Vendor Homepage - www.msi.com/Motherboard/PRO-A620M-E
vendpn - PRO A620M-E
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
-
warrantyLength - 36
warrantyType -
weight -
Weight -
Weight - 0.8
-
- 211 mm
