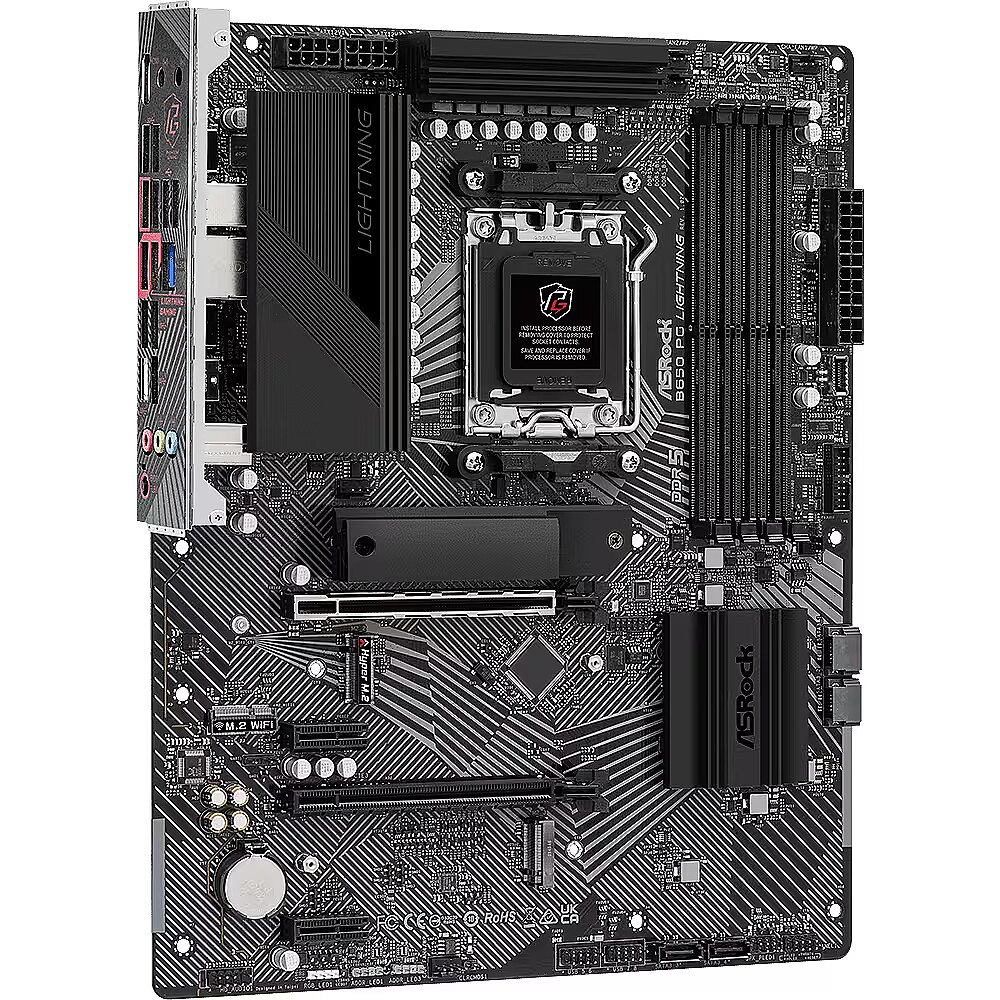

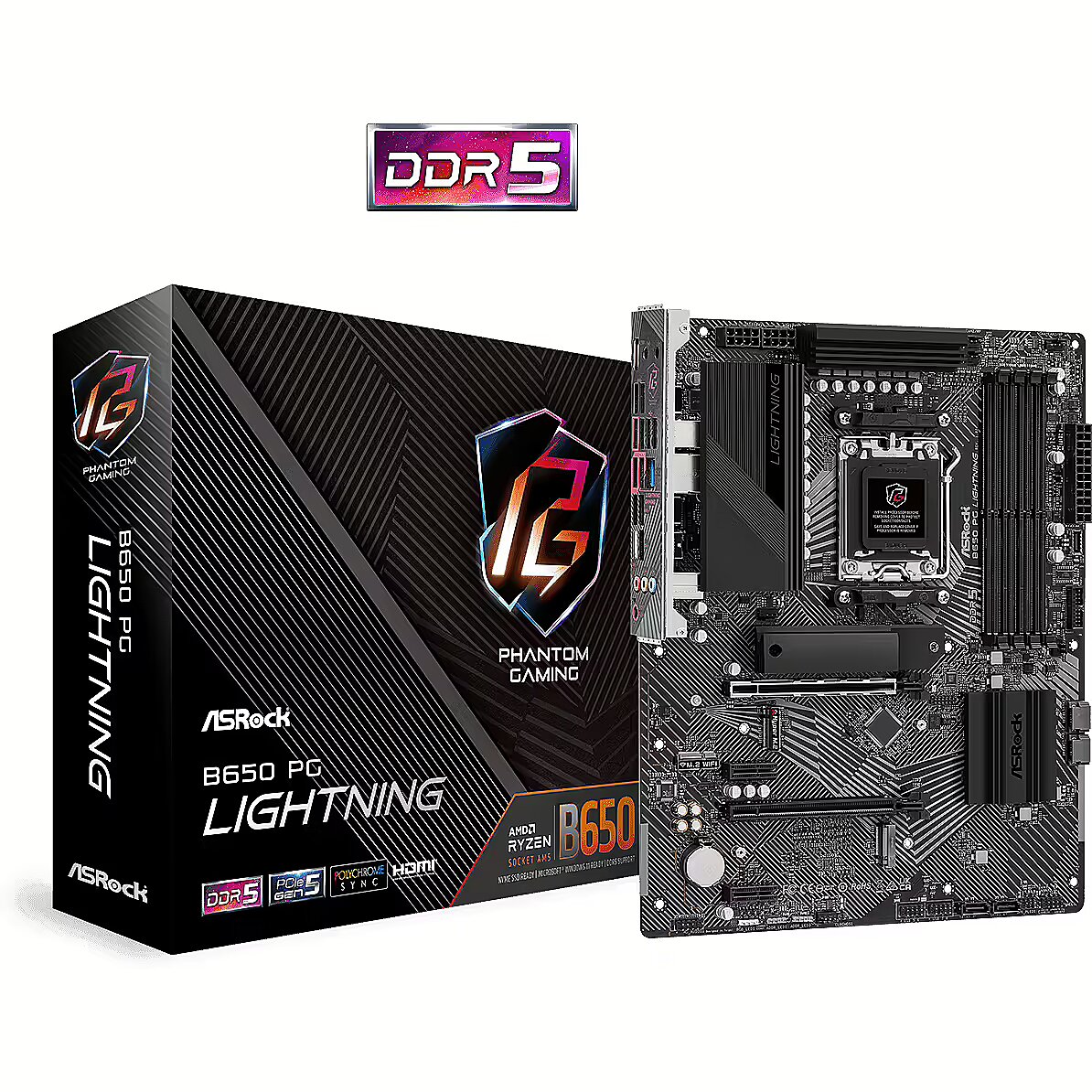

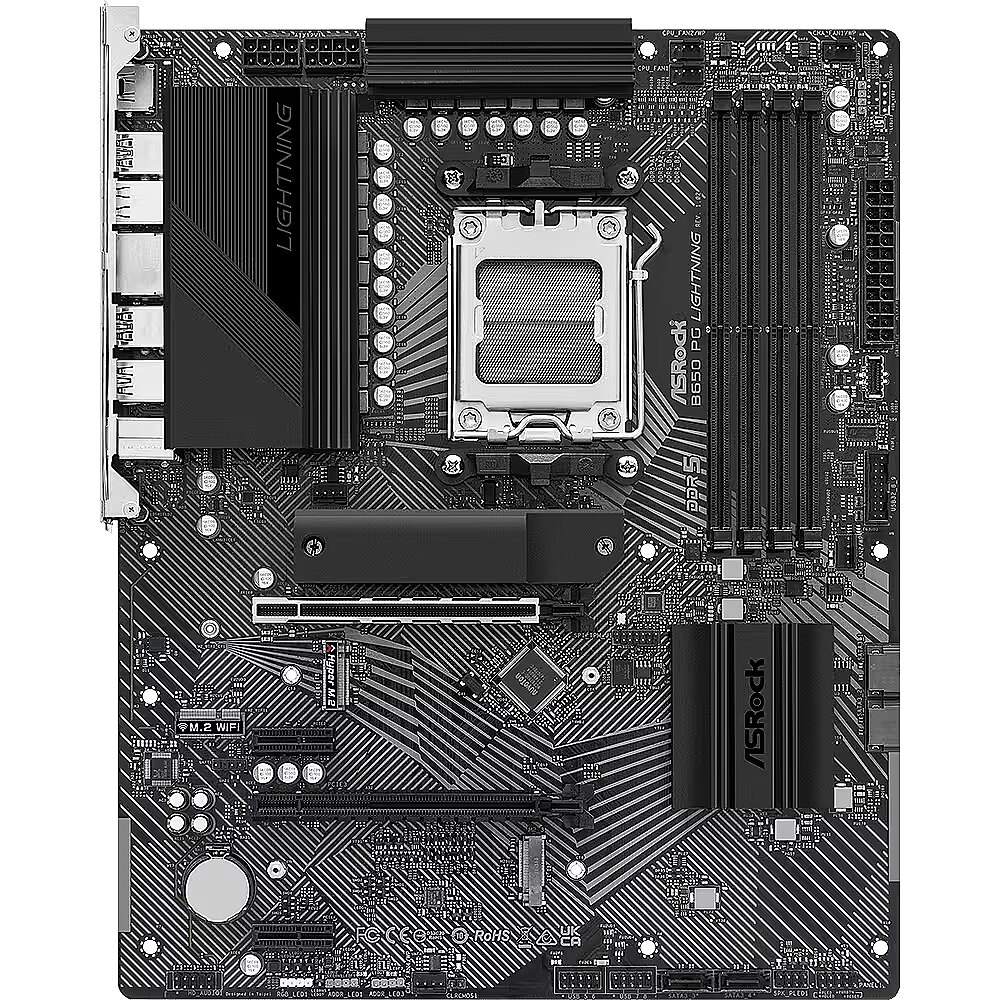

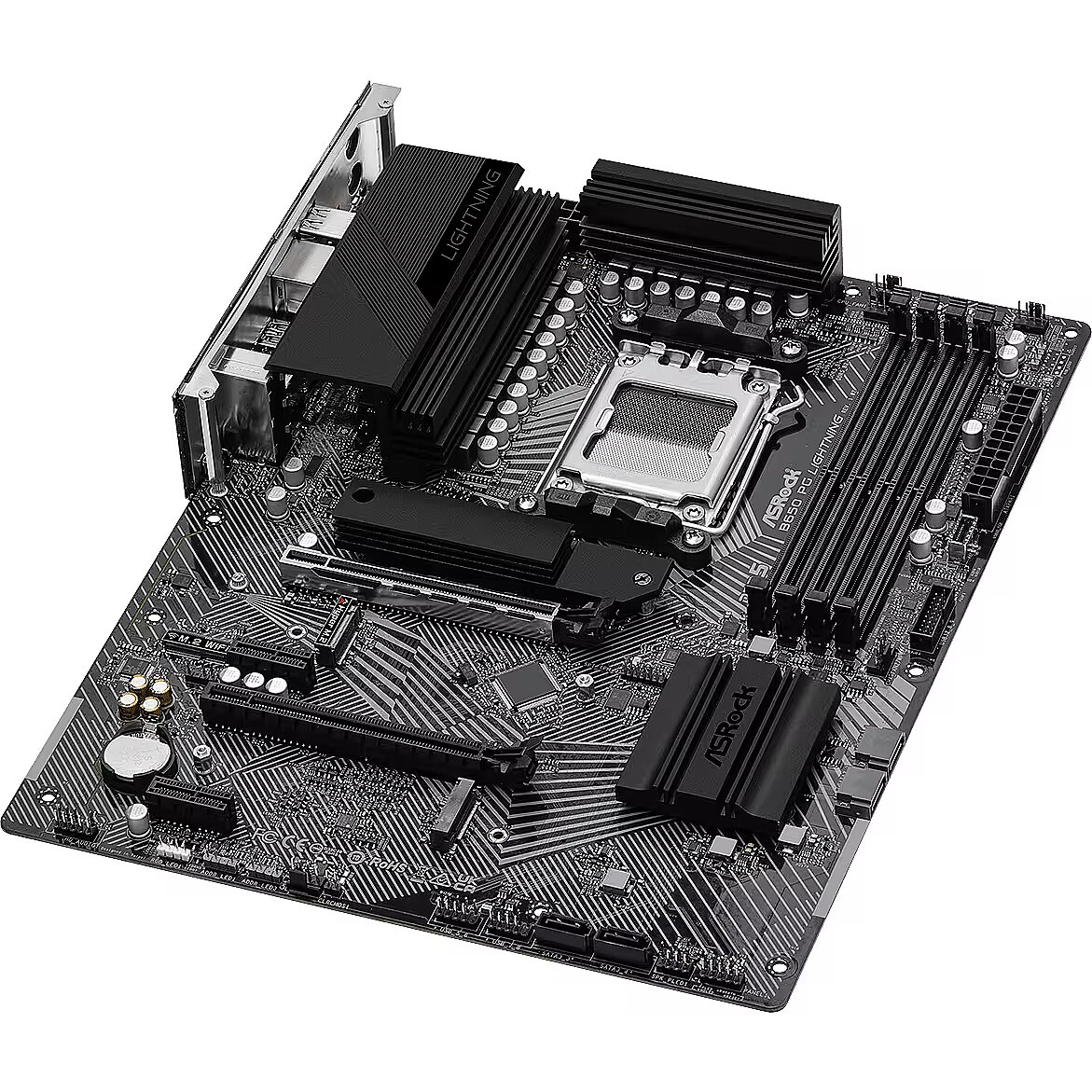

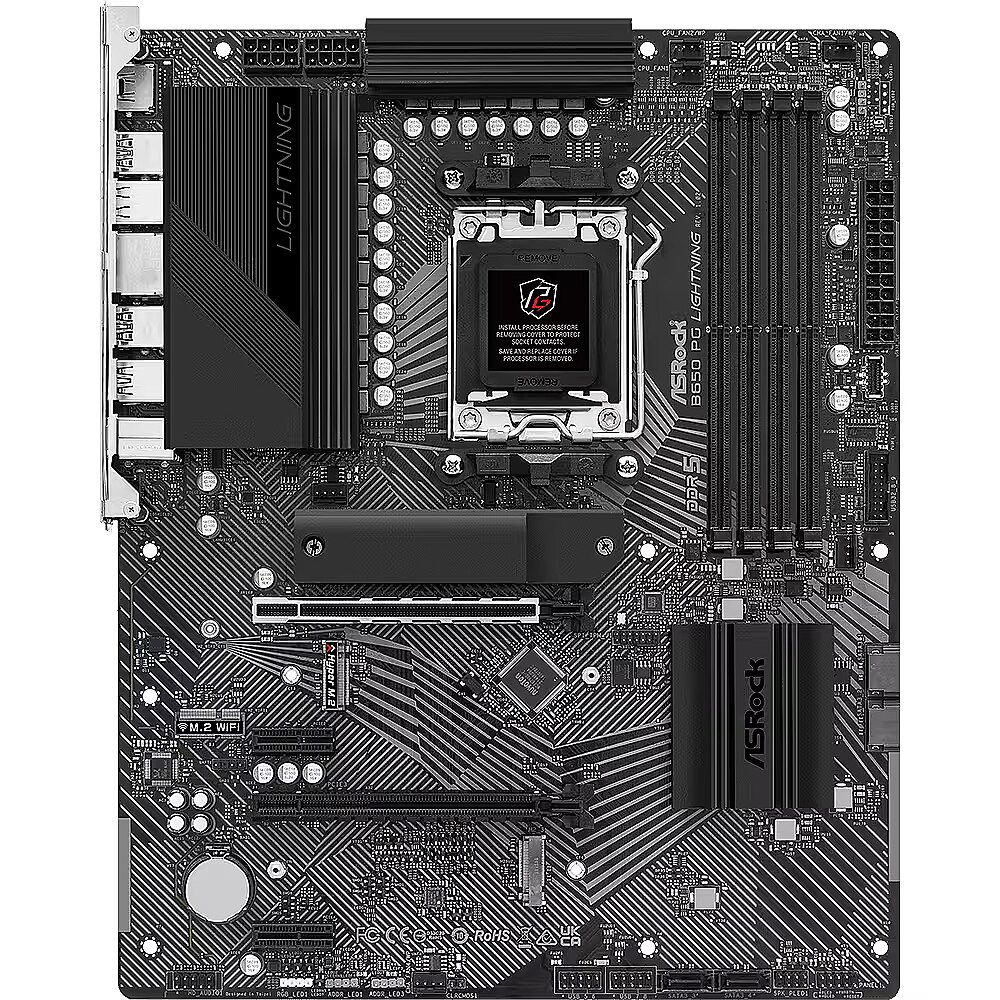

Asrock B650 PG Lightning

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 899889 Product code: B650 PG LIGHTNING
In stock 5 units
Warranty: 3 years
161.03 €
Ready for dispatch
on Wednesday, 06.08.2025
starting from 6.99 €
Delivery options
  • Posti parcel machine
    Within 1-2 working days
    6.99 €
  • Delivery with Posti courier mail
    Within 1-2 working days
    10.99 €
Main product parameters All parameters
  • Series: ASRock Phantom Gaming
  • Plate size: ATX
  • Chipset: AMD B650
  • Socket: AM5
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Nav
  • M.2 ports: 3
Basic information
Series : ASRock Phantom Gaming
Plate size ATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD B650

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5200MHz (6400MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 0
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC897
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Nav
Built-in Wi-Fi : Nav
External ports
External USB 2.0 : 4
External USB Type-C (USB 3.2 Gen2) : 1
External USB Type-C (USB 4.0) : 0
External USB 3.0 (USB 3.2 Gen1) : 7
External USB 3.1 (USB 3.2 Gen2) : 0
Internal ports
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 1
M.2 ports : 3
SATA3 ports : 4
Power supply units (PSU)
More detailed specification
Additional information in manufacturers website Asrock B650 PG Lightning
Accessories included - 1 x Operating Instructions 2 x SATA data cables 3 x Screws for M.2 sockets
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset - AMD B650
Chipset manufacturer - AMD
Chipset type - AMD B650
code - 90-MXBK20-A0UAYZ
COM connector / port - No
CPU socket - Socket AM5
Dane techniczne: Chipset płyty głównej - AMD B650
Dane techniczne: Grupa produktowa - Płyty główne ASRock
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - ASRock
Dane techniczne: Przeznaczenie - AMD
Dane techniczne: Standard płyty - ATX
Description - - Supports AMD Ryzen™ 7000 Series Processors - 14+2+1 Phase Power Design, SPS - 4 x DDR5 DIMMs, supports up to 6400+(OC) - 2 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key-E for WiFi - Graphics Output Options: 1 HDMI - CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio - 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2), 4 SATA3 - 1 USB 3.2 Gen2x2 Type-C (Rear), 1 USB 3.2 Gen2 Type-C (Front), 9 USB 3.2 Gen1 (7 Rear, 2 Front), 8 USB 2.0 (4 Rear, 4 Front) - Realtek 2.5G LAN
Description - B650 PG Lightning motherboard Supports AMD Ryzen 7000 series processors 14+2+1 phase power design, SPS 4 x DDR5 DIMMs, support up to 6400+(OC) 2 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key-E for Wi-Fi Graphics output options: 1 HDMI 7.1-channel HD audio (Realtek ALC897 audio codec), Nahimic Audio 1 incredible M.2 card (PCIe Gen5x4) 1 Hyper M.2 (PCIe Gen4x4) 1 M.2 (PCIe Gen4x2) 4 SATA3 1 USB 3.2 Gen2x2 Type-C port (rear) 1 USB 3.2 Gen2 Type-C port (front) 9 USB 3.2 Gen1 (7 rear, 2 front) 8 USB 2.0 ports (4 rear, 4 front) Realtek 2.5G LAN
Designation - CE+WEEE
Detailed data on disk/drive interfaces - CPU: 1 x Blazing M.2 slot (M2_1, Key M), supports 2280 PCIe Gen5x4 (128 Gbps)* mode. 1 x Hyper M.2 slot (M2_2, Key M), supports 2280 PCIe Gen4x4 (64 Gbps) mode*. Chipset: 1 x M.2 slot (M2_3, Key M), supports 2280 PCIe Gen4x2 mode (32 Gbps)* 4 SATA3 6.0Gb/s connectors *Supports booting from NVMe SSD. Supports ASRock U.2 kit
dimensionalWeight - 1716
dimension depth - 73 mm
dimension height - 360 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 1720 g
dimension width - 300 mm
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC897 7.1)
ean - 4710483940910
EAN - 4710483940910
Eans - 4710483940910
EAN_code - 4710483940910
Expansion slots - 1 x M.2
Expansion slots - 2 x PCIe 4.0 x 1
Expansion slots - 2 x PCIe 4.0 x 16
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1

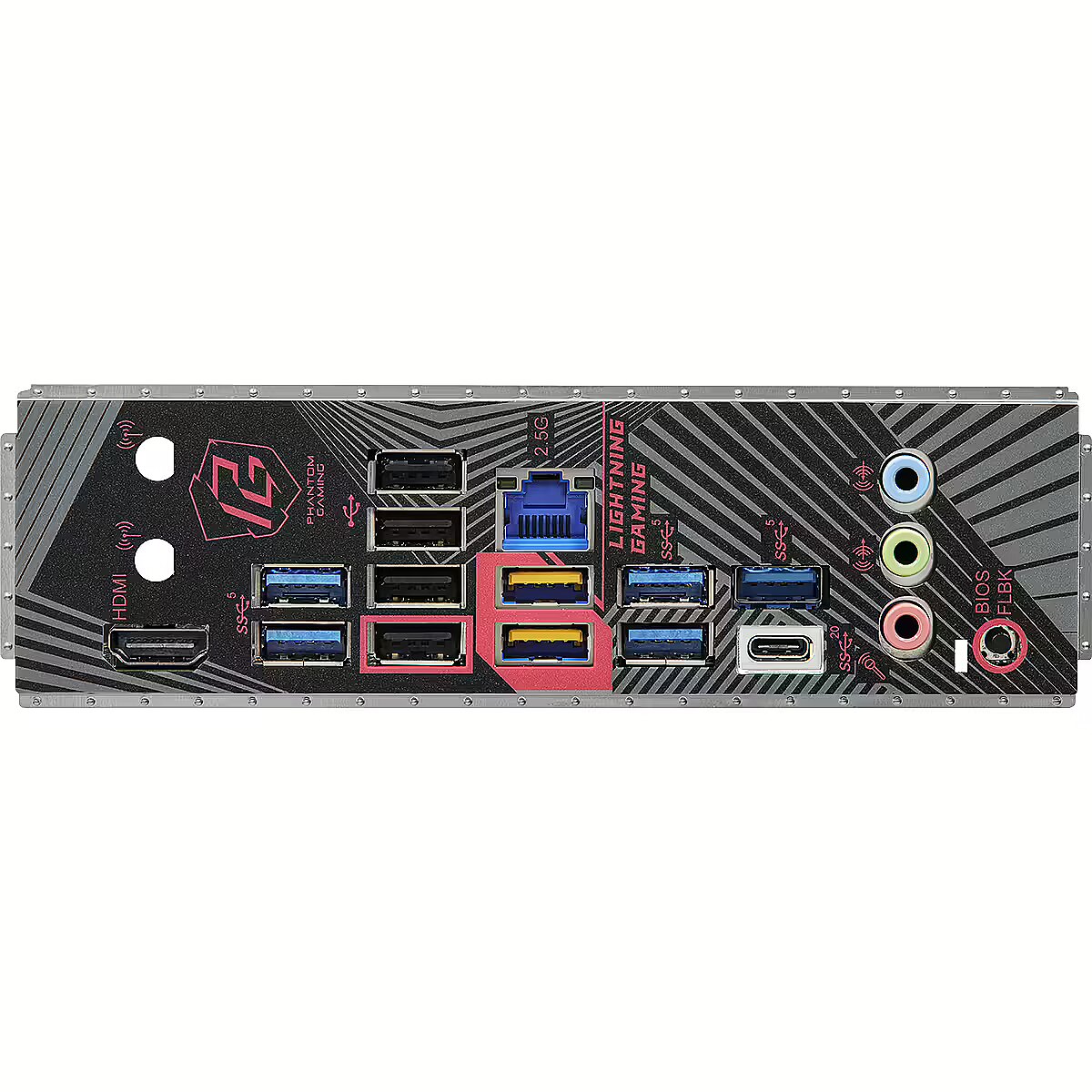

External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1 Type-C
External connectors - 4 x USB 2.0
External connectors - 7 x USB 3.0
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 6400 MHz
Graphics - Integrated AMD RDNA 2 graphics (Support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL Compatible with 8G, supports HDR, HDCP 2.3 and max. resolutionup to 4K 120Hz
Graphics - Graphics card - AMD RDNA 2
Graphics - Graphics card family - AMD
Graphics - HDCP - Yes
Graphics - On-board graphics card - Yes
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories - - 1 x User Manual
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Komunikacja: Zintegrowana karta sieciowa - tak (2.5 Gigabit LAN)
LPT connector / port - No
M.2 Expansion slots - 3
Manufacturer - Asrock
Manufacturer - ASRock
Manufacturer_code - 90-MXBK20-A0UAYZ
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6666
Memory - Supported memory clock speeds - 6800
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 6400 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Microphone Input/Output connectors - 1
Model - B650 PG Lightning
MPN - 90-MXBK20-A0UAYZ
Name - AM5 ASRock B650 PG Lightning DDR5
Name - ASRock B650 PG Lightning
name - ASRock B650 PG Lightning, AMD B650 Mainboard - Sockel AM5, DDR5
Name - ASRock B650 PG LIGHTNING, Motherboard - AM5
name - B650 PG LIGHTNING AM5 4DDR5 HDMI M.2 ATX
Network - Bluetooth - No
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - Wi-Fi - No
Network interface -
Network interface - 1 x 10/100/1000/2500 Mbit/s
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 2
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 9
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Other information -
Packaging content - Cables included - SATA
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 192 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-5800 (PC5-46400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6400 (PC5-51200)
PCI-Express 4.0 1x Expansion slots - 2
PCI-Express 4.0 16x Expansion slots - 2
Procesor: Gniazdo procesora - Socket AM5
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 8000
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor family - AMD Ryzen
Producent: Nazwa producenta / importera - ASRockASRock Europe B.V.Bijsterhuizen 11-116546 AR NijmegenEmail: sales@asrock.nl
producer - ASRock
Producer - ASRock
producerCode - B650 PG LIGHTNING
ProducerCode - B650 PG Lightning
productName - Asrock B650 PG Lightning AMD B650 Socket AM5 ATX
Product Net Weight - 1.4 kg
productSize - Normal
RAID - SATA 0, 1, 10; NVMe 0, 1, 10
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 7
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
ShortDescription - Socket AM5 | Chipset B650 | DDR5
sizeX - 361
sizeY - 301
sizeZ - 79
Socket - SAM5
Software - Software ASRock Motherboard Utility (Phantom Gaming Tuning) ASRock Phantom Gaming LAN Software ASRock Polychrome SYNC* UEFI ASRock Full HD UEFI ASRock Automatic Driver Installer ASRock Instant Flash
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions -
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA II
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
TPM - Header
Unit Box Height - 0.08
Unit Box Length - 0.36
Unit Box Width - 0.3
Unit Calculated Volume - 0.00864 cubm
Unit Calculated Weight - 1.71 kg
Units per Shipping Box - 1
USB-C Input/Output connectors - 2
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 7
USB 3.2 Interface - Yes
USB ports at back panel - 12
USB ports on motherboard - 6
Vendor Homepage - www.asrock.com/mb/AMD/B650%20PG%20Lightning/
vendpn - B650 PG LIGHTNING
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 1,70
Weight - 1.72
weight - 1714
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 305 mm
Złącza: Obsługa Raid - tak (0, 1, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen2) typ C
Złącza: Złącza na płycie głównej - 2 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2 x2) typ C
Złącza: Złącza na tylnym panelu - 4 x USB
Złącza: Złącza na tylnym panelu - 7 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza PCI-E (liczba slotów) - 2 x PCI-Express x1
Złącza: Złącza PCI-E (liczba slotów) - 2 x PCI-Express x16
161.03 €
Asrock B650 PG Lightning
Intel technology provider Platinum 2020
All categories
