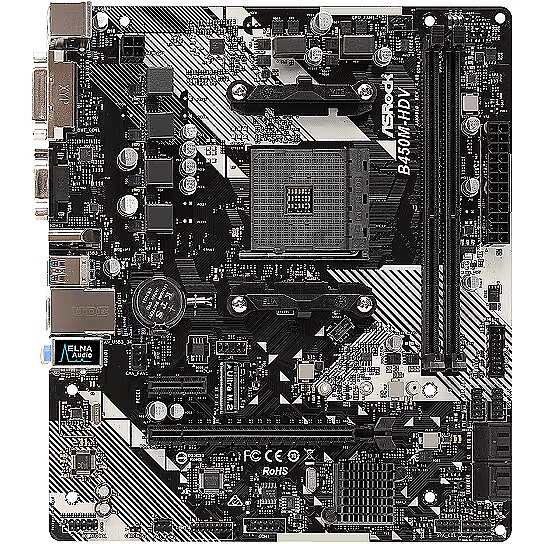

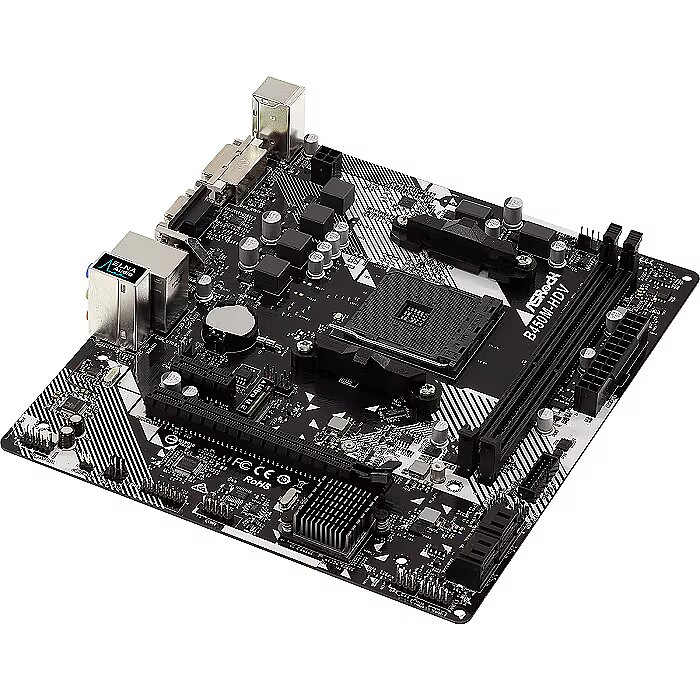

ASRock B450M-HDV R4.0

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 278971 Product code: B450M-HDV R4.0
Can be ordered 1 units Availability: 14 days after order approval
Warranty: 2 years
67.66 €
Ready for dispatch
13.02.2026
starting from 6.99 €
Delivery options
  • Posti parcel machine
    Within 1-2 working days
    6.99 €
  • Delivery with Posti courier mail
    Within 1-2 working days
    10.99 €
Main product parameters All parameters
  • Series: Nav
  • Plate size: mATX
  • Chipset: AMD B450
  • Socket: AM4
  • Type: DDR4
  • RAM Slots: 2
  • Built-in Wi-Fi: Nav
  • M.2 ports: 1
Basic information
Series : Nav
Plate size mATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD B450

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM4
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR4
RAM Slots 2
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR4 2667MHz (3200MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 1
DisplayPort : 0
DVI : 1
HDMI : 1
Integrated sound card : Realtek ALC887
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Nav
Built-in Wi-Fi : Nav
External ports
External USB 2.0 : 2
External USB Type-C (USB 3.2 Gen2) : 0
External USB Type-C (USB 4.0) : 0
External USB 3.0 (USB 3.2 Gen1) : 4
External USB 3.1 (USB 3.2 Gen2) : 0
Internal ports
Internal A-RGB 5V (3-pin) : 0
Internal RGB 12V (4-pin) : 0
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 0
M.2 ports : 1
SATA3 ports : 4
More detailed specification
Additional information in manufacturers website ASRock B450M-HDV R4.0
12V power connector Internal I/O - Yes
Accessories included - Quick Installation Guide Support CD I/O Shield SATA Data Cables x 2 Screws for M.2 Sockets x 2
ACPI version BIOS - 5.1
Audio chip Features - Realtek ALC887
Audio output channels Features - 7.1 channels
BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support Supports "Plug and Play" ACPI 5.1 compliance wake up events Supports jumperfree SMBIOS 2.3 support DRAM Voltage multi-adjustment
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS memory size BIOS - 128 Mbit
BIOS type BIOS - UEFI AMI
Bundled software Packaging content - AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Cables included Packaging content - SATA
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
category_en - Computers & Components > Computer components > Motherboards > AMD motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > AMD mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > AMD mātesplates
Certification Features - - FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Chassis intrusion connector Internal I/O - Yes
Chipset manufacturer - AMD
Chipset type - AMD Promontory B450
Clear CMOS jumper BIOS - Yes
COM connector / port - Yes
Compatible processor series Processor - AMD Athlon/AMD Ryzen 2000 Series/AMD Ryzen 3000 Series
Component for Features - PC
CPU fan connector Internal I/O - Yes
CPU socket - Socket AM4
Dane techniczne: Chipset płyty głównej - AMD B450
Dane techniczne: Grupa produktowa - Płyty główne ASRock
Dane techniczne: Gwarancja - 2 lata w serwisie sprzedawcy
Dane techniczne: Producent - ASRock
Dane techniczne: Przeznaczenie - AMD
Dane techniczne: Standard płyty - micro-ATX
Depth Weight & dimensions - 201 mm
Description - AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. SSDs are fast, but expensive, and offer minimal capacity. Mechanical hard drives boast large capacity for a low price, but are much slower than an SSD. AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds: SSD responsiveness, and mechanical hard disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data. Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs. Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card. 4K x 2K
Composed by a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format. Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime. ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles. Digi Power
This motherboard uses a next generation Hybrid Digi Power design to bring precise control and smooth power. With the ensured efficient and clean power delivery to the CPU, the stability and lifespan of motherboard is also greatly enhanced. A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities. Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes. Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
more
Description - Motherboard B450M-HDV R4.0 AM4 2DDR4 VGA/DVI/HDMI/M.2 uATX
description_en - Motherboard ASRock B450M-HDV R4.0
FeaturesMotherboard form factor: micro ATXMotherboard chipset: AMD B450Motherboard chipset family: AMDComponent: PC (computer)Audio output channels: 7.1 channelsAudio chip: Realtek ALC887Windows support: Windows 10 Education/Enterprise/Home x64Certification: FCC, CE; ErP/EuP ready (requires ErP/EuP ready PSU)
ProcessorProcessor manufacturer: AMDProcessor socket: Socket AM4Compatible processor series: AMD Athlon; AMD Ryzen 2000 Series; AMD Ryzen 3000 Series
MemorySupported memory types: DDR4-SDRAMMemory slots: 2Memory slot type: DIMMMemory channels: Dual-channelECC compatibility: ECC & Non-ECC (unbuffered)Maximum internal memory: 32 GBUnbuffered memory: YesSupported memory clock speeds: 2133 / 2400 / 2667 MHz (and higher via OC where supported)
Expansion SlotsPCI Express x16 (Gen 3.x) slots: 3PCI Express x1 (Gen 2.x) slots: 1
GraphicsParallel processing tech support: Not supportedOn-board graphics card: Yes (via CPU with iGPU)Graphics card family: AMDMaximum resolution: 4096 × 2160DirectX version: 12.0HDCP: Yes
NetworkingEthernet/LAN: YesEthernet interface type: Gigabit EthernetLAN controller: Realtek RTL8111HWake-on-LAN ready: YesWi-Fi: No
Internal I/OUSB 2.0 connectors: 2USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1Number of SATA III connectors: 4Front panel audio connector: YesCPU fan connector: YesNumber of chassis fan connectors: 2Chassis intrusion connector: YesNumber of COM connectors: 1TPM connector: Yes12V power connector: Yes
Rear Panel I/O PortsUSB 2.0 ports: 2USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4Ethernet LAN (RJ-45) ports: 1PS/2 ports: 1VGA (D-Sub) ports: 1HDMI ports: 1DVI-D ports: 1Headphone outputs: 1Microphone in: Yes
Storage ControllersSupported storage drive types: HDD & SSDSupported storage interfaces: M.2, PCI Express 3.0, SATA IIIRAID levels: 0 / 1 / 10
BIOSBIOS type: UEFI AMIClear CMOS jumper: Yes
Dimensions & WeightWidth: 230 mmDepth: 201 mmHeight: 70 mmWeight: 465 g
description_lv - Motherboard ASRock B450M-HDV R4.0
FeaturesMotherboard form factor: micro ATXMotherboard chipset: AMD B450Motherboard chipset family: AMDComponent: PC (computer)Audio output channels: 7.1 channelsAudio chip: Realtek ALC887Windows support: Windows 10 Education/Enterprise/Home x64Certification: FCC, CE; ErP/EuP ready (requires ErP/EuP ready PSU)
ProcessorProcessor manufacturer: AMDProcessor socket: Socket AM4Compatible processor series: AMD Athlon; AMD Ryzen 2000 Series; AMD Ryzen 3000 Series
MemorySupported memory types: DDR4-SDRAMMemory slots: 2Memory slot type: DIMMMemory channels: Dual-channelECC compatibility: ECC & Non-ECC (unbuffered)Maximum internal memory: 32 GBUnbuffered memory: YesSupported memory clock speeds: 2133 / 2400 / 2667 MHz (and higher via OC where supported)
Expansion SlotsPCI Express x16 (Gen 3.x) slots: 3PCI Express x1 (Gen 2.x) slots: 1
GraphicsParallel processing tech support: Not supportedOn-board graphics card: Yes (via CPU with iGPU)Graphics card family: AMDMaximum resolution: 4096 × 2160DirectX version: 12.0HDCP: Yes
NetworkingEthernet/LAN: YesEthernet interface type: Gigabit EthernetLAN controller: Realtek RTL8111HWake-on-LAN ready: YesWi-Fi: No
Internal I/OUSB 2.0 connectors: 2USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1Number of SATA III connectors: 4Front panel audio connector: YesCPU fan connector: YesNumber of chassis fan connectors: 2Chassis intrusion connector: YesNumber of COM connectors: 1TPM connector: Yes12V power connector: Yes
Rear Panel I/O PortsUSB 2.0 ports: 2USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4Ethernet LAN (RJ-45) ports: 1PS/2 ports: 1VGA (D-Sub) ports: 1HDMI ports: 1DVI-D ports: 1Headphone outputs: 1Microphone in: Yes
Storage ControllersSupported storage drive types: HDD & SSDSupported storage interfaces: M.2, PCI Express 3.0, SATA IIIRAID levels: 0 / 1 / 10
BIOSBIOS type: UEFI AMIClear CMOS jumper: Yes
Dimensions & WeightWidth: 230 mmDepth: 201 mmHeight: 70 mmWeight: 465 g
description_ru - Motherboard ASRock B450M-HDV R4.0
FeaturesMotherboard form factor: micro ATXMotherboard chipset: AMD B450Motherboard chipset family: AMDComponent: PC (computer)Audio output channels: 7.1 channelsAudio chip: Realtek ALC887Windows support: Windows 10 Education/Enterprise/Home x64Certification: FCC, CE; ErP/EuP ready (requires ErP/EuP ready PSU)
ProcessorProcessor manufacturer: AMDProcessor socket: Socket AM4Compatible processor series: AMD Athlon; AMD Ryzen 2000 Series; AMD Ryzen 3000 Series
MemorySupported memory types: DDR4-SDRAMMemory slots: 2Memory slot type: DIMMMemory channels: Dual-channelECC compatibility: ECC & Non-ECC (unbuffered)Maximum internal memory: 32 GBUnbuffered memory: YesSupported memory clock speeds: 2133 / 2400 / 2667 MHz (and higher via OC where supported)
Expansion SlotsPCI Express x16 (Gen 3.x) slots: 3PCI Express x1 (Gen 2.x) slots: 1
GraphicsParallel processing tech support: Not supportedOn-board graphics card: Yes (via CPU with iGPU)Graphics card family: AMDMaximum resolution: 4096 × 2160DirectX version: 12.0HDCP: Yes
NetworkingEthernet/LAN: YesEthernet interface type: Gigabit EthernetLAN controller: Realtek RTL8111HWake-on-LAN ready: YesWi-Fi: No
Internal I/OUSB 2.0 connectors: 2USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1Number of SATA III connectors: 4Front panel audio connector: YesCPU fan connector: YesNumber of chassis fan connectors: 2Chassis intrusion connector: YesNumber of COM connectors: 1TPM connector: Yes12V power connector: Yes
Rear Panel I/O PortsUSB 2.0 ports: 2USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4Ethernet LAN (RJ-45) ports: 1PS/2 ports: 1VGA (D-Sub) ports: 1HDMI ports: 1DVI-D ports: 1Headphone outputs: 1Microphone in: Yes
Storage ControllersSupported storage drive types: HDD & SSDSupported storage interfaces: M.2, PCI Express 3.0, SATA IIIRAID levels: 0 / 1 / 10
BIOSBIOS type: UEFI AMIClear CMOS jumper: Yes
Dimensions & WeightWidth: 230 mmDepth: 201 mmHeight: 70 mmWeight: 465 g
Designation - CE+WEEE
Detailed data on disk/drive interfaces - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4
dimensionalWeight - 825
dimension depth - 58 mm
dimension height - 275 mm
Dimensions - 23.0 cm x 20.1 cm
dimension weight - 743 g
dimension width - 240 mm
DirectX version Graphics - 12.0
Drivers included Packaging content - Yes
DVI-D ports quantity Rear panel I/O ports - 1
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC887 - 7.1)
ean - 4717677337617
EAN - 4717677337617
Eans - 4717677337617
ECC сompatibility Memory - ECC & Non-ECC
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1 x PCIe 2.0 x 1
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - PCI Express x1 (Gen 2.x) slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 3

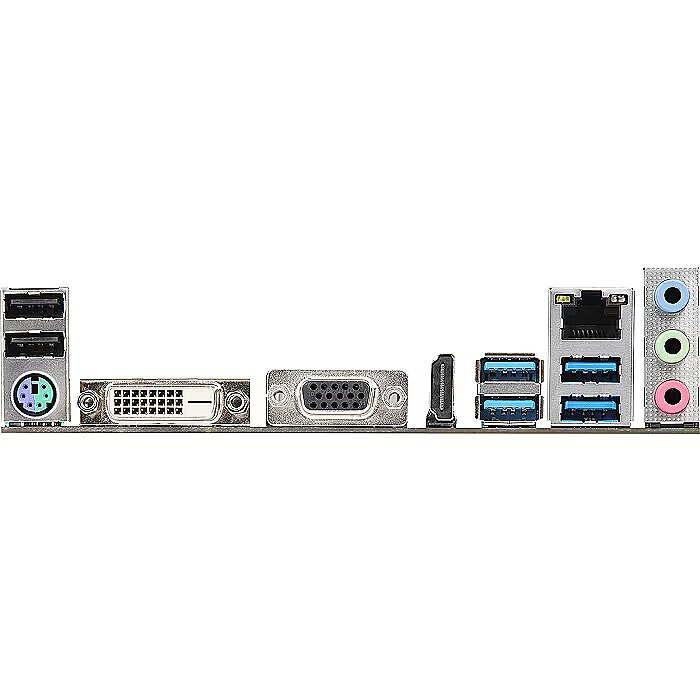

External connectors - 1 x D-Sub
External connectors - 1 x DVI-D
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC887
Features - Audio output channels - 7.1 channels
Features - Certification - - FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Features - Motherboard chipset - AMD B450
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - Windows operating systems supported - Windows 10 Education x64
Features - Windows operating systems supported - Windows 10 Enterprise x64
Features - Windows operating systems supported - Windows 10 Home x64
Features - Windows operating systems supported - Windows 10 Pro x64
Features - Windows operating systems supported - Windows 10 x64
FireWire (IEEE 1394) - No
Form factor - micro ATX
Front panel audio connector Internal I/O - Yes
Graphics - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU DirectX 12, Pixel Shader 5.0 Shared memory default 2GB. Max Shared memory supports up to 16GB. Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports HDCP 1.4 with DVI-D and HDMI Ports Supports 4K Ultra HD (UHD) playback with HDMI Port
Graphics - DirectX version - 12.0
Graphics - Graphics card family - AMD
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - On-board graphics card - Yes
Graphics - Parallel processing technology support - Not supported
Graphics card family Graphics - AMD
gross_weight - 0.54 kg
guarantee - 24
guarantee_type - normal
Harmonized System (HS) code Logistics data - 84733020
HDCP Graphics - Yes
HDMI ports quantity Rear panel I/O ports - 1
Headphone outputs Rear panel I/O ports - 1
Height Weight & dimensions - 70 mm
Integrated CPU - No
Internal I/O - 12V power connector - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek RTL8111H GbE LAN)
LAN controller Network - Realtek RTL8111H
Logistics data - Harmonized System (HS) code - 84733020
LPT connector / port - No
Manufacturer - ASRock
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Maximum internal memory Memory - 32 GB
Maximum resolution Graphics - 4096 x 2160 pixels
Max memory size - 32 GB
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 32 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2667
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3200 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2667 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3200 MHz
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Memory type - DDR4
Microphone in Rear panel I/O ports - Yes
Model - 90-MXB9N0-A0UAYZ
Model - B4B450M-HDV R4.0
Motherboard chipset family Features - AMD
Motherboard chipset Features - AMD B450
Motherboard form factor Features - micro ATX
MPN - 90-MXB9N0-A0UAYZ
Name - AM4 ASRock B450M-HDV R4.0 mATX
Name - ASRock B450M-HDV R4.0
name - Motherboard B450M-HDV R4.0 AM4 2DDR4 VGA/DVI/HDMI/M.2 uATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8111H
Network - Wake-on-LAN ready - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE
Number of chassis fan connectors Internal I/O - 2
Number of COM connectors Internal I/O - 1
Number of DDR4 slots - 2
Number of memory slots Memory - 2
Number of SATA III connectors Internal I/O - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
On-board graphics card Graphics - Yes
Onboard connectors - 1 x 3pin Chassis fan
Onboard connectors - 1 x 4pin 12V power
Onboard connectors - 1 x 4pin Chassis fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 4 x SATA III 6Gb/s
Other features - Quick installation guide - Yes
Other features - Utilities included - Yes
Other features - Weight - 465 g
Other information -
Packaging content - Bundled software - AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 2 szt.
Pamięć: Maks. pojemność pamięci - 64 GB
Pamięć: Obsługiwana pamięć - DDR4
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR4-2133 (PC4-17000)
Pamięć: Typ obsługiwanej pamięci - DDR4-2400 (PC4-19200)
Pamięć: Typ obsługiwanej pamięci - DDR4-2666 (PC4-21300)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-2933 (PC4-23400)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-3200 (PC4-25600)
Parallel processing technology support Graphics - Not supported
PCI Express x1 (Gen 2.x) slots Expansion slots - 1
PCI Express x16 (Gen 3.x) slots Expansion slots - 3
Procesor: Gniazdo procesora - Socket AM4
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 3000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 3000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 3000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 3000
Processor - Compatible processor series - AMD Athlon
Processor - Compatible processor series - AMD Ryzen 2000 Series
Processor - Compatible processor series - AMD Ryzen 3000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor family - AMD Ryzen
Processor manufacturer Processor - AMD
Processor socket Processor - Socket AM4
Producent: Nazwa producenta / importera - ASRock
ASRock Europe B.V.
Bijsterhuizen 11-11
6546 AR Nijmegen

producer - ASRock
Producer - ASRock
producerCode - B450M-HDV R4.0
ProducerCode - B450M-HDV R4.0
productName - Asrock B450M-HDV R4.0 AMD B450 Socket AM4 micro ATX
productSize - Normal
PS/2 ports quantity Rear panel I/O ports - 1
Quick installation guide Other features - Yes
RAID - Yes
RAID levels Storage controllers - 0/1/10
Rear panel I/O ports - DVI-D ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
Safety warning - Warnings - Avoid direct contact with sensitive electronic components.
Safety warning - Warnings - Dispose of according to local electro-waste regulations.
Safety warning - Warnings - Store away from water and sources of moisture.
ShortDescription - Socket AM4 | Chipset AMD B450
sizeX - 60
sizeY - 275
sizeZ - 250
Software - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Sound card - 7.1 CH HD Audio (Realtek ALC887 Audio Codec) Supports Surge Protection ELNA Audio Caps
Special functions - Software ASRock A-Tuning ASRock XFast LAN UEFI ASRock Full HD UEFI ASRock Instant Flash ASRock Easy RAID Installer
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 3.0, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - Asrock B450M-HDV R4.0. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Athlon, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Graphics card family: AMD, Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
Supported memory clock speeds Memory - 2133/2400/2667/2933/3200 MHz
Supported memory types Memory - DDR4-SDRAM
Supported operating systems - Windows 10
Supported storage drive interfaces Storage controllers - M.2,PCI Express 3.0,SATA III
Supported storage drive types Storage controllers - HDD & SSD
System Management BIOS (SMBIOS) version BIOS - 2.3
title_en - ASRock B450M-HDV R4.0 Motherboard mATX / AMD AM4
title_lv - ASRock B450M-HDV R4.0 Motherboard mATX / AMD AM4
title_ru - ASRock B450M-HDV R4.0 Motherboard mATX / AMD AM4
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.24
Unit Box Length - 0.06
Unit Box Width - 0.275
Unit Calculated Volume - 0.004423 cubm
Unit Calculated Weight - 0.809 kg
Units per Shipping Box - 20
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 4
USB ports at back panel - 6
USB ports on motherboard - 6
Utilities included Other features - Yes
Vendor Homepage - https://www.asrock.com/MB/AMD/B450M-HDV%20R4.0/index.asp#Overview
vendpn - B450M-HDV R4.0
VGA (D-Sub) ports quantity Rear panel I/O ports - 1
Wake-on-LAN ready Network - Yes
Warranty - 36 months
warrantyLength - 24
warrantyType - G
weight - 0.465 kg
Weight - 0.744
weight - 790
Weight & dimensions - Depth - 201 mm
Weight & dimensions - Height - 70 mm
Weight & dimensions - Width - 230 mm
Weight Other features - 465 g
Wi-Fi Network - No
Width Weight & dimensions - 230 mm
Windows operating systems supported Features - Windows 10 Education x64/Windows 10 Enterprise x64/Windows 10 Home x64/Windows 10 Pro x64/Windows 10 x64
Wymiary: Szerokość - 201 mm
Wymiary: Wysokość - 231 mm
Złącza: Obsługa Raid - tak (0,1,10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2
Złącza: Złącza na płycie głównej - 1 x USB 3.1
Złącza: Złącza na tylnym panelu - 1 x DVI-D
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x PS/2
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 2 x USB
Złącza: Złącza na tylnym panelu - 4 x USB 3.1
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x1
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x16
67.66 €
ASRock B450M-HDV R4.0
Intel technology provider Platinum 2020
All categories
