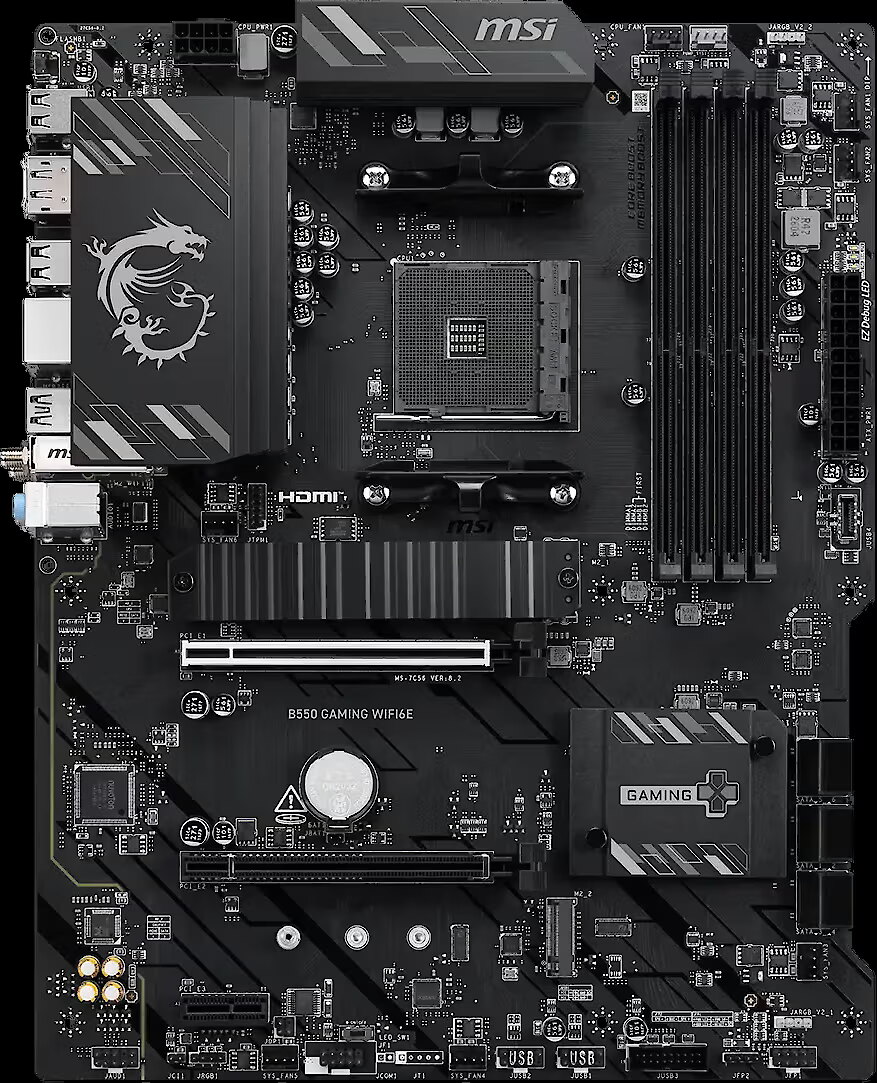

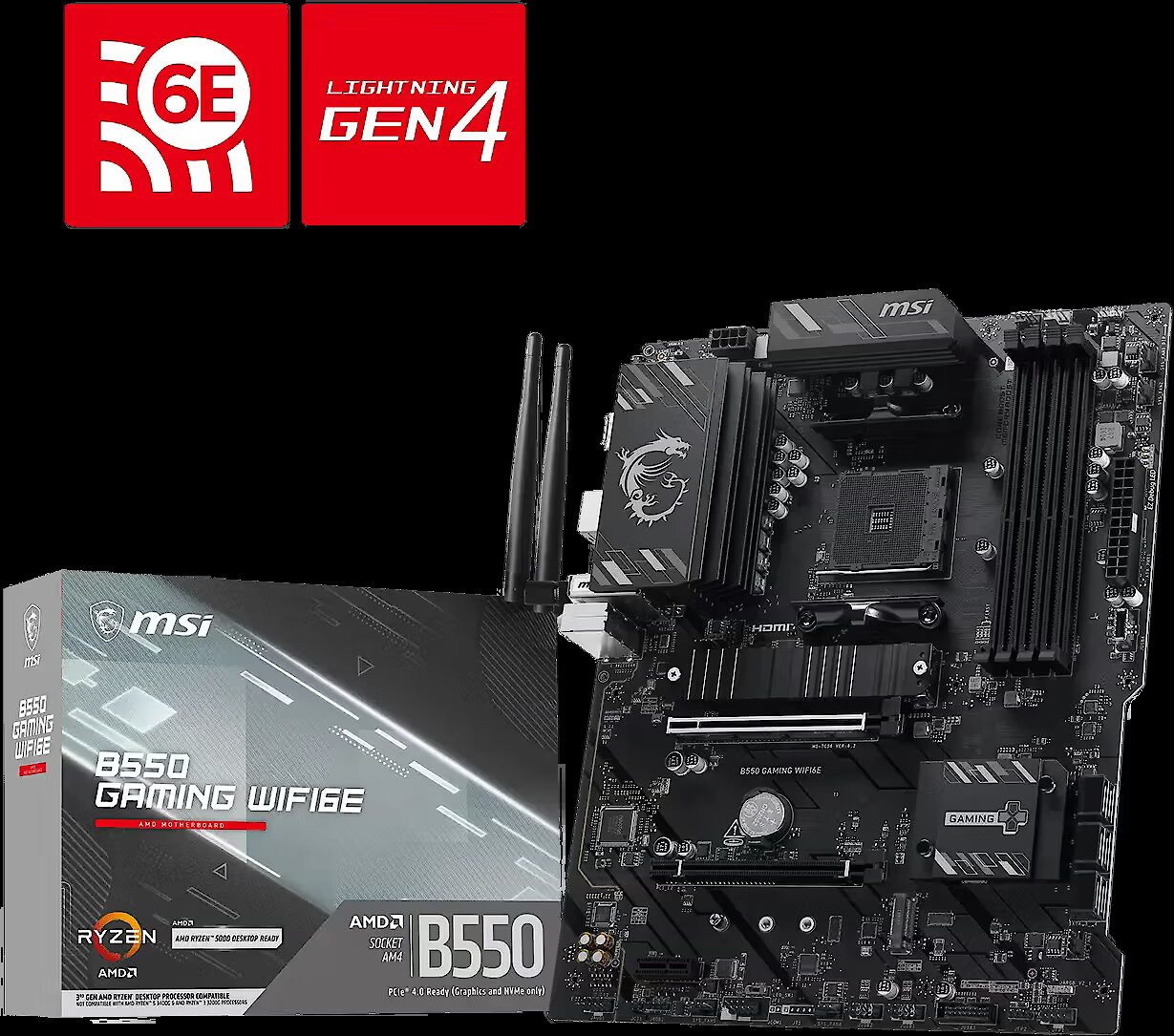

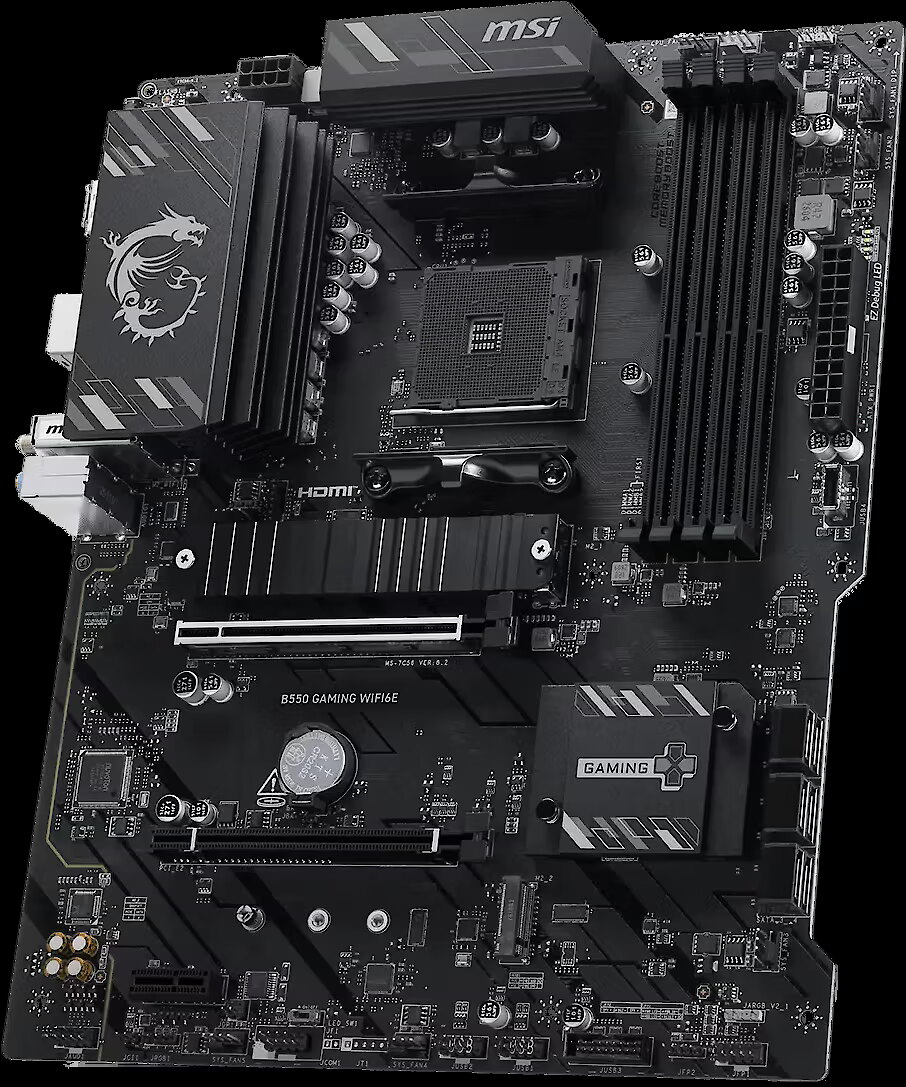

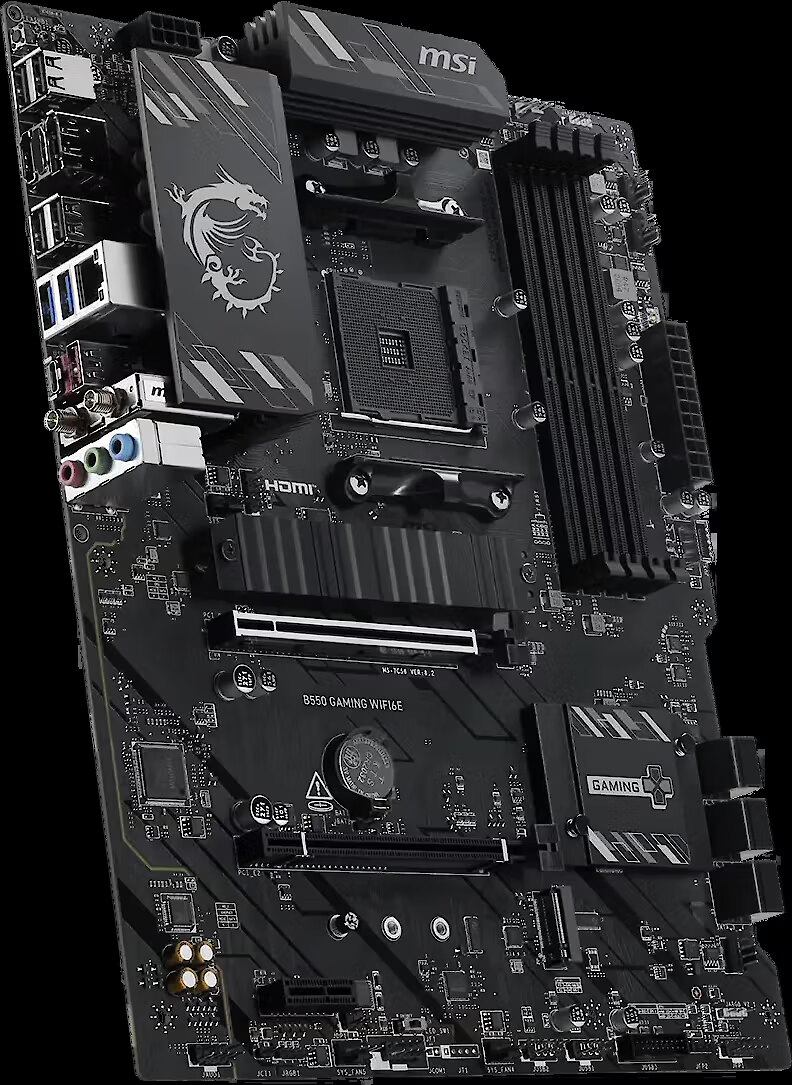

MSI B550 GAMING WIFI6E

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1450898 Product code: 7C56-092R
Can be ordered 77 units Availability: 14 days after order approval
Warranty: 3 years
142.21 €
113.32 € w/o VAT
Ready for dispatch
16.10.2026
starting from 6.99 € with VAT
Delivery options
  • Posti parcel machine
    Within 1-2 working days
    6.99 €
  • Post Office
    Within 1-2 working days
    6.99 €
  • Delivery with Posti courier mail
    Within 1-2 working days
    10.99 €
Main product parameters All parameters
  • Series: MSI Gaming
  • Plate size: ATX
  • Chipset: AMD B550
  • Socket: AM4
  • Type: DDR4
  • RAM Slots: 4
  • Built-in Wi-Fi: Is
  • M.2 ports: 2
Basic information
Series : MSI Gaming
Plate size ATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD B550

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM4
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR4
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR4 2667MHz (4800MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 1
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC897
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Is
Built-in Wi-Fi : Is
Wi-Fi standard : Wi-Fi 6E (802.11ax)
External ports
External USB 2.0 : 4
External USB Type-C (USB 3.2 Gen2) : 1
External USB Type-C (USB 4.0) : 0
LAN port speed : 1G
Number of LAN ports : 1
External USB 3.0 (USB 3.2 Gen1) : 2
External USB 3.1 (USB 3.2 Gen2) : 1
Internal ports
Internal A-RGB 5V (3-pin) : 2
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 1
M.2 ports : 2
SATA3 ports : 6
Power supply units (PSU)
More detailed specification
BIOS - ACPI version - 6.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - System Management BIOS (SMBIOS) version - 2.8
Brand - MSI
BrandPartCode - B550 GAMING WIFI6E
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM4|B550
Category1 - Mainboards
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM4
Chipset manufacturer - AMD
Chipset type - AMD B550
code - 7C56-092R
COM connector / port - Yes
CPU socket - Socket AM4
Data Act - Link
Description - B550 GAMING WIFI6E
The B550 GAMING WIFI6E is crafted to offer extensive connectivity, versatile tools, and Wi-Fi solution for gamers seeking a comprehensive experience. Featuring an 1G LAN, Wi-Fi and PCIe 4.0 solution, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors.  Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors Supports DDR4 Memory, up to 4800+MHz (OC) Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C EZ DIY: EZ Debug LED and EZ Mounting Wi-Fi 6E Solution: the ideal solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience MSI Center: A brand-new software which integrates all MSI exclusive tools with user-friendly user interface.
Description1 - MSI Mainboard B550 GAMING WIFI6E - ATX - Socket AM4 - AMD B550
Designation - CE+WEEE
Detailed data on disk/drive interfaces - 2 x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 6 x SATA 6G
dimension depth - 75 mm
dimension height - 275 mm
Dimensions - 243.84 x 304.8 mm
dimension weight - 1490 g
dimension width - 345 mm
ean - 4711377459082
EAN - 4711377459082
EAN_code - 4711377459082
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 3.0 x 4
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1st M.2 highest PCI Express generation - 4.0
Expansion slots - 1st M.2 largest key size - 2280
Expansion slots - 2nd M.2 highest PCI Express generation - 3.0
Expansion slots - 2nd M.2 largest key size - 2280
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x1 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 slots - 1

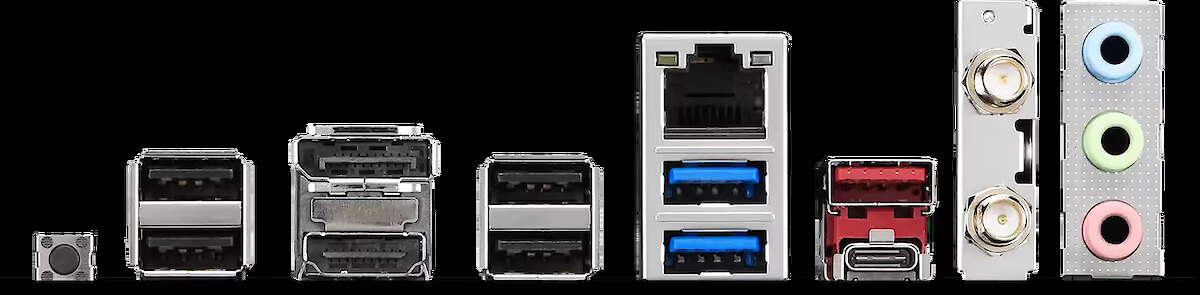

External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.2 Gen 2 Type-A
External connectors - 1 x USB 3.2 Gen 2 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 3.2 Gen 1 Type-A
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B550
Features - Motherboard chipset family - AMD
FireWire (IEEE 1394) - No
Form factor - ATX
Graphics - 1 x HDMI - Support HDMI 1.4, maximum resolution of 4K 30Hz 1 x DisplayPort - Support DisplayPort 1.2, maximum resolution of 4K 60Hz
GTIN - 0824142464649
GTIN - 824142464649
GTIN - 4711377459082
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA connectors - 6
Internal I/O - Number of SATA III connectors - 6
Internal I/O - RGB LED pin header - Yes
Internal I/O - Total number of SATA connectors - 6
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 4000
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 3
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 2
LongDesc - The B550 GAMING WIFI6E is crafted to offer extensive connectivity, versatile tools, and Wi-Fi solution for gamers seeking a comprehensive experience. Featuring an 1G LAN, Wi-Fi and PCIe 4.0 solution, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors.The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.A host of features inject artificial intelligence into key aspects of your computing experience to make smarter, real-time optimizations. The MSI Center offers a clean, minimal interface to customize and manage your PC settings. The AI Engine, for example, automatically adjusts settings based on the applications you're using, ensuring seamless performance.Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.Exclusive MSI Memory Boost technology utilizes an optimized and isolated DDR4 circuit design to ensure pure and undisturbed signals, significantly enhancing performance and efficiency.Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.The 8-pin, 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for a more stable transmission of 12V power to the CPU, even when handling high current loads.An extra layer of sponge materials along with corrosive resistance IO Shield to help improve static electricity and reduce electromagnetic radiation noise from the system as well as much more durable compare to traditional IO Shields.MSI motherboards prioritize safety with the embedded Overcurrent Protection (OCP), ensuring crucial components such as the USB ports, DDR memory, PWM IC, and CPU are shielded from excessive current. This proactive defense mechanism curtails the risk of damage or malfunction due to power surges, promoting long-term system stability. This commitment to safeguarding your hardware underscores MSI's dedication to producing motherboards that prioritize durability and stability.The grounding structure of power phases is the MSI's exclusive design. This patented design enables to suppress the electromagnetic interference (EMI) generated by the power phases and helps to efficiently conduct heat to the copper plane with grounding properties.Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.M.2 Shield FrozrStrengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.7W/mK Thermal Pad & Additional Choke PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.Chipset HeatsinkThe heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.MSI’s premium network solution provides incredible data transfer speed for demanding users.MSI Gaming series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.LIGHTNING GEN 4 PCI-EMSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.REINFORCED,HEAVY SOLDERED CONNECTIONSMSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
LongProductName - Socket AM4, AMD B550 Chipset, 4000 x DDR4-SDRAM up to 128GB, LAN, WLAN, 1 x RJ-45, 6 x SATA III, 2 x M.2(M), UEFI AMI
LongSummaryDescription - MSI B550 GAMING WIFI6E. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 5000 Series, AMD Ryzen 3000 Series, AMD Ryzen 4000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 3.0, SATA, Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek 8111H, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard chipset family: AMD, Motherboard chipset: AMD B550
LPT connector / port - No
Manufacturer - MSI
ManufacturerID - 7C56-092R
Manufacturer_code - 7C56-092R
Max. number of SATA devices - 6
Max memory size - 128 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4000
Memory - Supported memory clock speed (max) - 4800 MHz
Memory - Supported memory clock speeds - 2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4533,4600,4733,4800,4866 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 2667 MHz
Memory bus frequency - 2800 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3000 MHz
Memory bus frequency - 3066 MHz
Memory bus frequency - 3200 MHz
Memory bus frequency - 3466 MHz
Memory bus frequency - 3600 MHz
Memory bus frequency - 3733 MHz
Memory bus frequency - 3866 MHz
Memory bus frequency - 4000 MHz
Memory bus frequency - 4133 MHz
Memory bus frequency - 4266 MHz
Memory bus frequency - 4400 MHz
Memory bus frequency - 4533 MHz
Memory bus frequency - 4600 MHz
Memory bus frequency - 4733 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 4866 MHz
Model - B550 GAMING WIFI6E
name - Motherboard B550 GAMING WIFI6E 4DDR4 HDMI/DP ATX
Name - MSI B550 GAMING WIFI6E (black/silver)
name - MSI MPG B550 Gaming WIFI6E, Socket AM4, AMD B550, ATX, DDR4
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek 8111H
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Bluetooth
Network interface - Realtek 8111H 1G LAN
WIRELESS LAN & BLUETOOTH: Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Dual-band 1T1R mode Supports MU-MIMO RX Supports 2.4GHz/ 5GHz/ 6GHz frequency band Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR4 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 2
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-C
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x M.2
Onboard connectors - 2 x System panel header
Onboard connectors - 2 x USB 3.2 Gen 1 Type-A
Onboard connectors - 4 x EZ Debug LED
Onboard connectors - 4 x USB 2.0/1.1
Onboard connectors - 6 x 4pin wentylator obudowy
Onboard connectors - 6 x SATA III 6Gb/s
PackageHeight - 74
PackageLength - 345
PackageWeight - 1500
PackageWidth - 271
Processor - Compatible processor series - AMD Ryzen 5000 Series, AMD Ryzen 3000 Series, AMD Ryzen 4000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor - Supported processor sockets - Socket AM4
Processor family - AMD Ryzen
producer - MSI
ProductName - B550 GAMING WIFI6E
RAID - No
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 1.4
Rear panel I/O ports - USB 2.0 ports quantity - 8
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
ShortSummaryDescription - MSI B550 GAMING WIFI6E, AMD, Socket AM4, AMD Ryzen 5000 Series, AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, Socket AM4, DDR4-SDRAM, 128 GB
Sound card - Realtek ALC897 7.1-Channel High Definition Audio
Storage controllers - Number of storage drives supported - 2
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 4.0, PCI Express 3.0, SATA
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Title - MSI B550 GAMING WIFI6E motherboard AMD B550 Socket AM4
URL - https://www.msi.com/Motherboard/B550-GAMING-WIFI6E/Overview
USB ports at back panel - 8
USB ports on motherboard - 7
vendpn - B550 GAMING WIFI6E
WarrantyInfo -
WEEE - DE83654239
Weight - 1,49
