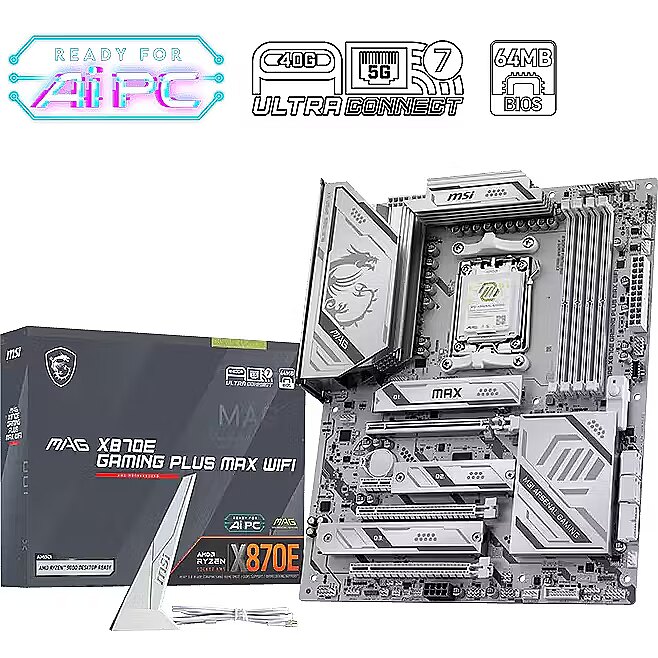

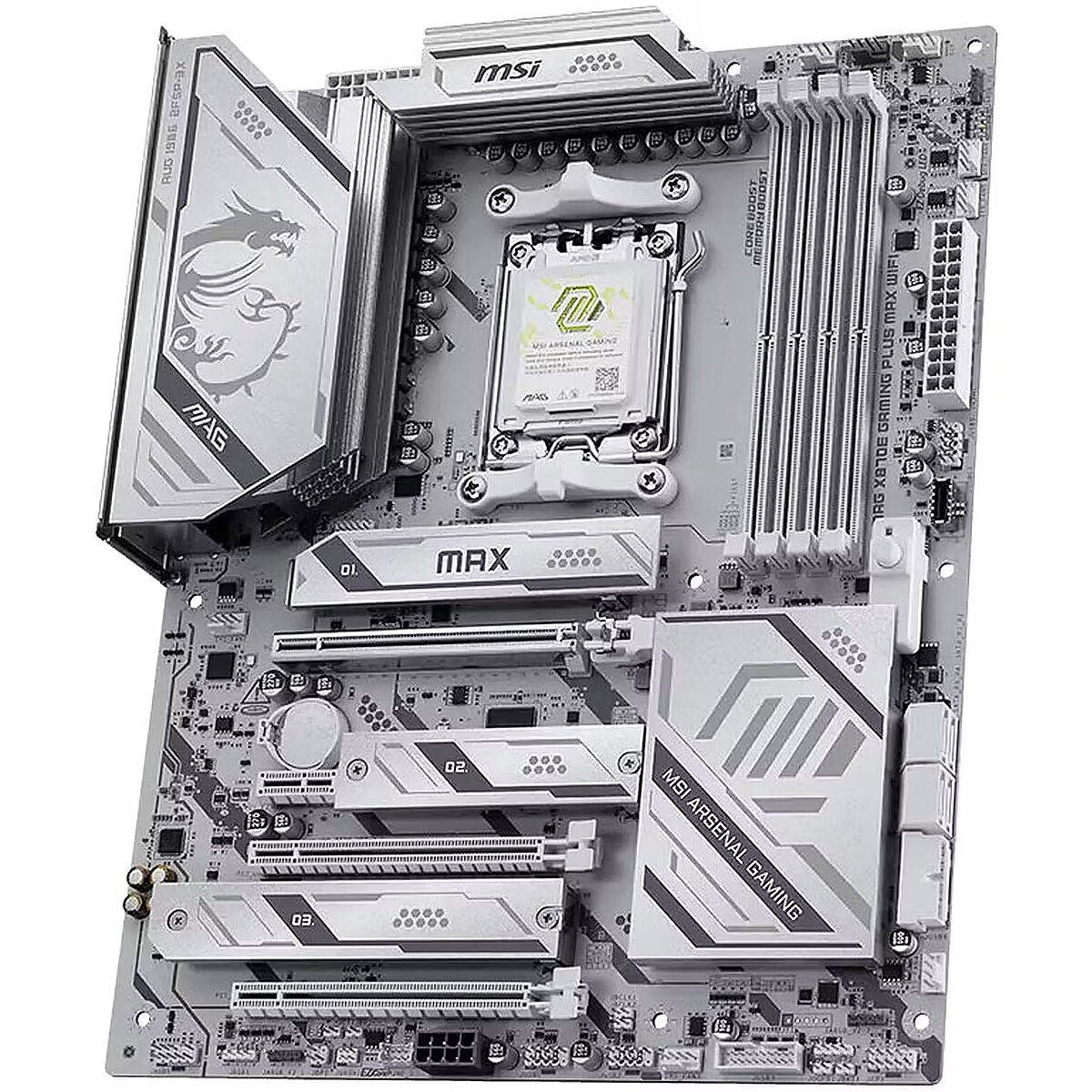

MSI MAG X870E GAMING PLUS MAX WIFI

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1408375 Product code: 7E70-016R
Can be ordered 8 units Availability: 14 days after order approval
Warranty: 3 years
293.82 €
234.12 € w/o VAT
Ready for dispatch
01.10.2026
starting from 6.99 € with VAT
Delivery options
  • Posti parcel machine
    Within 1-2 working days
    6.99 €
  • Post Office
    Within 1-2 working days
    6.99 €
  • Delivery with Posti courier mail
    Within 1-2 working days
    10.99 €
Main product parameters All parameters
  • Series: MSI MAG
  • Plate size: ATX
  • Chipset: AMD X870E
  • Socket: AM5
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Is
  • M.2 ports: 3
Basic information
Series : MSI MAG
Plate size ATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD X870E

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5600MT/s (8200MT/s OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 0
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC897
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Is
Built-in Wi-Fi : Is
Wi-Fi standard : Wi-Fi 7 (802.11be)
External ports
External USB 2.0 : 4
External USB Type-C (USB 3.2 Gen2) : 1
External USB Type-C (USB 4.0) : 1
LAN port speed : 5G
Number of LAN ports : 1
External USB 3.0 (USB 3.2 Gen1) : 2
External USB 3.1 (USB 3.2 Gen2) : 2
Internal ports
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 3
Internal USB 3.0 : 2
Internal USB Type-C : 1
M.2 ports : 3
SATA3 ports : 4
Power supply units (PSU)
More detailed specification
BIOS - ACPI version - 6.5
BIOS - BIOS memory size - 512 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - System Management BIOS (SMBIOS) version - 3.7
Brand - MSI
BrandPartCode - MAG X870E GAMING PLUS MAX WIFI
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category1 - Mainboards
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Code - MAG X870E GAMING PLUS MAX WIFI
Dane techniczne: Chipset płyty głównej - AMD X870
Dane techniczne: Grupa produktowa - Płyty główne MSI
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - MSI
Dane techniczne: Przeznaczenie - AMD
Dane techniczne: Standard płyty - ATX
Description1 - MSI Mainboard MAG X870E GAMING MAX WIFI - ATX - Socket AM5 - AMD X870E
dimensionalWeight - 1397
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC897 7.1)
EAN - 4711377406727
Eans - 4711377406727
EAN_code - 4711377406727
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 2280
Expansion slots - 2nd M.2 highest PCI Express generation - 4.0
Expansion slots - 2nd M.2 largest key size - 2280
Expansion slots - 3rd M.2 highest PCI Express generation - 4.0
Expansion slots - 3rd M.2 largest key size - 22110
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD X870E
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - PC health monitoring - CPU, Fan, Temperature, Voltage
Features - Product colour - Black
Graphics - On-board graphics card - No
GTIN - 0824142448571
GTIN - 824142448571
GTIN - 4711377406727
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Total number of SATA connectors - 4
Internal I/O - USB 2.0 connectors - 6
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 4
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Komunikacja: Karta bezprzewodowa - Wi-Fi 7 | Bluetooth 5.4
Komunikacja: Transmisja danych - Bluetooth
Komunikacja: Transmisja danych - Wi-Fi
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek 8126 5G LAN)
Link - https://www.msi.com/Motherboard/MAG-X870E-GAMING-PLUS-MAX-WIFI
LongDesc - Msi X870E Gaming plus max wifi titleMAG X870E GAMING PLUS MAX WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with full-speed Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.Carefully developed by MSI, allows SSD installation and removal without the need for screws, greatly enhancing convenience.An easy-to-access physical button release mechanism that can help remove any PCIe card with a single tap, making it much easier to upgrade to a new GPU or other compatible device, streamlining the entire process and enhancing user experience.Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 60A Smart Power Stage, MAG X870E GAMING PLUS MAX WIFI is ready for the challenge of high-end processors.OC Engine is a dedicated chip that enables independent Base Clock (BCLK) control for precise tuning through asynchronous mode in MSI BIOS. It boosts performance by up to 15% while keeping iGPU, memory, PCIe and NVMe stable, giving enthusiasts more headroom for record-breaking overclocks.MSI utilizes PCB Fabric Technology to enhance signal performance, resulting in higher bandwidth and faster data transfer while minimizing signal loss. The PCB Fabric Technology also offers better impedance control and improved thermal stability, allowing the boards to endure demanding conditions. Due to the high-quality materials used, MSI motherboards are highly reliable and well-suited for the requirements of modern technology.With the rich features of MSI BIOS, you can easily enjoy the powerful performance that overclocking brings.MSI's premium network solution provides incredible data transfer speed for demanding users.Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices.MSI AI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATINGWhen only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
LongProductName - Socket AM5, AMD X870E Chipset, 4 x DDR5-SDRAM up to 256GB, LAN, WLAN, 1 x RJ-45, 4 x SATA III, 3 x M.2(M), UEFI AMI, ATX
LongSummaryDescription - MSI MAG X870E GAMING PLUS MAX WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10, 5. Ethernet interface type: 5 Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
Manufacturer - MSI
ManufacturerID - 7E70-016R
Manufacturer_code - 7E70-016R
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8200 MHz
Memory - Supported memory clock speeds - 4800,5600,6000,6400,8200 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory > Supported memory types - DDR5
Name - MSI MAG X870E GAMING PLUS MAX WIFI
Name - MSI MAG X870E GAMING PLUS MAX WIFI | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8126
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Package features > Classification of battery - CL126:NEN:2025-08-18
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 342.00 mm
Package features > Gross height (mm) - 70.00 mm
Package features > Gross width (mm) - 268.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 269 pc(s)
Package features > Paper/Pasteboard - 800.00 g
Package features > Plastic (No PET) - 200.00 g
Package features > Tare weight (kg) - 1.00 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PackageHeight - 78
PackageLength - 343
PackageWeight - 2000
PackageWidth - 272
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 256 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6400 (PC5-51200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7200 (PC5-57600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7600 (PC5-60800)
Procesor: Gniazdo procesora - Socket AM5
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 9000
Processor - Compatible processor series - AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Processor family - AMD
Processor > Processor socket - AM5
Producent: Nazwa producenta / importera - MSI
MSI Computer Europe BV.
Churchilllaan 202
5705 BK Helmond

Producer - MSI
producerCode - MAG X870E GAMING PLUS MAX WIFI
ProducerCode - MAG X870E GAMING PLUS MAX WIFI
ProductName - MAG X870E GAMING PLUS MAX WIFI
productName - Płyta główna MSI MAG X870E GAMING PLUS MAX WIFI
productSize - Normal

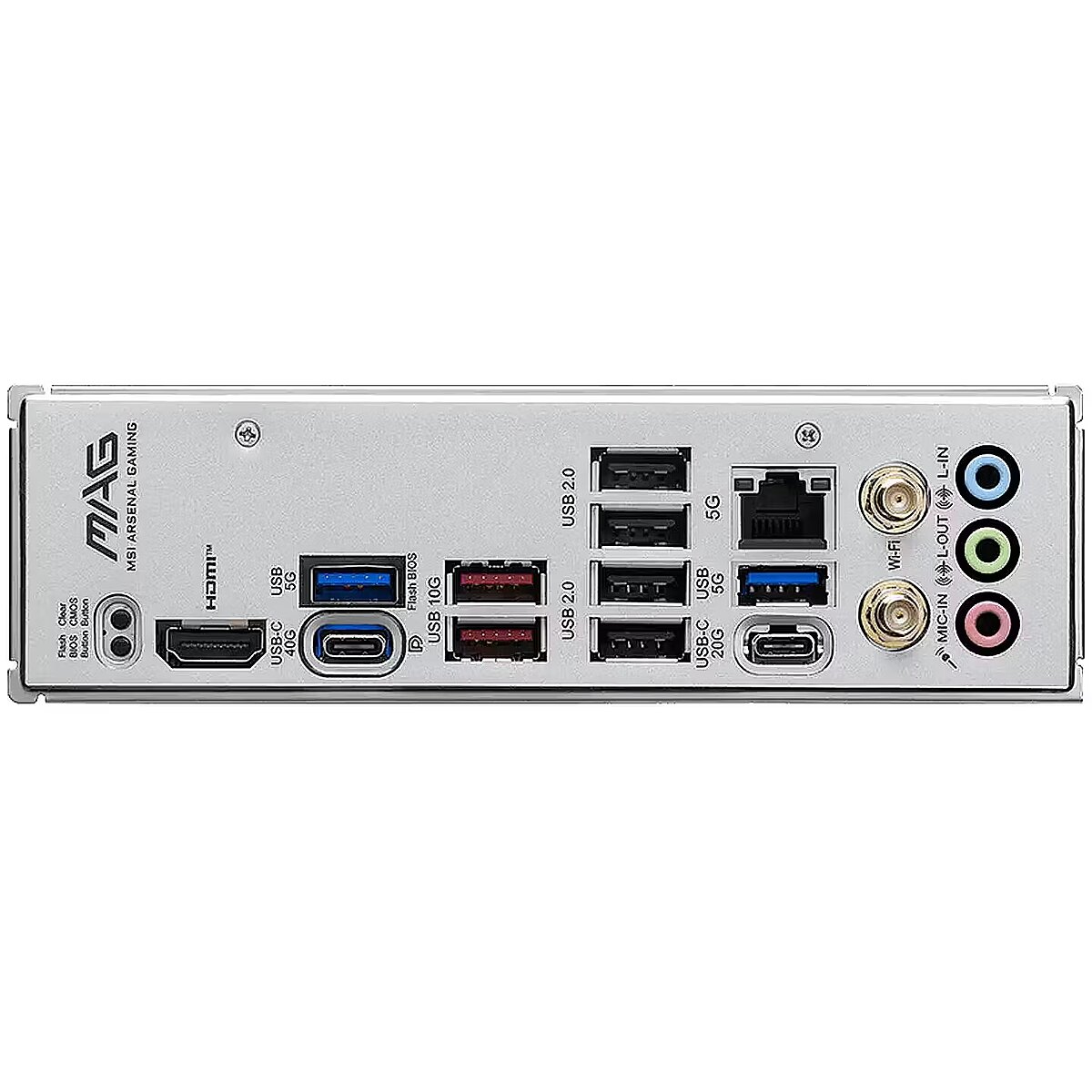

Rear panel I/O ports - DisplayPorts quantity - 2
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - USB4 Gen 2x2 ports quantity - 1
ShortDescription - Socket AM5 | Chipset AMD X870E | DDR5
ShortSummaryDescription - MSI MAG X870E GAMING PLUS MAX WIFI, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB
sizeX - 345
sizeY - 270
sizeZ - 75
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 7
Storage controllers - RAID levels - 0, 1, 10, 5
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Gross weight - 3.07 kg
Technical details > Net weight - 2.07 kg
Technical details > Producer - MSI
Technical details > Producer product name - MAG X870E GAMING PLUS MAX WIFI
Title - MSI MAG X870E GAMING PLUS MAX WIFI motherboard AMD X870E Socket AM5 ATX
URL - https://www.msi.com/Motherboard/MAG-X870E-GAMING-PLUS-MAX-WIFI
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
warrantyLength - 36
warrantyType - G
WEEE - DE83654239
Weight - 1,50
weight - 2030
Weight & dimensions - Depth - 304.8 mm
Weight & dimensions - Width - 243.8 mm
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 305 mm
Złącza: Obsługa Raid - tak (0, 1, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x 8-pin PCIe
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen2) typ C
Złącza: Złącza na płycie głównej - 2 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na płycie głównej - 4 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2 x2) typ C
Złącza: Złącza na tylnym panelu - 1 x USB4
Złącza: Złącza na tylnym panelu - 2 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 2 x USB 3.2 (Gen2)
Złącza: Złącza na tylnym panelu - 4 x USB
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza na tylnym panelu - gniazdo anteny Wi-Fi
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x1
Złącza: Złącza PCI-E (liczba slotów) - 3 x PCI-Express x16
293.82 €
234.12 € w/o VAT
MSI MAG X870E GAMING PLUS MAX WIFI
Intel technology provider Platinum 2020
All categories
