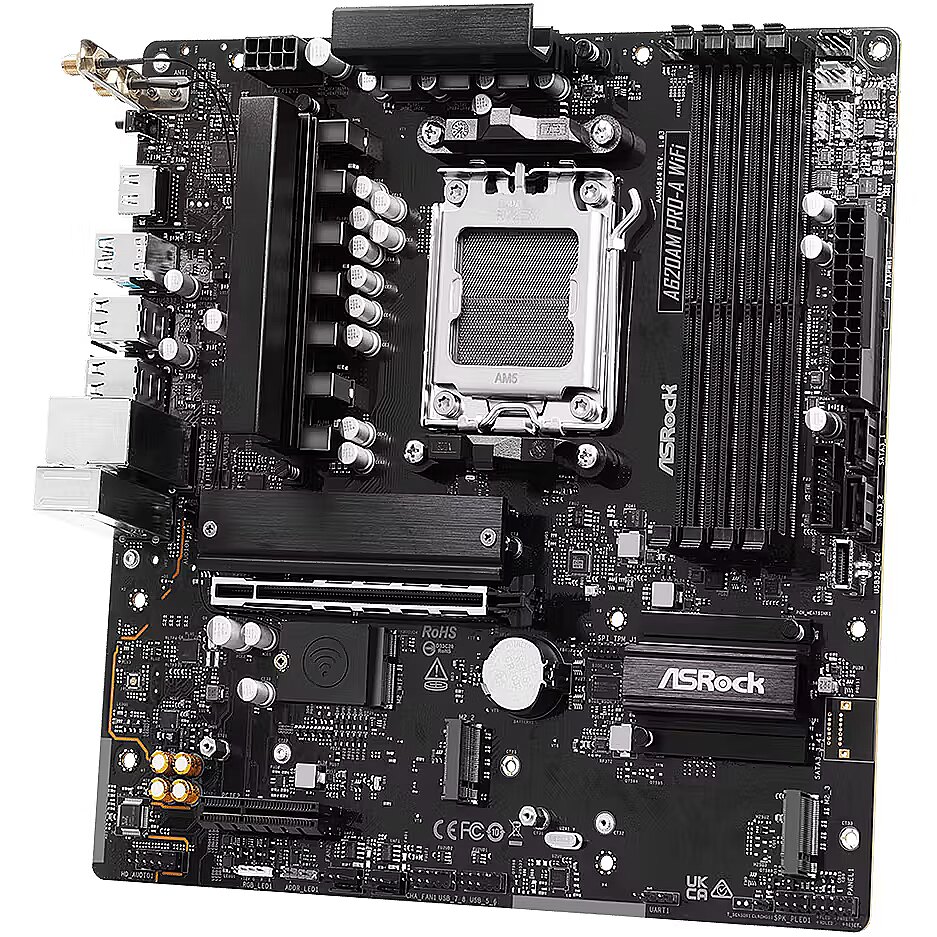

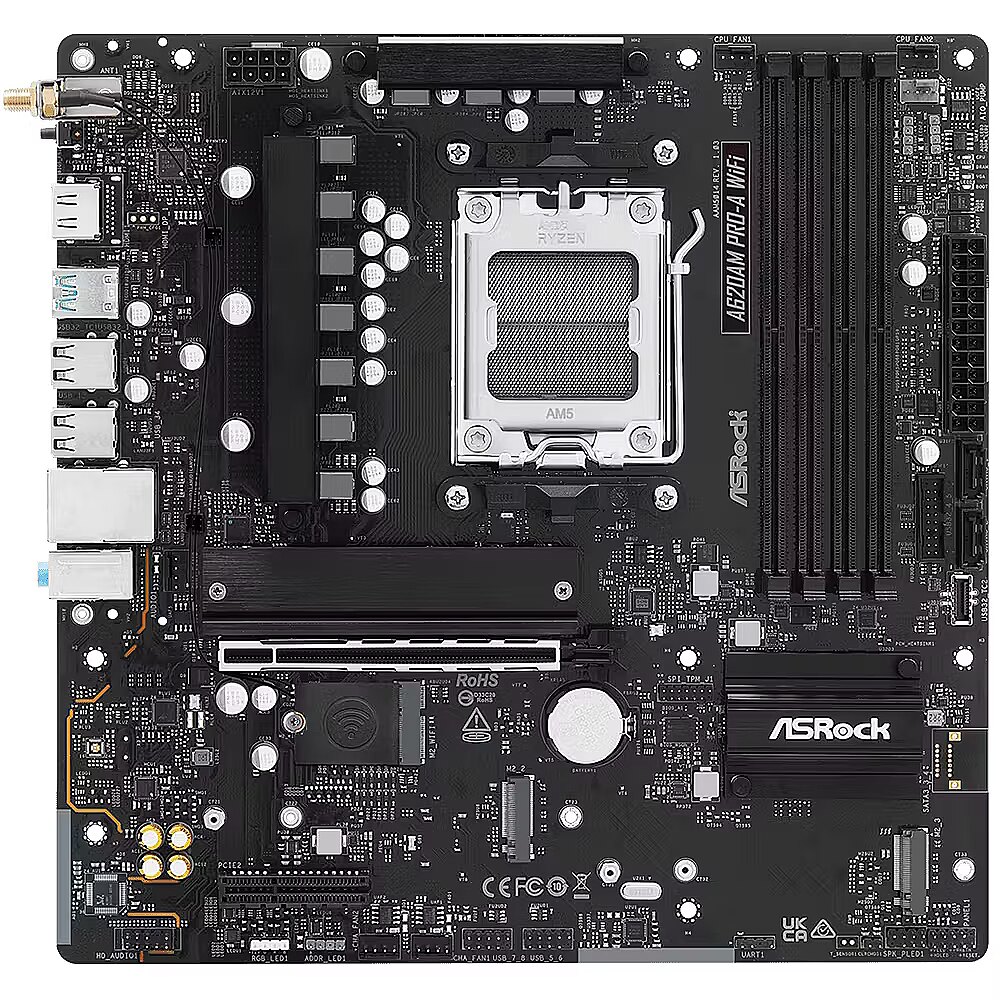

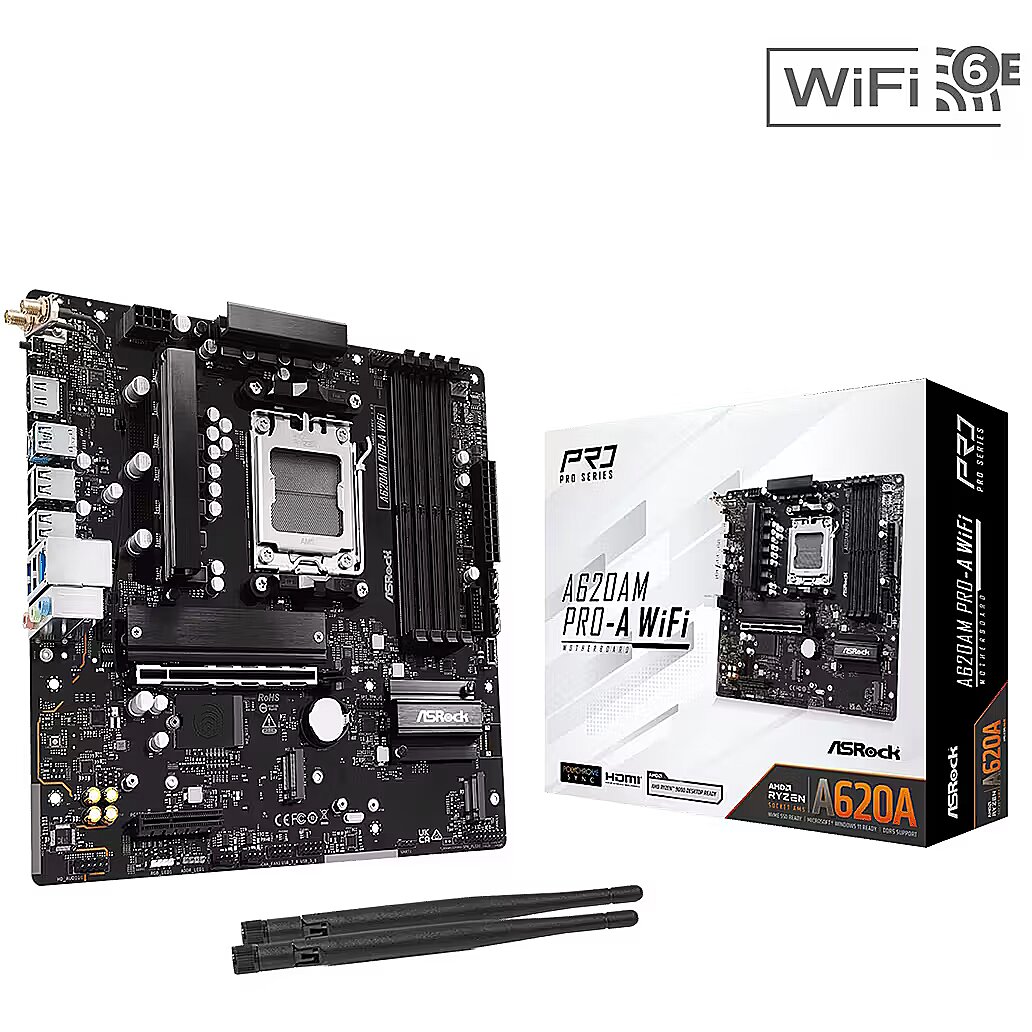

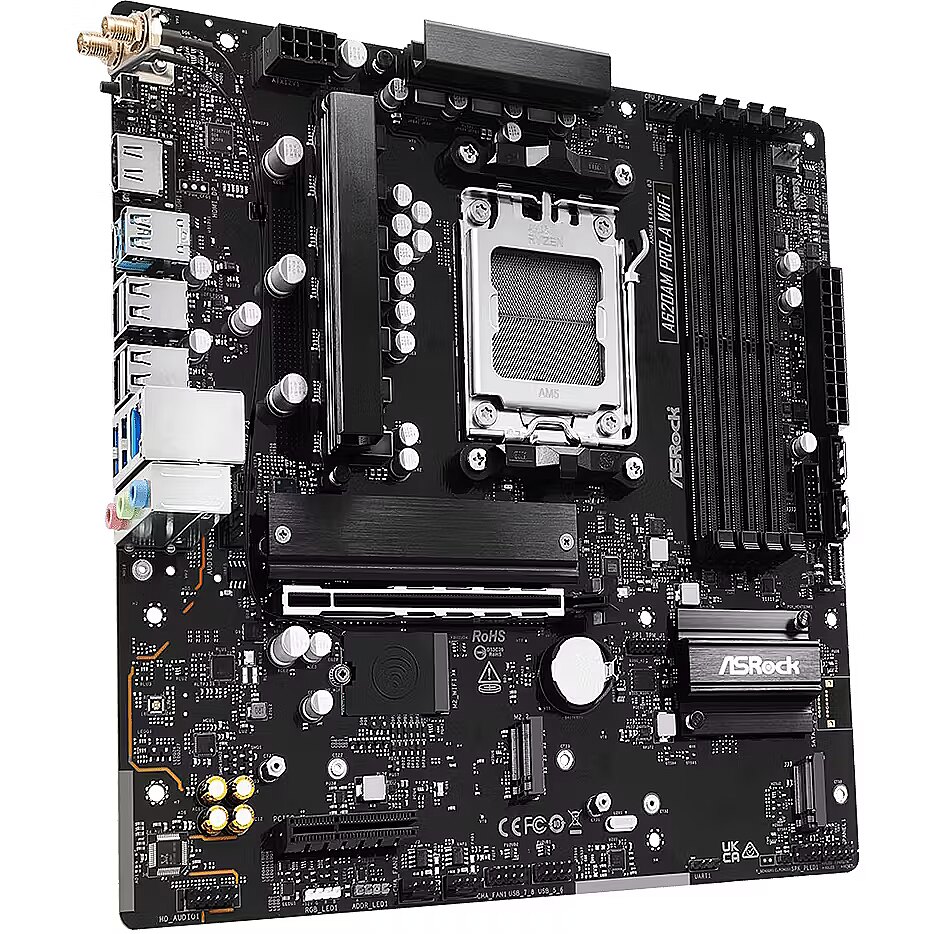

ASRock A620AM Pro-A WiFi

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1288971 Product code: A620AM PRO-A WIFI
In stock 4 units
Warranty: 3 years
109.41 €
Ready for dispatch
tomorrow, 24.02.2026
starting from 6.99 €
Delivery options
  • Posti parcel machine
    Within 1-2 working days
    6.99 €
  • Post Office
    Within 1-2 working days
    6.99 €
  • Delivery with Posti courier mail
    Within 1-2 working days
    10.99 €
Main product parameters All parameters
  • Series: ASRock PRO
  • Plate size: mATX
  • Chipset: AMD A620
  • Socket: AM5
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Ir
  • M.2 ports: 3
Basic information
Series : ASRock PRO
Plate size mATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD A620

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5200MHz (8000MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 0
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC897
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Ir
Built-in Wi-Fi : Ir

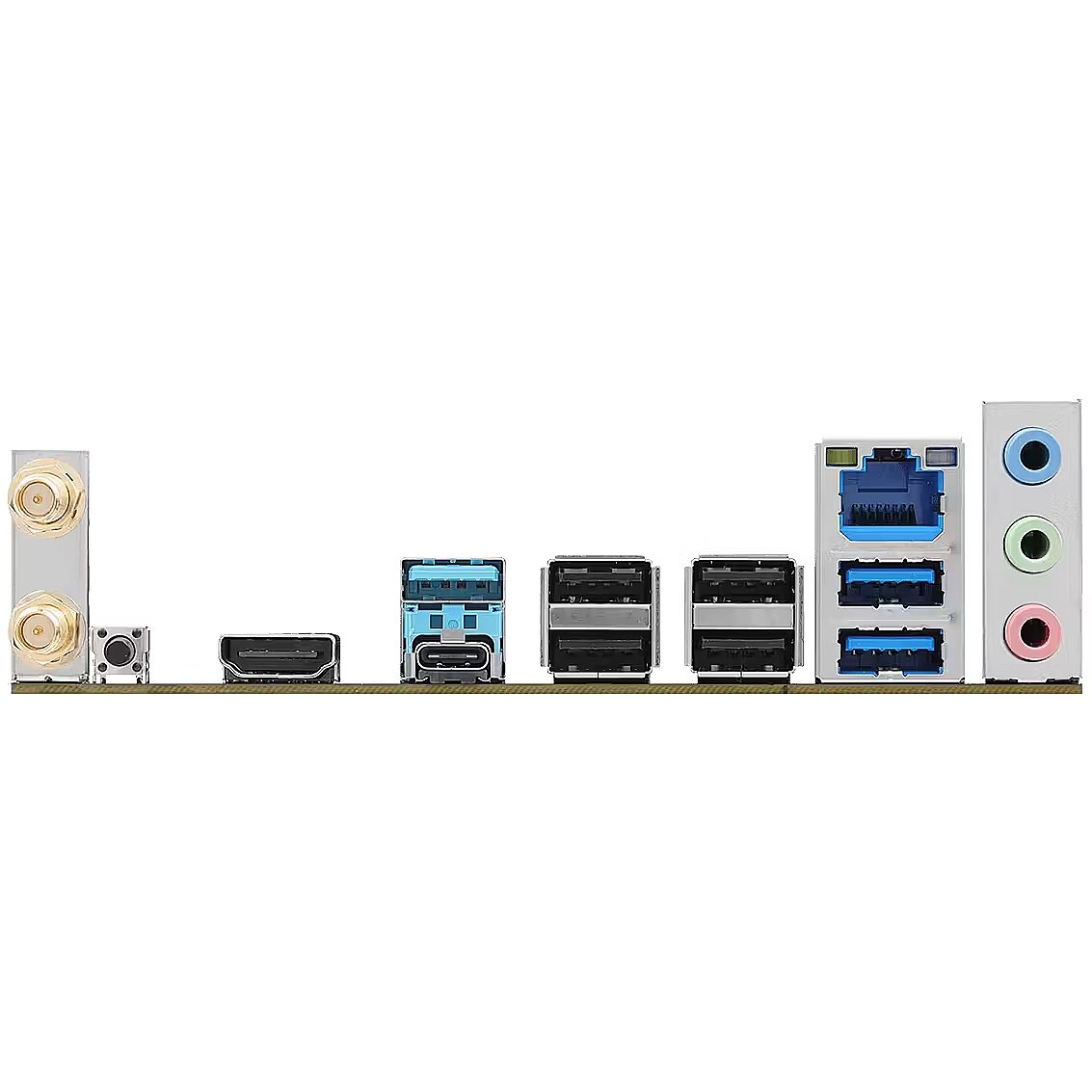

External ports
External USB 2.0 : 4
External USB Type-C (USB 3.2 Gen2) : 1
External USB Type-C (USB 4.0) : 0
External USB 3.0 (USB 3.2 Gen1) : 2
External USB 3.1 (USB 3.2 Gen2) : 1
Internal ports
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 1
M.2 ports : 3
SATA3 ports : 2
More detailed specification
12V power connector Internal I/O - Yes
AMD Extended Profiles for Overclocking (EXPO) Processor special features - Yes
Antenna included Packaging content - Yes
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC897
Audio connector Internal I/O - Yes
Audio output channels Features - 7.1 channels
BIOS - BIOS flashback button - Yes
BIOS - BIOS type - UEFI AMI
BIOS flashback button BIOS - Yes
BIOS memory size BIOS - 256 Mbit
BIOS type BIOS - UEFI AMI
Bluetooth Network - Yes
Bluetooth version Network - 5.2
Cables included Packaging content - SATA
Category Code - MBA
CnCode - 84733020
Compatible processor series Processor - AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Compliance certificates Technical details - CE, Federal Communications Commission (FCC)
Component for Features - PC
Cooling type Features - Passive
CPU fan connector Internal I/O - Yes
Depth Weight & dimensions - 244 mm
Description - A620AM Pro-A WiFi Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs. Power Phase Design Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers. Dr. MOS Dr.MOS is an integrated power stage optimized for synchronous buck-set down voltage applications, delivering higher current and better thermal efficiency than traditional MOSFETs, ensuring enhanced stability. Hi-Density Power Connector CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking. 6 Layer PCB The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance! DDR5 XMP & EXPO Support Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all. Hyper M.2 Gen4 x4 Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. Aluminum Heatsink The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly. Wi-Fi 6E 802.11axe WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks. Dragon 2.5 Gb/s LAN The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. Front USB 3.2 Gen1 Type-C Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case. POLYCHROME RGB This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. SignalRGB SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility. Auto Driver Installer No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1 : Install Auto Driver Installer
step2 : Update drivers needed
step3 : Done! BIOS Flashback Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required. Post Status Checker Displays the real-time status of CPU, DRAM, VGA, and BOOT device with colored LEDs during startup. A simple and efficient way to check system operation at a glance.
dimensionalWeight - 954
ECC сompatibility Memory - ECC & Non-ECC
Ethernet interface type Network - 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - AMD A620A
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
Front panel audio connector Internal I/O - Yes
Graphics - Graphics card - AMD RDNA 2
Graphics - Graphics card family - AMD
Graphics - HDCP - Yes
Graphics - HDCP version - 2.3
Graphics - High Dynamic Range (HDR) supported - Yes
Graphics - Maximum resolution - 3840 x 2160 pixels
Graphics - On-board graphics card - Yes
Graphics card family Graphics - AMD
Graphics card Graphics - AMD RDNA 2
HDCP Graphics - Yes
HDCP version Graphics - 2.3
HDMI ports quantity Rear panel I/O ports - 1
HDMI version Rear panel I/O ports - 2.1
High Dynamic Range (HDR) supported Graphics - Yes
Intel Extreme Memory Profile (XMP) Processor special features - Yes
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 3
Internal I/O - Number of CPU fan connectors - 2
Internal I/O - Number of RGB LED pin headers - 1
Internal I/O - Number of SATA III connectors - 2
Internal I/O - Number of water pump connectors - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
LAN controller Network - Dragon RTL8125BG
Line-in Rear panel I/O ports - Yes
M.2 standoff included Packaging content - Yes
Maximum internal memory Memory - 256 GB
Maximum resolution Graphics - 3840 x 2160 pixels
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 8000
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Microphone in Rear panel I/O ports - Yes
Model - A620AM PRO-A WIFI
Motherboard chipset family Features - AMD
Motherboard chipset Features - AMD A620
Motherboard form factor Features - micro ATX
Network - Antenna type - 2 x 2
Network - Bluetooth - Yes
Network - Bluetooth version - 5.2
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11axe)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11 ax
Network - Wi-Fi standards - 802.11 axe
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11ac
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - 802.11n
Number of chassis fan connectors Internal I/O - 3
Number of CPU fan connectors Internal I/O - 2
Number of HDDs supported Storage controllers - 2
Number of M.2 (M) slots Expansion slots - 3
Number of memory slots Memory - 4
Number of RGB LED pin headers Internal I/O - 1
Number of SATA III connectors Internal I/O - 2
Number of water pump connectors Internal I/O - 1
On-board graphics card Graphics - Yes
Packaging content - Cables included - SATA
Parallel processing technology support Graphics - Not supported
PCI Express x4 (Gen 3.x) slots Other features - 1
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
Processor - Compatible processor series - AMD Ryzen 7000 Series
Processor - Compatible processor series - AMD Ryzen 8000 Series
Processor - Compatible processor series - AMD Ryzen 9000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor manufacturer Processor - AMD
Processor socket Processor - Socket AM5
Processor special features - AMD Extended Profiles for Overclocking (EXPO) - Yes
Processor special features - Intel Extreme Memory Profile (XMP) - Yes
producerCode - A620AM PRO-A WIFI
Product colour Features - Black
productName - ASROCK A620AM PRO-A WIFI motherboard
productSize - Normal
RAID levels Storage controllers - 0, 1, 10
RAID support Storage controllers - Yes
Rear panel I/O ports - Antennas quantity - 2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Rear speaker out Rear panel I/O ports - Yes
RGB LED pin header Internal I/O - Yes
Screws included Packaging content - Yes
sizeX - 300
sizeY - 265
sizeZ - 60
Storage controllers - Number of HDDs supported - 2
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, NVMe, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - Asrock A620AM PRO-A WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, NVMe, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Graphics card family: AMD, Graphics card: AMD RDNA 2, Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Supported memory clock speeds Memory - 8000 MHz
Supported memory types Memory - DDR5-SDRAM
Supported storage drive interfaces Storage controllers - M.2, NVMe, SATA III
Supported storage drive types Storage controllers - HDD & SSD
Technical details - Compliance certificates - CE
Technical details - Compliance certificates - Federal Communications Commission (FCC)
Top Wi-Fi standard Network - Wi-Fi 6E (802.11ax)
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.06
Unit Box Length - 0.295
Unit Box Width - 0.26
Unit Calculated Volume - 0.005632 cubm
Unit Calculated Weight - 1.251 kg
Units per Pallet - 0
Units per Shipping Box - 10
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Rear panel I/O ports - 1
Vendor Homepage - https://www.asrock.com/mb/AMD/A620AM%20Pro-A%20WiFi/index.asp#Overview
Warranty - 36 months
warrantyLength - 36
warrantyType - G
weight - 1200
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
Wi-Fi Network - Yes
Wi-Fi standards Network - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Width Weight & dimensions - 244 mm
Windows operating systems supported Features - Windows 10 x64, Windows 11 x64
