Accessories included -
Antenna included Mainboards for AMD CPUs | Packaging content - Y
ATX Power connector (24-pin) Mainboards for AMD CPUs | Internal I/O - Y
Audio output channels Mainboards for AMD CPUs | Features - 7.1 channels
BIOS -
Bluetooth Mainboards for AMD CPUs | Network - Y
Bluetooth version Mainboards for AMD CPUs | Network - 5.4
Brand - MSI
BrandPartCode - X870E GAMING PLUS WIFI
Cables included Mainboards for AMD CPUs | Packaging content - SATA
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Chassis intrusion connector Mainboards for AMD CPUs | Internal I/O - Y
Chipset manufacturer - AMD
Chipset type - AMD X870E
Code - X870E GAMING PLUS WIFI
COM connector / port - No
Compatible processor series Mainboards for AMD CPUs | Processor - AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Component for Mainboards for AMD CPUs | Features - PC
CPU fan connector Mainboards for AMD CPUs | Internal I/O - Y
CPU socket - Socket AM5
Dane techniczne: Chipset płyty głównej - AMD X870
Dane techniczne: Grupa produktowa - Płyty główne MSI
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - MSI
Dane techniczne: Przeznaczenie - AMD
Dane techniczne: Standard płyty - ATX
Depth Mainboards for AMD CPUs | Weight & dimensions - 243.84 mm
Description - X870E GAMING PLUS WIFI X870E GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Wi-Fi 7 and 5G LAN, high-speed USB4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of AMD Ryzen 9000 series processors. MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before. Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC) Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2 Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Description - X870E GAMING PLUS WIFI
X870E GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Wi-Fi 7 and 5G LAN, high-speed USB4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of AMD Ryzen™ 9000 series processors. MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before. ULTRA PERFORMANCE 14+2+1 DRPS POWER DESIGN
Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 60A Smart Power Stage, X870E GAMING PLUS WIFI is ready for the challenge of high-end processors. OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission. Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads. M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance. Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat. 7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed. Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation. DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header. Cooling Wizard serves as a comprehensive solution for managing fan settings across all MSI products. It ensures superior cooling performance and noise reduction for your gaming PC, offering compatibility with PWM/DC fans and pumps, customizable options, and intuitive temperature monitoring for optimal operation with one click. HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users. THE NEXT GEN WI-FI SOLUTION – WI-FI 7
Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices. AI LAN Manager
MSI AI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency. MSI AI LAN MANAGER
Automatically prioritizes games above other applications
Allows to change applications' traffic priority
Allows to customize bandwidth for each application
Analysis Wi-Fi signals to select the best source. Experience
The Isolated Analogy Structure for Audio Connectors
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp. BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop ProcessorsSupports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level materialFrozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experienceEZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ AntennaLightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmissionAudio Boost : Reward your ears with studio-grade sound quality for the most immersive gaming experience
Designation - CE+WEEE
Detailed data on disk/drive interfaces - 3 x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 22110/2280 devices 4 x SATA 6G
dimensionalWeight - 1328
dimension depth - 70 mm
dimension height - 345 mm
Dimensions - 243.84 x 304.8 mm
dimension weight - 2030 g
dimension width - 270 mm
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC897 7.1)
EAN - 4711377347594
ean - 4711377347594
Eans - 4711377347594
ECC ?ompatibility Mainboards for AMD CPUs | Memory - ECC & non-ECC
EPS power connector (8-pin) Mainboards for AMD CPUs | Internal I/O - Y
Ethernet interface type Mainboards for AMD CPUs | Network - 5 Gigabit Ethernet
Ethernet LAN (RJ-45) ports Mainboards for AMD CPUs | Rear panel I/O ports - 1
Ethernet LAN Mainboards for AMD CPUs | Network - Y
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x PCIe 3.0 x 1
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 3

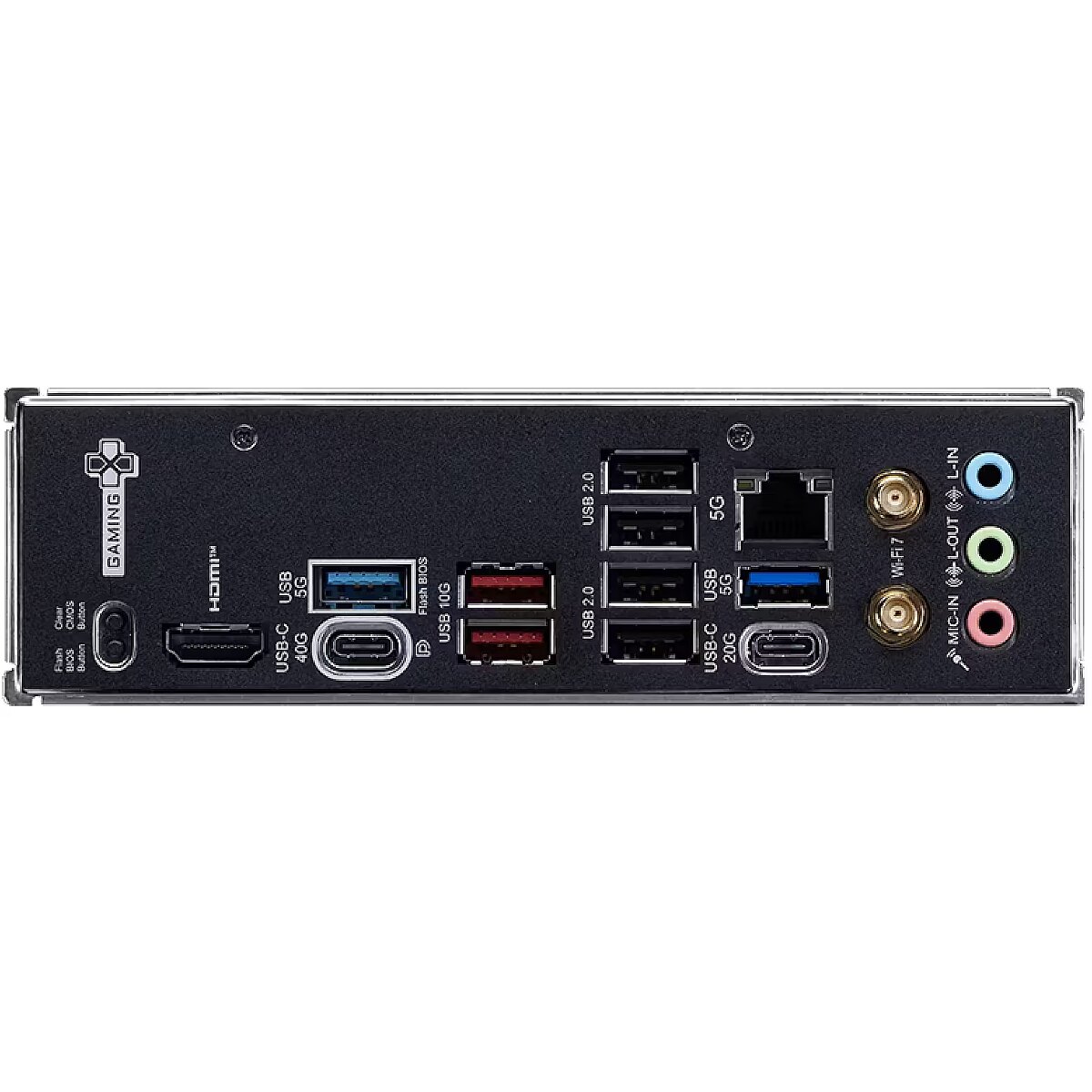

External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.2 Gen 2x2 Type-C
External connectors - 1 x USB4 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 3.2 Gen 1 Type-A
External connectors - 2 x USB 3.2 Gen 2 Type-A
External connectors - 4 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD X870E
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Product colour - Black
FireWire (IEEE 1394) - No
Form factor - ATX
Front panel audio connector Mainboards for AMD CPUs | Internal I/O - Y
Front panel connector Mainboards for AMD CPUs | Internal I/O - Y
Graphics - 1 x HDMI - Support HDMITM 2.1, maximum resolution of 4K 60Hz 1 x Type-C DisplayPort - USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz
Graphics - Maximum resolution - 3840 x 2160 pixels
Graphics - On-board graphics card - No
Graphics - Parallel processing technology support - Not supported
GTIN - 4711377347594
guarantee - 36
guarantee_type - normal
HDMI ports quantity Mainboards for AMD CPUs | Rear panel I/O ports - 1
HDMI version Mainboards for AMD CPUs | Rear panel I/O ports - 2.1
Headphone outputs Mainboards for AMD CPUs | Rear panel I/O ports - 1
Integrated CPU - No
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 6
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of CPU fan connectors - 1
Internal I/O - Number of RGB LED pin headers - 3
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of water pump connectors - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 6
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Komunikacja: Karta bezprzewodowa - Wi-Fi 7 | Bluetooth 5.4
Komunikacja: Transmisja danych - Bluetooth
Komunikacja: Transmisja danych - Wi-Fi
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek 8126VB 5G LAN)
Link - https://www.msi.com/Motherboard/X870E-GAMING-PLUS-WIFI
LongDesc - X870E GAMING PLUS WIFIX870E GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Wi-Fi 7 and 5G LAN, high-speed USB4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of AMD Ryzen™ 9000 series processors.MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.ULTRA PERFORMANCE14+2+1 DRPS POWER DESIGNUnleash and sustain maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 60A Smart Power Stage, X870E GAMING PLUS WIFI is ready for the challenge of high-end processors.OPTIMIZED PCB SOLUTIONThe PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.M.2 Shield FrozrStrengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.7W/mK Thermal Pad & Additional Choke PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.Enlarged Chipset HeatsinkThe enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENTConnect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.Cooling Wizard serves as a comprehensive solution for managing fan settings across all MSI products. It ensures superior cooling performance and noise reduction for your gaming PC, offering compatibility with PWM/DC fans and pumps, customizable options, and intuitive temperature monitoring for optimal operation with one click.HIGH-BANDWIDTH AND LOW-LATENCY NETWORKMSI's premium network solution provides incredible data transfer speed for demanding users.THE NEXT GEN WI-FI SOLUTION – WI-FI 7Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices.AI LAN ManagerMSI AI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.MSI AI LAN MANAGERAutomatically prioritizes games above other applicationsAllows to change applications' traffic priorityAllows to customize bandwidth for each applicationAnalysis Wi-Fi signals to select the best source.ExperienceThe Isolated Analogy Structure for Audio ConnectorsTo provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATINGWhen only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
LongProductName - AMD Socket AM5, AMD X870E Chipset, 1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x16 slot, 2x PCIe 3.0 x1 slots, USB, Wi-Fi 7, Bluetooth 5.4
LongSummaryDescription - MSI X870E GAMING PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive types: HDD, RAID levels: 0, 1, 5, 10. Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E...
LPT connector / port - No
Max. number of SATA devices - 4
Maximum internal memory Mainboards for AMD CPUs | Memory - 256 GB
Maximum resolution Mainboards for AMD CPUs | Graphics - 3840 x 2160 pixels
Max memory size - 256 GB
Memory - ECC сompatibility - ECC & Non-ECC
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5 UDIMM
Memory bus frequency - 8200 MHz
Memory channels Mainboards for AMD CPUs | Memory - Dual-channel
Memory slots type Mainboards for AMD CPUs | Memory - DIMM
Memory type - DDR5
Microphone in Mainboards for AMD CPUs | Rear panel I/O ports - Y
Model - X870E GAMING PLUS WIFI
Motherboard chipset family Mainboards for AMD CPUs | Features - AMD
Motherboard chipset Mainboards for AMD CPUs | Features - AMD X870E
Motherboard form factor Mainboards for AMD CPUs | Features - ATX
name - Motherboard X870E GAMING PLUS WIFI AM5 4DDR5 ATX
Name - MSI X870E GAMING PLUS WIFI
Name - MSI X870E GAMING PLUS WIFI | Processor family AMD | Processor socket AM5 | DDR5 UDIMM | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000/2500/5000 Mbit/s
Network interface - Bluetooth
Network interface - LAN: Realtek 8126VB 5G LAN Wireless: Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of chassis fan connectors Mainboards for AMD CPUs | Internal I/O - 6
Number of COM connectors Mainboards for AMD CPUs | Internal I/O - 1
Number of CPU fan connectors Mainboards for AMD CPUs | Internal I/O - 1
Number of DDR5 slots - 4
Number of M.2 (M) slots Mainboards for AMD CPUs | Expansion slots - 3
Number of memory slots Mainboards for AMD CPUs | Memory - 4
Number of RGB LED pin headers Mainboards for AMD CPUs | Internal I/O - 3
Number of SATA III connectors Mainboards for AMD CPUs | Internal I/O - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Number of water pump connectors Mainboards for AMD CPUs | Internal I/O - 1
On-board graphics card Mainboards for AMD CPUs | Graphics - N
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8-pin PCIe
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x EZ Conn-header
Onboard connectors - 1 x EZ Memory Detection LED
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x Tuning Controller connector
Onboard connectors - 1 x USB 3.2 Gen 2 Type-C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x System panel header
Onboard connectors - 3 x Addressable LED
Onboard connectors - 3 x M.2
Onboard connectors - 4 x EZ Debug LED
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 4 x USB 3.2 Gen 1 Type-A
Onboard connectors - 6 x 4pin wentylator obudowy
Onboard connectors - 6 x USB 2.0/1.1
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 268 mm
Package features > Gross height (mm) - 342 mm
Package features > Gross width (mm) - 70 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 269 pc(s)
Package features > Paper/Pasteboard - 350.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.40 kg
Package features > TI weight (kg) - 0.08 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.00641592 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes

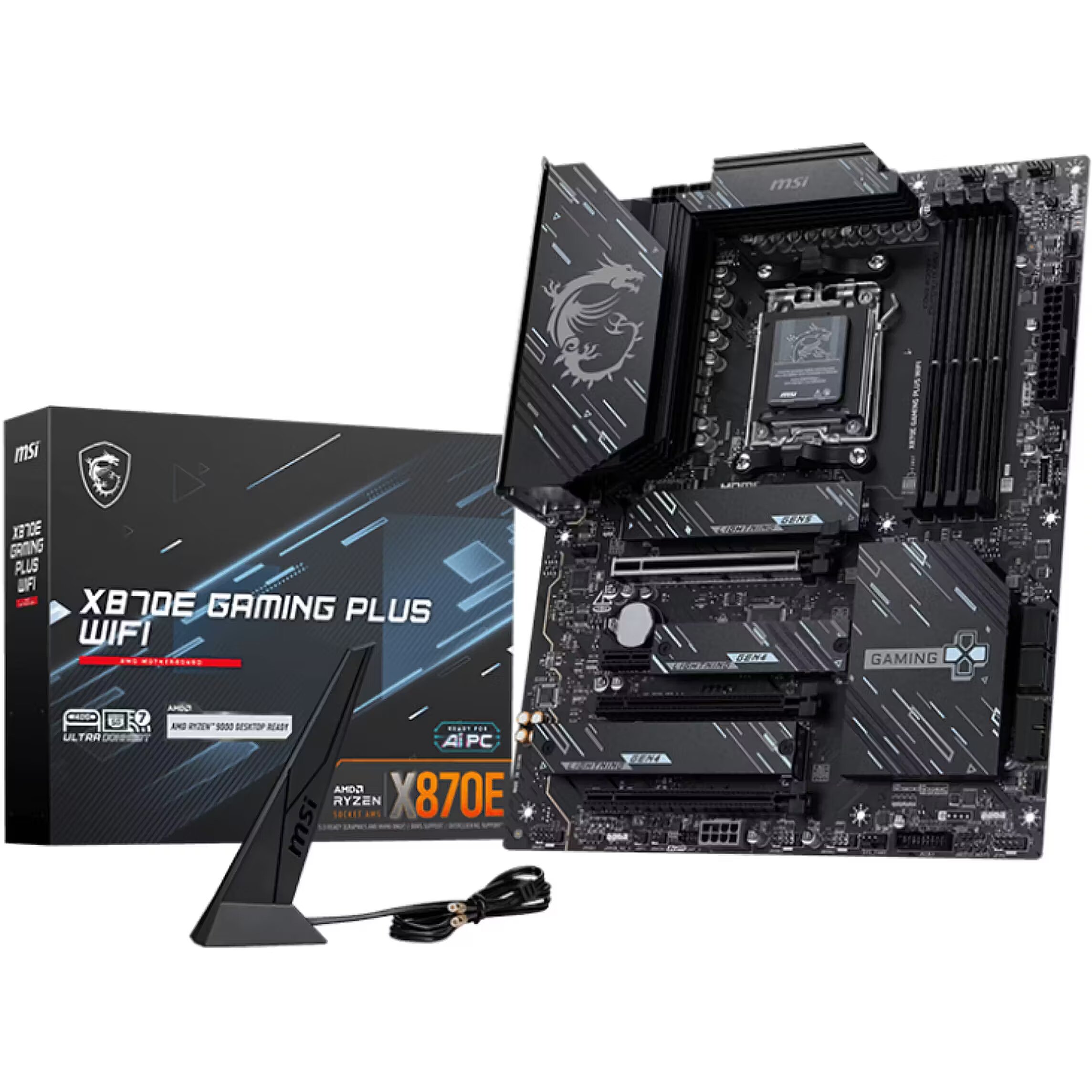

Packaging content - Antenna included - Yes
Packaging content - Cables included - SATA
Packaging content - Screws included - Yes
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 256 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6400 (PC5-51200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
Parallel processing technology support Mainboards for AMD CPUs | Graphics - Not supported
PCI Express x1 slots Mainboards for AMD CPUs | Expansion slots - 1
PCI Express x16 (Gen 3.x) slots Mainboards for AMD CPUs | Expansion slots - 3
Procesor: Gniazdo procesora - Socket AM5
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 9000
Processor - Compatible processor series - AMD Ryzen 7000 Series
Processor - Compatible processor series - AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor - Compatible processor series - AMD Ryzen 8000 Series
Processor - Compatible processor series - AMD Ryzen 9000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen
Processor manufacturer Mainboards for AMD CPUs | Processor - AMD
Processor socket Mainboards for AMD CPUs | Processor - Socket AM5
Producent: Nazwa producenta / importera - MSIMSI Computer Europe BVEScience Park Eindhoven 57065692 ER Son Eindhoven HolandiaEmail: GPSR@msi.com
producer - MSI
Producer - MSI
producerCode - X870E GAMING PLUS WIFI
ProducerCode - X870E GAMING PLUS WIFI
Product colour Mainboards for AMD CPUs | Features - Black

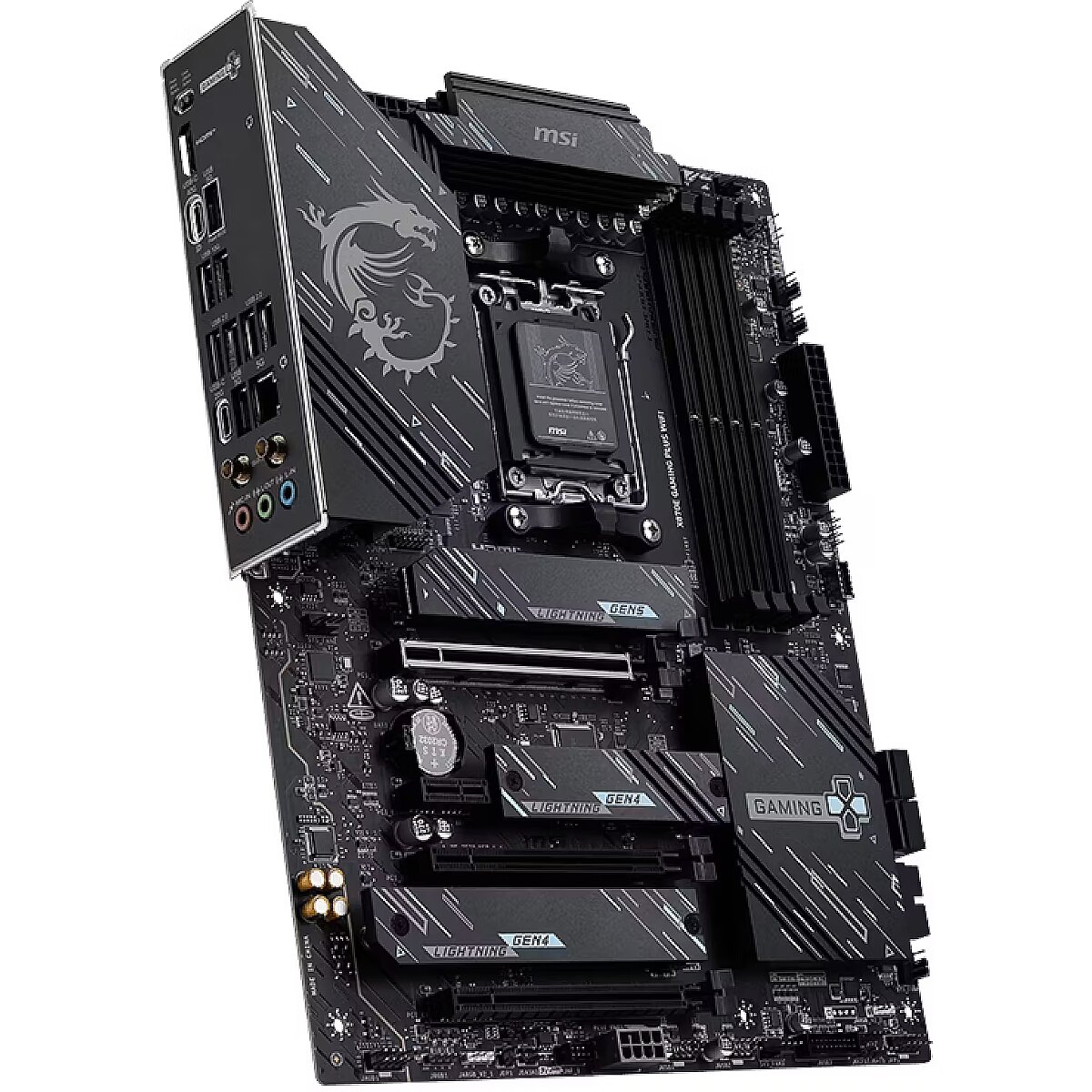

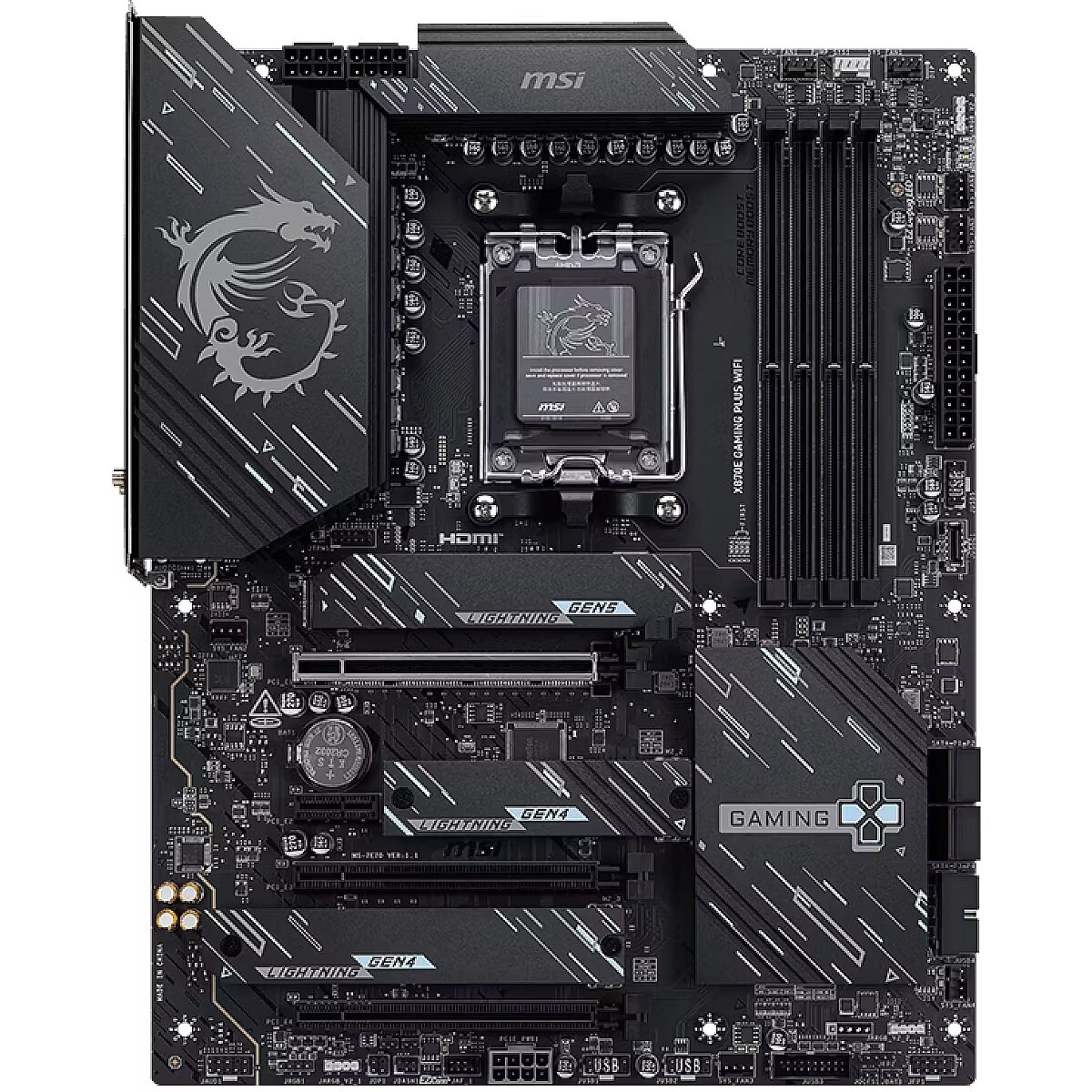

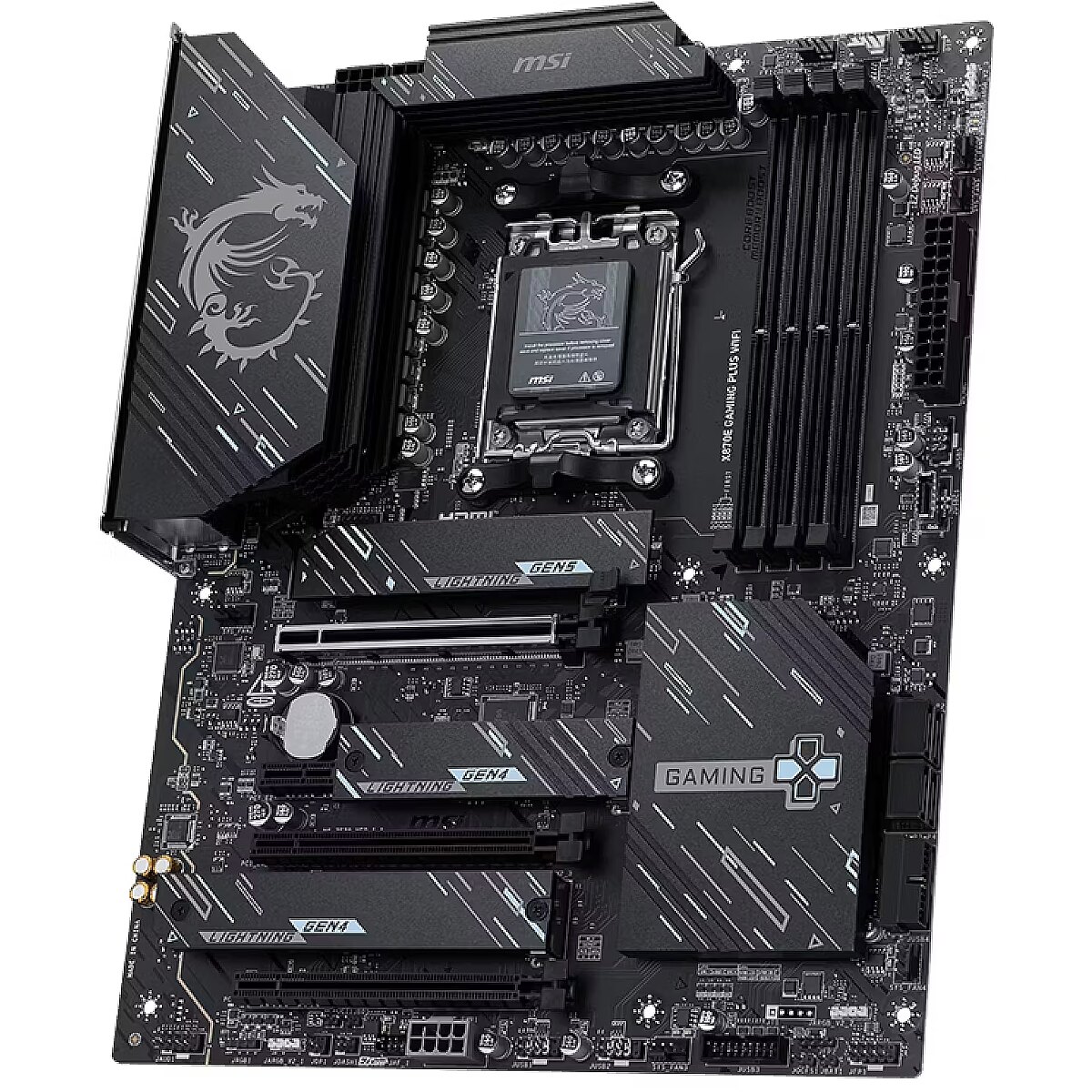

productName - MSI X870E GAMING PLUS WIFI motherboard AMD X870E Socket AM5 ATX
ProductName - X870E GAMING PLUS WIFI
productSize - Normal
RAID - Yes
RAID levels Mainboards for AMD CPUs | Storage controllers - 0/1/10/5
RAID support Mainboards for AMD CPUs | Storage controllers - Y
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - Number of USB 3.2 Gen 2x2 (3.1 Gen 2x2) Type-C ports - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB4 Gen 3x2 ports quantity - 1
RGB LED pin header Mainboards for AMD CPUs | Internal I/O - Y
Screws included Mainboards for AMD CPUs | Packaging content - Y
ShortDescription - Socket AM5 | Chipset AMD X870 | DDR5
ShortSummaryDescription - MSI X870E GAMING PLUS WIFI, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB
sizeX - 345
sizeY - 70
sizeZ - 275
Software -
Sound card - Realtek ALC897 7.1-Channel High Definition Audio
Special functions -
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD
Summary - MSI X870E GAMING PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive types: HDD, RAID levels: 0, 1, 5, 10. Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E...
Supported memory types Mainboards for AMD CPUs | Memory - DDR5-SDRAM
Supported operating systems - Windows 11
Supported processor sockets Mainboards for AMD CPUs | Processor - Socket AM5
Supported storage drive types Mainboards for AMD CPUs | Storage controllers - HDD
Technical details > Gross weight - 2.00 kg
Technical details > Net weight - 1.60 kg
Technical details > Producer - MSI
Technical details > Producer product name - X870E GAMING PLUS WIFI
Title - MSI X870E GAMING PLUS WIFI motherboard AMD X870E Socket AM5 ATX
Top Wi-Fi standard Mainboards for AMD CPUs | Network - Wi-Fi 7 (802.11be)
TPM connector Mainboards for AMD CPUs | Internal I/O - Y
Unbuffered memory Mainboards for AMD CPUs | Memory - Y
Unit Box Height - 0.07
Unit Box Length - 0.24
Unit Box Width - 0.27
Unit Calculated Volume - 0.008014 cubm
Unit Calculated Weight - 2.18 kg
Units per Pallet - 0
Units per Shipping Box - 5
URL - https://www.msi.com/Motherboard/X870E-GAMING-PLUS-WIFI/Specification?_gl=1*16v5afp*_up*MQ..*_ga*MTE1NDE3MjMyNy4xNzQ2NzgxMjg0*_ga_2FQZ8W9D09*czE3NDY3ODEyODEkbzEkZzAkdDE3NDY3ODEyODEkajAkbDAkaDA.
USB 2.0 connectors Mainboards for AMD CPUs | Internal I/O - 6
USB 2.0 ports quantity Mainboards for AMD CPUs | Rear panel I/O ports - 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors Mainboards for AMD CPUs | Internal I/O - 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors Mainboards for AMD CPUs | Internal I/O - 1
USB ports at back panel - 10
USB ports on motherboard - 11
Vendor Homepage - https://www.msi.com/Motherboard/X870E-GAMING-PLUS-WIFI/Specification?_gl=1*16v5afp*_up*MQ..*_ga*MTE1NDE3MjMyNy4xNzQ2NzgxMjg0*_ga_2FQZ8W9D09*czE3NDY3ODEyODEkbzEkZzAkdDE3NDY3ODEyODEkajAkbDAkaDA.
vendpn - X870E GAMING PLUS WIFI
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 2030
Weight & dimensions - Depth - 243.8 mm
Weight & dimensions - Width - 304.8 mm
Wi-Fi Mainboards for AMD CPUs | Network - Y
Wi-Fi standards Mainboards for AMD CPUs | Network - 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Width Mainboards for AMD CPUs | Weight & dimensions - 304.8 mm
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 305 mm
Złącza: Obsługa Raid - tak (0, 1, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 1 x 8-pin PCIe
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen2) typ C
Złącza: Złącza na płycie głównej - 2 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na płycie głównej - 4 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2 x2) typ C
Złącza: Złącza na tylnym panelu - 1 x USB4
Złącza: Złącza na tylnym panelu - 2 x USB
Złącza: Złącza na tylnym panelu - 2 x USB 3.2 (Gen2)
Złącza: Złącza na tylnym panelu - 4 x USB
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza na tylnym panelu - gniazdo anteny Wi-Fi
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x16
Złącza: Złącza PCI-E (liczba slotów) - 3 x PCI-Express x16
