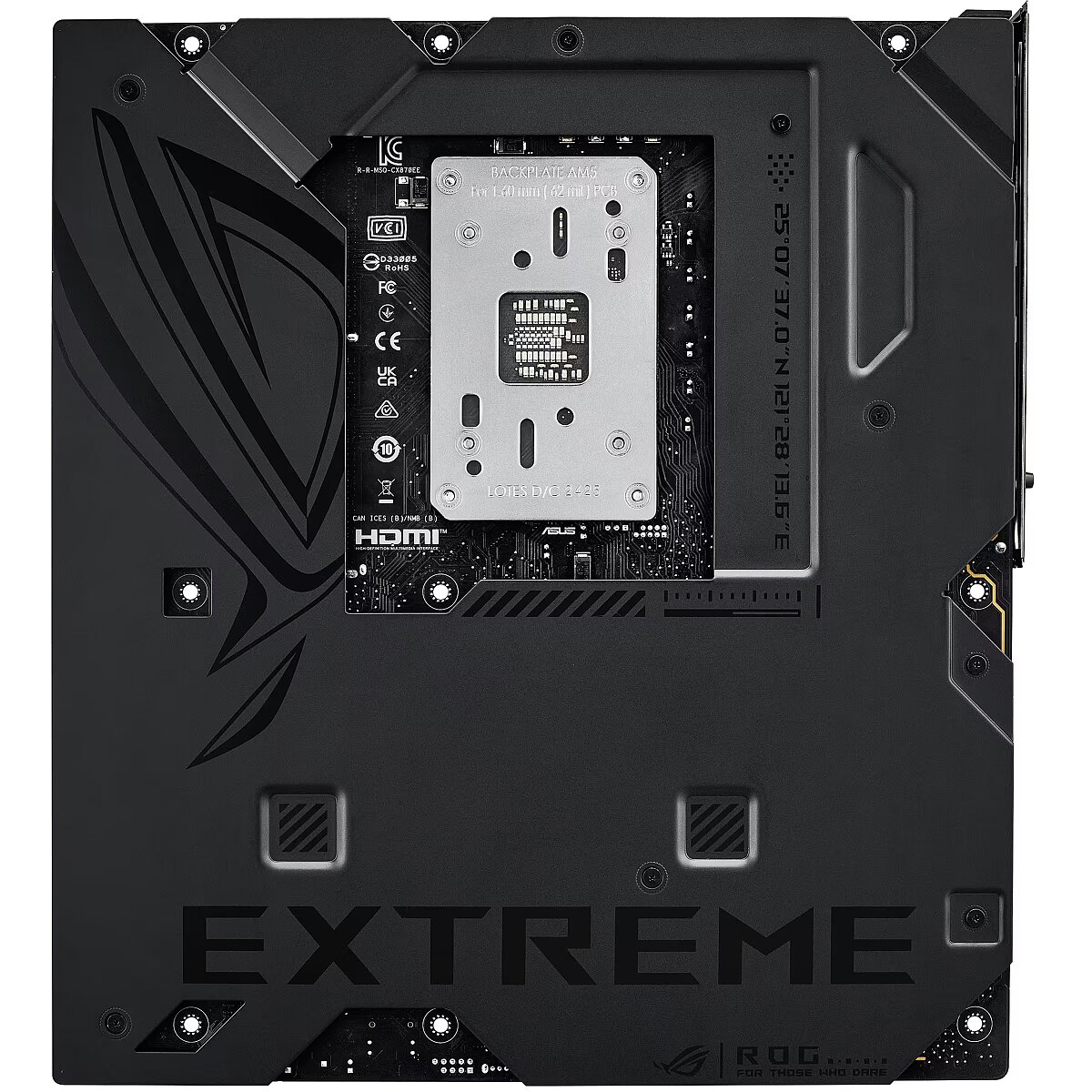

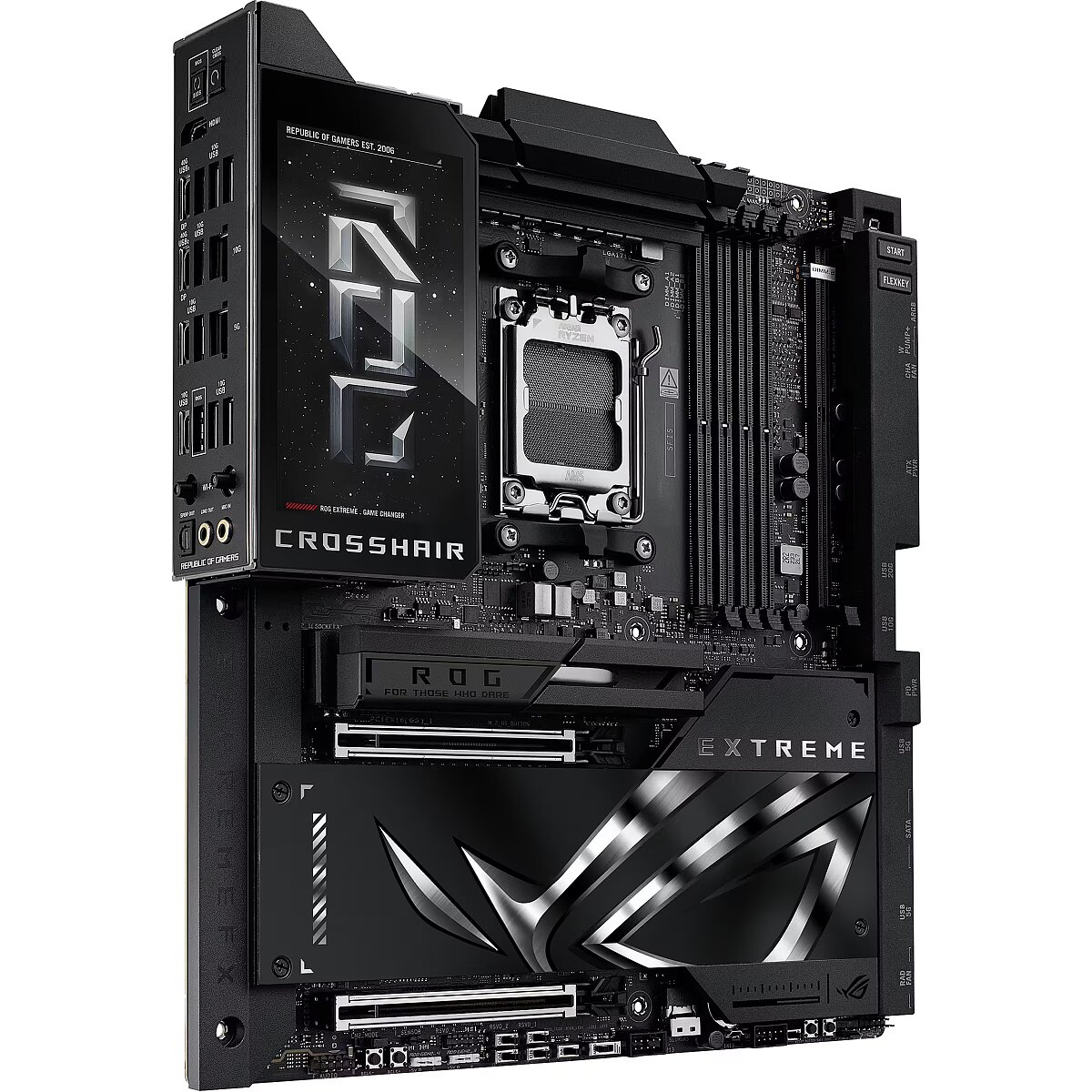

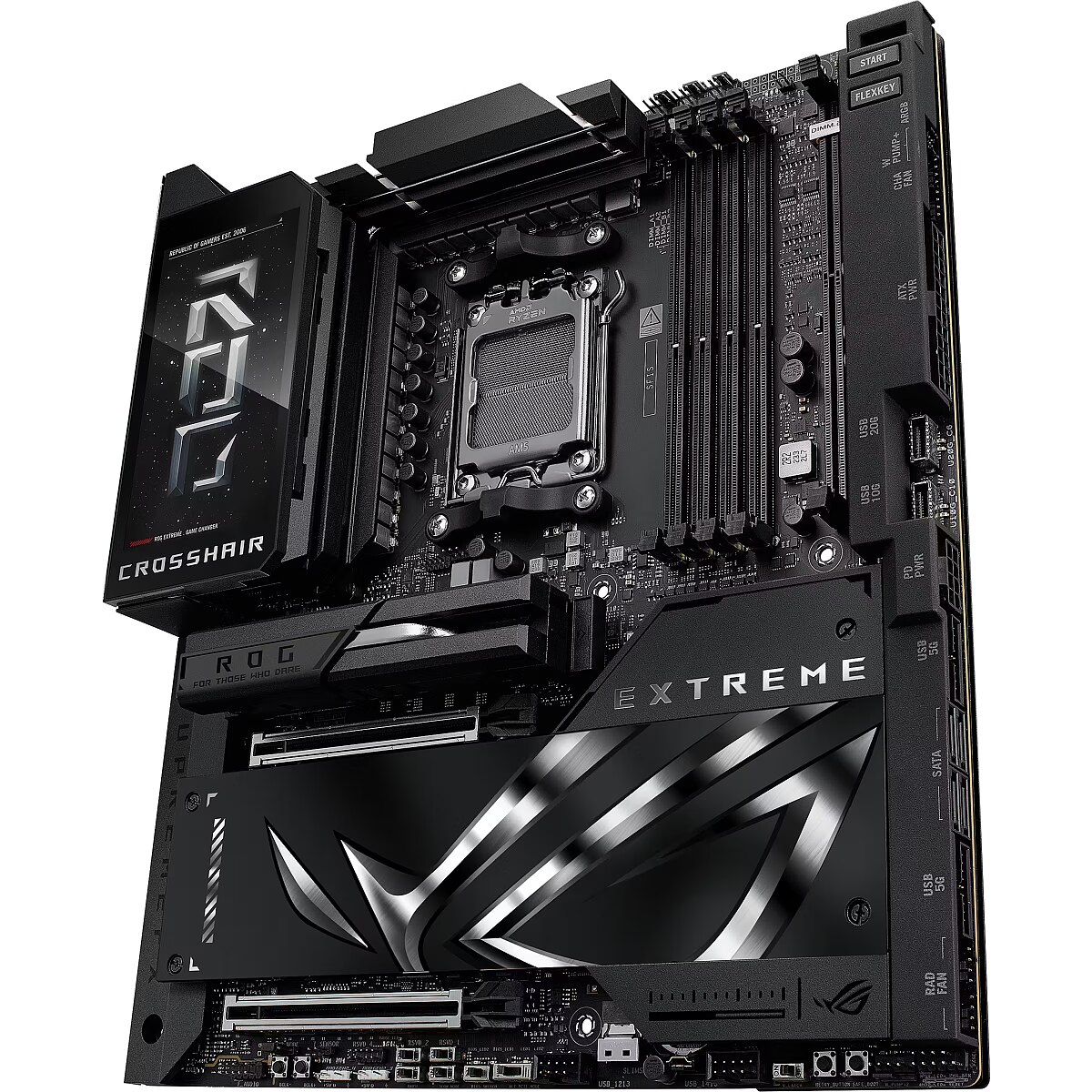

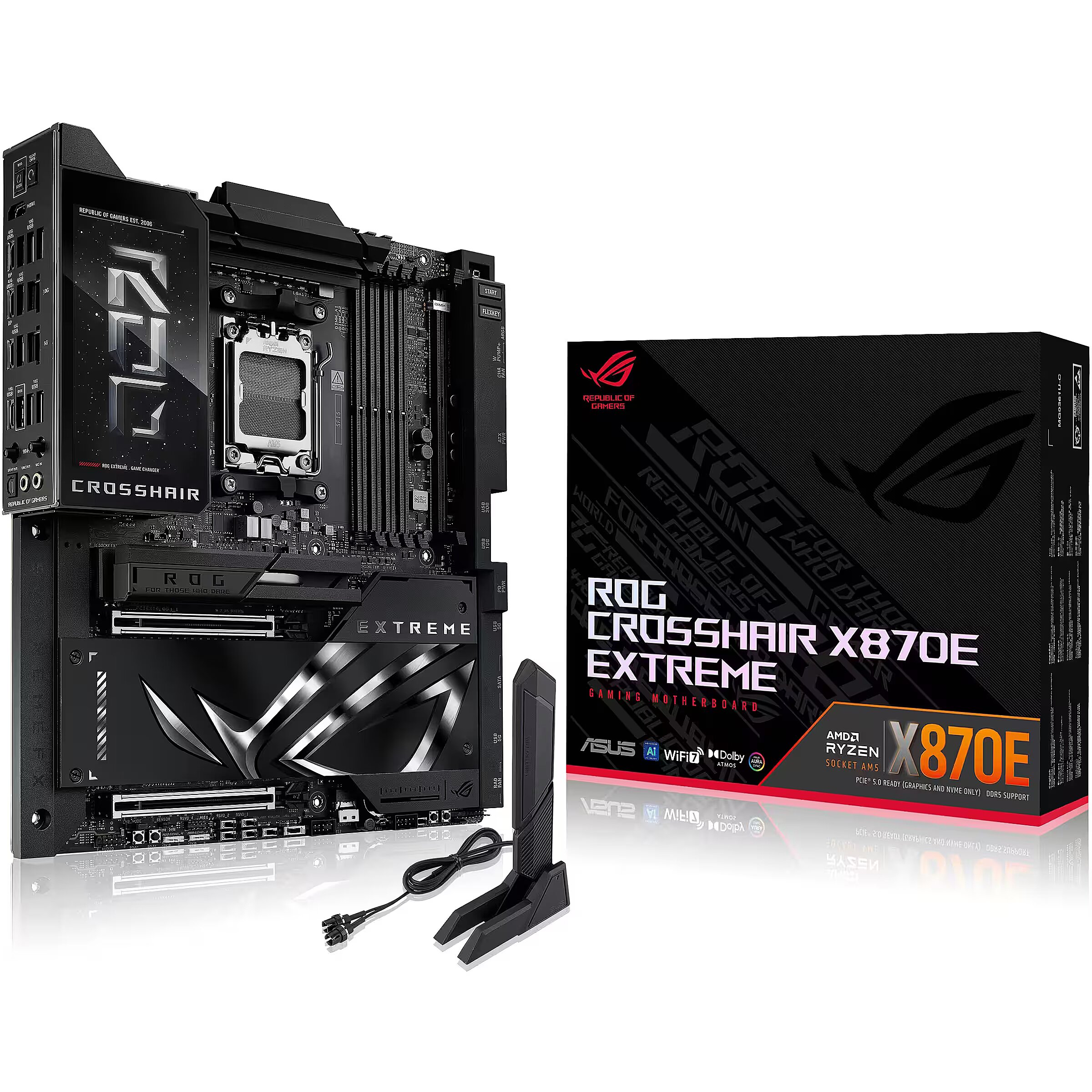

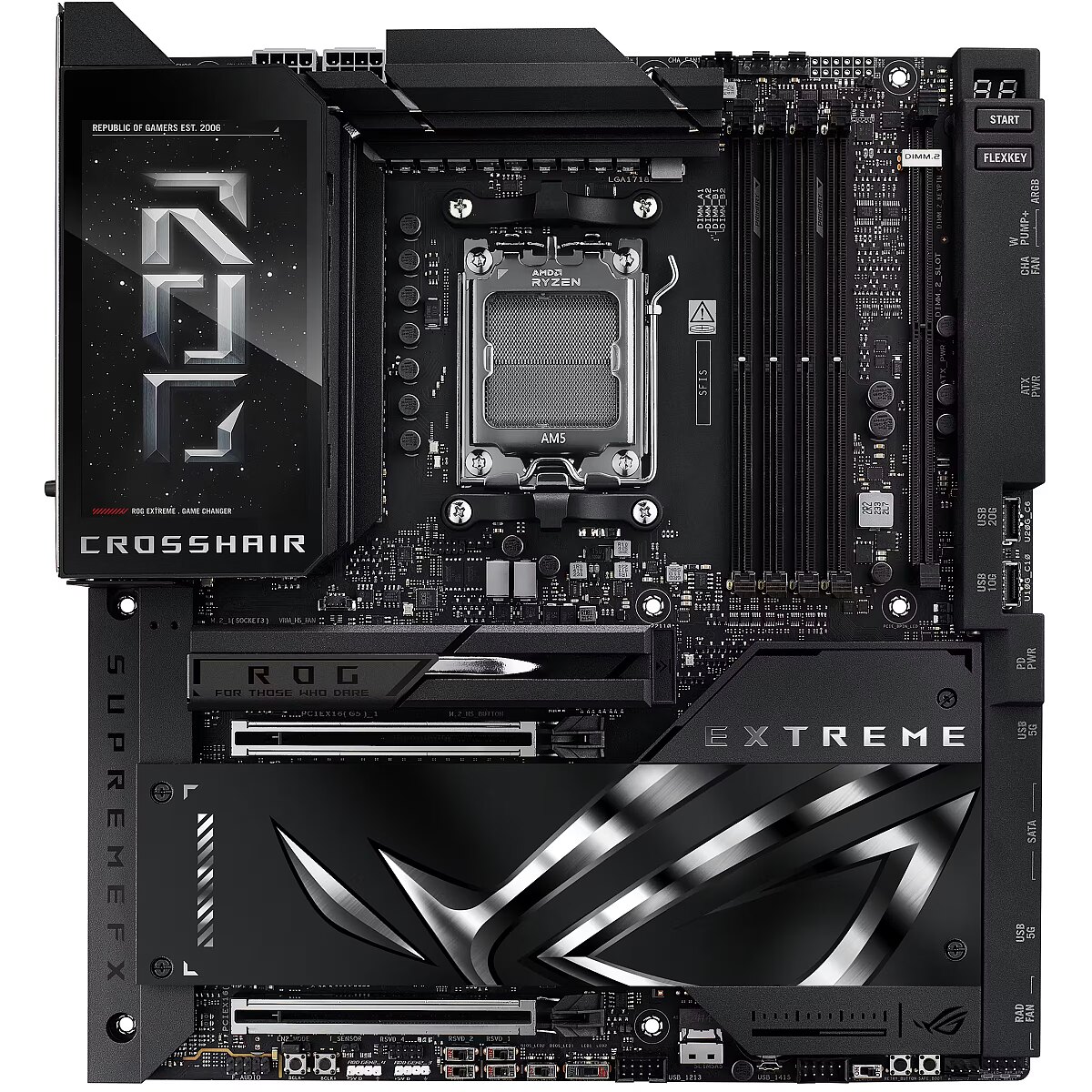

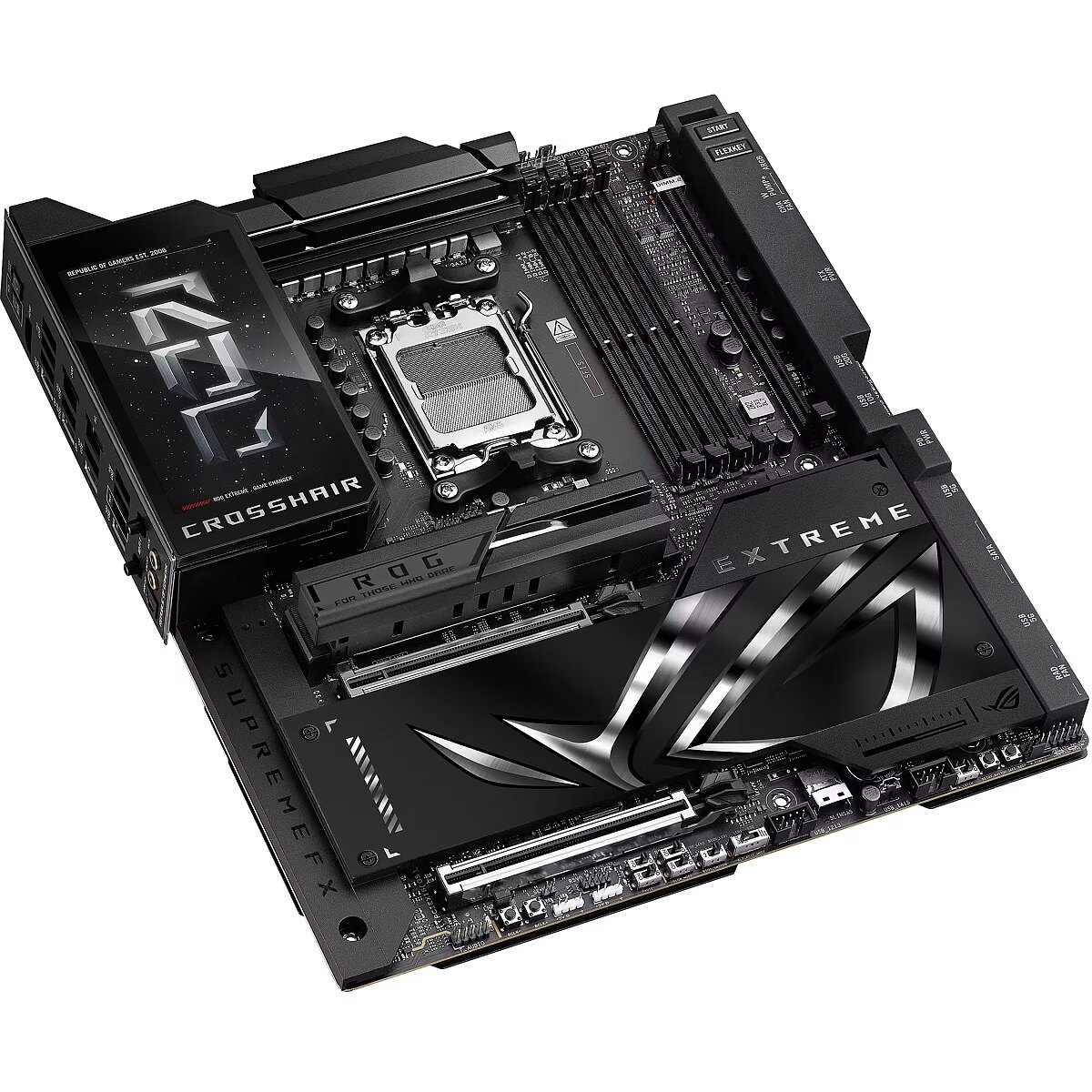

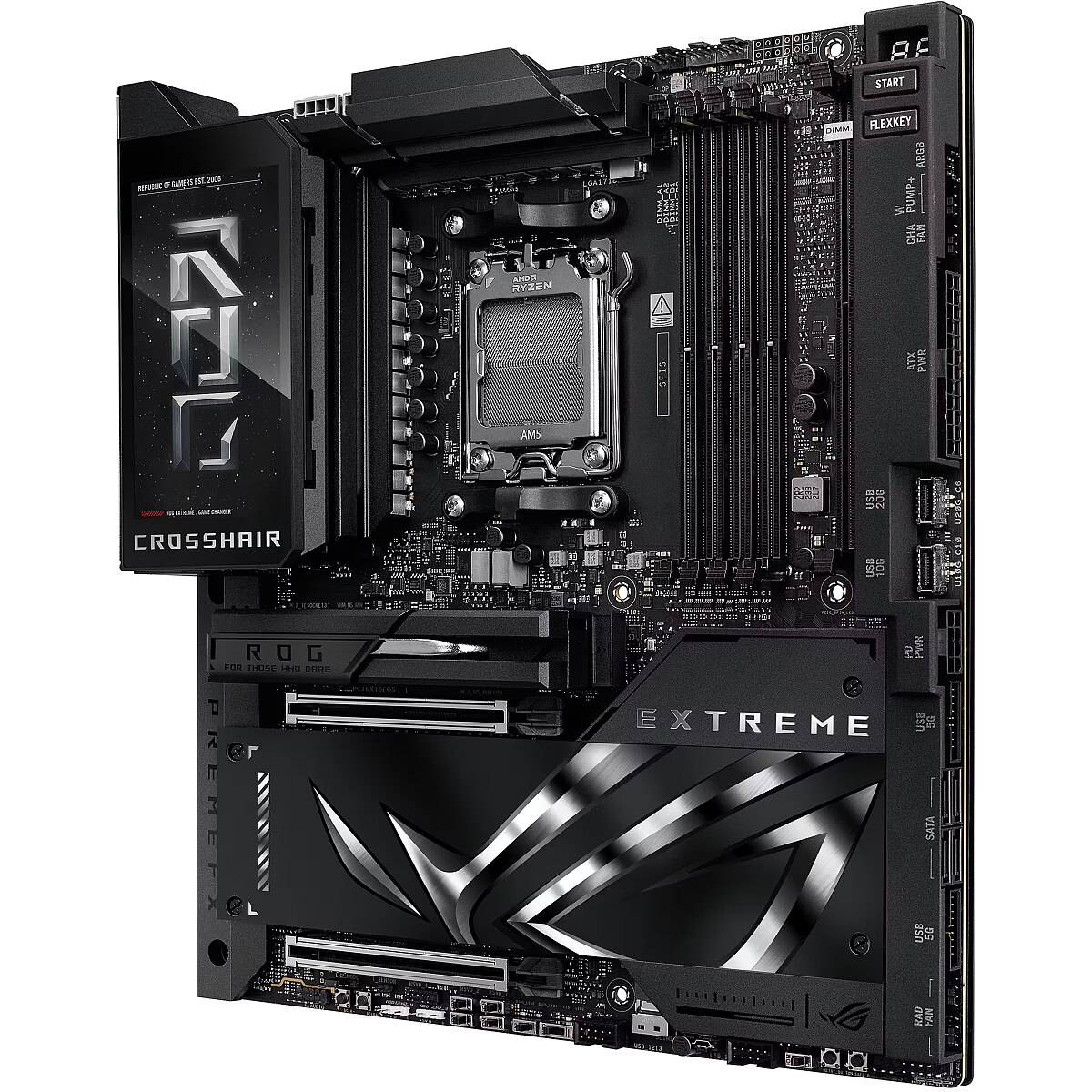

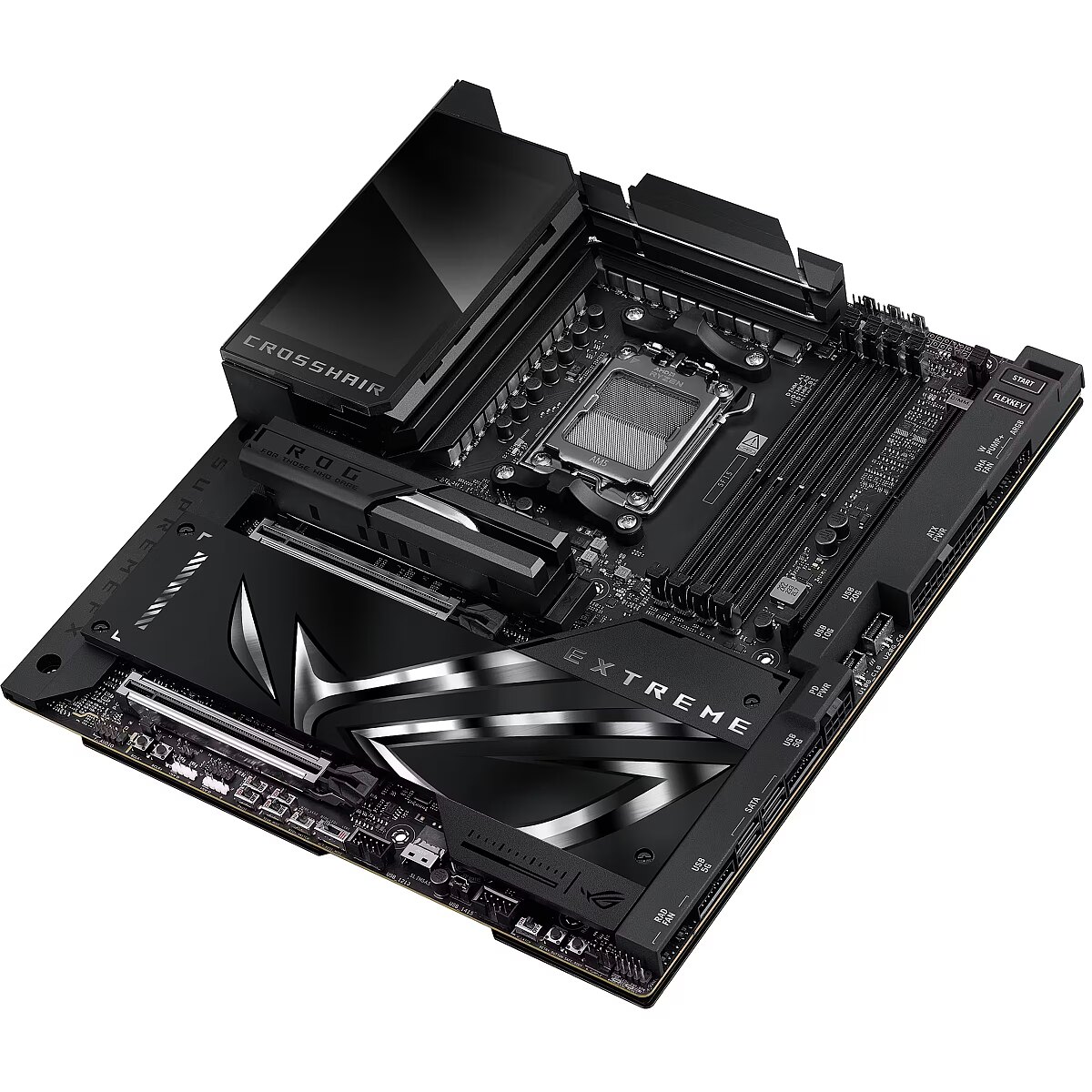

Asus ROG CROSSHAIR X870E EXTREME

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1231543 Product code: ROG CROSSHAIR X870E EXTREME
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.fi website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 3 years
Main product parameters All parameters
  • Series: ASUS ROG CROSSHAIR
  • Plate size: E-ATX
  • Chipset: AMD X870E
  • Socket: AM5
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Ir
  • M.2 ports: 5
Similar Products
This product Asus ROG CROSSHAIR X870E EXTREME
Recommended Asus TUF GAMING B650-E WIFI
Recommended Asus TUF GAMING X870-PLUS WIFI
Recommended Asus TUF GAMING B850-PLUS WIFI
Recommended Asus TUF GAMING B550-PLUS WIFI II
Show similar specs. Hide similar specs.
1,213.89 €
153.46 €
301.52 €
267.99 €
130.28 €
Basic information
Series ASUS ROG CROSSHAIR ASUS TUF Gaming ASUS TUF Gaming ASUS TUF Gaming ASUS TUF Gaming
Plate size E-ATX ATX ATX ATX ATX
Chipset AMD X870E AMD B650 AMD X870 AMD B850 AMD B550
Socket AM5 AM5 AM5 AM5 AM4
Random-access memory (RAM)
Type DDR5 DDR5 DDR5 DDR5 DDR4
RAM Slots 4 4 4 4 4
Memory support DDR5 5600MT/s (8200MT/s OC) DDR5 5200MHz (8000MHz OC) DDR5 5600MT/s (8000MT/s OC) DDR5 5600MT/s (8000MT/s OC) DDR4 3200MHz (4800MHz OC)
Graphics card
VGA Port PCI-EXPRESS PCI-EXPRESS PCI-EXPRESS PCI-EXPRESS PCI-EXPRESS
Integrated graphics Only with iGPU-ready APU Only with iGPU-ready APU Only with iGPU-ready APU Only with iGPU-ready APU Only with iGPU-ready APU
Ports and equipment
D-Sub 0 0 0 0 0
DisplayPort 0 1 0 1 1
DVI 0 0 0 0 0
HDMI 1 1 1 1 1
Integrated sound card Realtek ALC4082 Nav norādīts Realtek ALC1220P Realtek ALC1220P Nav norādīts
PCI Ports 0 0 0 0 0
Wireless connections
Built-in Bluetooth Ir Ir Ir Ir Ir
Built-in Wi-Fi Ir Ir Ir Ir Ir
External ports
External USB 2.0 Nav 3 1 2 2
External USB Type-C (USB 3.2 Gen2) 2 1 0 1 1
External USB Type-C (USB 4.0) 2 0 2 0 0
External USB 3.0 (USB 3.2 Gen1) 0 3 4 4 4
External USB 3.1 (USB 3.2 Gen2) Eight Core 1 3 3 1
Internal ports
Internal A-RGB 5V (3-pin) 2 3 3 3 2
Internal RGB 12V (4-pin) 0 1 0 0 2
Internal USB 2.0 2 2 2 2 2
Internal USB 3.0 2 1 1 1 1
Internal USB Type-C 2 1 1 1 0
M.2 ports 5 3 4 3 2
SATA3 ports 4 4 2 4 6
Basic information
Series : ASUS ROG CROSSHAIR
Plate size E-ATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD X870E

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5600MT/s (8200MT/s OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 0
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC4082
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Ir
Built-in Wi-Fi : Ir
External ports
External USB 2.0 : Nav
External USB Type-C (USB 3.2 Gen2) : 2
External USB Type-C (USB 4.0) : 2
External USB 3.0 (USB 3.2 Gen1) : 0
External USB 3.1 (USB 3.2 Gen2) : Eight Core
Internal ports
Internal A-RGB 5V (3-pin) : 2
Internal RGB 12V (4-pin) : 0
Internal USB 2.0 : 2
Internal USB 3.0 : 2
Internal USB Type-C : 2
M.2 ports : 5
SATA3 ports : 4
More detailed specification
Additional information in manufacturers website Asus ROG CROSSHAIR X870E EXTREME
BIOS - BIOS memory size - 512 Mbit
BIOS - BIOS type - UEFI AMI
Brand - ASUS
BrandPartCode - 90MB1LB0-M0EAY0
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Dane techniczne: Chipset płyty głównej - AMD X870E
Dane techniczne: Grupa produktowa - Płyty główne Asus
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - Asus
Dane techniczne: Przeznaczenie - AMD
Dane techniczne: Standard płyty - ATX
dimensionalWeight - 3360
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC4082 7.1)
Eans - 4711387984963
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 22110
Expansion slots - 2nd M.2 highest PCI Express generation - 5.0
Expansion slots - 2nd M.2 largest key size - 2280
Expansion slots - 3rd M.2 highest PCI Express generation - 5.0
Expansion slots - 3rd M.2 largest key size - 22110
Expansion slots - 4th M.2 highest PCI Express generation - 4.0
Expansion slots - 4th M.2 largest key size - 22110
Expansion slots - 5th M.2 highest PCI Express generation - 4.0
Expansion slots - 5th M.2 largest key size - 22110
Expansion slots - Number of M.2 (M) slots - 5
Expansion slots - PCI Express x16 (Gen 4.x) slots - 2
Expansion slots - PCI Express x16 (Gen 5.x) slots - 2
Features - Audio chip - Realtek ALC4082
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD X870E
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - Extended ATX
Features - Windows operating systems supported - Windows 11
Graphics - Parallel processing technology support - Not supported
GTIN - 0197105984967
GTIN - 197105984967
GTIN - 4711387984963
Informacje dodatkowe: Akcesoria - 1 x ROG DIMM.2
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
Komunikacja: Karta bezprzewodowa - Wi-Fi 7 | Bluetooth 5.4
Komunikacja: Transmisja danych - 2 x LAN
Komunikacja: Transmisja danych - Bluetooth
Komunikacja: Transmisja danych - Wi-Fi
Komunikacja: Zintegrowana karta sieciowa - tak (Marvell AQtion 10Gb Ethernet | Realtek 5Gb Ethernet)
LongDesc - ROG Crosshair X870E ExtremeThe ROG Crosshair X870E Extreme is the flagship AMD Ryzen™ 9000 series motherboard, designed for the most discerning users. It provides the ultimate foundation for AM5 CPUs, DDR5 memory, and PCIe® 5.0 components to ensure maximum performance and future-readiness. Its comprehensive connectivity includes USB4®, and the integrated 5-inch LCD offers a unique way to monitor system performance or add a touch of personalized style.ASUS AI CACHE BOOSTSupercharge your large language model(LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 Series and 600 Series motherboards using AMD Ryzen™ 9000 Series Granite Ridge CPUs, this BIOS feature intelligently enhances cache efficiency, delivering up to 12.75% faster performance for your LLM tasks.
LongProductName - ROG CROSSHAIR X870E EXTREME AMD AM5 (Ryzen 9000, E-ATX, 3x PCIe 5.0, 2x PCIe 4.0, DDR 5, WiFi 7, AI Overclocking, PCIe Q-Release, Aura Sync)
LongSummaryDescription - ASUS ROG CROSSHAIR X870E EXTREME. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, SlimSAS, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: Extended ATX, Motherboard chipset family: AMD
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Name - ASUS ROG CROSSHAIR X870E EXTREME
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 5 Gigabit Ethernet
Network - Ethernet interface type - 5 Gigabit Ethernet, 10 Gigabit Ethernet
Network - Ethernet interface type - 10 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)

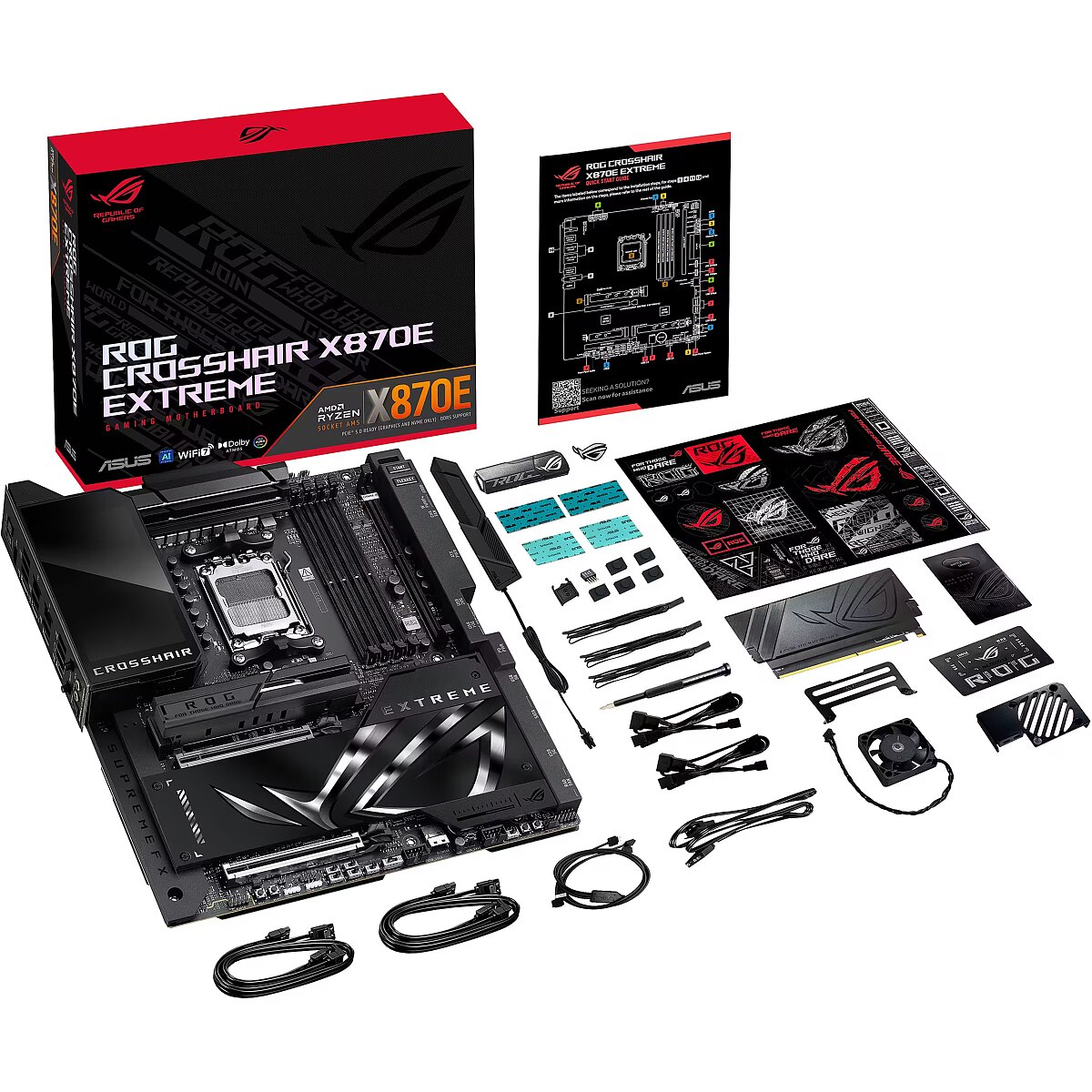

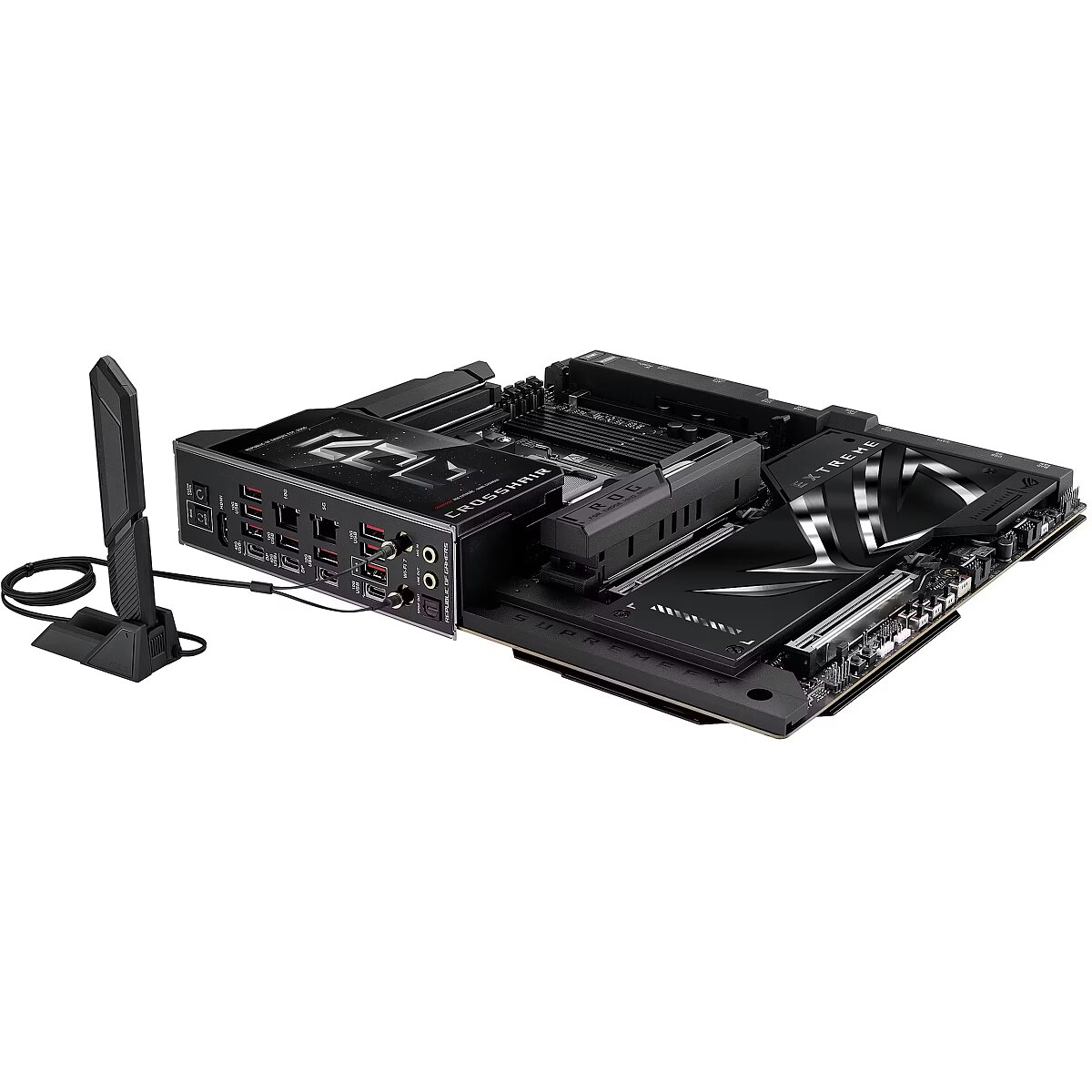

Packaging content - Antenna included - Yes
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Packaging data - Package depth - 320 mm
Packaging data - Package height - 125 mm
Packaging data - Package weight - 5.66 kg
Packaging data - Package width - 380 mm
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 256 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6400 (PC5-51200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
Procesor: Gniazdo procesora - Socket AM5
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 9000
Processor - Compatible processor series - AMD Ryzen 7000 Series
Processor - Compatible processor series - AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor - Compatible processor series - AMD Ryzen 8000 Series
Processor - Compatible processor series - AMD Ryzen 9000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Producent: Nazwa producenta / importera - AsusASUS COMPUTER GmBHHARKORT STR. 21-2340880 RATINGENNiemcyEmail: https://www.asus.com/support/Product/ContactUs/Services/questionform/?lang=en&utm_source=asus-qr&utm
Producer - Asus
producerCode - 90MB1LB0-M0EAY0
ProducerCode - ROG CROSSHAIR X870E EXTREME
productName - ASUS ROG CROSSHAIR X870E EXTREME AMD X870E Socket AM5 Extended ATX
ProductName - ROG CROSSHAIR X870E EXTREME
productSize - Normal

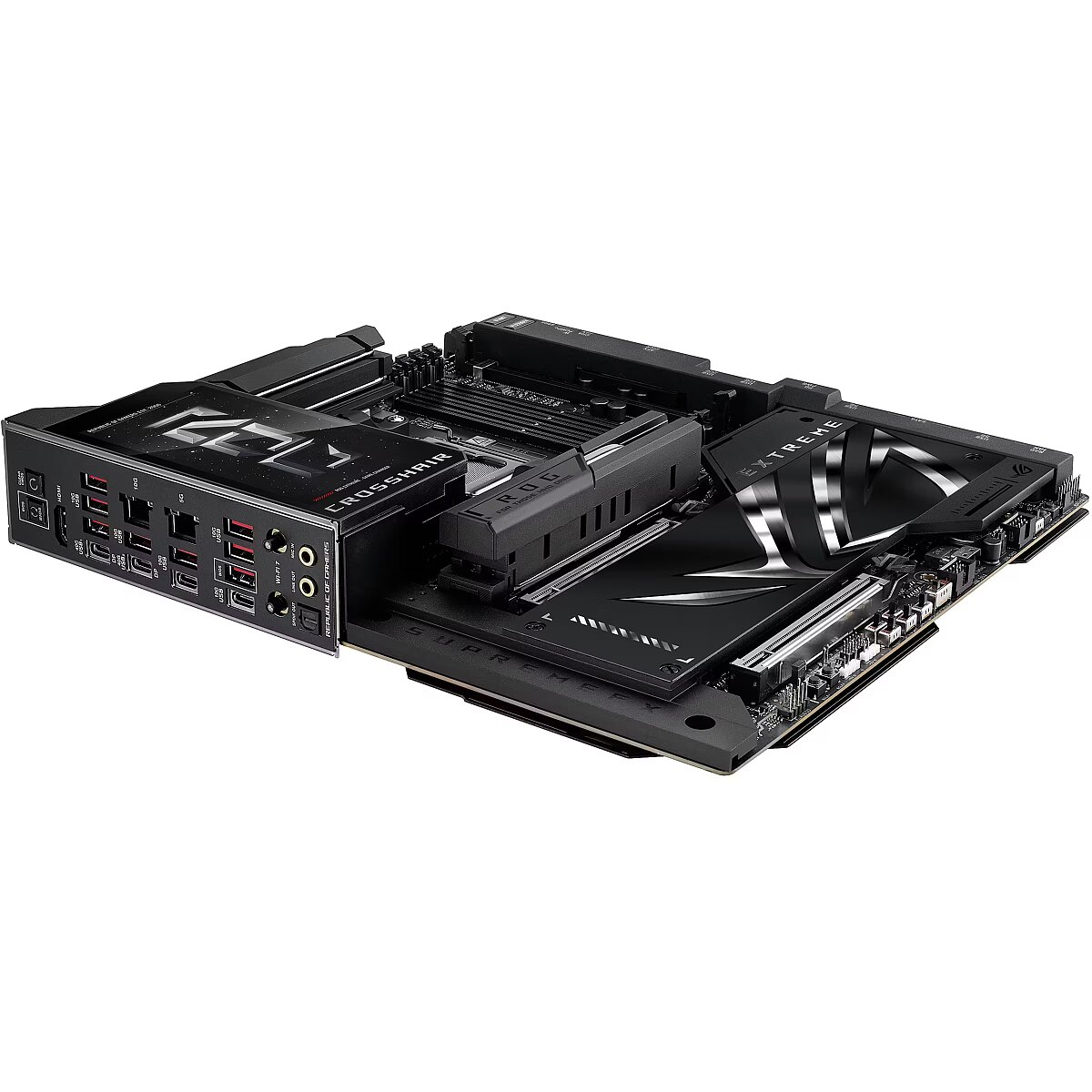

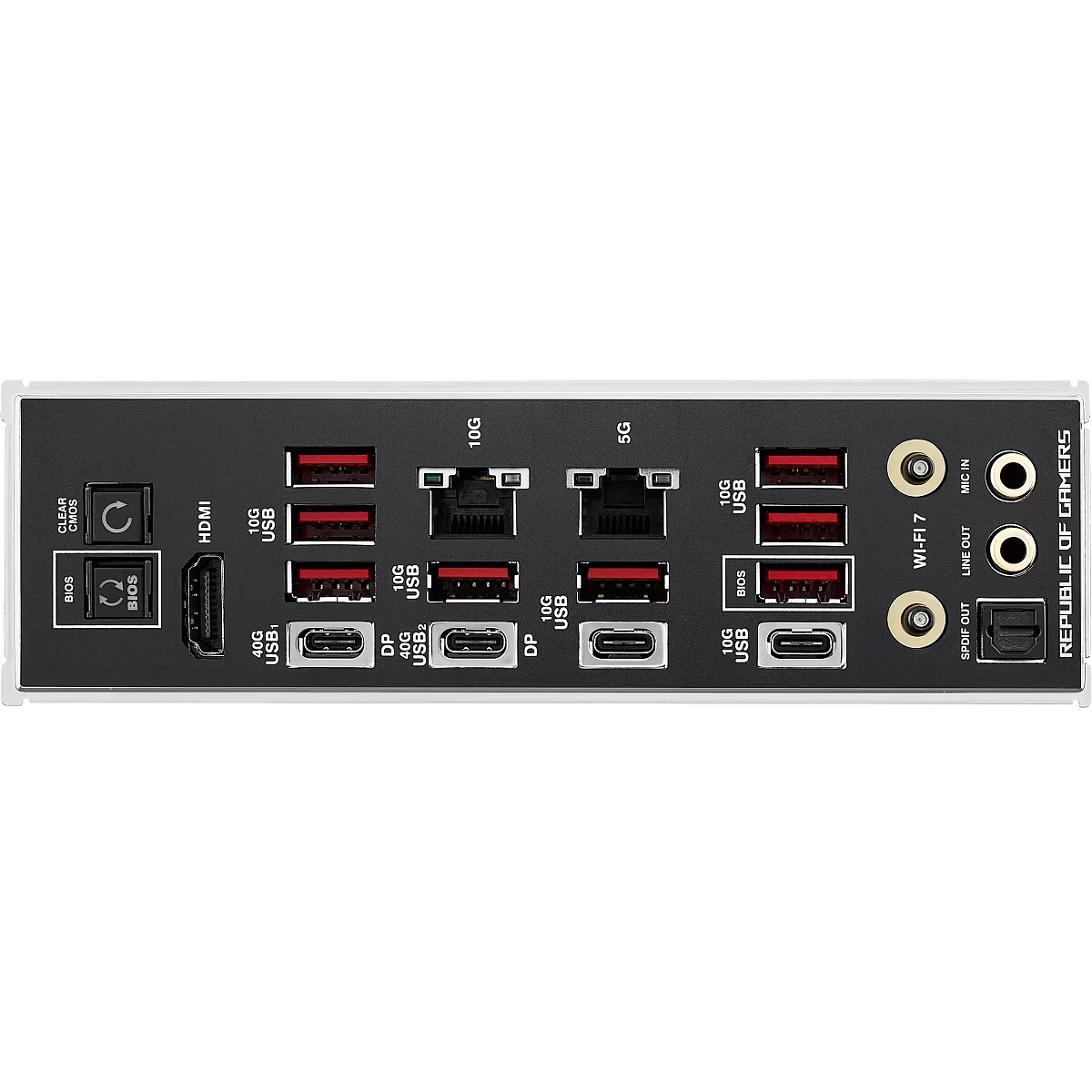

Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 2
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 8
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 2
Rear panel I/O ports - USB4 Gen 3x2 ports quantity - 2
Rear panel I/O ports - WiFi-AP antenna jack - 1
ShortDescription - Socket AM5 | Chipset AMD X870E | DDR5
ShortSummaryDescription - ASUS ROG CROSSHAIR X870E EXTREME, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB
sizeX - 120
sizeY - 400
sizeZ - 350
Storage controllers - Number of storage drives supported - 10
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III, SlimSAS
Storage controllers - Supported storage drive types - HDD & SSD
Title - ASUS ROG CROSSHAIR X870E EXTREME AMD X870E Socket AM5 Extended ATX
URL - https://rog.asus.com/motherboards/rog-crosshair/rog-crosshair-x870e-extreme/
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 5000
Weight & dimensions - Depth - 277 mm
Weight & dimensions - Width - 305 mm
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 305 mm
Złącza: Obsługa Raid - tak (0, 1, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x 8-pin PCIe
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x SlimSAS
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen2 x2) typ C
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen2) typ C
Złącza: Złącza na płycie głównej - 2 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 2 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na płycie głównej - 2 x USB 3.2 (Gen1)
Złącza: Złącza na płycie głównej - 3 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 2 x RJ45
Złącza: Złącza na tylnym panelu - 2 x USB 3.2 (Gen2) typ C
Złącza: Złącza na tylnym panelu - 2 x USB4
Złącza: Złącza na tylnym panelu - 8 x USB 3.2 (Gen2)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza na tylnym panelu - gniazdo anteny Wi-Fi
Złącza: Złącza na tylnym panelu - SPDIF out
Złącza: Złącza PCI-E (liczba slotów) - 2 x PCI-Express x16
1,213.89 €
Asus ROG CROSSHAIR X870E EXTREME
Intel technology provider Platinum 2020
All categories
