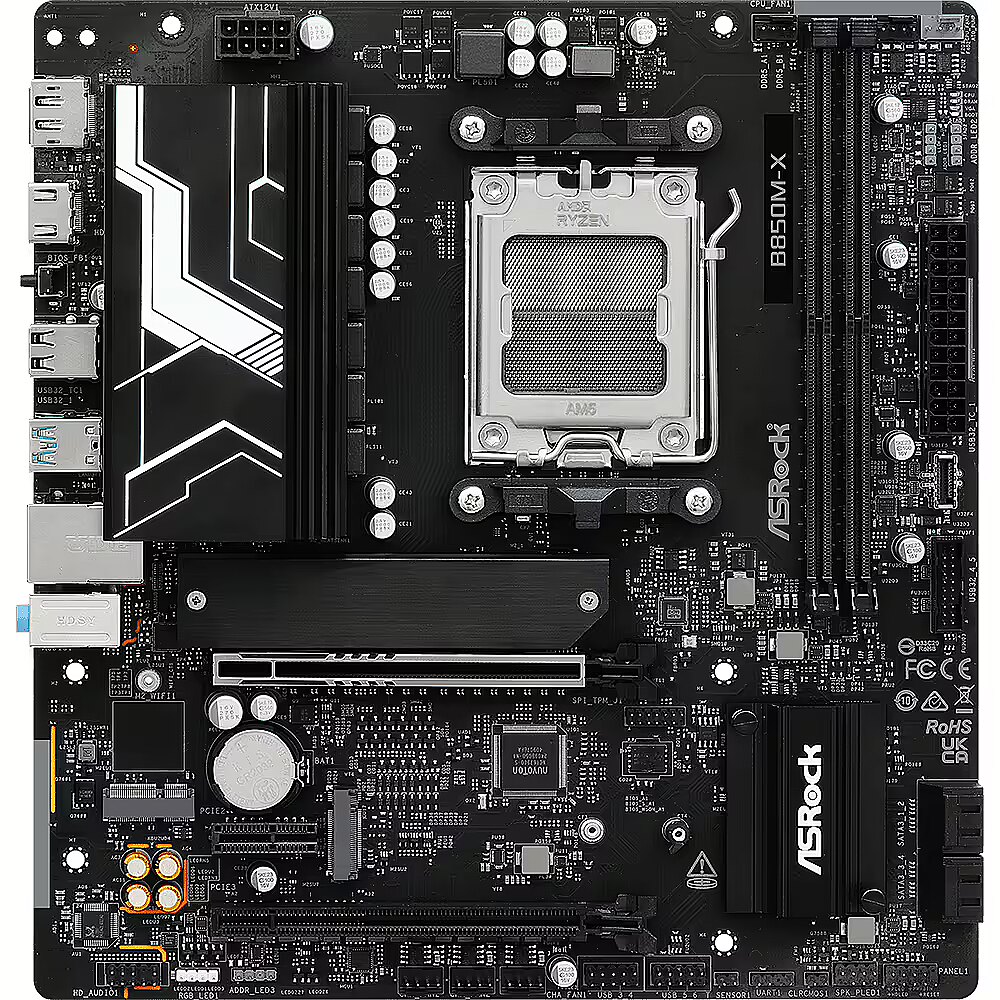

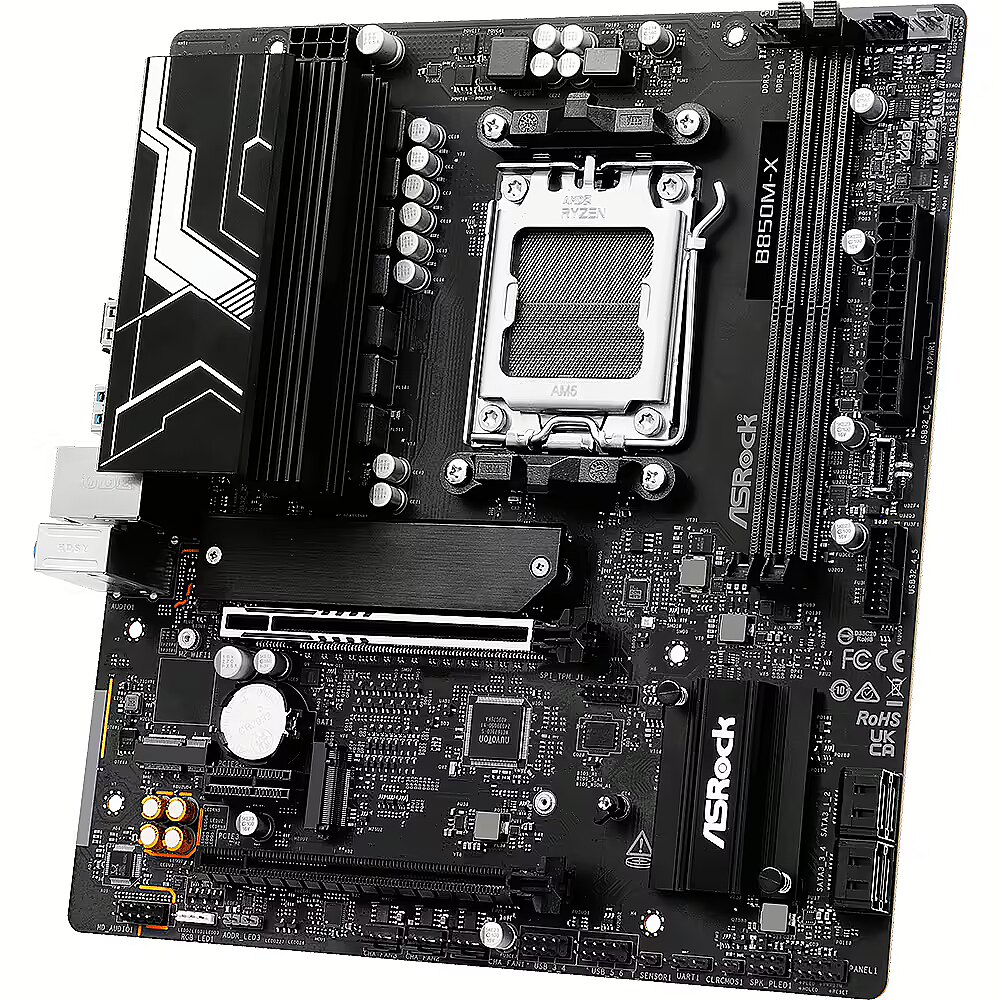

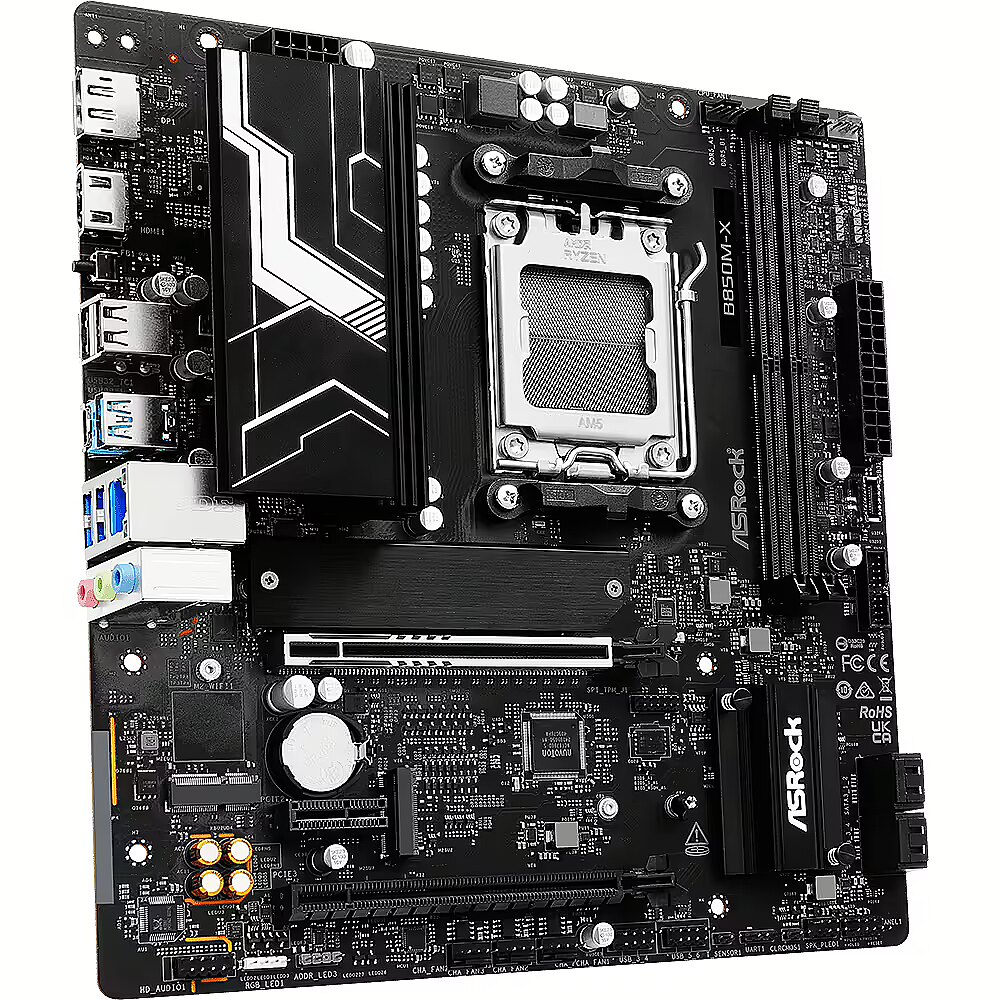

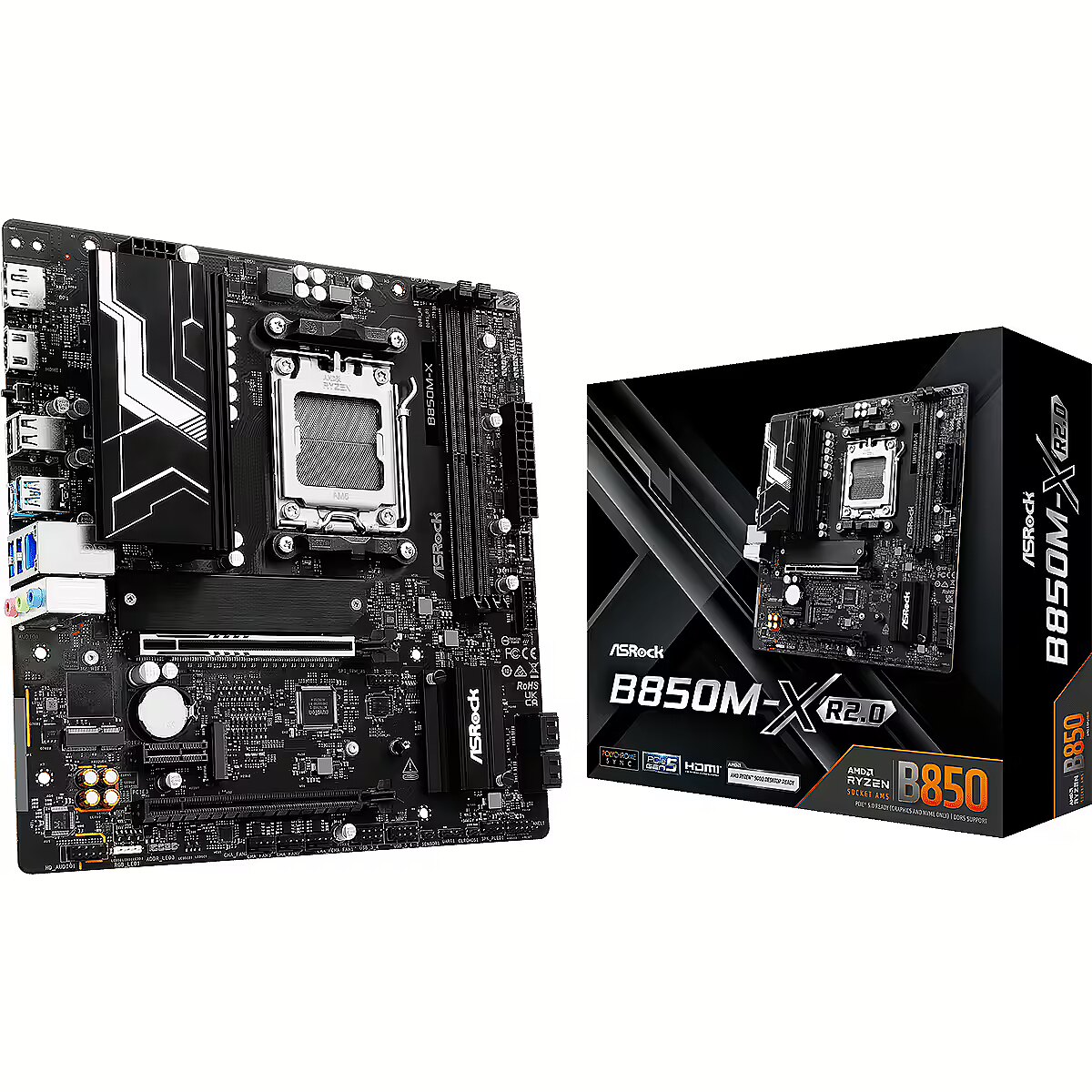

Asrock B850M-X R2.0 AM5 1xHDMI 1xDP

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1223699 Product code: B850M-X R2.0
In stock 29 units
Warranty: 3 years
137.82 €
Ready for dispatch
on Wednesday, 20.08.2025
starting from 6.99 €
Delivery options
  • Posti parcel machine
    Within 1-2 working days
    6.99 €
  • Delivery with Posti courier mail
    Within 1-2 working days
    10.99 €
Main product parameters All parameters
  • Series: Nav
  • Plate size: mATX
  • Chipset: AMD B850
  • Socket: AM5
  • Type: DDR5
  • RAM Slots: 2
  • Built-in Wi-Fi: Nav
  • M.2 ports: 2
Basic information
Series : Nav
Plate size mATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD B850

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 2
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5600MT/s (8200MT/s OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 1
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC897
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Nav
Built-in Wi-Fi : Nav
External ports
External USB 2.0 : 2
External USB Type-C (USB 3.2 Gen2) : 1
External USB Type-C (USB 4.0) : 0
External USB 3.0 (USB 3.2 Gen1) : 2
External USB 3.1 (USB 3.2 Gen2) : 1
Internal ports
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 1
M.2 ports : 2
SATA3 ports : 4
More detailed specification
Accessories included - 1 x I/O Shield 2 x SATA Data Cables 1 x Screw for M.2 Socket
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset manufacturer - AMD
Chipset type - AMD B850
COM connector / port - No
CPU socket - Socket AM5
Description - Płyta główna ASRock X-Series zapewnia rozwiązanie o wysokiej wartości, równoważąc wydajność i wszechstronność w kompaktowym formacie. Jest wysoce zdolna do obsługi szerokiego zakresu zadań, od profesjonalnej produktywności po codzienne użytkowanie, osiągając doskonałą równowagę między przystępnością cenową, niezawodnością i wydajnością. 6-Warstwowa Konstrukcja PCB
6-warstwowa płytka PCB zapewnia stabilne ścieżki sygnału i kształty mocy, zapewniając niższą temperaturę i wyższą wydajność energetyczną, gwarantując niezawodną pracę i najwyższą wydajność bez żadnych kompromisów.
Obsługa DDR5 XMP i EXPO
Wywodząca się z koncepcji projektowania budowa z myślą o stabilności i niezawodności, ASRock nie uznaje żadnych kompromisów w zakresie żadnych szczegółów. Te płyty główne są zbudowane z materiałów wysokiej jakości, a entuzjaści mogą cieszyć się zwiększoną wydajnością overclockingu pamięci DDR5, włączając wstępnie przetestowane profile. Upewnij się, że moduły pamięci obsługują technologię Intel XMP/AMD EXPO, a podkręcanie będzie niedrogie, satysfakcjonujące i całkowicie bezproblemowe. Sieć Dragon LAN 2.5 Gb/s
Inteligentna sieć LAN 2.5Gb/s zapewnia maksymalną prędkość połączenia dla zaspokojenia potrzeb nawet najbardziej wymagających użytkowników sieci domowej, twórców treści, graczy online oraz streamerów treści w wysokiej jakości. Przyspiesz swoje połączenie sieciowe 2.5-krotnie w stosunku do standardowego gigabitowego Ehernetu. Ciesz się niezrównaną szybkością podczas gamingu, transferu plików oraz wykonywania backupu. POLYCHROME RGB
Ta płyta główna posiada wbudowane headery RGB i adresowalne headery RGB, które umożliwiają podłączenie płyty głównej do kompatybilnych urządzeń LED, takich jak taśmy, wentylatory procesora, chłodzenia, obudowy i tak dalej. Użytkownicy mogą także synchronizować urządzenia RGB LED z akcesoriami z Certyfikatem Polychrome RGB Sync, aby tworzyć własne, unikalne efekty świetlne.
Designation - CE+WEEE
Detailed data on disk/drive interfaces - CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: 4 x SATA3 6.0 Gb/s Connectors
dimensionalWeight - 906
dimension depth - 60 mm
dimension height - 265 mm
Dimensions - 24.4 x 22.6 cm
dimension weight - 1179 g
dimension width - 300 mm
ean - 4711581490758
EAN_code - 4711581490758
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 4.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 2280
Expansion slots - 2nd M.2 highest PCI Express generation - 4.0
Expansion slots - 2nd M.2 largest key size - 2280
Expansion slots - Number of M.2 (E) slots - 1
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.2 Gen 1 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 2.0
External connectors - 3 x USB 3.2 Gen 1 Type-A
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Certification - FCC, CE, ErP/EuP
Features - Motherboard chipset - AMD B850
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - micro ATX
Graphics - Integrated AMD RDNA graphics (Wsparcie może się różnić w zależności od CPU) 1 x HDMI 2.1 TMDS/FRL Kompatybilny z 8G, supports HDR, HDCP 2.3 and max. Rozdzielczośćup to 4K 120Hz 1 x DisplayPort 1.4 z DSC (skompresowany), supports HDCP 2.3 and max. Rozdzielczośćup to 4K 120Hz
Graphics - HDCP - Yes
Graphics - Maximum resolution - 3840 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 3
Internal I/O - Number of CPU fan connectors - 2
Internal I/O - Number of EPS power connectors (8-pin) - 1
Internal I/O - Number of RGB LED pin headers - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB Type-C ports quantity - 1
LPT connector / port - No
Manufacturer - Asrock
Manufacturer_code - 90-MXBSG0-A0UAYZ
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory types - DDR5-SDRAM
Memory bus frequency - 8200 MHz
Memory type - DDR5
Model - B850M-X R2.0
Name - ASRock B850M-X R2.0 - Socket AM5 motherboard
name - Motherboard B850M-X R2.0 AM5 2DDR5 M.2 USBC mATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - Mobile network connection - No
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 2,5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Obsługuje oprogramowanie Dragon 2.5G LAN Inteligentna automatyczna regulacja kontroli przepustowości Przyjazny dla użytkownika interfejs użytkownika Wizualne statystyki wykorzystania sieci Zoptymalizowane ustawienia domyślne dla trybów gry, przeglądarki i przesyłania strumieniowego Dostosowana przez użytkownika kontrola priorytetów
Number of DDR5 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Power LED and Speaker Header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x Thermistor Cable Header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-A
Onboard connectors - 1 x USB 3.2 Gen 1 Type-C
Onboard connectors - 2 x 4pin wentylator CPU
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x 4pin Chassis/Water Pump Fan Connectors
Onboard connectors - 3 x Addressable LED
Other information -
Packaging content - Cables included - SATA
Packaging content - Screws included - Yes
Processor - Compatible processor series - AMD Ryzen 7000 Series
Processor - Compatible processor series - AMD Ryzen 8000 Series
Processor - Compatible processor series - AMD Ryzen 9000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor family - AMD Ryzen 3
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - ASRock
producerCode - B850M-X R2.0
productName - Asrock B850M-X R2 AMD B850 Socket AM5 micro ATX
productSize - Normal
RAID - Yes
Rear panel I/O ports - Audio output - 3.5 mm
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Safety warning - Warnings - Avoid contact with liquids to prevent electronic damage.
Safety warning - Warnings - Dispose of in accordance with local regulations for electronic waste.
Safety warning - Warnings - Do not disassemble to avoid damage to internal components and loss of warranty.
sizeX - 296
sizeY - 264
sizeZ - 58
Software - ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions -
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - PCI Express 4.0, PCI Express 5.0, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
USB ports at back panel - 6
USB ports on motherboard - 7
vendpn - B850M-X R2.0
warrantyLength - 36
warrantyType - G
Weight - 1,17
weight - 1160
Weight & dimensions - Depth - 226 mm
Weight & dimensions - Width - 244 mm
137.82 €
