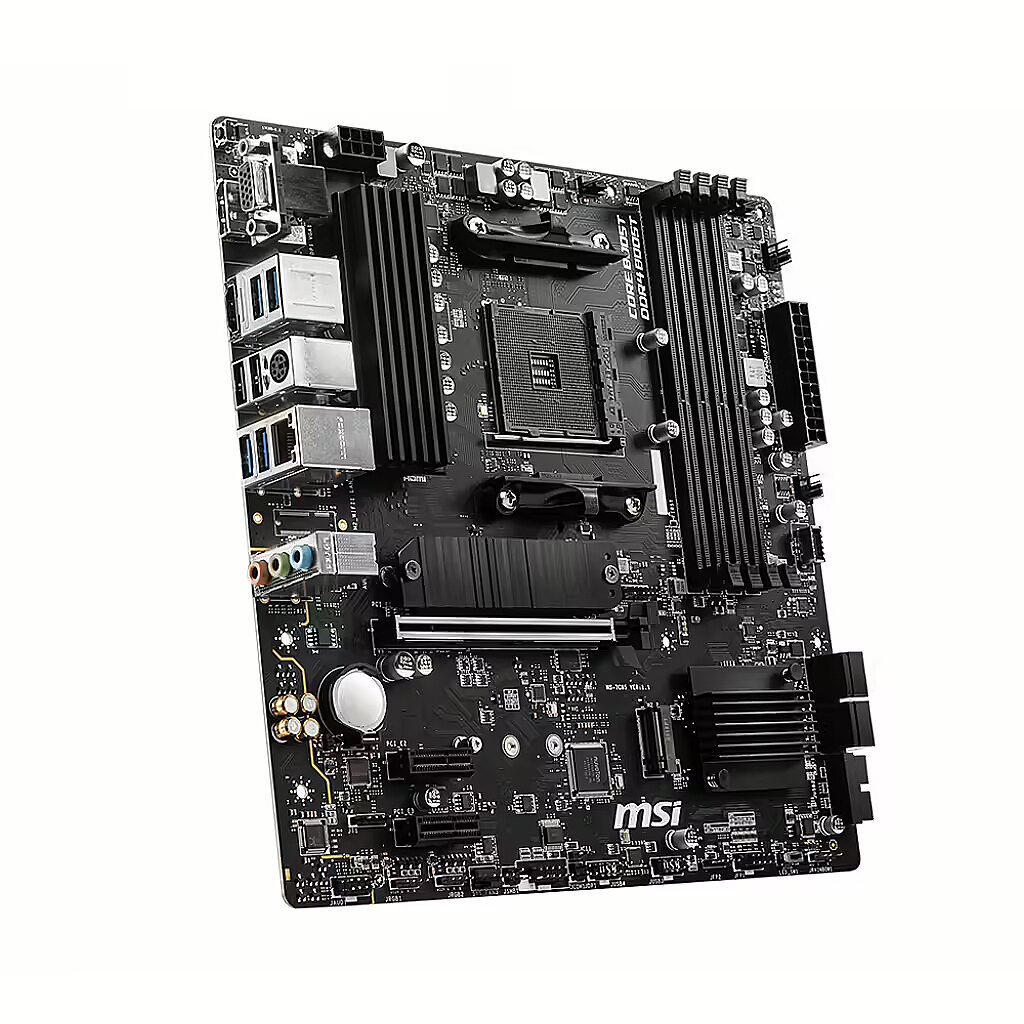

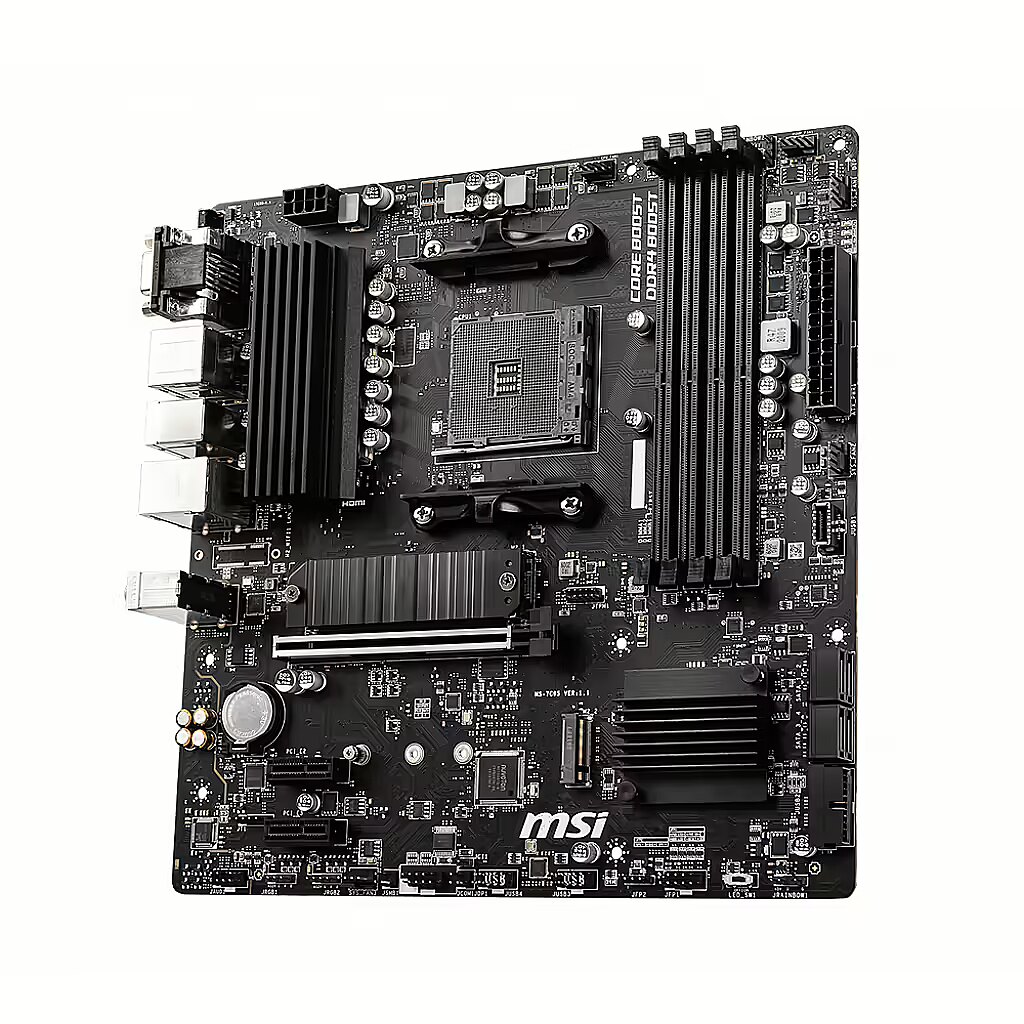

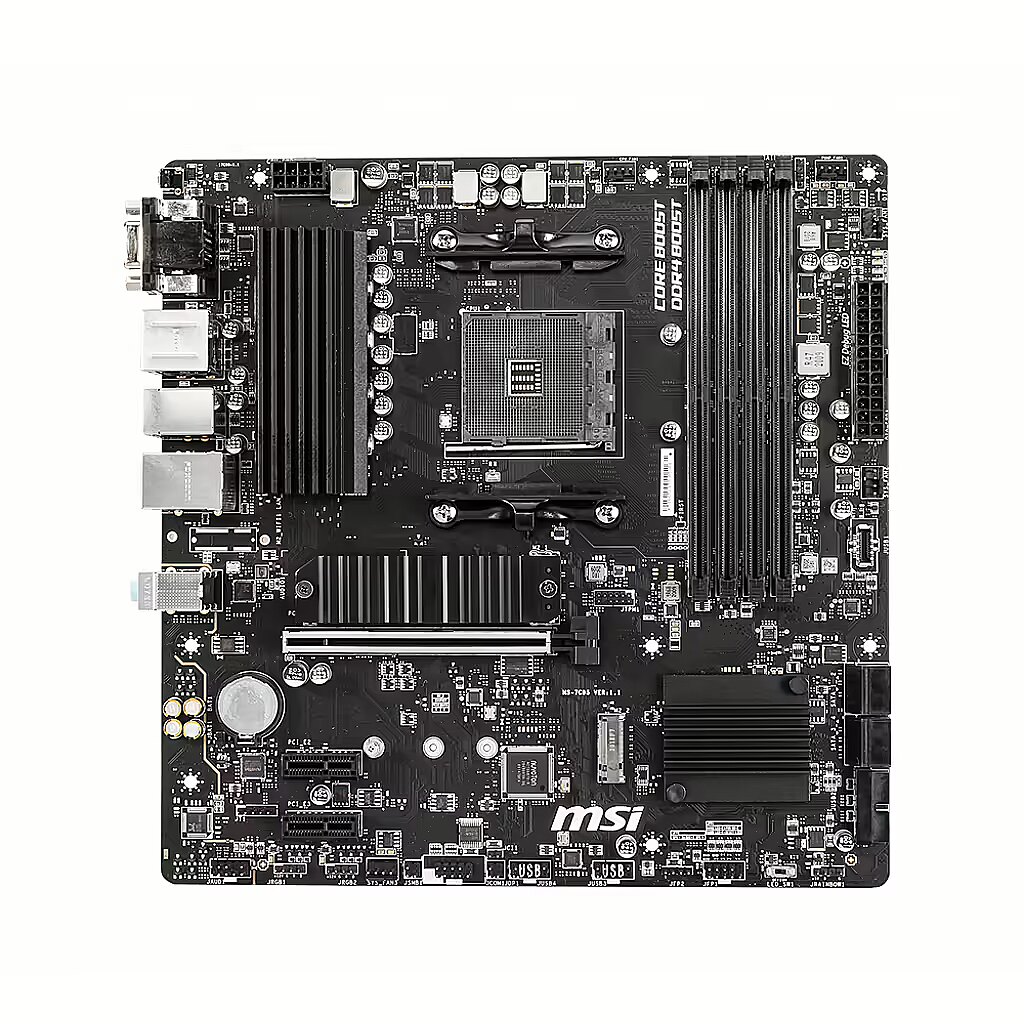

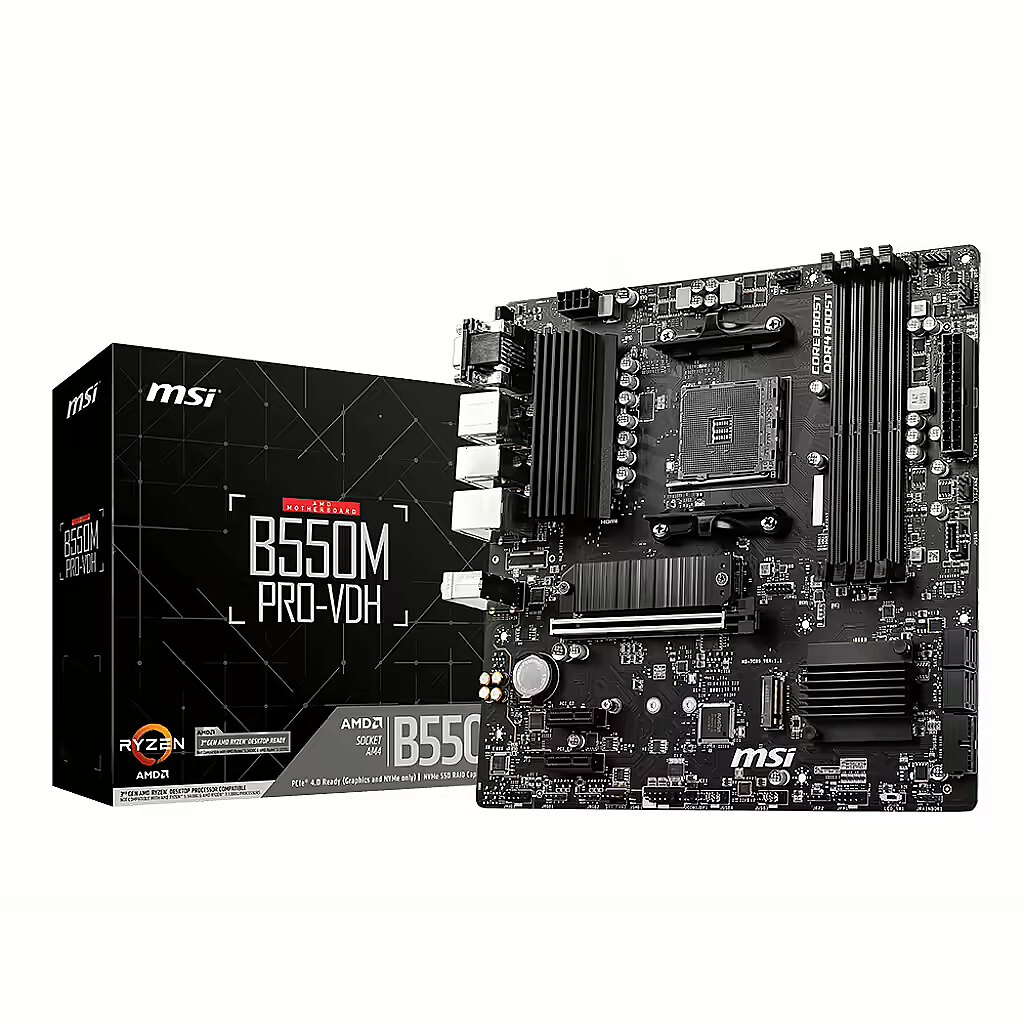

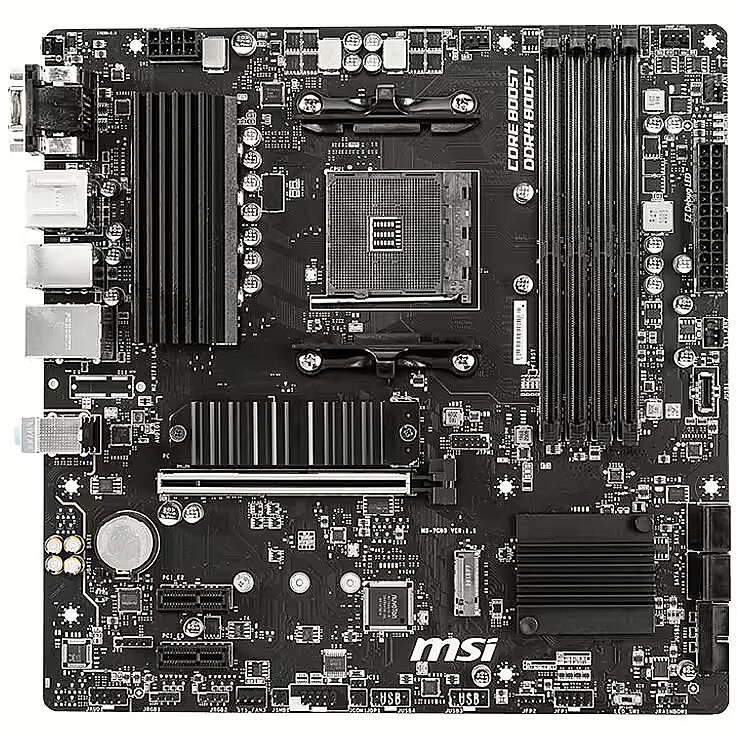

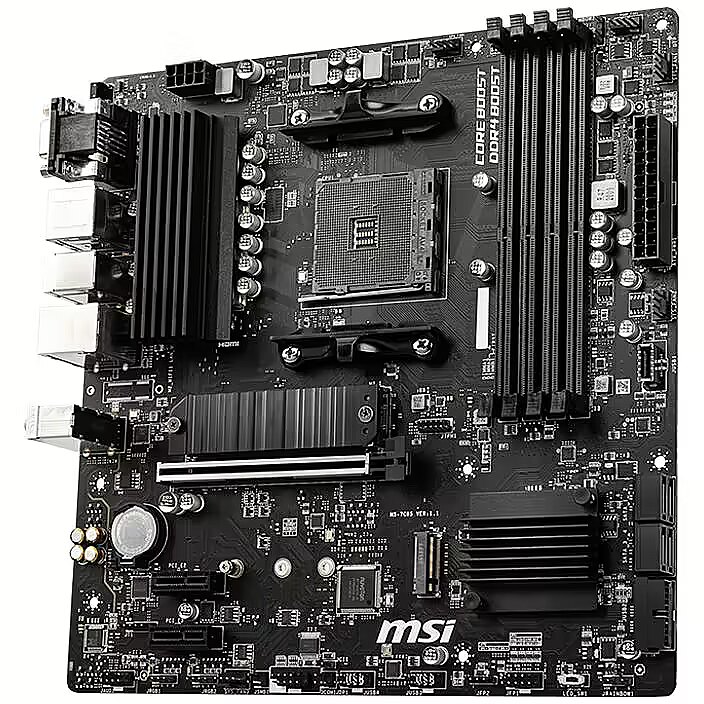

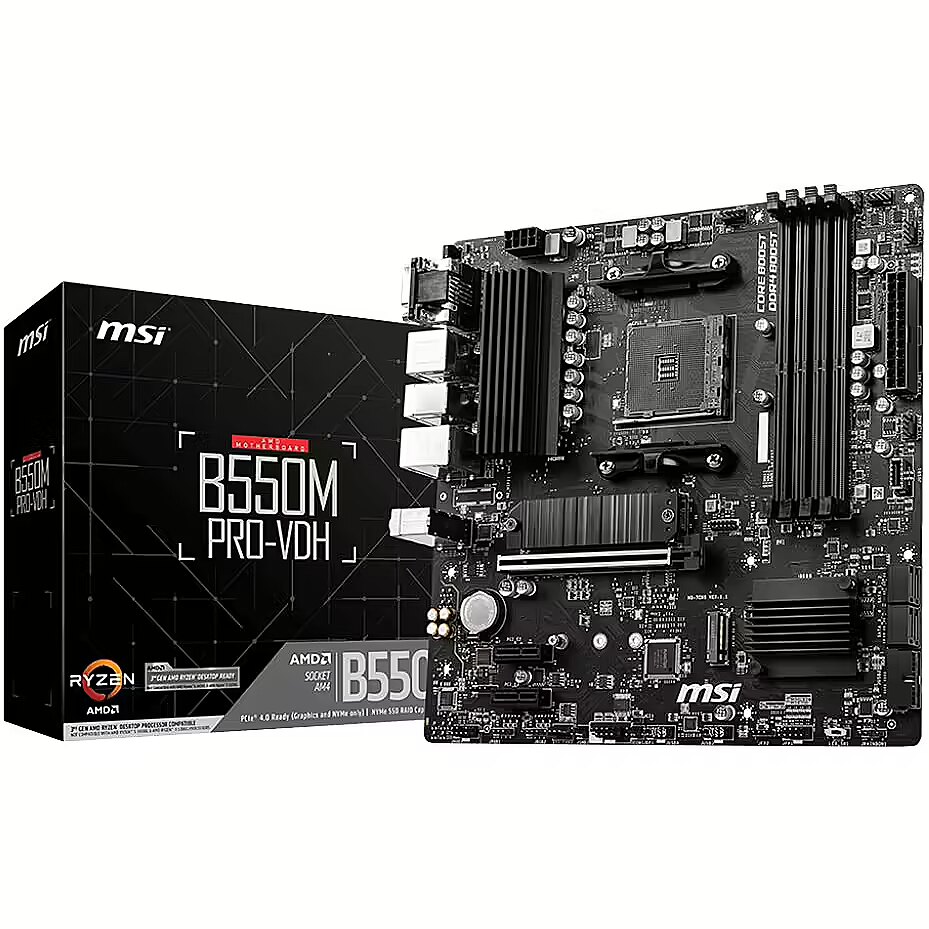

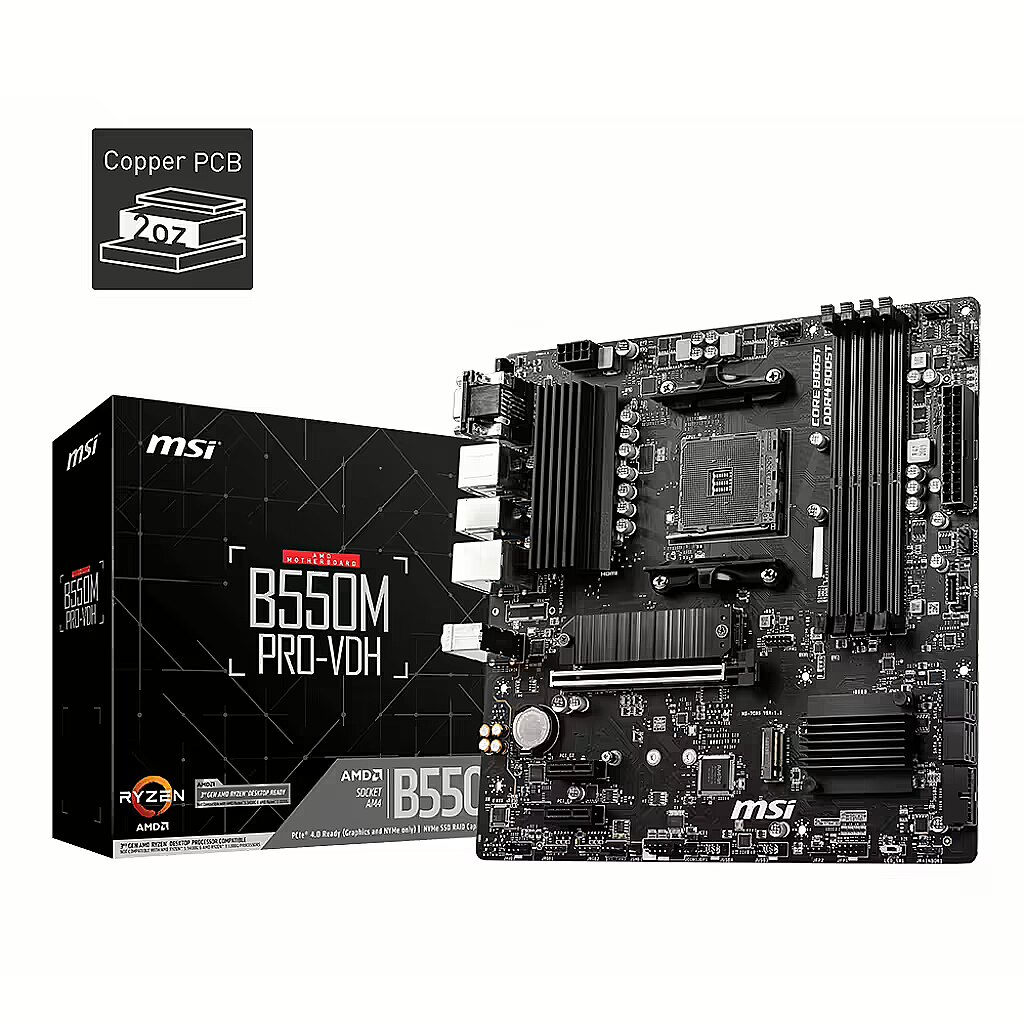

MSI B550M PRO-VDH

Name: MSI B550M PRO-VDH
Brand: MSI
SKU: 1086329
Price: 105.81 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1086329 Product code: B550M PRO-VDH

Can be ordered 32 units Availability: 14 days after order approval

Warranty: 3 years

Compare

Ready for dispatch

01.10.2026

starting from 6.99 € with VAT

Delivery options

Posti parcel machine

Within 1-2 working days

6.99 €
Post Office

Within 1-2 working days

6.99 €
Delivery with Posti courier mail

Within 1-2 working days

10.99 €

Main product parameters All parameters

Series: MSI PRO
Plate size: Micro ATX
Chipset: AMD B550
Socket: AM4
Type: DDR4
RAM Slots: 4
Built-in Wi-Fi: None
M.2 ports: 2

Basic information

Series : MSI PRO

Plate size Micro ATX

The physical size of the motherboard. TopPC.fi offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD B550

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.

Socket AM4

The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.

Random-access memory (RAM)

Type : DDR4

RAM Slots 4

The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.

Memory support DDR4 3200MHz (4400MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card

VGA Port PCI-EXPRESS

VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.

Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment

D-Sub : 1

DisplayPort : 1

DVI : 0

HDMI : 1

Integrated sound card : Realtek ALC892

PCI Ports 0

PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.

Wireless connections

Built-in Bluetooth : There isn't

Built-in Wi-Fi : None

Wi-Fi standard : No Wi-Fi

External ports

External USB 2.0 : 2

External USB Type-C (USB 3.2 Gen2) : 0

External USB Type-C (USB 4.0) : 0

LAN port speed : 1G

Number of LAN ports : 1

External USB 3.0 (USB 3.2 Gen1) : 4

External USB 3.1 (USB 3.2 Gen2) : 0

Internal ports

Internal A-RGB 5V (3-pin) : 2

Internal RGB 12V (4-pin) : 2

Internal USB 2.0 : 2

Internal USB 3.0 : 1

Internal USB Type-C : 0

M.2 ports : 2

SATA3 ports : 4

More detailed specification

Additional information in manufacturers website MSI B550M PRO-VDH

12V power connector Internal I/O - Yes
Accessories included - Instrukcja instalacji 2 x kabel SATA Osłona I/O
ATX Power connector (24-pin) Internal I/O - Yes
Audio output channels Features - 7.1 channels
BIOS -
BIOS - Clear CMOS jumper - Yes
Brand - MSI
BrandPartCode - B550M PRO-VDH
Cables included Packaging content - SATA
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM4
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM4
Chassis intrusion connector Internal I/O - Yes
Chipset manufacturer - AMD
Chipset type - AMD B550 Chipset
Clear CMOS jumper BIOS - Yes
code - 7C95-017R
COM connector / port - No
Compatible processor series Processor - AMD Ryzen 3000 Series
Component for Features - PC
CPU fan connector Internal I/O - Yes
CPU socket - Socket AM4
Dane techniczne: Chipset płyty głównej - AMD B550
Dane techniczne: Grupa produktowa - Płyty główne MSI
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - MSI
Dane techniczne: Przeznaczenie - AMD
Dane techniczne: Standard płyty - micro-ATX
Data Act - Link
Depth Weight & dimensions - 244 mm
Description - M.2 SHIELD FROZR
The worlds fastest SSDs can start to lose performance when they heat up. As part of the motherboard heatsink design, M.2 SHIELD FROZR is a next-generation M.2 thermal solution that prevents this by providing the best thermal protection to ensure maximum SSD performance.
FULL BIOS AND SOFTWARE CONTROL
MSI motherboards allow you to manage the speeds and temperatures of all system and CPU fans. Total Fan Control lets you check the main system parameters through a simplified graphical interface. You can also set up to 4 temperature targets for the CPU and motherboard, which will automatically adjust fan speeds.
FAST AND FUTURE-PROOF STORAGE
MSI PRO Series motherboards support all the latest storage standards, allowing users to connect any ultra-fast storage device. Higher performance makes your work easier.
LIGHTNING GEN 4 M.2
Using 3rd generation Ryzen processors, MSI B550 motherboards feature the latest Lightning Gen 4 M.2, the fastest storage solution on the market with transfer speeds of up to 64 Gb/s.
2-OUNCE COPPER PCB
The enhanced PCB design with 2-ounce copper improves conductivity, resulting in better heat dissipation and more reliable operation, especially during overclocking.
HUGE DDR MEMORY PERFORMANCE BOOST
MSIs overclocking laboratory is not only focused on extreme overclocking. Compared with A-XMP memory profiles on B450 series motherboards, MSI has achieved significant improvements in performance and efficiency with its B550 series models. The easy-to-enable A-XMP profile, with automatic power settings, allows memory modules to reach the best possible speed and stability.
CORE BOOST TECHNOLOGY
Core Boost technology combines MSIs premium layout design and optimized power delivery design, enabling faster and uninterrupted power delivery to the CPU. It not only supports multi-core processors but also creates ideal conditions for overclocking.
B550M PRO-VDH Supports 3rd generation AMD Ryzen processors and future AMD Ryzen processors with a BIOS update Supports DDR4 memory up to 4400(OC) MHz Lightning-fast performance: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr Premium thermal solution: 7W/mK thermal pad, additional choke thermal pad, and M.2 Shield Frozr are designed for high-performance systems and uninterrupted operation Strong design: Core Boost, digital PWM design, 2-ounce thickened copper PCB, Creator Genie, DDR4 Boost Audio Boost: Reward your ears with studio-quality sound Dragon Center: Brand-new software that integrates all exclusive MSI tools into a user-friendly interface.
Description - PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. USER FRIENDLY DESIGN
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue. M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit. EASY BIOS RECOVERY WITH FLASH BIOS BUTTON
Run into trouble when updating your BIOS? Simply flash the old BIOS version back and continue working within minutes with Flash BIOS Button. Flash BIOS Button even works without a CPU, memory or graphics card installed! EZ DEBUG LED
Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again. XL CLIP
The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer. FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference. ULTIMATE MOTHERBOARD PROTECTION
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard. CONNECTIVITY
The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility. FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. LIGHTNING GEN 4 M.2
Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. USB FRONT TYPE-C
MSI motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience. EXTEND YOUR RGB EXPERIENCE WITH EASE
Add your color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller. EXPERIENCE MORE
MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance. PCB WITH 2OZ THICKENED COPPER
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking. LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of unidirectional transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise. A HUGE STEP OF DDR PERFORMANCE
MSI OC LAB does not merely work hard on extreme overclocking. Compared to B450 motherboard memory A-XMP profile, MSI does have great improvement on performance and efficiency for B550 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability. CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking. DEDICATED HIGH DEFINITION AUDIO PROCESSOR
Make sure you enjoy the purest sound quality in both stereo and surround sound. HIGH QUALITY AUDIO CAPACITORS
A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured. HD AUDIO CONNECTORS
Keep you sound perfect by transmit your aduio with pure digital signal. ISOLATED AUDIO DESIGN
Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated. SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELS
Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels. DRAGON CENTER
MSI brand new Dragon Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities. CLICK BIOS 5
Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!Support for 3rd Gen AMD Ryzen processors and future AMD Ryzen processors with BIOS updateSupports DDR4 Memory, up to 4400(OC) MHzLightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield FrozrPremium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop worksPowerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 BoostAudio Boost: Reward your ears with studio grade sound qualityDragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface
Designation - CE+WEEE
Detailed data on disk/drive interfaces - Chipset AMD B550 4x porty SATA 6 Gb/s 2x gniazda M.2 (Key M) Gniazdo M2_1 (z procesora AMD) Obsługuje PCIe 4.0/3.0 x4 1 Obsługuje SATA 6 Gb/s Obsługuje urządzenia pamięci masowej 2242/2260/2280 Gniazdo M2_2 (z chipsetu AMD B550) Obsługuje PCIe 3.0x4 Obsługuje urządzenia pamięci masowej 2242/2260/2280
dimensionalWeight - 1078
dimension depth - 70 mm
dimension height - 280 mm
Dimensions - 24.4 x 24.4 cm
dimension weight - 1080 g
dimension width - 280 mm
DisplayPorts quantity Rear panel I/O ports - 1
Drivers included Packaging content - Yes
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC892 - 7.1)
ean - 4719072758417
EAN - 4719072758417
Eans - 4719072758417
EAN_code - 4719072758417
ECC сompatibility Memory - ECC & Non-ECC
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 2 x PCIe 3.0 x 1
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1

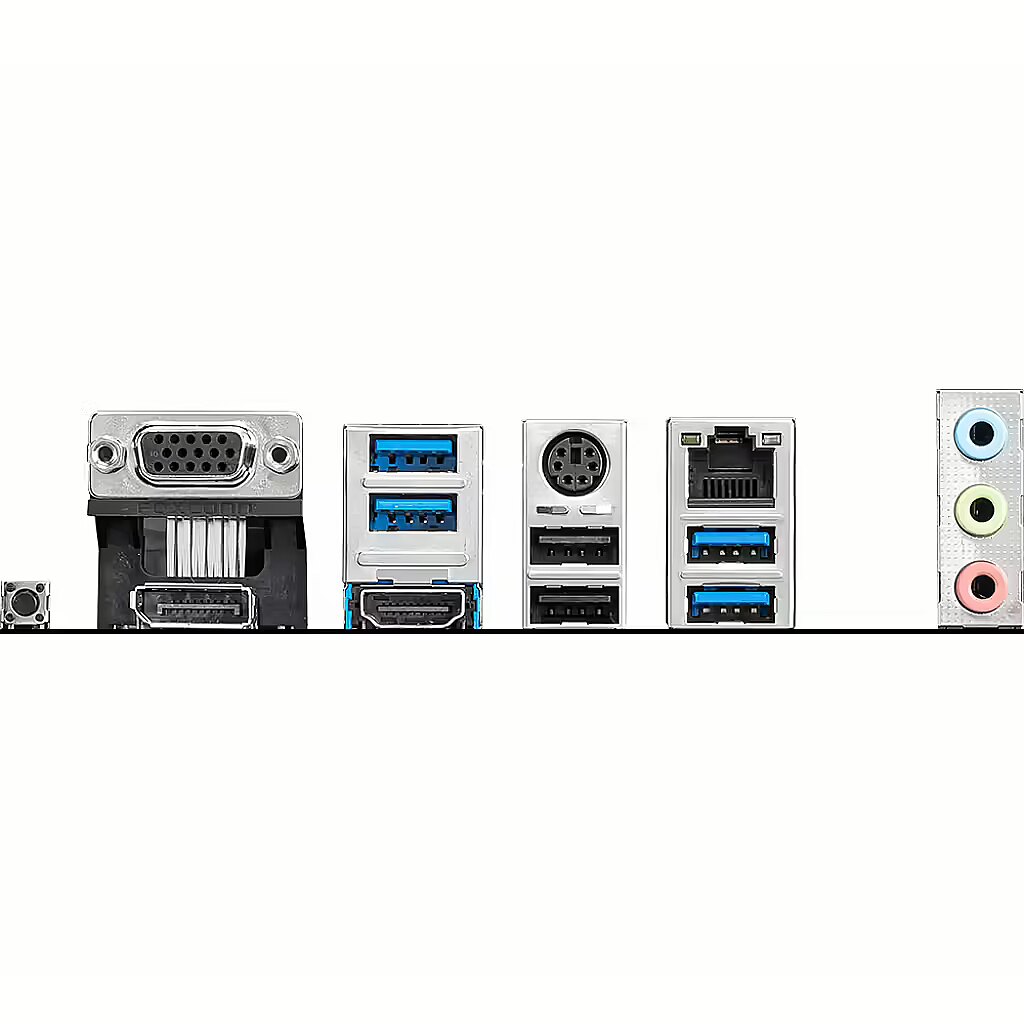

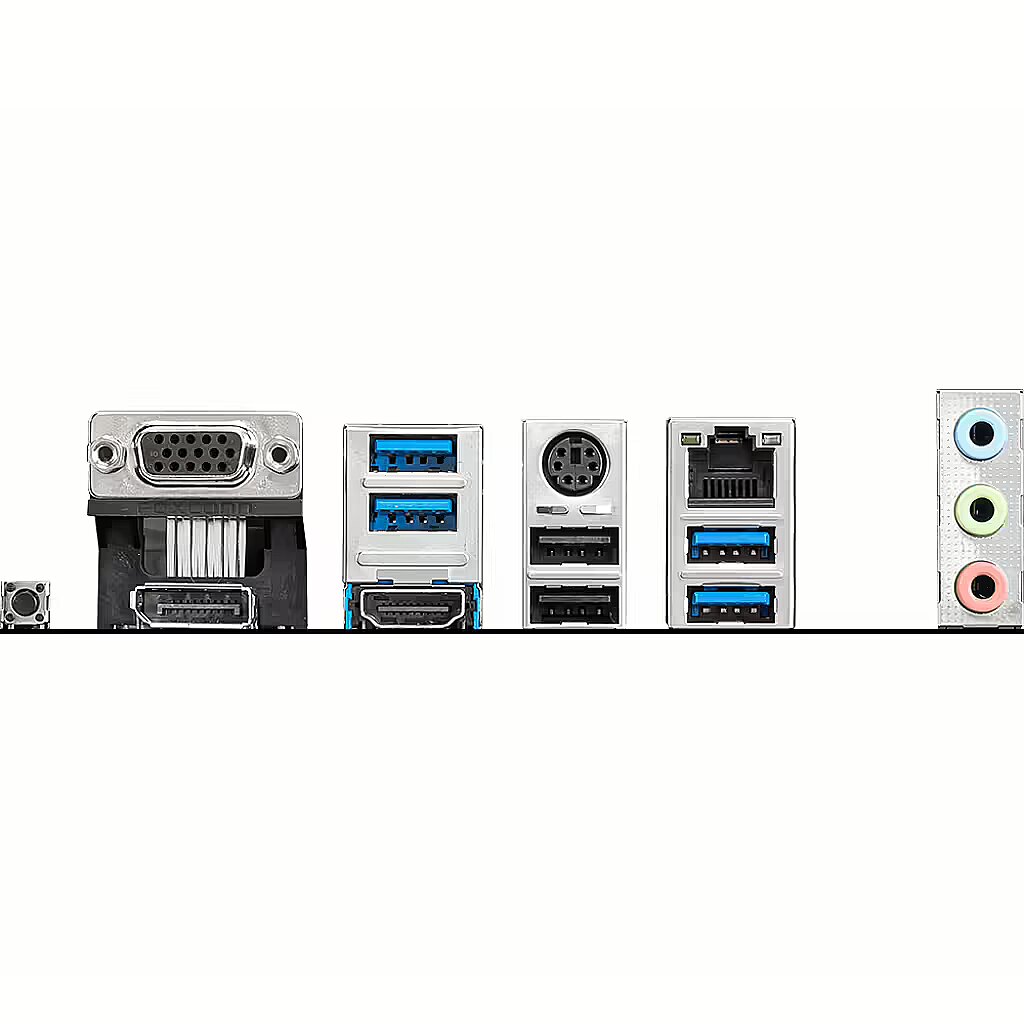

External connectors - 1 x D-Sub
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.2 Gen 1 Type-A
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B550
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
FireWire (IEEE 1394) - No
Form factor - micro ATX
Front panel audio connector Internal I/O - Yes
Front panel connector Internal I/O - Yes
Graphics - 1x port VGA, obsługuje rozdzielczość 2048x1536 przy 50Hz, 2048x1280 przy 60Hz, 1920x1200 przy 60Hz 1x DisplayPort, obsługuje maksymalną rozdzielczość 4096x2160 przy 60 Hz 1x port HDMI, obsługuje maksymalną rozdzielczość 4096x2160 przy 24 Hz Maksymalna pamięć współdzielona 16 GB
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
GTIN - 0824142227213
GTIN - 824142227213
GTIN - 4719072758417
guarantee - 36
guarantee_type - normal
Harmonized System (HS) code Logistics data - 84733020
HDMI ports quantity Rear panel I/O ports - 1
HDMI version Rear panel I/O ports - 2.1
Height Weight & dimensions - 65 mm
Integrated CPU - No
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 3
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Serial port headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Komunikacja: Karta bezprzewodowa - Intel Wireless-AC 3168 | Bluetooth 4.2
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek 8111HN Gigabit LAN)
LAN controller Network - Realtek 8111HN
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.USER FRIENDLY DESIGNMSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.M.2 SHIELD FROZRWorld’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.FULLY CONTROLLABLE IN BIOS AND SOFTWAREMSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.OPTIMIZED FOR WATER COOLINGDesigned to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.EASY BIOS RECOVERY WITH FLASH BIOS BUTTONRun into trouble when updating your BIOS? Simply flash the old BIOS version back and continue working within minutes with Flash BIOS Button. Flash BIOS Button even works without a CPU, memory or graphics card installed!EZ DEBUG LEDRun into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.XL CLIPThe enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMORMSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.ULTIMATE MOTHERBOARD PROTECTIONDouble ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.CONNECTIVITYThe most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.FAST AND FUTURE-READY STORAGEMSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.LIGHTNING GEN 4 M.2Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.USB FRONT TYPE-CMSI motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.EXTEND YOUR RGB EXPERIENCE WITH EASEAdd your color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.EXPERIENCE MOREMSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.PCB WITH 2OZ THICKENED COPPERAn enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.LIGHTNING GEN 4 PCI-EMSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of unidirectional transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design and server grade PCB, you can enjoy next-gen devices without any compromise.A HUGE STEP OF DDR PERFORMANCEMSI OC LAB does not merely work hard on extreme overclocking. Compared to B450 motherboard memory A-XMP profile, MSI does have great improvement on performance and efficiency for B550 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability.CORE BOOSTCore Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.DEDICATED HIGH DEFINITION AUDIO PROCESSORMake sure you enjoy the purest sound quality in both stereo and surround sound.HIGH QUALITY AUDIO CAPACITORSA high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.HD AUDIO CONNECTORSKeep you sound perfect by transmit your aduio with pure digital signal.ISOLATED AUDIO DESIGNLike a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated.SEPARATED AUDIO LAYERS FOR CLEAN LEFT & RIGHT CHANNELSUsing separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels.DRAGON CENTERMSI brand new Dragon Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.CLICK BIOS 5Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!
LongProductName - AMD B550, AM4, 4x DDR4, PCIe x 16, PCIe x1, VGA, DP, HDMI, SATA III, M.2, USB 3.2, 1G LAN, USB 3.2, Micro-ATX, 244x244 mm
LongSummaryDescription - MSI B550M PRO-VDH. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek 8111HN
LPT connector / port - No
Manufacturer - MSI
Manufacturer_code - 7C95-017R
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Maximum internal memory Memory - 128 GB
Maximum number of SMP processors Processor - 1
Maximum resolution Graphics - 4096 x 2160 pixels
Max memory size - 128 GB
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 1866
Memory - Supported memory clock speeds - 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400 MHz
Memory - Supported memory clock speeds - 2133 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2667
Memory - Supported memory clock speeds - 2800
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3000
Memory - Supported memory clock speeds - 3066
Memory - Supported memory clock speeds - 3200
Memory - Supported memory clock speeds - 3466
Memory - Supported memory clock speeds - 3600
Memory - Supported memory clock speeds - 3733
Memory - Supported memory clock speeds - 3866
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4133
Memory - Supported memory clock speeds - 4266
Memory - Supported memory clock speeds - 4400
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 1866 MHz
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2667 MHz
Memory bus frequency - 2800 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3000 MHz
Memory bus frequency - 3066 MHz
Memory bus frequency - 3200 MHz
Memory bus frequency - 3466 MHz
Memory bus frequency - 3600 MHz
Memory bus frequency - 3733 MHz
Memory bus frequency - 3866 MHz
Memory bus frequency - 4000 MHz
Memory bus frequency - 4133 MHz
Memory bus frequency - 4266 MHz
Memory bus frequency - 4400 MHz
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Memory type - DDR4
Model - B550M PRO-VDH
Motherboard chipset family Features - AMD
Motherboard chipset Features - AMD B550
Motherboard form factor Features - micro ATX
MPN - 7C95-017R
Name - MB AMD B550 SAM4 MATX/B550M PRO-VDH MSI
name - Motherboard B550M PRO-VDH AM4 4DDR4 HDMI/DP/VGA mATX
Name - MSI B550M PRO-VDH
Name - MSI B550M Pro-VDH (B550.AM4.mATX.AMD)
name - MSI B550M Pro-VDH, AMD B550 Mainboard - Sockel AM4
Name - MSI B550M PRO-VDH - Socket AM4 - Mainboard
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek 8111HN
Network - Top Wi-Fi standard - Not available
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - 1x Realtek 8111HN Gigabit LAN controller
Number of chassis fan connectors Internal I/O - 3
Number of DDR4 slots - 4
Number of M.2 (M) slots Expansion slots - 2
Number of memory slots Memory - 4
Number of SATA III connectors Internal I/O - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-A
Onboard connectors - 1 x USB 3.2 Gen 1 Type-C
Onboard connectors - 2 x M.2
Onboard connectors - 2 x RGB LED Strip
Onboard connectors - 2 x System panel header
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x SATA III 6Gb/s
Other features - Weight - 1 kg
Other information -
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 128 GB
Pamięć: Obsługiwana pamięć - DDR4
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR4-2133 (PC4-17000)
Pamięć: Typ obsługiwanej pamięci - DDR4-2400 (PC4-19200)
Pamięć: Typ obsługiwanej pamięci - DDR4-2666 (PC4-21300)
Pamięć: Typ obsługiwanej pamięci - DDR4-2800 (PC4-22400)
Pamięć: Typ obsługiwanej pamięci - DDR4-3200 (PC4-25600)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-3466 (PC4-27700)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-3600 (PC4-28800)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-3866 (PC4-30900)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-4000 (PC4-32000)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-4133 (PC4-33000)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-4400 (PC4-35200)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-4600 (PC4-36800)
Parallel processing technology support Graphics - Not supported
PCI Express x1 (Gen 3.x) slots Expansion slots - 2
PCI Express x16 (Gen 4.x) slots Expansion slots - 1
Procesor: Gniazdo procesora - Socket AM4
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 3000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 4000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 5000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 3000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 4000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 5000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 3000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 5000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 3000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 5000
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 9
Processor - Compatible processor series - AMD Ryzen 3000 Series
Processor - Compatible processor series - AMD Ryzen™ 5
Processor - Compatible processor series - AMD Ryzen™ 7
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor family - AMD Ryzen
Processor manufacturer Processor - AMD
Processor socket Processor - Socket AM4
Producent: Nazwa producenta / importera - MSI
MSI Computer Europe BV.
Churchilllaan 202
5705 BK Helmond

producer - MSI
Producer - MSI
producerCode - 7C95-017R
ProducerCode - B550M PRO-VDH
ProductName - B550M PRO-VDH
productName - MSI B550M PRO-VDH AMD B550 Socket AM4 micro ATX
Product Net Weight ELKO Logistics Data - 0.95 kg
productSize - Normal
RAID - Yes
RAID levels Storage controllers - 0, 1, 10
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RGB LED pin header Internal I/O - Yes
Serial port headers Internal I/O - 1
Shipping Box Depth ELKO Internal Logistics Data - 56.5 cm
Shipping Box Height ELKO Internal Logistics Data - 31 cm
Shipping Box Weight ELKO Internal Logistics Data - 11.55 kg
Shipping Box Width ELKO Internal Logistics Data - 36.5 cm
ShortDescription - Socket AM4 | Chipset AMD B550
ShortSummaryDescription - MSI B550M PRO-VDH, AMD, Socket AM4, AMD Ryzen 3000 Series, DDR4-SDRAM, 128 GB, DIMM
sizeX - 280
sizeY - 275
sizeZ - 70
Software -
Sound card - Realtek ALC892/ALC897 Codec 8-Channel (7.1) HD Audio with Audio Boost
Special functions -
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - SATA III
Storage controllers - Supported storage drive interfaces - Serial ATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - MSI B550M PRO-VDH. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek 8111HN
Supported memory clock speeds Memory - 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400 MHz
Supported memory types Memory - DDR4-SDRAM
Supported storage drive interfaces Storage controllers - SATA III
Supported storage drive types Storage controllers - HDD & SSD
Title - MSI B550M PRO-VDH motherboard AMD B550 Socket AM4 micro ATX
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.07
Unit Box Length - 0.285
Unit Box Width - 0.275
Unit Calculated Volume ELKO Internal Logistics Data - 0.006393 cubm
Unit Calculated Weight ELKO Logistics Data - 1.16 kg
Units per Shipping Box ELKO Logistics Data - 10
URL - https://www.msi.com/Motherboard/B550M-PRO-VDH
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 4
USB ports at back panel - 6
USB ports on motherboard - 8
Vendor Homepage - https://www.msi.com/Motherboard/B550M-PRO-VDH
vendpn - B550M PRO-VDH
VGA (D-Sub) ports quantity Rear panel I/O ports - 1
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1,08
Weight - 1.08
weight - 1005
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 65 mm
Weight & dimensions - Width - 244 mm
Weight Other features - 1 kg
Wi-Fi Network - No
Width Weight & dimensions - 244 mm
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 244 mm
Złącza: Obsługa Raid - tak (0,1,10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1) typ C
Złącza: Złącza na tylnym panelu - 1 x Display Port
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x PS/2
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x VGA
Złącza: Złącza na tylnym panelu - 2 x USB
Złącza: Złącza na tylnym panelu - 4 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x16
Złącza: Złącza PCI-E (liczba slotów) - 2 x PCI-Express x1
