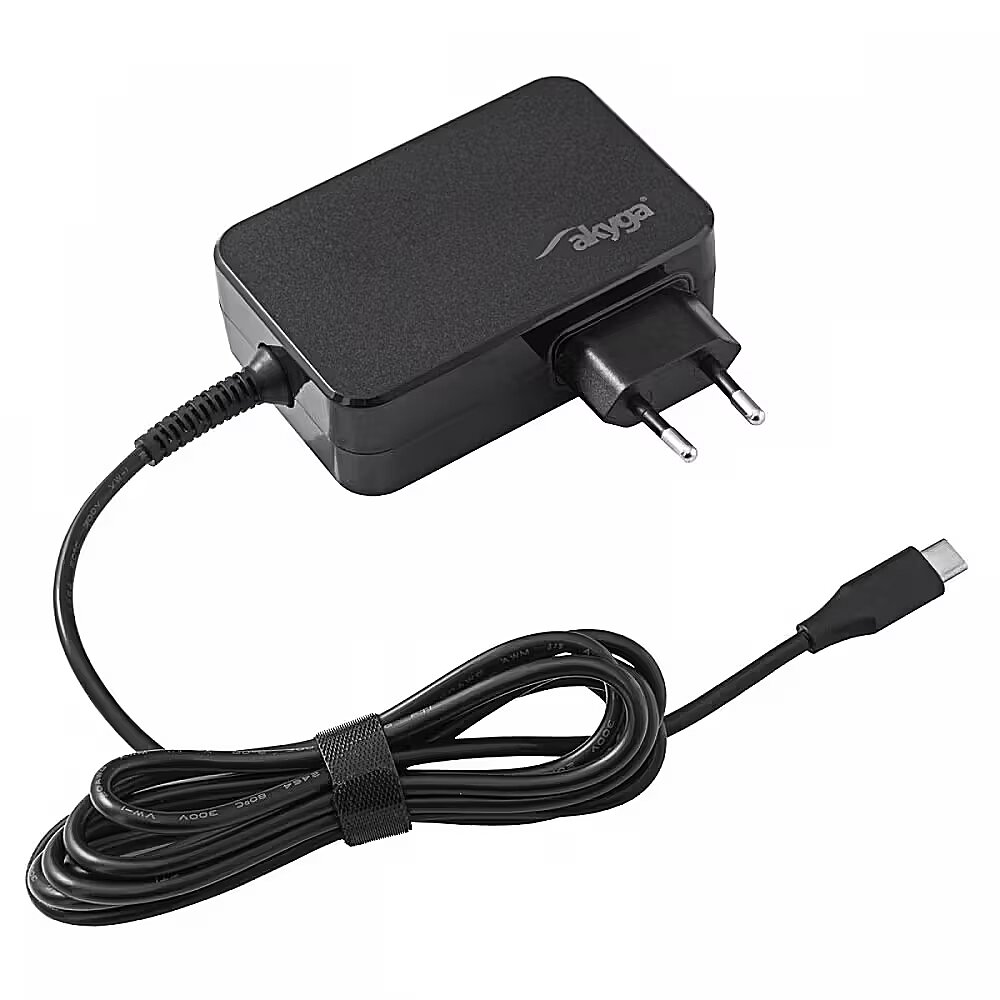

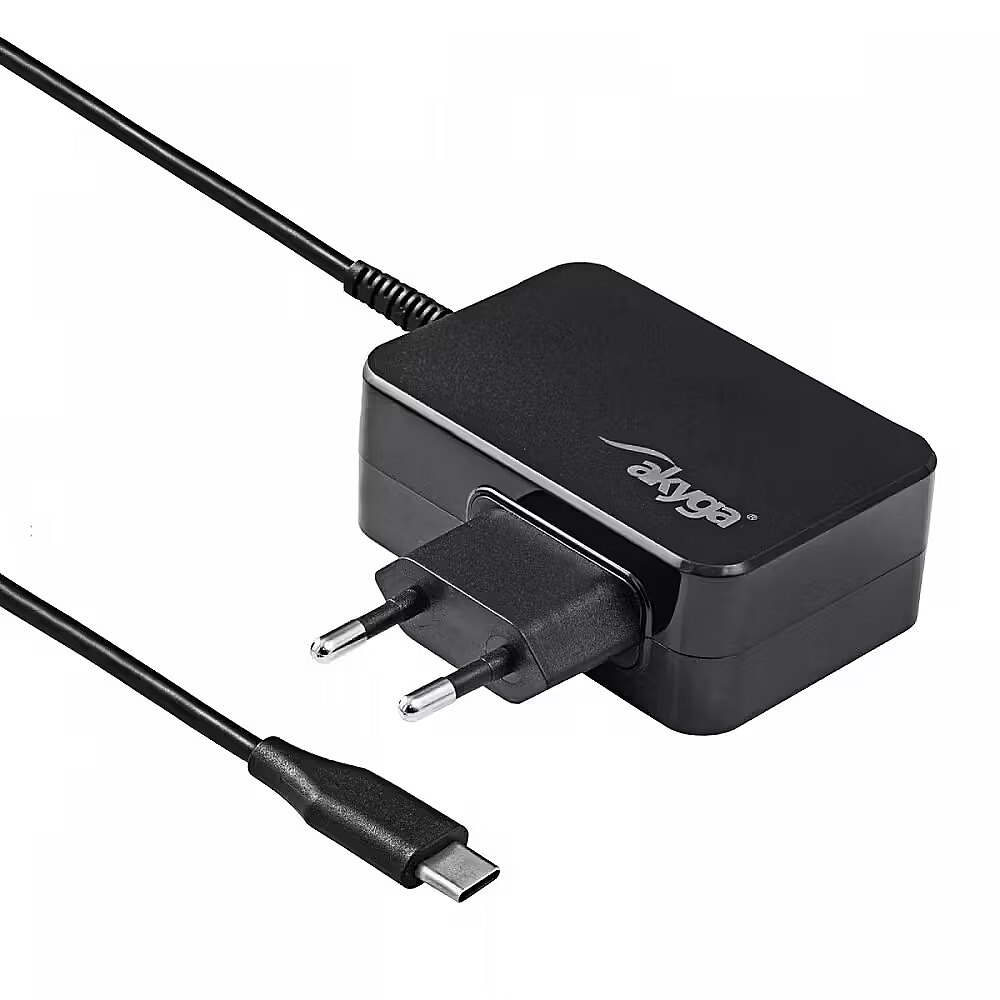

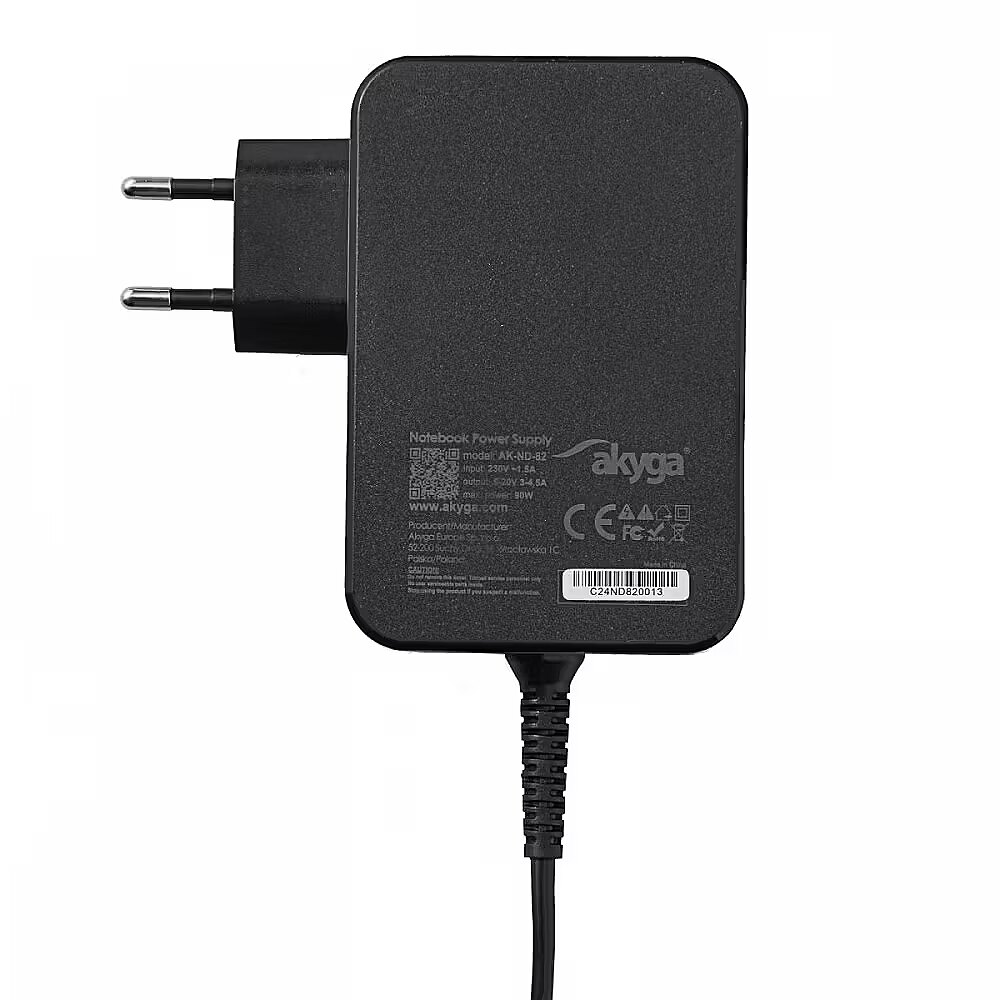

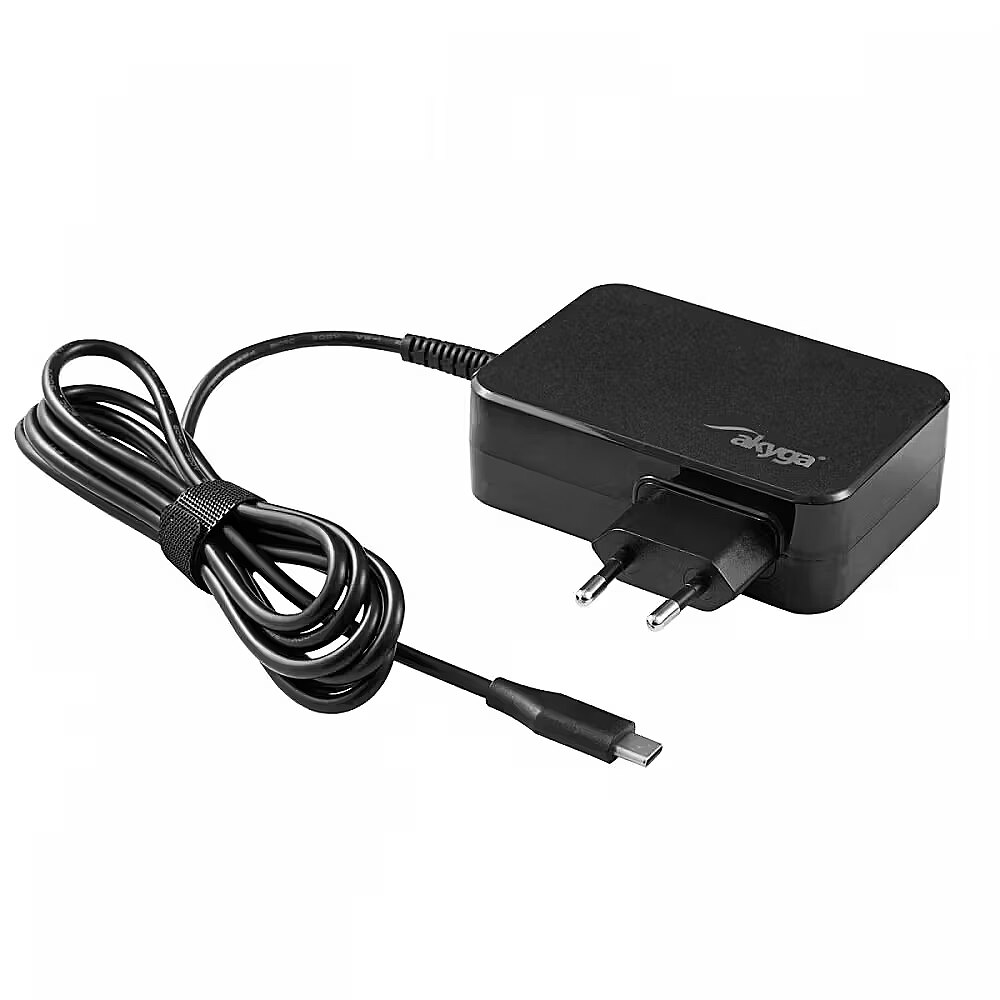

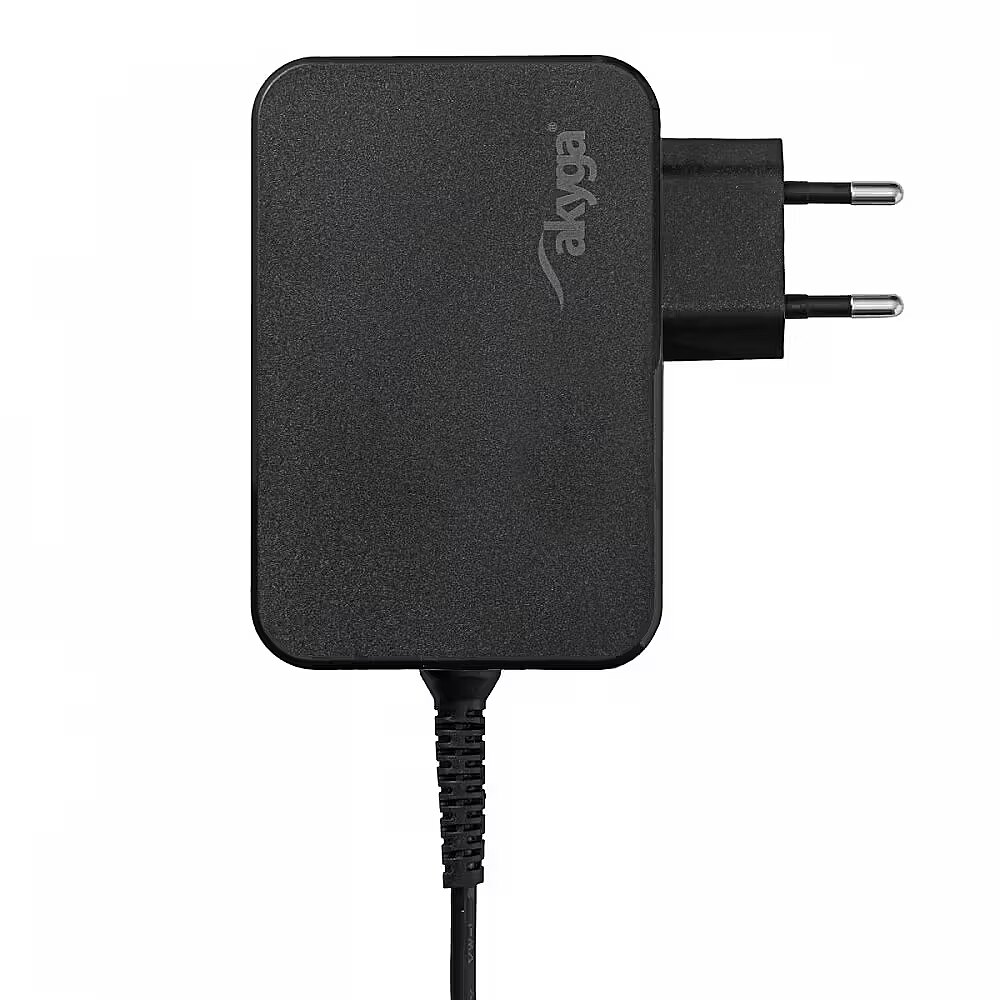

Akyga POWER SUPPLY AKYGA 90W USB-C PD 3.0 20V/3-4.5A

Certificates - Compliance certificates - CE
Certificates - Compliance certificates - Federal Communications Commission (FCC)
Certificates - Compliance certificates - REACH
Certificates - Compliance certificates - RoHS
Color - Black
Description - The Akyga AK-ND-82 USB-C power adapter has been created to quickly and efficiently charge a wide range of electronic devices. Application the USB-C standard means that the power adapter offers versatile usages - from laptops to smartphones and tablets. Its main feature is support for PD 3.0 (Power Delivery 3.0) technology, which allows the power supply to dynamically adapt to the needs of the connected device. Thanks to this, the power supply can deliver a voltage range of 5 to 20 V and a current of 3 to 4.5 A, ensuring fast and safe charging of even the most demanding devices. The innovation of this model is highlighted by the use of gallium nitride (GaN) technology. This modern solution allows for reducing the size of the device while maintaining its high performance. The 90 W mains charger is therefore compact and lightweight, making it an ideal choice for frequent.
Design - Cable length - 1.8 m
Design - Housing material - Acrylonitrile butadiene styrene (ABS)
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 194
dimension depth - 45 mm
dimension height - 240 mm
Dimensions - 95 x 102 x 30 mm
dimension weight - 240 g
dimension width - 105 mm
ean - 5901720133984
guarantee - 24
guarantee_type - external
name - POWER SUPPLY AKYGA 90W USB-C PD 3.0 20V/3-4.5A
Other features - Product codeAK-ND-82 Product typeUniversal Power Supply Responsible EntityAkyga Europe Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, [email protected] Supply voltage100-240 V / 50/60 Hz Power consumptionmax. 1.5 A Efficiency> 85 % Output voltage5 V / 3 A, 9 V / 3 A, 12 V / 3 A, 15 V / 3 A, 20 V / 4.5 A (PD 90 W) Outlet cord length1.8 m Maximum power90 W Power inletCEE 7/16 (Europlug) Mechanical switchNone OVPYes OCPYes OPPYes OTPYes SCPYes Power supply connectorUSB type C MaterialABS Product colorBlack DisplayNone MTBF100000 h Temperature5 - 50 °C PackageEcoBox Product size (L x W x H)95 x 102 x 30 mm Package size (L x W x H)243 x 106 x 40 mm Net weight243 g Gross weight293 g CE compatibilityYes FCC compatibilityYes RoHS compatibilityYes REACH compatibilityYes EAN code5901720133984 Warranty24 months
Output current (max) - 4.5 A
Output voltage - 20 V
Packaging data - Package depth - 243 mm
Packaging data - Package height - 40 mm
Packaging data - Package type - Box
Packaging data - Package weight - 293 g
Packaging data - Package width - 106 mm
Performance - Charger compatibility - Universal
Performance - Charger type - Indoor
Performance - Fast charging - Yes
Performance - Fast charging technology - GaN
Performance - Fast charging technology - Power Delivery 3.0
Performance - Number of simultaneously connected devices (max) - 1
Performance - Operating principle - Contact
Performance - Power protection features - Over current
Performance - Power protection features - Overheating
Performance - Power protection features - Over power
Performance - Power protection features - Over voltage
Performance - Power protection features - Short circuit
Performance - Power source type - AC
Performance - USB Power Delivery (USB PD) - Yes
Performance - USB Power Delivery revision - 3.0
Performance - USB Power Delivery up to - 90 W
Performance - USB Type-C ports quantity - 1

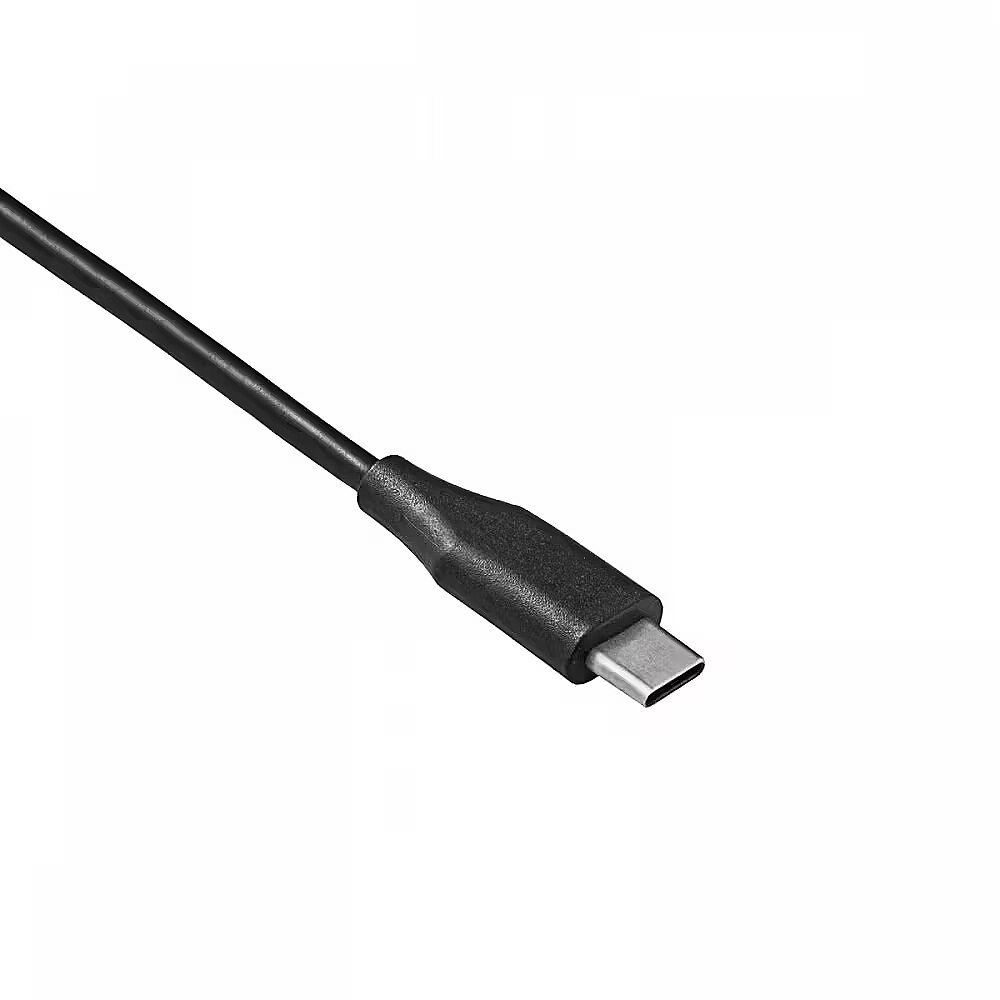

Plug - USB-C
Power - AC adapter output current - 4.5 A
Power - AC adapter power - 90 W
Power - Efficiency (@10 %) - 85%
Power - Input current - 1.5 A
Power - Input frequency - 50/60 Hz
Power - Input voltage - 110 - 240 V
Power - Maximum output voltage - 20 V
Power - Maximum power - 90 W
Power - Minimum output voltage - 5 V
Power - Output current (5V) - 3 A
Power - Output current (9V) - 3 A
Power - Output current (12V) - 3 A
Power - Output current (15V) - 3 A
Power - Output current (20V) - 4.5 A
Power supply output current - 90 W
producer - AKYGA
producerCode - AK-ND-82
productName - Akyga AK-ND-82 mobile device charger Universal Black AC Fast charging Indoor
productSize - Normal
Safety warning - Warnings - Do not dispose of in the normal waste bin.
Safety warning - Warnings - Do not open the power supply housing.
Safety warning - Warnings - Protect against moisture.
sizeX - 105
sizeY - 39
sizeZ - 238
Use - network
vendpn - AK-ND-82
warrantyLength - 24
warrantyType - G
Weight - 243 kg
weight - 281
Weight & dimensions - Depth - 95 mm
Weight & dimensions - Height - 30 mm
Weight & dimensions - Weight - 243 g
Weight & dimensions - Width - 102 mm
