ID: 160275
Product code: NF-A20 PWM
Can be ordered 10 units Availability: 14 days after order approval
Warranty: 3 years
Noctua NF-A20 PWM

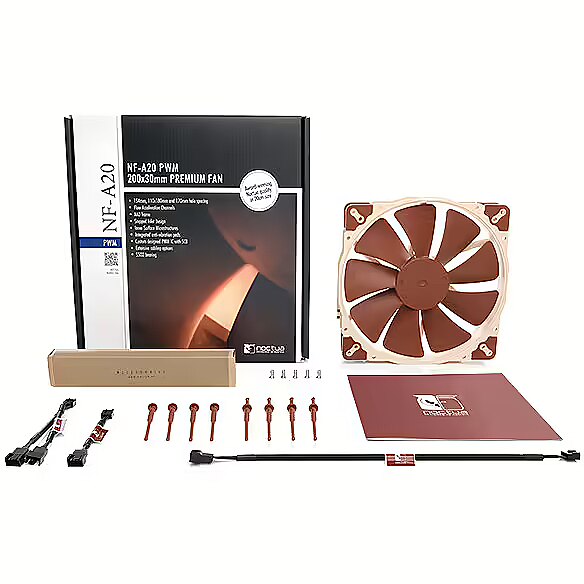

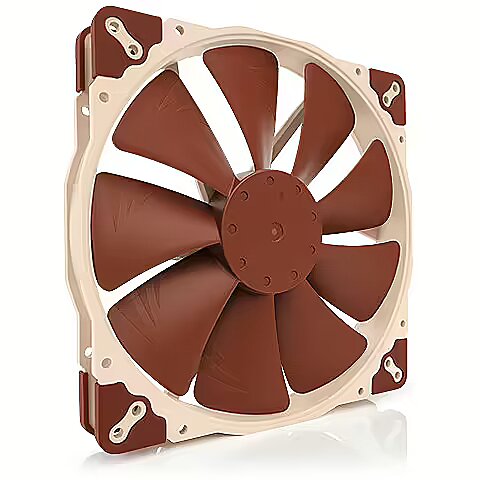

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
This image was created with the help of AI and is for illustrative purposes. The appearance, colours, dimensions, lighting and arrangement of the components may differ from the actual product. The image may include parts and accessories that are not included with the product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Post OfficeWithin 1-2 working days6.99 €
-
Posti courier deliveryWithin 1-2 working days10.99 €
Main product parameters All parameters
- Producer: Noctua
- LED izgaismojuma krāsa: None
- Output Interface: 4-pin (PWM)
- Revolutions (MIN), rpm: 350
- RPM (MAX), rpm: 800
- Size, mm: 200
- Sound level (MAX), dB(A): 18.1
- Units in package: 1
All parameters
Producer
: Noctua
Type of lighting
: Without lighting
Basic information
Direction of air flow
: Standard
LED izgaismojuma krāsa
: None
Output Interface
: 4-pin (PWM)
RPM (MAX), rpm
: 800
Size, mm
: 200
Sound level (MAX), dB(A)
: 18.1
Thickness, mm
: 30
Units in package
: 1
More detailed specification
category - Aircooling|Fans|PWM Fans
Category - Root/Electronics/PC parts/Cooling/Casing fans
Category_1 - Computer Cases and Cooling
Category_2 - Fans
code - NF-A20 PWM
Design - Fan connector - 4-pin
Design - Number of fan blades - 9
Design - Number of fans - 1 fan(s)
Design - Product colour - Beige
Design - Product colour - Bronze
dimensionalWeight - 627
ean - 9010018100013
Eans - 9010018100013
EAN_code - 9010018100013
Manufacturer - Noctua
Manufacturer_code - NF-A20 PWM
Name - Noctua NF-A20 PWM
Name - Noctua NF-A20 PWM - 200mm
name - Noctua NF-A20 PWM Fan - 200mm
Other features - Mean time to failure (MTTF) - 150000 h
Other features - Mounting hole pattern (W x D) - 170 x 170 mm
Packaging content - Cables included - Fan
Packaging content - Low-noise adaptor (LNA) - Yes
Packaging content - Number of screws - 4
Packaging content - Screws included - Yes
Performance - Airflow - 146.9 m³/h
Performance - Airflow with LNA (max) - 100.8 m³/h
Performance - Bearing type - Self-Stabilising Oil-pressure Bearing (SSO)
Performance - Compatible processor series - Not supported
Performance - Fan diameter - 20 cm
Performance - Maximum air pressure - 1.08 mmH2O
Performance - Minimum air pressure - 0.51 mmH2O
Performance - Noise level (high speed) - 18.1 dB
Performance - Noise level with LNA (max) - 10.7 dB
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Rotational speed (max) - 800 RPM
Performance - Rotational speed (min) - 350 RPM
Performance - Rotational speed with LNA (max) - 550 RPM
Performance - Suitable for - Computer case
Performance - Supported processor sockets - Not supported
Performance - Type - Fan
Power - Maximum current - 0.08 A
Power - Power supply - 0.96 W
Power - Voltage - 12 V
Producer - Noctua
producerCode - NF-A20 PWM
ProducerCode - NF-A20 PWM
productName - Noctua NF-A20 PWM Computer case Fan 20 cm Beige, Brown
productSize - Normal
ShortDescription - Wentylator|200|PWM|12V|
sizeX - 280
sizeY - 280
sizeZ - 40
warrantyLength - 72
warrantyType - F
Weight - 0,75
weight - 725
Weight & dimensions - Depth - 30 mm
Weight & dimensions - Height - 200 mm
Weight & dimensions - Width - 200 mm
