ID: 1455123
Product code: NF-A12X15 PWM
Can be ordered 12 units Availability: 14 days after order approval
Warranty: 3 years

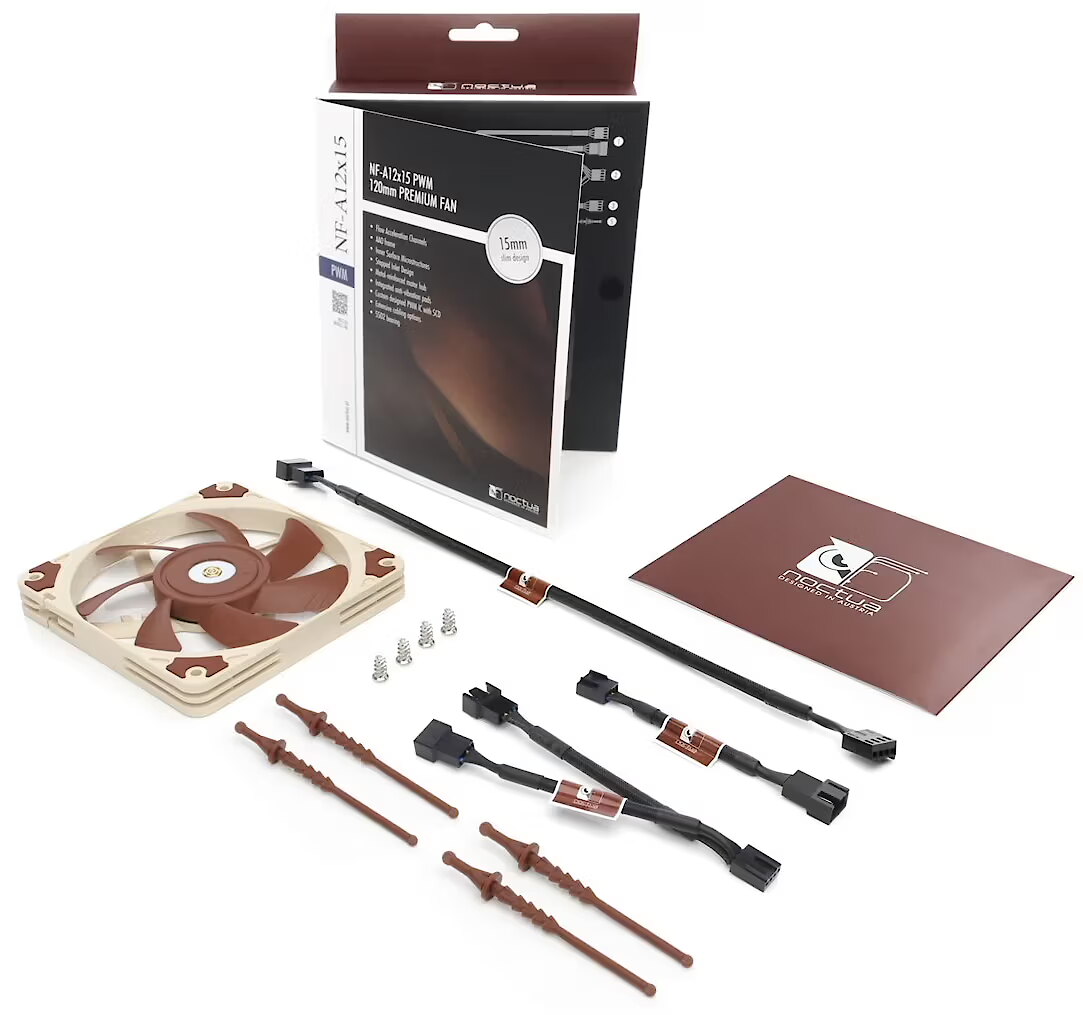

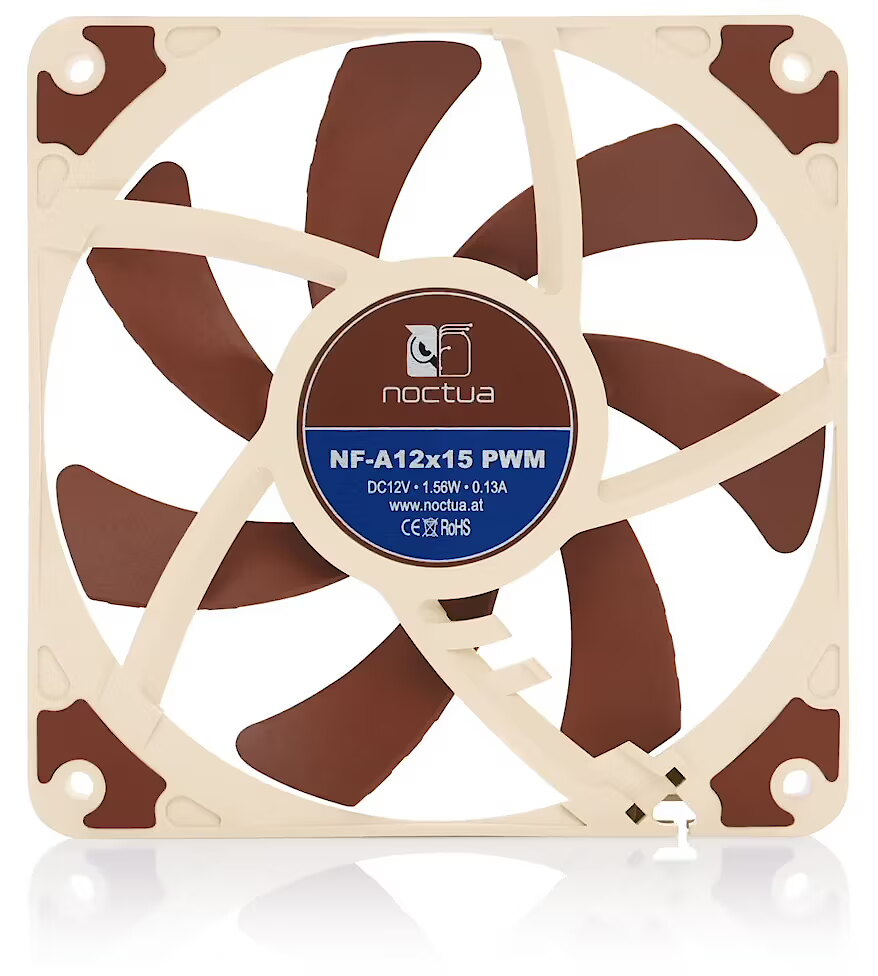

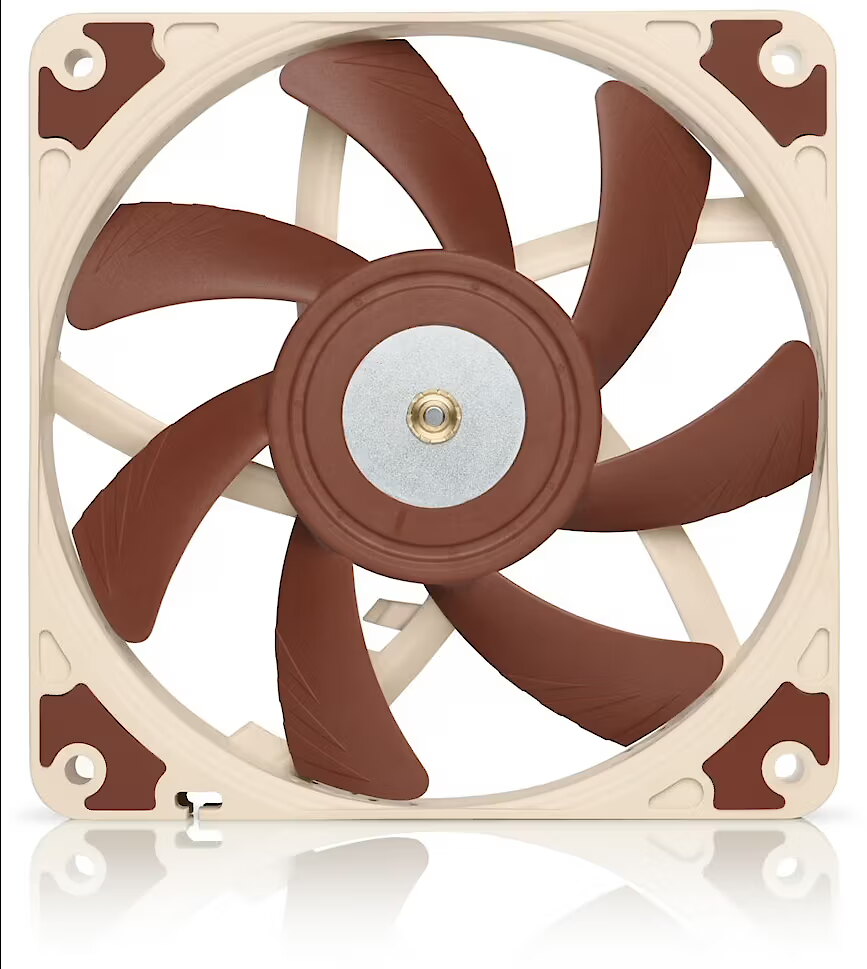

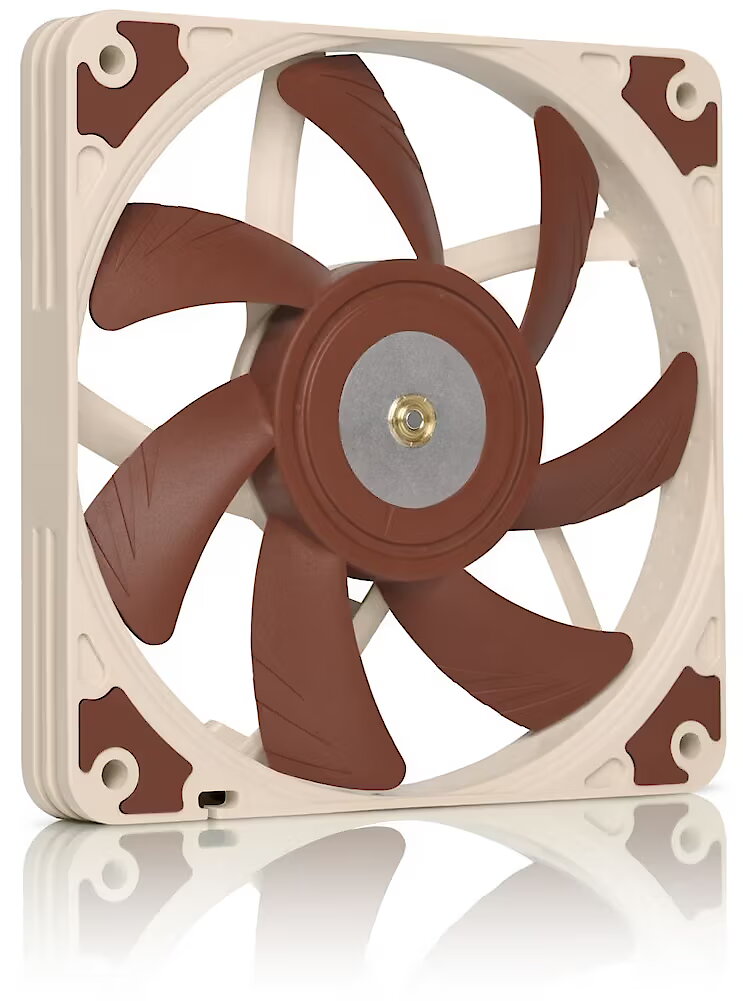

Noctua NF-A12X15 PWM
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Post OfficeWithin 1-2 working days6.99 €
-
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Producer: Noctua
- LED izgaismojuma krāsa: None
- Output Interface: 4-pin (PWM)
- Revolutions (MIN), rpm: 0
- RPM (MAX), rpm: 1850
- Size, mm: 120
- Sound level (MAX), dB(A): 23.9
- Units in package: 1
All parameters
Producer
: Noctua
Type of lighting
: Without lighting
Basic information
Direction of air flow
: Standard
LED izgaismojuma krāsa
: None
Output Interface
: 4-pin (PWM)
RPM (MAX), rpm
: 1850
Size, mm
: 120
Sound level (MAX), dB(A)
: 23.9
Units in package
: 1
More detailed specification
Design - Fan connector - 4-pin
Design - Product colour - Beige
Design - Product colour - Bronze
dimensionalWeight - 260
Logistics data - Harmonized System (HS) code - 84733080
Other features - Mean time to failure (MTTF) - 150000 h
Other features - Mounting hole pattern (W x D) - 105 x 105 mm
Packaging content - Cables included - Fan
Packaging content - Low-noise adaptor (LNA) - Yes
Packaging content - Screws included - Yes
Performance - Airflow - 94.2 m³/h
Performance - Airflow with LNA (max) - 70.8 m³/h
Performance - Bearing type - Self-Stabilising Oil-pressure Bearing (SSO)
Performance - Compatible processor series - Not supported
Performance - Fan diameter - 12 cm
Performance - Maximum air pressure - 1.53 mmH2O
Performance - Minimum air pressure - 0.9 mmH2O
Performance - Noise level (high speed) - 23.9 dB
Performance - Noise level with LNA (max) - 16.8 dB
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Rotational speed (max) - 1850 RPM
Performance - Rotational speed (min) - 450 RPM
Performance - Rotational speed with LNA (max) - 1400 RPM
Performance - Suitable location - Computer case
Performance - Supported processor sockets - Not supported
Performance - Type - Fan
Power - Maximum current - 0.13 A
Power - Power supply - 1.56 W
Power - Voltage - 5 - 12 V
producerCode - NF-A12X15 PWM
productName - Noctua NF-A12x15 PWM Computer case Fan 12 cm Beige, Brown
productSize - Normal
sizeX - 40
sizeY - 155
sizeZ - 210
warrantyLength - 72
warrantyType - F
weight - 285
Weight & dimensions - Depth - 120 mm
Weight & dimensions - Height - 15 mm
Weight & dimensions - Width - 120 mm
