ID: 1221974
Product code: ACFAN00160A
Can be ordered 100 units Availability: 14 days after order approval
Warranty: 3 years

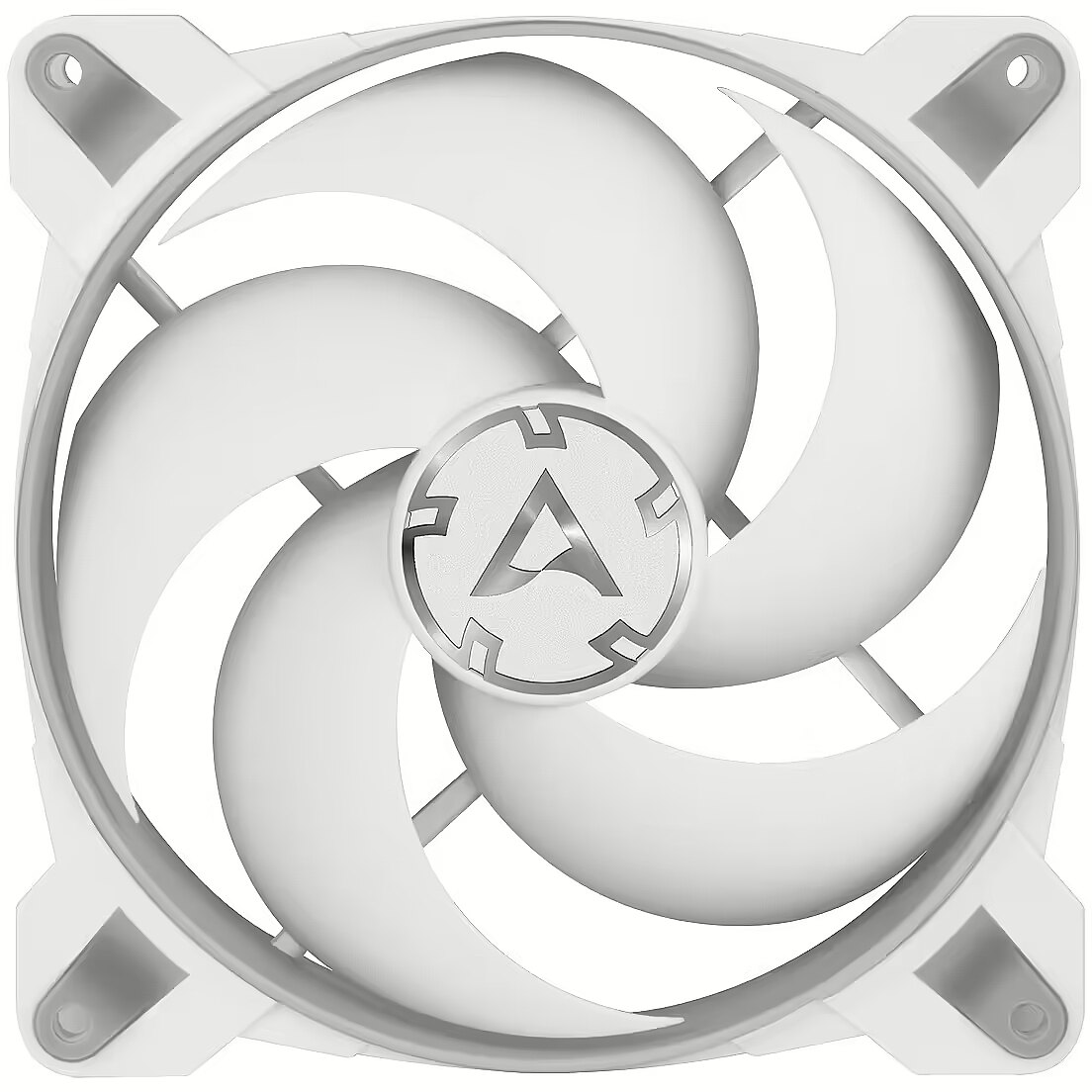

Arctic BioniX P140, White
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 6.99 €: 19.05.2025
- Courier delivery 11.99 €: 19.05.2025
Main product parameters All parameters
- Producer: Arctic
- LED izgaismojuma krāsa: Nav
- Output Interface: 4-pin (PWM)
- Revolutions (MIN), rpm: 200
- RPM (MAX), rpm: 1950
- Size, mm: 140
- Sound level (MAX), dB(A): Nav norādīts
- Units in package: 1
All parameters
Producer
: Arctic
Type of lighting
: Without lighting
Basic information
Direction of air flow
: Standarta
LED izgaismojuma krāsa
: Nav
Output Interface
: 4-pin (PWM)
RPM (MAX), rpm
: 1950
Size, mm
: 140
Sound level (MAX), dB(A)
: Nav norādīts
Units in package
: 1
More detailed specification
Brand - ARCTIC
BrandPartCode - ACFAN00160A
Category - Computer Cooling Systems
Category 1 - Gehäuse
Category 2 - Gehäuselüfter
Design - Fan connector - 4-pin + 4-pin
Design - Number of fan blades - 5
Design - Number of fans - 1 fan(s)
Design - Product colour - Grey, White
EAN - 4895213702331
GTIN - 4895213702331
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - BioniX P140Pressure-optimised 140 mm Gaming Fan with PWM PSTThe BioniX P140 fan features completely redesigned fan blades and is optimised for high static pressure. Thus, the BioniX P140 is especially effective when used on heatsinks and with higher air resistance.The wide RPM range from 200 to 1950 RPM can be regulated seamlessly and synchronously with other fans thanks to ARCTIC's PWM Sharing Technology (PST).The newly developed motor with a low coil temperature significantly increases the life span of the fan. Therefore we have extended the warranty to 10 years.
LongProductName - 140 mm, 200 - 1950 RPM, PWM, 77.6 CFM, 131.92 m3/h, 12 V DC, 2x 4-pin, 181 g, Grey/White
LongSummaryDescription - ARCTIC BioniX P140 (Grey/White) – Pressure-optimised 140 mm Gaming Fan with PWM PST. Type: Fan, Fan diameter: 14 cm, Rotational speed (min): 200 RPM, Rotational speed (max): 1950 RPM, Noise level: 0.45 sone, Airflow: 131.92 m³/h, Maximum air pressure: 2.85 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 140 mm, Depth: 28 mm, Height: 140 mm. Product colour: Grey, White
Manufacturer - ARCTIC
MPN - ACFAN00160A
Name - ARCTIC Lüfter BioniX P140 (Grey/White)
Other features - Country of origin - China
Other features - Mounting hole pattern (W x D) - 125 x 125 mm
Packaging content - Number of screws - 4
Packaging content - Package type - Box
Packaging content - Screws included - Yes
Performance - Airflow - 131.92 m³/h
Performance - Bearing type - Fluid Dynamic Bearing (FDB)
Performance - Compatible processor series - Not supported
Performance - Fan diameter - 14 cm
Performance - Maximum airflow - 77.6 cfm
Performance - Maximum air pressure - 2.85 mmH2O
Performance - Noise level - 0.45 sone
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Rotational speed (max) - 1950 RPM
Performance - Rotational speed (min) - 200 RPM
Performance - Suitable location - Computer case
Performance - Supported processor sockets - Not supported
Performance - Type - Fan
Power - Power consumption (typical) - 1.8 W
Power - Rated current - 0.15 A
Power - Voltage - 12 V
ProductName - BioniX P140 (Grey/White) – Pressure-optimised 140 mm Gaming Fan with PWM PST
ShortSummaryDescription - ARCTIC BioniX P140 (Grey/White) – Pressure-optimised 140 mm Gaming Fan with PWM PST, Fan, 14 cm, 200 RPM, 1950 RPM, 0.45 sone, 131.92 m³/h
Title - ARCTIC BioniX P140 (Grey/White) – Pressure-optimised 140 mm Gaming Fan with PWM PST
URL - https://www.arctic.ac/eu_en/bionix-p140.html
WarrantyInfo - 10 years
Weight & dimensions - Cable length - 0.4 m
Weight & dimensions - Depth - 28 mm
Weight & dimensions - Height - 140 mm
Weight & dimensions - Package depth - 35 mm
Weight & dimensions - Package height - 148 mm
Weight & dimensions - Package weight - 230 g
Weight & dimensions - Package width - 148 mm
Weight & dimensions - Weight - 181 g
Weight & dimensions - Width - 140 mm
