Lanberg FF01-8027-12BL

Accessories included - Side locks,  Rear lock,  Front lock,  Screws M6,  Ventilation panel (4 fans),  Feet,  Wheels with brake
Category - Root/Electronics/Networks and communication/19-inch and 10-inch racks
Color - Black
Color - RAL 9004

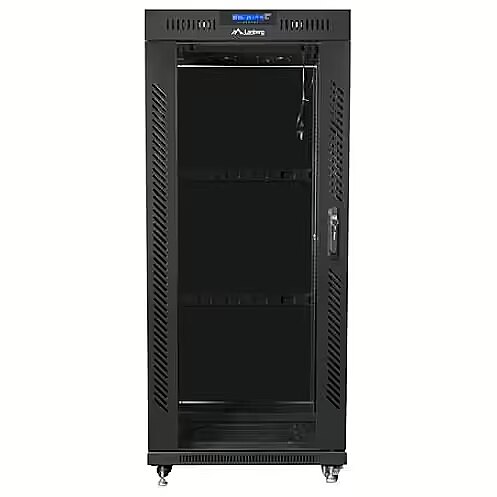

Description - Lanberg FF01-8027-12BL single section standing cabinet is a solution intended for network construction, mounting of cables and equipment in size 19 with a maximum total load capacity of 800 kg. It may be used in data centres which require a large amount of space in equipment cabinets. The cabinet will successfully fulfil its role in large, extensive networks and server rooms, both in small, medium and large companies and corporations. It will also prove useful in low-current installations such as cable TV networks, alarm systems, fire protection, access control and CCTV and IP monitoring systems. The structure is made using high quality rolled steel and is characterised by excellent design and workmanship. The cabinet allows full depth adjustment of the vertical mounting rails. It is equipped with a front door made of tempered glass with a lock, with the possibility of right or left assembly. It has removable side panels (with locks included) and a solid steel rear door with lock. It is possible to run cabling through the lockable top and bottom panels (with plugs supplied). The cabinet has a LCD display mounted on the front, which displays basic information (e.g. temperature inside the cabinet, current time and the current status of the fans) about the operating status of the device. The set includes a ventilation panel with 4 fans 230V. In addition, accessories for fixing the support rails, M6 screws and input panel plugs are included, and thanks to the self-assembly design (flat pack), the whole unit comes in 4 flat packs for easy transportation. Features: Cabinet type: standing, Colour: Black RAL9004, Height: 27U, Dimensions of the cabinet (H x W x D): 800x1000x1431 mm, Height (top panel - bottom panel): 1352 mm, Height (upper panel - base): 1425 mm, Height (upper panel - ground including screws): 1431 mm, LCD display: Yes, Floor panel: 4 castors with brake + adjustable feet, Internal spacing width between the rack rails: 450 mm, Spacing width between rack rail openings: 465 mm, External width between the rack rails: 500 mm, Load capacity: Up to 800 KG, Protection class: IP20, Ventilation panel: Including 4 fans 230V in the upper housing, Door type: Front - hardened glass, Rear - steel Compliance with standards: ANSI/EIA RS-310D, IEC297-2, DIN41494; PART1 & PART7, ETSI, Material of construction: High quality rolled steel, powder coated, Door thickness: 5.0 mm, Sheet thickness: vertical mounting rails - 2.00 mm; mounting profile - 2.00 mm; rest - 1.50 mm - 1.20 mm, Cable openings: Top, Bottom (adjustable), Included: Mounting accessories, front and rear door lock, two side panel locks, 20 M6 screws, 2 vertical cable organisers x2.
Designation - CE+WEEE
dimensionalWeight - 123760
dimension depth - 1020 mm
dimension height - 1435 mm
Dimensions - Depth 1000 mm Width 800 mm Height 1431 mm
dimension weight - 106000 g
dimension width - 810 mm
ean - 5901969433845
Eans - 5901969433845
Features - Adjustable feet - Yes
Features - Back door construction - Steel
Features - Back door key lock - Yes
Features - Castor wheels - Yes
Features - Certification - ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982
Features - Frame type - Closed
Features - Front door construction - Tempered glass
Features - Front door key lock - Yes
Features - International Protection (IP) code - IP20
Features - Key lock - Yes
Features - Maximum weight capacity - 800 kg
Features - Number of fans - 4 fan(s)
Features - Product colour - Black
Features - Rack capacity - 27U
Features - Rack rails - Yes
Features - Removable side panels - Yes
Features - Side panel construction - Metal
Features - Side panel key lock - Yes
Features - Side panels included - Yes
Features - Type - Floor standing cabinet
Front door type - Glass
guarantee - 36
guarantee_type - normal
Height - 27U
LCD display - Yes
Load (max) - 800 kg
name - 19 inch installation cabinet, standing, 27u 800x1000 black, lcd glass door (flat pack)
Name - Lanberg szafa rack stojąca 19" 27U 800x1000 czarna drzwi szklane LCD V2
Other features - Mounting: For self-assembly Standard: IEC297-2:1982, ETSI, DIN 41494/PART 7, DIN 41491/PART 1, ANSI/EIA RS-310-D Number of fan slots: 4
Packaging data - Manual - Yes
Packaging data - Nuts included - Yes
Power - AC input voltage - 230 V
producer - Lanberg
Producer - LANBERG
producerCode - FF01-8027-12BL
ProducerCode - FF01-8027-12BL
productName - Lanberg FF01-8027-12BL rack cabinet 27U Freestanding rack Black
productSize - Pallet
Protection class - IP20
ShortDescription - szafa stojąca rack 19" 27U 800x1000mm, do montażu, czarna, drzwi szklane LCD
sizeX - 1300
sizeY - 850
sizeZ - 560
Stuff - Glass
Stuff - Metal
Type - Floor standing
vendpn - FF01-8027-12BL
warrantyLength - 36
warrantyType - G
weight - 124000
Weight & dimensions - Depth - 1000 mm
Weight & dimensions - Height - 1438.7 mm
Weight & dimensions - Mounting depth (max) - 86 cm
Weight & dimensions - Size (imperial) - 48.3 cm (19")
Weight & dimensions - Weight - 106.6 g
Weight & dimensions - Width - 800 mm
Width - 800 mm
