Brand - Neomounts
BrandPartCode - DS75S-950BL2
Category - Monitor Mounts & Stands
Category1 - LCD Public Display

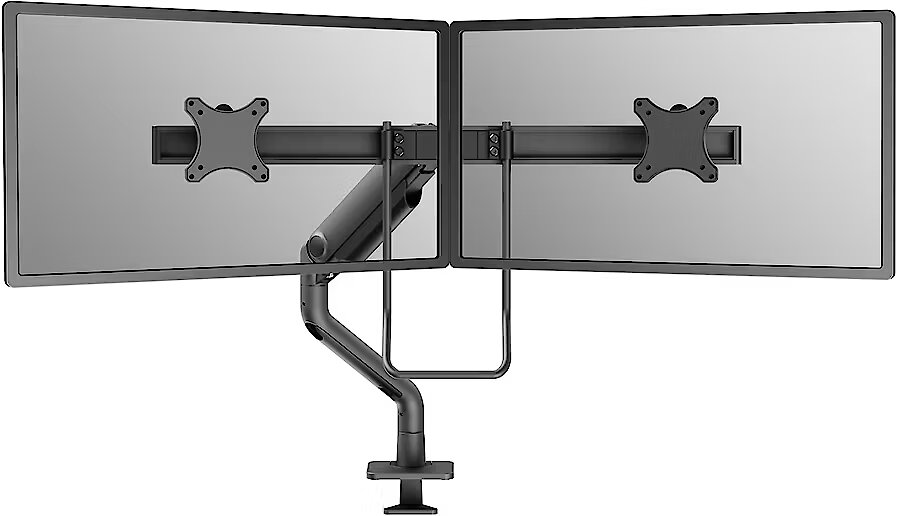

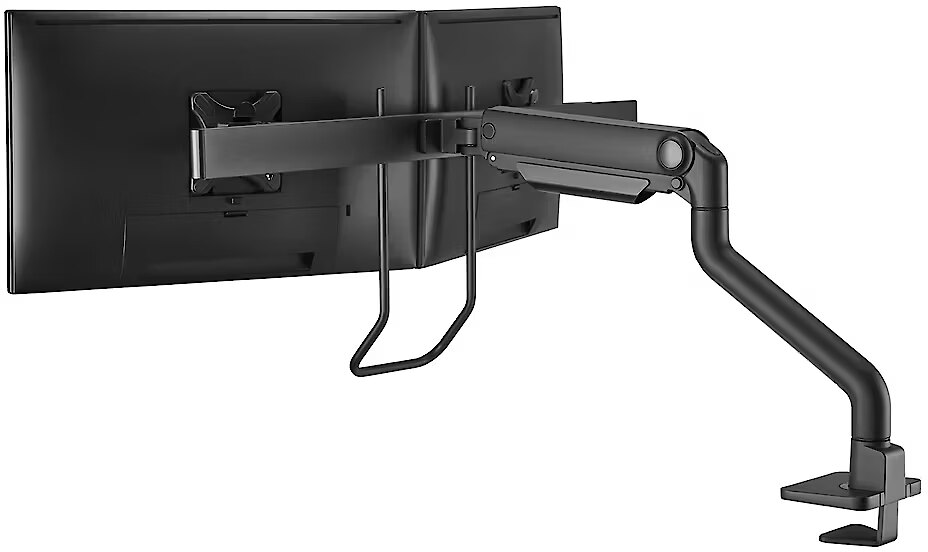

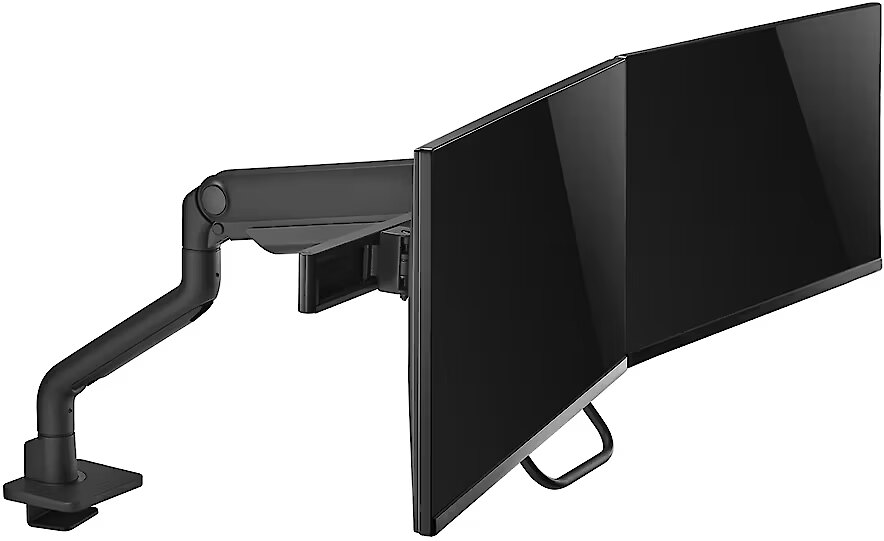

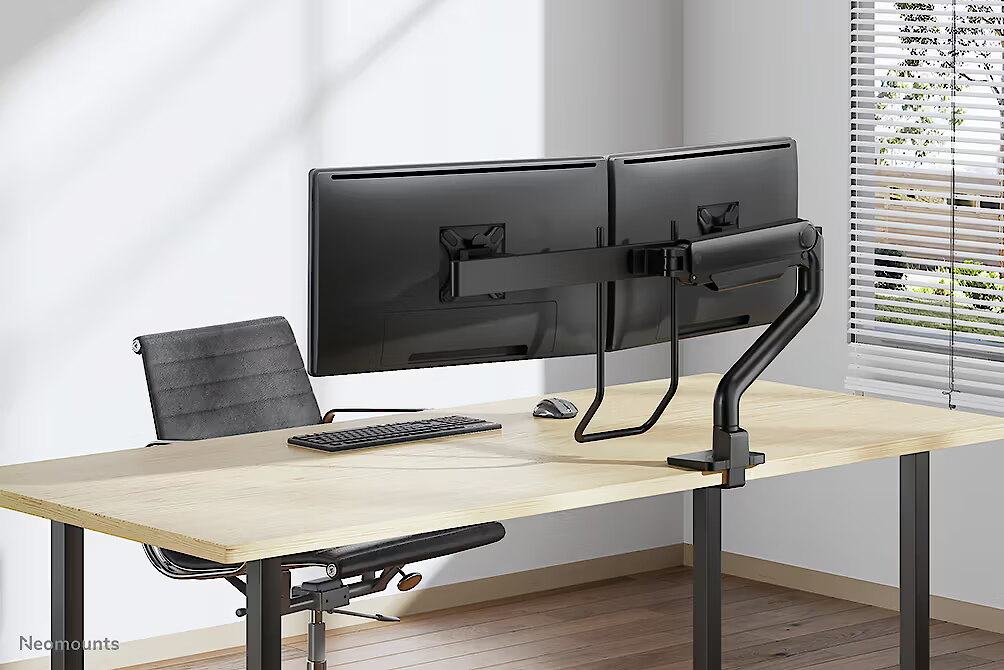

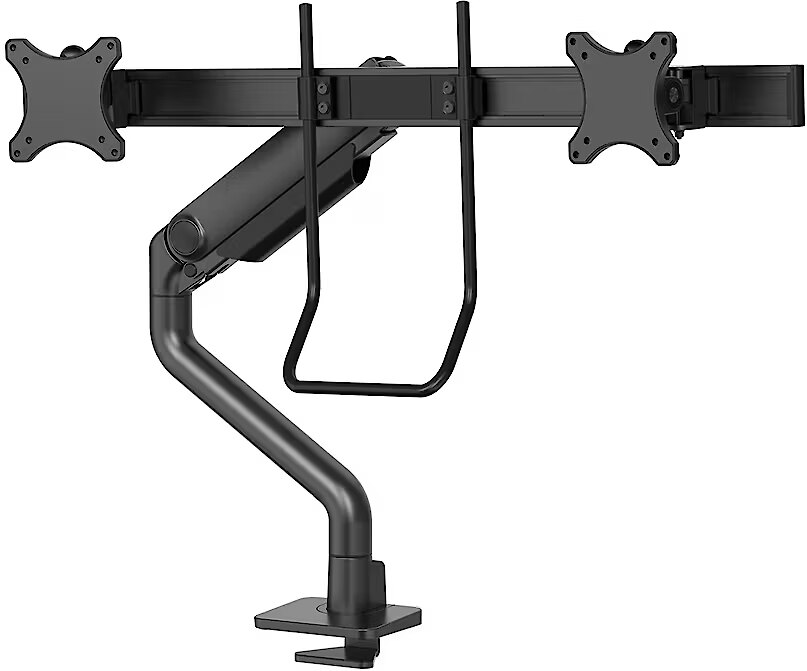

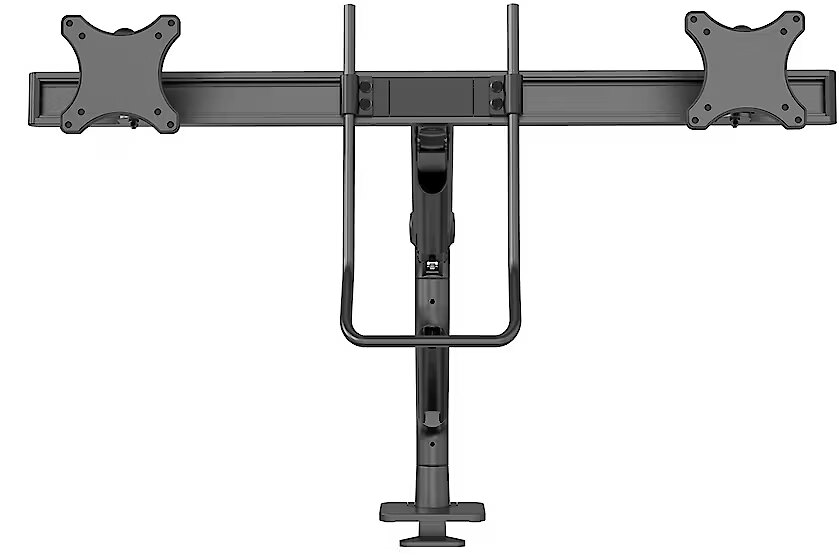

Description1 - Neomounts DS75S-950BL2 NEXT One mounting kit - full-motion - for 2 LCD displays - black

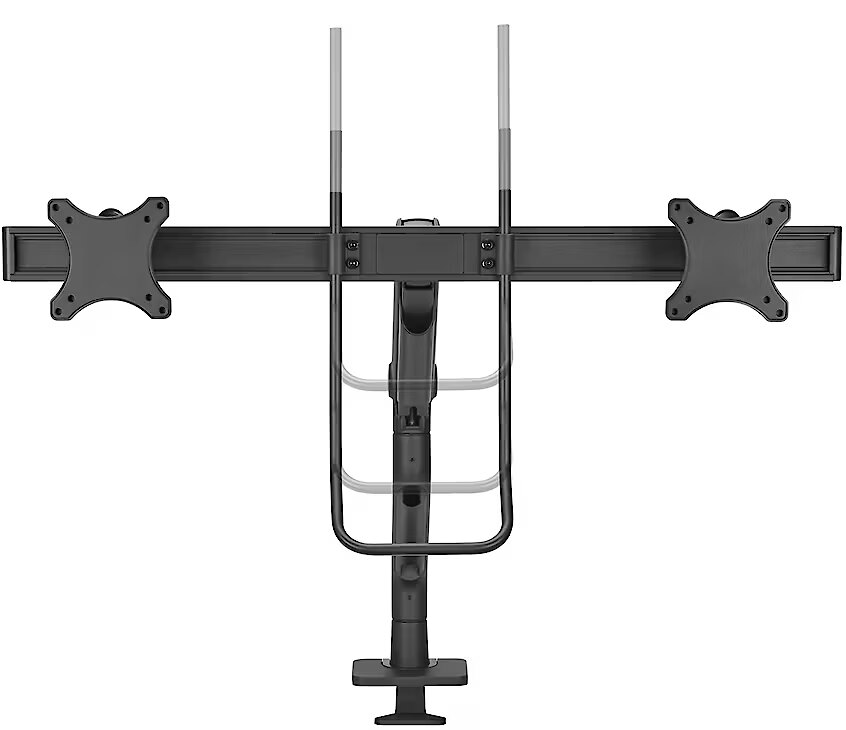

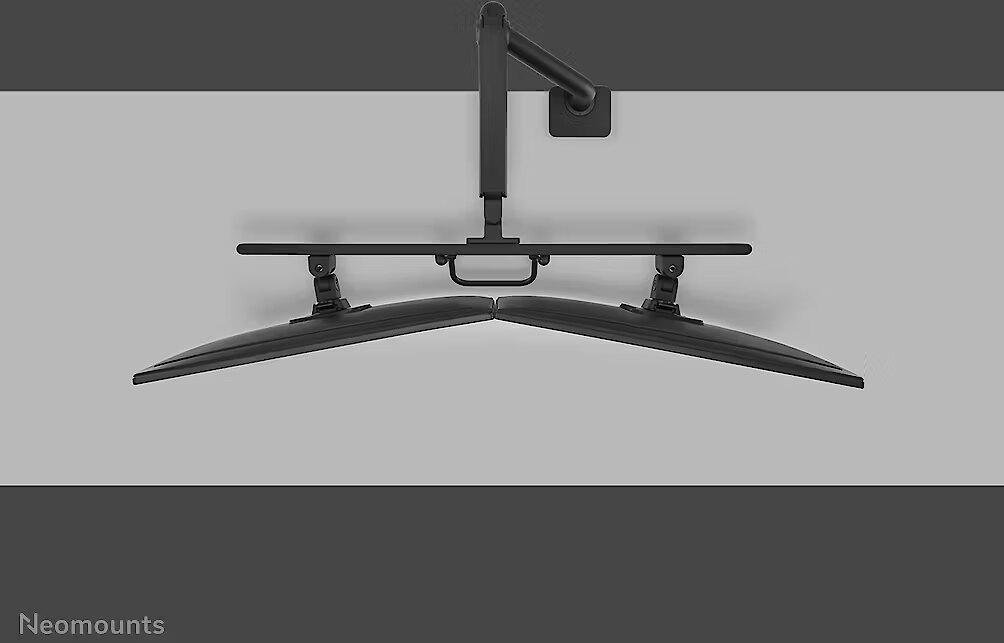

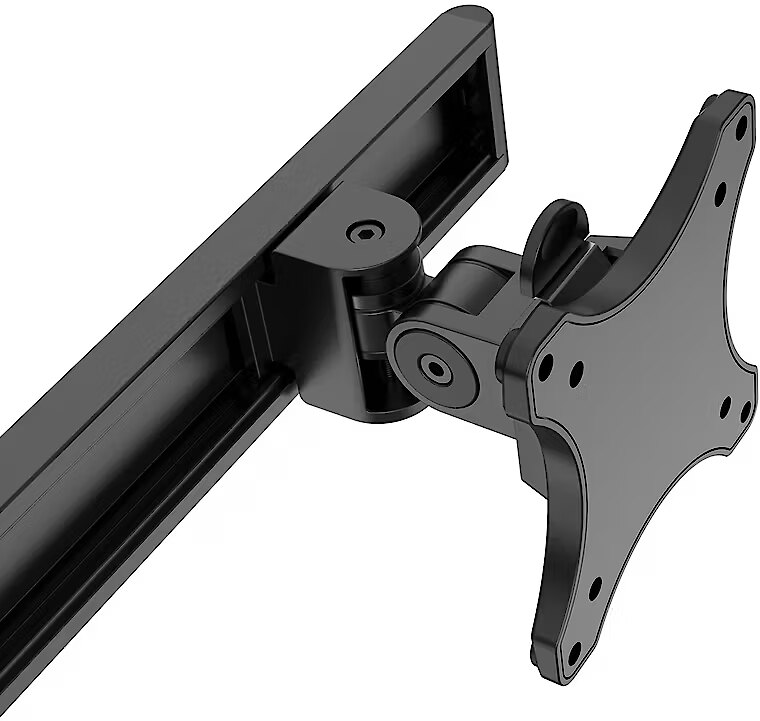

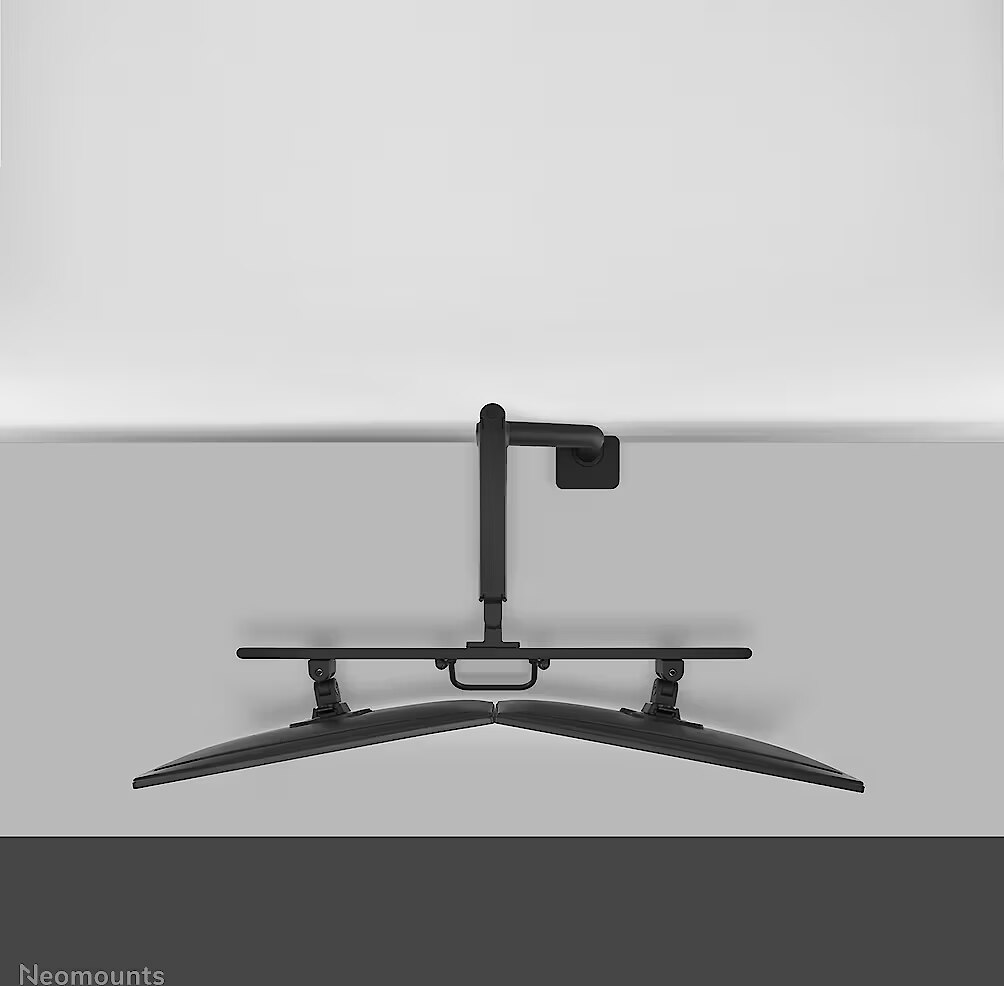

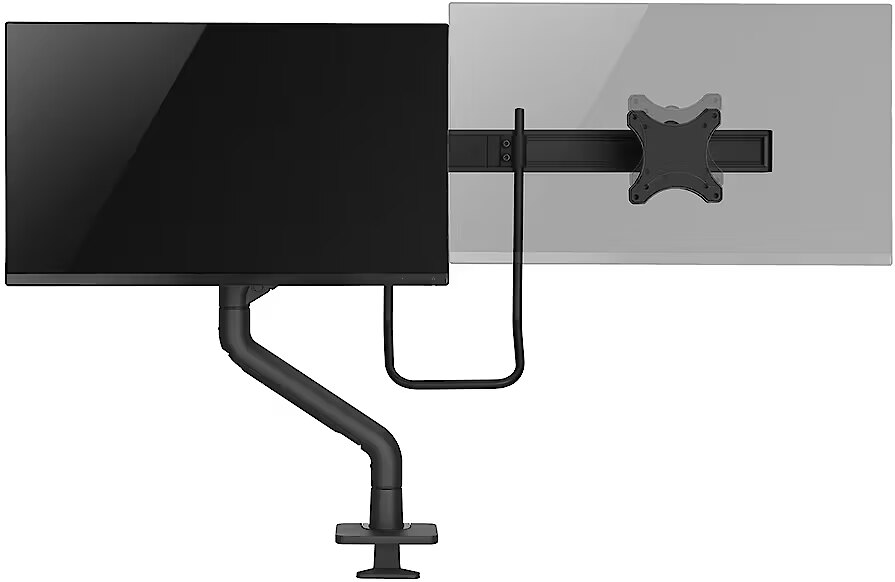

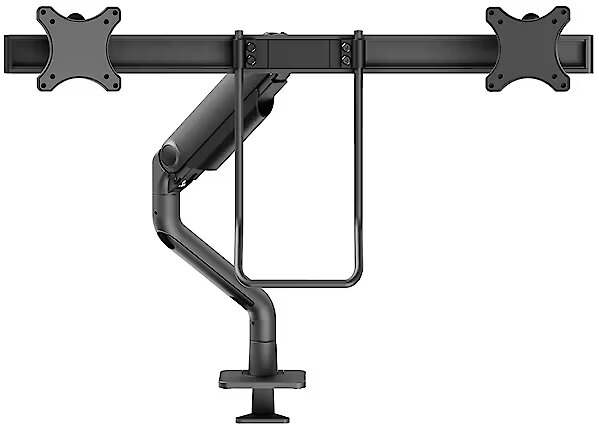

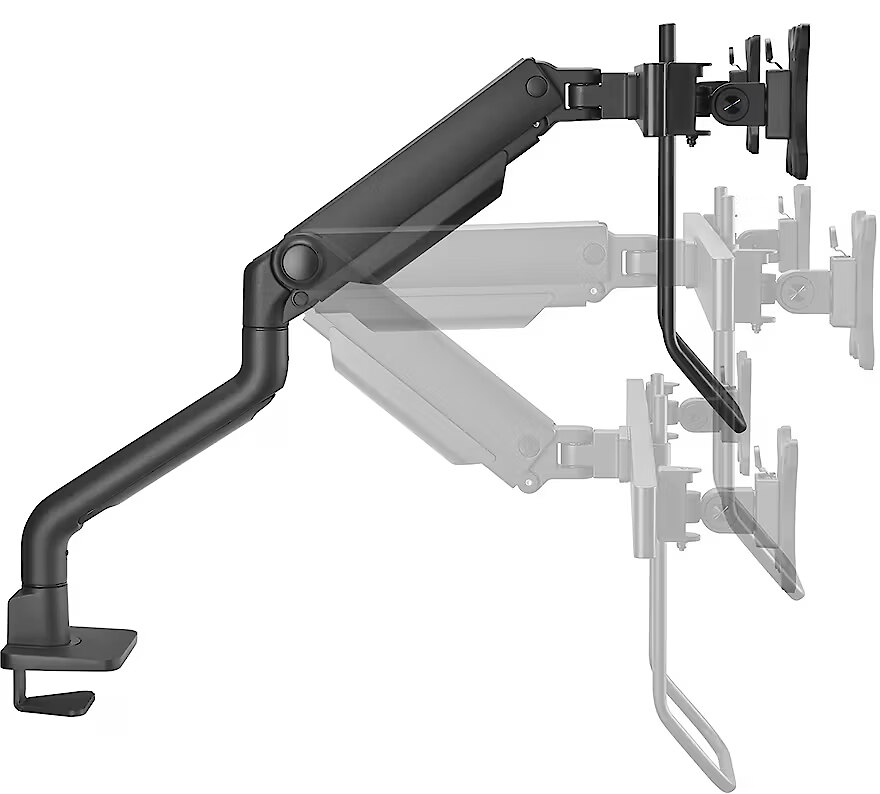

Description2 - The Neomounts DS75S-950BL2 NEXT One is a full motion desk mount for two screens up to 32" with a maximum weight capacity of 8 kg per screen. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (19,1-52,7 cm) and depth adjustment (17,3-71 cm), to create the perfect working position. The displays can be individually adjusted in height, to guarantee perfect screen alignment. Additionally, due to the flexibility of the VESA heads, the screens can be positioned in large cockpit setup. The handle is height adjustable for maximum comfort. The DS75S-950BL2 features the nifty 180° stop mechanism that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables. The black VESA plates and crossbar of the NEXT One integrate stylishly with the black back of your screens. The DS75S-950BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
Design - Easy to install - Yes
Design - Housing material - Aluminium
Design - Product colour - Black
EAN - 8717371441579
Ergonomics - Adjustable depth - Yes
Ergonomics - Angle of rotation - 360°
Ergonomics - Cable management - Yes
Ergonomics - Depth adjustment range - 173 - 710 mm
Ergonomics - Height adjustment - Yes
Ergonomics - Height adjustment range - 191 - 527 mm

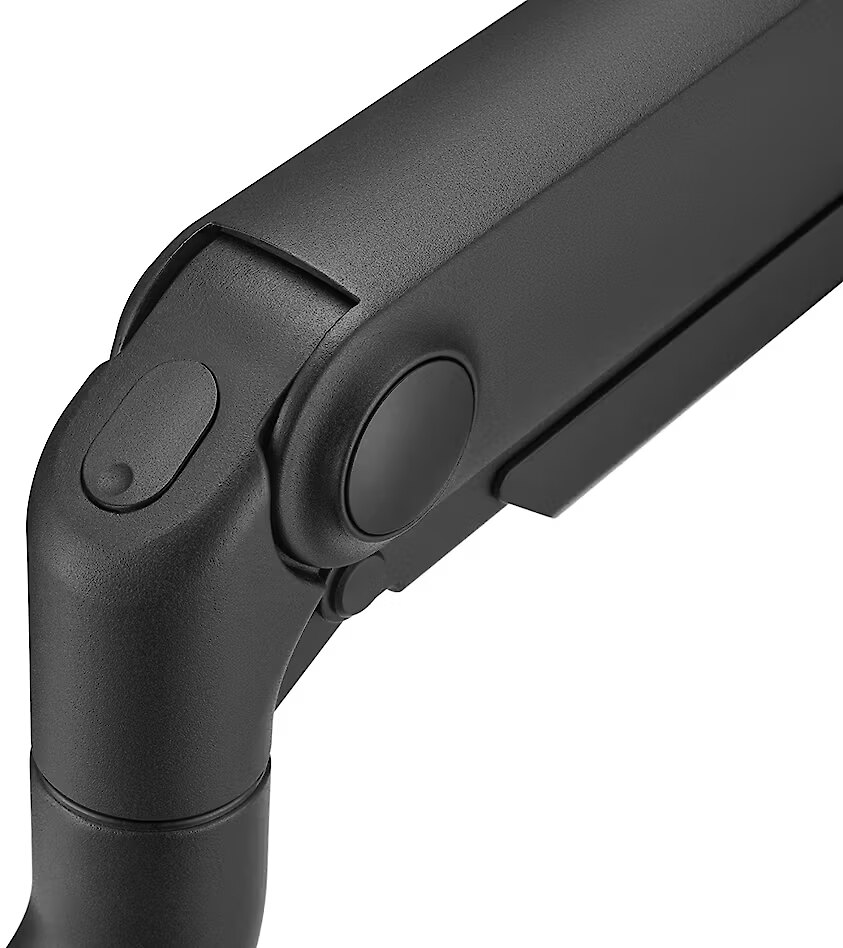

Ergonomics - Height adjustment type - Gas spring
Ergonomics - Pivot angle - -180 - 180°
Ergonomics - Rotating - Yes
Ergonomics - Swivel angle range - -90 - 90°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -60 - 60°

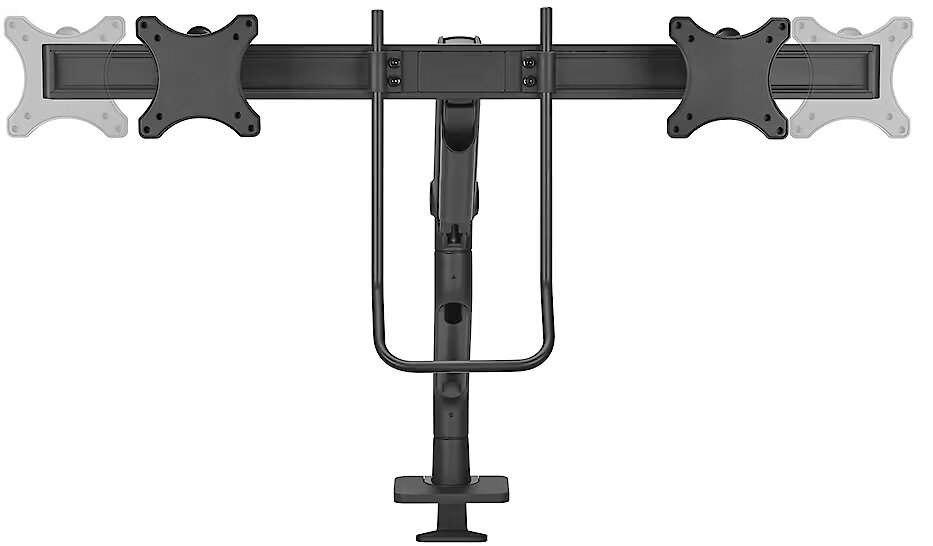

Ergonomics - Width adjustment - 107.4 cm
GTIN - 8717371441579
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 7616991099
Logistics data - Master (outer) case gross weight - 14.9 kg
Logistics data - Master (outer) case height - 905 mm
Logistics data - Master (outer) case length - 260 mm
Logistics data - Master (outer) case net weight - 11.1 kg
Logistics data - Master (outer) case width - 240 mm
Logistics data - Products per master (outer) case - 2 pc(s)
Logistics data - Products per pallet (EU) - 36 pc(s)
LongDesc - The Neomounts DS75S-950BL2 NEXT One is a full motion desk mount for two screens up to 32" with a maximum weight capacity of 8 kg per screen. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (19,1-52,7 cm) and depth adjustment (17,3-71 cm), to create the perfect working position. The displays can be individually adjusted in height, to guarantee perfect screen alignment. Additionally, due to the flexibility of the VESA heads, the screens can be positioned in large cockpit setup. The handle is height adjustable for maximum comfort.The DS75S-950BL2 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.The black VESA plates and crossbar of the NEXT One integrate stylishly with the black back of your screens. The DS75S-950BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.The packaging of the DS75S-950BL2 desk mount is 100% plastic free and entirely made from cardboard and paper.The NEXT One products have an extended warranty period of 10-years.
LongProductName - Neomounts NEXT One DS75S-950BL2 Dual crossbar monitor arm - 17-32" - 1-8 kg/screen - gas spring - 180°-stop - Topfix - Easy Install-model - 100% plastic-free packaging - black
LongSummaryDescription - Neomounts DS75S-950BL2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -60 - 60°. Product colour: Black
Manufacturer - Neomounts
ManufacturerID - DS75S-950BL2
Mounting - Clamp mount desk thickness (max) - 5 cm
Mounting - Desk thickness (max) - 5.5 cm
Mounting - Desk thickness (min) - 1 cm
Mounting - Distance to the wall (max) - 74.1 cm
Mounting - Distance to the wall (min) - 20.4 cm
Mounting - Grommet mount desk thickness (max) - 5.5 cm
Mounting - Maximum screen size - 81.3 cm (32")
Mounting - Maximum VESA mount - 100 x 100 mm
Mounting - Maximum weight capacity - 8 kg
Mounting - Maximum weight capacity (per display) - 8 kg
Mounting - Minimum screen size - 43.2 cm (17")
Mounting - Minimum VESA mount - 75 x 75 mm

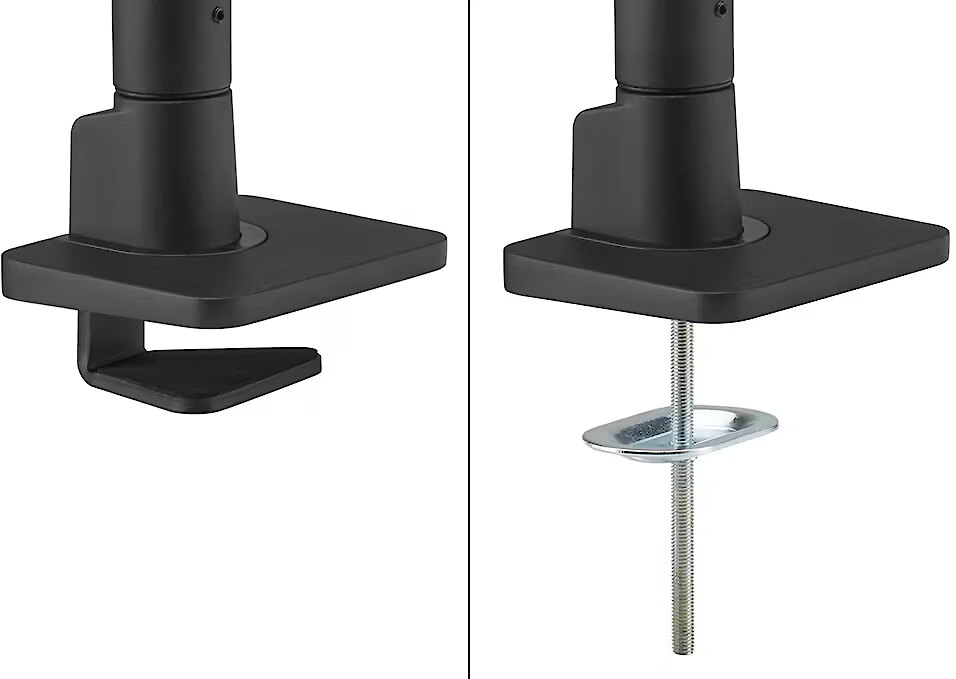

Mounting - Mounting - Clamp/Grommet
Mounting - Mounting type - Desk
Mounting - Number of displays supported - 2
Mounting - Panel mounting interface - 75 x 75 mm
Other features - Minimum weight - 1 kg
Other features - Warranty period - 10 year(s)
Other features - Width adjustment range - 0 - 1074 mm
PackageHeight - 124
PackageLength - 890
PackageWeight - 7000
PackageWidth - 226

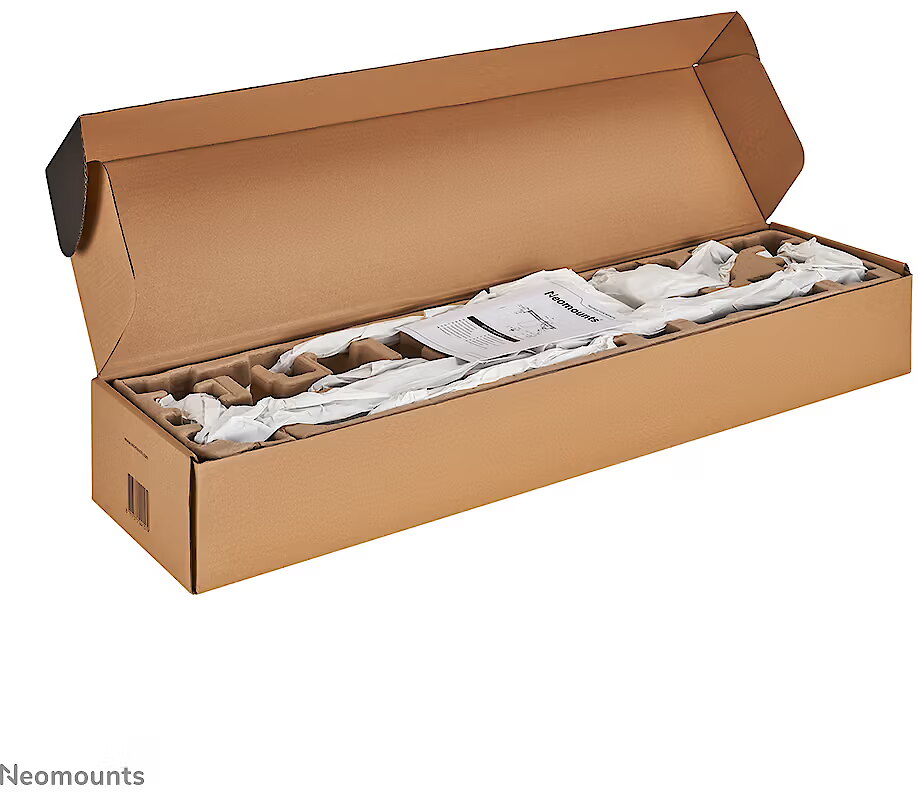

Packaging data - Package depth - 120 mm
Packaging data - Package height - 887 mm
Packaging data - Package net weight - 7.1 kg
Packaging data - Package type - Box
Packaging data - Package weight - 7.1 kg
Packaging data - Package width - 222 mm
ProductName - Neomounts DS75S-950BL2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop
ShortSummaryDescription - Neomounts DS75S-950BL2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop, Clamp/Grommet, 8 kg, 43.2 cm (17"), 81.3 cm (32"), 100 x 100 mm, Black
Title - Neomounts DS75S-950BL2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=DS75S-950BL2
WarrantyInfo - 10 year

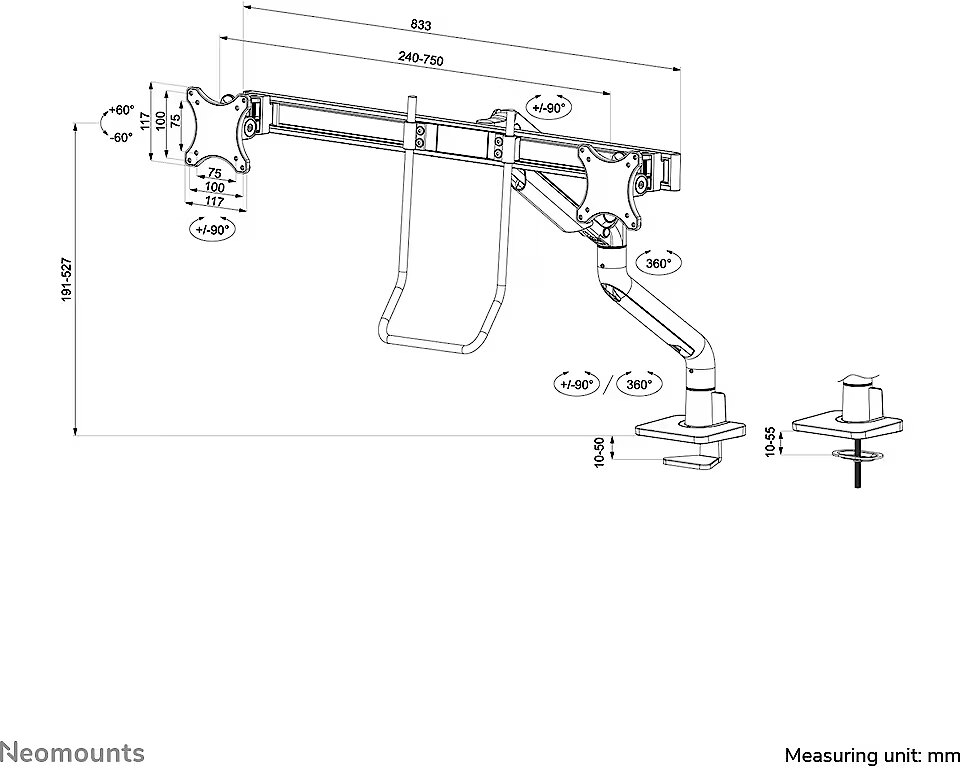

Weight & dimensions - Depth - 739 mm
Weight & dimensions - Height - 1085 mm
Weight & dimensions - Weight - 5.76 kg
Weight & dimensions - Width - 833 mm
