ARTIKEL1 - TN8605A-B1AG 86IN UHD
ARTIKEL2 - IR 40P TOUCH AG WITH NO-OS
Audio - Built-in speaker(s) - Yes
Audio - Number of built-in speakers - 2
Brand - iiyama
BrandPartCode - TN8605A-B1AG
Breite - 1.27
Category - Signage Displays
Design - Anti-glare screen - Yes
Design - Orientation - Horizontal
Design - Panel mounting interface - 800 x 600 mm
Design - Placement supported - Indoor
Design - Positioning accuracy - 1 mm
Design - Product colour - Black
Design - Product design - Interactive flat panel
Design - Screen shape - Flat
Design - VESA mounting - Yes
Display - Active display area (W x H) - 1895 x 1066 mm
Display - Contrast ratio (typical) - 1200:1
Display - Display brightness - 500 cd/m²
Display - Display diagonal - 2.17 m (85.6")
Display - Display diagonal (metric) - 217.4 cm
Display - Display resolution - 3840 x 2160 pixels
Display - Haze rate - 25%
Display - HD type - 4K Ultra HD
Display - Horizontal scan range - 30 - 135 kHz
Display - Native aspect ratio - 16:9
Display - Panel type - IPS
Display - Pixel pitch - 0.4935 x 0.4935 mm
Display - Response time - 8 ms
Display - Touchscreen - Yes
Display - Touchscreen technology - Infrared
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
EANCode - 4948570127085
Gewicht - 76
GRUPPE1 - Displays
GRUPPE2 - Lcd Large Format
GTIN - 4948570127085
HERSTELLER - IIYAMA CONSIGNMENT
Hoehe - 0
HSTNUMMER - TN8605A-B1AG
Laenge - 2.09

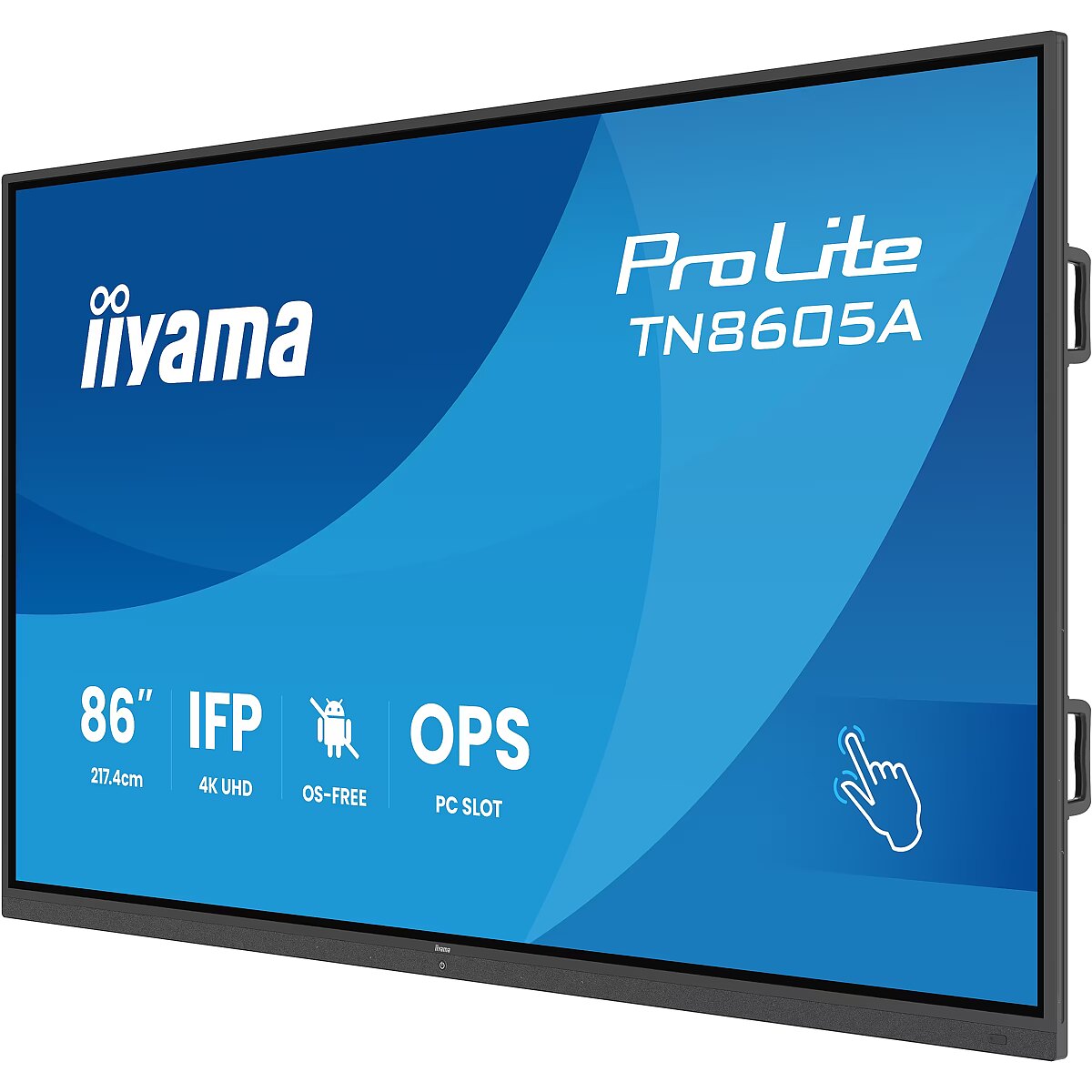

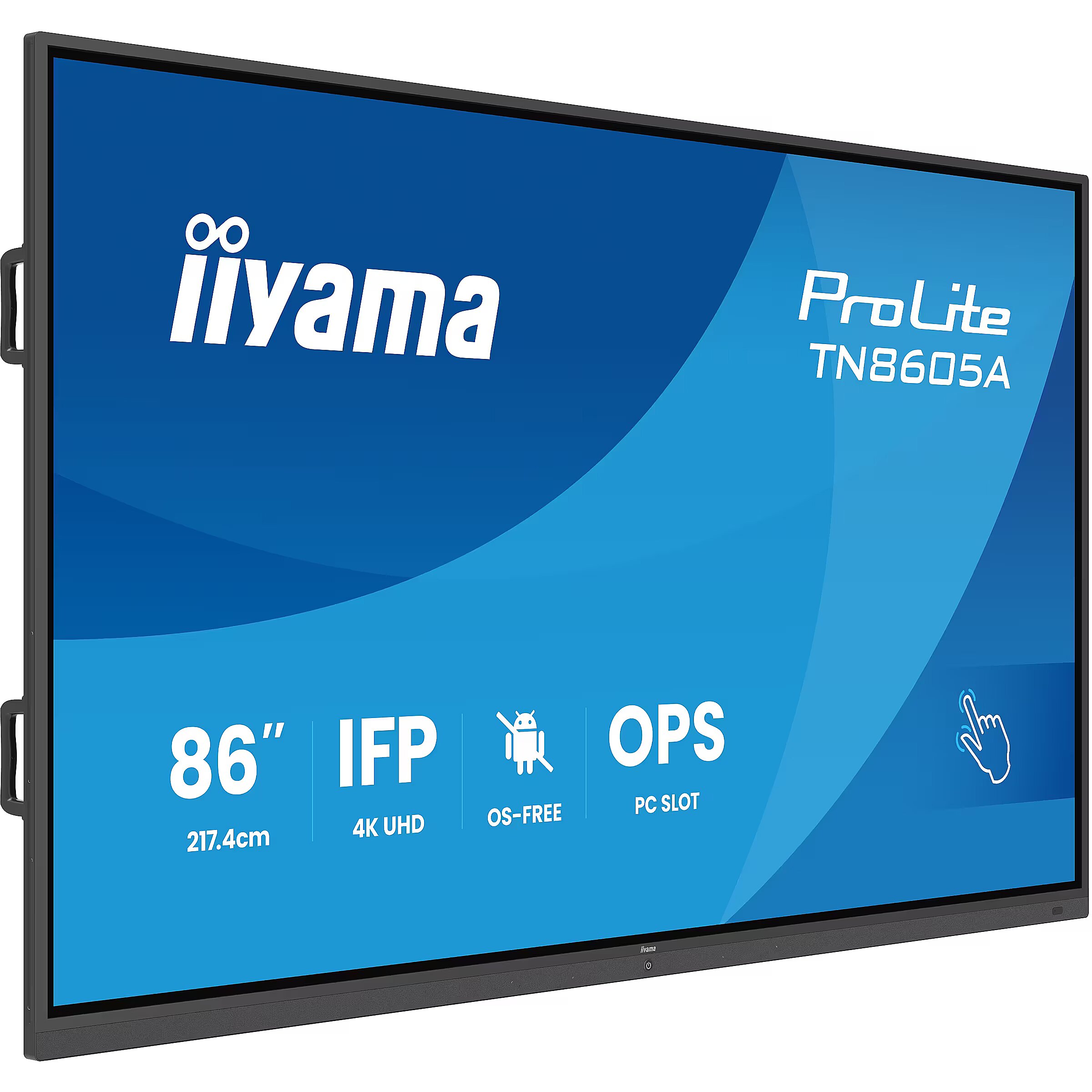

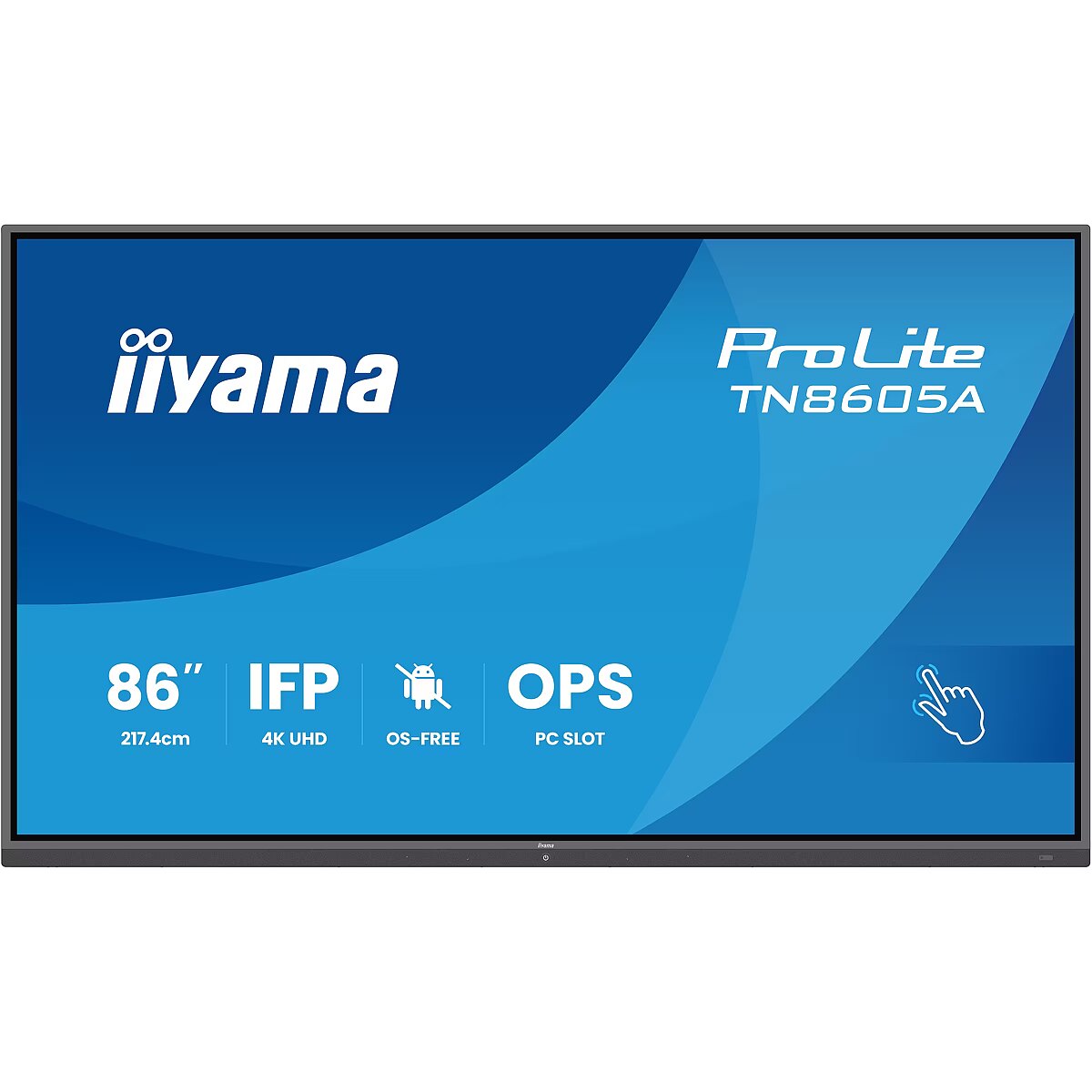

LongDesc - The ProLite TN8605A-B1AG is a large-format professional touch display, without an operating system, designed for environments where security, reliability and control are non-negotiable. Despite its minimalist structure, the TN6505A is exceptionally easy to use: simply connect your source and it works. The responsive multi-touch panel, 4K UHD resolution and high brightness deliver a precise and professional experience for collaboration, presentations and interactive applications. Built-in annotation allows users to write directly on the screen with a pen, marking up presentations or any on-screen content in real time for clear and effective communication. The TN8605A is the ideal choice for banks, courts, defence organisations, IT departments, universities and other high-security or compliance-driven environments where simplicity, transparency and trust are essential.
LongProductName - 86" OS-Free Professional Touch Display for Maximum Security and Full IT Control
LongSummaryDescription - iiyama TN8605A-B1AG. Product design: Interactive flat panel. Display diagonal: 2.17 m (85.6"), Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD, Touchscreen. Product colour: Black
Network - Ethernet LAN - Yes
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features - Brightness - 450 cd/m²
Other features - Compatible operating systems - All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Packaging content - Cables included - AC, HDMI, USB Type-C, RS-232
Performance - Number of OSD languages - 8
Performance - On Screen Display (OSD) - Yes
Performance - On Screen Display (OSD) languages - German, Dutch, Spanish, English, French, Italian, Japanese, Russian
Performance - Picture-in-Picture - Yes
Performance - Purpose - Education
Ports & interfaces - Audio Return Channel (ARC) - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - HDMI input ports quantity - 2
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - OPS module slot - Yes
Ports & interfaces - PC Audio in - Yes
Ports & interfaces - PC Audio out - Yes
Ports & interfaces - Remote (IR) output - 1
Ports & interfaces - RS-232C - Yes
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity - 2
Ports & interfaces - USB connector type - USB Type-B, USB Type-C
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 1
Ports & interfaces - USB Power Delivery (USB PD) - Yes
Ports & interfaces - USB Power Delivery up to - 65 W
Ports & interfaces - USB Type-C DisplayPort Alternate Mode - Yes
Ports & interfaces - USB version - 2.0/3.2 Gen 1 (3.1 Gen 1)
Power - Energy consumption (SDR) per 1000 hours - 225 kWh
Power - Energy efficiency class (SDR) - G
Power - Energy efficiency scale - A to G
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 225 W
ProductName - TN8605A-B1AG
ShortSummaryDescription - iiyama TN8605A-B1AG, Interactive flat panel, 2.17 m (85.6"), 3840 x 2160 pixels
Stck_Kart - 1
Stck_Pal - 0
Storno - Y
Technical details - Audio in (mini jack) - Yes
Technical details - Compliance certificates - CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Technical details - OPS slot - 1
Technical details - Sustainability certificates - ErP
Technical details - User controls - Color temp., image mode (including eye protection mode), sound mode, no signal standby ( Off / 1 min. / 3 min. / 5 min. / 15 min. / 30 min.), meeting mode, time scheduler, key lock, PIP & PBP, brightness / contrast.
Title - iiyama TN8605A-B1AG Signage Display Interactive flat panel 2.17 m (85.6") 500 cd/m² 4K Ultra HD Black Touchscreen
URL - https://iiyama.com/
WarrantyInfo -
Weight & dimensions - Depth - 120.6 mm
Weight & dimensions - Display depth - 120.6 mm
Weight & dimensions - Display height - 1174.3 mm
Weight & dimensions - Display weight - 66.4 kg
Weight & dimensions - Display width - 1955.9 mm
Weight & dimensions - Height - 1174.3 mm
Weight & dimensions - Weight - 66.4 kg
Weight & dimensions - Width - 1955.9 mm
