ID: 1223727
Product code: 5007550
In stock 16 units
Warranty: 3 years

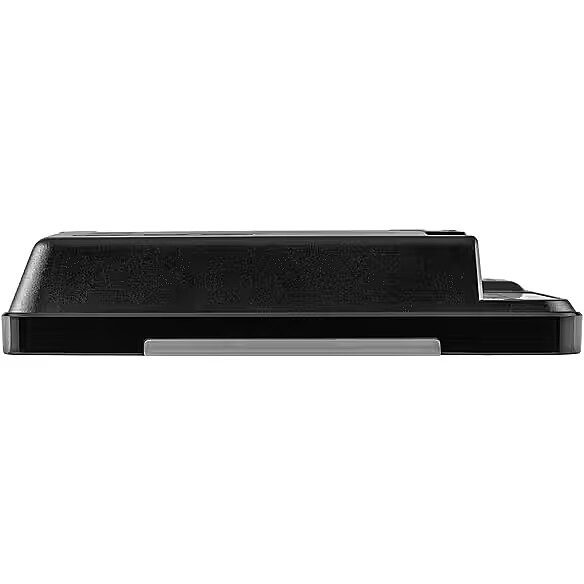

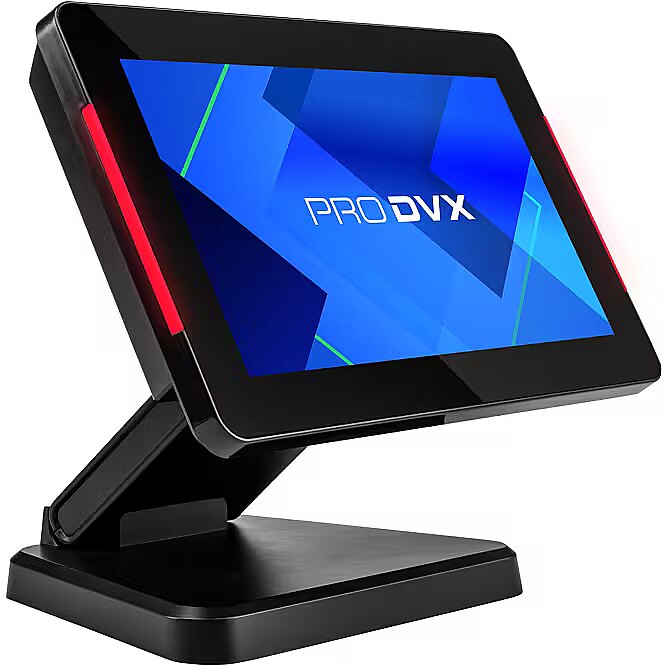

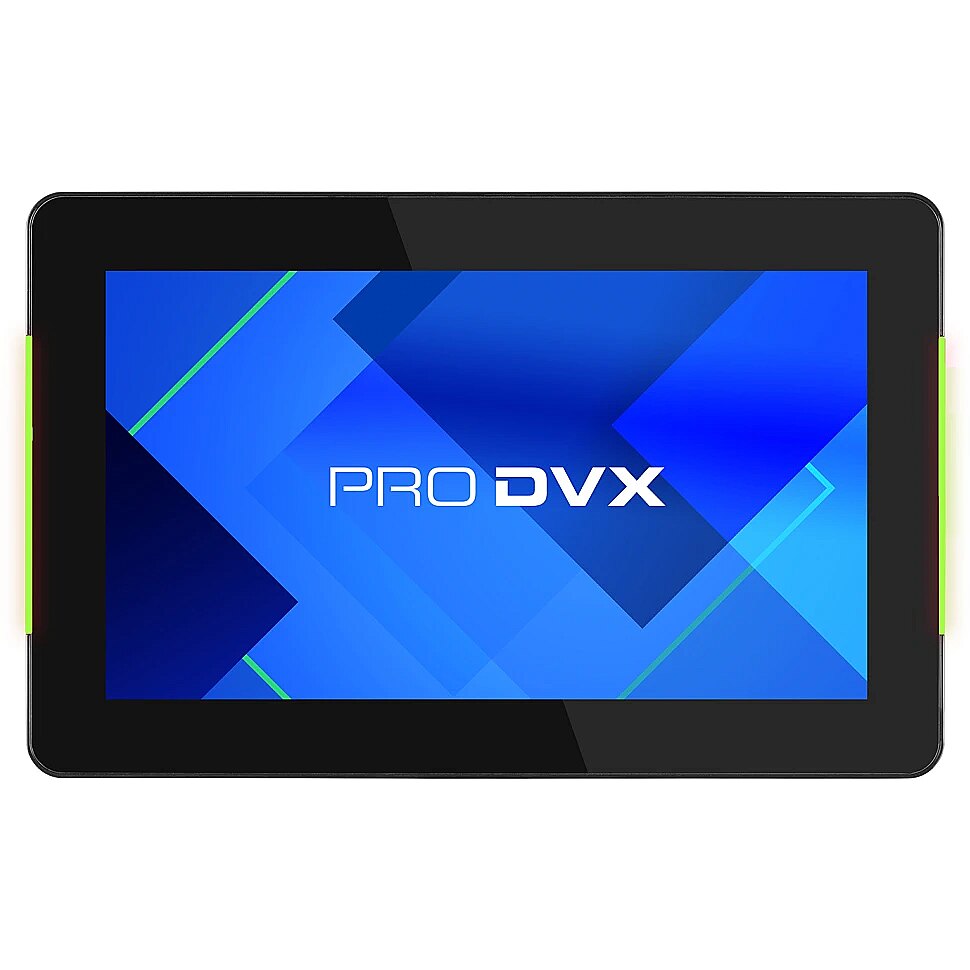

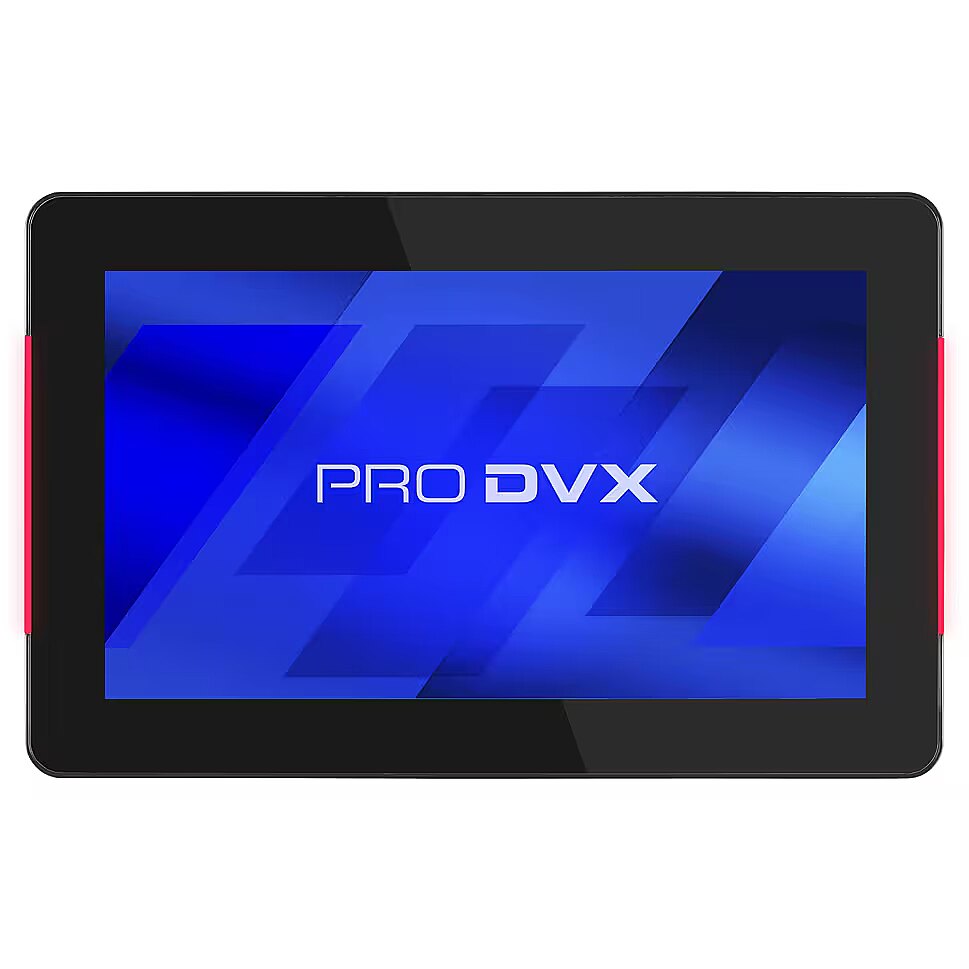

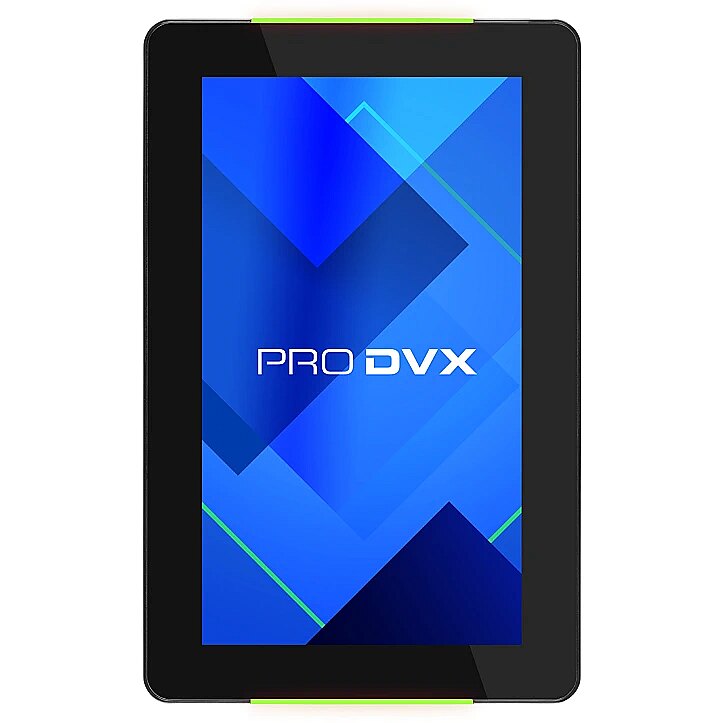

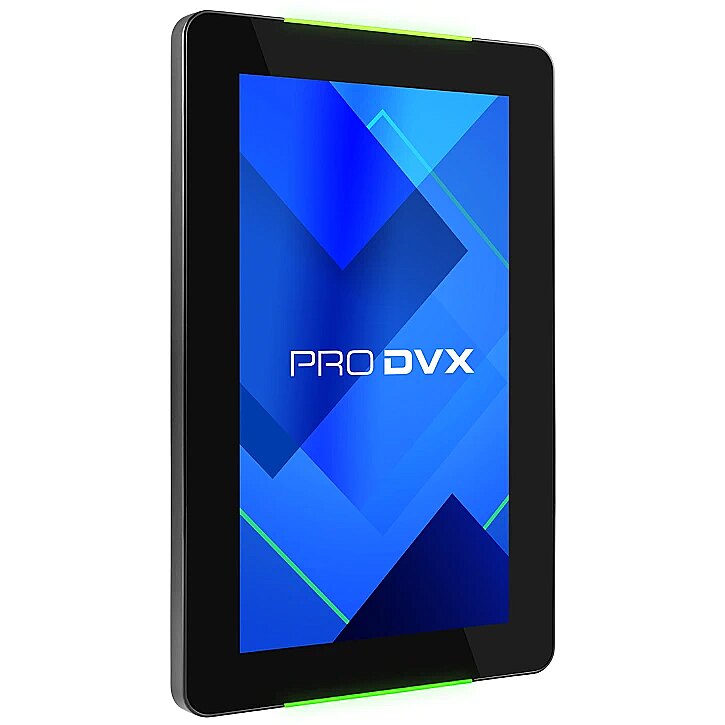

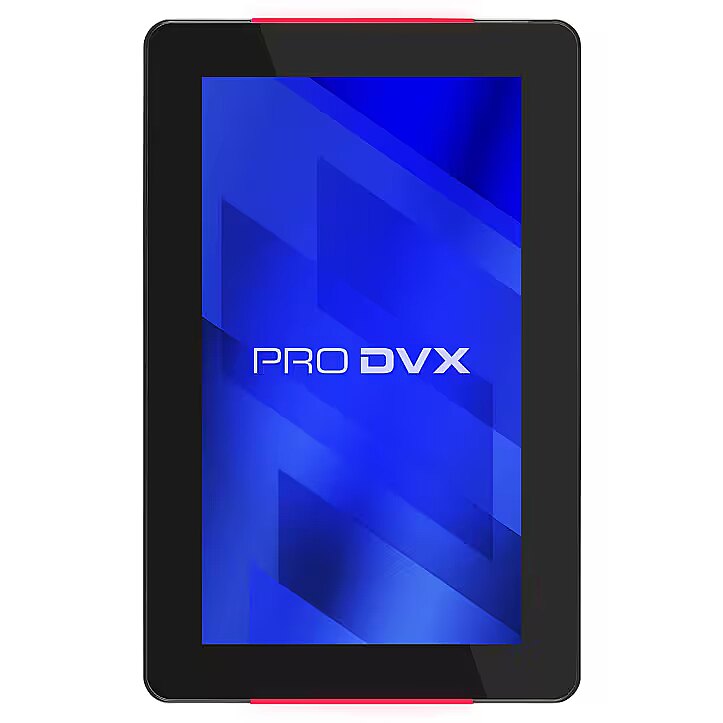

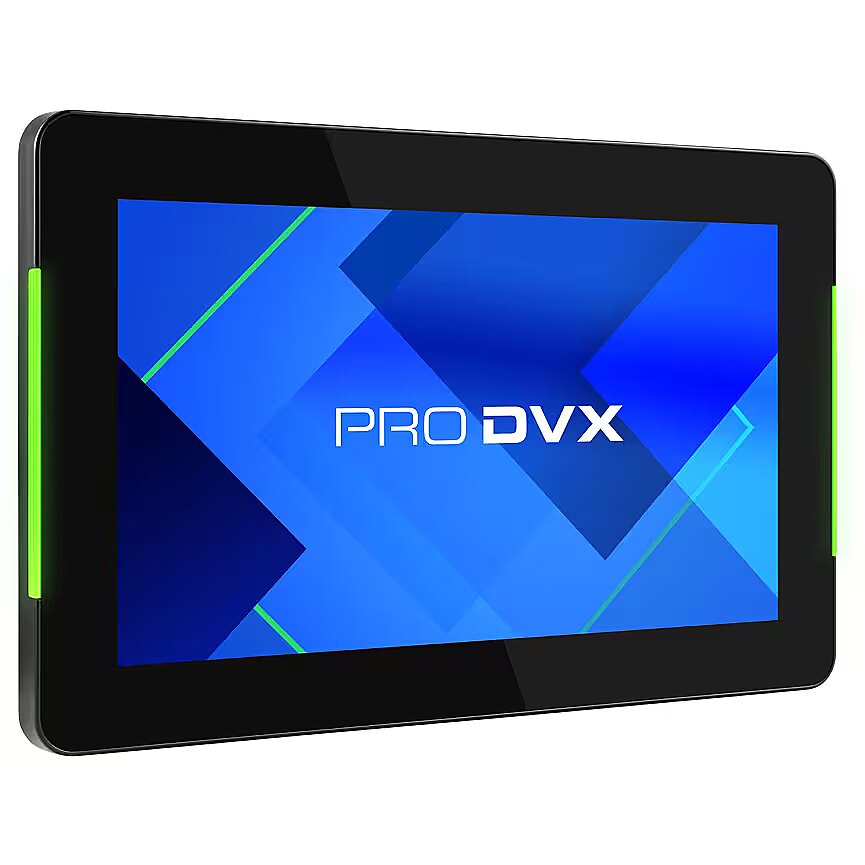

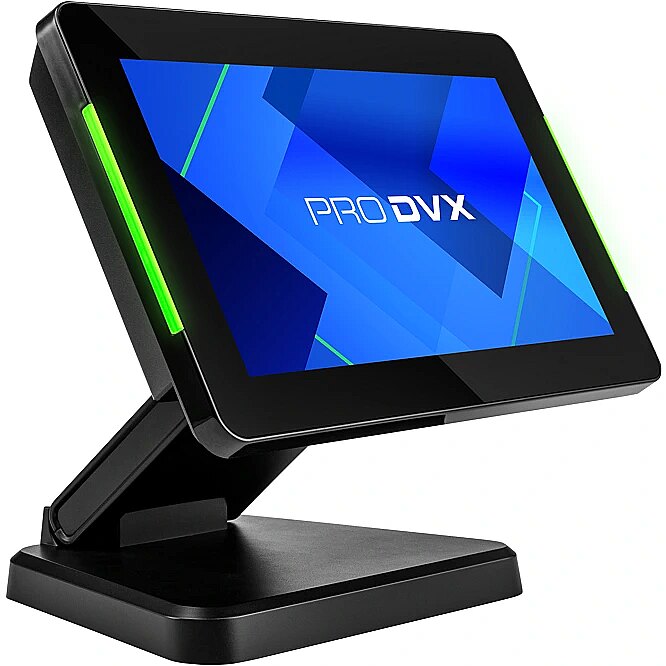

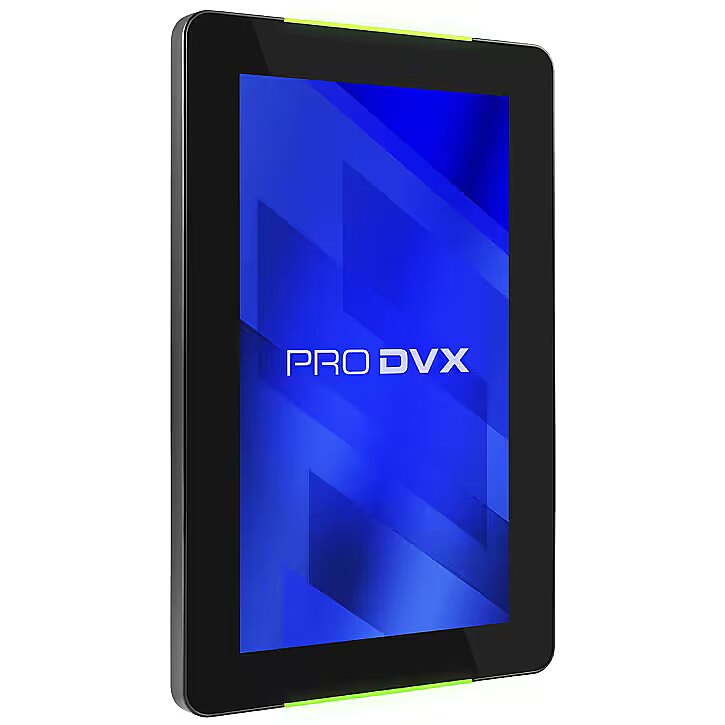

ProDVX APPC-7XPL | 7 " | Landscape/Portrait | 24/7 | Android | Wi-Fi | Touchscreen | 300 cd/m² | 140 ° | 130 °
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Post OfficeWithin 1-2 working days6.99 € -
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Screen diagonal, inches: 7
- Screen resolution: 1024 x 600
- Touchscreen: Is
All parameters
Brightness, cd/m2
: 300
Contrast ratio
: 800:1
Model
: APPC-7XPL
RJ-45 Ports
: Is
Screen diagonal, inches
: 7
Screen resolution
: 1024 x 600
Touchscreen
: Is
Vesa Attachment
: 75 x 75
More detailed specification
Audio - Audio formats supported - AAC, ASF, MP2, MP3, OGG, WAV, WMA
Audio - Built-in microphone - Yes
Audio - Built-in speaker(s) - Yes
Audio - Number of speakers - 2
Audio - RMS rated power - 2 W
Audio > Built-in speaker(s) - Yes
Brand - ProDVX
BrandPartCode - 5007550
Camera - Built-in camera - No
Category - All-in-One PCs/Workstations
Certificates - Compliance certificates - Federal Communications Commission (FCC), CE, RoHS, REACH, UKCA
Code - 5007550
Design - Housing material - ABS synthetics

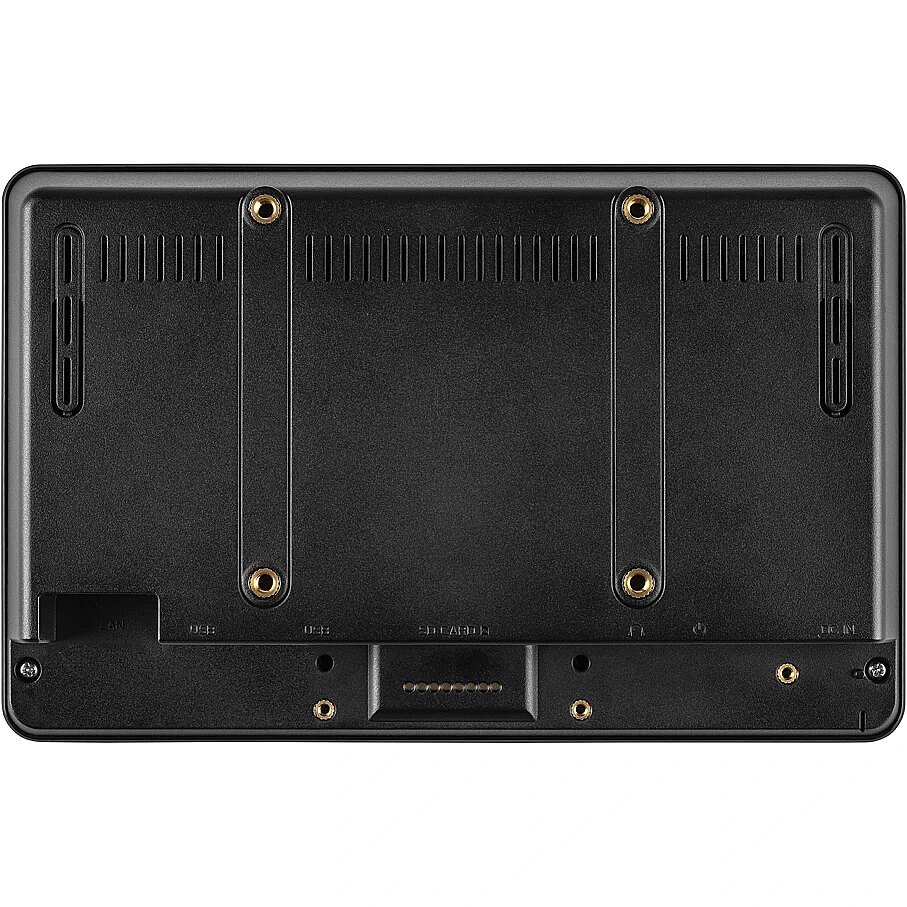

Design - Panel mounting interface - 75 x 75 mm
Design - Product colour - Black
Design - VESA mounting - Yes
Design - Wall mountable - Yes
Design > Colour of product - Black
Design > VESA mounting - Yes
Design > VESA mounting interfaces - 75x75 mm
Display - Anti-glare screen - Yes
Display - Contrast ratio (typical) - 800:1
Display - Display brightness - 300 cd/m²
Display - Display diagonal - 17.8 cm (7")
Display - Display resolution - 1024 x 600 pixels
Display - Display surface - Matt
Display - LED backlight - Yes
Display - Multi-touch - Yes
Display - Native aspect ratio - 17:10
Display - Panel type - TFT-LCD
Display - Touchscreen - Yes
Display - Touch technology - Multi-touch
Display - Viewing angle, horizontal - 140°
Display - Viewing angle, vertical - 130°
Display > Placement (L/P) - Landscape/Portrait
Display > Touchscreen - Yes
Display > Viewing angle, horizontal - 140 °
Display > Viewing angle, vertical - 130 °
EAN - 2000001361054
Graphics - Discrete graphics card - No
Graphics - On-board GPU manufacturer - ARM
Graphics - On-board graphics card - Yes
Graphics - On-board graphics card family - ARM Mali
Graphics - On-board graphics card model - ARM Mali-G52 2EE MC2
Link - https://www.prodvx.com/products/5007550-appc-7xpl
LongDesc - The APPC-7XPL (R23-7262) is a 7-inch Android Panel PC running on Android 13. Powered by the quad-core Cortex-A55 CPU and Mali-G52 GPU (RK3568), this device ensures seamless operation and advanced graphical capabilities. With 4GB RAM and 16GB storage, multitasking becomes efficient, while IEEE 802.3at PoE+ support streamlines power and connectivity. Installation is a breeze with VESA mounting capability and a single PoE+ Ethernet cable, eliminating wiring complexities. Connectivity is crucial, offering various I/O ports for peripheral devices, making it ideal for retail, corporate, and industrial settings. The 7-inch touchscreen interface, driven by Android, ensures intuitive navigation, complemented by dual-sided RGB LED status lights. This Android Panel PC supports 10-point PCAP touch functionality and has received a non-glare treatment for enhanced visibility.
LongProductName - APPC-7XPL-R23
LongSummaryDescription - ProDVX APPC-7XPL (R23-7262). Product type: All-in-One tablet PC. Display diagonal: 17.8 cm (7"), Display resolution: 1024 x 600 pixels, Touchscreen, Panel type: TFT-LCD. Processor family: Rockchip, Processor frequency: 2 GHz. Internal memory: 4 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 16 GB, Storage media: eMMC. On-board graphics card model: ARM Mali-G52 2EE MC2. Operating system installed: Android 13. Product colour: Black
Memory - 4 GB
Memory - Internal memory - 4 GB
Memory - Internal memory type - DDR4-SDRAM
Memory - Maximum internal memory - 4 GB
Name - ProDVX APPC-7XPL | 7 " | Landscape/Portrait | 24/7 | Android | Wi-Fi | Touchscreen | 300 cd/m² | 140 ° | 130 °
Network - Bluetooth - Yes
Network - Bluetooth version - 5.0
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 1000,100,10 Mbit/s
Network - Top Wi-Fi standard - Wi-Fi 5 (802.11ac)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), 802.11a
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -10 - 55 °C
Other features - AC adapter output current - 2 A
Other features - Backlight - Yes
Other features - Backlight type - Edge LED
Other features - Battery type - CR1220 Lithium metal, non rechargeable
Other features - Mean time between failures (MTBF) - 35000 h
Other features - Security features - Cable lock on power cable,Flushmount for safe installations,IEEE 802.1X PEAP/TLS/TTLS support on LAN and WiFi
Other features - Video formats supported - H.264, MP4, MPEG2, MPEG4, MPG
Other features > Resolution - 1024 x 600
Other features > Signage product family - Panel
Other features > Wi-Fi - Yes
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 188.10 mm
Package features > Gross height (mm) - 25.20 mm
Package features > Gross width (mm) - 120.30 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Paper/Pasteboard - 53.60 g
Package features > Plastic (No PET) - 13.40 g
Package features > Tare weight (kg) - 0.07 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:2:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - No
Performance - Placement supported - Horizontal/Vertical
Performance - Product type - All-in-One tablet PC

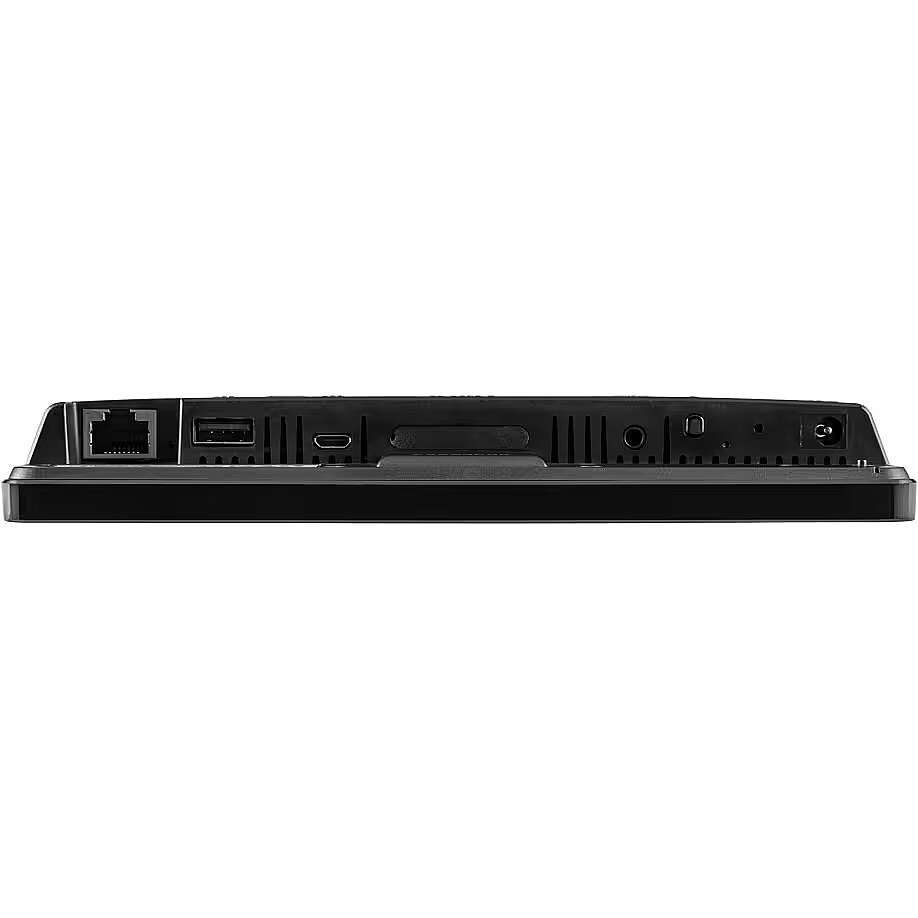

Ports & interfaces - Audio output - Yes
Ports & interfaces - Combo headphone/mic port - Yes
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Micro-USB ports quantity - 1
Ports & interfaces - USB 2.0 ports quantity - 1
Power - AC adapter output voltage - 12 V
Power - Power consumption (typical) - 23 W
Processor - Processor cores - 4
Processor - Processor family - Rockchip
Processor - Processor frequency - 2 GHz
Processor - Processor manufacturer - Rockchip
Processor - Processor model - RK3568
ProductName - APPC-7XPL (R23-7262)
ShortSummaryDescription - ProDVX APPC-7XPL (R23-7262), 17.8 cm (7"), Rockchip, 4 GB, 16 GB, Android 13, Black
Software - Operating system installed - Android 13
Software > Operating system - Android
Software > Operating system version - 12
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MiniSD, MicroSD (TransFlash)
Storage - Storage media - eMMC
Storage - Total storage capacity - 16 GB
Technical details > Brightness - 300 cd/m²
Technical details > Diagonal - 7 "
Technical details > Gross weight - 0.43 kg
Technical details > Net weight - 0.36 kg
Technical details > Operating hours/days - 24/7
Technical details > Producer - ProDVX
Technical details > Producer product name - APPC-7XPL
Technical details > Touch screen type - 10 TP Pcap 10ms
Title - ProDVX APPC-7XPL (R23-7262)
URL - https://www.prodvx.com/
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo - 3 years
Weight & dimensions - Depth (without stand) - 25.2 mm
Weight & dimensions - Height (without stand) - 120.3 mm
Weight & dimensions - Weight - 360 g
Weight & dimensions - Weight (without stand) - 360 g
Weight & dimensions - Width (without stand) - 188.1 mm
Audio - Built-in microphone - Yes
Audio - Built-in speaker(s) - Yes
Audio - Number of speakers - 2
Audio - RMS rated power - 2 W
Audio > Built-in speaker(s) - Yes
Brand - ProDVX
BrandPartCode - 5007550
Camera - Built-in camera - No
Category - All-in-One PCs/Workstations
Certificates - Compliance certificates - Federal Communications Commission (FCC), CE, RoHS, REACH, UKCA
Code - 5007550
Design - Housing material - ABS synthetics
Design - Panel mounting interface - 75 x 75 mm
Design - Product colour - Black
Design - VESA mounting - Yes
Design - Wall mountable - Yes
Design > Colour of product - Black
Design > VESA mounting - Yes
Design > VESA mounting interfaces - 75x75 mm
Display - Anti-glare screen - Yes
Display - Contrast ratio (typical) - 800:1
Display - Display brightness - 300 cd/m²
Display - Display diagonal - 17.8 cm (7")
Display - Display resolution - 1024 x 600 pixels
Display - Display surface - Matt
Display - LED backlight - Yes
Display - Multi-touch - Yes
Display - Native aspect ratio - 17:10
Display - Panel type - TFT-LCD
Display - Touchscreen - Yes
Display - Touch technology - Multi-touch
Display - Viewing angle, horizontal - 140°
Display - Viewing angle, vertical - 130°
Display > Placement (L/P) - Landscape/Portrait
Display > Touchscreen - Yes
Display > Viewing angle, horizontal - 140 °
Display > Viewing angle, vertical - 130 °
EAN - 2000001361054
Graphics - Discrete graphics card - No
Graphics - On-board GPU manufacturer - ARM
Graphics - On-board graphics card - Yes
Graphics - On-board graphics card family - ARM Mali
Graphics - On-board graphics card model - ARM Mali-G52 2EE MC2
Link - https://www.prodvx.com/products/5007550-appc-7xpl
LongDesc - The APPC-7XPL (R23-7262) is a 7-inch Android Panel PC running on Android 13. Powered by the quad-core Cortex-A55 CPU and Mali-G52 GPU (RK3568), this device ensures seamless operation and advanced graphical capabilities. With 4GB RAM and 16GB storage, multitasking becomes efficient, while IEEE 802.3at PoE+ support streamlines power and connectivity. Installation is a breeze with VESA mounting capability and a single PoE+ Ethernet cable, eliminating wiring complexities. Connectivity is crucial, offering various I/O ports for peripheral devices, making it ideal for retail, corporate, and industrial settings. The 7-inch touchscreen interface, driven by Android, ensures intuitive navigation, complemented by dual-sided RGB LED status lights. This Android Panel PC supports 10-point PCAP touch functionality and has received a non-glare treatment for enhanced visibility.
LongProductName - APPC-7XPL-R23
LongSummaryDescription - ProDVX APPC-7XPL (R23-7262). Product type: All-in-One tablet PC. Display diagonal: 17.8 cm (7"), Display resolution: 1024 x 600 pixels, Touchscreen, Panel type: TFT-LCD. Processor family: Rockchip, Processor frequency: 2 GHz. Internal memory: 4 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 16 GB, Storage media: eMMC. On-board graphics card model: ARM Mali-G52 2EE MC2. Operating system installed: Android 13. Product colour: Black
Memory - 4 GB
Memory - Internal memory - 4 GB
Memory - Internal memory type - DDR4-SDRAM
Memory - Maximum internal memory - 4 GB
Name - ProDVX APPC-7XPL | 7 " | Landscape/Portrait | 24/7 | Android | Wi-Fi | Touchscreen | 300 cd/m² | 140 ° | 130 °
Network - Bluetooth - Yes
Network - Bluetooth version - 5.0
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 1000,100,10 Mbit/s
Network - Top Wi-Fi standard - Wi-Fi 5 (802.11ac)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), 802.11a
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -10 - 55 °C
Other features - AC adapter output current - 2 A
Other features - Backlight - Yes
Other features - Backlight type - Edge LED
Other features - Battery type - CR1220 Lithium metal, non rechargeable
Other features - Mean time between failures (MTBF) - 35000 h
Other features - Security features - Cable lock on power cable,Flushmount for safe installations,IEEE 802.1X PEAP/TLS/TTLS support on LAN and WiFi
Other features - Video formats supported - H.264, MP4, MPEG2, MPEG4, MPG
Other features > Resolution - 1024 x 600
Other features > Signage product family - Panel
Other features > Wi-Fi - Yes
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 188.10 mm
Package features > Gross height (mm) - 25.20 mm
Package features > Gross width (mm) - 120.30 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Paper/Pasteboard - 53.60 g
Package features > Plastic (No PET) - 13.40 g
Package features > Tare weight (kg) - 0.07 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:2:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - No
Performance - Placement supported - Horizontal/Vertical
Performance - Product type - All-in-One tablet PC
Ports & interfaces - Audio output - Yes
Ports & interfaces - Combo headphone/mic port - Yes
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Micro-USB ports quantity - 1
Ports & interfaces - USB 2.0 ports quantity - 1
Power - AC adapter output voltage - 12 V
Power - Power consumption (typical) - 23 W
Processor - Processor cores - 4
Processor - Processor family - Rockchip
Processor - Processor frequency - 2 GHz
Processor - Processor manufacturer - Rockchip
Processor - Processor model - RK3568
ProductName - APPC-7XPL (R23-7262)
ShortSummaryDescription - ProDVX APPC-7XPL (R23-7262), 17.8 cm (7"), Rockchip, 4 GB, 16 GB, Android 13, Black
Software - Operating system installed - Android 13
Software > Operating system - Android
Software > Operating system version - 12
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MiniSD, MicroSD (TransFlash)
Storage - Storage media - eMMC
Storage - Total storage capacity - 16 GB
Technical details > Brightness - 300 cd/m²
Technical details > Diagonal - 7 "
Technical details > Gross weight - 0.43 kg
Technical details > Net weight - 0.36 kg
Technical details > Operating hours/days - 24/7
Technical details > Producer - ProDVX
Technical details > Producer product name - APPC-7XPL
Technical details > Touch screen type - 10 TP Pcap 10ms

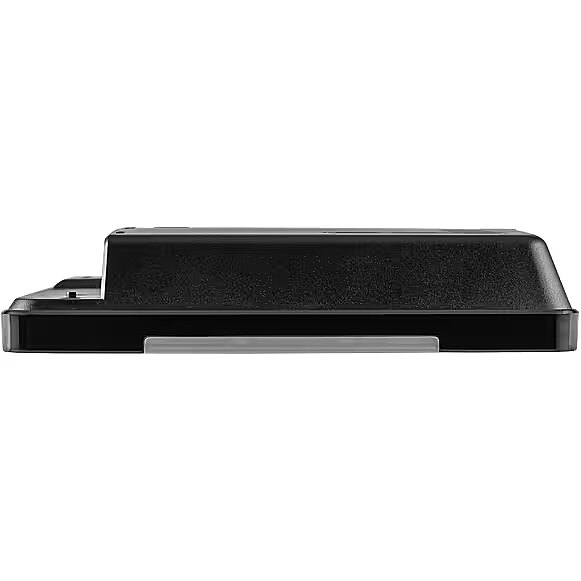

Title - ProDVX APPC-7XPL (R23-7262)
URL - https://www.prodvx.com/
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo - 3 years
Weight & dimensions - Depth (without stand) - 25.2 mm
Weight & dimensions - Height (without stand) - 120.3 mm
Weight & dimensions - Weight - 360 g
Weight & dimensions - Weight (without stand) - 360 g
Weight & dimensions - Width (without stand) - 188.1 mm
