Code - FGD-212 ZW5 EU
EAN - 5902020528524
Features > Colour of product - Black
Features > Connectivity technology - Wireless
Gross weight - 0.05 kg
Link - https://www.fibaro.com/en/products/dimmer-2/

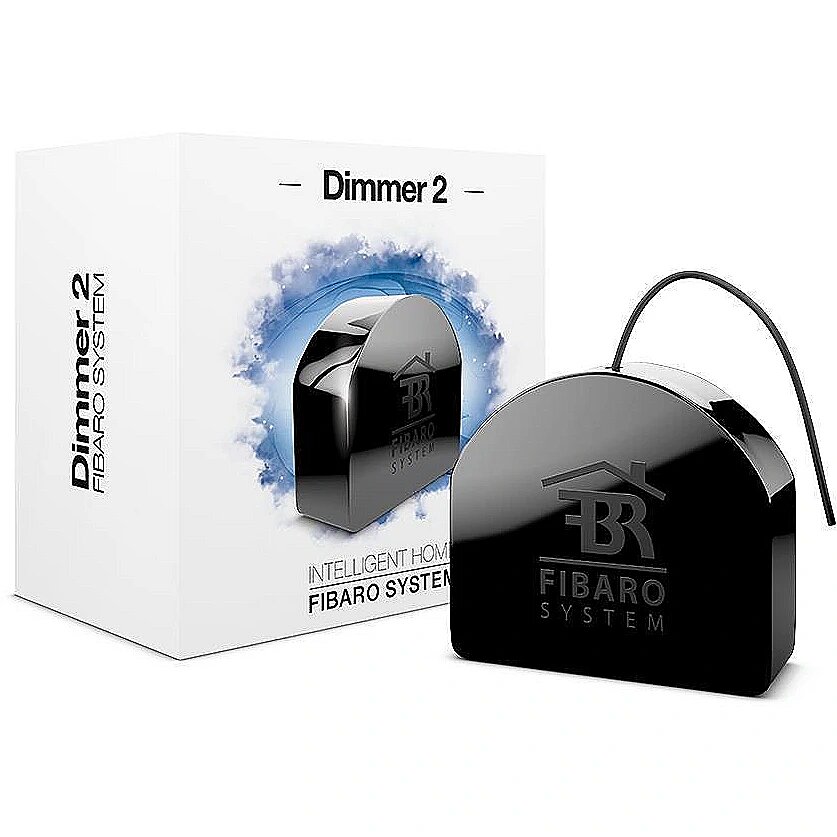

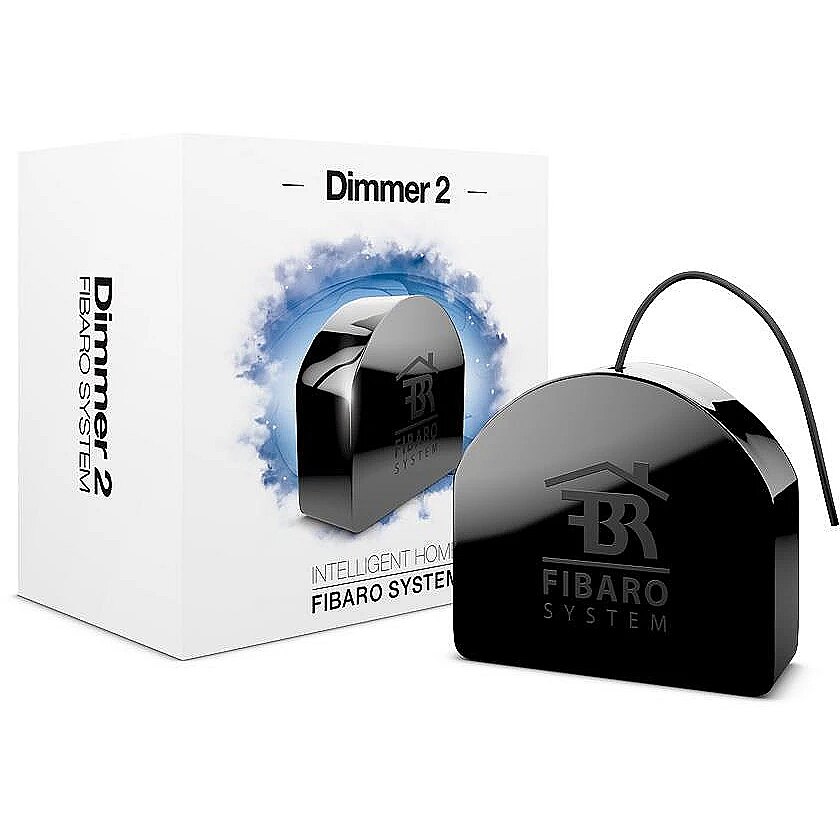

Name - Fibaro | Dimmer 2 | Z-Wave | Black
Other features > Frequency range - 868.4 MHz
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 65.00 mm
Package features > Gross height (mm) - 65 mm
Package features > Gross width (mm) - 30 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 13633 pc(s)
Package features > Paper/Pasteboard - 21 g
Package features > Tare weight (kg) - 0.021 kg
Package features > Volume (m3) - 0.00012675 m³
Package features > WEEE tax - No
Performance > Type - Actors
Technical details > Net weight - 0.029 kg
Technical details > Other features - Radio controlled light dimming module, designed to work with various types of light sources. May be connected to two-wire or three-wire configuration. Fibaro Dimmer 2 can switch or dim connected light source either through radio waves or through the wall switch connected directly to it. New Fibaro Dimmer 2 is equipped with an algorithm of smart light source detection which makes configuration easier and ensures high compatibility of the device. It features automatic overload protection switch-off and soft start function. In case of non-dimmable light sources only on/off function may be possible (in 3-wire connection). Product Highlights: As a dimmer, works with: • 230V operated conventional incandescent and halogen light sources • 12V operated ELV halogen lamps (with electronic transformers) • 12V operated MLV halogen lamps (with ferromagnetic transformers) • Dimmable LED lamps • Dimmable compact fluorescent CFL tube lamps • Supported dimmable light sources (power factor > 0.5) with minimal power of 5VA using FIBARO Bypass 2 (depending on the type of load) As a switch, works with: • Compact fluorescent lamps • LED lamps • Supported light sources (power factor > 0.5) with minimal power of 5VA using FIBARO Bypass 2 (depending on the type of load)
Technical details > Producer - Fibaro
Technical details > Producer product name - Dimmer 2
Technical details > Purpose - Home Automation
Technical details > Special features - Compatible with any Z-Wave and Z-Wave+ controller • Implemented algorithm of smart light source detection • Active power and energy metering functionality • Works with various types of switches – momentary, toggle, three-way, etc. • Soft-start function • LED diode signaling inclusion status, calibration status and MENU levels • Built-in Z-Wave range tester • Dimmer 2 automatically senses faults in wiring, reporting excess temperature, burnt bulb, overvoltage and overload • Advanced configuration options
Technical details > Supported network protocols - Z-Wave
Technical details > Technical features - Power source 220-240V~ 50Hz • Output power: 50-250W (resistive load) • Overcurrent protection: required external 10A circuit breaker • Power consumption: Technical details > Warranty - 24 month(s)
Warranty - 24
