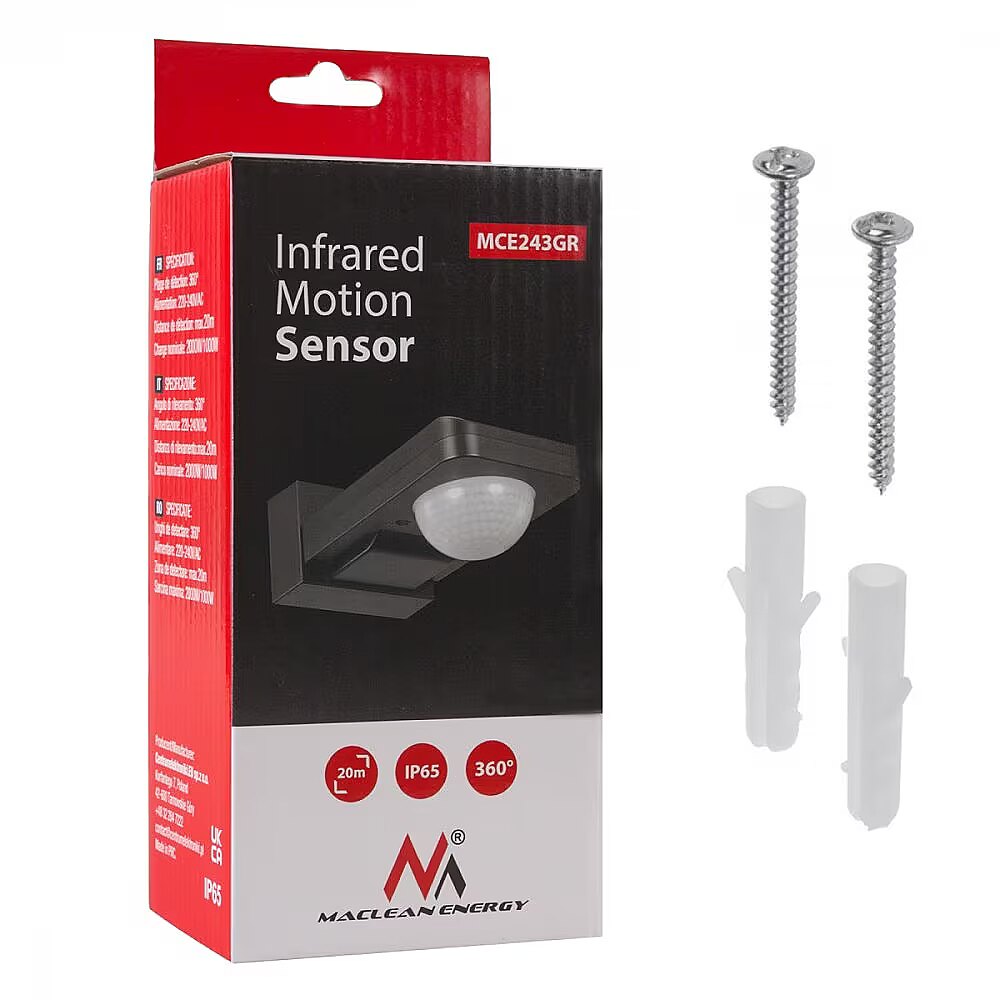

Accessories included - Infrared motion sensor IP65 max 2000W Maclean Energy MCE243 Mounting accessories User manual Manufacturer's packaging
Alarm - Light
Color - Black

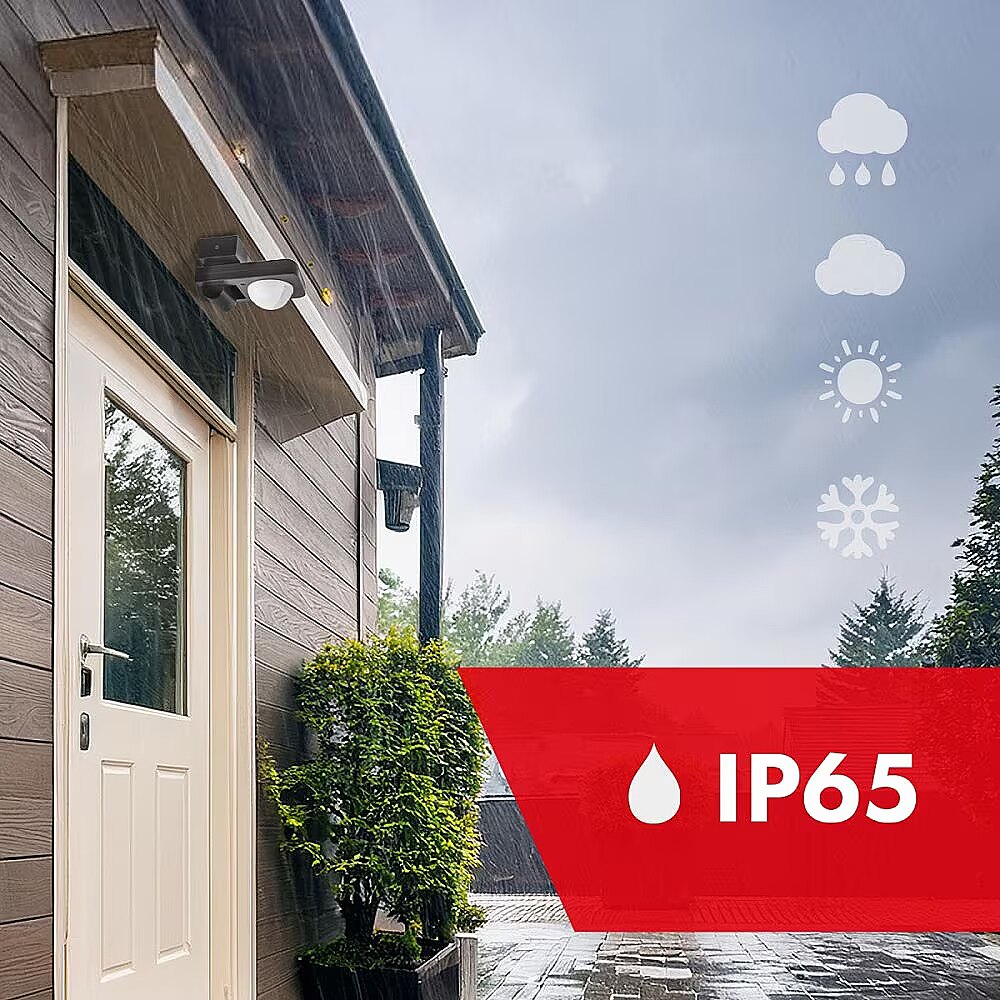

Description - The MCE243 sensor is ideal for use in the garden, around the house or terrace, at the gate, passageways, corridors, basements, warehouses, garages and other places that require lighting or other devices to be turned on when motion is detected. The IP65 degree of protection provides resistance against water spray falling at any angle, from all sides. The sensor has high sensitivity and a very good level of workmanship. The main features are automaticity, energy efficiency and built-in practical functions. The sensor identifies day and night (twilight sensor), turns on and off depending on the appearance of an object in the detection field. The device can operate both at night and during the day. The main purpose of the presented sensor is the automatic control of lighting, but it is also possible to connect other electrical devices (such as electric heating, air conditioning, etc.), provided that the power receiver does not load the switch with a power greater than 2000 W (resistive load) or 1000 W (inductive load). Various applications, to control the lighting of a variety of objects: - facades of residential buildings, courtyards, entrances, gates, garden greenery - parking lots - exterior walls of buildings and other architectural objects - billboards and advertising billboards, storefronts - many other objects, including interiors Power supply: 220-240 V/AC Detection area: 360° Frequency: 50-60 Hz Operating temperature: -20 to +40°C
Designation - CE+WEEE
Detector - Motion

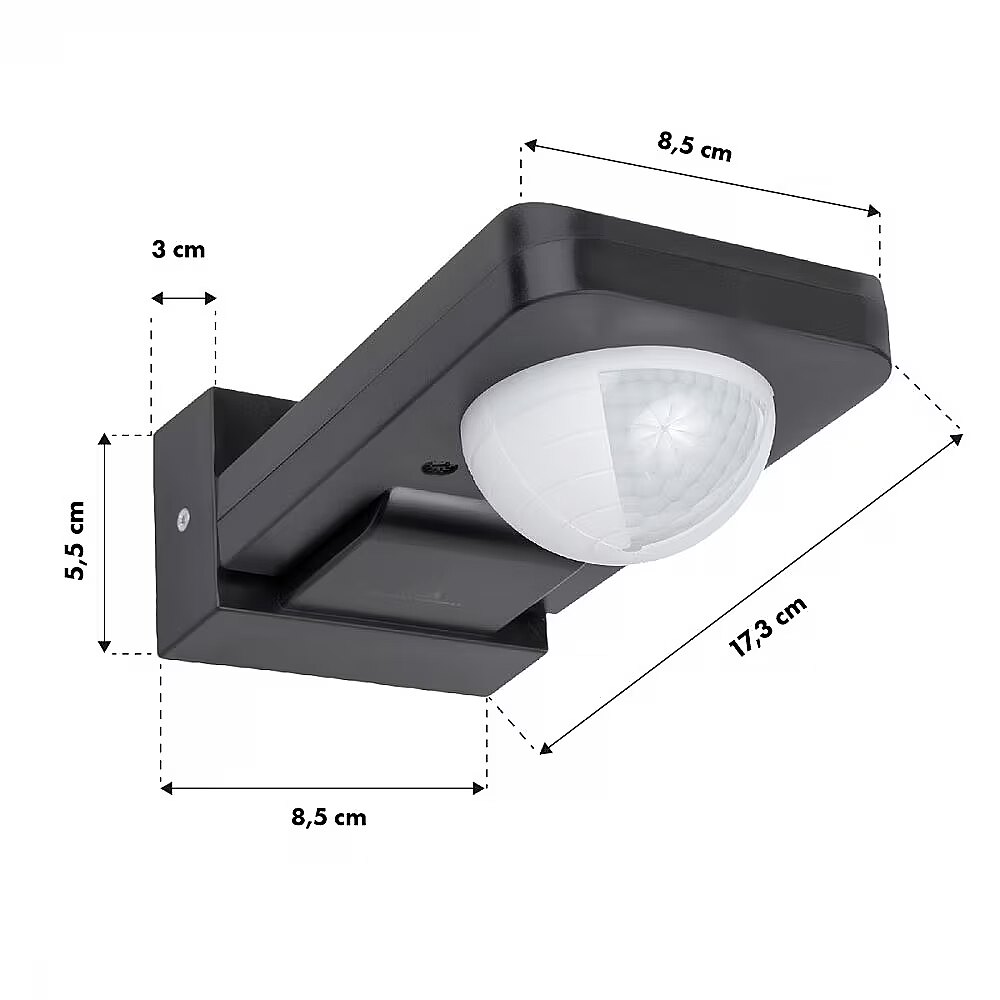

dimension depth - 70 mm
dimension height - 185 mm
Dimensions -
dimension weight - 300 g
dimension width - 95 mm
ean - 5902211135555
Environment requirements -
guarantee - 24
guarantee_type - external
name - Motion Sensor PIR IP65 MCE243 GR
Other features - High degree of protection IP65 Wide detection range of 360° PIR infrared sensor Maximum power: 2000 W (resistive load) Works with LED lighting Built-in light intensity sensor Possibility to adjust the time of illumination and the level of light intensity at which the device starts working (dusk sensor)
producer - Maclean

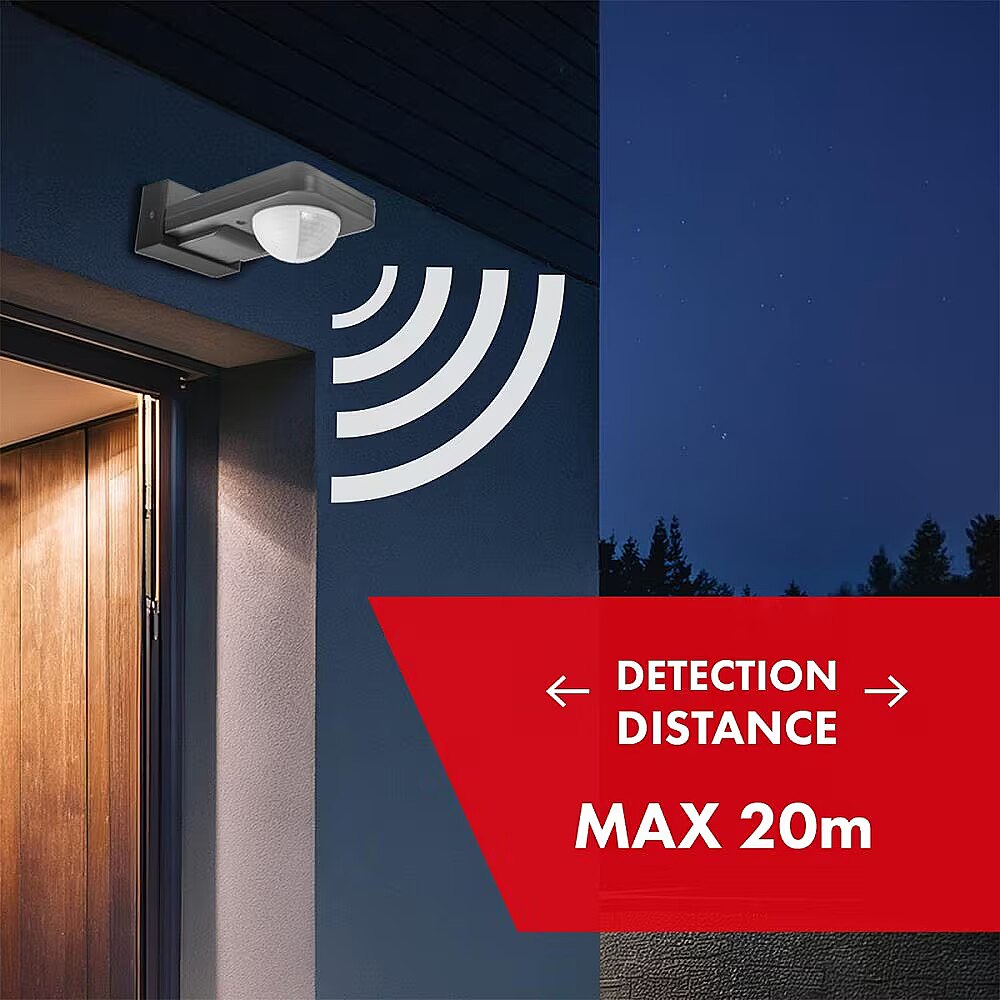

Range - 20 m

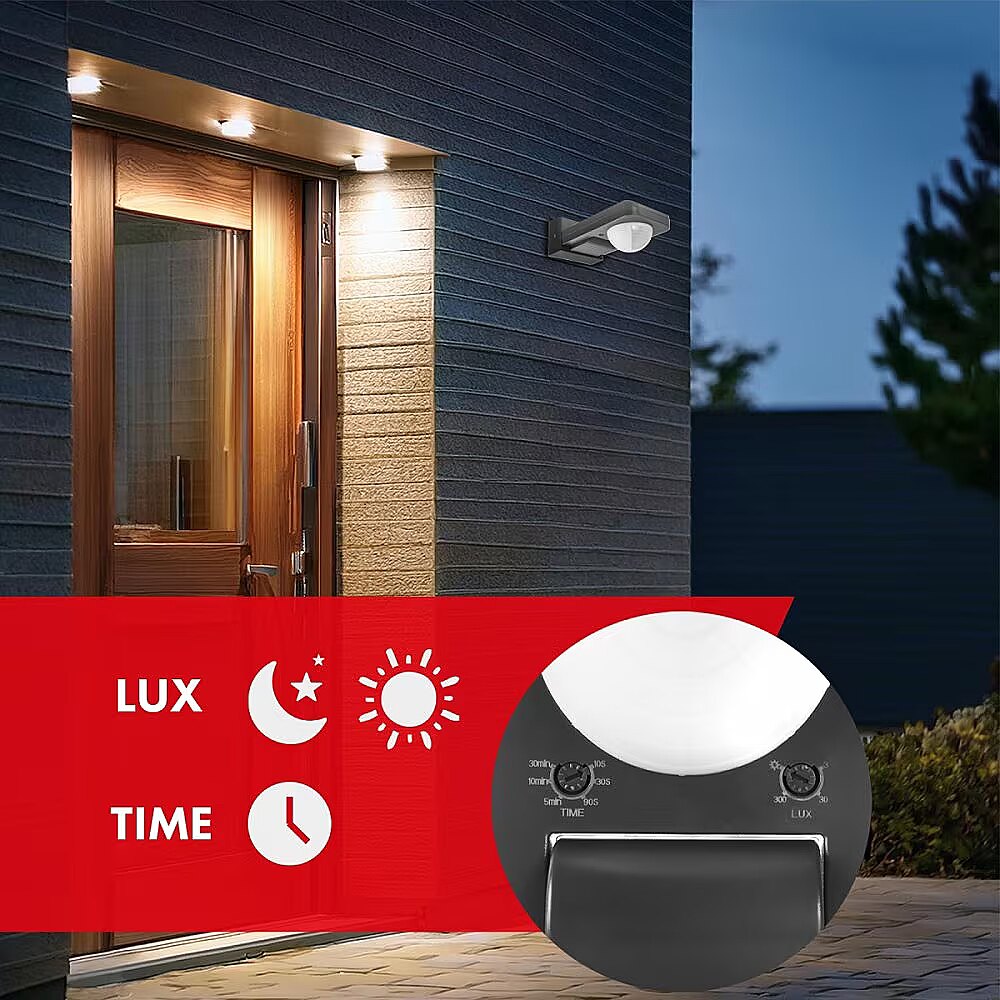

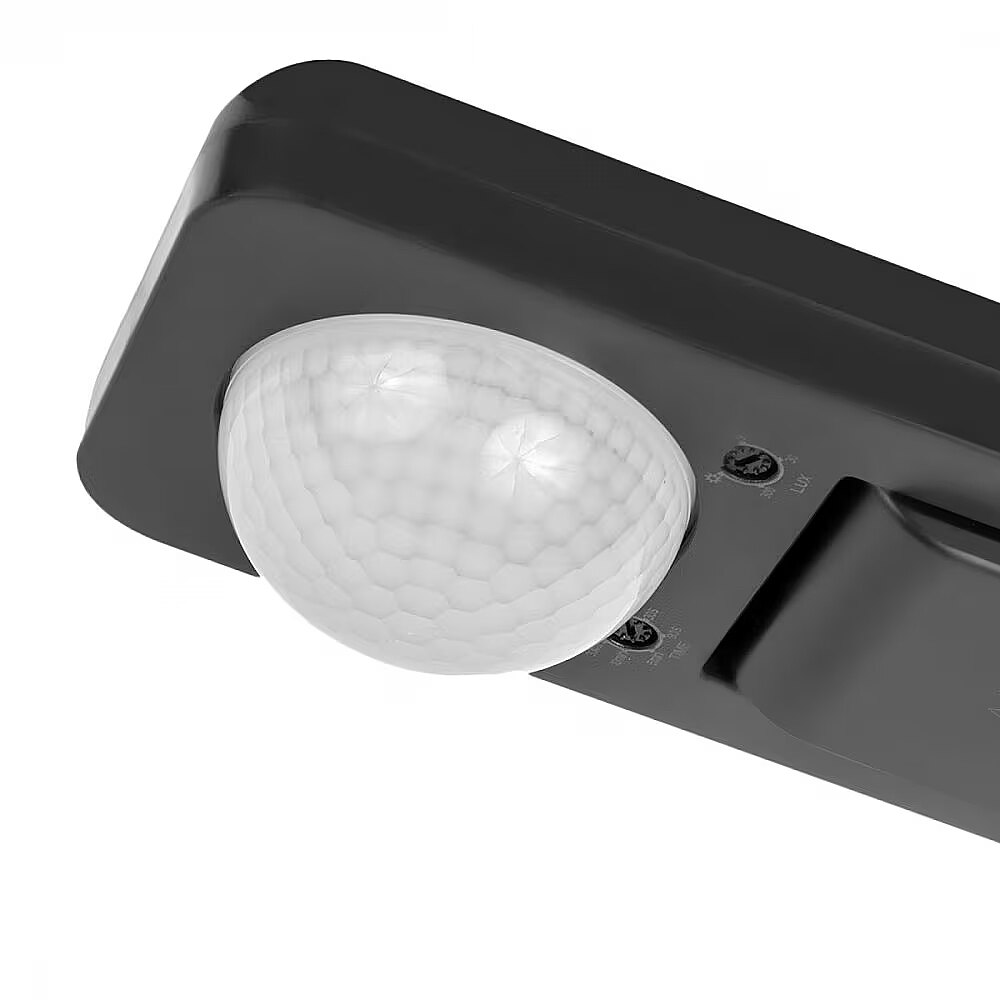

Special functions - The TIME knob is used to adjust the lighting time (from about 10 sec to 30 minutes). The LUX knob is used to set the ambient light sensitivity (range from 3 to 2000 LUX). When the ambient light is insufficient and you want the device to work both during the day and night, set the knob to the day position (sun icon).
vendpn - MCE243GR
