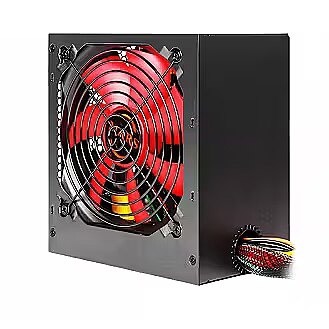

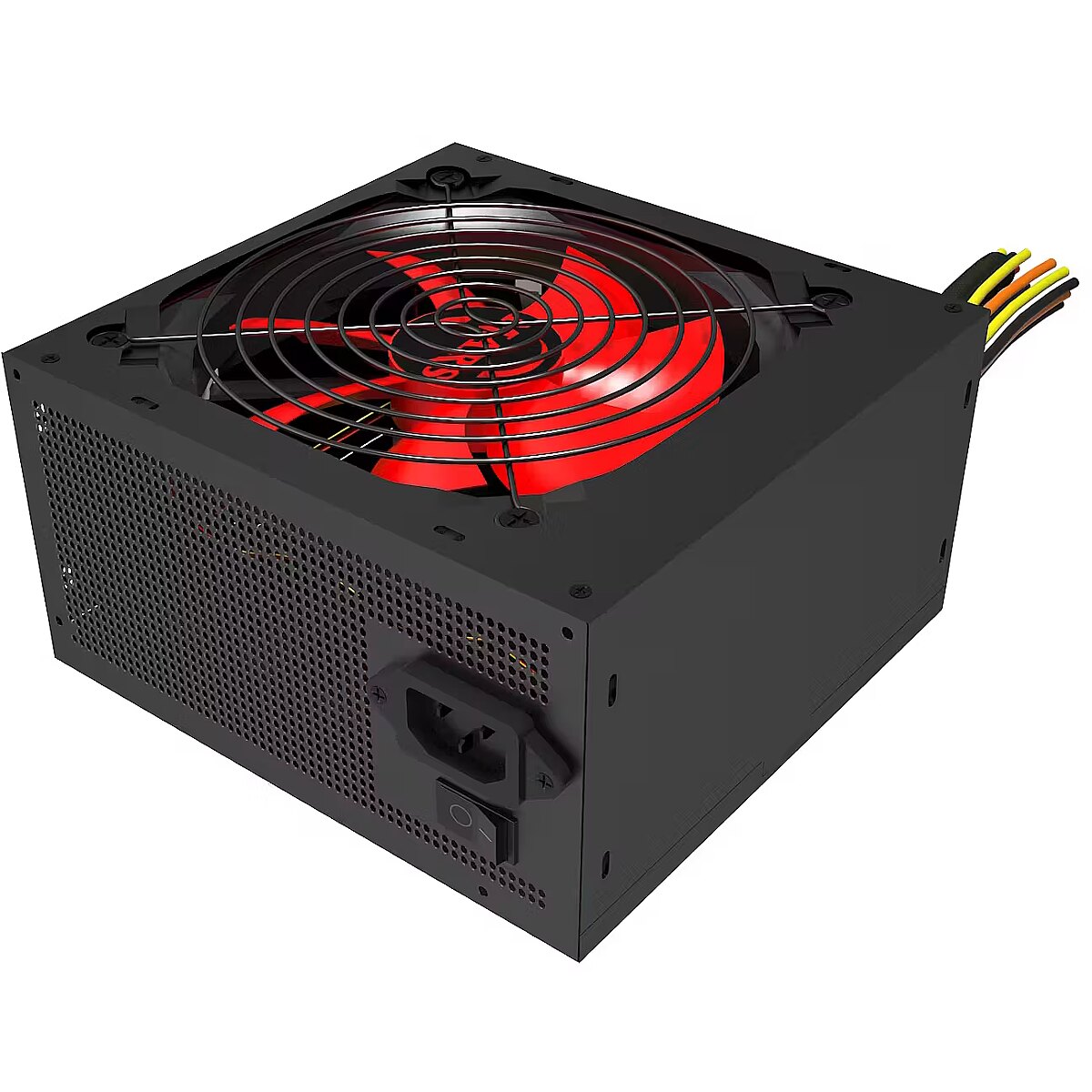

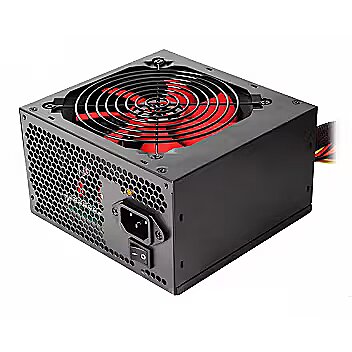

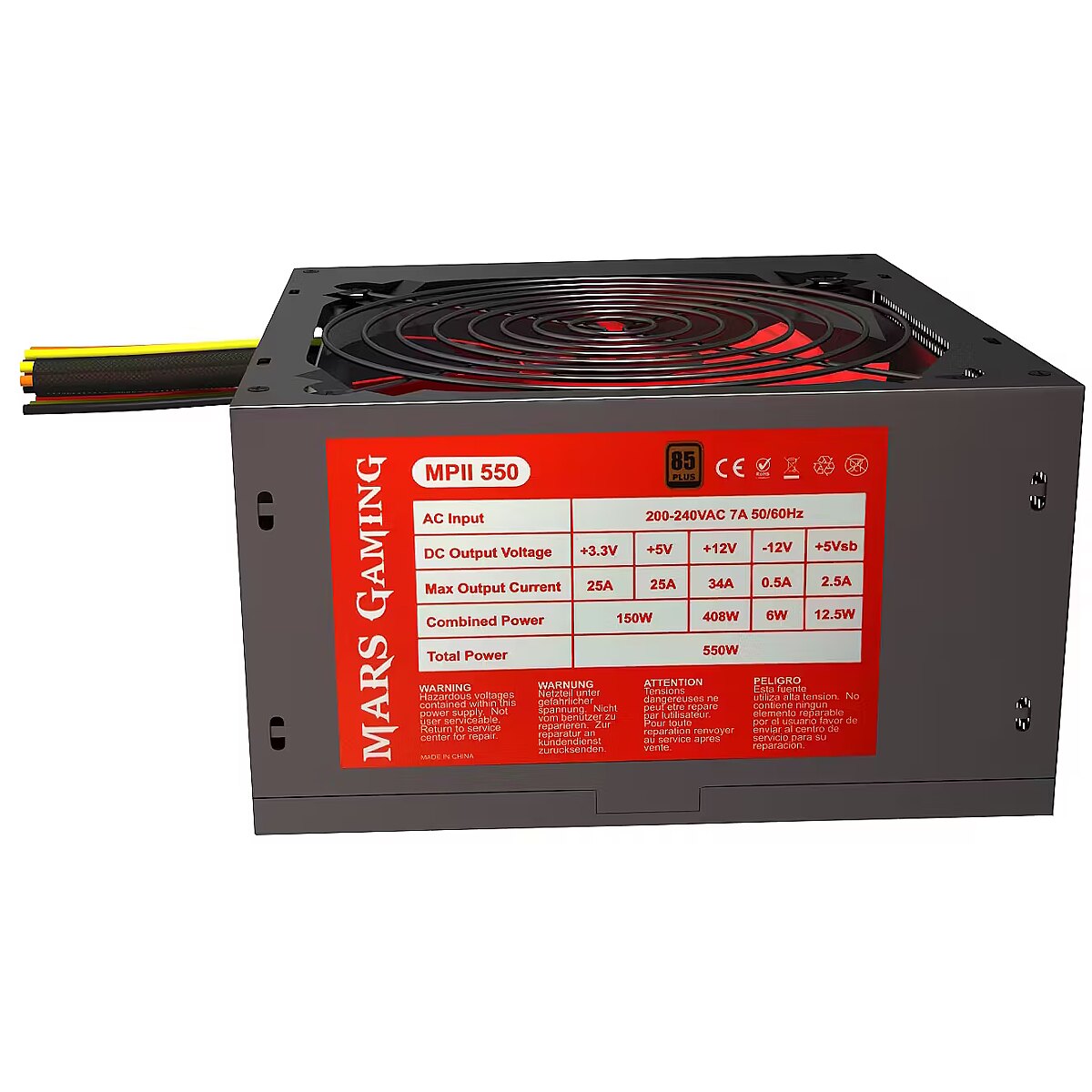

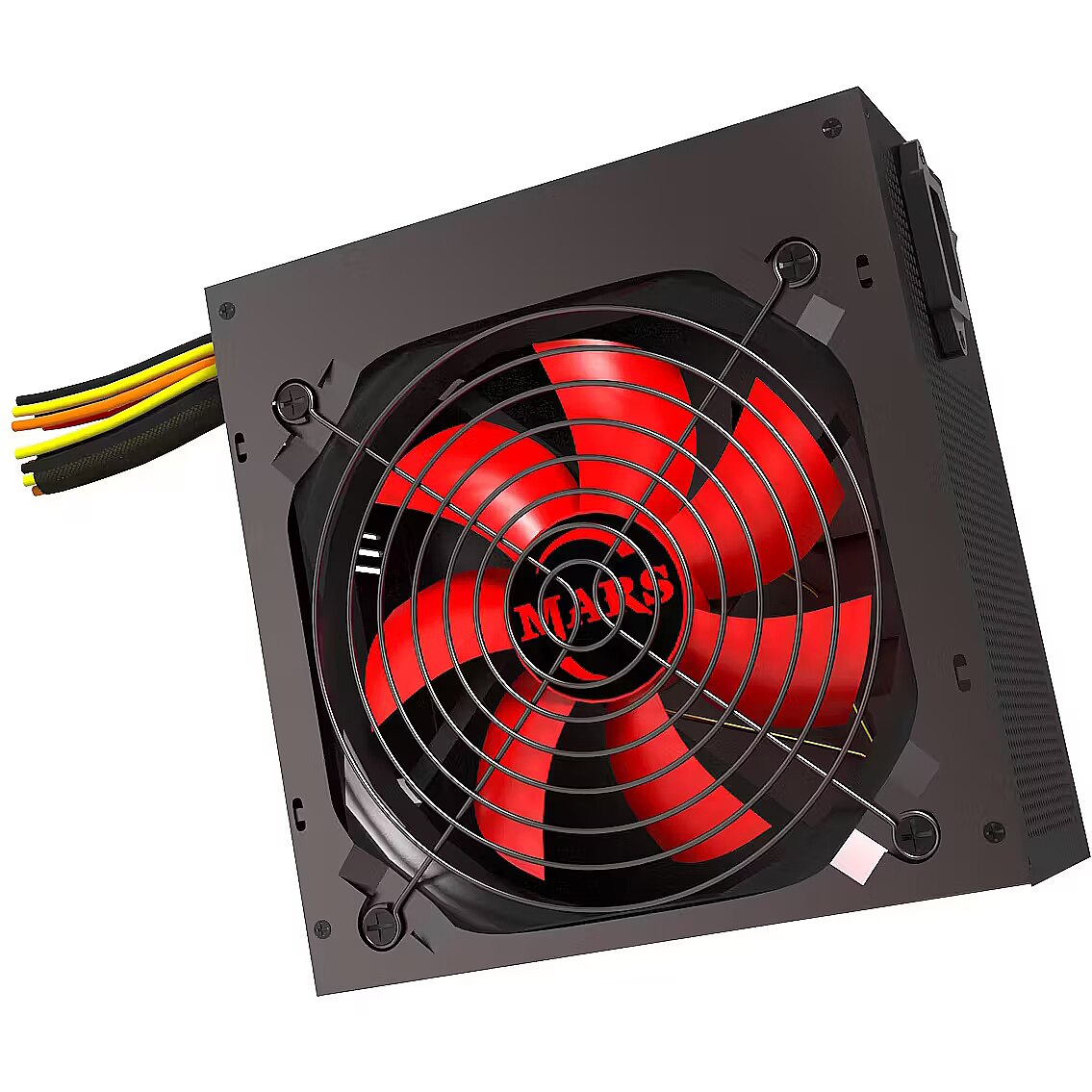

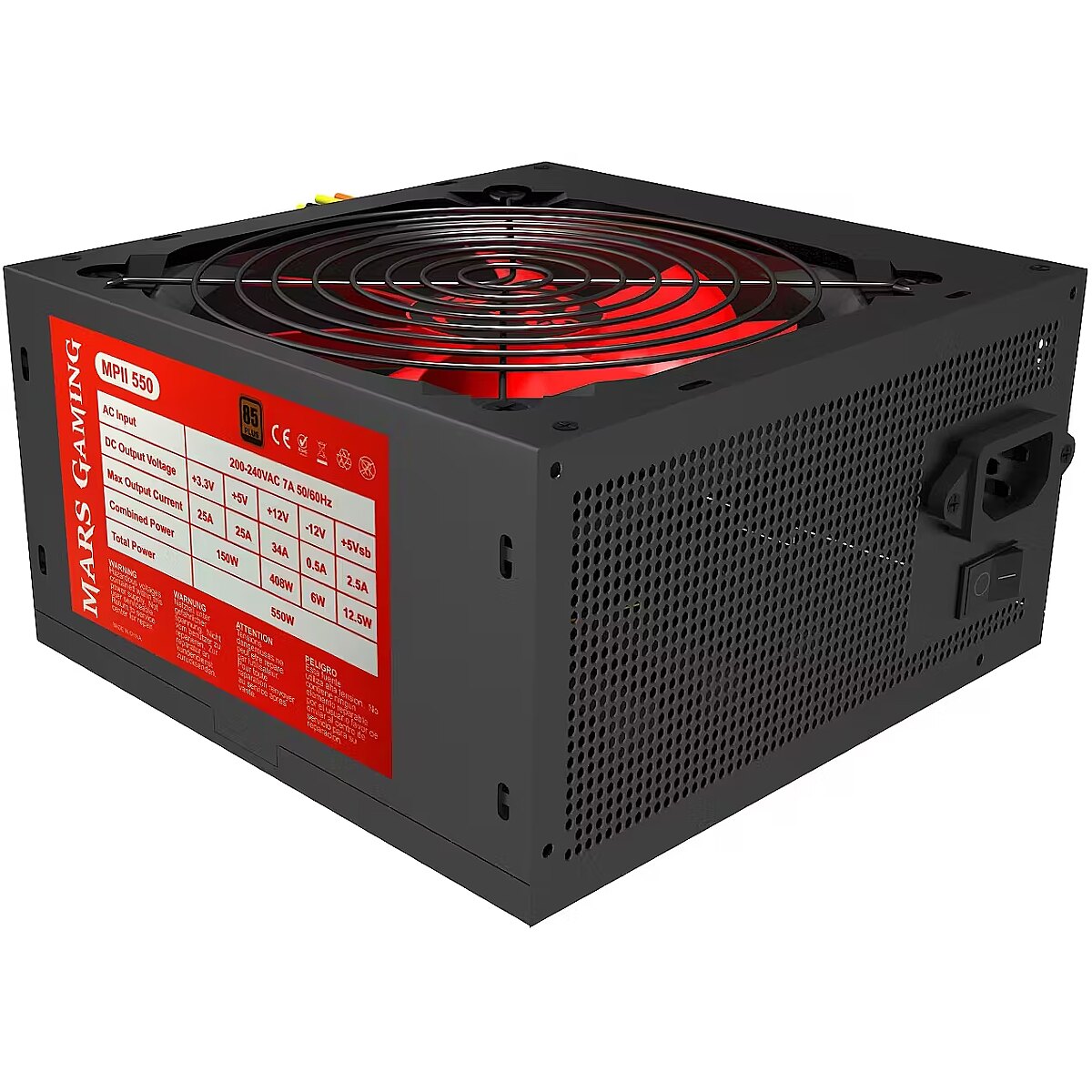

Mars Gaming MPII550 Power Supply ATX 550W

Brand - Mars Gaming
BrandPartCode - MPII550
Category - Power Supply Units
category_en - Computers & Components > Computer components > Universal power supplies PSU
category_lv - Datortehnika > Datoru komponentes > Barošanas bloki PSU
category_ru - Datortehnika > Datoru komponentes > Barošanas bloki PSU
description_en - Dimensions: 150x140x85mm
Weight: 1200g
Wire type: Fixed
Fan: 120mm
Color: Black and red
Extras: 85+ Eco-Friendly, Anti-Vibration System and Fan Speed Control Power: 550W
Max. Power: 7A
Input voltage: 200-240V 50/60Hz
PFC: Passive
Efficiency: 85%
Sound level: 14dB
Form Factor: ATX
Certifications: ATX12V, Haswell Ready, CE, ROHS
Protections: OPP, OVP, UVP, SCP
Connectors: 1x ATX MB 20+4 PIN, 1x EPS +12V 4+4 PIN, 3x SATA, 2x Molex 4 PIN, 1x FDD
Voltage: +3.3V - 25A / +5V - 25A / +12V - 34A / -12V - 0.5A / +5VSB - 2.5A
description_lv - Izmēri: 150x140x85mm
Svars: 1200g
Vada tips: fiksēts
Ventilators: 120 mm
Krāsa: melna un sarkana
Papildus: 85+ videi draudzīgi, pretvibrācijas sistēma un ventilatora ātruma kontrole
Jauda: 550W
Maks. Jauda: 7A
Ieejas spriegums: 200-240V 50/60Hz
PFC: pasīvs
Efektivitāte: 85%
Skaņas līmenis: 14dB
Formas faktors: ATX
Sertifikāti: ATX12V, Haswell Ready, CE, ROHS
Aizsardzība: OPP, OVP, UVP, SCP
Savienotāji: 1x ATX MB 20+4 PIN, 1x EPS+12V 4+4 PIN, 3x SATA, 2x Molex 4 PIN, 1x FDD
Spriegums: +3.3V - 25A / +5V - 25A / +12V - 34A / -12V - 0.5A / +5VSB - 2.5A
description_ru - Размеры: 150x140x85 мм
Вес: 1200 г
Тип провода: фиксированный
Вентилятор: 120 мм
Цвет: черный и красный
Дополнительно: более 85 экологичных, антивибрационных систем и контроля скорости вращения вентилятора.
Мощность: 550 Вт
Максимум. Мощность: 7А
Входное напряжение: 200-240 В, 50/60 Гц
PFC: пассивный
КПД: 85%
Уровень звука: 14 дБ
Форм-фактор: ATX
Сертификаты: ATX12V, Haswell Ready, CE, ROHS
Защиты: ОПП, ОВП, УВП, SCP
Разъемы: 1x ATX MB 20 + 4 PIN, 1x EPS + 12V 4 + 4 PIN, 3x SATA, 2x Molex 4 PIN, 1x FDD
Напряжение: + 3.3V - 25A / + 5V - 25A / + 12V - 34A / -12V - 0.5A / + 5VSB - 2.5A
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - Product colour - Black, Red
EAN - 4713105960372
gross_weight - 1.25 kg
GTIN - 4713105960372
Logistics data - Master (outer) case gross weight - 13.4 kg
Logistics data - Master (outer) cases per pallet - 24 pc(s)
Logistics data - Products per master (outer) case - 10 pc(s)
Logistics data - Products per pallet - 240 pc(s)
LongDesc - With 550W of power and a 12cm anti-vibration fan, the MPII550 covers the basic needs of your computer.DesignFeaturing a matte black coated case and black grille, the MPII550 is a true gaming power supply. It contains a high-quality fan with anti-vibration system and intelligent speed control system, red blades and a black frame.BenefitsThe MPII550 power supply features a 12cm fan and generates only 14dB of noise, so its sound is barely perceptible. The MPII550 has a power output of 550W and features efficient 12V single rail technology to ensure extremely stable and powerful performance, perfect for gaming.EfficiencyThe MPII550, with its Eco-design, achieves extremely high efficiency of 85+ for greater energy savings and long lifespan.Full compatibilitySupporting Intel 4th Generation Haswell processors, the MPII550’s long cables (1x 20+4 PIN, 1x 12V 4+4 PIN, 3x SATA, 2x PATA, 1x FDD) offer maximum adaptability. This power supply ensures safe operation thanks to its industrial-grade electrical protections and filtering.Manufactured according to EU standardsThe MPII550 is manufactured to the required EU standards and directives, complying with the ATX12V standard.
LongProductName - 550W, 120mm, 14dB, 3x SATA, 2x PATA, FDD, 20+4-pin, 4+4-pin
LongSummaryDescription - Mars Gaming MPII550. Total power: 550 W, AC input voltage: 200 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, Noise level: 14 dB. Product colour: Black, Red, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 85 mm
Model - MPII550
Packaging data - Package type - Box
Packaging data - Package weight - 1.2 kg
Performance - Noise level - 14 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 2
Ports & interfaces - Number of SATA power connectors - 3
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 150 W
Power - Combined power (+5V) - 150 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 408 W
Power - Combined power (-12V) - 6 W
Power - Efficiency - 85%
Power - Input current - 7 A
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 34 A
Power - Max output current (-12V) - 0.5 A
Power - Power Factor Correction (PFC) type - Active
Power - Total power - 550 W
Producer - Mars Gaming
ProductName - MPII550
ShortSummaryDescription - Mars Gaming MPII550, 550 W, 200 - 240 V, 50 - 60 Hz, 7 A, Active, 150 W
Title - Mars Gaming MPII550 power supply unit 550 W 20+4 pin ATX ATX Black, Red
title_en - Mars Gaming MPII550 Power Supply ATX 550W
title_lv - Mars Gaming MPII550 Barošanas Bloks ATX 550W
title_ru - Mars Gaming MPII550 Блок питания ATX 550W
URL - https://www.marsgaming.eu/en/products/mpii550.html
WarrantyInfo -
weight - 1.2 kg
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 85 mm
Weight & dimensions - Weight - 1.2 kg
Weight & dimensions - Width - 150 mm
