Brand - Neomounts
BrandPartCode - FPMA-DTB100
Category - Monitor Mounts & Stands
Description - NEWSTAR FLAT SCREEN DESK TOOLBAR FOR 3 SCREENS (43 X 100 CM) 10-24" SILVER
Design - Housing material - Aluminium
Design - Product colour - Silver
Ergonomics - Depth adjustment range - 0 - 80 mm
Ergonomics - Height adjustment - Yes
Ergonomics - Height adjustment range - 0 - 420 mm
Ergonomics - Height adjustment type - Manual
GTIN - 8717371442262
Height - 169.000000
Height adjustment - Yes
Length - 1352.000000
Logistics data - Country of origin - Taiwan
Logistics data - Harmonized System (HS) code - 83025000
Logistics data - Master (outer) case gross weight - 7.7 kg
Logistics data - Master (outer) case height - 170 mm
Logistics data - Master (outer) case length - 170 mm
Logistics data - Master (outer) case net weight - 6.9 kg
Logistics data - Master (outer) case width - 1360 mm
Logistics data - Products per master (outer) case - 1 pc(s)
Logistics data - Products per pallet (EU) - 30 pc(s)

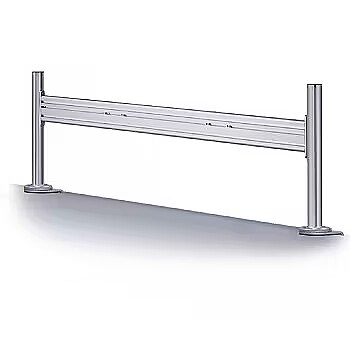

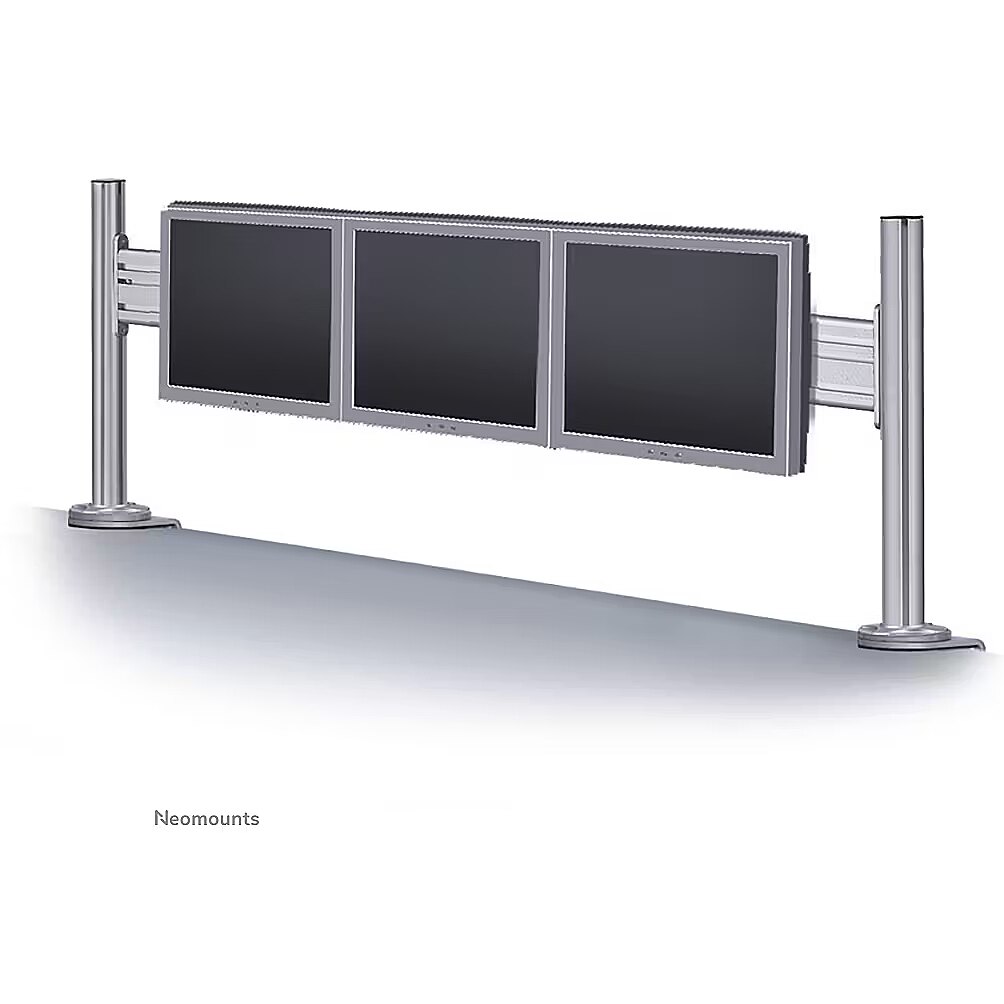

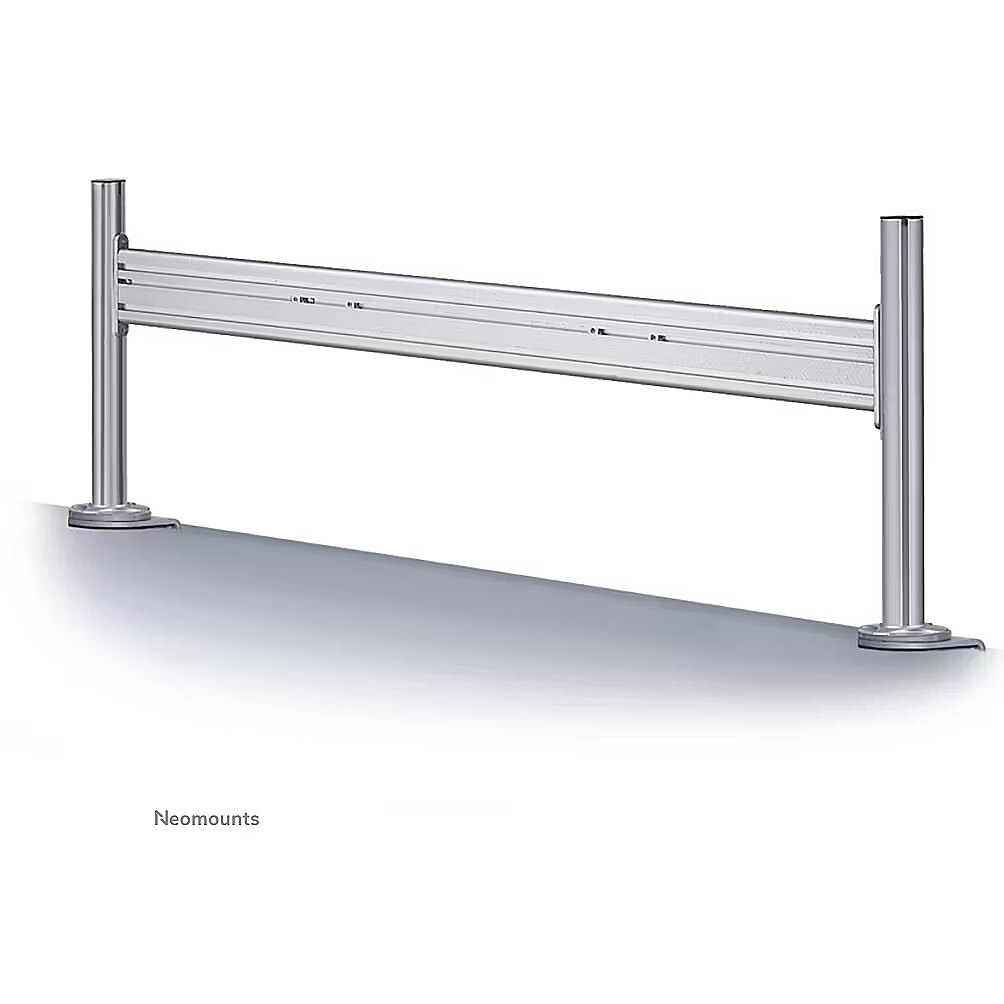

LongDesc - With the Neomounts FPMA-DTB100 toolbar desk rail, you can install up to 3 screens from 10-24" and maximum 10 kg per screen to the tabletop using a desk clamp. On the 130 cm wide toolbar, screens can easily be moved from left to right, utilizing the full functionality of the screens. The toolbar desk rail is supplied without monitor bracket; these should be ordered separately. Each screen requires one bracket. There are various monitor brackets available that can be combined with the FPMA-DTB100 toolbar desk mount:* The FPMA-DTBW100 monitor bracket is 8 cm deep and can both tilt and rotate. Its maximum capacity is 8 kg.* The FPMA-DTBW200 monitor bracket is 12 cm deep and features a tilt, rotate and swivel option. The maximum capacity of this bracket is 10 kg.Both monitor brackets are suitable for screens with a VESA hole pattern of 75x75 and 100x100 mm. FPMA-DTB100 toolbar desk mount features cable clips so cables can be easily and neatly routed.
LongProductName - Neomounts Desk Mount Toolbar for up to three 10-24" monitor screens - Silver
LongSummaryDescription - Neomounts toolbar desk mount. Mounting: Clamp, Maximum weight capacity: 10 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 61 cm (24"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment. Product colour: Silver
Manufacturer - NEOMOUNTS
ManufacturerPartNumber - FPMA-DTB100
Maximum weight (capacity), kg - 10
Motorized - No
Mounting - Maximum screen size - 61 cm (24")
Mounting - Maximum VESA mount - 100 x 100 mm
Mounting - Maximum weight capacity - 10 kg
Mounting - Minimum screen size - 25.4 cm (10")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting - Clamp
Mounting - Mounting type - Desk
Mounting - Number of displays supported - 3
Mounting - Panel mounting interface - 75 x 75,100 x 100 mm
Other features - Mounting interface - VESA 75x75 mm
Packaging data - Package depth - 170 mm
Packaging data - Package height - 170 mm
Packaging data - Package weight - 6.9 kg
Packaging data - Package width - 1360 mm
PeriodofWarranty - 5 Y
ProductName - Neomounts toolbar desk mount
Short summary - Neomounts by Newstar Desk Mount Toolbar for up to three 10-24" monitor screens - Silver
ShortSummaryDescription - Neomounts toolbar desk mount, Clamp, 10 kg, 25.4 cm (10"), 61 cm (24"), 100 x 100 mm, Silver
Stand/mount type - Other
Tilt - No
Title - Neomounts toolbar desk mount
Turn - No
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=FPMA-DTB100
VESA-standard, mm - 75 x 75
VESA-standard, mm - 100 x 100
WarrantyInfo - 5 year
Weight - 7.320000

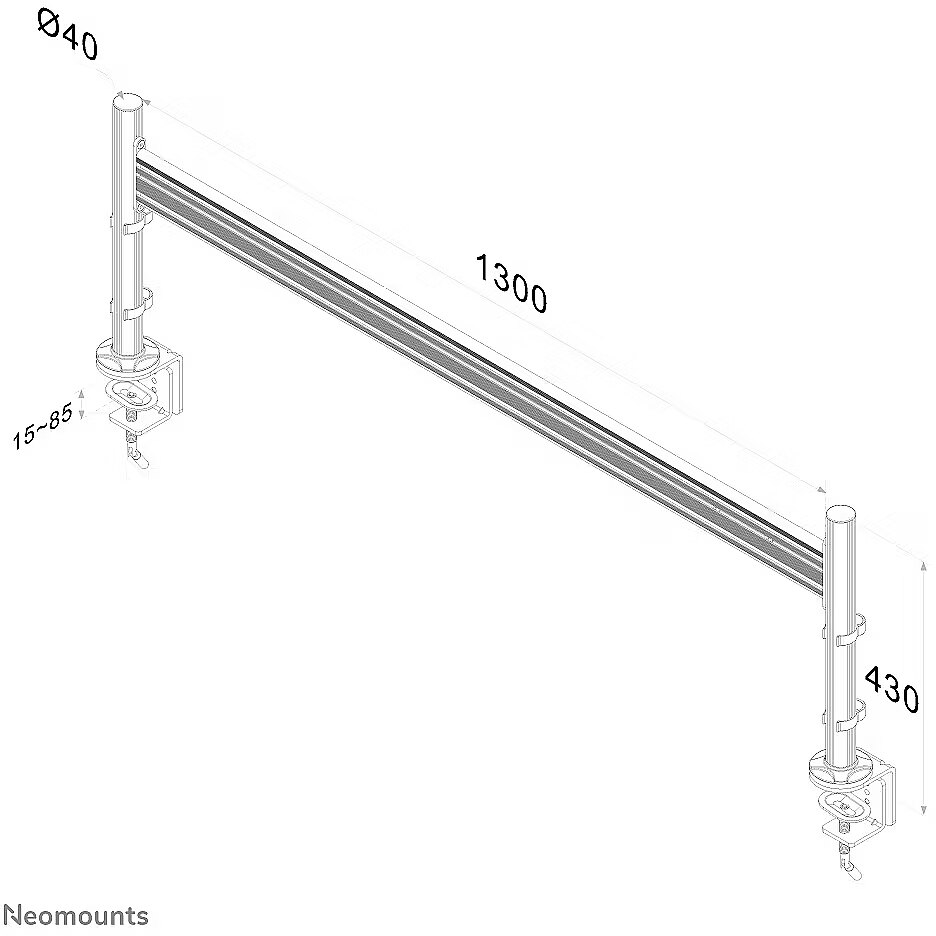

Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 420 mm
Wheels - No
Width - 165.000000
