Accessories included -
ARTIKEL1 - EATON EATS16
ARTIKEL2 - .
Breite - 0.38
Chassis type - Rack
Color - Black
Connectors - RS-232 (COM)

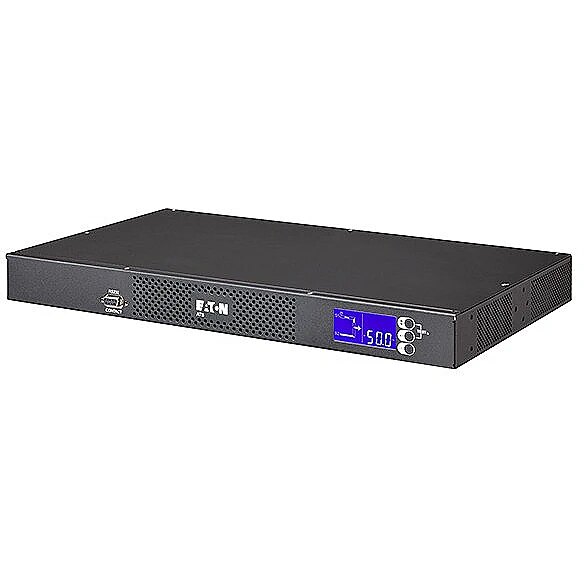

Description - EATON ATS 16
Eaton ATS offers an inexpensive solution for customers wishing to add redundant power to network devices such as switches and routers. The automatic power switch will provide power from 2 different sources. If one power source fails, the backup source will be connected uninterrupted to the connected equipment. Eaton ATS can be connected to multiple devices while saving on the cost of using expensive redundant power supplies.
Main features:
- Provides redundancy for IT equipment
- An alternative to expensive redundant input power supplies
- Compact 1U rack housing
- Unbreakable switching from one power source to another

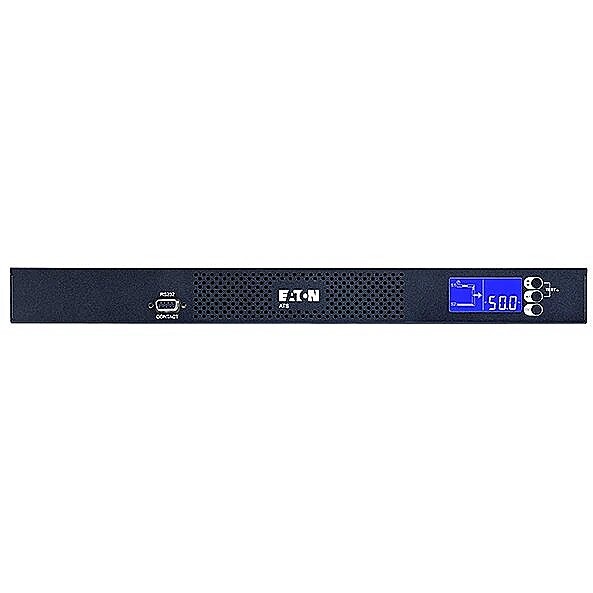

- LCD display - reading measurements and basic configuration settings
Designation - CE+WEEE
dimension depth - 570 mm
dimension height - 130 mm
Dimensions - 43 x 430 x 250 mm
dimension weight - 5000 g
dimension width - 390 mm
ean - 743172079404
EANCode - 0743172079404
Environment requirements - - Operating temperature: 0 - 40 degrees Celsius
- Storage temperature: -25 to 55 degrees C
- ambient humidity: 20 - 85%
- Storage environment humidity: 0 - 90%
- Height: up to 2000 m n.p.m.
GRUPPE1 - Power Protection
GRUPPE2 - Power Equipment Accs
guarantee - 24
guarantee_type - external
HERSTELLER - EATON
Hold-up time (maks) - 8 ms
HSTNUMMER - EATS16
Input power ports - IEC-C20
Laenge - 0.58
name - EATS16 Network power switch ATS 16
No. of batteries - 0
Number of phases input - 1 (230V)
Other features -

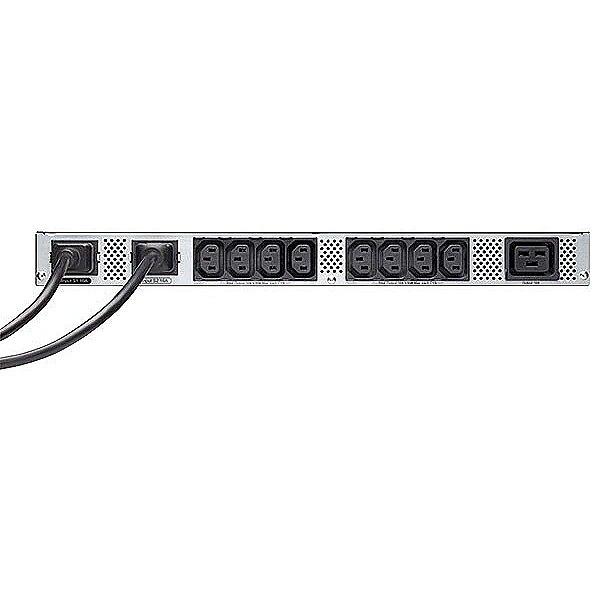

Output power ports - 1 x IEC-C19
Output power ports - 8 x IEC-C13
producer - Eaton
Software -
Special functions - LCD user interface
Stck_Kart - 1
Stck_Pal - 4
Storno - Y
vendpn - EATS16
Weight - 3.3 kg
