Accessories included -
Brand - ICY BOX
BrandPartCode - 60509
Category - Storage Drive Enclosures
Category 1 - Gehäuse
Category 2 - Externe Gehäuse
Category_1 - Computers and Laptops
Category_2 - Laptop - Accessories
Color - Gray
Connectors - 1 x USB (Type C)
Description - External Type-C aluminium enclosure for M.2 NVMe SSD Features: High-grade aluminium with innovative heatsink design Interface to host computer: USB 3.1 (Gen 2) Type-C, up to 10 Gbit/s Supports PCIe 3.0 x2 data transfer rates of up to 1000 megabyte per second M-Key socket for NVMe SSDs, 22x 30/42/60/80 mm Provides an additional patented heatsink and thermal pad inside Activation of write protection via switch LED for power, access and write protection Supports Windows, macOS
Design - LED indicators - Yes
Design - Material - Aluminium
Design - Product colour - Grey
Design - Product type - SSD enclosure
Designation - CE+WEEE
dimension depth - 30 mm
dimension height - 220 mm
Dimensions - 105 x 40 x 15 mm
dimension weight - 210 g
dimension width - 100 mm
ean - 4250078168911
EAN - 4250078168911
EAN_code - 4250078168911
Form factor (width) - M.2
Form factor (width) - M.2 2230
Form factor (width) - M.2 2242
Form factor (width) - M.2 2260
Form factor (width) - M.2 2280
GTIN - 4250078168911
guarantee - 24
guarantee_type - normal
HDD interface - M.2
Logistics data - Harmonized System (HS) code - 84718000
Logistics data - Products per master (outer) case - 40 pc(s)

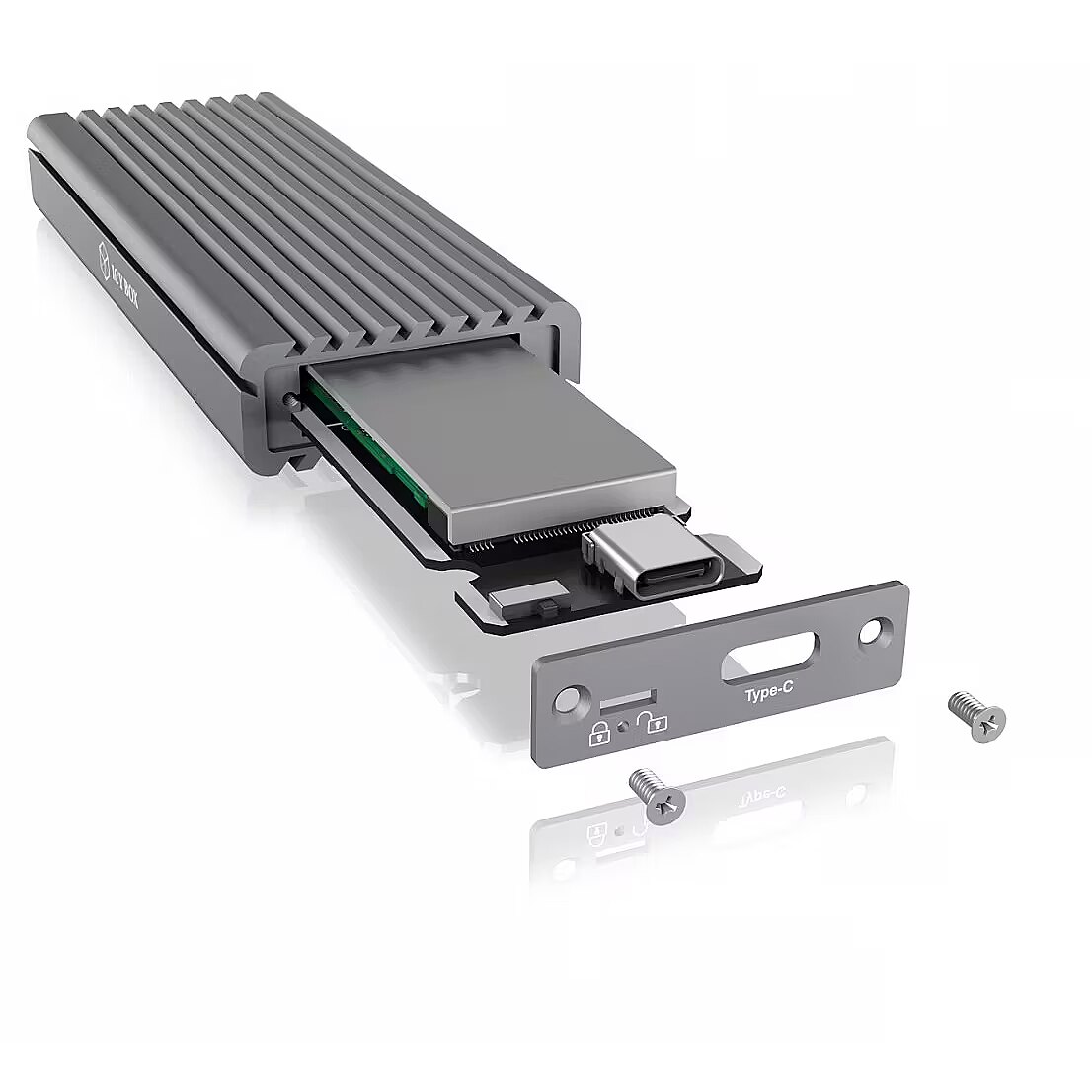

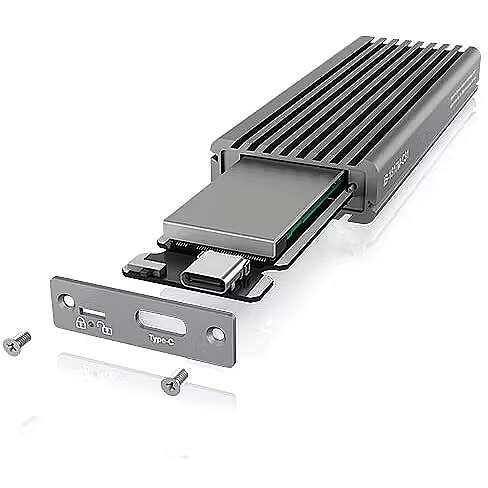

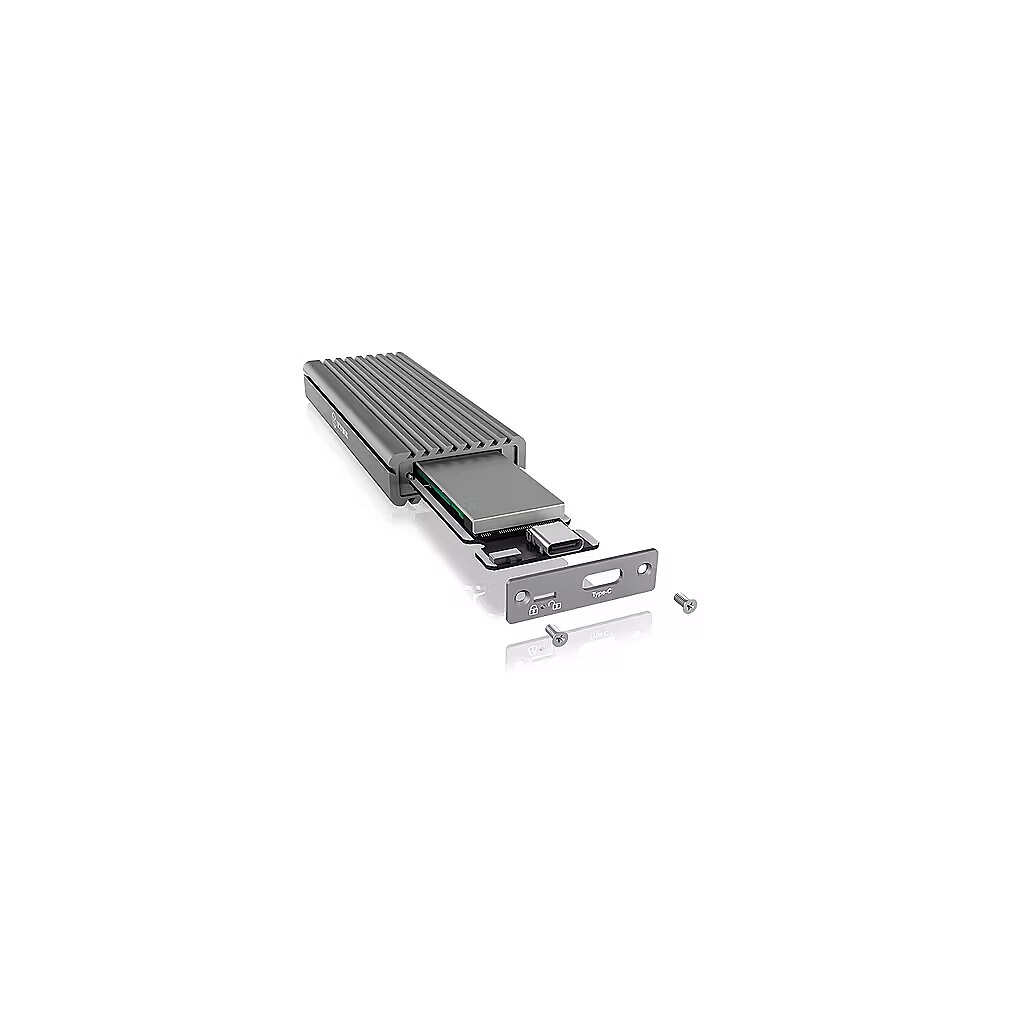

LongDesc - Keep it coolThe patented cooling plate transfers the resulting heat from the SSD to the housing and cools the SSD optimally. This prevents the early reduction of the transfer rate to protect from overheating. With the IB-1817M-C31, data can be sent permanently from A to B at a maximum transfer rate of up to 10 Gbit/s.Time is valuableThe IB-1817M-C31 is compatible with M.2 cards of 30, 42, 60 and 80 mm length, operating system-independent and suitable for a variety of applications such as high-speed storage, cloning a drive or running a mobile operating system. All this happens with a data transfer rate with up to 1000 Mb per second. Compared to data transfer with a SATA drive, a data volume of 50 gigabytes is now transferred in 50 seconds instead of 1:36 minutes.Click - SafeWith the IB-1817M-C31, sensitive data on the installed M.2 SSD can be protected from changes by a simple switch. The write protection switch can be moved to the desired position using the supplied mini tool and a small hand movement. Click - safe.
LongProductName - Enclosure for 1x NVMe with USB 3.1 (Gen 2) Type-C and Type-A interface
LongSummaryDescription - ICY BOX IB-1817M-C31. Product type: SSD enclosure. Number of storage drives supported: 1, Storage drive size: M.2, Supported storage drive interfaces: PCI Express 3.0. Data transfer rate: 10 Gbit/s. Product colour: Grey. USB connector type: USB Type-C
Manufacturer - Icy Box
Manufacturer - ICY BOX
Manufacturer_code - 60509
MPN - IB-1817M-C31
name - Enlosure IB-1817M-C31 M.2 NVMe SSD
Name - ICY BOX IB-1817M-C31 Externes USB-C 3.1 Gehäuse für M.2 NVMe SSD Aluminium
Name - ICY BOX IB-1817m-C31, drive enclosure (gray)
Other features -
Packaging content - Cables included - USB Type-A to USB Type-C, USB Type-C to USB Type-C
Packaging content - Quick installation guide - Yes
Packaging content - Screwdriver included - Yes
Packaging content - Screws included - Yes
Performance - Chipset - JMS583
Performance - Country of origin - Taiwan
Performance - Data transfer rate - 10 Gbit/s
Performance - Plug and Play - Yes
Ports & interfaces - USB connectivity - Yes
Ports & interfaces - USB connector gender - Female
Ports & interfaces - USB connector type - USB Type-C
Ports & interfaces - USB ports quantity - 1
Ports & interfaces - USB version - 3.2 Gen 2 (3.1 Gen 2)
Power - Power source type - USB
producer - IcyBox
ProductName - IB-1817M-C31
ShortSummaryDescription - ICY BOX IB-1817M-C31, SSD enclosure, M.2, PCI Express 3.0, 10 Gbit/s, USB connectivity, Grey
Storage - Number of storage drives supported - 1
Storage - NVMe - Yes
Storage - Storage drive size - M.2
Storage - Supported storage drive heights - 22 mm
Storage - Supported storage drive interfaces - PCI Express 3.0
Storage - Supported storage drive lengths - 30,42,60,80 mm
Stuff - Aluminum
Supported operating systems - Mac OS
Supported operating systems - Windows
System requirements - Mac compatibility - Yes
System requirements - Mac operating systems supported - Yes
System requirements - Windows operating systems supported - Yes
Technical_details - Form factor: M.2 2280, M.2 2260, M.2 2242, M.2 2230 Connection internal: M.2 (PCIe 3.0 x2, NVMe) Connection external: USB-C 3.1 RAID level: not available Fan(s): not available Dimensions: 105x40x15mm Weight: 100g Colour: grey Special features: aluminum housing, incl. USB cable (USB-C), incl. USB cable (USB-A), write protect switch Note: USB nomenclature
Title - ICY BOX IB-1817M-C31 SSD enclosure Grey M.2
Type - External enclosure
URL - https://icybox.de/en/product.php?id=71
vendpn - IB-1817M-C31
WarrantyInfo -
Weight - 0,22
Weight - 0.1 kg
Weight - 0.217
Weight & dimensions - Cable length - 0.2 m
Weight & dimensions - Depth - 105 mm
Weight & dimensions - Height - 15 mm
Weight & dimensions - Package depth - 25 mm
Weight & dimensions - Package height - 200 mm
Weight & dimensions - Package weight - 217 g
Weight & dimensions - Package width - 100 mm
Weight & dimensions - Weight - 100 g
Weight & dimensions - Width - 40 mm
