Brand - ICY BOX
BrandPartCode - 20316
Category - Drive Bay Panels
Category 1 - Gehäuse
Category 2 - Externe Gehäuse
EAN - 4250078188520
Features - Data transfer rate - 6 Gbit/s
Features - Fan diameter - 4 cm
Features - HDD interface - SATA, SATA II, SATA III, Serial Attached SCSI (SAS)
Features - HDD size - 2.5"
Features - Hot-swap - Yes
Features - Key lock - Yes
Features - LED indicators - Access, Power
Features - Material - Aluminium
Features - Number of fans - 2 fan(s)
Features - Number of HDDs supported - 4
Features - Product colour - Black
Features - Size (imperial) - 13.3 cm (5.25")
Features - Supported storage drive heights - 7,9,9.5,12,12.5,12.7,15 mm
Features - Type - Storage drive tray
GTIN - 4250078188520
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 84733080

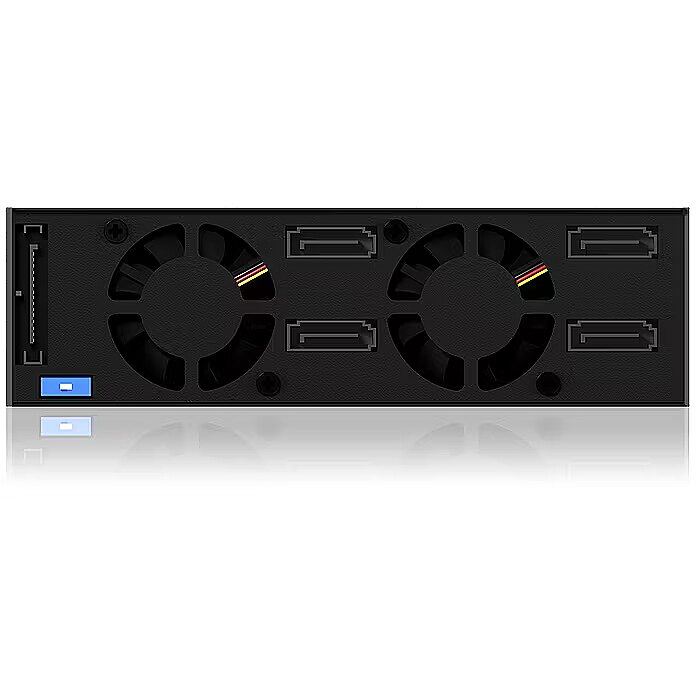

LongDesc - Now for the little onesWe are not only offering a backplane solution for 3.5", now there is a solution for 2.5" HDDs and SSDs. It can hold 4 HDDs with a maximum height of 15 mm.An elaborated systemTo prevent overheating of the HDDs and SSDs at full duty, the aluminium case provides a good heat dissipation and is a perfect match wit the two 40-mm Fans.Fast transport... is assure by SATA III and a SAS chipset. Due to Sata Power no extra powerline is needed for the Backplane. The status led can be switched off. If the HDDs fail or overheat there is an acoustic alarm signal.

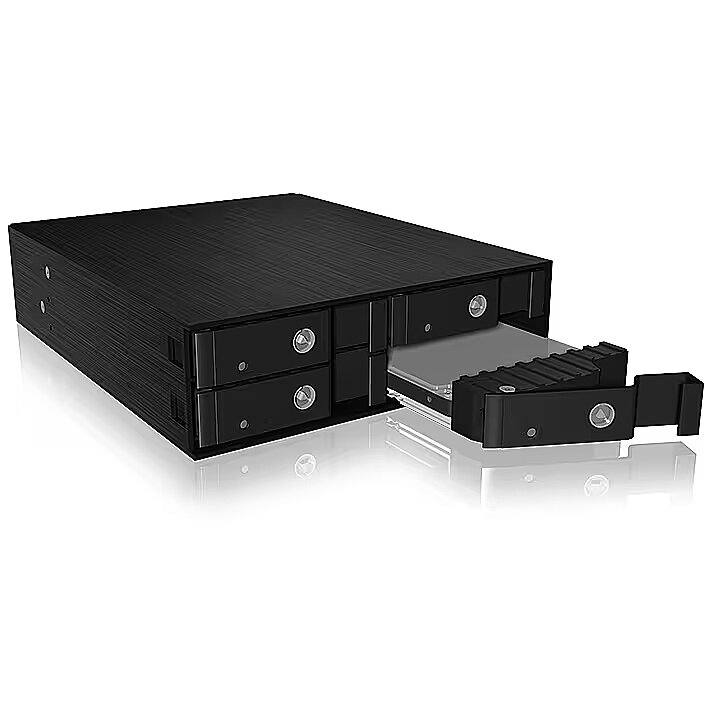

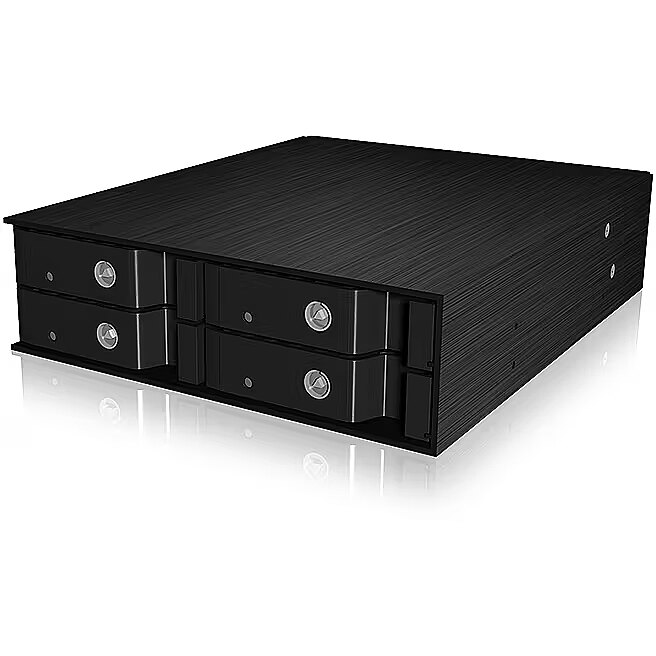

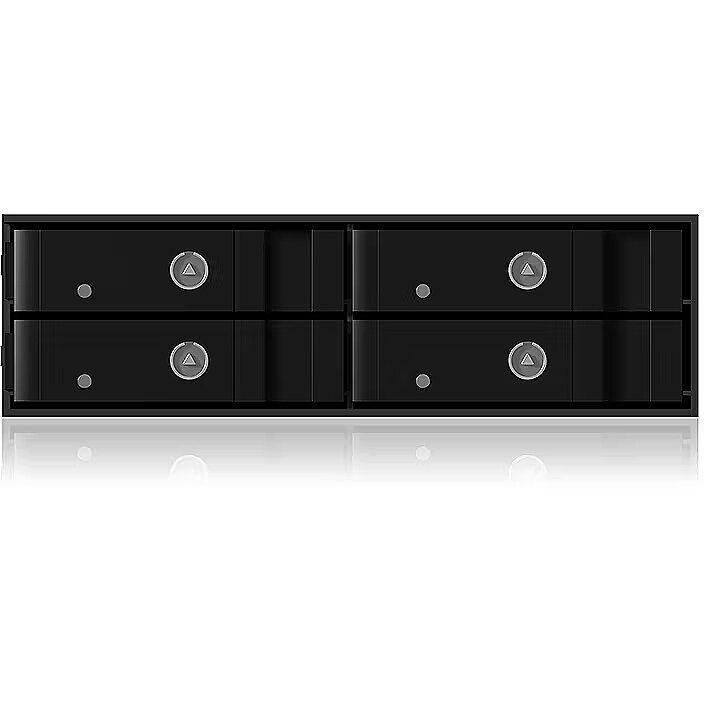

LongProductName - Backplane for 4x HDD/SSD for 1x 5.25" bay with lock and two fans
LongSummaryDescription - ICY BOX IB-2240SSK. Size (imperial): 13.3 cm (5.25"), Type: Storage drive tray, Product colour: Black. Width: 146 mm, Depth: 181 mm, Height: 42 mm. Package width: 152 mm, Package depth: 197 mm, Package height: 46 mm. Quantity per pack: 1 pc(s), Number of lock keys included: 2 pc(s). Country of origin: China
Manufacturer - ICY BOX
MPN - IB-2240SSK
Name - ICY BOX IB-2240SSK Backplane f. 4x
Packaging content - Manual - Yes
Packaging content - Number of lock keys included - 2 pc(s)
Packaging content - Number of screws - 28
Packaging content - Quantity per pack - 1 pc(s)
Packaging content - Screws included - Yes
Packaging data - Package depth - 197 mm
Packaging data - Package height - 46 mm
Packaging data - Package weight - 830 g
Packaging data - Package width - 152 mm
Ports & interfaces - External SATA ports quantity - 4
ProductName - IB-2240SSK
ShortSummaryDescription - ICY BOX IB-2240SSK, 13.3 cm (5.25"), Storage drive tray, Black, 2.5", SATA, SATA II, SATA III, Serial Attached SCSI (SAS), Aluminium
System requirements - Linux operating systems supported - Yes
System requirements - Mac compatibility - Yes
System requirements - Mac operating systems supported - Yes
System requirements - Windows operating systems supported - Yes
Title - ICY BOX IB-2240SSK 13.3 cm (5.25") Storage drive tray Black
URL - https://icybox.de/en/product.php?id=354
WarrantyInfo -
Weight - 0.76
Weight & dimensions - Depth - 181 mm
Weight & dimensions - Height - 42 mm
Weight & dimensions - Weight - 700 g
Weight & dimensions - Width - 146 mm
